Professional Screw Clamp with Vertical Action Toggle, 28 mm [Open Box]

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

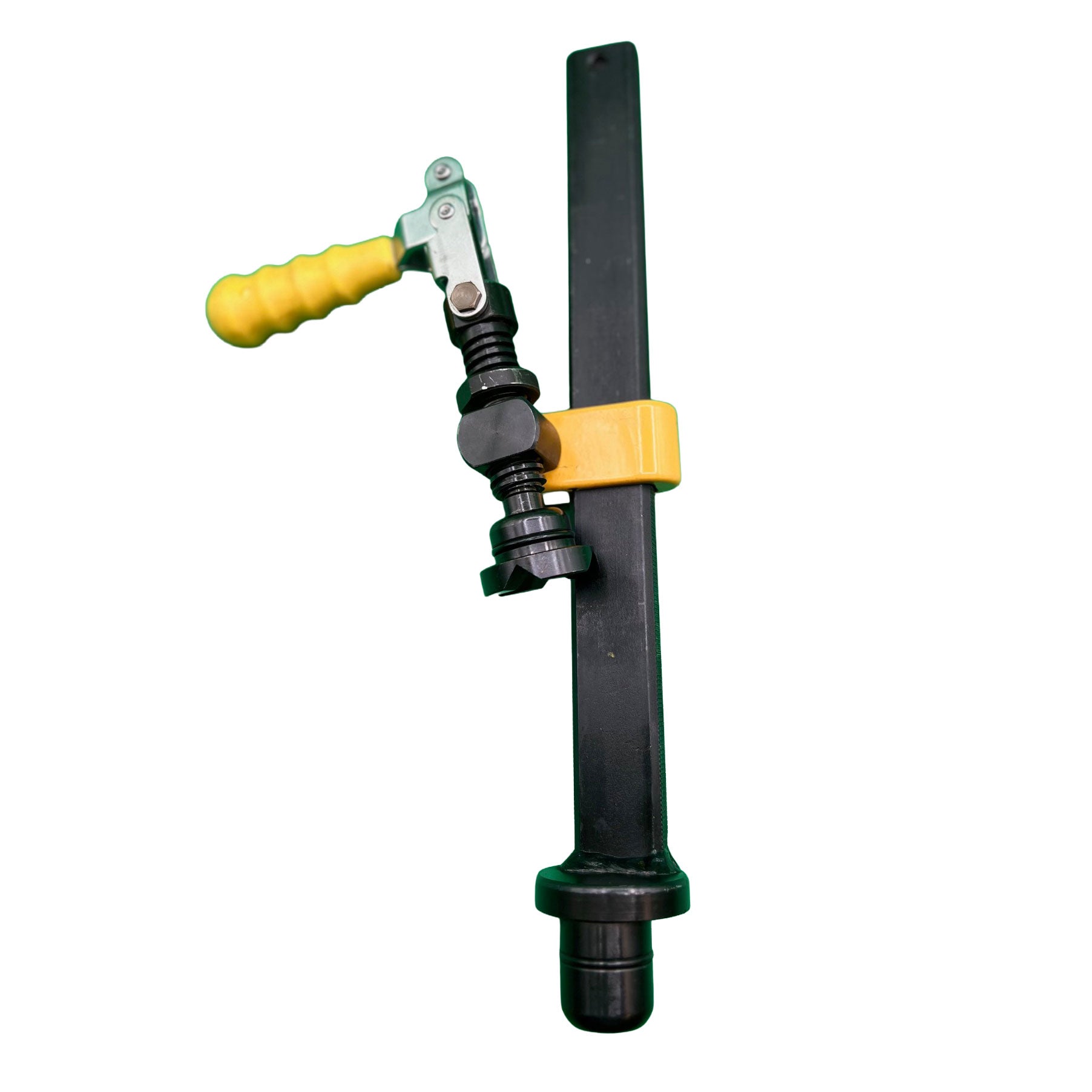

The Siegmund 2-280611.1: Professional Screw Clamp with Vertical Action Toggle  with vertical clamp ensures quick and effortless clamping. Maximum clamping stability is achieved as a result of vertical clamping from above. The special feature of this screw clamp is the stronger clamping stroke in comparison to conventional fast tension clamps.

With the handwheel on the cast iron cross, the height can be adjusted quickly.

The Vertical Bar is hardened. To fasten every kind of welding part, the prisms are interchangeable.

Specs and Features:
- Item No. 2-280611.1
- Maximum Holding Force: 2.5kN
- Ball Spindle Diameter: 16mm (0.63")
- Width: 222mm (8.14'')
- Height: 310mm (12.20'')
- Weight: 7.27 Ibs.

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

The Siegmund Professional Screw Clamp (Nitrided) replaces conventional 45° or 90° screw clamps. This Screw Clamp sets new standards because of its infinitely variable rotatability from 0° - 360°.

The dimensions of the flat bar in use are 30 x 14 mm.

A long lifetime and efficiency is guaranteed by the nitrided material, as well as the option to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted quickly.
Through the countersunk hexagon socket, located at the top of the handle, the force of the clamp can be adjusted precisely by a torque wrench. Additionally, the vertical bar is reinforced.

Specs and Features:
- Ball Diameter Spindle: 16 mm (0.63")
- Maximum Holding Force: 5 kN
- Height: 310 mm (12.20'')

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

Professional Screw Clamp, enables fast, powerful and exact clamping with a variety of welding elements. Achieve maximum efficiency through time-saving, quick adjustments and effortless disassembly. For individual modification, we offer special lengths of horizontal and vertical bars. The dimensions of the horizontal bar are 20 x 10 mm. The dimensions of the vertical bar are 20 x 13 mm. Additionally, the vertical bar is reinforced.

With the new handwheel on the cast iron cross, the height can be adjusted within seconds.

A long lifetime and efficiency is guaranteed by the high-quality material, as well as the option to order spare parts individually.

‐ Interchangeable prism
‐ Ball diameter spindle 8 mm
‐ Trapezoid thread of spindle 12 x 3 mm
‐ Vertical Bar reinforced

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

The Standard Screw Clamp adjusts by hand along the vertical and horizontal axis for precise placement anywhere on the table.

The Basic Pipe Clamp Universal features horizontal and vertical adjustment as well as pivoting action at the spindle head.  An adjustment ring at the base allows it to sit in a lower profile during welding as the round bar sits below the table or clamping square surface.

Spindle and bushings can be removed by hand and inserted into system holes for clamping with stops and squares.

Specs and Features:
- Vertical Bar Height: 310 mm (12.2")
- Horizontal Bar Length: 200 mm (7.9")
- Clamping Range: 40 mm (1.6") - 165 mm (6.5")
- Maximum Load: 5kN
- Ball Diameter Spindle: 16 mm (0.63")
