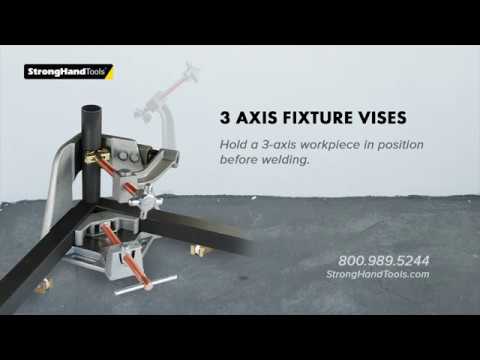

Cuenta con tornillos de acción rápida y brazo “oscilante” . Mantiene una pieza de trabajo de 3 ejes en posición antes de soldar. Mantiene las piezas en posición durante el enfriamiento para minimizar la distorsión debido a la contracción.
Patente de EE. UU. 6860475
If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.
Press the Quick Acting Button (WAC35D & WAC45 models only) to allow the threaded screws to slide in and out for fast setup. (Release the button to re-engage the threaded screw for tightening.)
V-Pad and Quick Acting Button on the “swing-away” arm.
Use FREE Magnetic Rest Blocks 1″, 1-1/4″ and 2″ heights to support and stabilize long stock!
Facilities Department (C/O Bruce)
| Part No. | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | H (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| WAC35-SW | 1.6 | 0.4 | 3.8 | 4.8 | 2.5 | 1.4 | 8.3 | 24.0 |
| WAC45-SW | 2.0 | 0.4 | 5.0 | 5.2 | 4.0 | 2.5 | 9.5 | 35.0 |

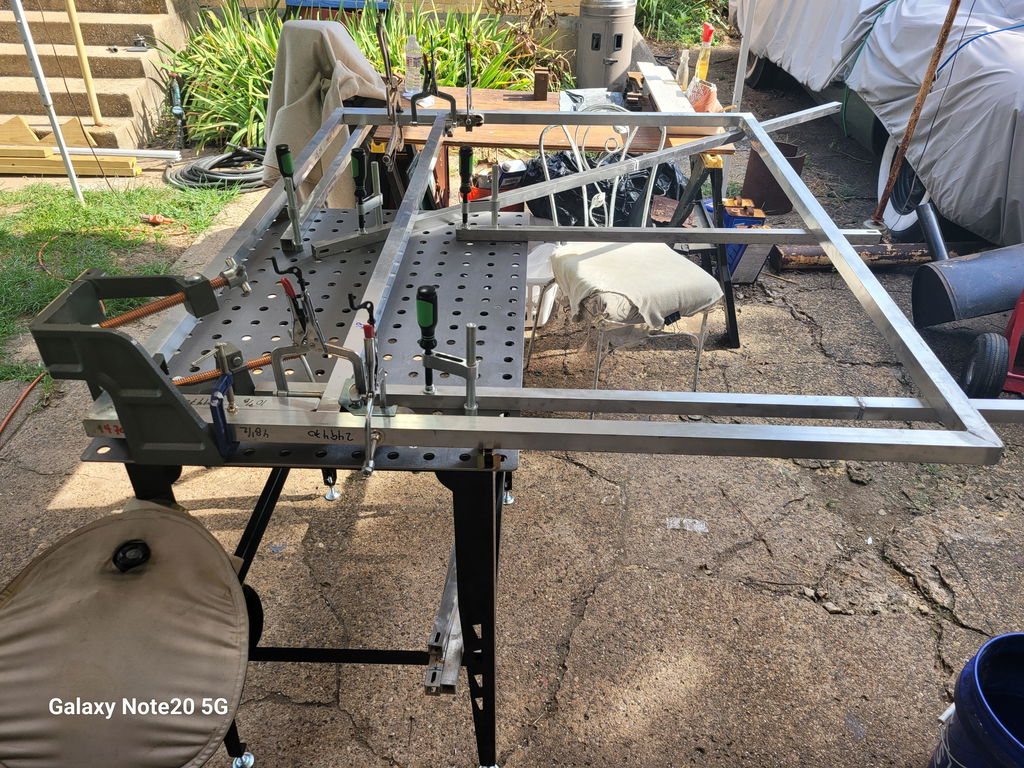

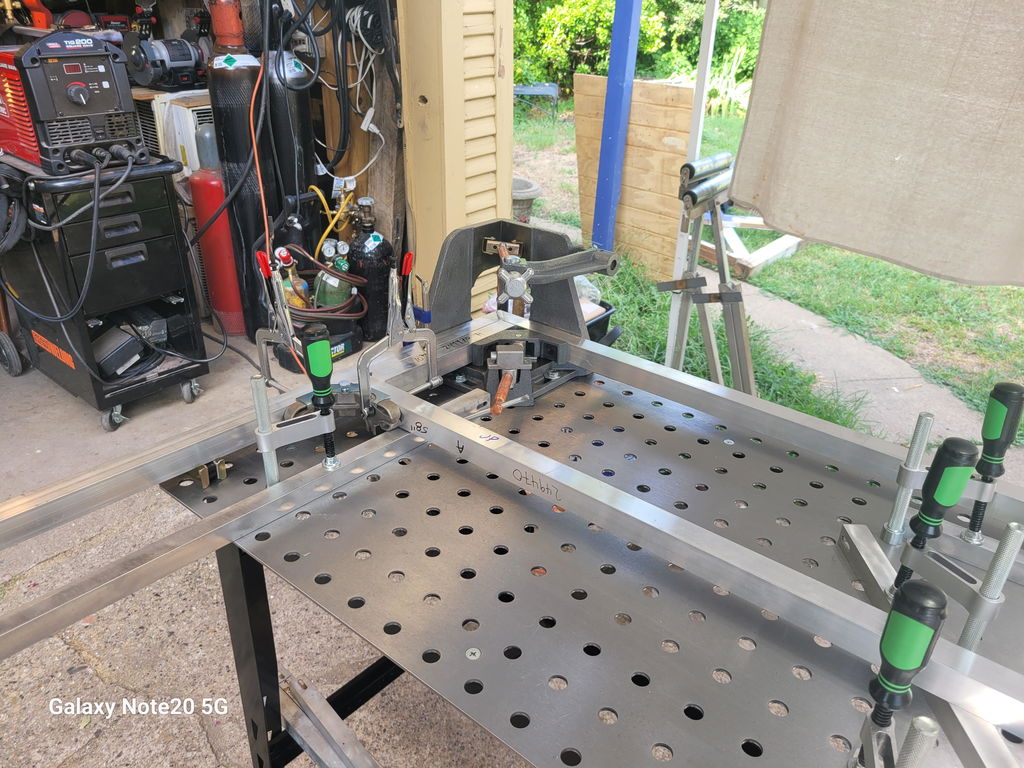

I had been looking for angle fixtures to improve the squareness of the fabrications that I have been doing. I went ahead and purchased this one (the smaller of the two sizes) and I am incredibly pleased with it. I recently used it to fabricate an aluminum frame of 1.5" x 1.5" square tubing. After I completed the perimeter frame of 48" x 60", it was square to less than 1/8" and that could have been due to the weld cap height on the corner welds. One thing that is not mentioned in the website description is the squareness tolerances for the fixture. I was quite pleased with how close the tolerances are in all dimensions. I am currently looking at other fixture clamps and vises.
