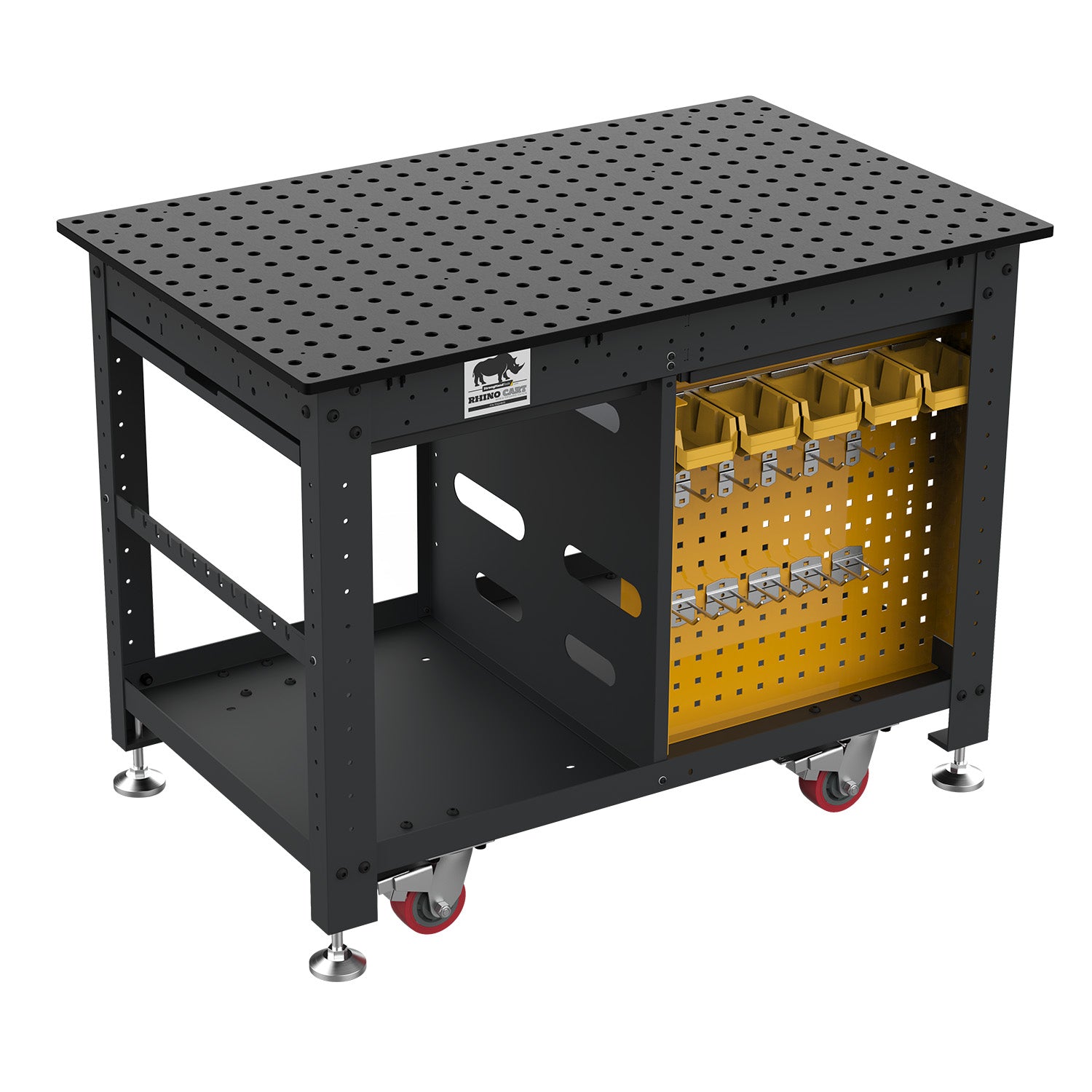

48" x 30" Rhino Cart

Introducing our new Rhino Cart 48" x 30", now available with expanded storage options. Discover the power of customization with our new frame based hole mounting pattern.

Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, CNC precision bored 5/8 inch diameter holes
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"

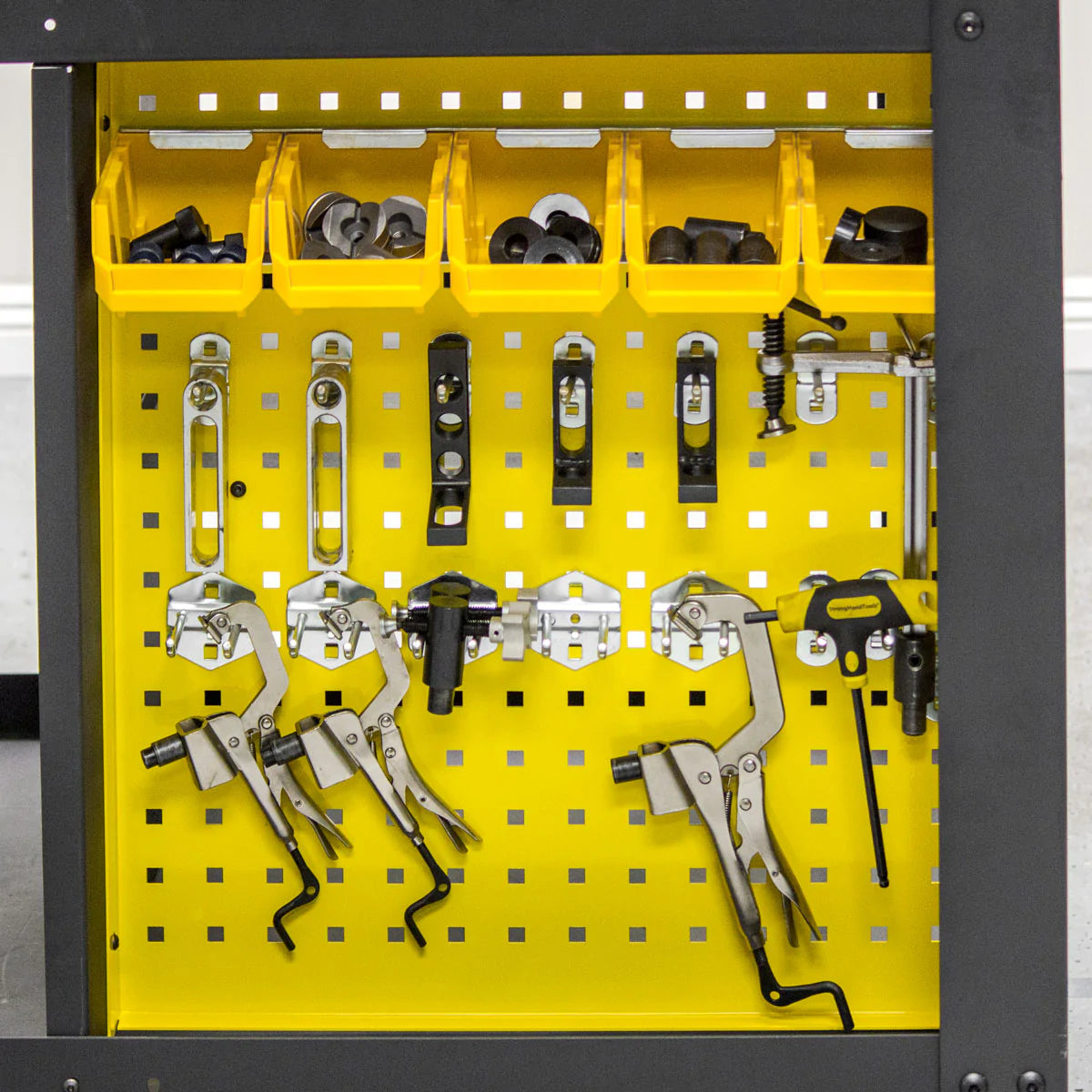

Cargue la imagen en el visor de la galería, yellow pegboard
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, Locking casters and leveling feet
Cargar y reproducir video en Gallery Viewer, Carro Rhino, 48" x 30"
Cargar y reproducir video en Gallery Viewer, Carro Rhino, 48" x 30"
Cargar y reproducir video en Gallery Viewer, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Cargue la imagen en el visor de la galería, Carro Rhino, 48" x 30"
Vendedora BuildPro

Carro Rhino, 48" x 30"

Sku: TD5-4830Q-F3

  • Dimensiones de la mesa: 48" x 30"
  • Altura del marco de la mesa: 4"
  • Planitud de la superficie de la mesa: ±0,015" por 24" x 24"
  • Altura de la mesa: 36"
  • Diámetro del orificio: 5/8"
  • Patrón de cuadrícula: 2" x 2"
  • Capacidad de carga: 1500 lb
 Patente de EE. UU. 9896117
Precio regular $2,061.00
Precio de venta $2,061.00 Precio regular $2,290.00
Rebaja Vendido
Precio unitario
/por
envío calculado al finalizar la compra.
Texto previo al pedido
Seguridad

Propuesta 65 de California : Este producto puede contener sustancias químicas que el estado de California considera que provocan cáncer, defectos congénitos u otros daños reproductivos. Para obtener más información, visite www.P65Warnings.ca.gov

Presupuesto
Archivos CAD
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

View this table in your shop

Rhino Cart

Quickly clamp and fixture at any point on the surface. Accurately setup stock for each new project.

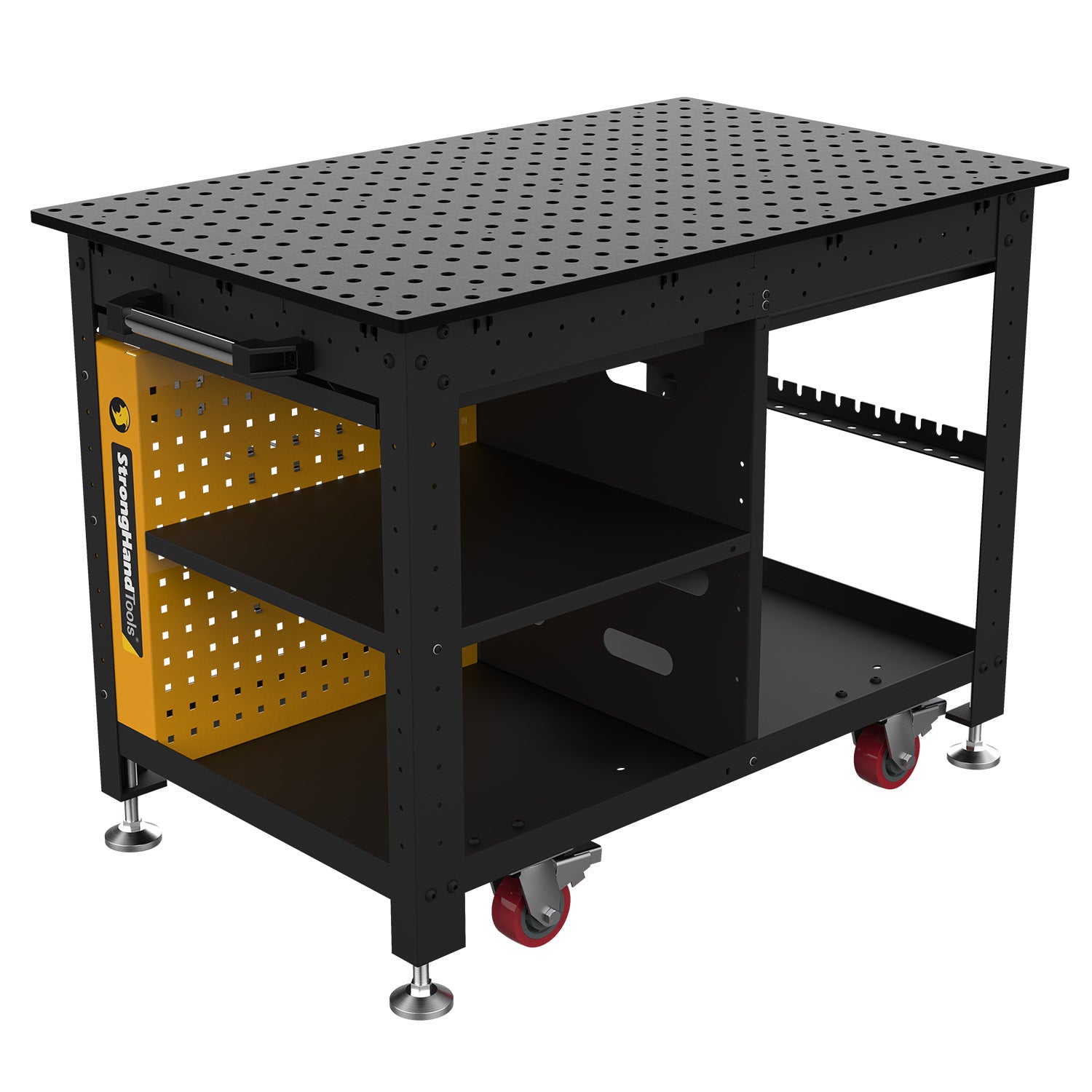

48" x 30" Rhino Cart

Introducing our new Rhino Cart 48" x 30", now available with expanded storage options. Discover the power of customization with our new frame based hole mounting pattern.

At Strong Hand Tools and BuildPro Tables, we value the feedback from our welding community. Your insights created the next generation of Rhino Cart: the F3.

Designed with enhanced features based on your needs, the F3 takes fabrication versatility and convenience to an entirely new level.

Table Details

Part No. TD5-4830Q-F3
Hole Diameter: 5/8"
Grid Pattern: 2" x 2"
Tabletop Size: 48" x 30"
Table top Plate Thickness: 0.630" ±0.004
Table Flatness: ±0.015" per 24" x 24"
Table Height: 36″
Static Loading Capacity: 1,500 LB
Gross Weight: 518 LB

Wholly & Holey Customizable

Tailor Your Rhino Cart To Your Specifications

Every welder has unique needs and F3 Rhino Carts are designed to accommodate them. With enhanced mounting options, you can customize your cart to fit your specific requirements.

These customization options ensure that your Rhino Cart evolves with your projects, providing a tailored solution that meets all your fabrication needs.

Accessory Mounting Holes

7 mm mounting holes on frames and legs allow the adaptation of accessories such as Grinder Storage Rack or Accessory Shelves.

Neat, Clean & Tidy

Keep Your Rhino Workspace Clear with Slag Trays

Maintaining a clean and organized workspace is crucial for fabrication.

 Two slag trays cover the entire width, ensuring that your workspace remains clean and free from debris.



Improved Storage & Organization

Streamline Your Setup with Superior Electrical Access

Say goodbye to tangled cords and cluttered workspaces. The F3 Rhino Carts feature improved electrical access with strategically placed cutouts in the center divider panel beneath the tabletop. This innovation allows for:

  • Easy Electrical Connection: Access electrical outlets and power cords underneath the entire cart without the hassle of wrapping cords around the legs.
  • Organized Workspace: Keep your tools and accessories powered up and neatly organized, reducing downtime and improving workflow.

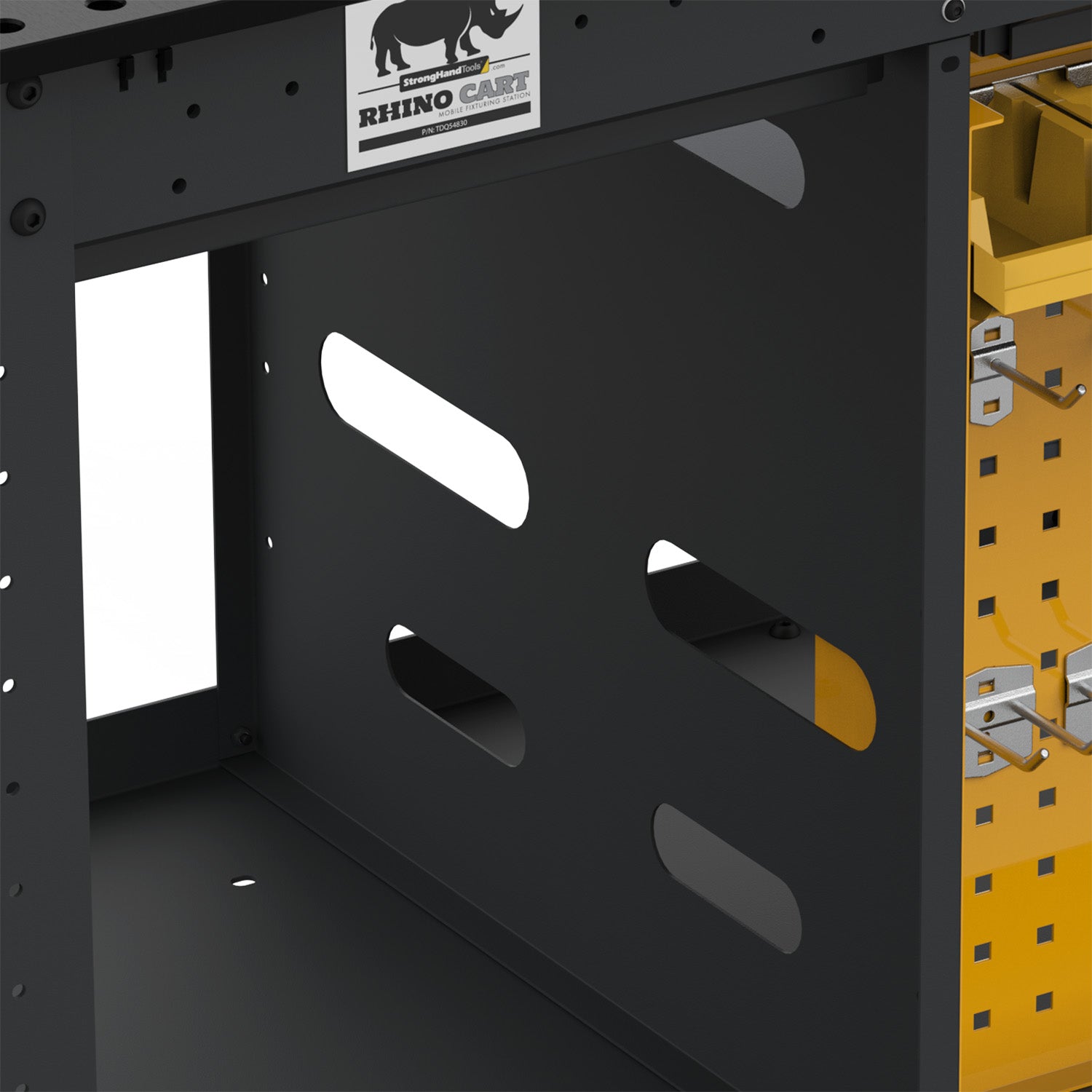

Cable Slots

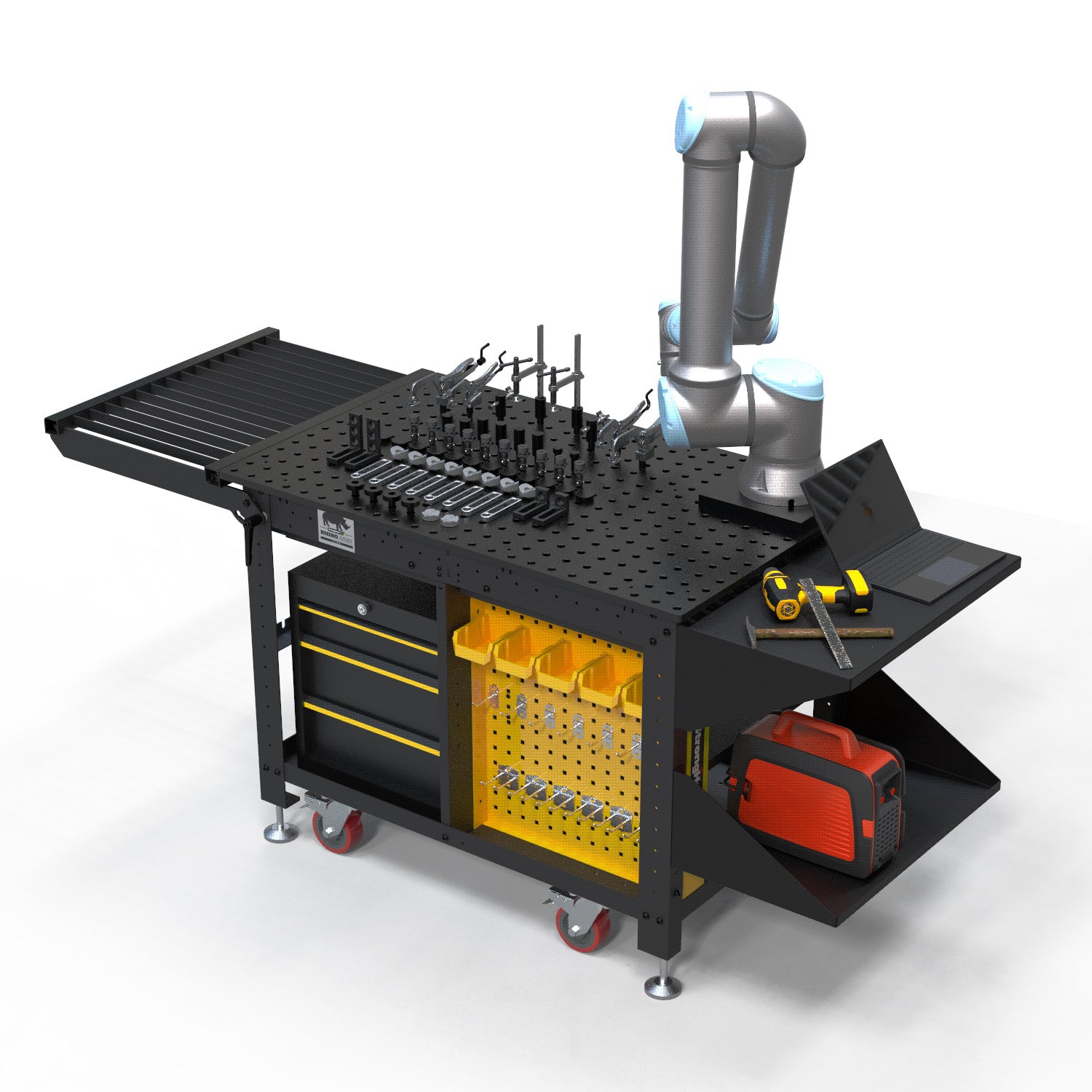

All three new F3 models include cable slots on the divider panel, allowing for tidier cable organization when using the cobot machine.

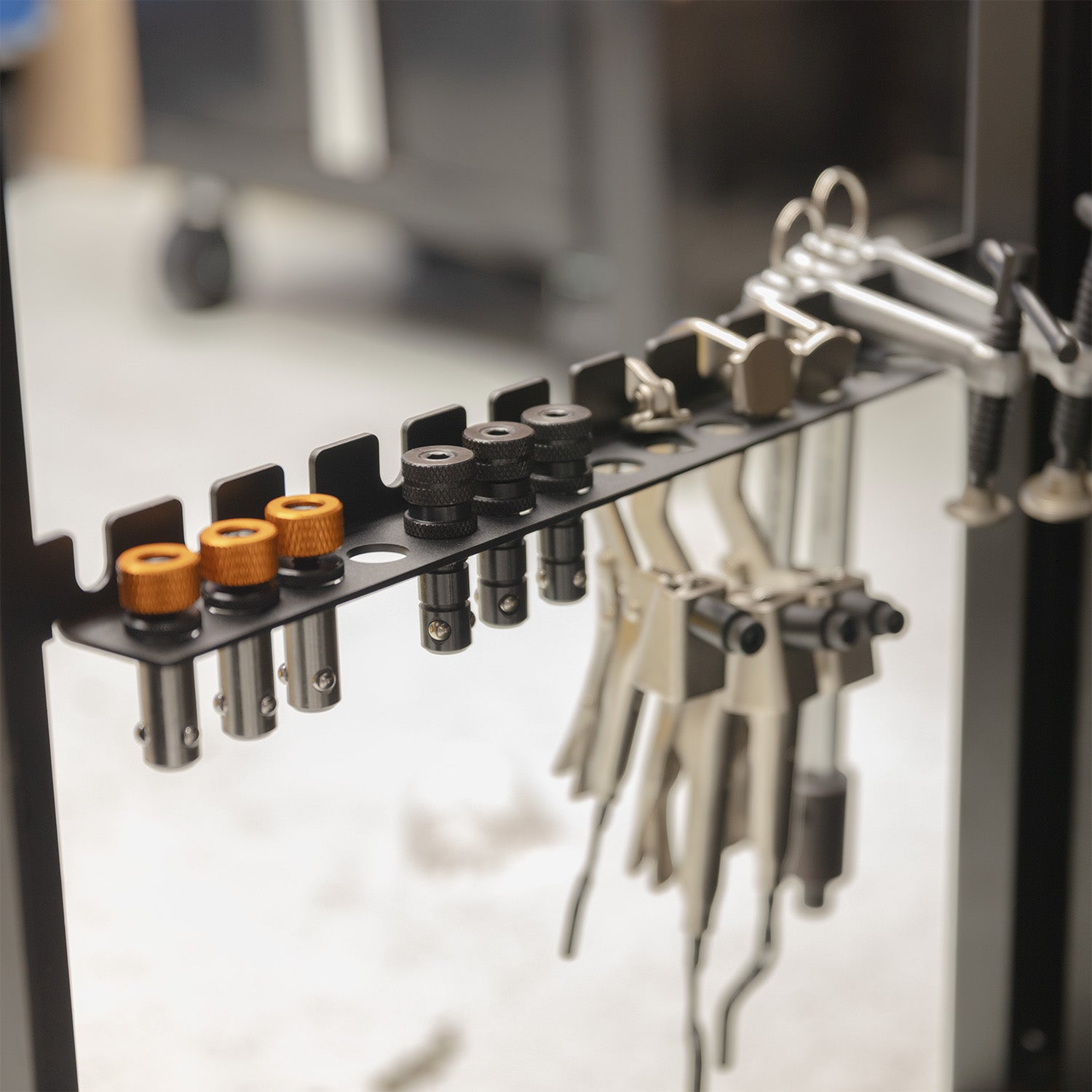

Tool Racks

The storage rack on F3 48" x 30" Rhino Cart now features storage holes for pins, ball locks, and other essential fixturing items.

Consistent Highlights


REVERSIBLE Tabletop

Nitrided and black oxide table plate is reversible. Weld spatter, rust and scratch resistant.

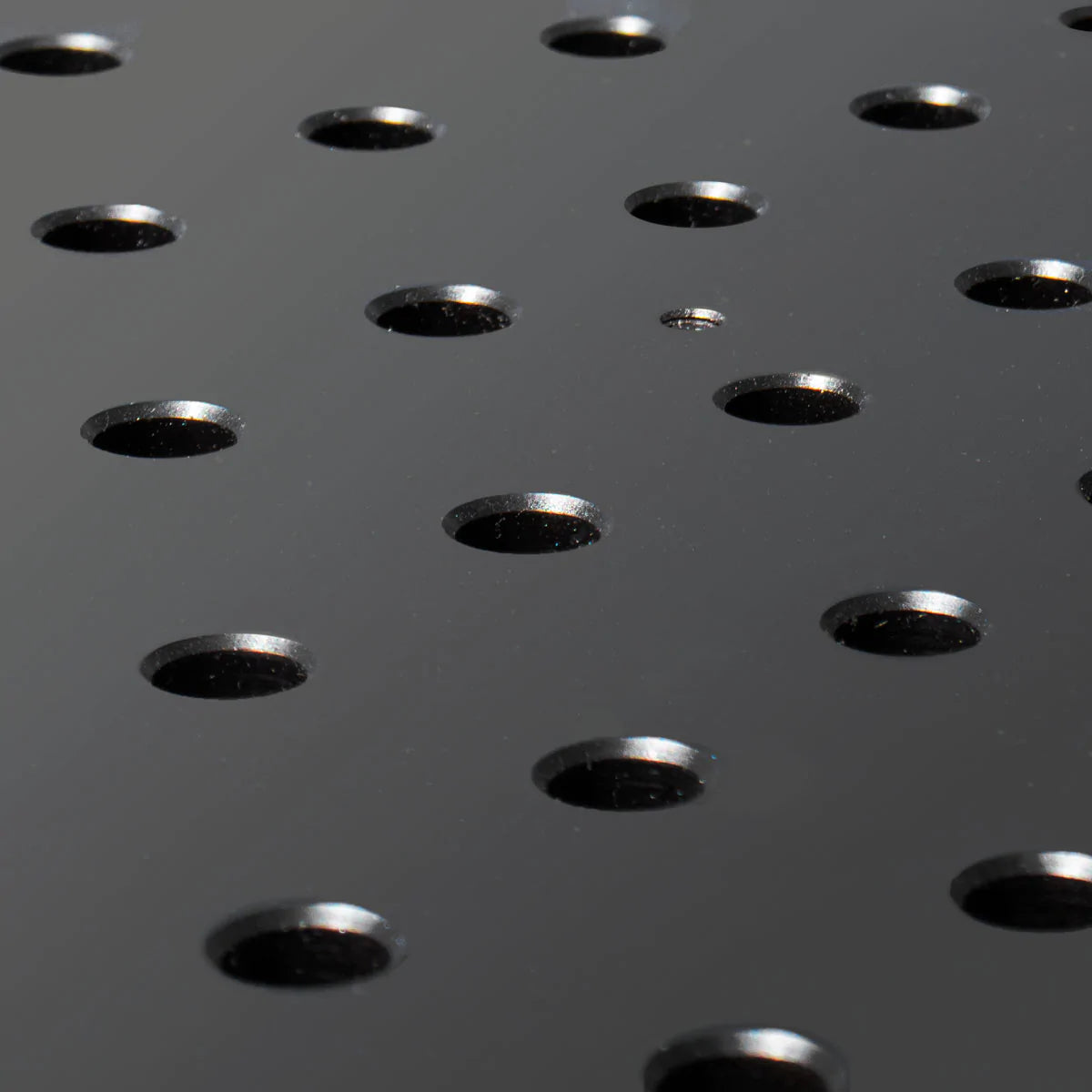

CNC Hole Pattern

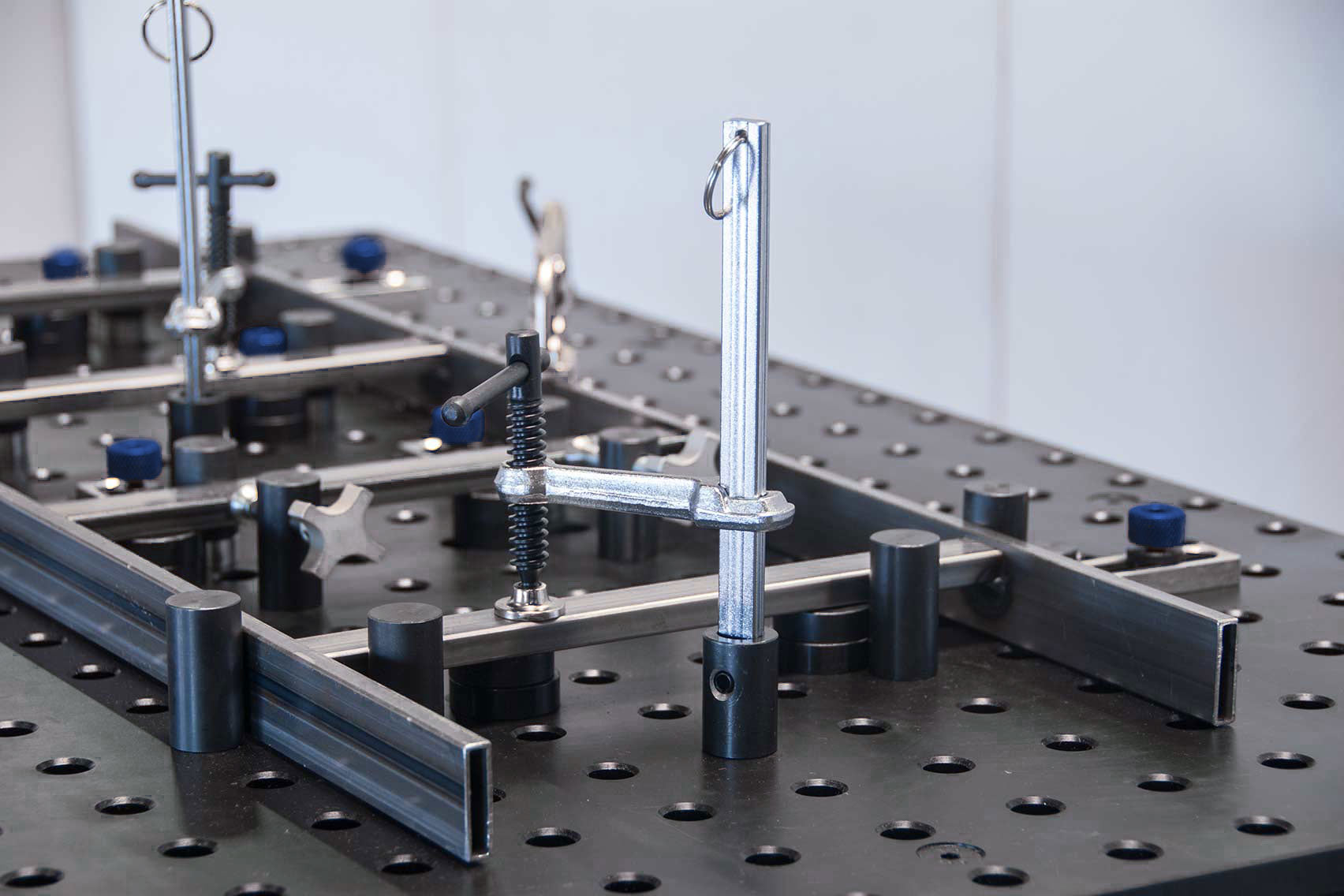

Accurately position parts in CNC precision bored 5/8" diameter holes in 2" x 2" spacing pattern.

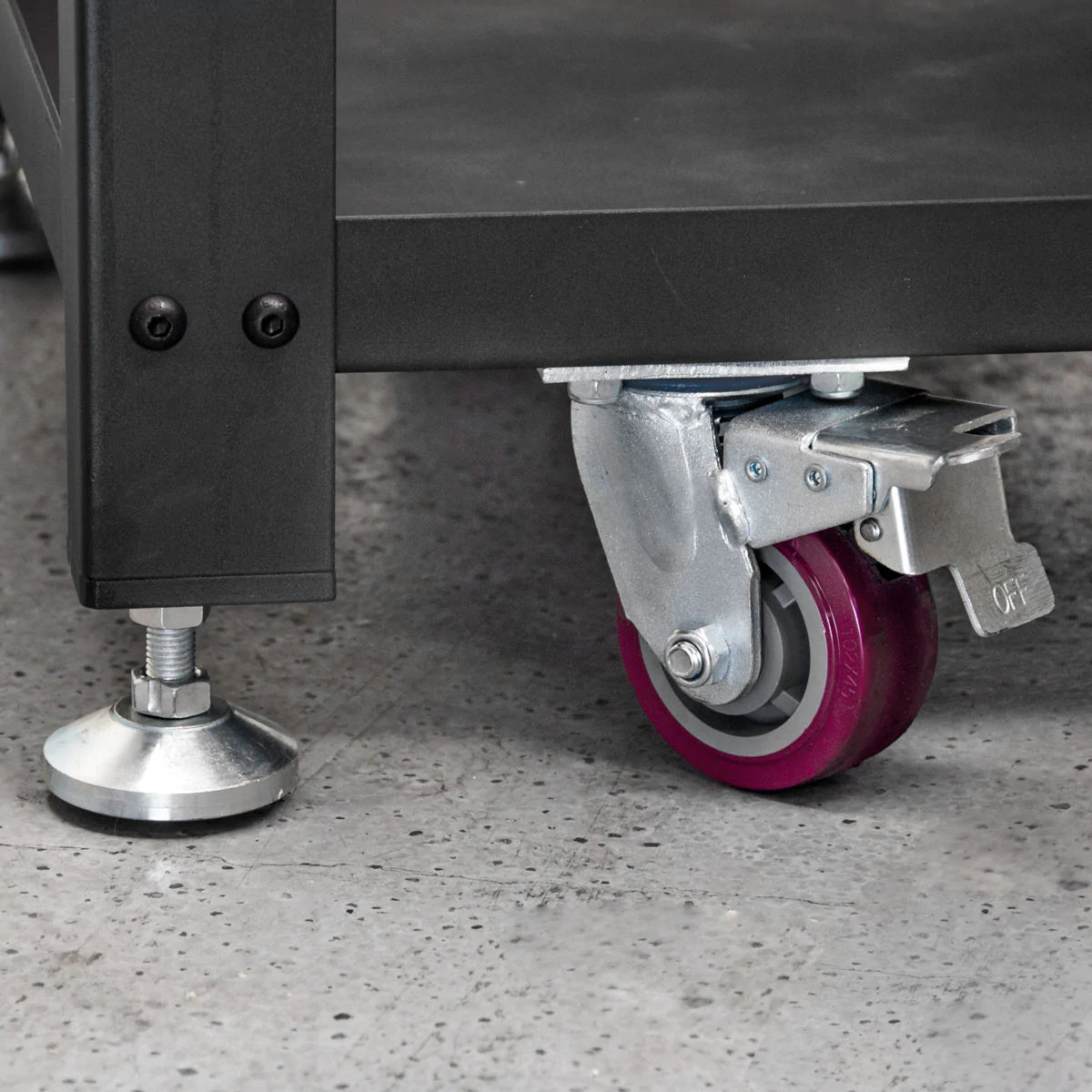

Locking Casters

Steel legs are equipped with four locking casters and leveling feet for mobile or stationary use.

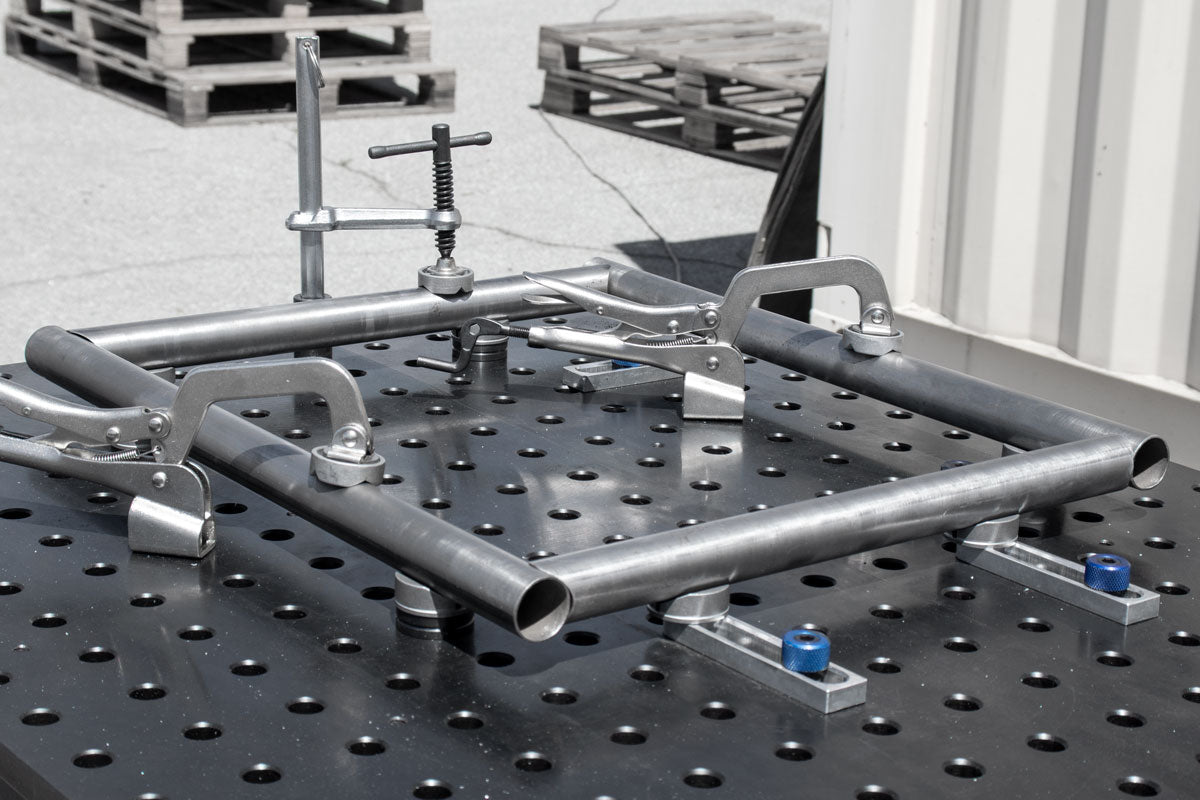

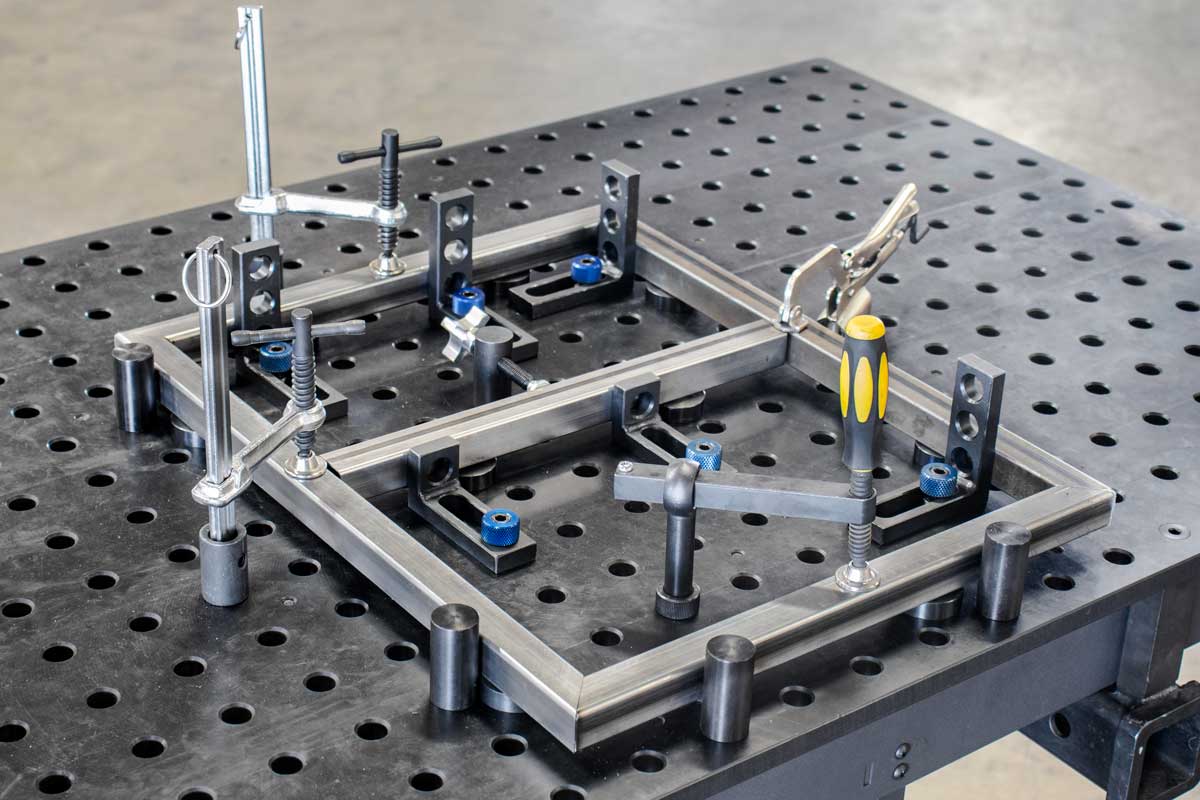

Compatible with 5/8" Fixturing Elements

The Rhino Cart Tabletop is compatible with all MAX Clamps, Components, and Modular Fixturing Kits except Sliding Channel Clamps, Sliding Channel Bases, Slot filler Kit and T-Slot Adapter.

Optional Accessories

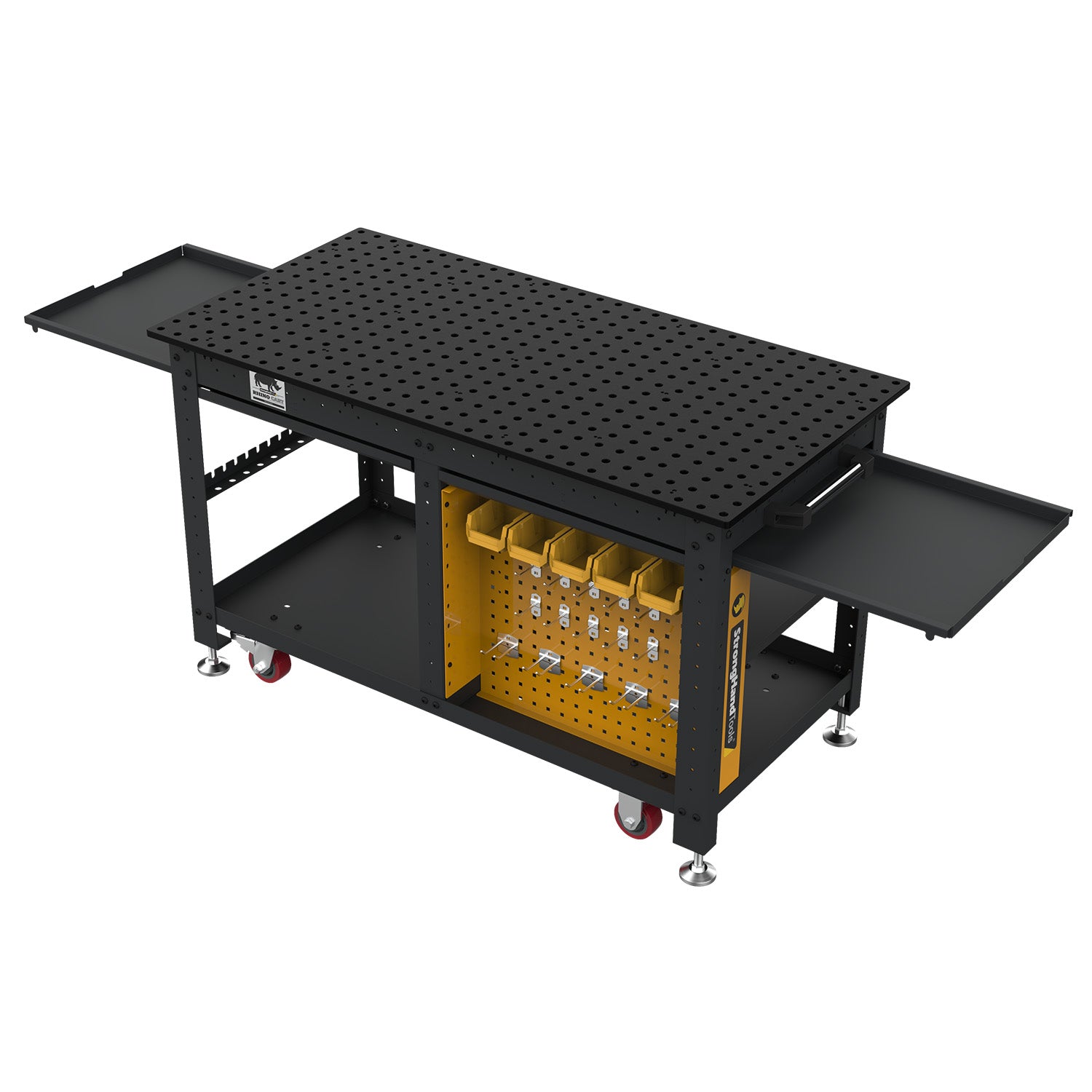

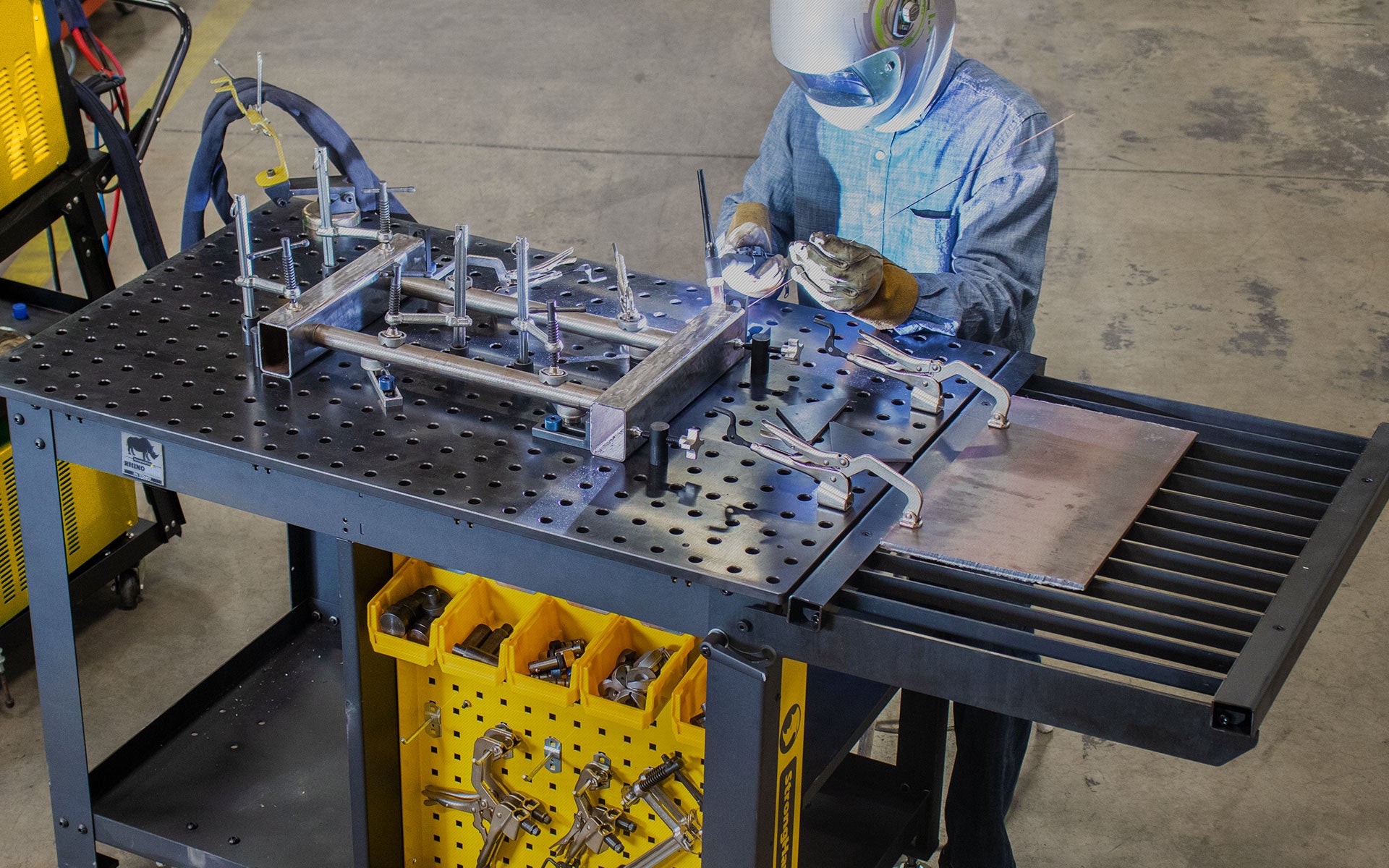

Attach the fold-up Plasma Cutting Tray or Hitch Mount Plate to your Rhino Cart Mobile Fixturing Station to cut, clamp, fixture and weld on one convenient workstation.

Testimonial

The Rhino Cart® Table has been a great addition to our shop; faster, and better quality, and we’re building with confidence. We’re also building more complicated assemblies.

G. Adamson

Woodland Park, CO

This will allow me and my sons to build project we could not before. I am blow away by the quality of this welding cart. Just what I needed.

Louis T

Cummins Service Training

The Rhino Cart provides a quality, solid, heavy duty mobile welding table system with storage for all the great fixturing tools. This is the answer to my needs when designing and fabricating detailed custom items.

John F

Noth Home Center

The Rhino-cart allows our company to do more intricate fabrication jobs.

Kevin B

K.B. Machine Tool & Fab
