Professional Screw Clamp, 45°/90°, 16 mm [Open Box]

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

Professional Screw Clamp 45°/90°, replaces standard screw clamps with 45° or 90°. It sets new standards due to its infinitely variable adjustment range from 0°-360°.

The dimensions of the appropriate flat bar are 20 x 10 mm.

The new handwheel on the cast iron cross enables height adjustment within seconds.

A long lifetime and efficiency is guaranteed by the high-quality material, as well as the option to order spare parts individually.

‐ interchangeable prism
‐ ball diameter spindle 8 mm
‐ Trapezoid thread of spindle 12 x 3 mm

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

Professional Screw Clamp, enables fast, powerful and exact clamping with a variety of welding elements. Achieve maximum efficiency through time-saving, quick adjustments and effortless disassembly. For individual modification, we offer special lengths of horizontal and vertical bars. The dimensions of the horizontal bar are 20 x 10 mm. The dimensions of the vertical bar are 20 x 13 mm. Additionally, the vertical bar is reinforced.

With the new handwheel on the cast iron cross, the height can be adjusted within seconds.

A long lifetime and efficiency is guaranteed by the high-quality material, as well as the option to order spare parts individually.

‐ Interchangeable prism
‐ Ball diameter spindle 8 mm
‐ Trapezoid thread of spindle 12 x 3 mm
‐ Vertical Bar reinforced

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

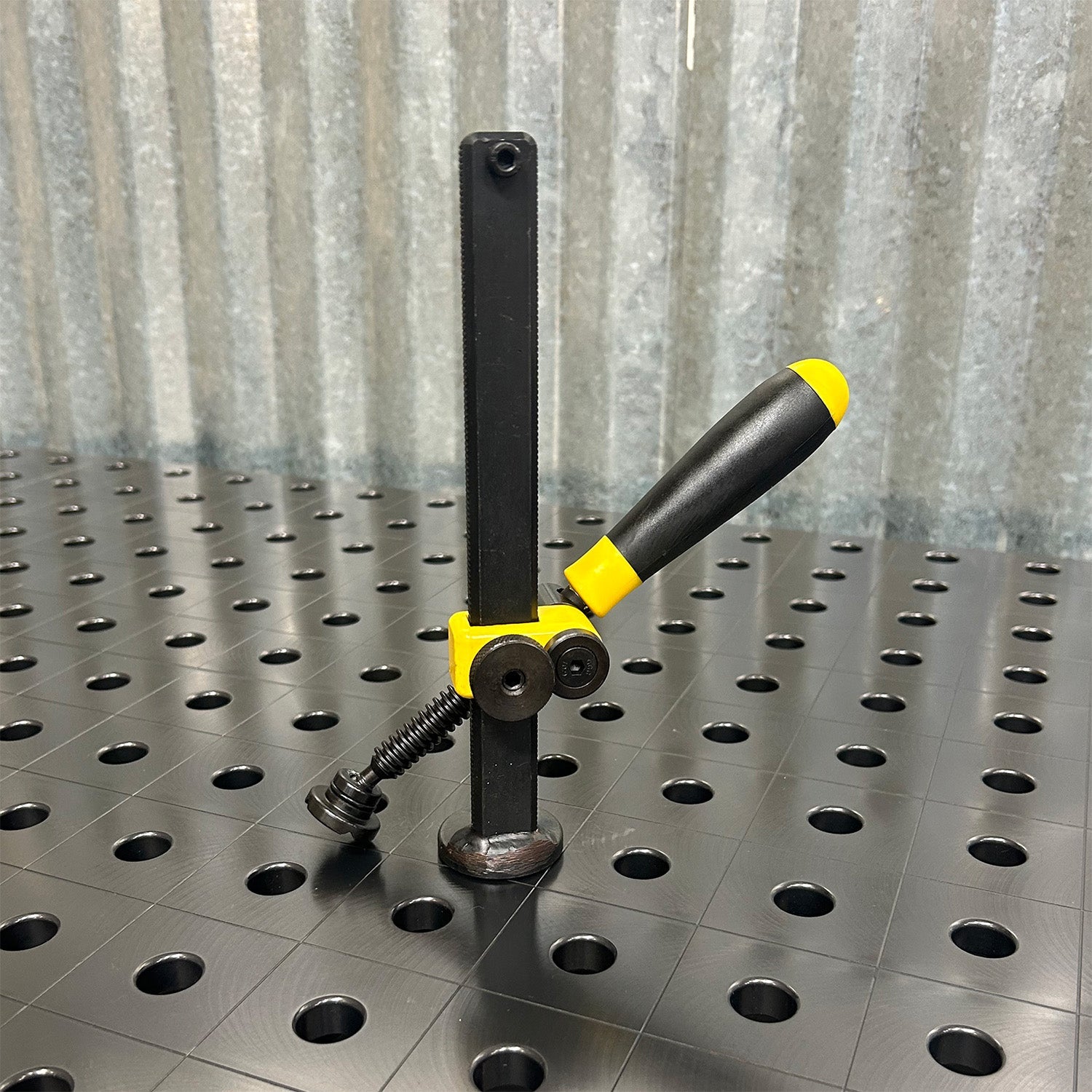

The Siegmund Professional Screw Clamp (Nitrided) replaces conventional 45° or 90° screw clamps. This Screw Clamp sets new standards because of its infinitely variable rotatability from 0° - 360°.

The dimensions of the flat bar in use are 30 x 14 mm.

A long lifetime and efficiency is guaranteed by the nitrided material, as well as the option to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted quickly.
Through the countersunk hexagon socket, located at the top of the handle, the force of the clamp can be adjusted precisely by a torque wrench. Additionally, the vertical bar is reinforced.

Specs and Features:
- Ball Diameter Spindle: 16 mm (0.63")
- Maximum Holding Force: 5 kN
- Height: 310 mm (12.20'')

Welding Table Specs and Features:

• Overall Tabletop Size: 2400x1200x100mm (94.48" x 47.24" x 3.93")
• Borehole: Ø 16mm (0.629")
• Welding Table Series: Professional Extreme 8.7 Series
• Welding Table Material Thickness: Approx. 11.5 – 13mm (0.45" - 0.51")
• Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
• Table Surface Hardness: 450-850 Vickers
• Official Siegmund Welding Table Part No.: 4-160030.X7D
• Maximum Weight Load: 7,700 lbs. (Based on Even Distribution)
• Approximate Table Weight: 1,100 lbs. / 499 kg.

1. Boreholes on the Surface: 50x50mm Grid (1.96"x1.96").
2. Boreholes have a radius of 2mm (0.078").
3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
4. Height of table side 100mm (3.93") - Borehole spacing of table side 25mm (0.98")
5. Metric Scaling on the surface.
6. Construction reinforced with ribbing.
