Table Accuracy
Hole Diameter: | 0.625" + .002 / -.000 |
Hole Spacing: | 2.000" ±0.001 |
Table Flatness: | ±0.005 per 24" x 24" |
Plate Thickness: | 0.47" ±0.004 |
Tabletop Finish: | Nitrided (Heat-Treated) |
Surface Hardness: | 58-62 HRC |
Coefficient of Friction: | 0.37 |
Top Plate
Material: | P20 |
Hardness: | 58-62 HRC |
Side Plate
Material: | Q345B |
Hardness: | 50-55 HRC |
View this table in your shop
Table Accuracy
Hole Diameter: | 0.625" + .002 / -.000 |
Hole Spacing: | 2.000" ±0.001 |
Table Flatness: | ±0.005 per 24" x 24" |
Plate Thickness: | 0.47" ±0.004 |
Tabletop Finish: | Nitrided (Heat-Treated) |
Surface Hardness: | 58-62 HRC |
Coefficient of Friction: | 0.37 |
Top Plate
Material: | P20 |
Hardness: | 58-62 HRC |
Side Plate
Material: | Q345B |
Hardness: | 50-55 HRC |

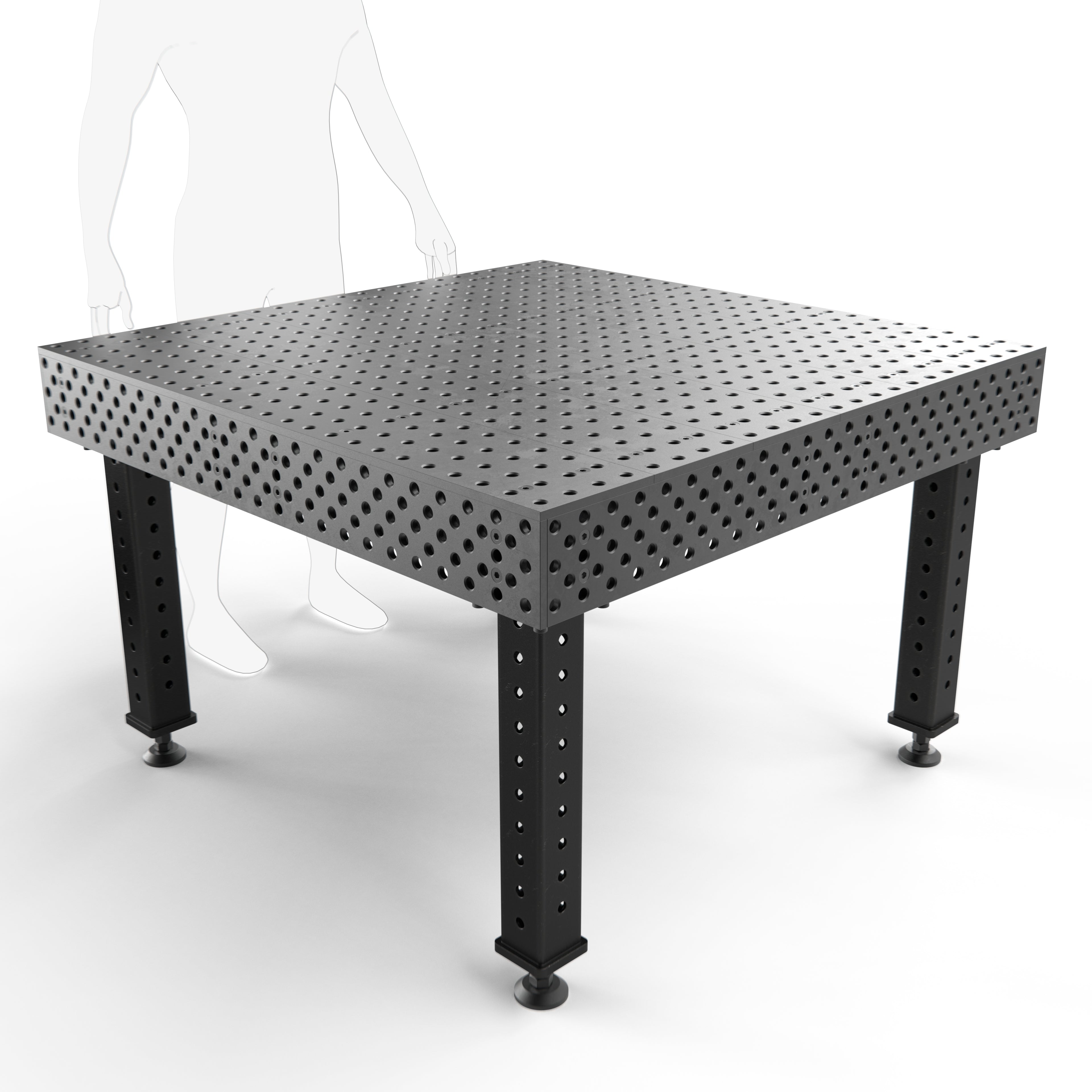

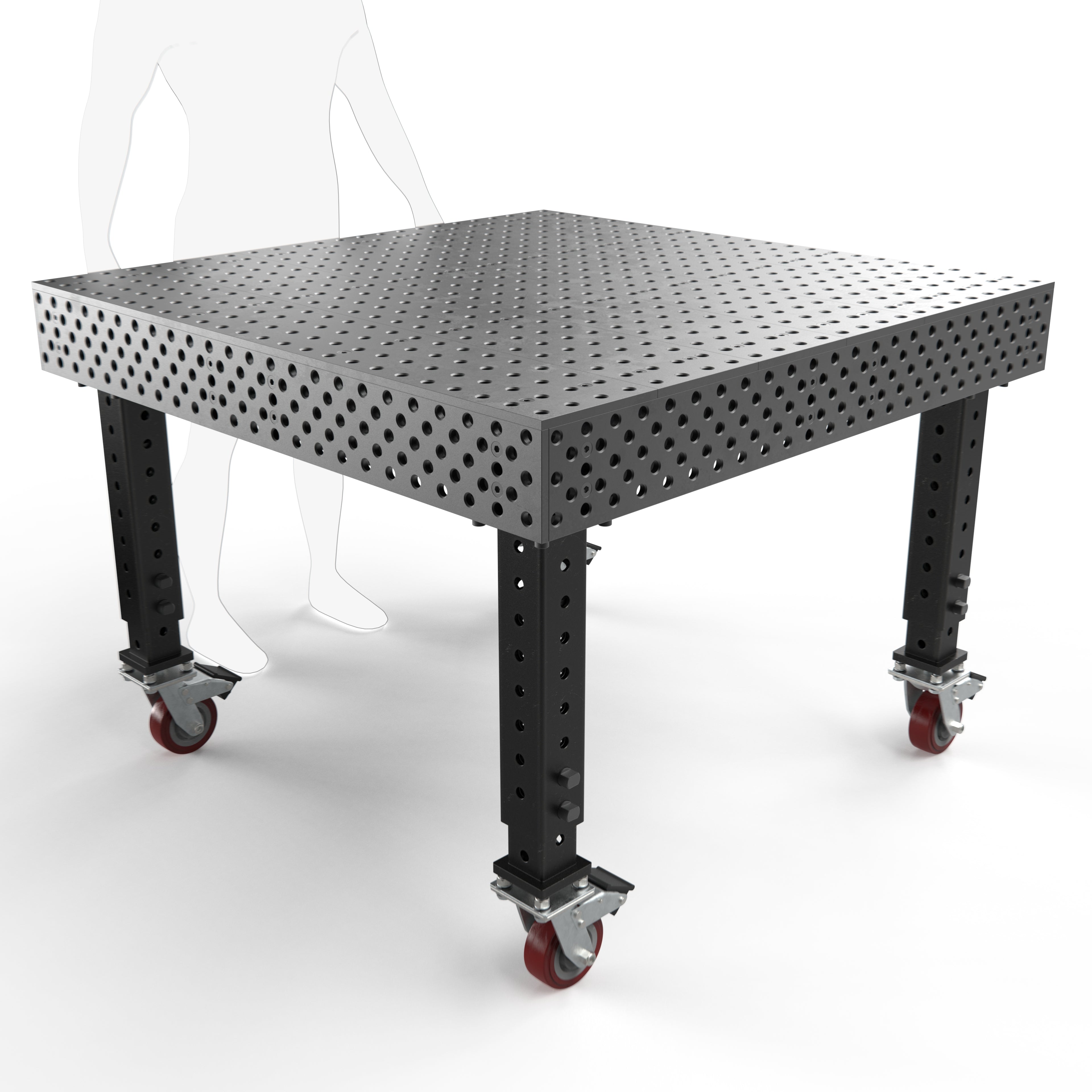

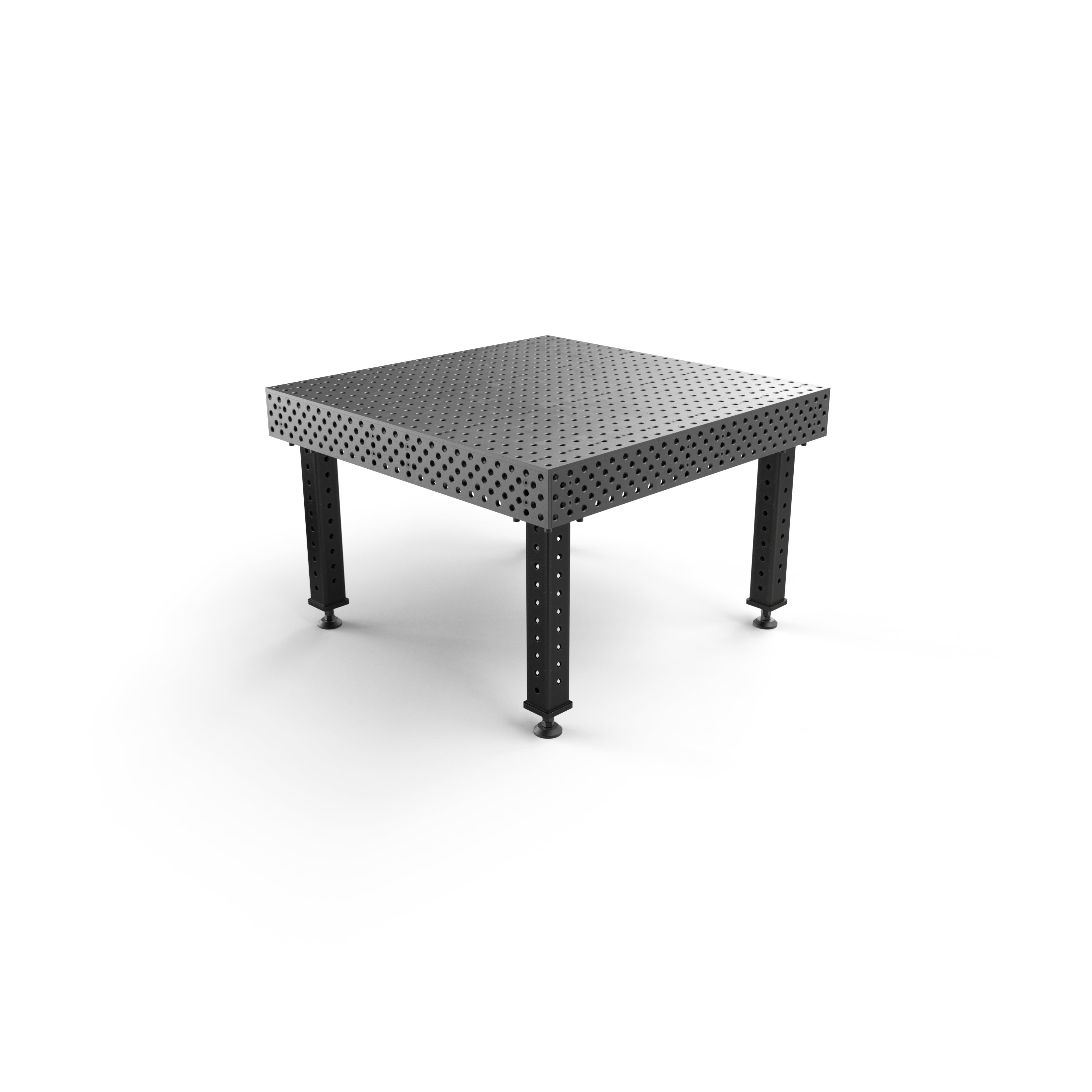

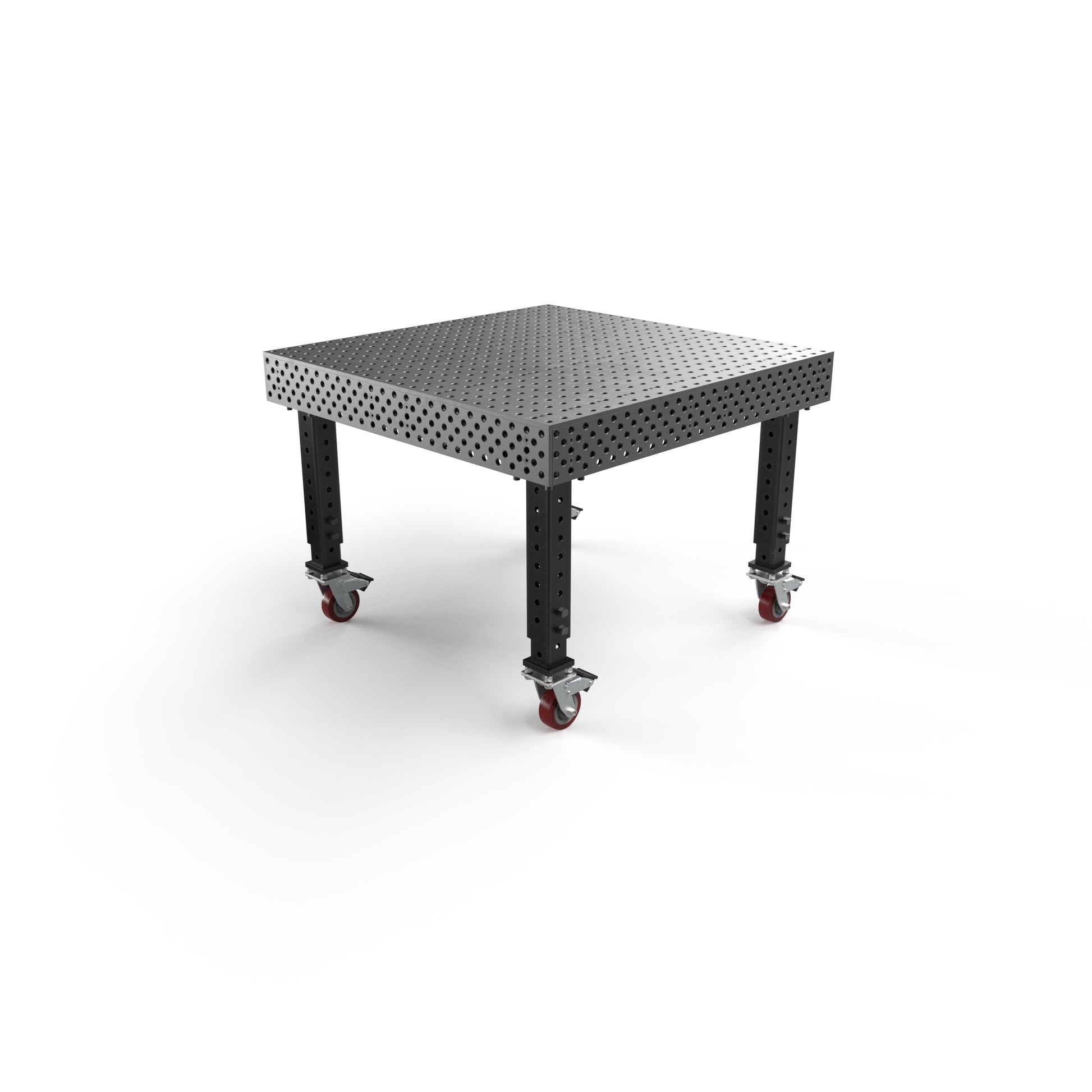

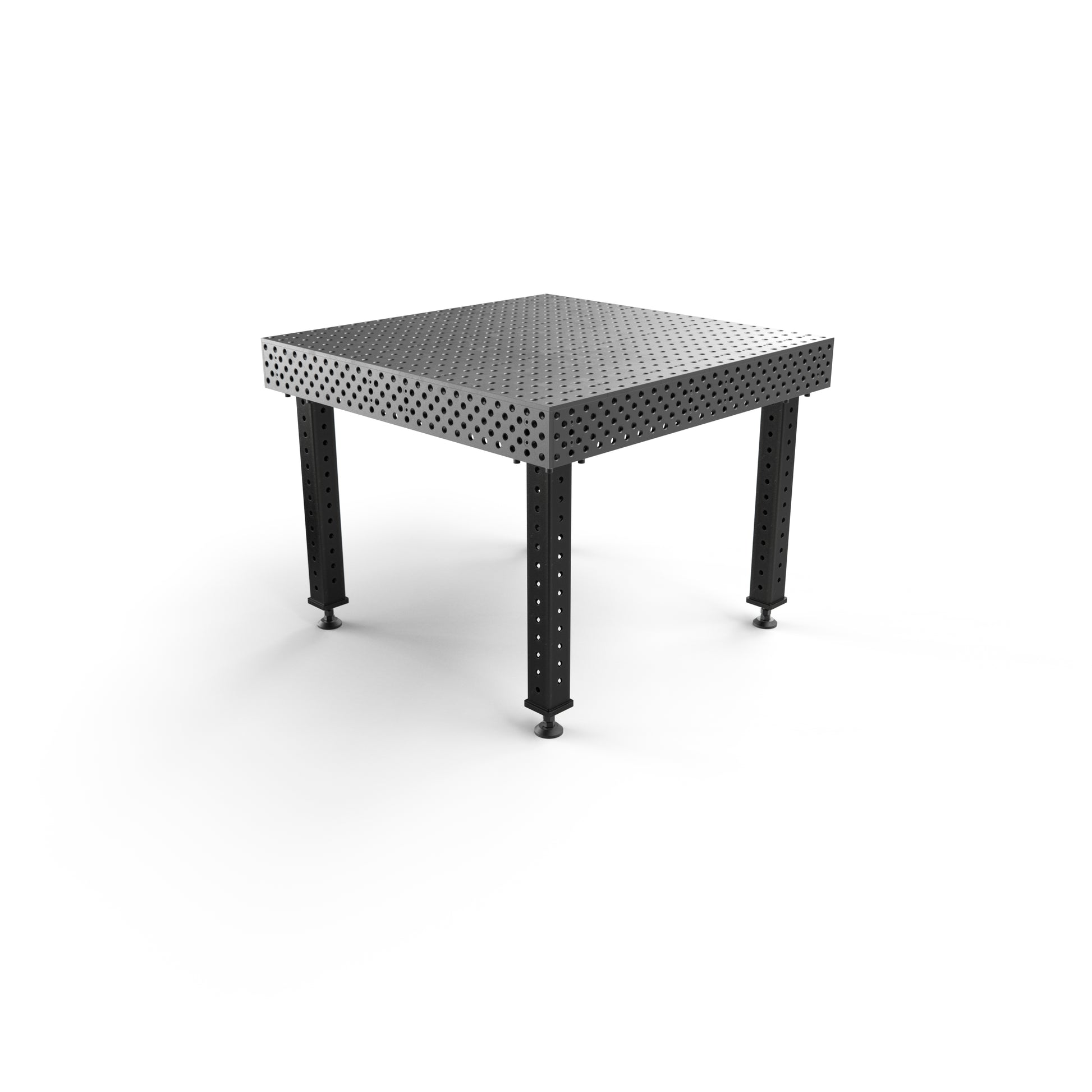

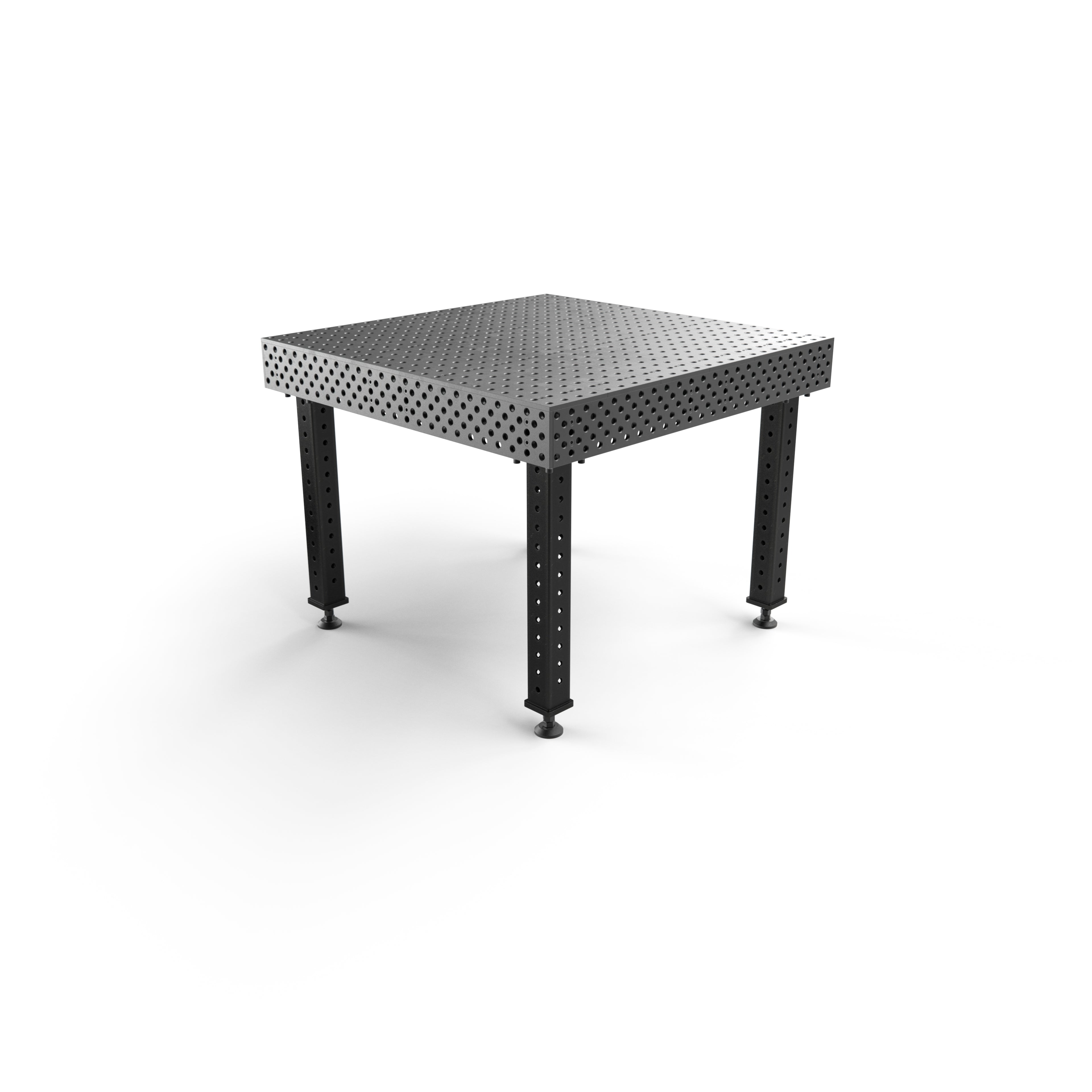

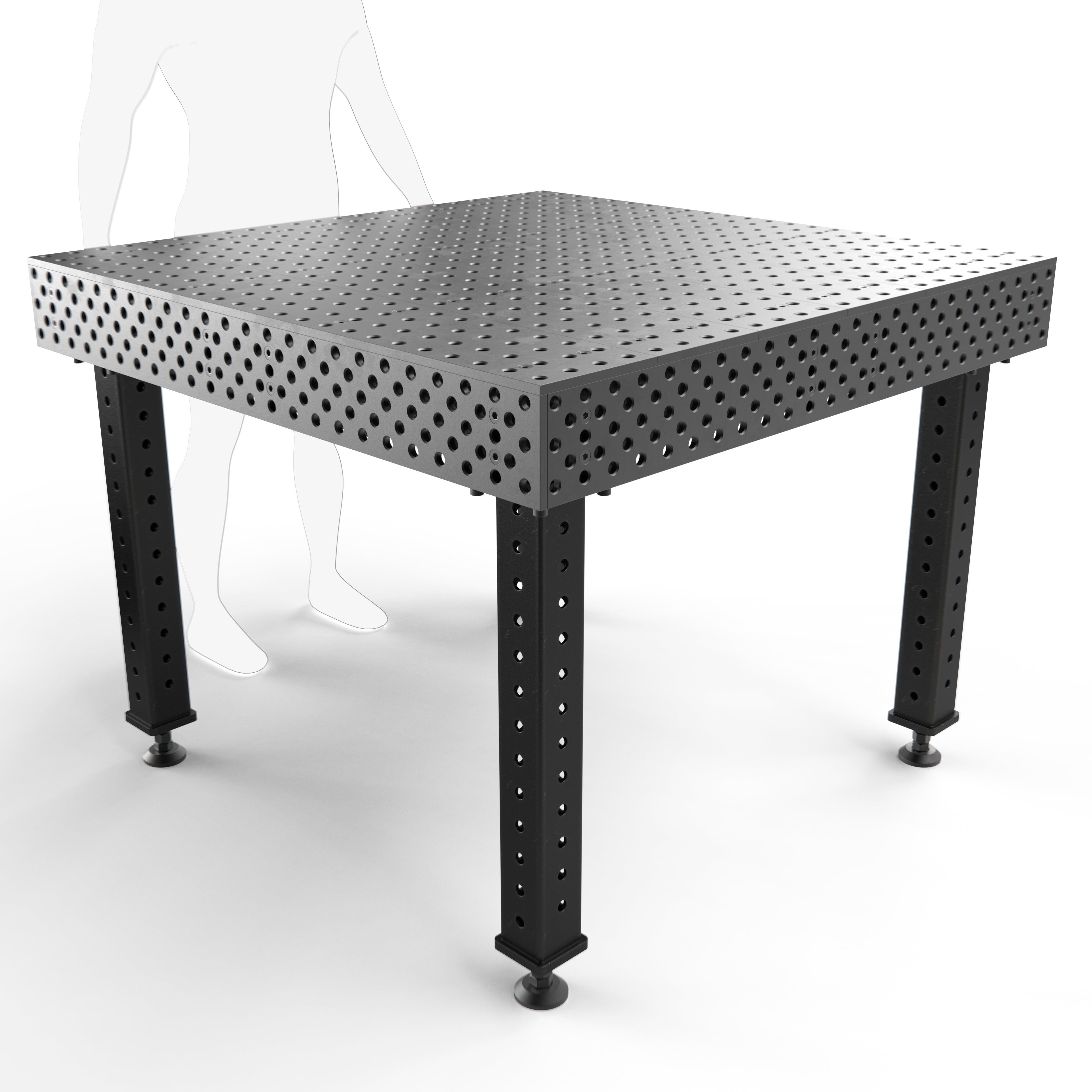

Precision ground steel plates, with CNC machined Ø5/8" holes in a 2" grid pattern for locating, positioning and mounting BuildPro clamps and accessories.
Plates can be reconfigured to expand the width of the table for larger projects.
Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.
Precision ground steel plates, with CNC machined Ø5/8" holes in a 2" grid pattern for locating, positioning and mounting BuildPro clamps and accessories.
Plates can be reconfigured to expand the width of the table for larger projects.
Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.
REVERSIBLE Self-Locating Top & Side Plates
Table Accuracy
Tabletop Side Height
Nitrided (Heat-Treated) Tabletop
Plate Mounting Detail for Side Plates
REVERSIBLE Self-Locating Top & Side Plates
Table Accuracy
Tabletop Side Height
Nitrided (Heat-Treated) Tabletop
Plate Mounting Detail for Side Plates
