BuildPro

Platos reversibles para mesas Alpha 5/8

Sku: TY5-A600080Q-01

Todas las placas superiores y laterales de la mesa Alpha están construidas con acero tratado térmicamente, endurecido a 550 Vickers y acabado con un revestimiento de nitrito con una profundidad de caja de 0,0004-0,0008″. 0,47″ de espesor.

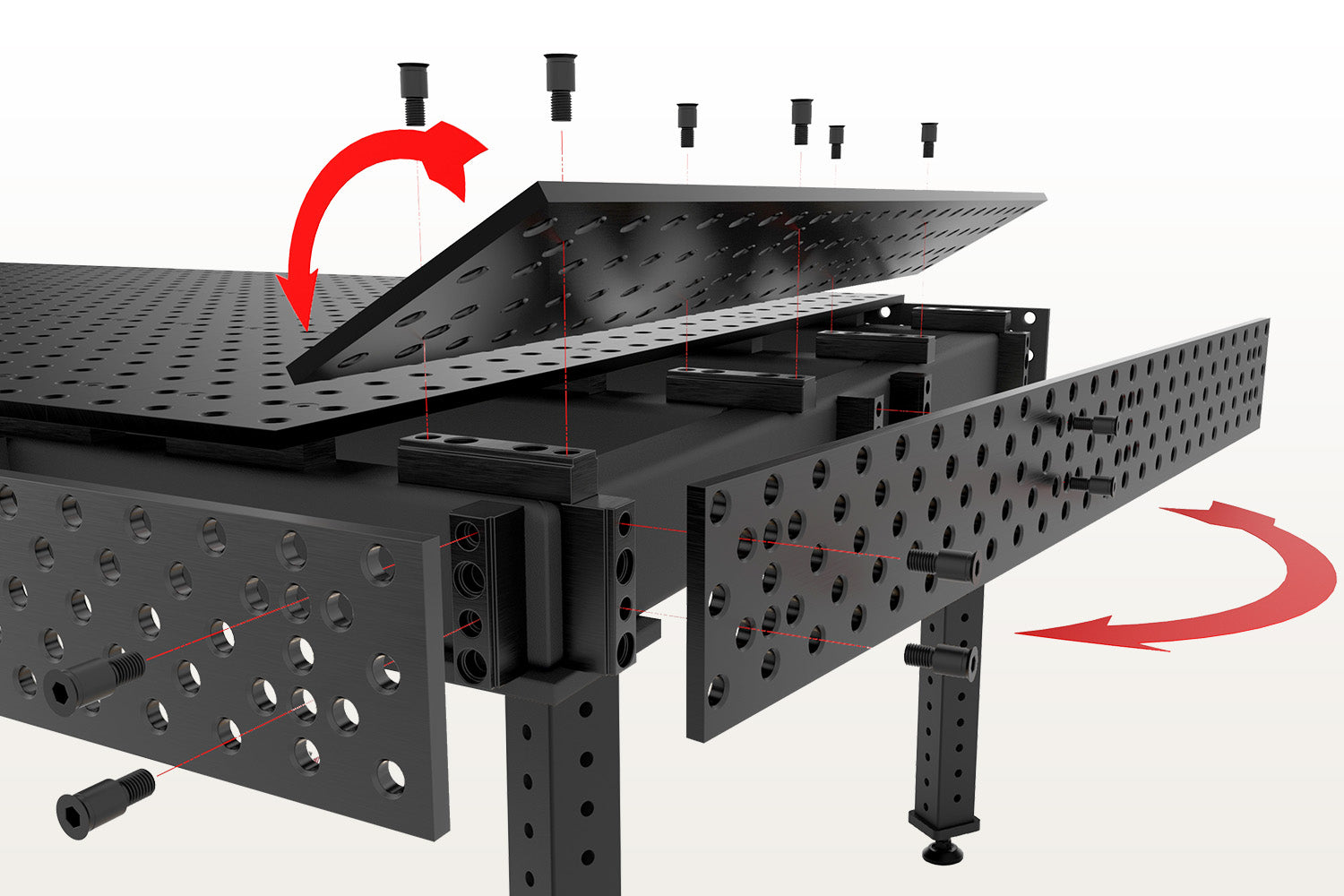

Cada placa de mesa se puede quitar y girar 180 grados para exponer una nueva superficie de trabajo si el lado superior se ha dañado o desgastado.

* Los accesorios de montaje se venden por separado. Consulte el kit de montaje para obtener información sobre cómo realizar pedidos.

$996.00 USD
$996.00 USD
Liquid error (snippets/product-price line 86): divided by 0% OFF Vendido
/
envío calculado al finalizar la compra.
Texto previo al pedido
Seguridad

Propuesta 65 de California : Este producto puede contener sustancias químicas que el estado de California considera que provocan cáncer, defectos congénitos u otros daños reproductivos. Para obtener más información, visite www.P65Warnings.ca.gov

Manual

Instrucciones para platos de mesa reversibles

Presupuesto
Archivos CAD

TY5-A600080Q-01 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

10 x 5 ft table

8 x 4 ft table

6 x 4 ft table

6 x 3 ft table

4 x 4 ft table

Ref. Part No. Description Dimension (in) Weight (lb)

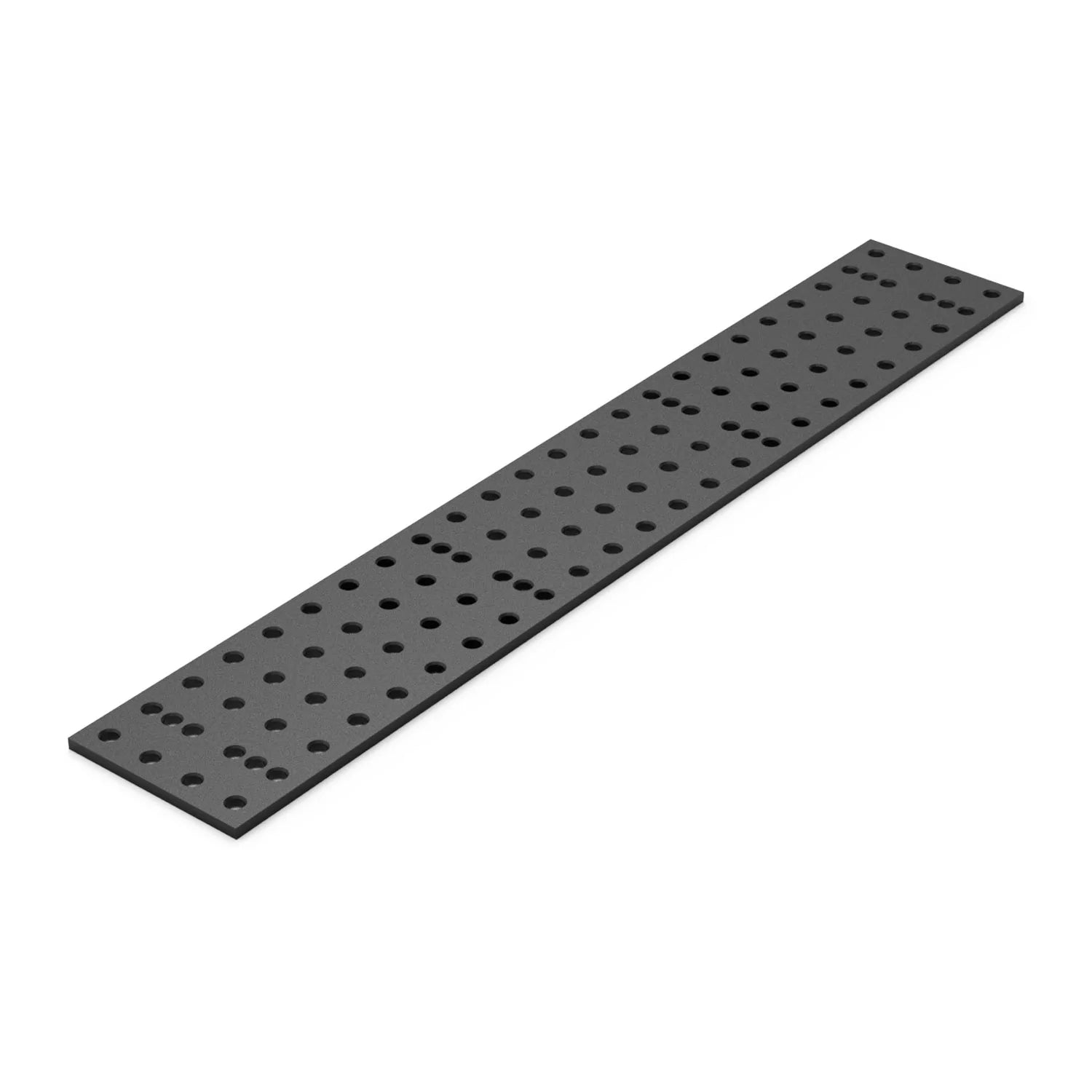

A TY5-A600080Q-01 Top plate of 10' x 5' table 60 x 8 x 0.47 58.6
B TY5-A590055Q-04 End plate of 10' x 5' table 59 x 5.5 x 0.47 36.7

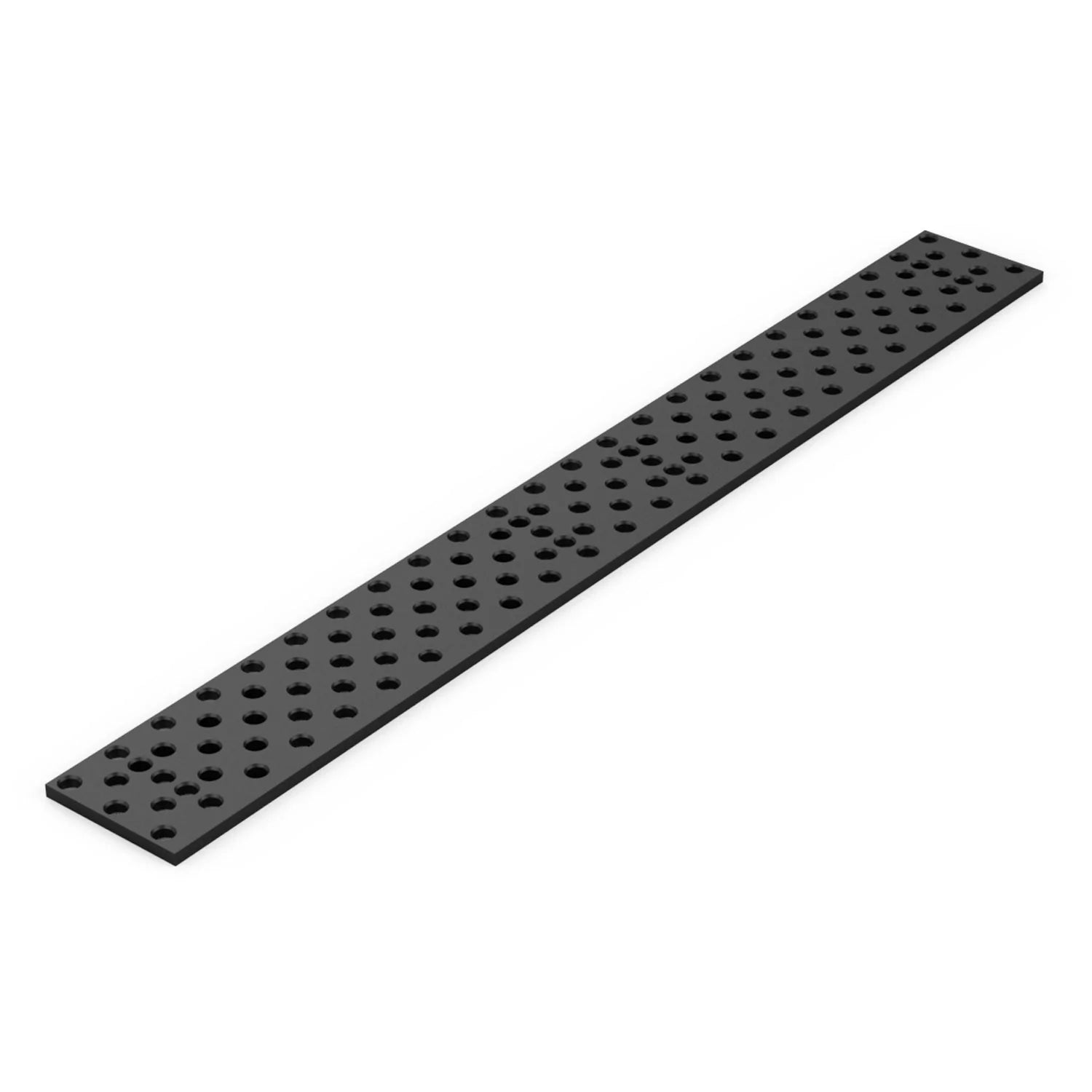

C TY5-A485055Q-03 Side plate of 10' x 5', 8' x 4', 6' x 4' and 6' x 3' table 48.5 x 5.5 x 0.47 30.1
D TY5-A480080Q-01 Top plate of 8' x 4', 6' x 4' and 4' x 4' table 48 x 8 x 0.47 46.8
E TY5-A475055Q-06 Side plate of 8' x 4' table

End and Side plate of 4' x 4' table

 47.5 x 5.5 x 0.47 29.5
F TY5-A470055Q-04 Side plate of 10' x 5' table

End plate of 8' x 4' and 6' x 4' table

 47 x 5.5 x 0.47 29.1
G TY5-A360080Q-01 Top plate of 6' x 3' table 36 x 8 x 0.47 35.0
H TY5-A350055Q-04 End plate of 6' x 3' table 35 x 5.5 x 0.47 21.6
I TY5-A245055Q-06 Side plate of 10' x 5' table 24.5 x 5.5 x 0.47 15.2
J TY5-A235055Q-06 Side plate of 6' x 4' and 6' x 3' table 23.5 x 5.5 x 0.47 14.6
