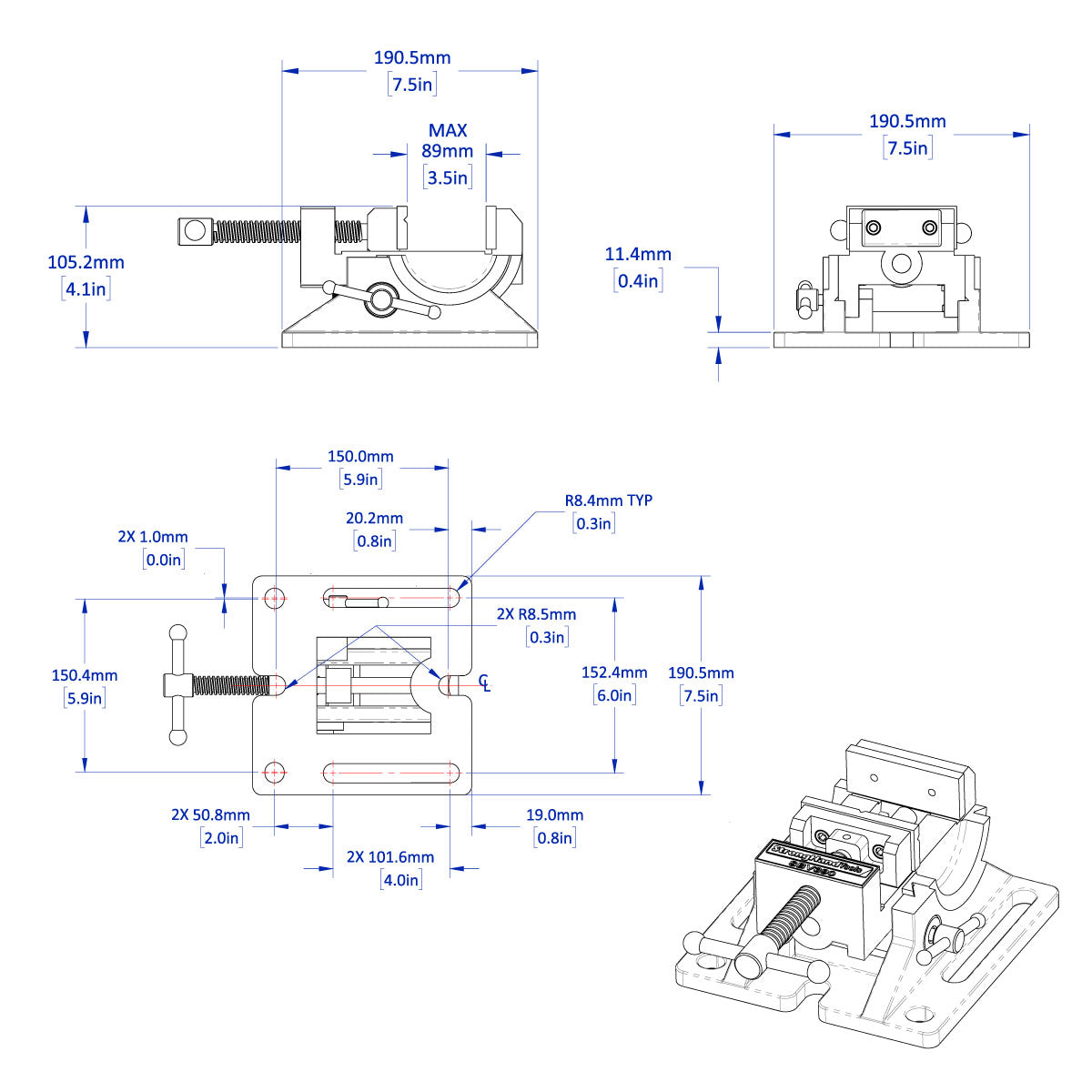

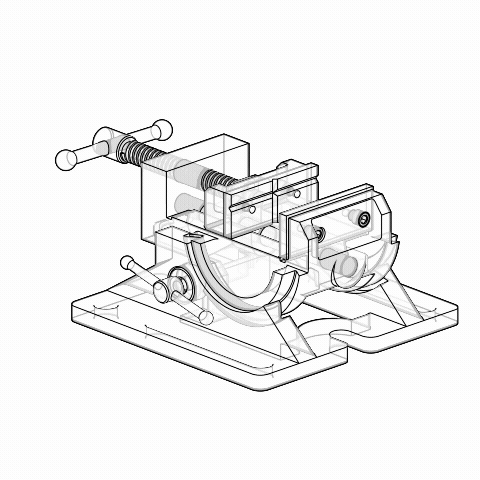

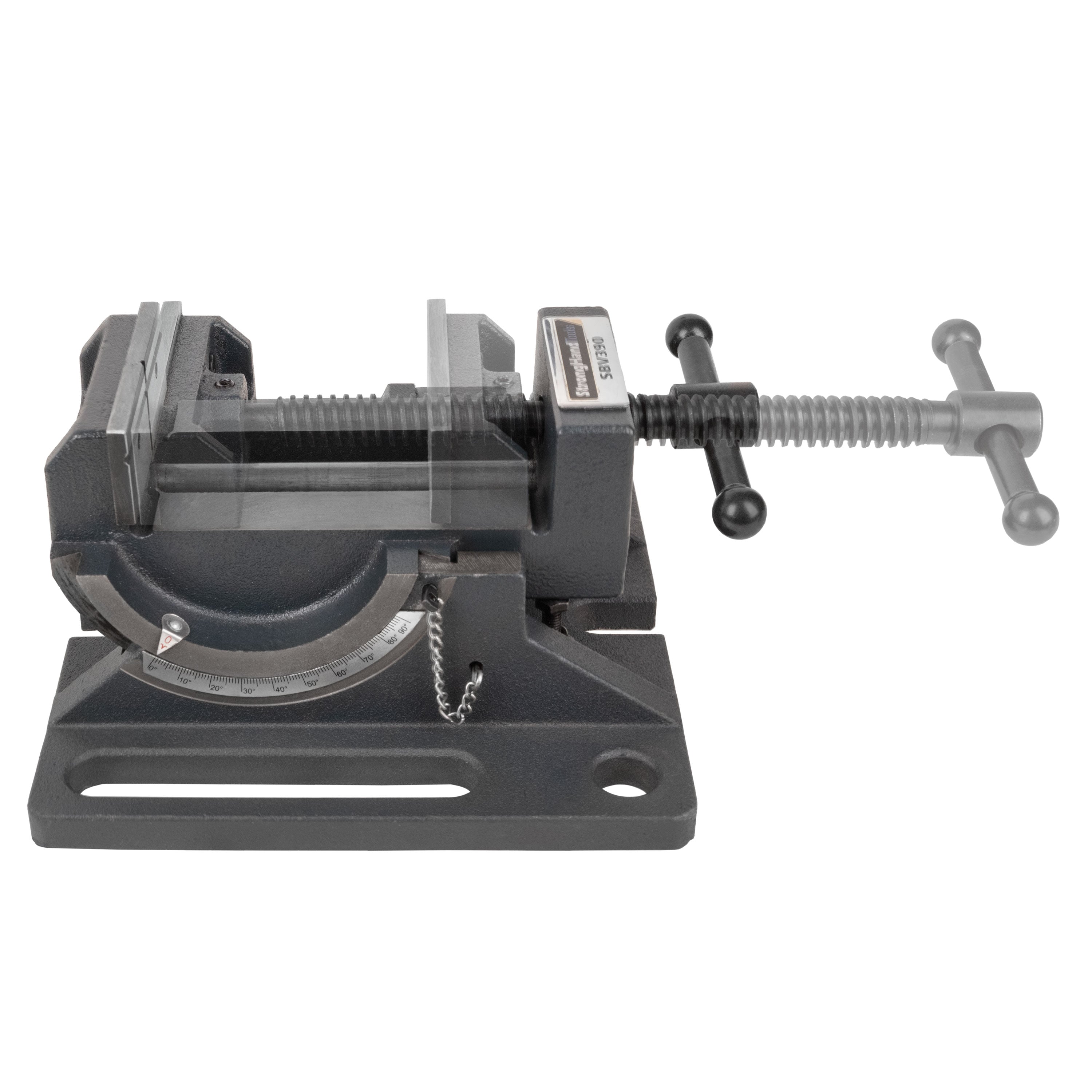

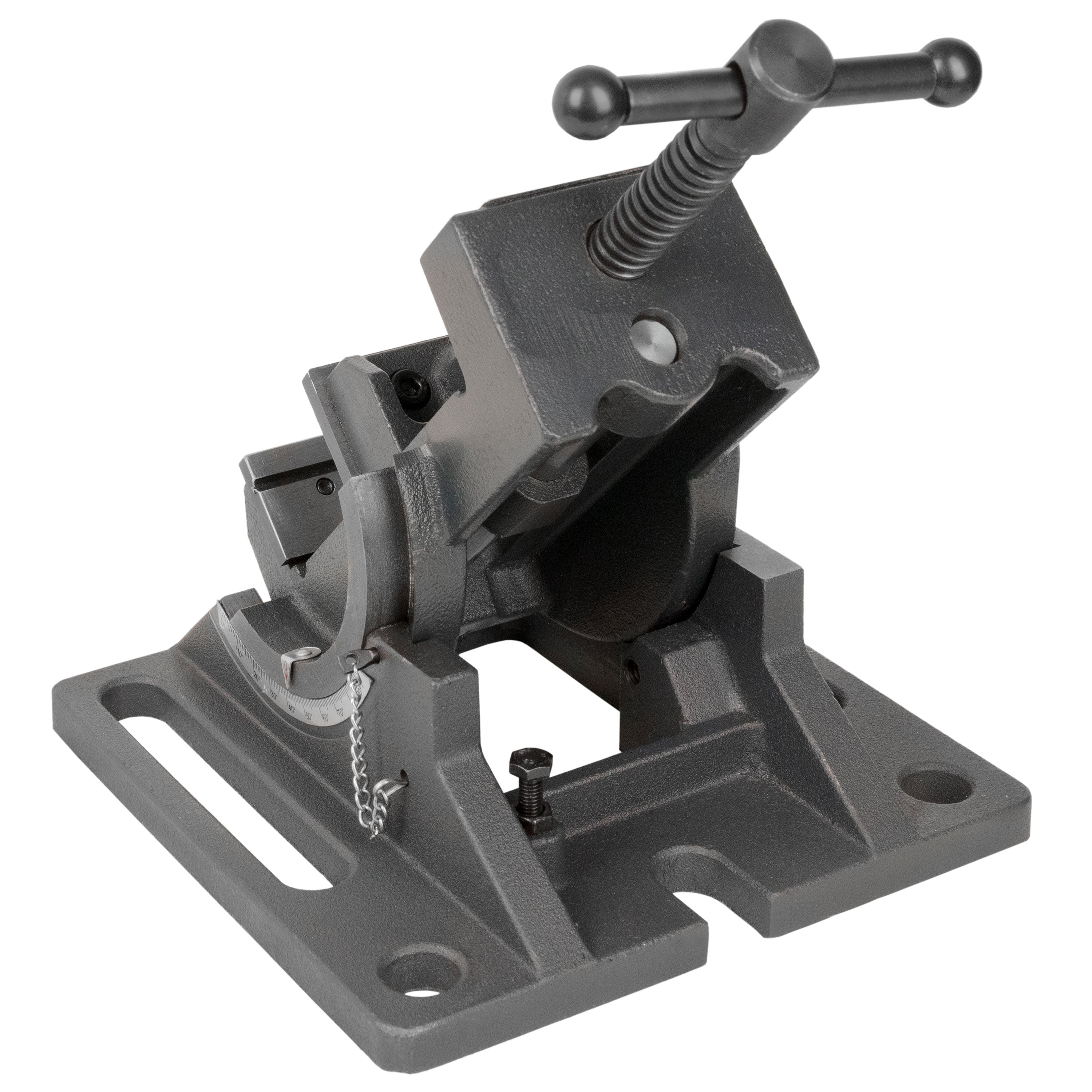

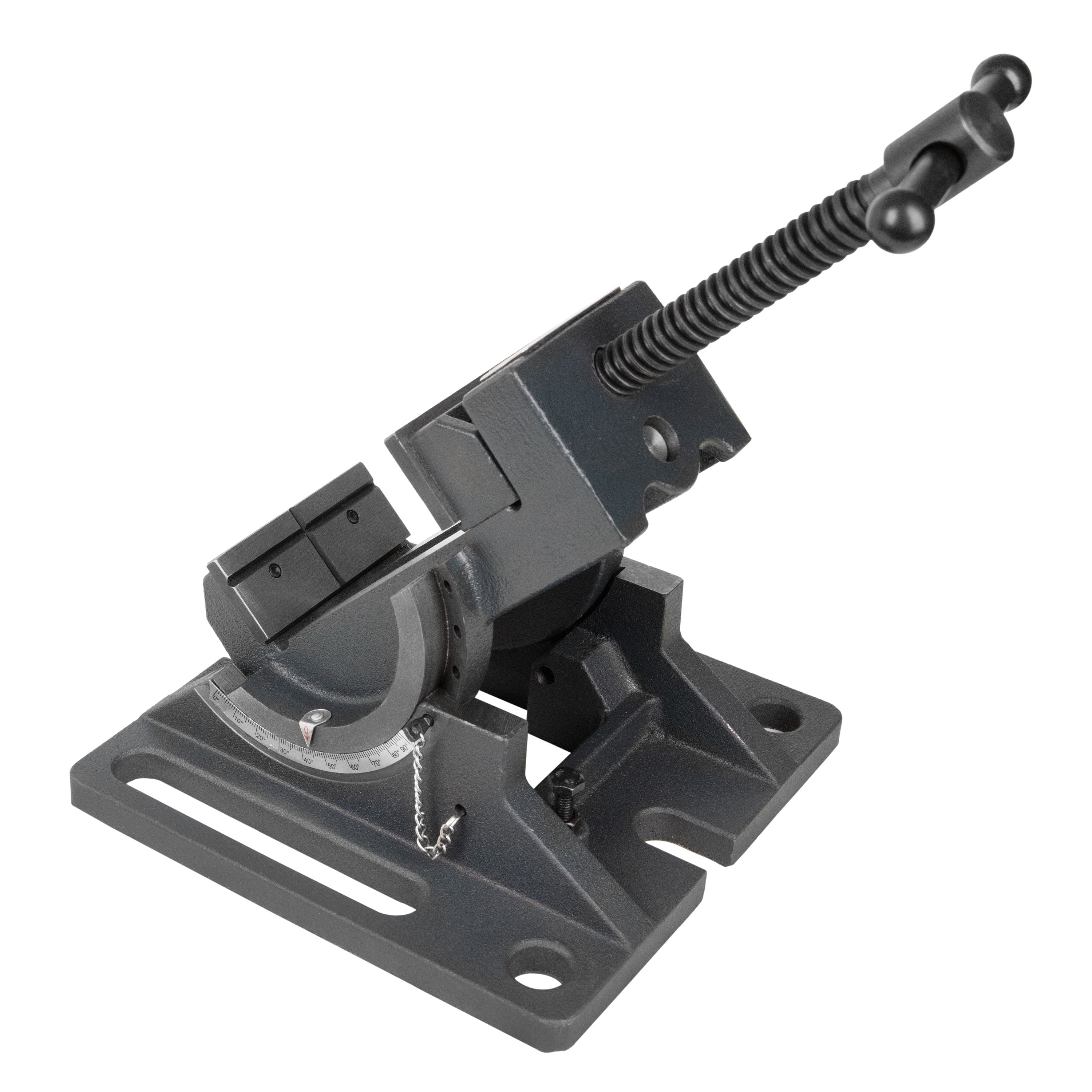

The SVB390 Cradle Vise features 90° vertical indexing in 1° increments for precise angular setups. Its base features two 5/8" clearance holes and two 4" shoulder slots for easy mounting on any 5/8" BuildPro fixture table. Made from heavy-duty cast iron and delivers 2,500 lb. of clamping force.

• 3.5" max. jaw opening
• 3.2" jaw width
• Heavy duty cast-iron construction
• 2,500 lb of clamping force

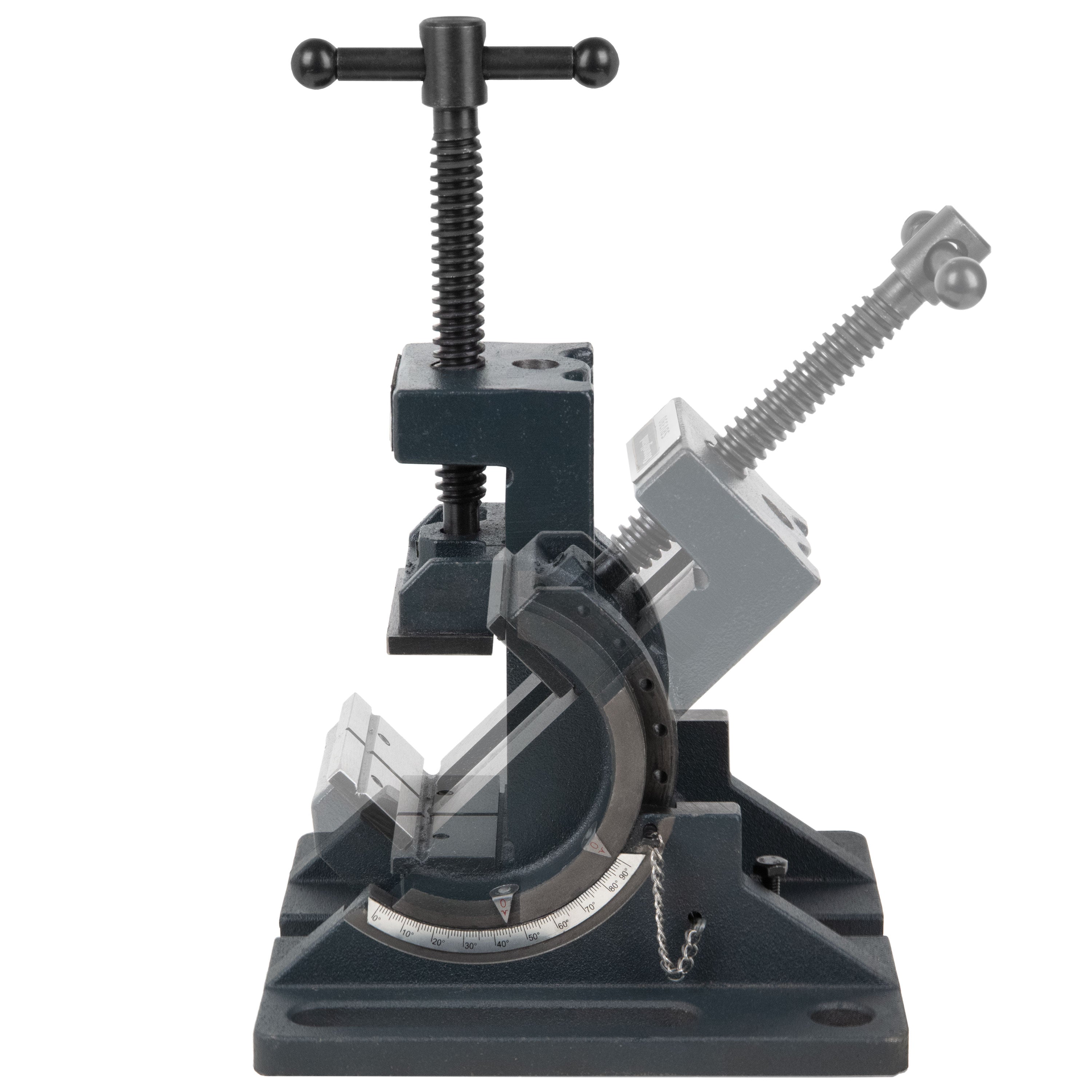

• 90° rotating cradle with 1° scaled increments

Note: Mounting bolts are not included. For installation on MAX or Alpha tables, socket shoulder head screws T831608 or T831610 are recommended.
