| Part No. |
Nose |
Size |
A |
B |
C |
* End Pressure (LBS.) |
| Aluminum |
Cast Iron |

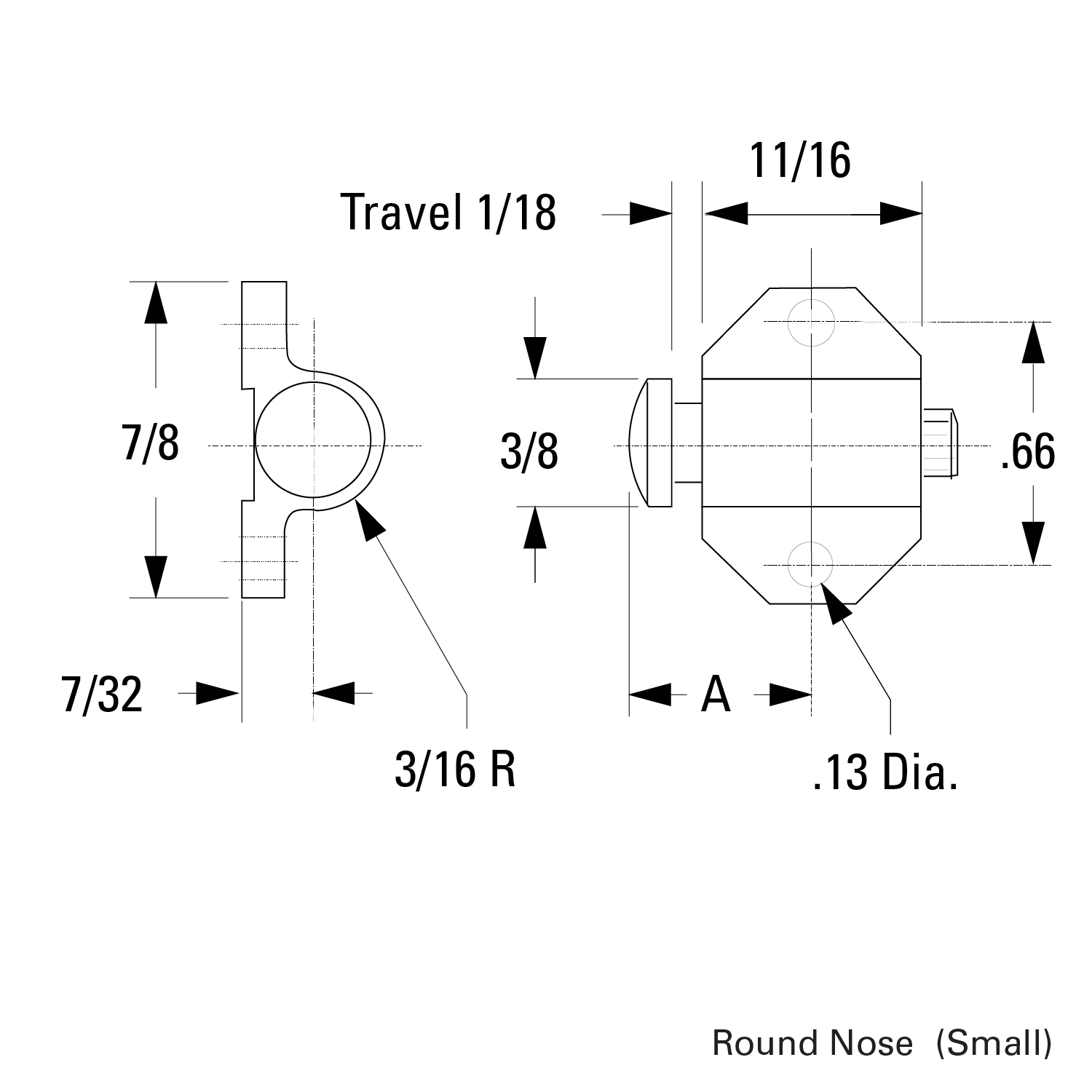

| 855000 |
-- |
Round |
Small |
19/32 |
-- |
-- |
10 |
| 855015 |
855010 |

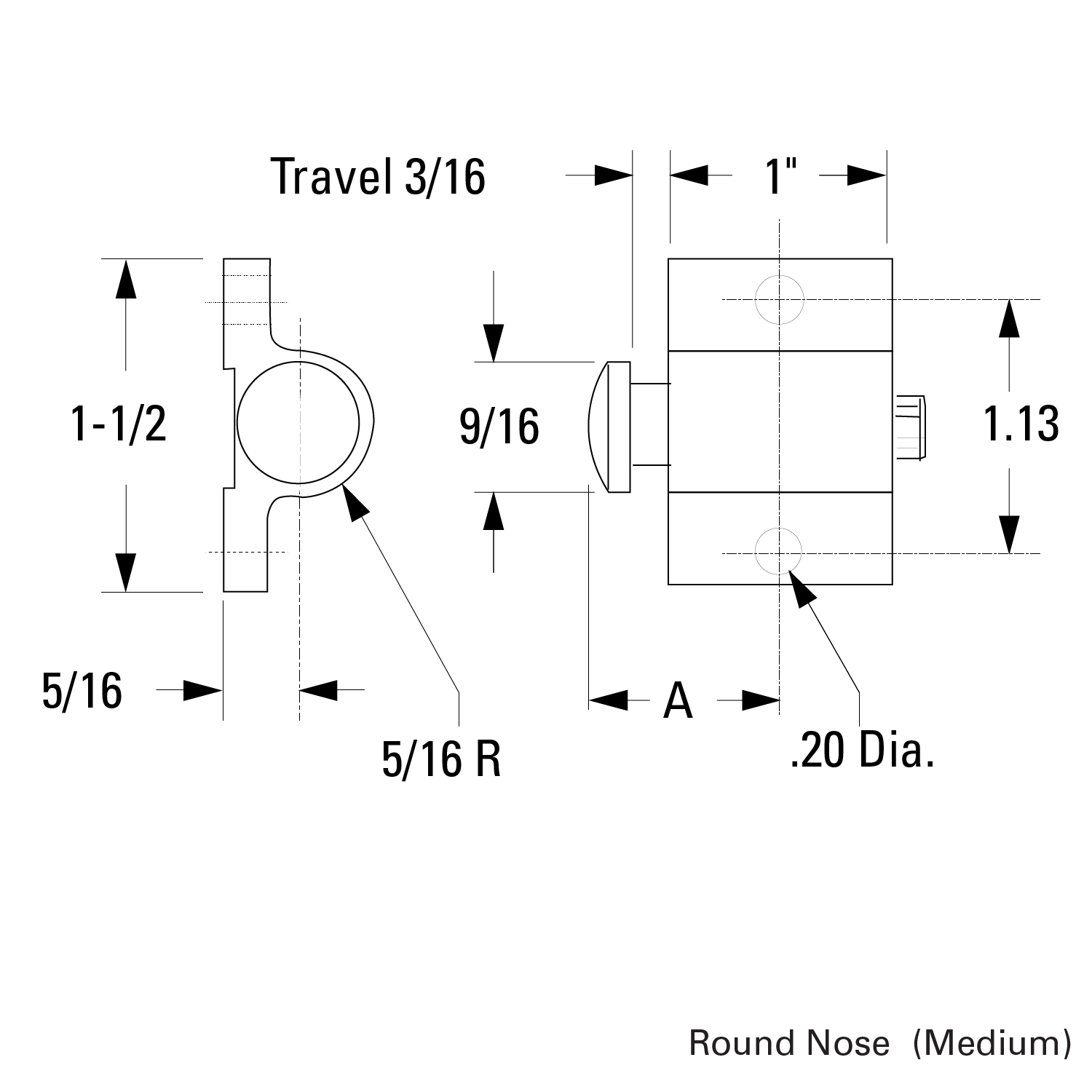

Round |
Medium |
7/8 |
-- |
-- |
14 |

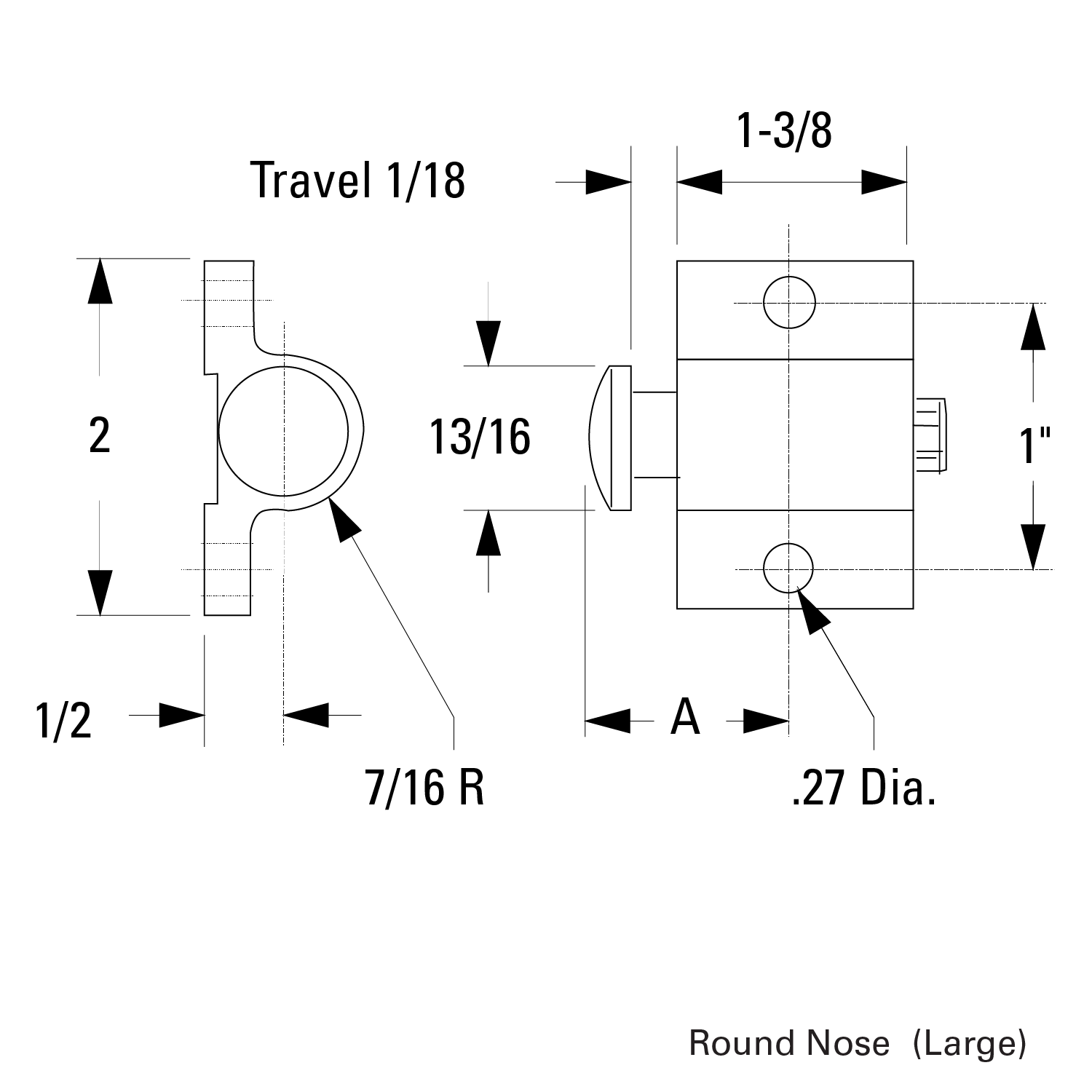

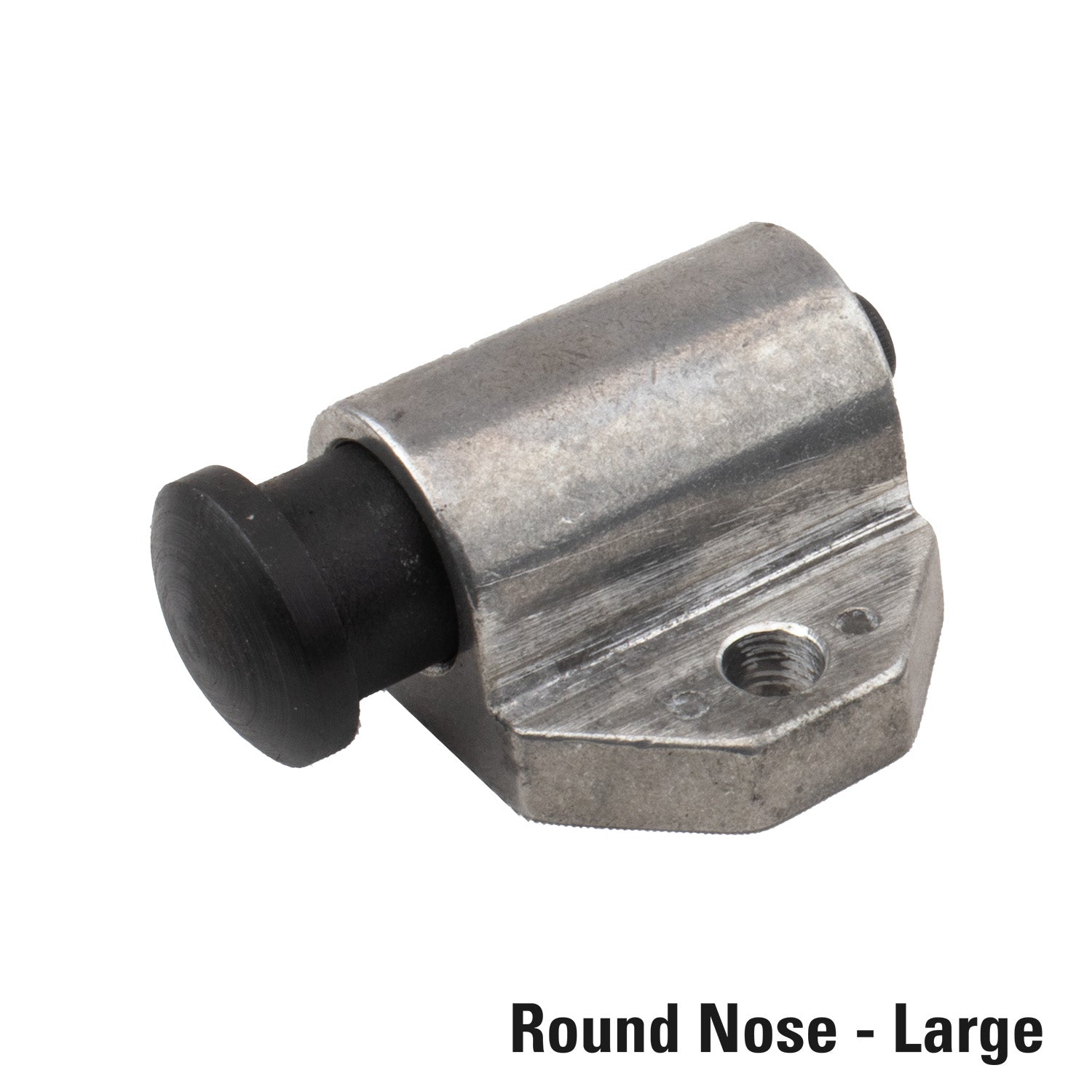

| 855025 |
855020 |
Round |
Large |
1-7/32 |
-- |
-- |
32 |

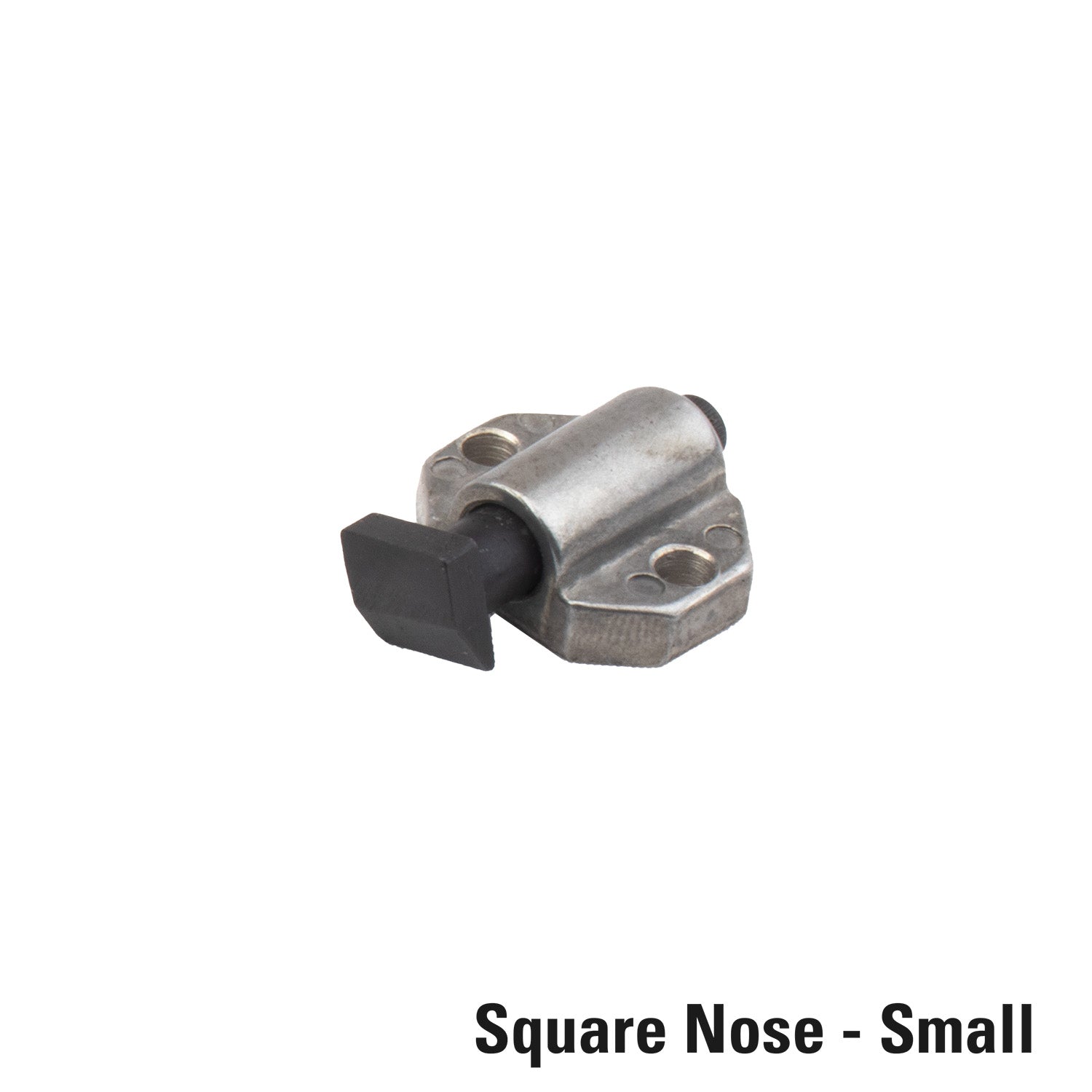

| 855050 |
-- |

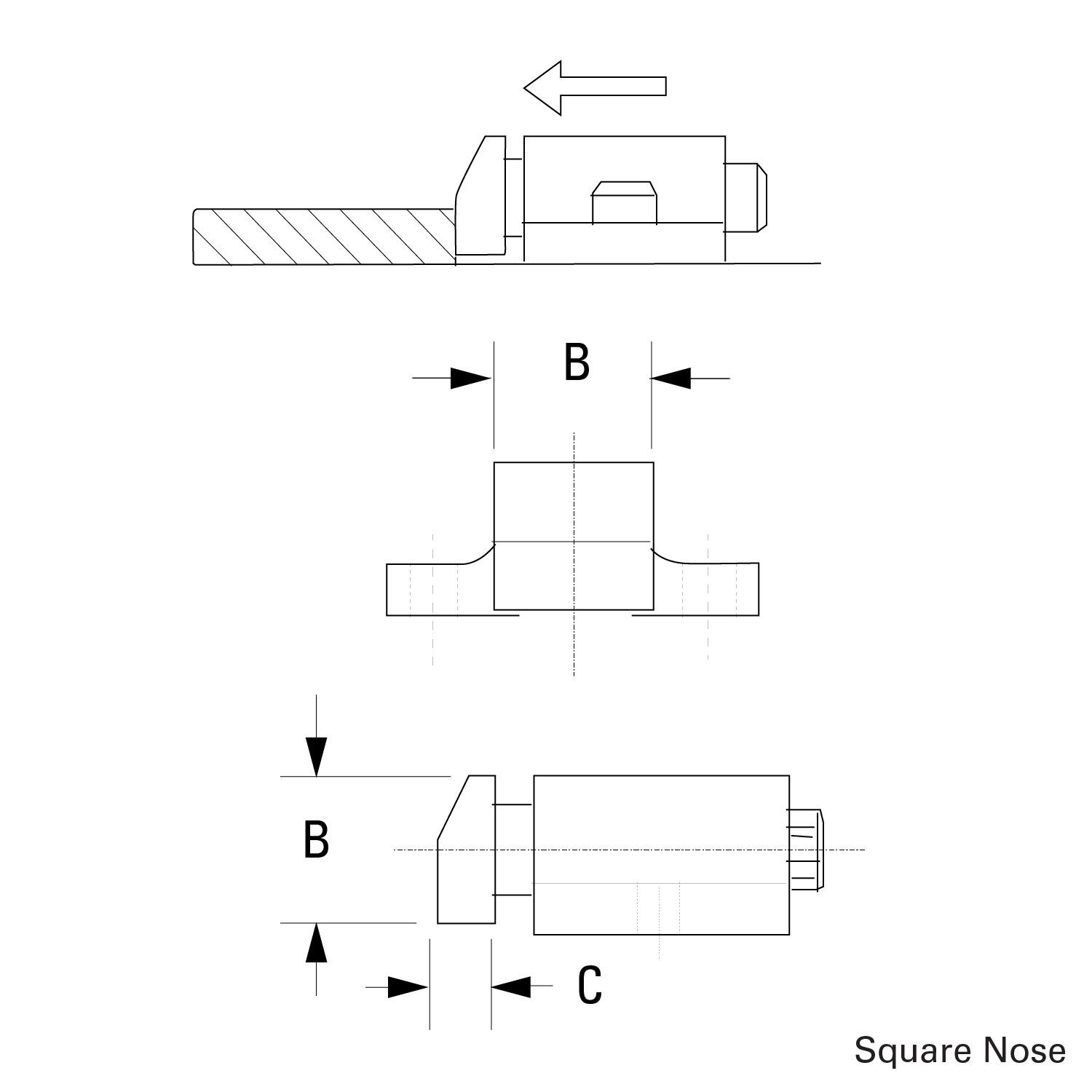

Square |
Small |
19/32 |
3/8 |
1/8 |
10 |

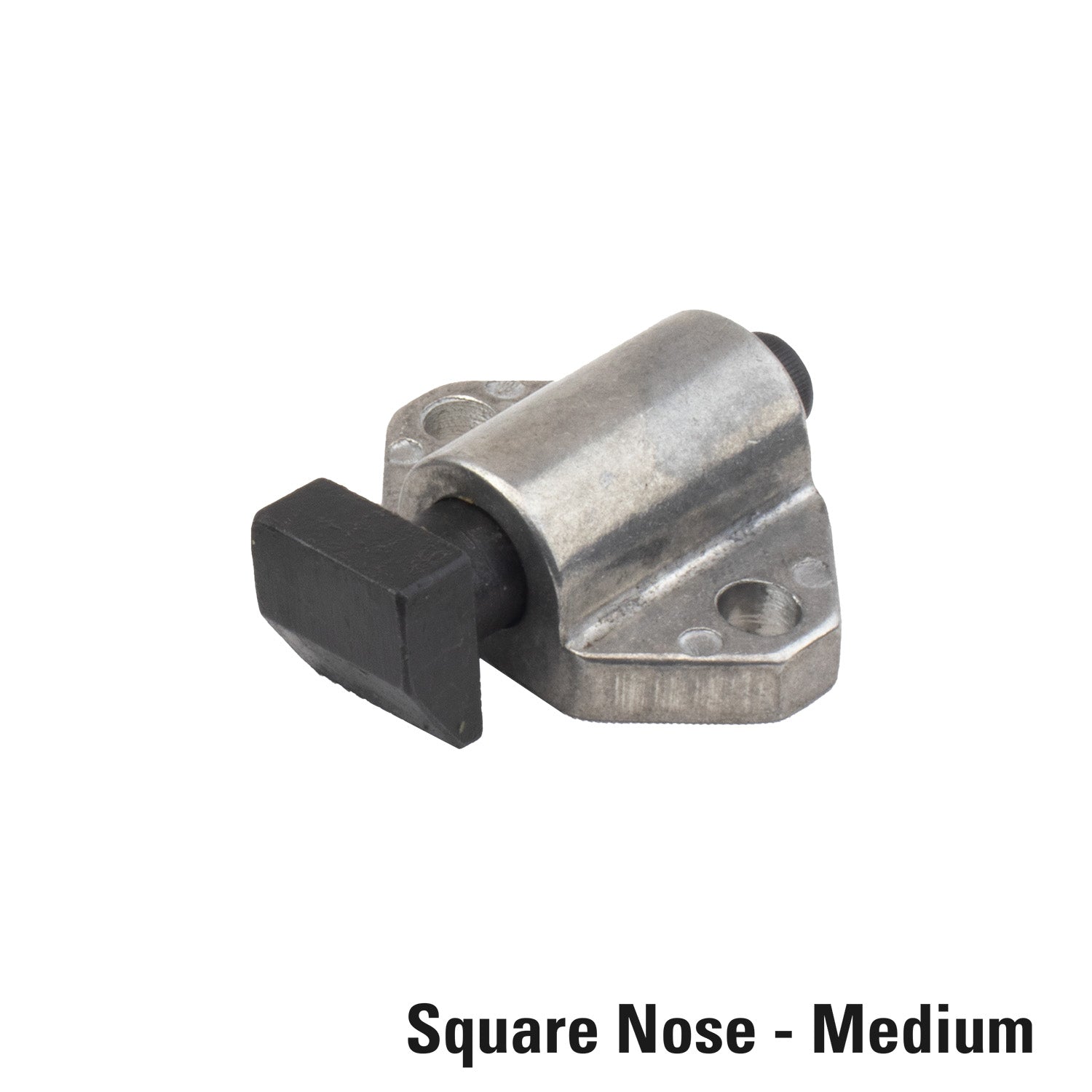

| 855060 |
855055 |
Square |
Medium |
9/16 |
19/32 |
1/4 |
14 |
| 855070 |
855065 |
Square |
Large |
1-9/32 |
3/4 |
5/16 |
32 |
* End Pressures are measured at mid point of travel.
