Angle Squares, U28 (inch spacing)

SKU: U28-12018

Angle Squares feature 28 mm holes with inch spacing. They can be used in the same manner as a stop or combined with other elements to form more complex fixtures.

Slots enable a range of adjustable options.

$187.00 USD
$187.00 USD
Liquid error (snippets/product-price line 86): divided by 0% OFF Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

U28-12018 - STEP

U28-23081 - STEP

U28-23181 - STEP

U28-23183 - STEP

U28-23283.1 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Name Length (in) Width (in) Height (in) Thickness (in) Weight (lb)

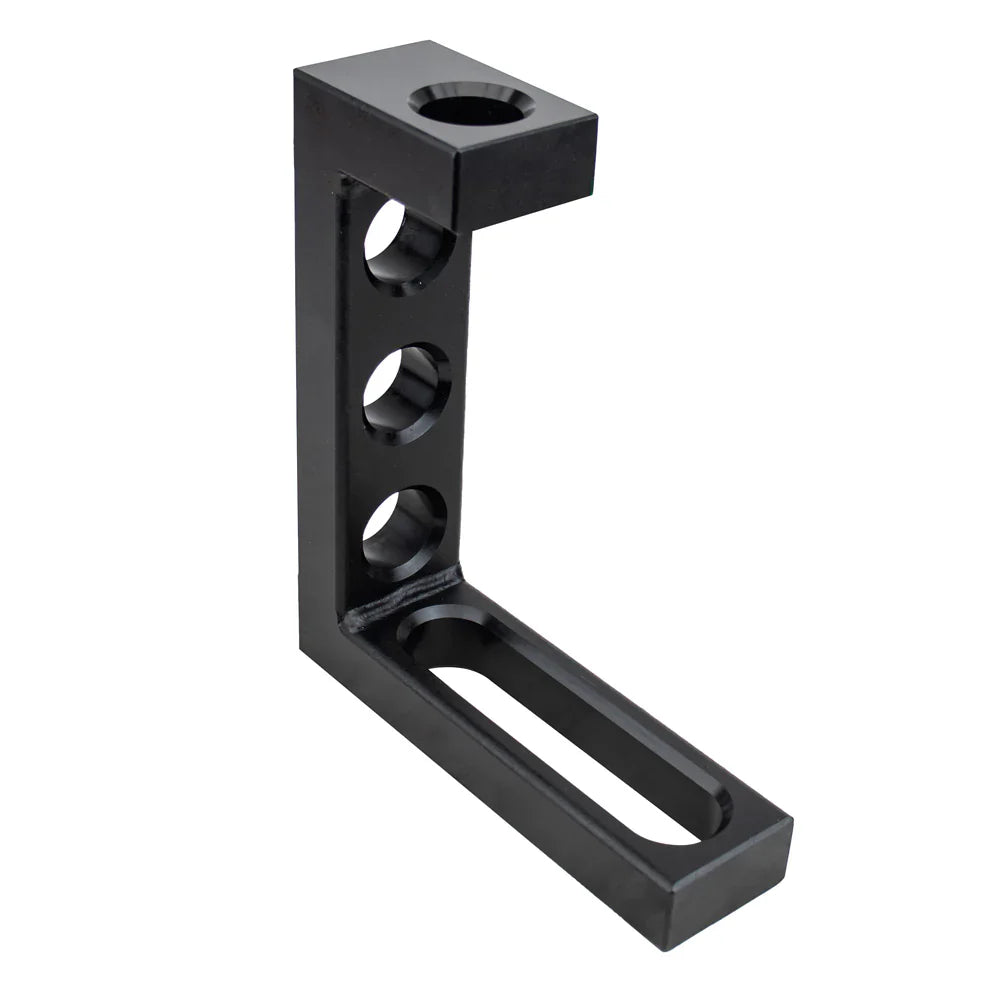

U28-12018 Angle Square 7 2 8 1 5.5

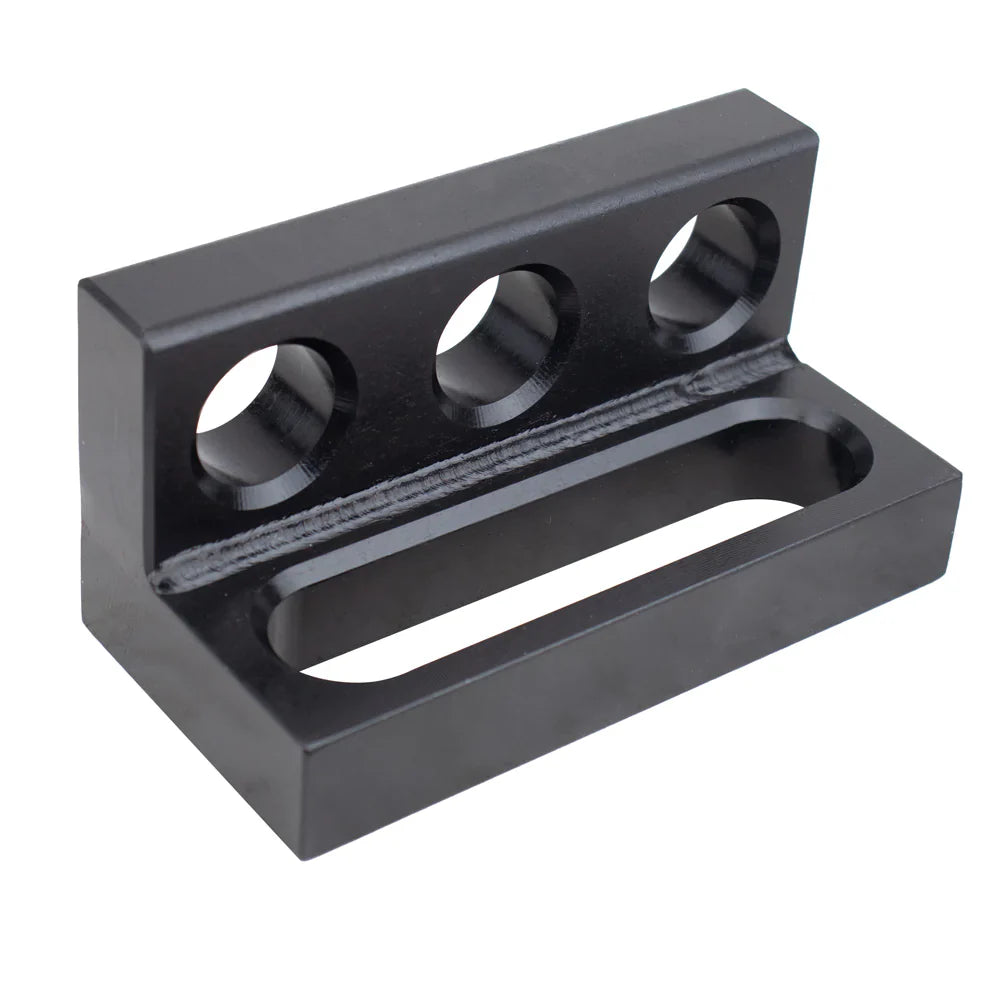

U28-23081 Mounting Square 6 3 3 1 5.7

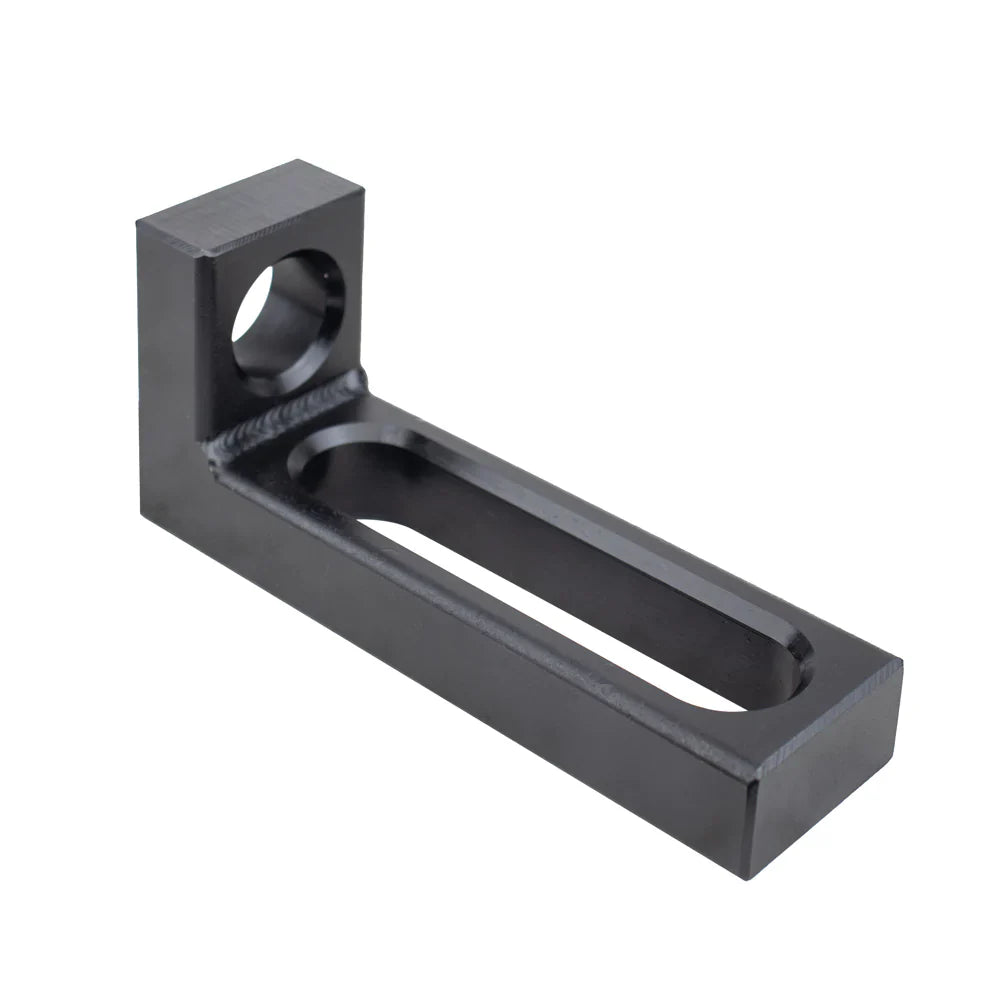

U28-23181 Angle Square 7 2 3 1 3.1

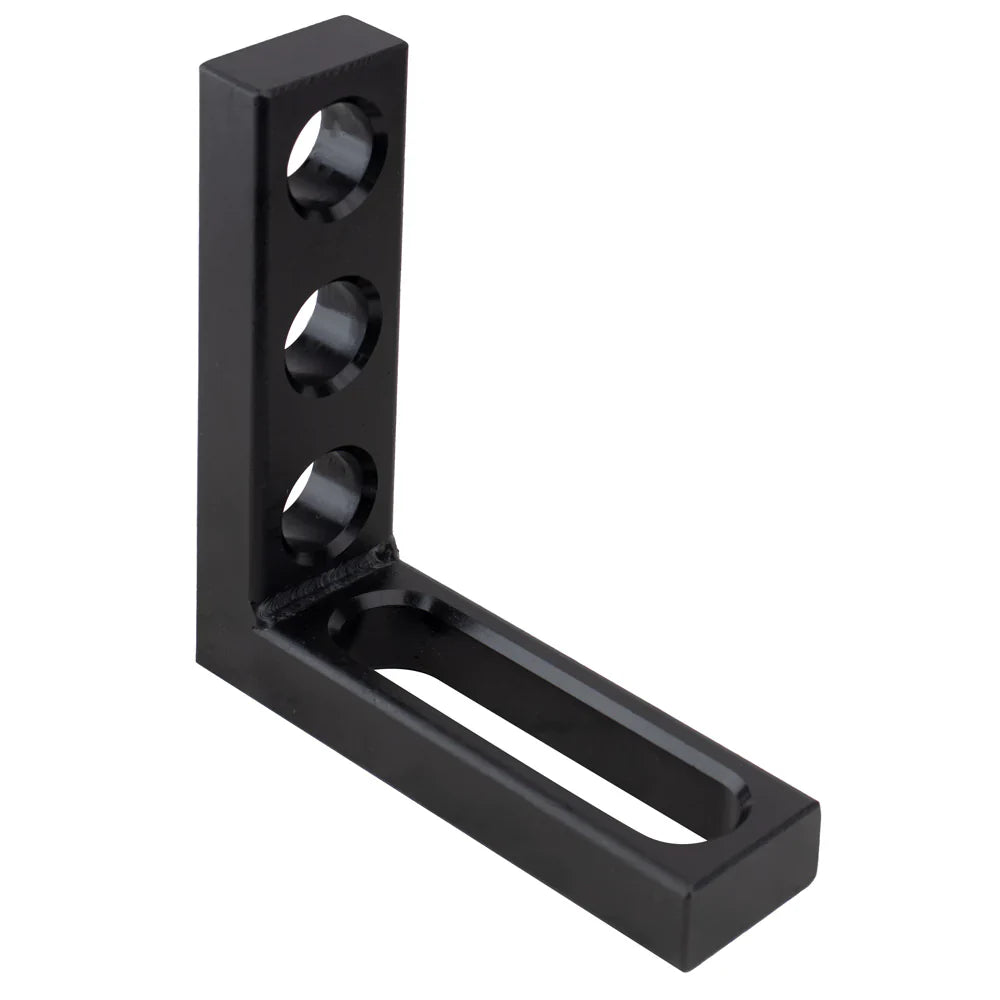

U28-23183 Angle Square 7 2 7 1 4.4

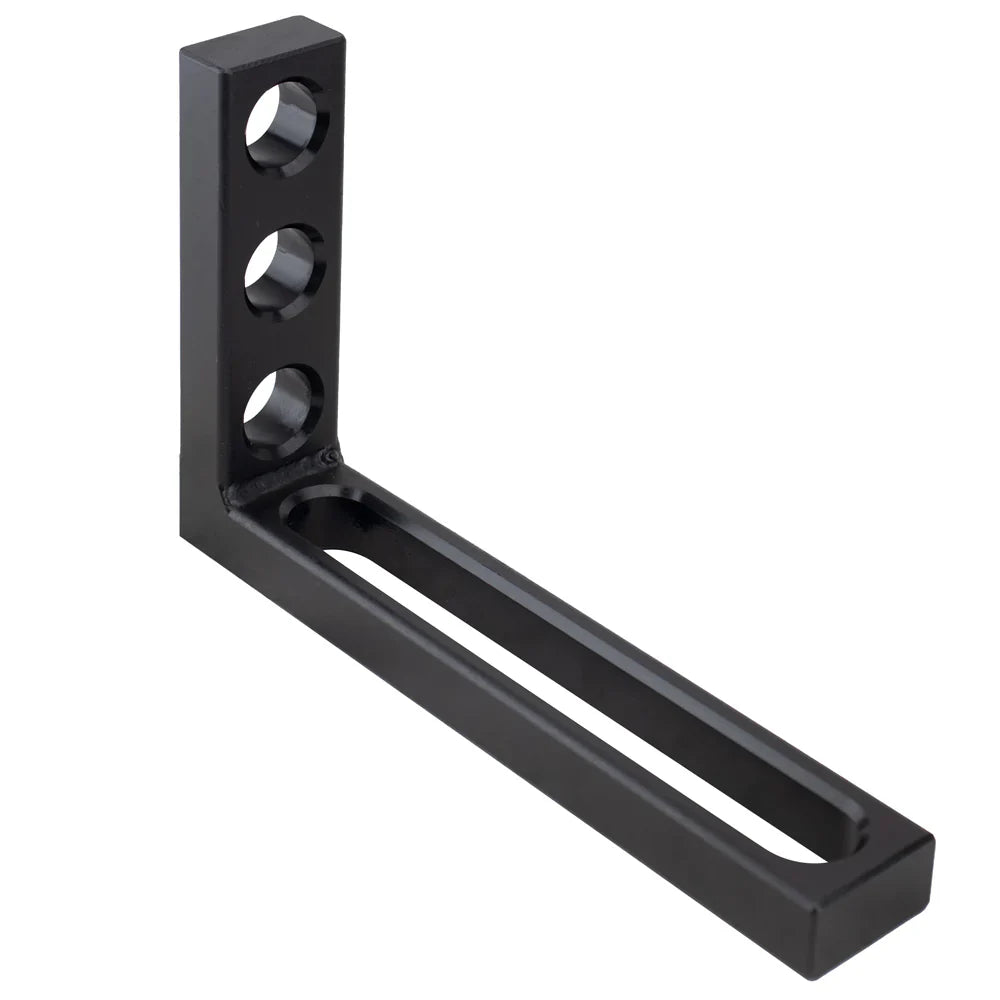

U28-23283.1 Angle Square 11 2 7 1 6
