Strong Hand Tools

4-in-1 Clamps, Medium Duty

SKU: UF65-C3

The 4-in-1 F-Clamps are the most versatile Sliding Arm Clamps in the market. All Strong Hand Tools F-Clamps are made of high-quality heat-treated steel and nickel/chrome plated for strength and durability.

Come with one F-clamp and a 4-in-1 Accessory Kit (one Extender Block and one V-Pad).

  • Clamping Pressure: 800 ~ 2,400 lb
  • Throat Depth: 4-3/4″ ~ 7″
  • Clamping Capacity: 6-1/2 ~ 20-1/2"

* Do not use with impact wrenches.

U.S. PAT. 7114714
$41.00
$41.00
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

UG1257-C3 - STEP

UM165-C3 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Clamp Arm

- Removable

- Reversible

Ergonomic Comfort Handle included with G/M Rail clamps.

UG Models: Plastic Handle + Cap

UM Models: Plastic handle ONLY

UD Models: Remove the Key Ring.

UE, UF, UG, UM Models: Press the Spring Stop

UP Models: Remove the Screw Stop

Clamp Arm

- Removable

- Reversible

Ergonomic Comfort Handle included with G/M Rail clamps.

UG Models: Plastic Handle + Cap

UM Models: Plastic handle ONLY

UD Models: Remove the Key Ring.

UE, UF, UG, UM Models: Press the Spring Stop

UP Models: Remove the Screw Stop

The Strong, economical 4-IN-1 Utility Clamps adapt to serve four different applications.

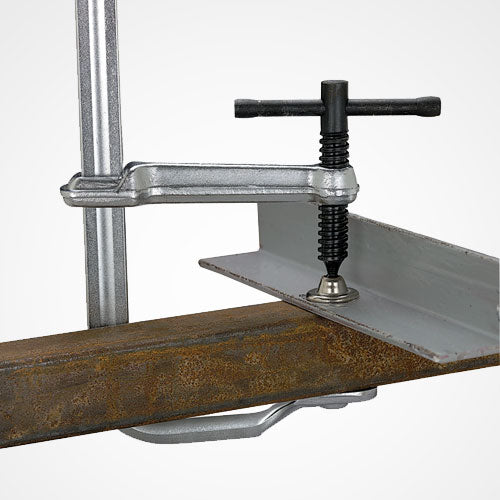

1. Standard

Sliding Arm Clamps are 10x faster than a C-Clamp!

2. Pipe

Add the exclusive V-Pad to create a Pipe Clamp!

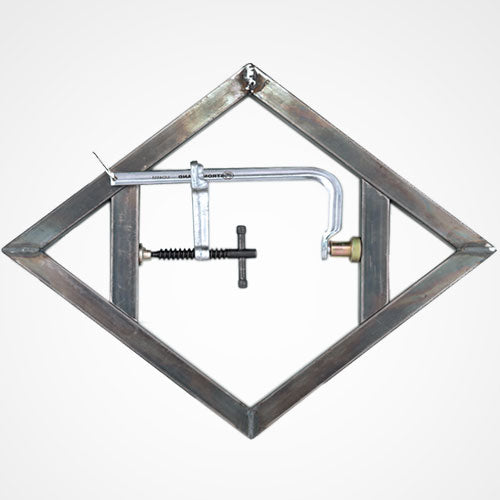

3. Spreader

Reverse the clamp arm and create a Spreader Clamp.

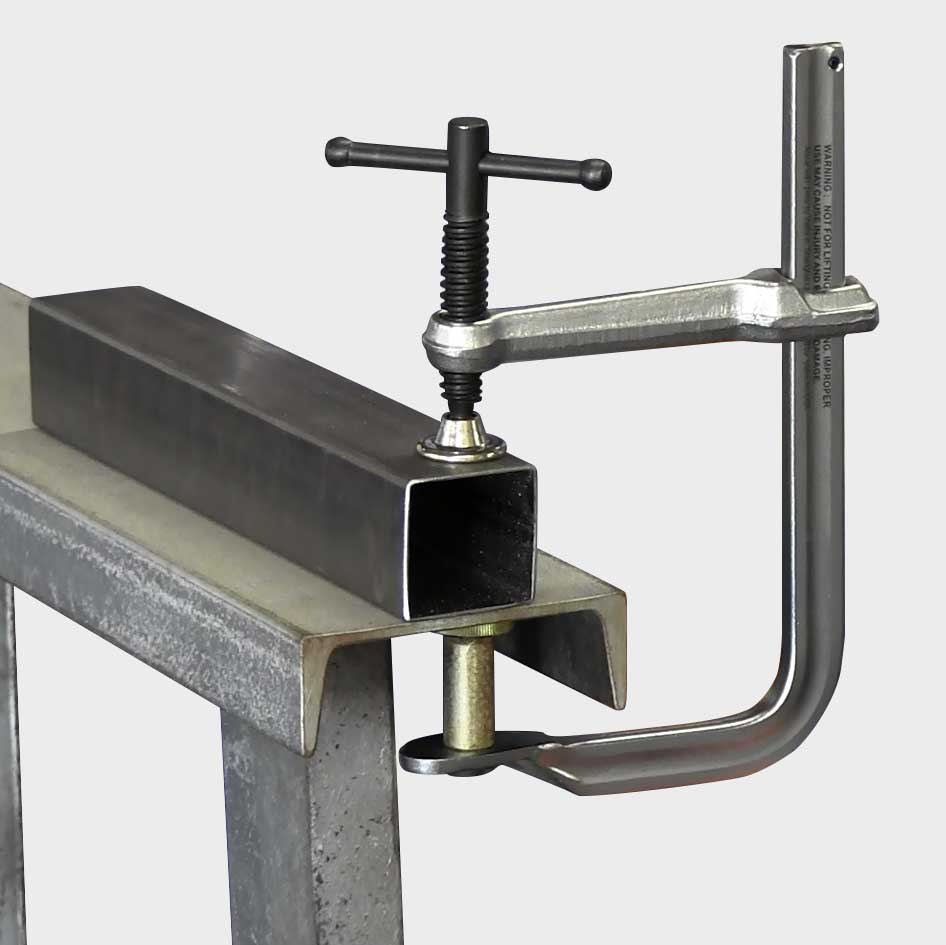

4. Step-Over

Add the Extender Block to create a Step-Over Clamp.

Standard Pad

For Light Duty clamps.

Self-aligning, Replaceable Heavy Duty Pad

For Heavy Duty and some Medium Duty clamps.

Tapped Hole - (D)

For attaching accessories such as the V-Pad or Extender Block.

Standard Pad

For Light Duty clamps.

Self-aligning, Replaceable Heavy Duty Pad

For Heavy Duty and some Medium Duty clamps.

Tapped Hole - (D)

For attaching accessories such as the V-Pad or Extender Block.

Part No. Capacity - A (in) Throat Depth - B (in) Clamping Pressure (lb) Pads Rail Size - C (in) Tapped Hole - D Weight (lb)

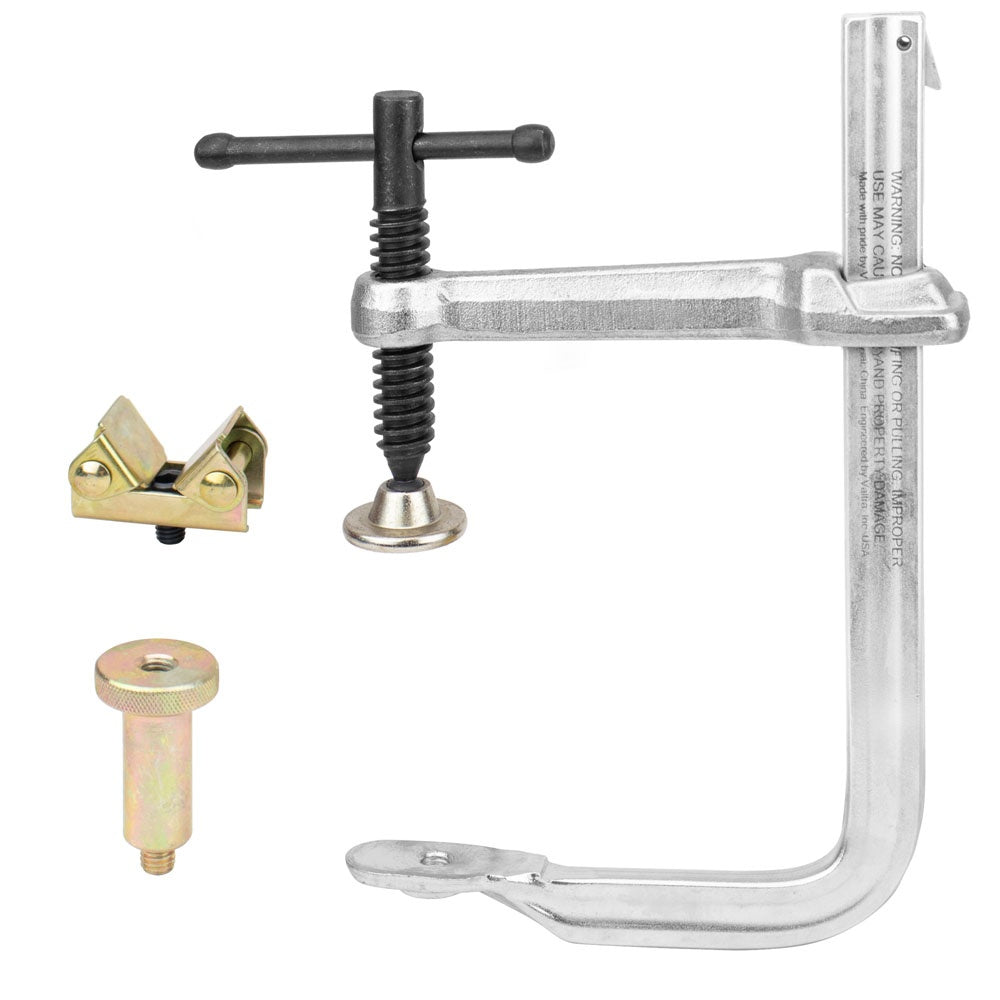

UF65-C3 6-1/2 4-3/4 1,000 Standard 7/8 x 7/16 3/8-16 2.9
UG85-C3 8-1/2 4-3/4 1,200 Standard 1 x 15/32 3/8-16 4.1

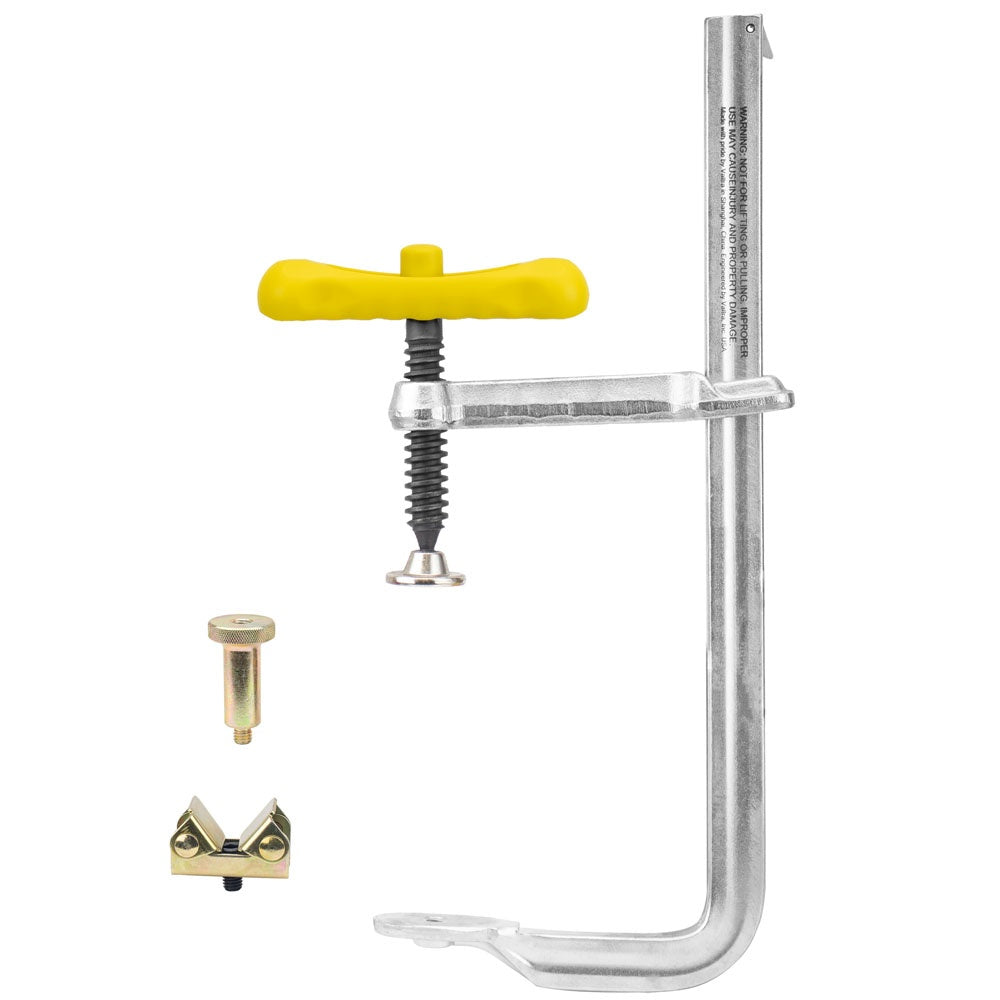

UG125-C3 12-1/2 4-3/4 1,200 Standard 1 x 15/32 3/8-16 4.5

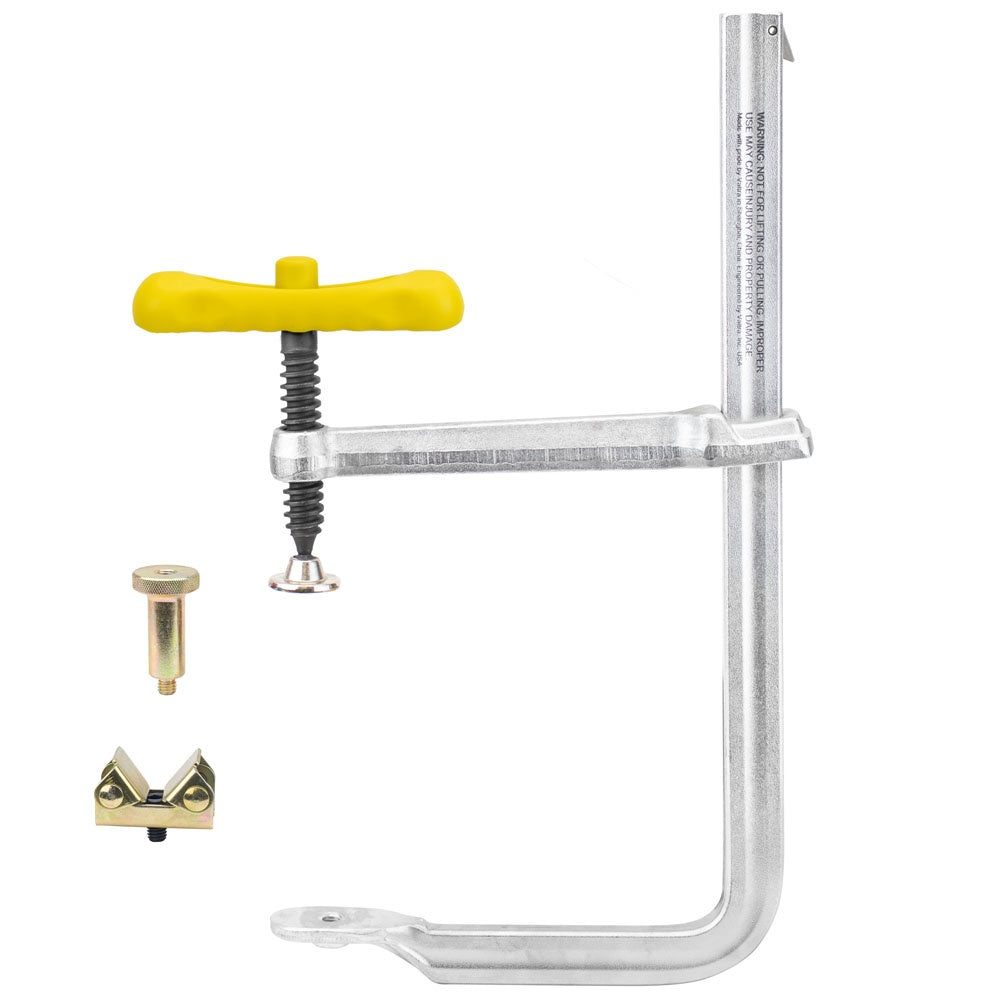

UG1257-C3 12-1/2 7 *Deep Throat 800 Standard 1 x 15/32 3/8-16 6.5

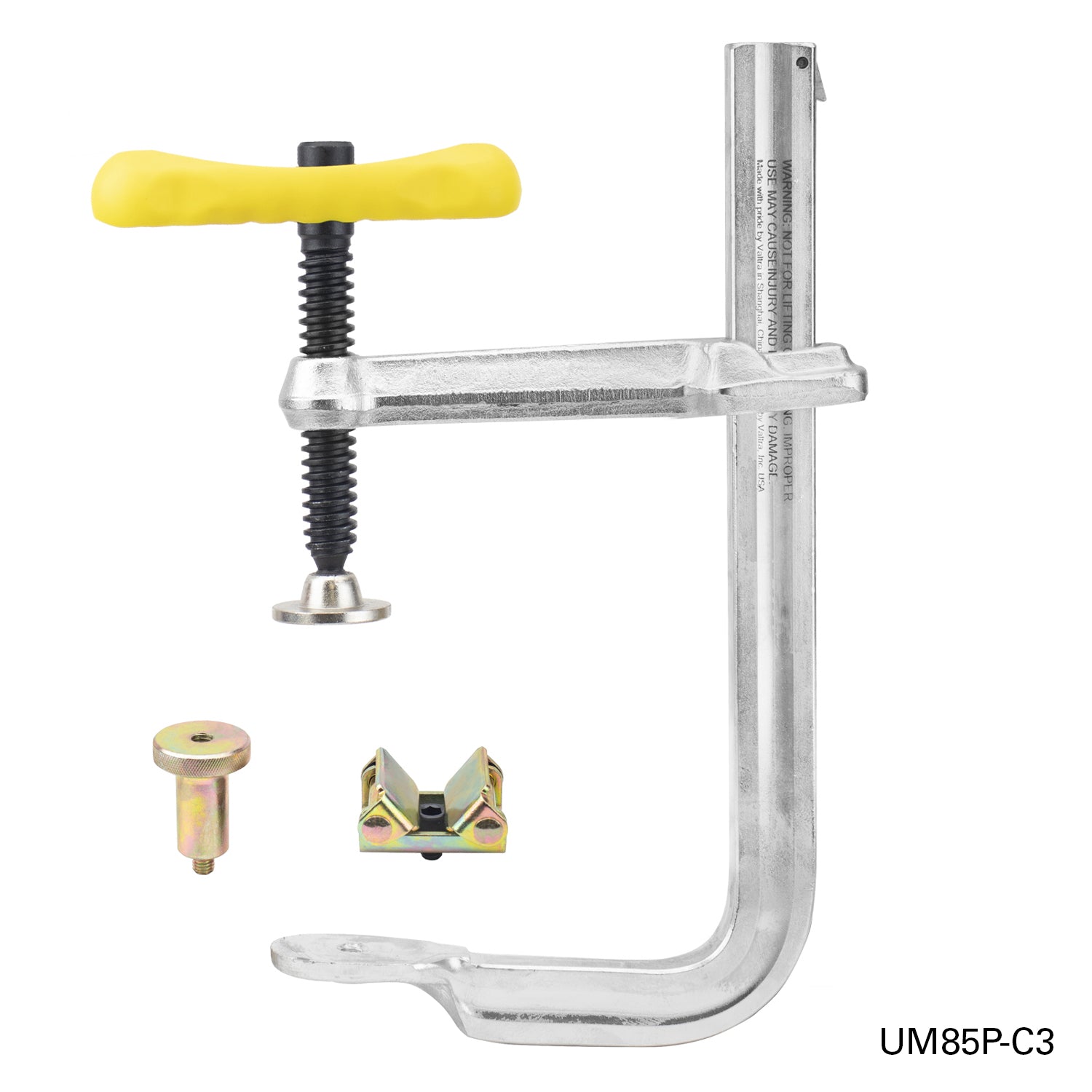

UM85P-C3 8-1/2 5-1/2 2,400 Standard 1-3/16 x 9/16 3/8-16 6.6

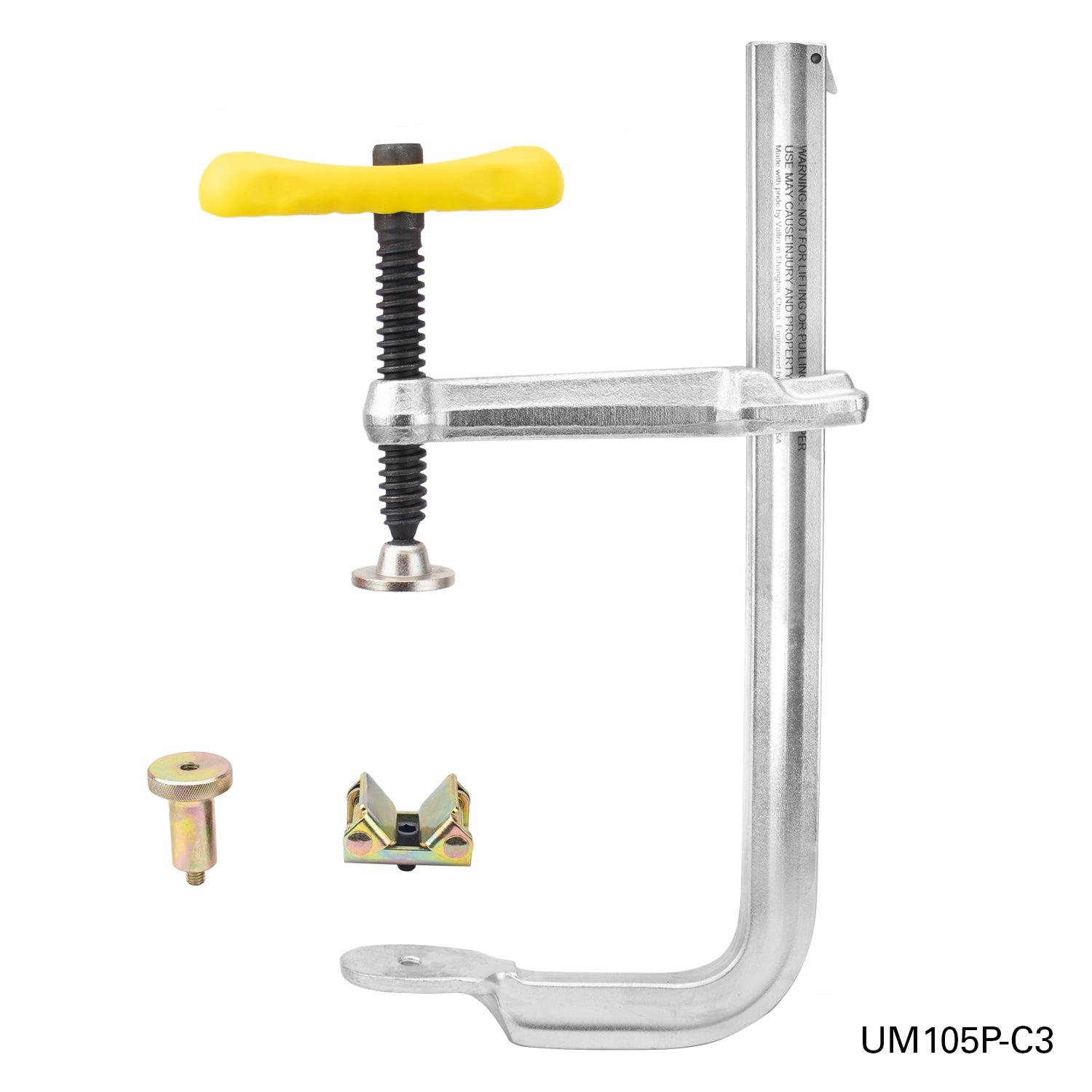

UM105P-C3 10-1/2 5-1/2 2,400 Standard 1-3/16 x 9/16 3/8-16 7.4
UM85-C3 8-1/2 5-1/2 2,400 Heavy Duty 1-3/16 x 9/16 3/8-16 7.0

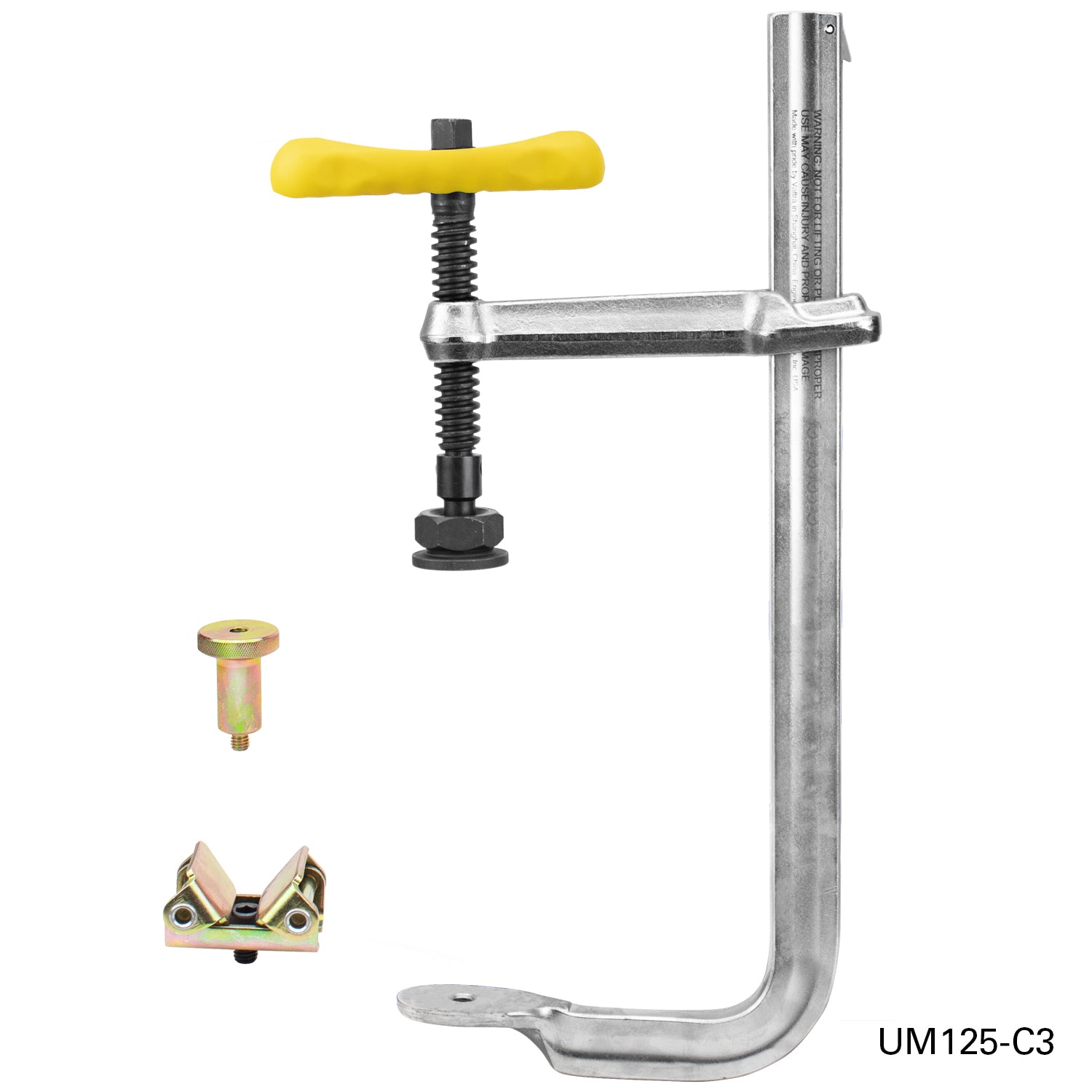

UM125-C3 12-1/2 5-1/2 2,400 Heavy Duty 1-3/16 x 9/16 3/8-16 7.6

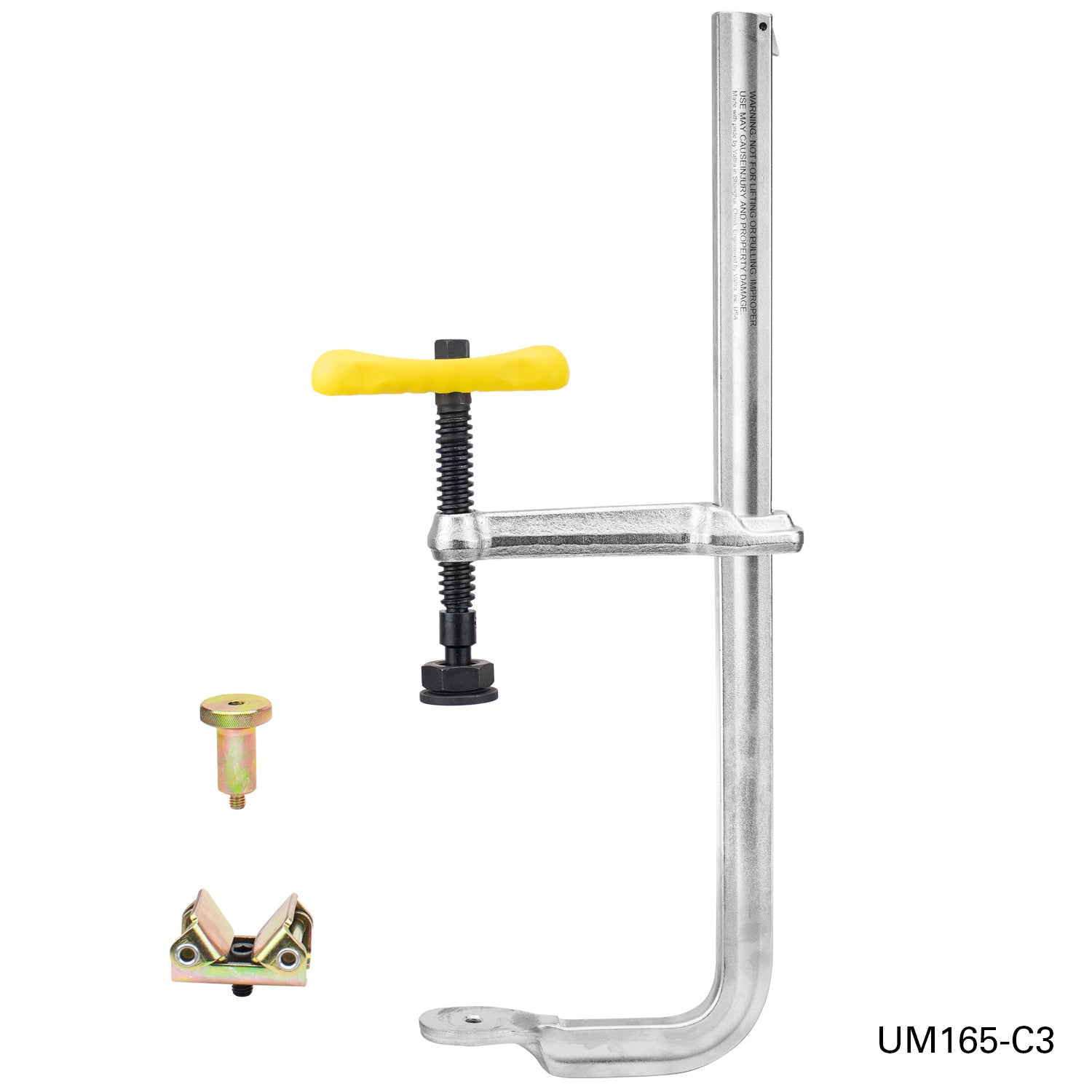

UM165-C3 16-1/2 5-1/2 2,400 Heavy Duty 1-3/16 x 9/16 3/8-16 8.7

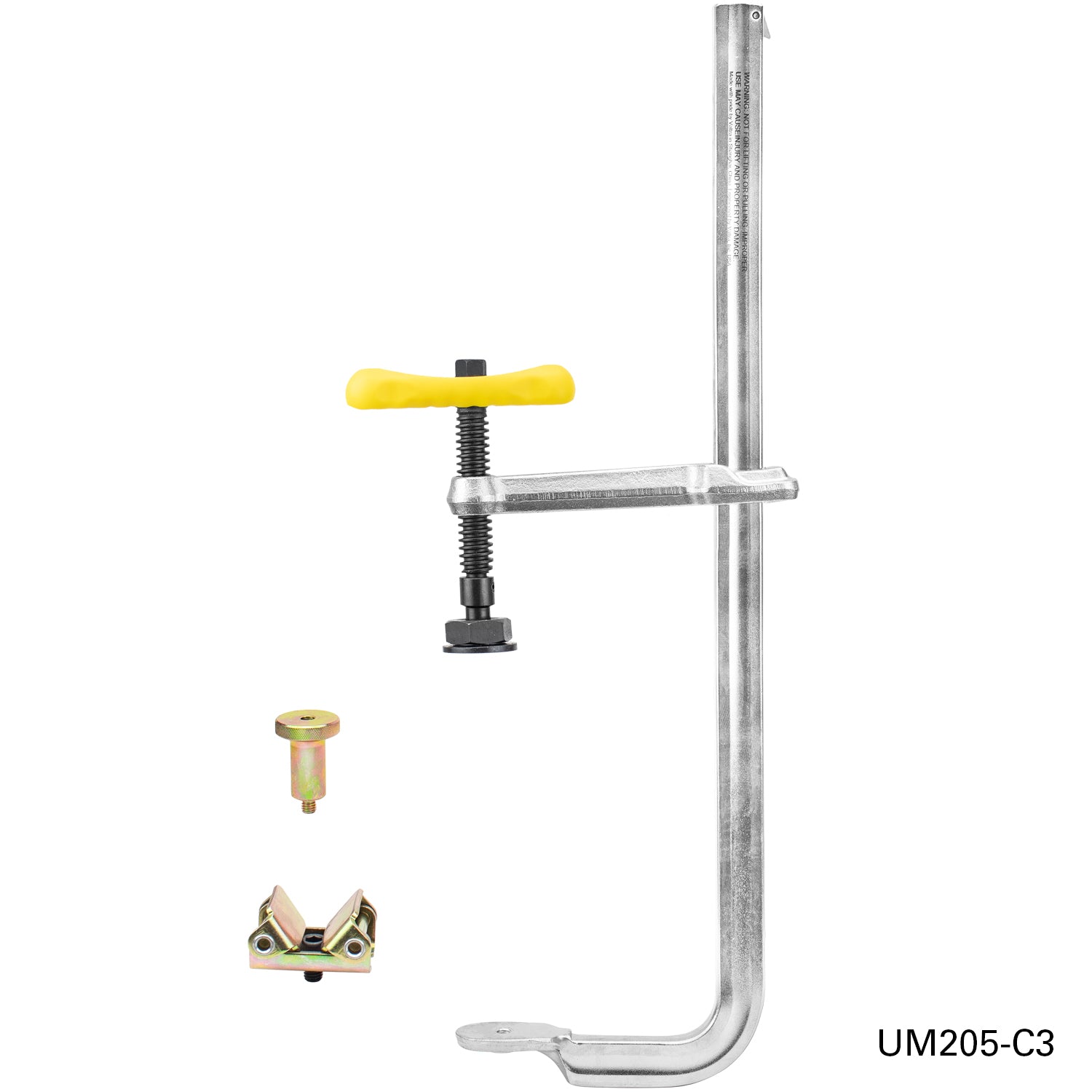

UM205-C3 20-1/2 5-1/2 2,400 Heavy Duty 1-3/16 x 9/16 3/8-16 9.8
