Alpha 28 vs. Alpha 5/8
The toughest, flattest, hardest working welding tables.
The Alpha family consists of our 5 sided table systems, combined with our patent-exclusive, reversible, and replaceable top and side plates.
Alpha tables available in both metric and inch spacing and 28 mm, and 5/8″ diameter boreholes, respectively.
Alpha 28 is an Ultra heavy duty 5-sided table with 28 mm diameter boreholes while Alpha 5/8 is Heavy duty 5-sided table with 5/8" diameter boreholes.
All top plates are constructed from heat-treated steel, hardened to 550 Vickers, and finished with a nitrite coating with a case depth of .0004-.0008″.
Alpha 28 vs. Alpha 5/8
| Alpha 28 Tables | Alpha 5/8 Tables | |
|---|---|---|
| System | Metric | Imperial |
| 5-Sided Tabletop |  | |
| Table Hole Dia. | 28 mm (1.1") | 5/8" |
| Hole Spacing | 100 mm (3.9") | 2.000" |
| Table Flatness | ±0.125 mm per 600 x 600 mm (±0.005 per 24" x 24") | ±0.005 per 24" x 24" |
| Top Plate Thickness | 25 ±0.06 mm (1" ±0.002) | 0.47" ±0.004 |
| Tabletop Side Height | 200 mm (7.9") | 6" |
| Nitrided Finish | | |
| 0.37 Coefficient of Friction | | |
| 58-62 HRC Top Plate Hardness | | |
| P20 Top Plate Material | | |
| 50-55 HRC Side Plate Hardness | | |
| Q345B Side Plate Material | | |
The only modular ultra heavy duty welding table with positionable, self-locating, reversible Table Plates for unlimited possibilities in heavy duty fixturing for welding and fabrication. Accurately locate, position and clamp stock for higher quality welding.

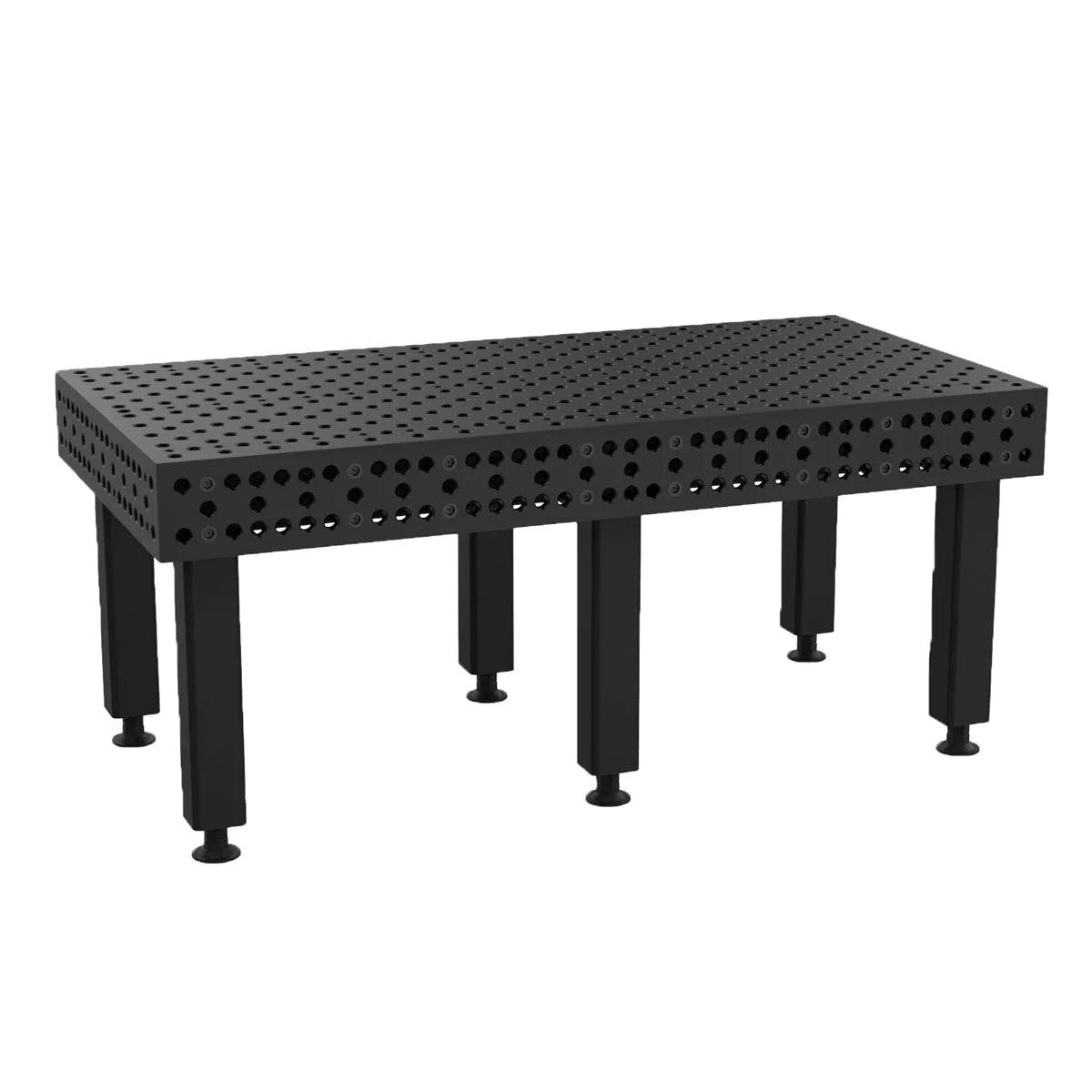

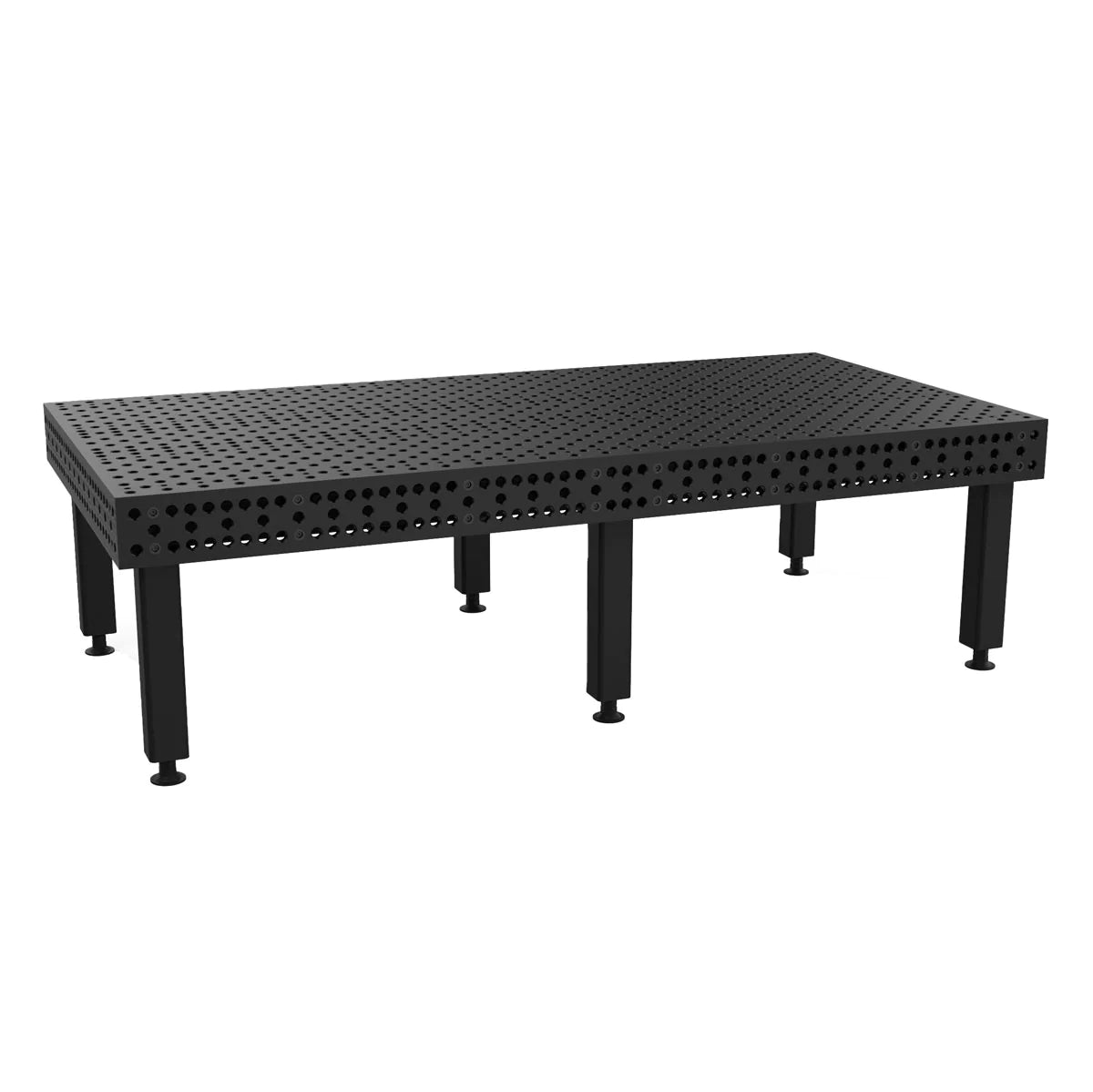

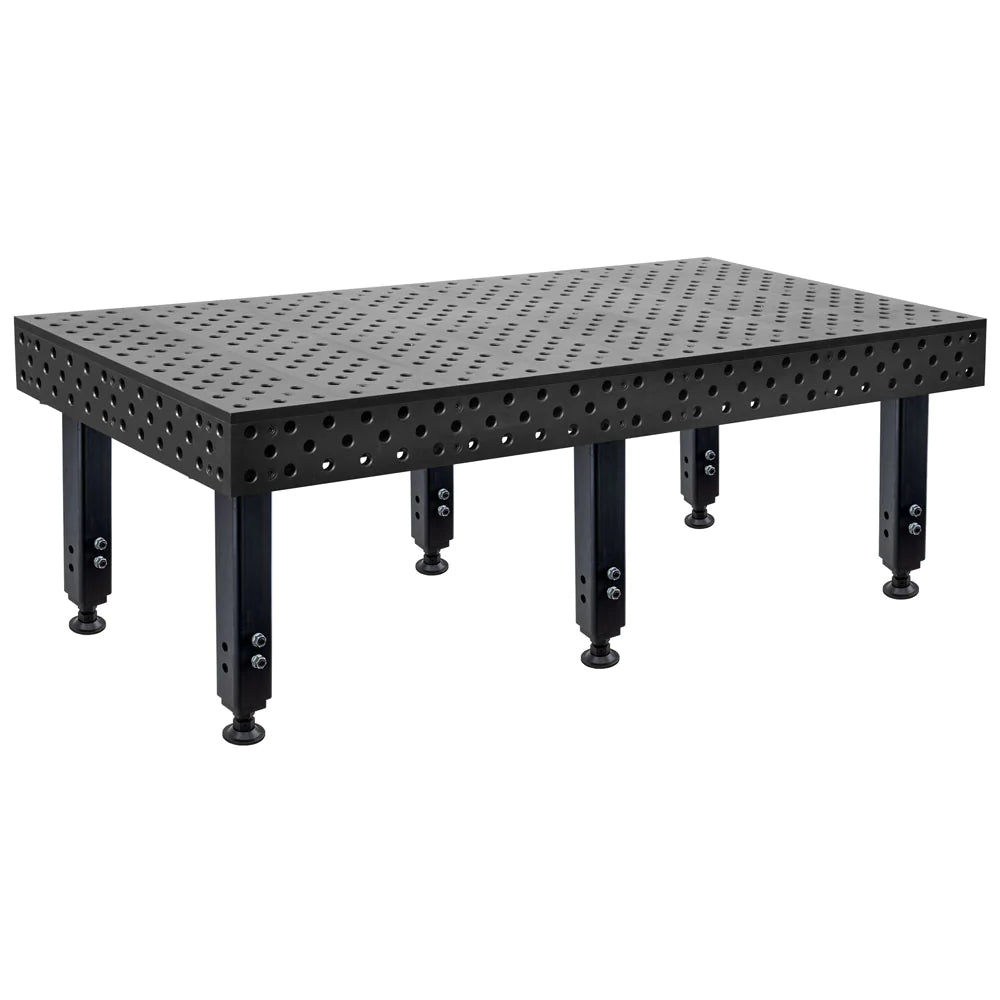

BuildPro Engineers developed the Alpha 28 line by customer demand for an affordable, heavy duty, metric Welding Table. The five-face Alpha 28 Table is the optimal solution for precision vertical and horizontal fixturing to expand your capabilities in welding and fabrication.

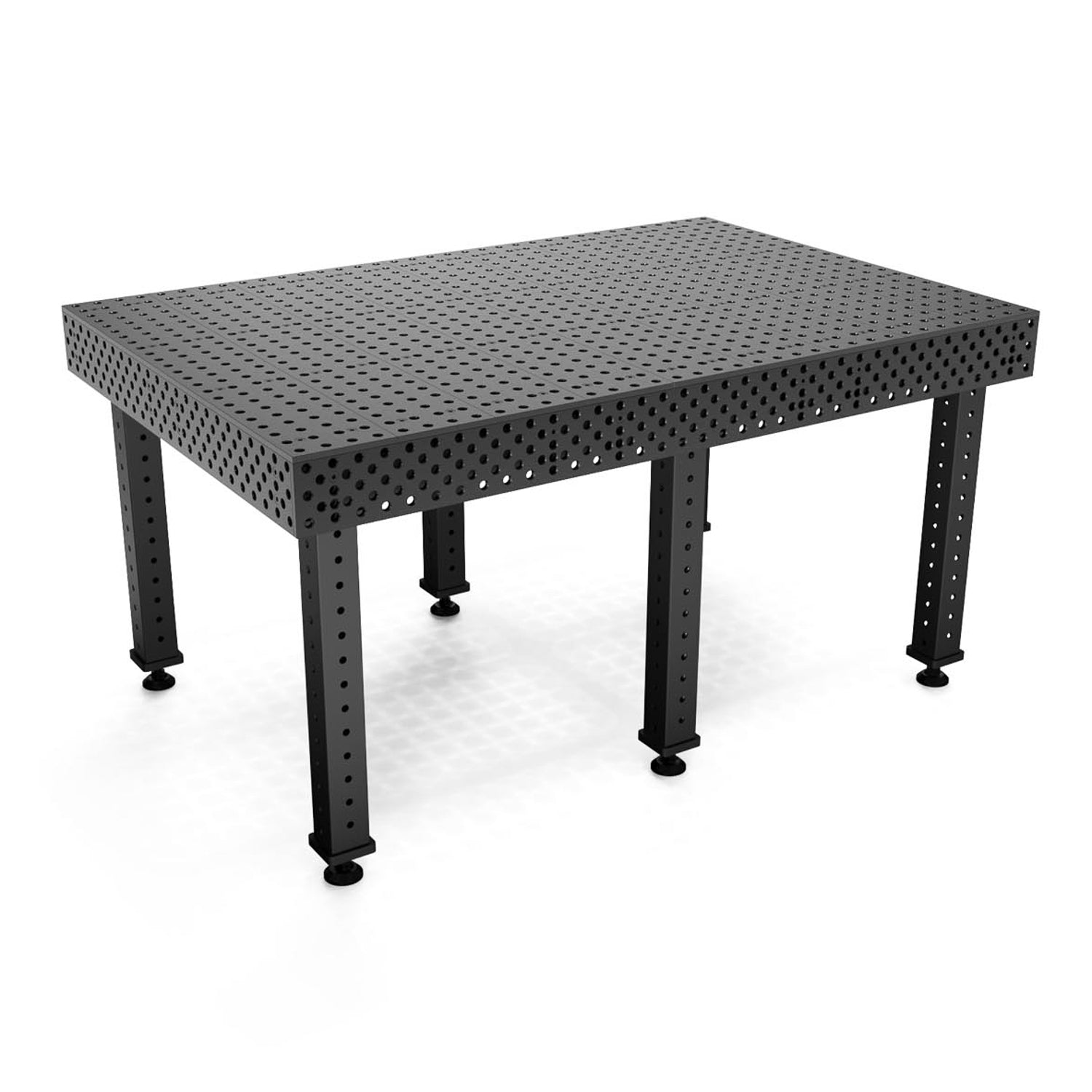

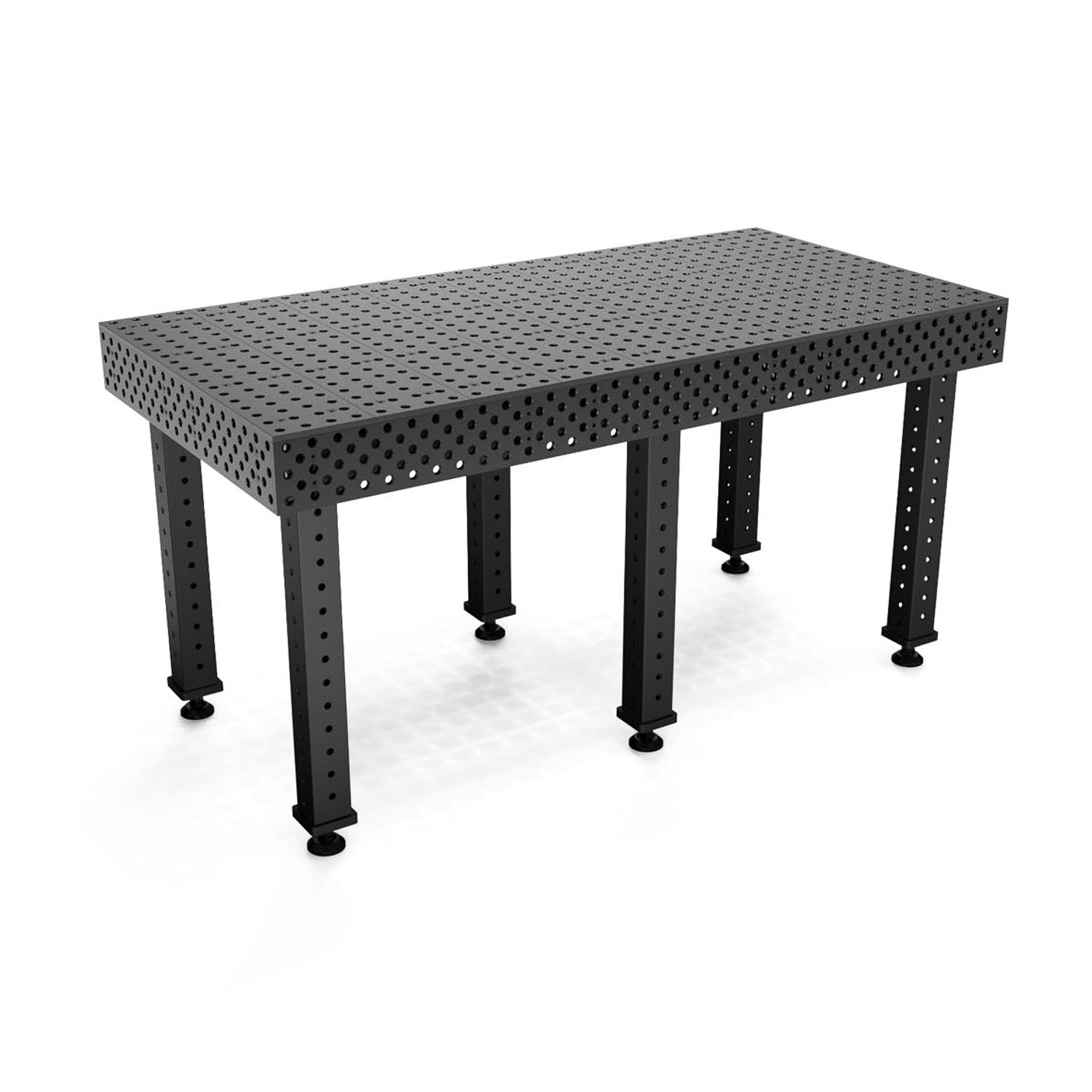

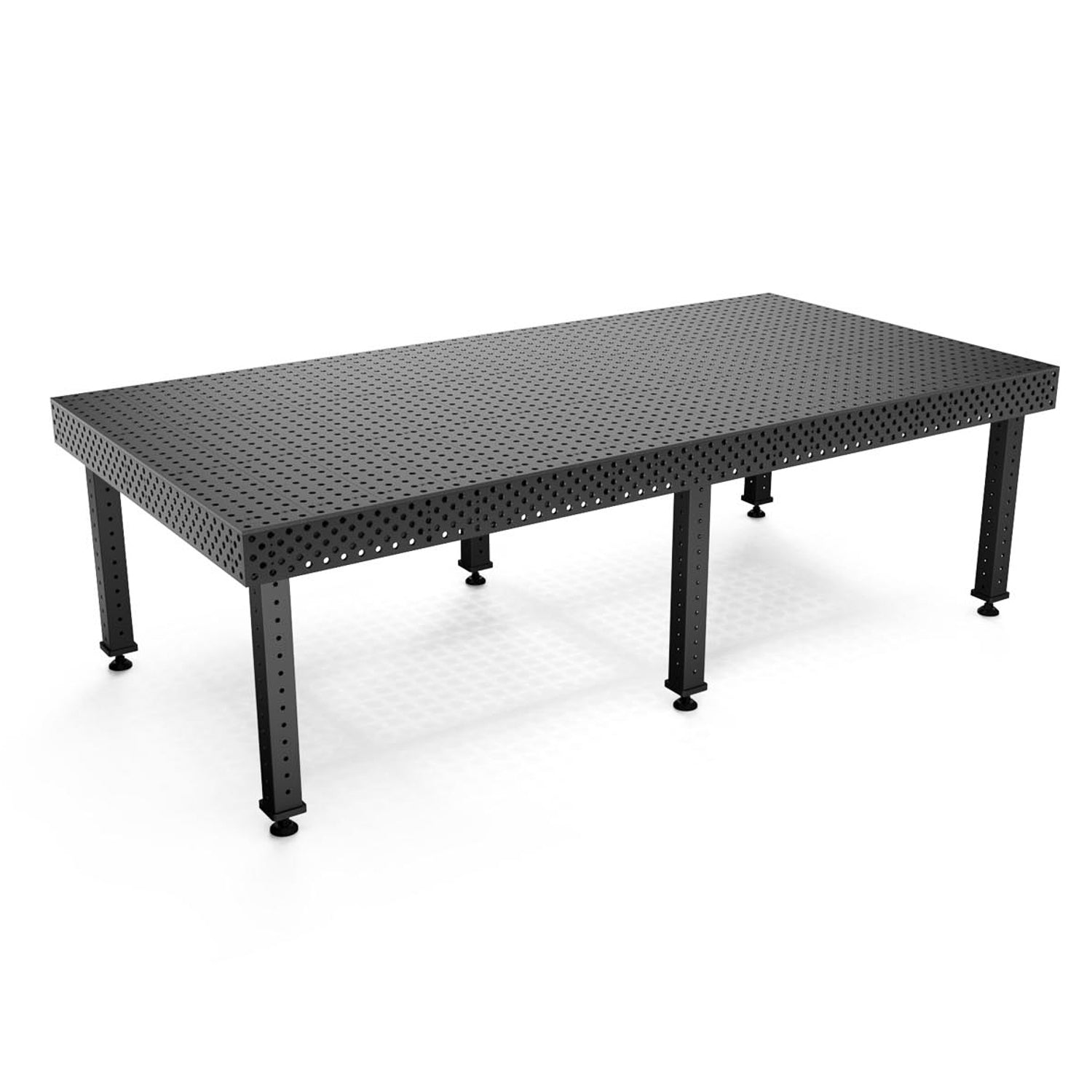

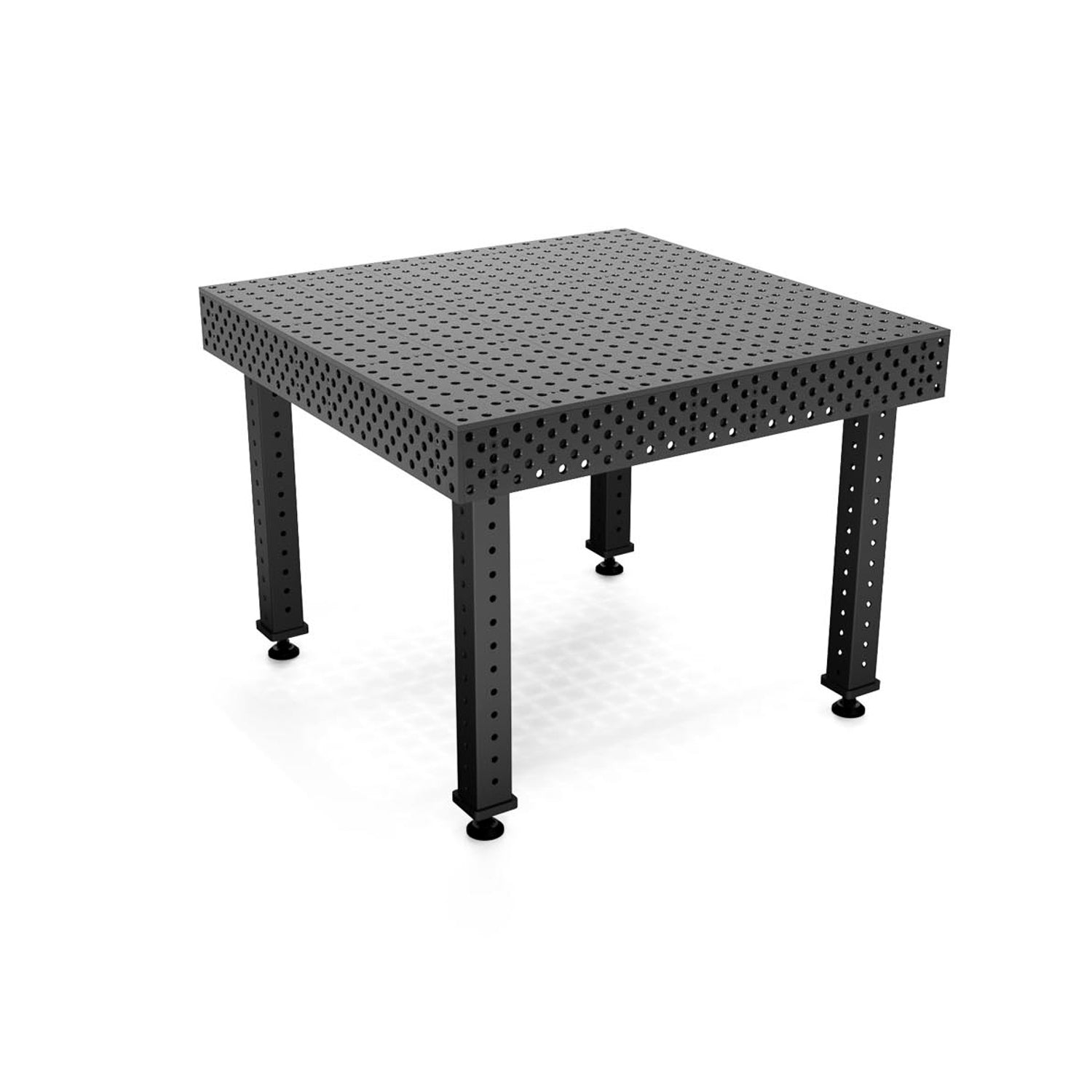

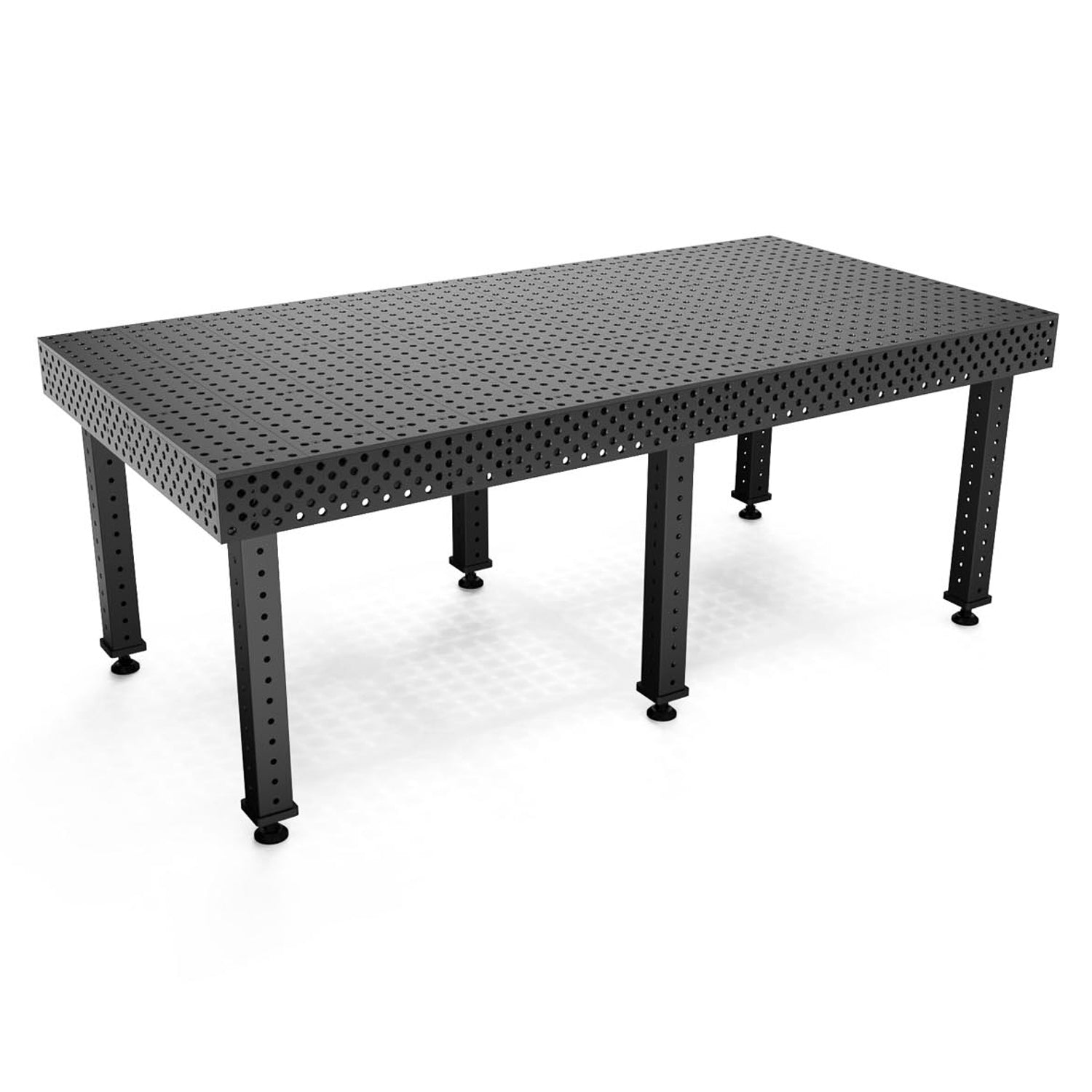

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.
Self-locating Plate System for Top and Side Plates
Both Alpha 28 and Alpha 5/8 welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
Reconfigurable and Expandable
The patented Locating Bushing design allows you to easily remove, re-position, re-align, and reverse the table plates. Table Plates can be positioned to create the custom work surface configuration required for each unique fixturing application.
