Pick the size by the part, not the shop.
All three carts share the same 0.630" nitrided top, the same 5/8" grid on 2" centers, the same 36" height and the same four casters — only the footprint, the weight and the price change. The F3 and K3 packages differ only by the 66-piece fixturing kit.
Prices shown are the current list price for the package selected above. F3 is the cart on its own; K3 is the same cart with the 66-piece 5/8" fixturing kit packed with it. Rhino Carts ship freight — shipping is quoted at checkout.
Why the Rhino Cart
A fixturing table
that rolls

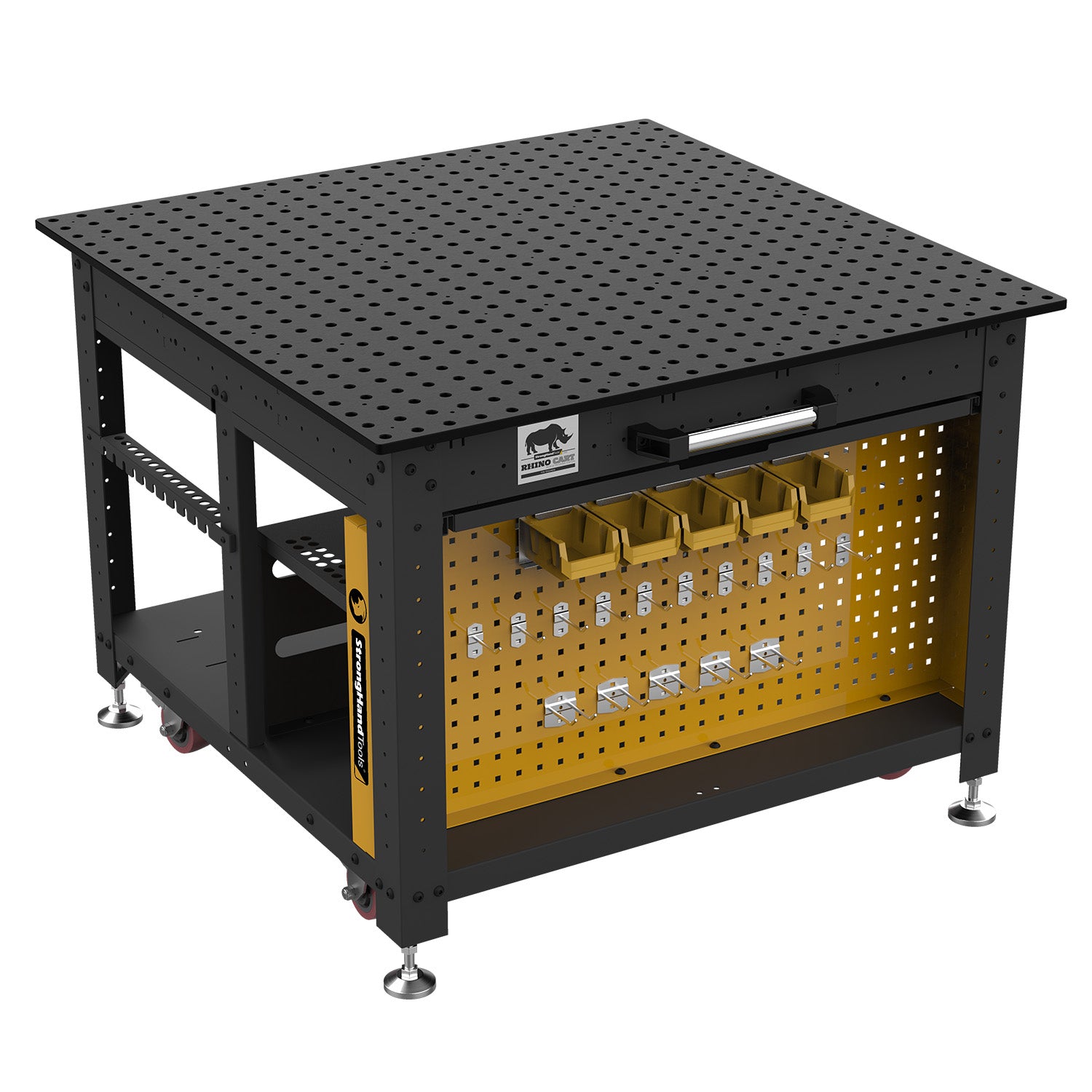

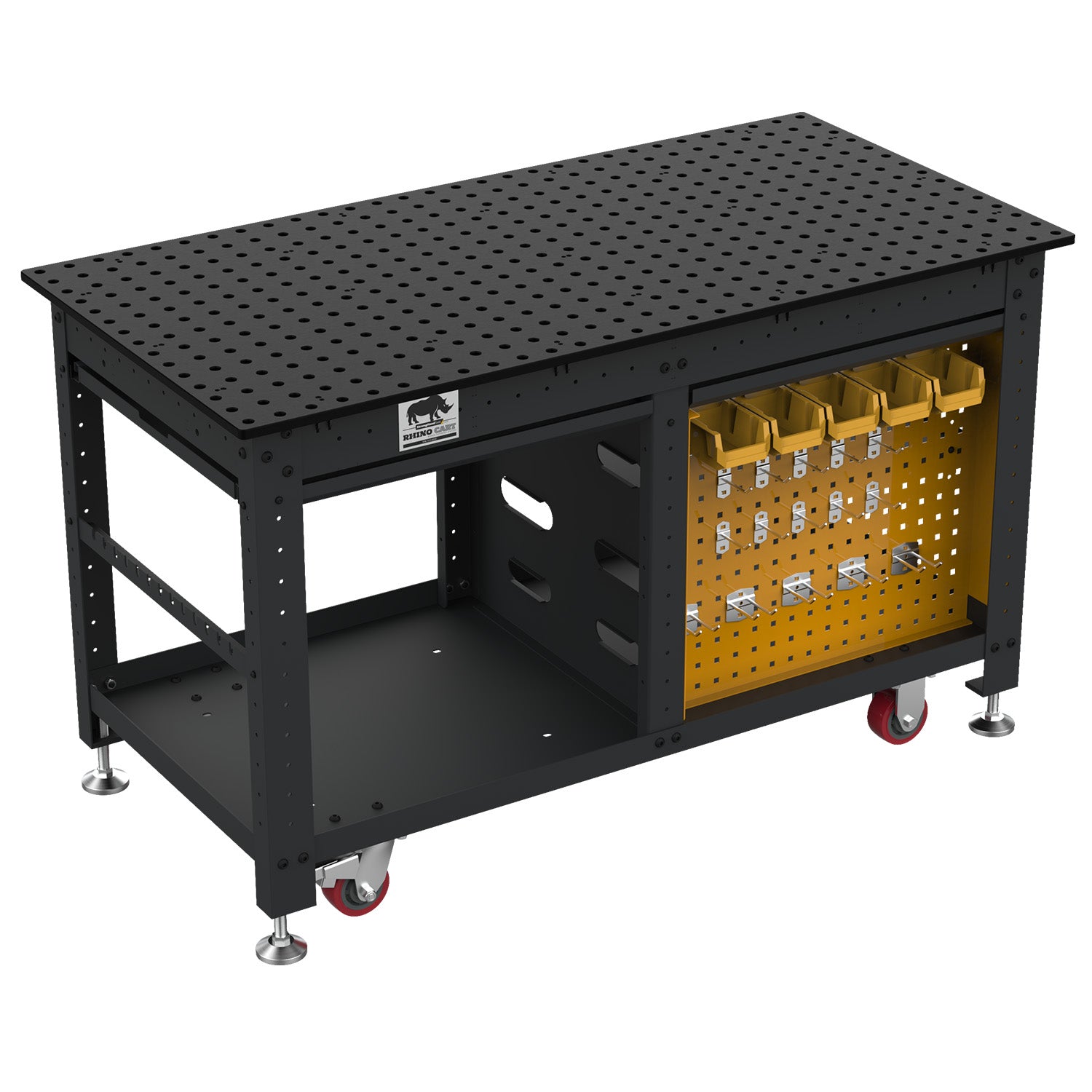

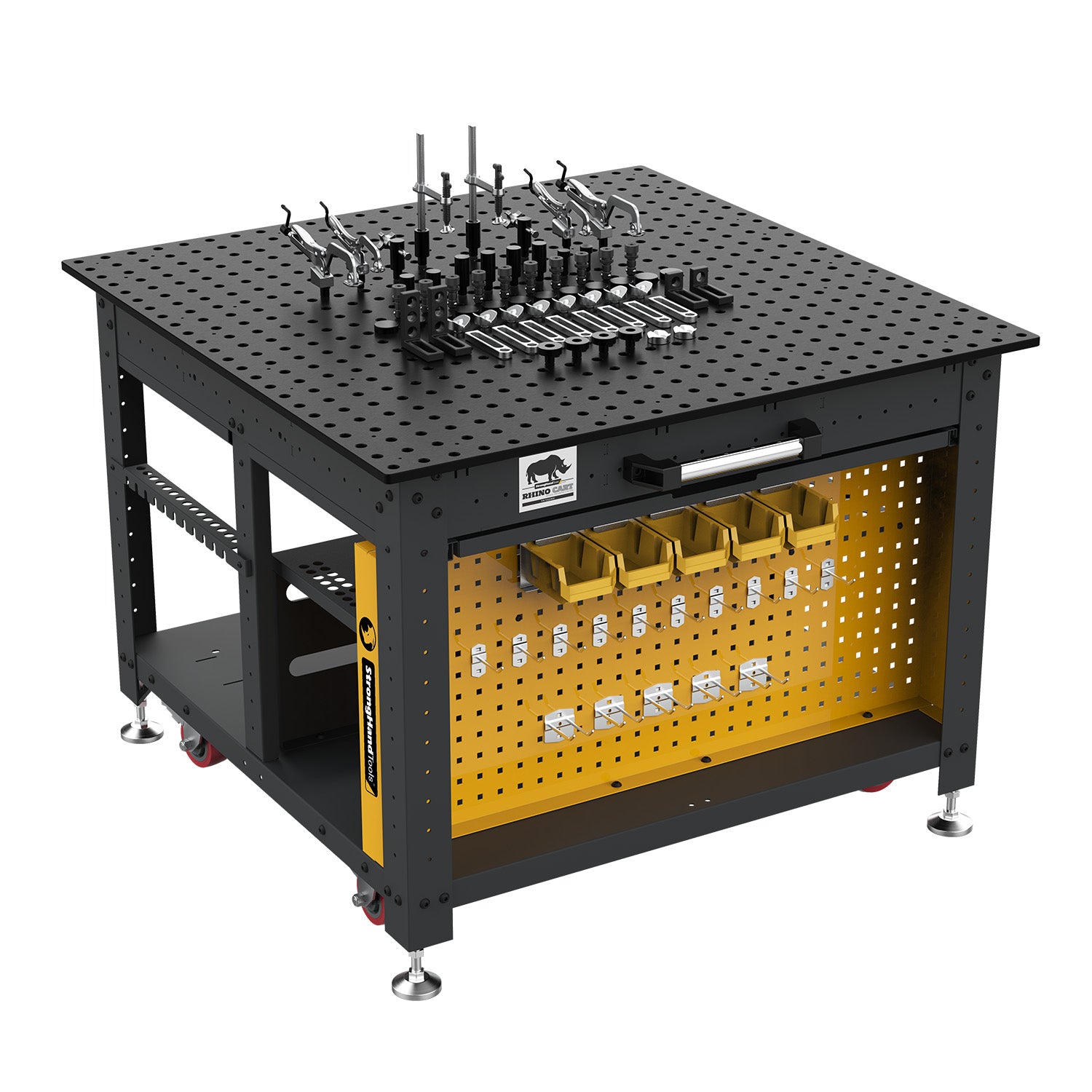

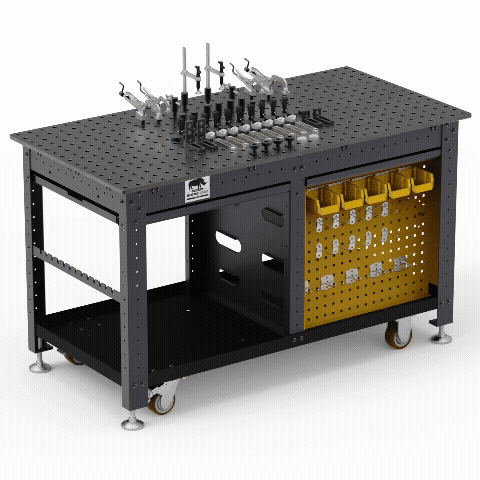

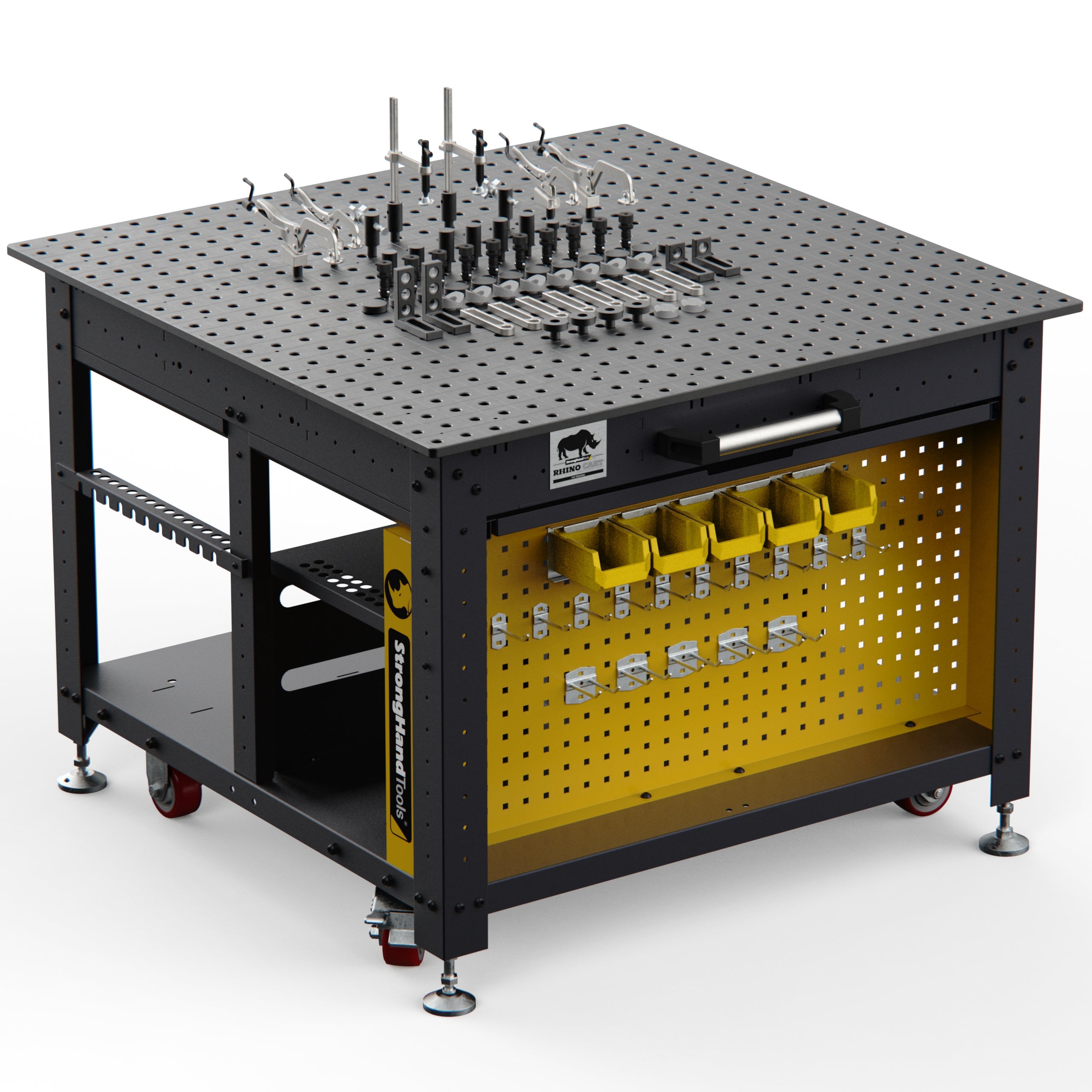

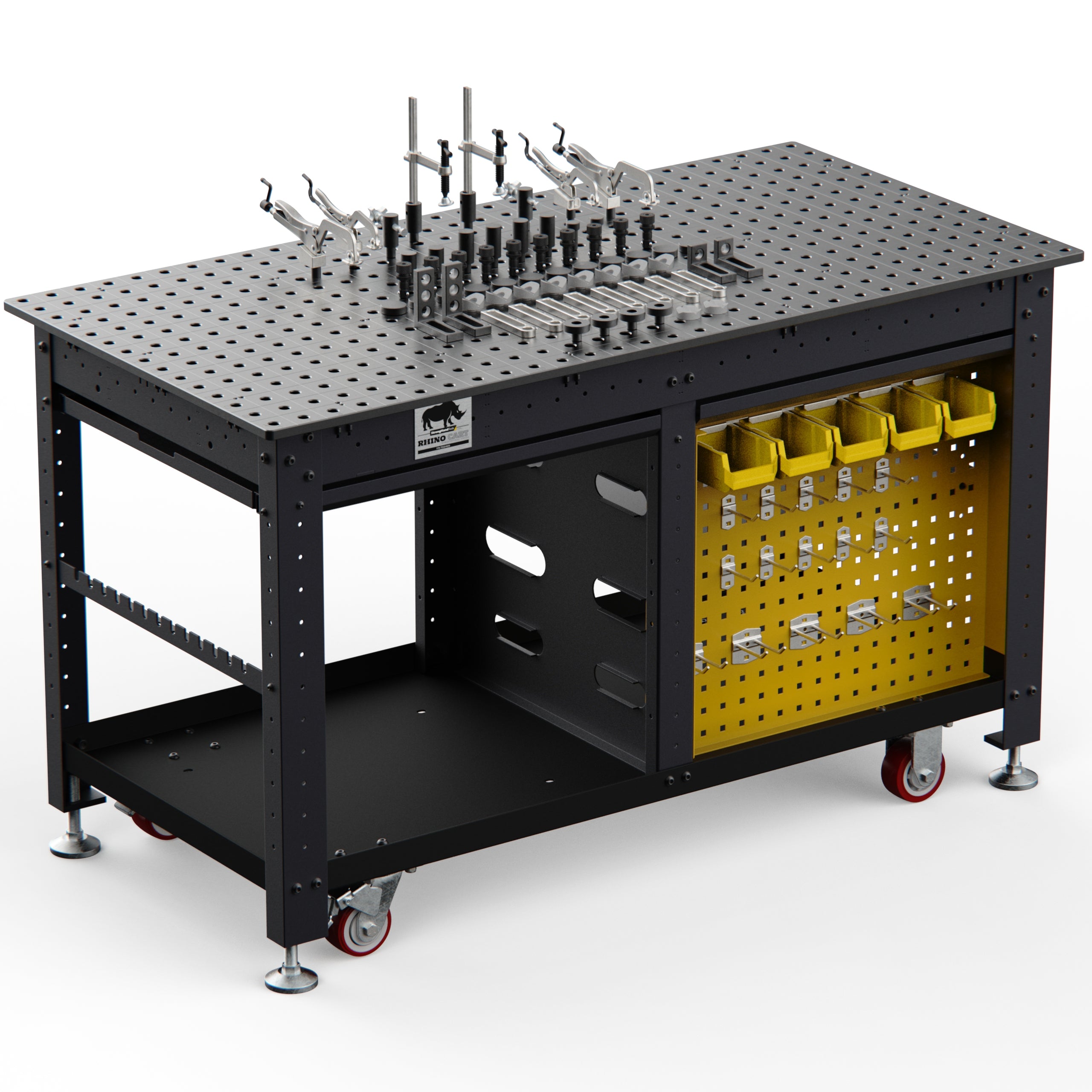

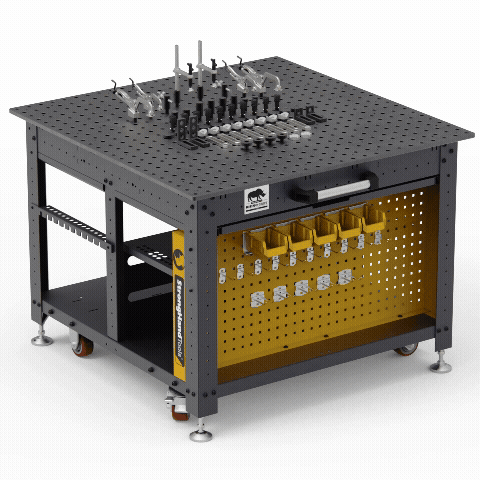

The Rhino Cart is a BuildPro welding table built onto a rolling chassis. A 0.630" nitrided plate top with Ø5/8" holes on 2" centers, over a tubular frame that carries the drawers, the pegboard, the slag trays and the cables — then four heavy-duty casters under all of it.
Push it to the work, then lock it down. Two of the four wheels steer and brake; four independent leveling feet screw down to take the weight off the casters and set the top flat, so it fixtures like a stationary table once it is parked.
Choose from three sizes, each sold on its own (F3) or with the 66-piece fixturing kit (K3). Shelves, tool boxes and bridge kits add to any of them.
How it compares
Rhino Cart vs the
other BuildPro series
Rhino is the one that rolls. It trades the thinner flatness tolerance of the fixed tables for a chassis with casters, drawers, trays and cable routing — and takes exactly the same 5/8" tooling. Greyed values match Rhino Cart.
Slide sideways to see every series →
Rhino CartThis series
MAX5/8" systemView
Alpha 5/85/8" systemView
MAX Slotted5/8" systemView
Scout 365/8" or 16 mmView
Scout Tripod5/8" systemView
Alpha 2828 mm systemViewLoad capacities are static ratings. Every 5/8" series takes the same Strong Hand Tools 5/8" clamps, stops and squares; 28 mm tooling is a separate system.
Construction
What the cart is made of
A fixturing top on a working chassis. The same build on all three sizes — only the footprint changes.
-
Hole grid
5/8" on 2" centers
Ø0.625" (15.88 mm) holes every 2.000" (50.8 mm), CNC machined across the whole top. The same grid as every other BuildPro 5/8" table, so the same clamps and stops drop in.
-

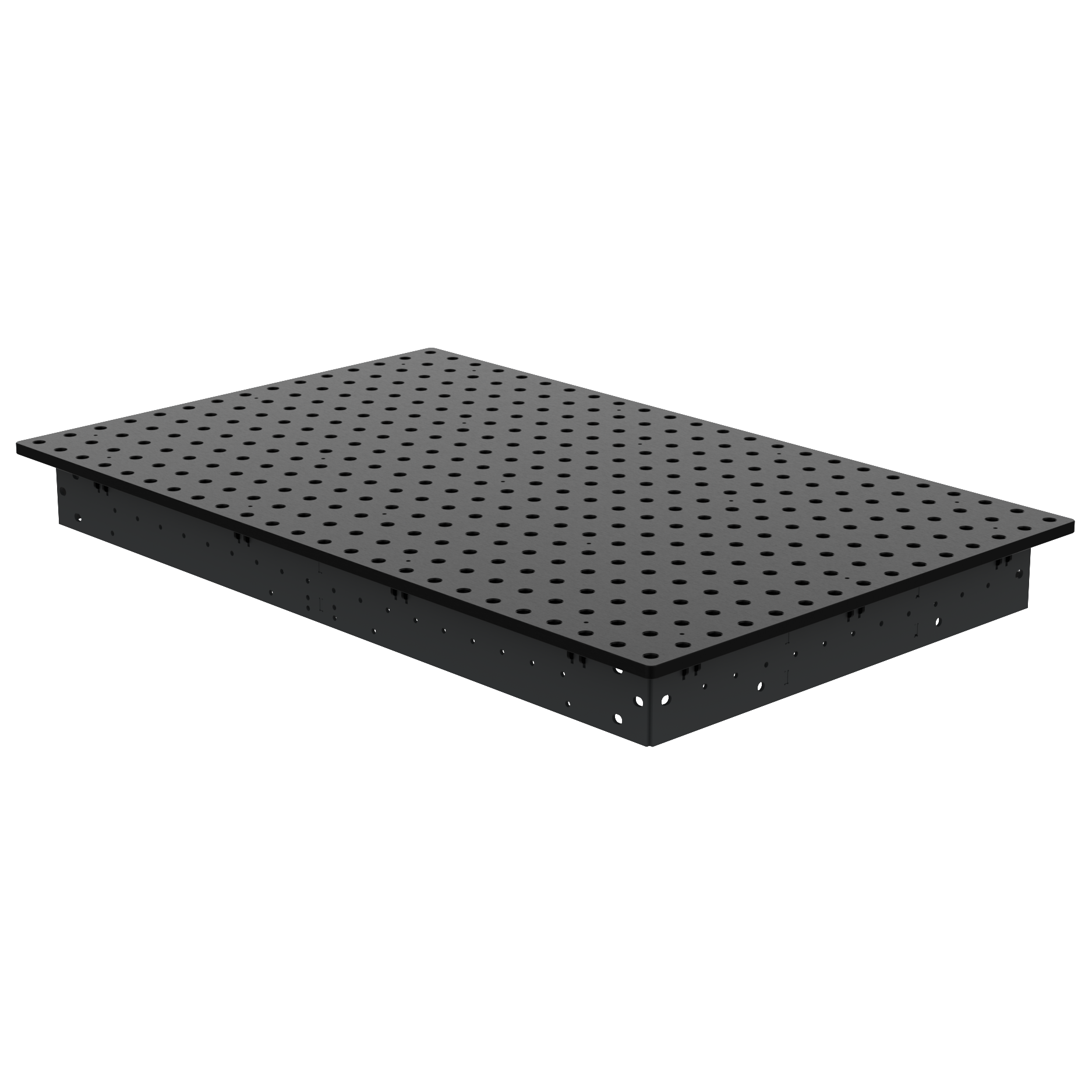

Plate
0.630" nitrided steel
0.630" (16 mm) plate, nitrided for weld-spatter, corrosion and wear resistance, flat to ±0.015" over any 24" × 24" and rated 1,500 lb (680 kg) static.
-
Mobility
Roll it, then lock it
Four heavy-duty wheels — two of them steering, with brakes — and four independent leveling feet. Screw the feet down and the cart stops being a cart.
-
Storage
Tools on the cart
A pegboard face, a drawer bay and a tool pan carry the clamps and pliers with the table, so the top plate stays clear for the part instead of the tooling.
-
Clean-up
Modular slag trays
Trays that lock in on a spring-loaded plunger. They sit under the work to catch slag and grinding dust, and pull straight out to empty.
-
Cables
Routed, not draped
Pre-machined slots in the center divider panel take the welding lead, gas hose and control cable through the chassis — the detail that makes a cobot cell on wheels work.
Storage & mobility
The chassis
does the work
Every Rhino Cart rolls on the same four casters and four leveling feet. Shelves, tool boxes and bridge kits bolt on afterwards — the same three add-ons fit all three sizes.
-

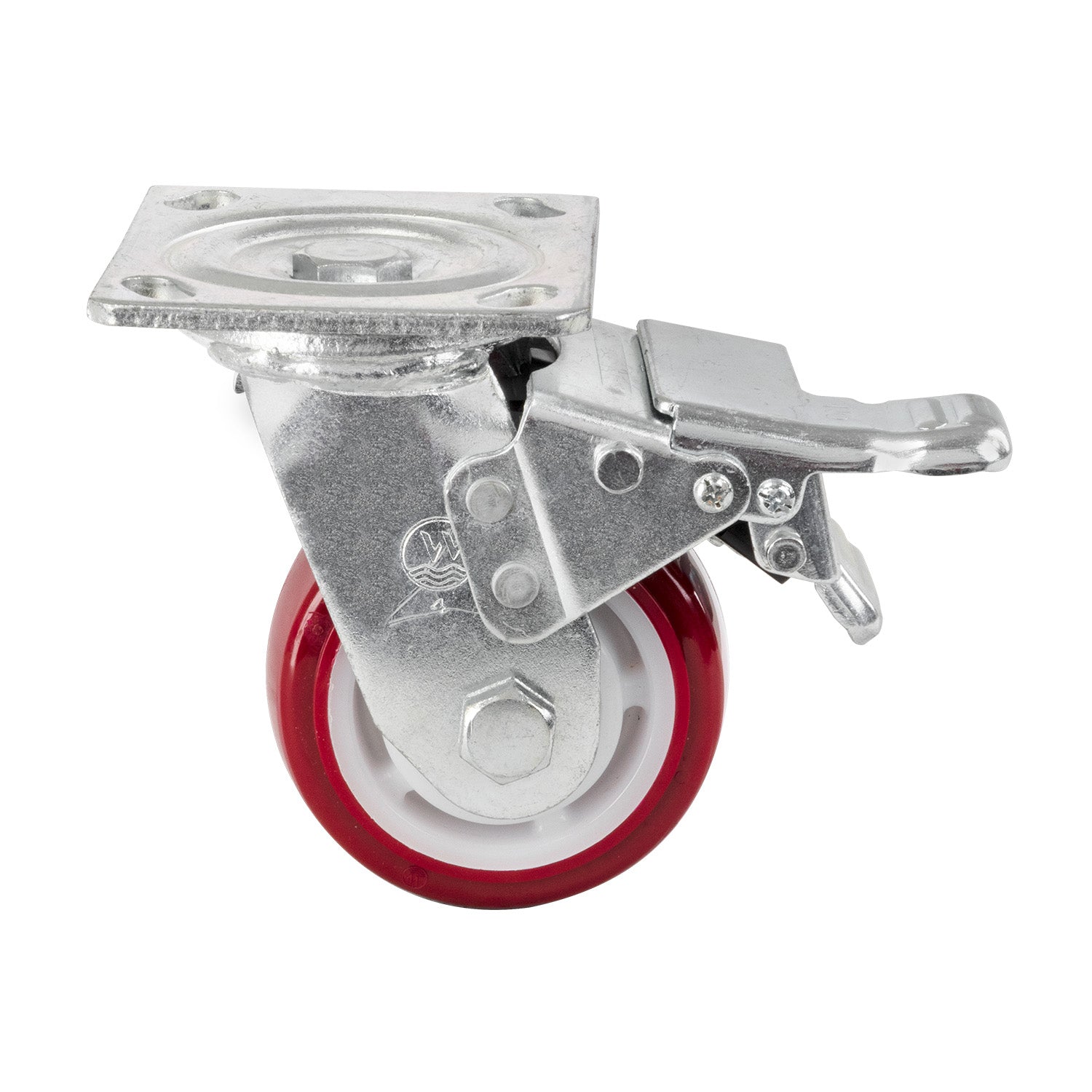

STDCasters
Casters & feet
4 + 4casters + leveling feet
Four heavy-duty wheels, two of them steering with built-in brakes, and four independent leveling feet that take the weight off the casters and set the top flat once the cart is parked.
- Wheels
- 42 steering, with brakes
- Feet
- 4independent, screw-down
- Included
- On every cartF3 and K3
-

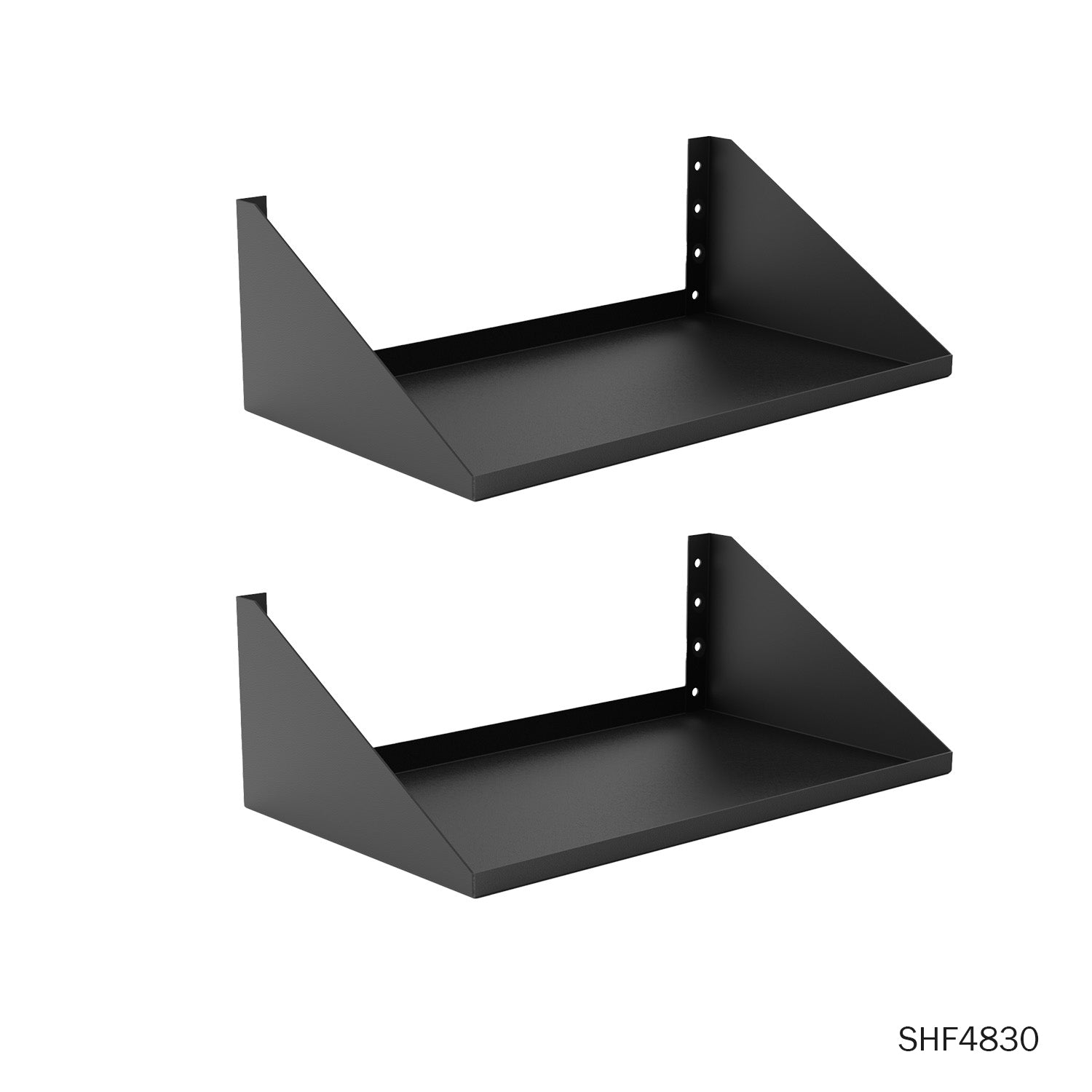

ADDSHF4830 / SHF4848
Accessory shelves
Twin packtwo shelves per pack

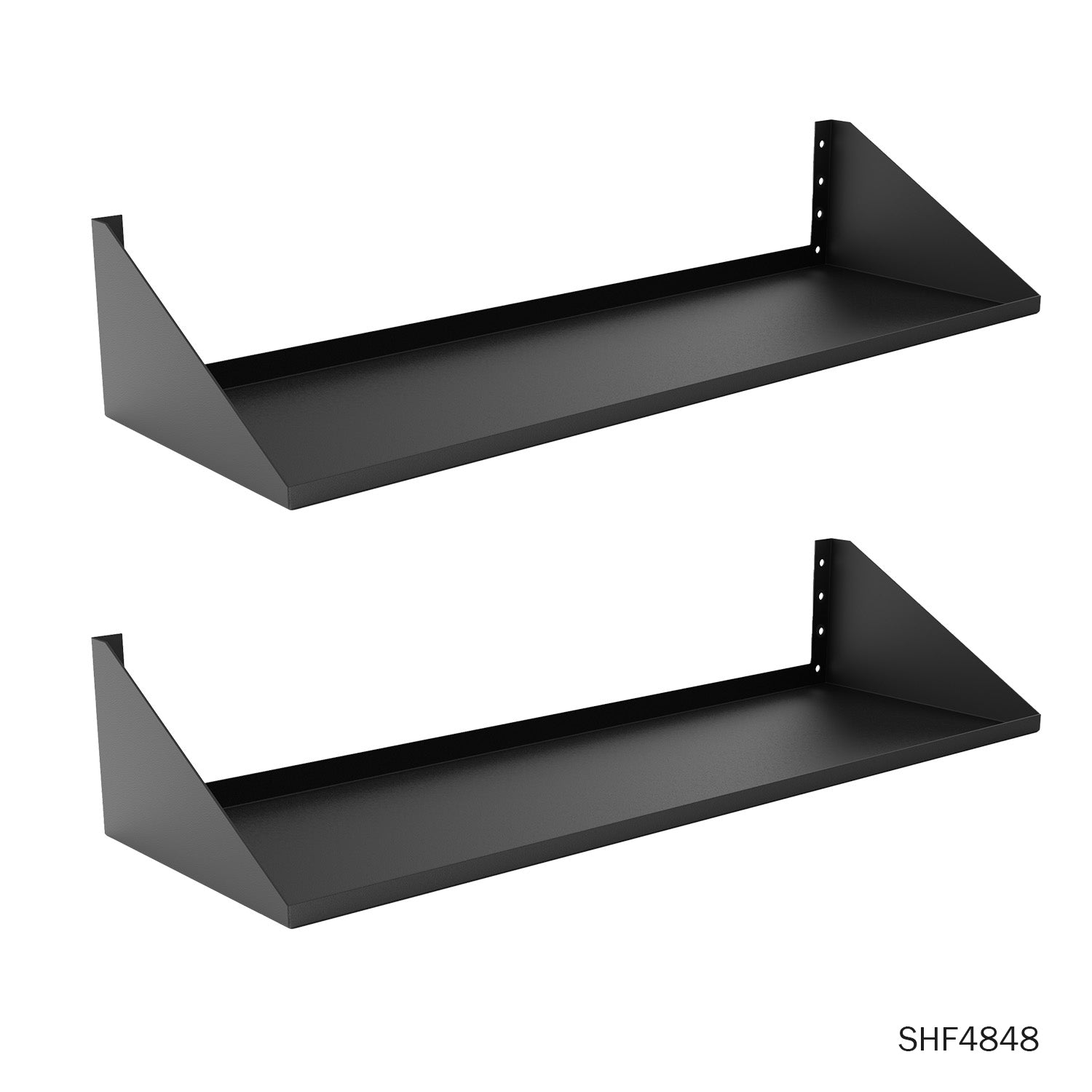

Two shelves that mount on the cart legs, face-up or face-down. Face-up gives you a tray with a lip; face-down gives you a flat shelf. SHF4830 fits the 48" × 30" and 60" × 30"; SHF4848 fits the 48" × 48".
- SHF4830
- 27.3" × 15.7" × 7.5"36 lb · fits 48×30 and 60×30
- SHF4848
- 44.4" × 15.7" × 7.5"54 lb · fits 48×48
- Price
- from $168.00twin pack
-
ADDTDB1824 / TDB2224
Storage tool boxes
2 sizesdrawer boxes
A drawer box that drops into the cart's open bay and turns the space under the top into a tool chest. Two widths, both 24" deep and 20-1/2" tall.
- TDB1824
- 18" × 24" × 20-1/2"narrow bay
- TDB2224
- 22" × 24" × 20-1/2"wide bay
- Price
- from $678.00per box
-
ADDTDPK / TDC320
Bridge & expansion
6 optionsblocks and plates

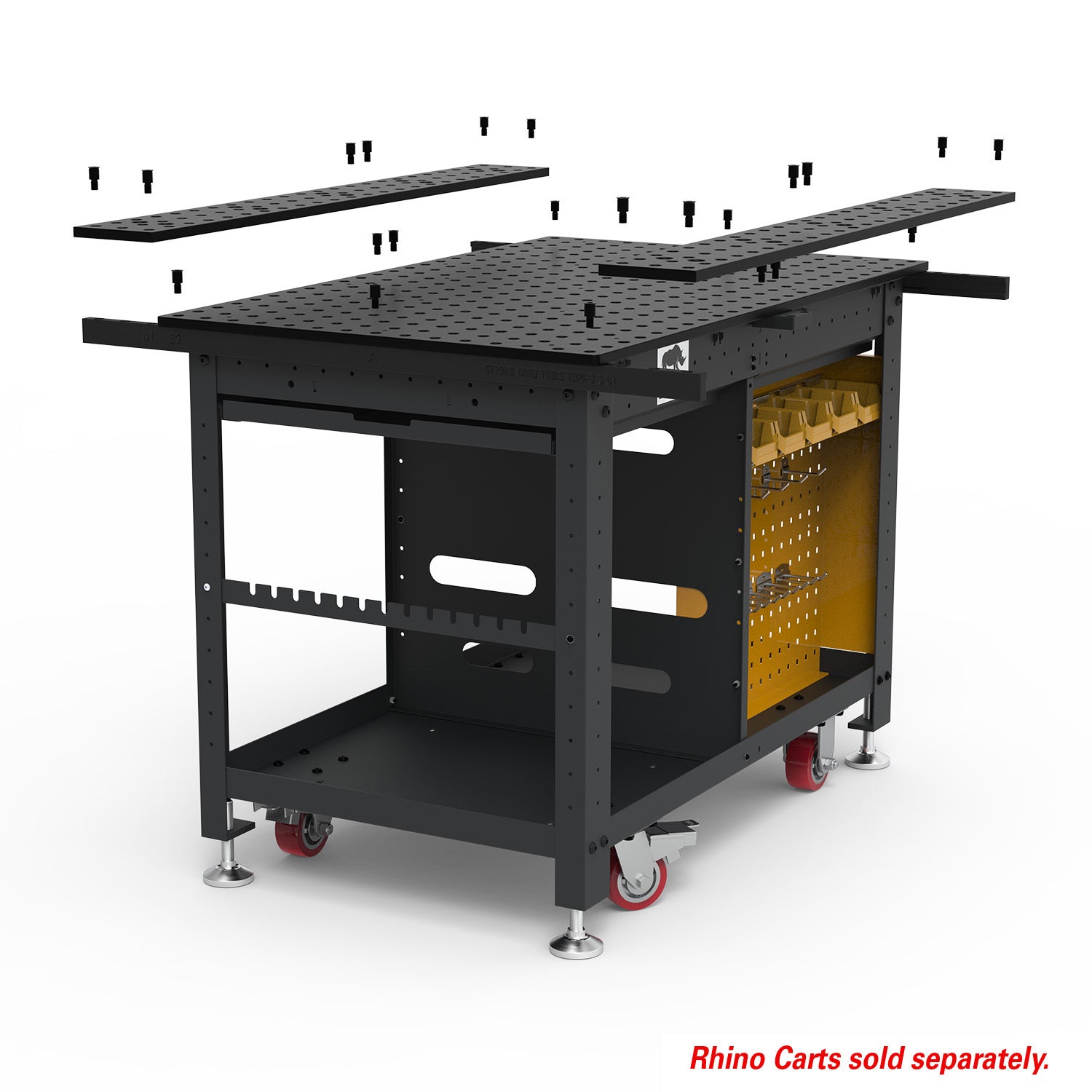

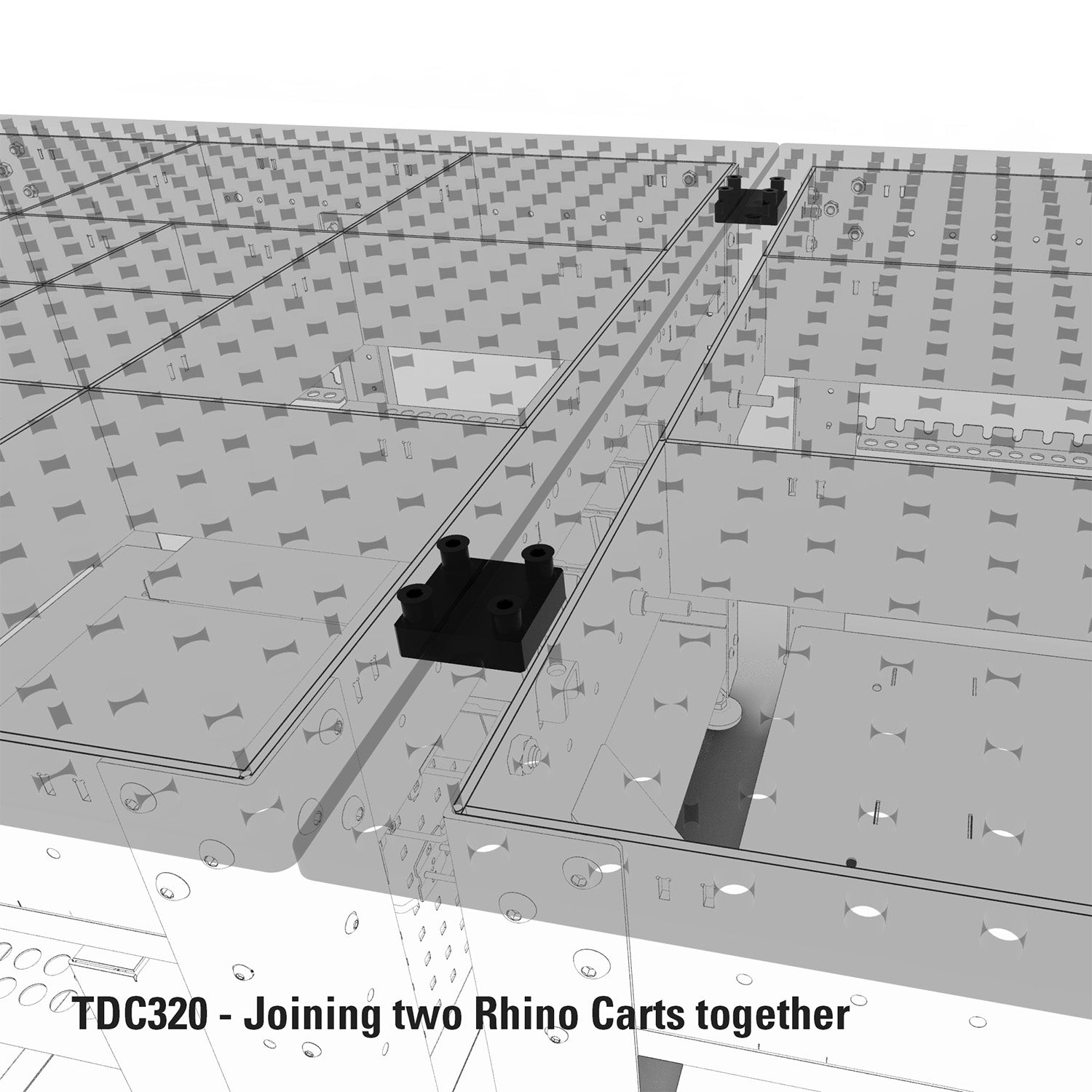

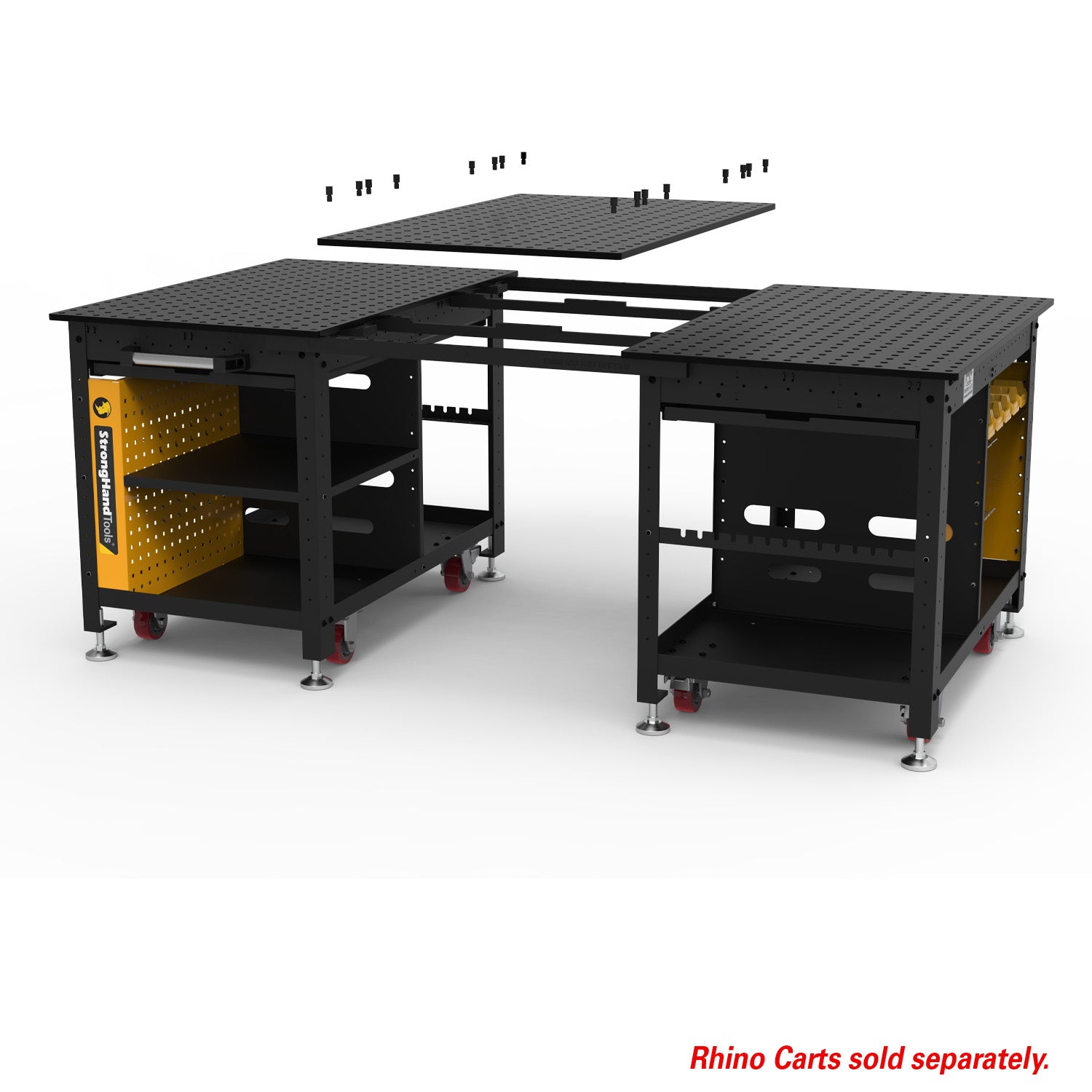

Join two carts into one surface. Connecting blocks pull the two tops together with flush-mount bolts, and set screws level one against the other. Bridge and expansion kits add plate between them.

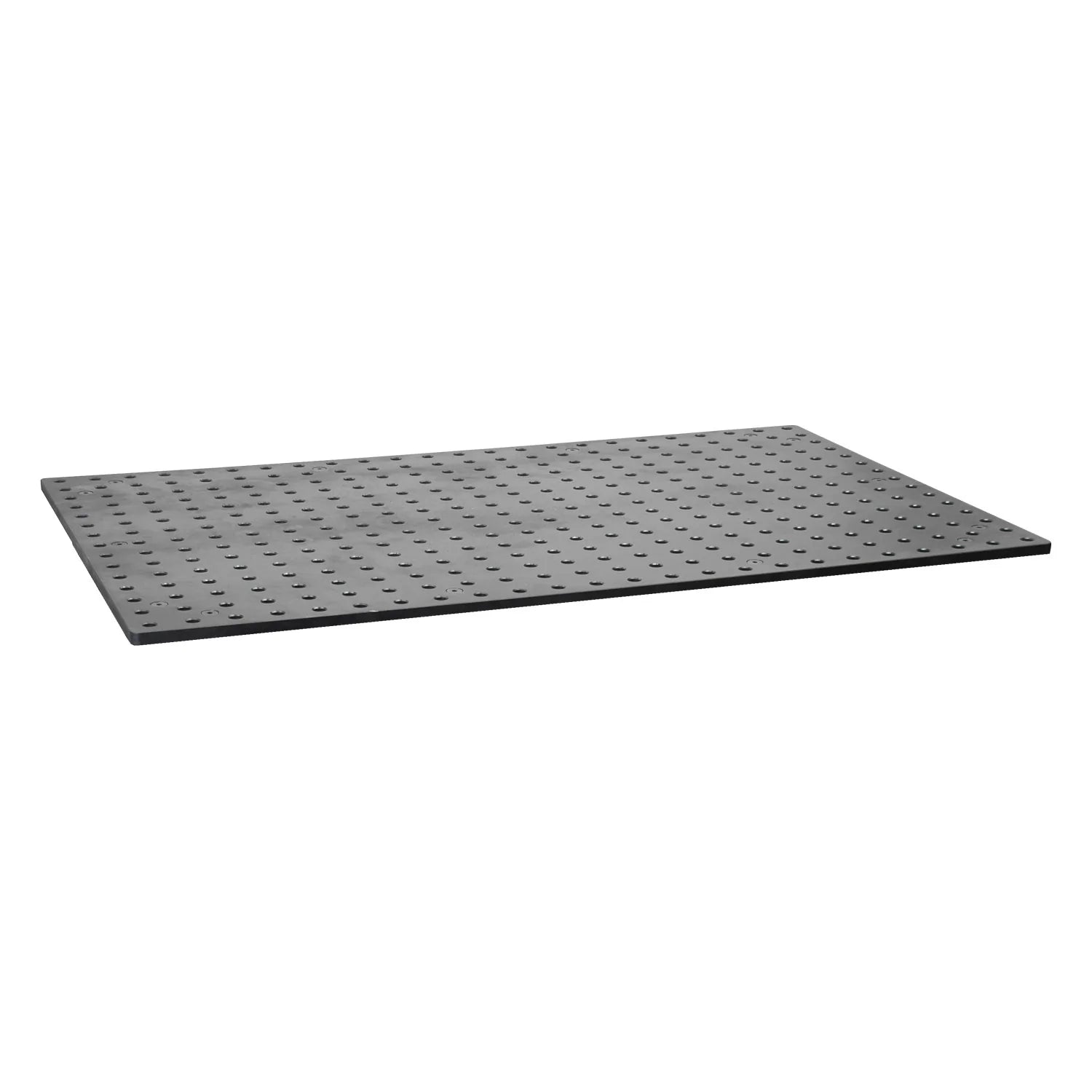

- Bridge plate
- 30" × 48"TDPK311, or TDPK311A without plate

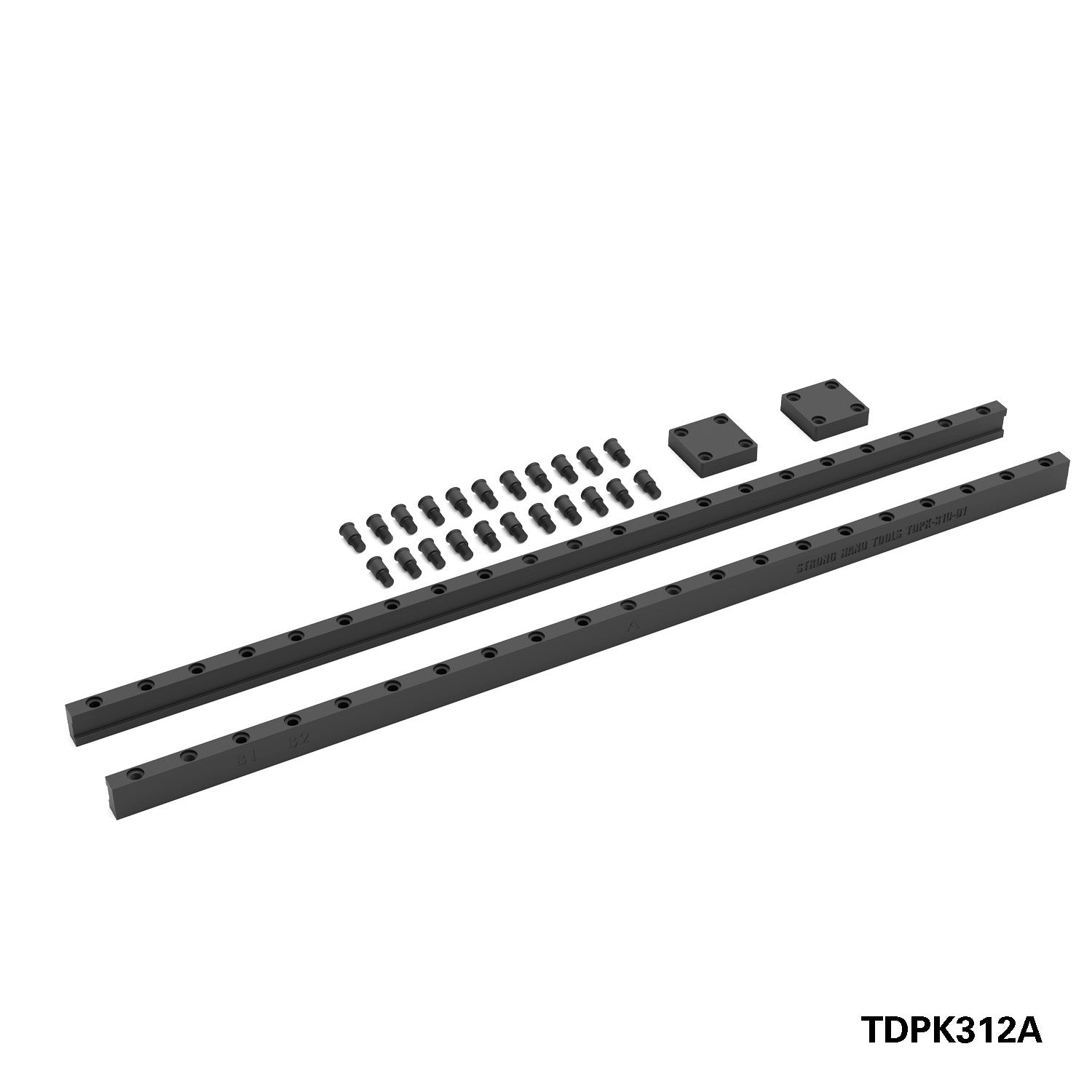

- Expansion

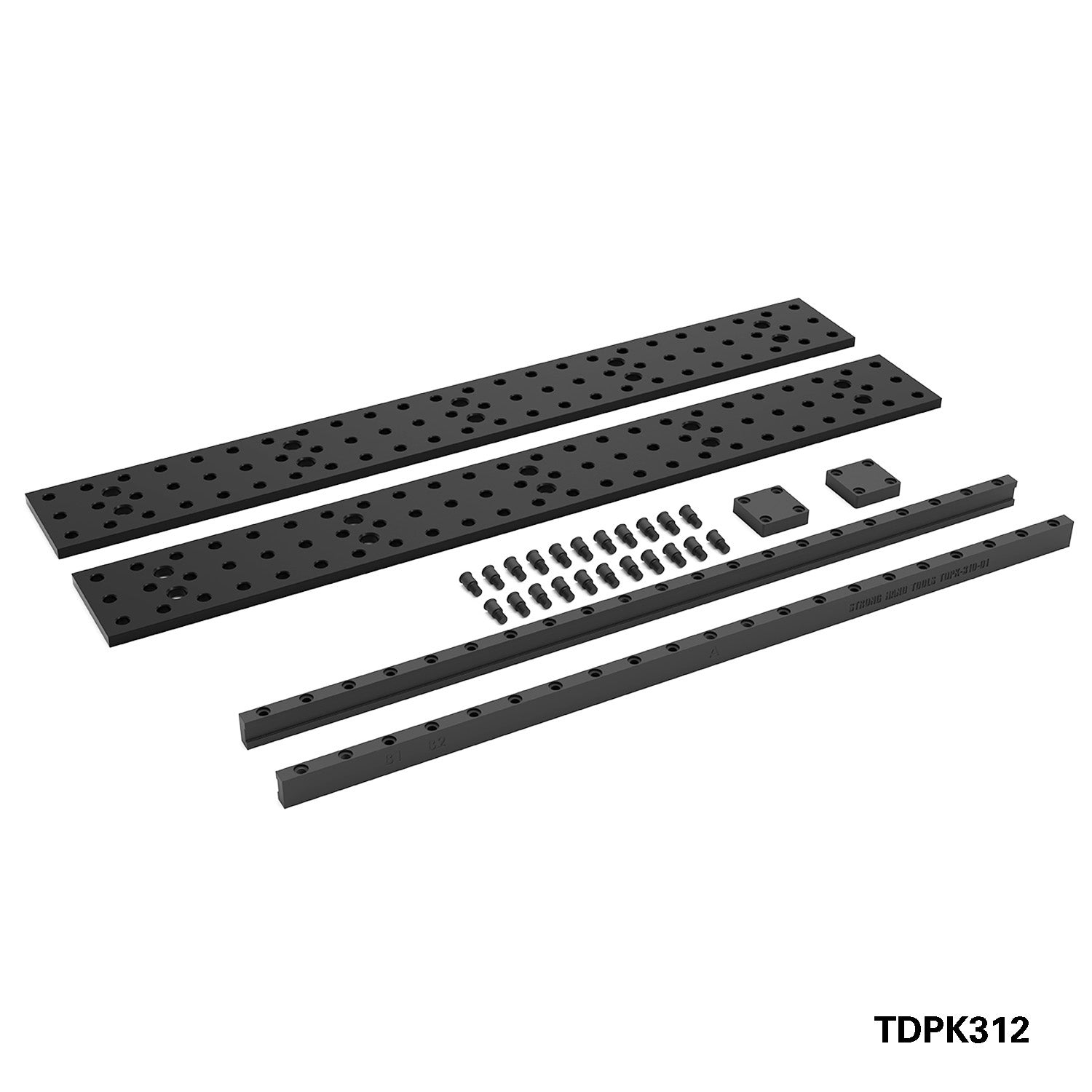

- 2 × 6" × 48"TDPK312, or TDPK312A without plates
- Price
- from $95.50blocks only, twin pack
-

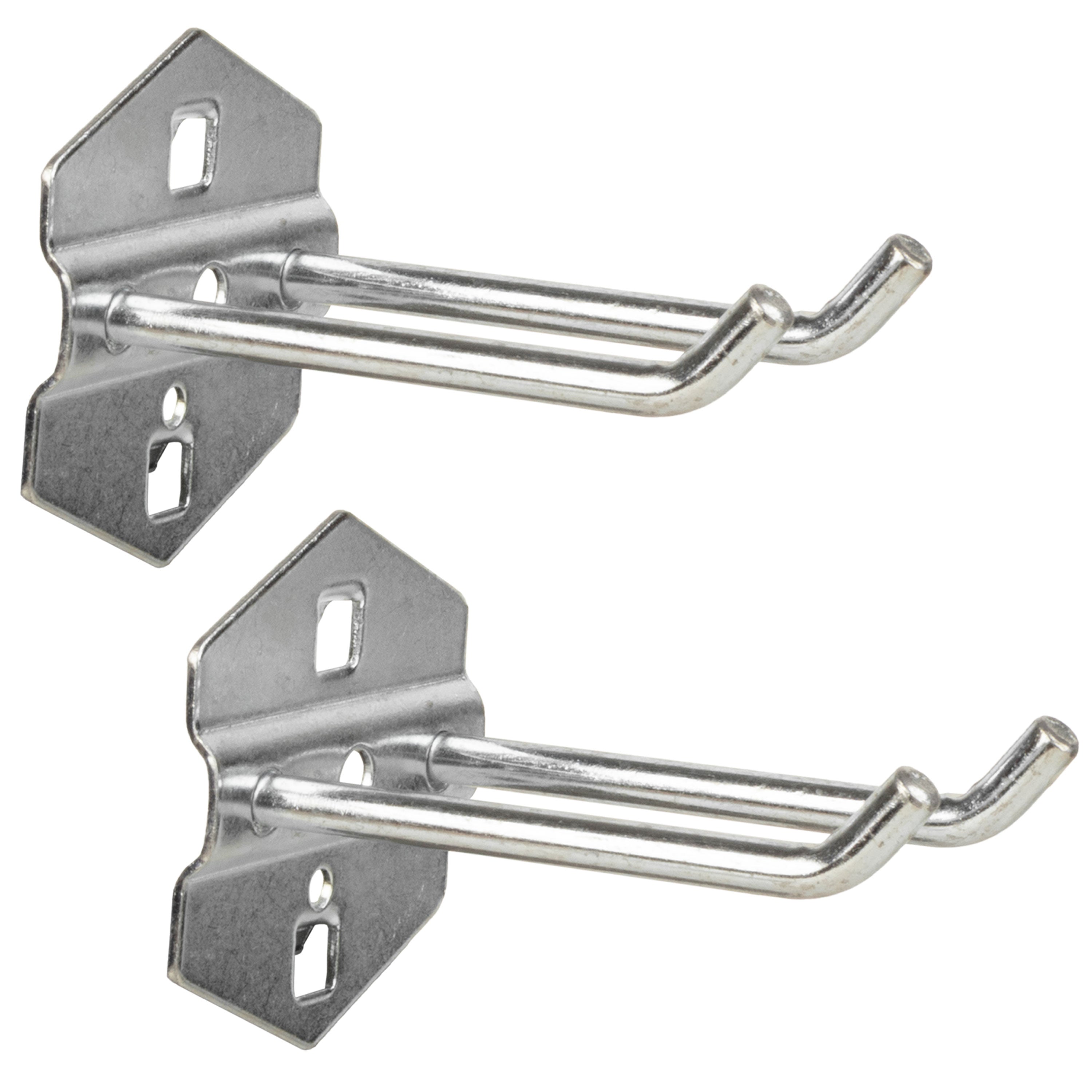

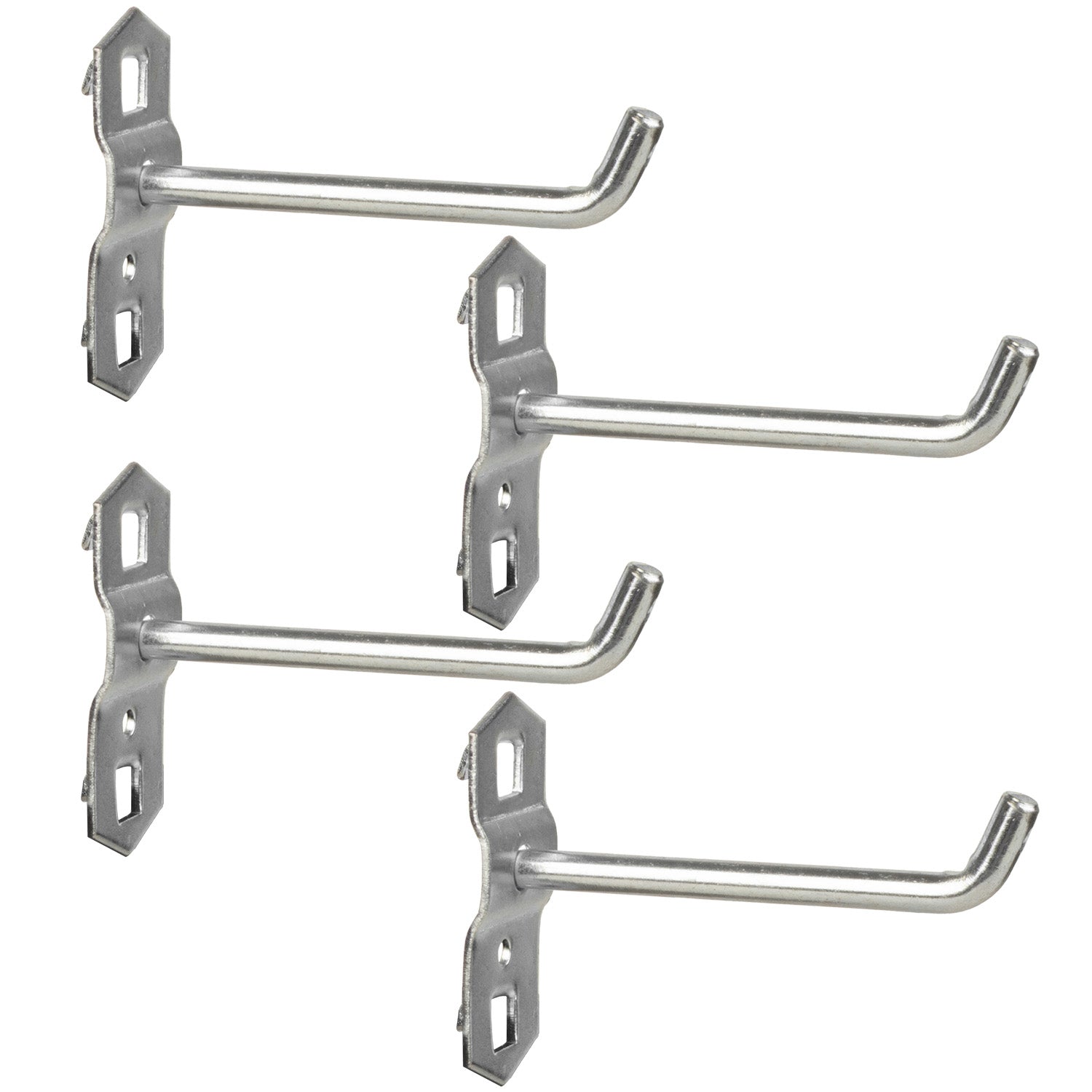

Pegboard panel
A full pegboard face on the cart side holds the clamps, pliers and stops you are using, so the top plate stays clear for the part.
-
Slag & dust trays
Modular trays that lock in on a spring-loaded plunger. They catch slag and grinding dust under the work and pull straight out to empty.
-

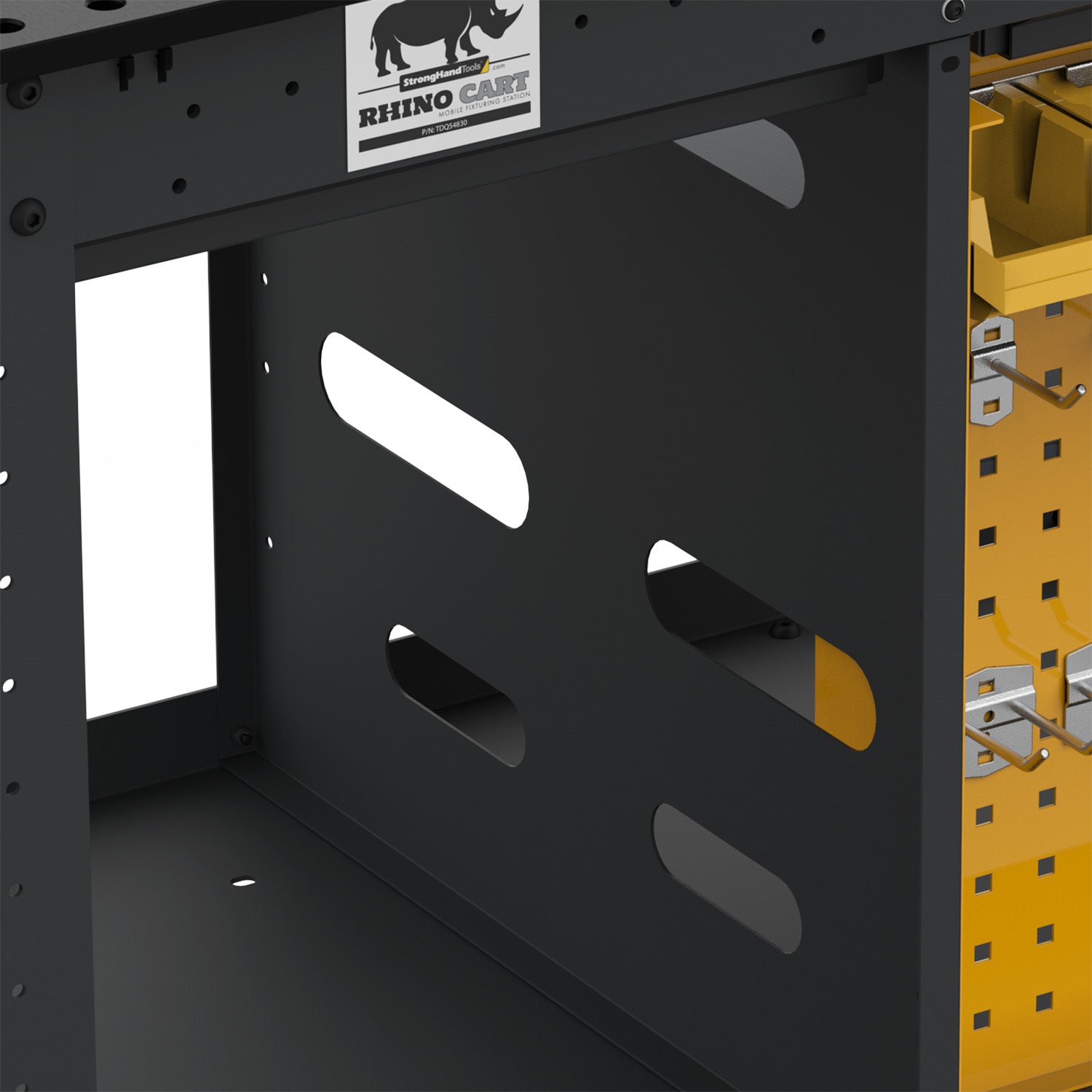

Cable routing slots
Pre-machined slots in the center divider panel route welding leads, gas hose and control cable through the cart instead of over the edge of the top.
5/8" System
Works with the whole 5/8" system

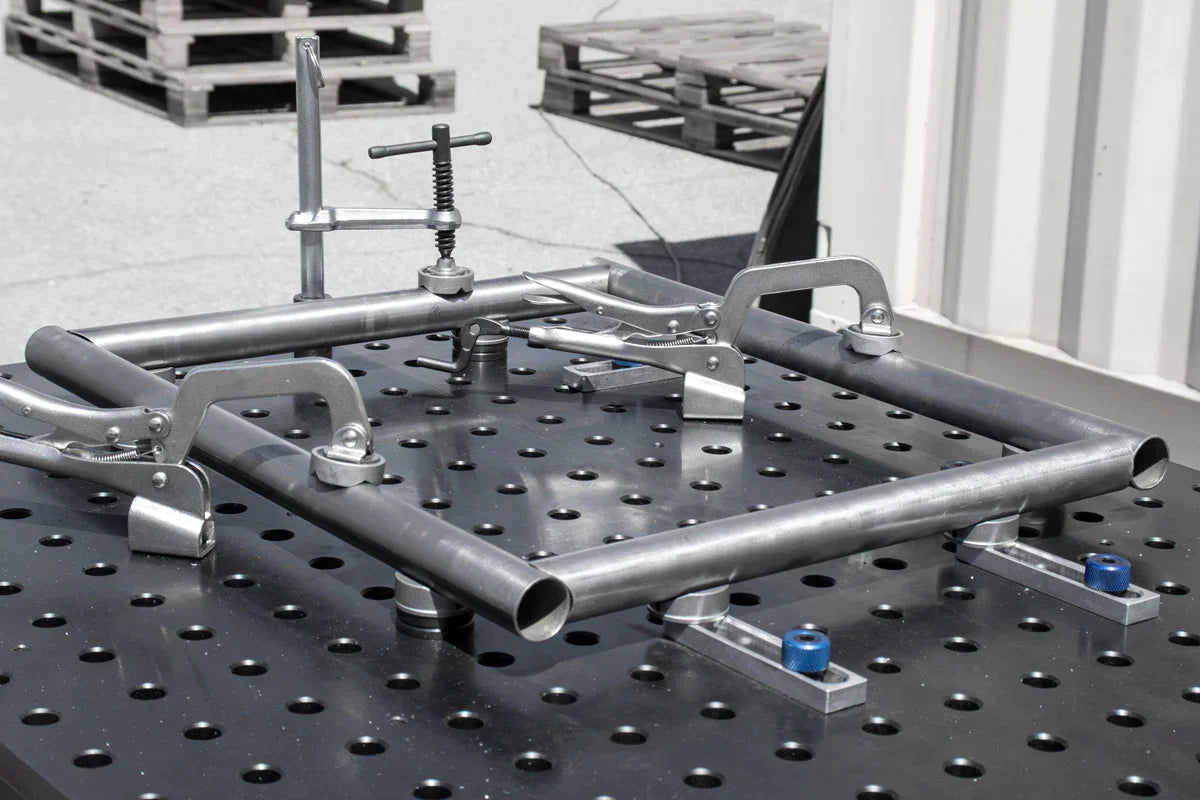

Ø5/8" holes on a 2" grid across the whole top. Every clamp, stop, square and riser made for the Strong Hand Tools 5/8" system fits — and the side brackets hang tooling off the edge of the cart.
Specifications
Tech specs
Pick a size for its numbers, part numbers and price. The top, the chassis and the add-ons are the same on all three.
This size
Changes with the size you picked
The cart
Same build on every size — only the footprint, the weight and the price change
- Plate
- 0.630" ±0.004" (16 mm ±0.10 mm)steel plate, nitrided finish
- Hole pattern
- Ø5/8" on 2" centersØ0.625" +0.001/+0.003" (15.88 mm) · 2.000" ±0.002" (50.8 mm) grid · top only
- Flatness
- ±0.015" per 24" × 24"±0.38 mm per 610 × 610 mm
- Static load
- 1,500 lb (680 kg)static rating
- Table height
- 36"914 mm, top of plate · fixed — the leveling feet trim it, they do not raise it
- Chassis
- Tubular framehigh-precision tubular frame and chassis construction
- Wheels
- 4 heavy duty2 steering, with built-in brakes
- Leveling feet
- 4 independentscrew down to lift the cart off its casters and set the top flat
- Slag & dust trays
- Modularlock in on a spring-loaded plunger, pull out to empty
- Cable routing
- Pre-machined slotsin the center divider panel, for welding lead, gas hose and control cable
Packages & add-ons
The same add-ons fit all three sizes unless a fitment is called out
- Packages

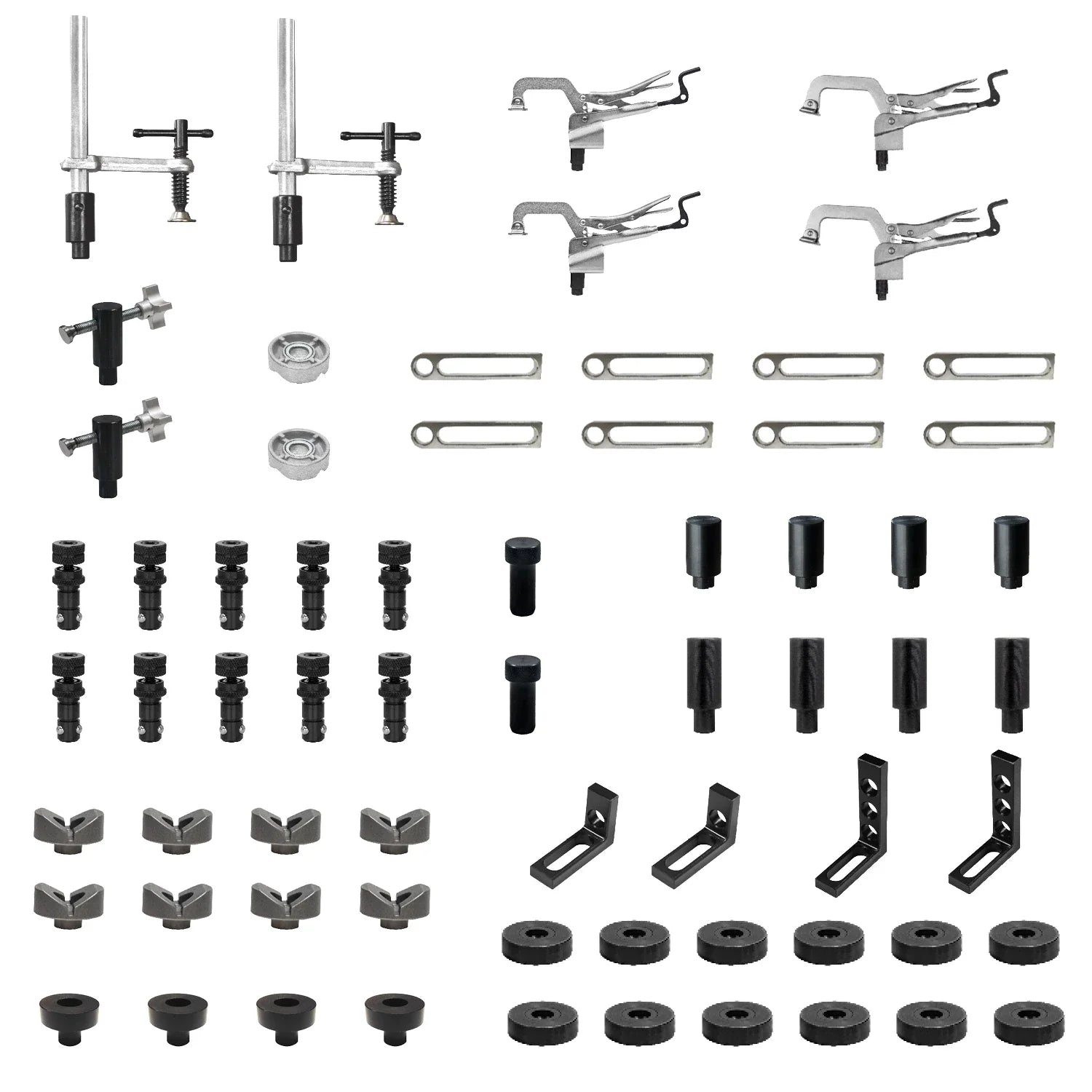

- F3 or K3F3 is the cart on its own; K3 adds the 66-piece 5/8" fixturing kit (TDK5100)
- Shelves — SHF4830
- 27.3" × 15.7" × 7.5"twin pack, 36 lb · fits the 48" × 30" and 60" × 30"
- Shelves — SHF4848
- 44.4" × 15.7" × 7.5"twin pack, 54 lb · fits the 48" × 48"
- Tool box — TDB1824
- 18" × 24" × 20-1/2"drops into the cart bay
- Tool box — TDB2224
- 22" × 24" × 20-1/2"drops into the cart bay

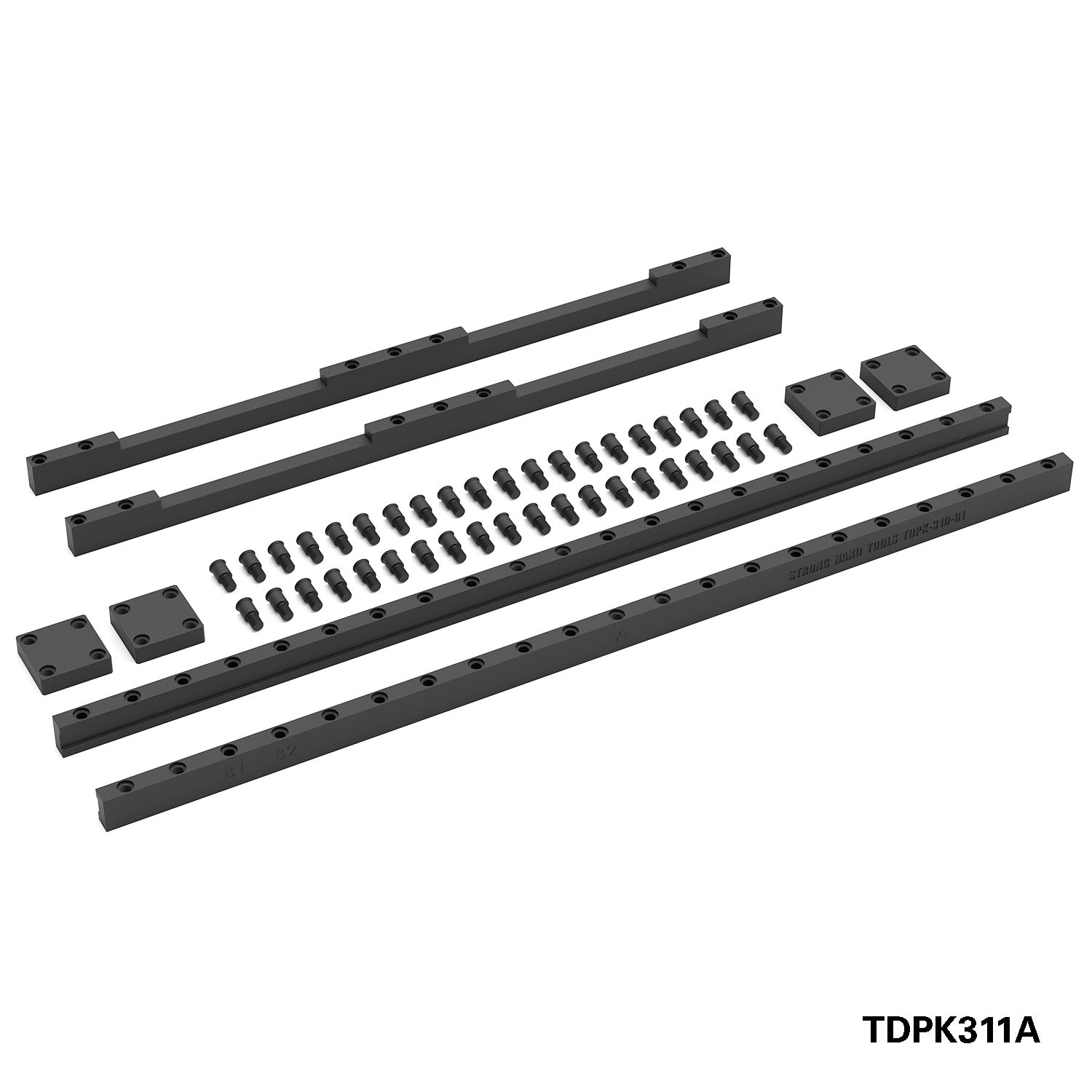

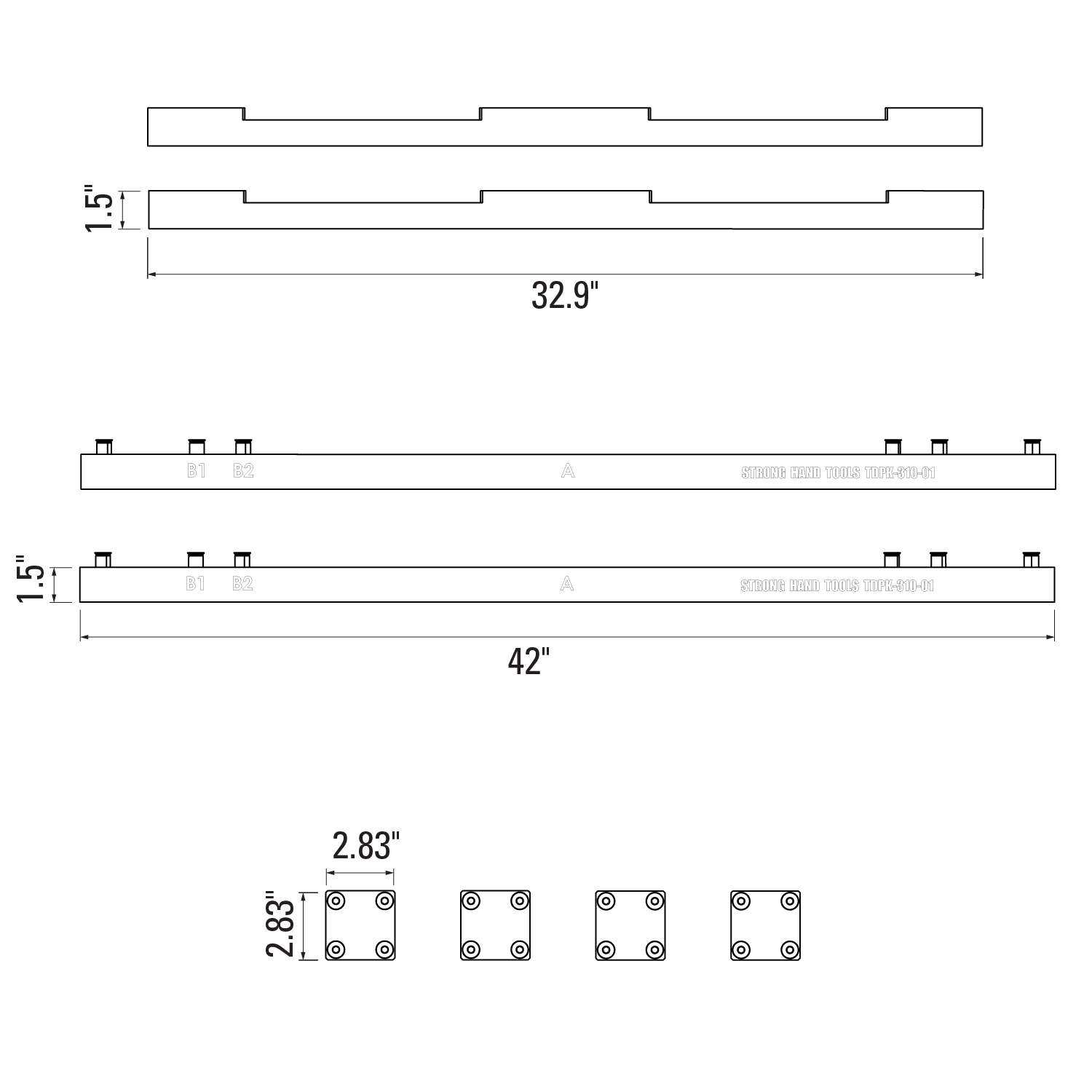

- Bridge plate — TDPK311
- 30" × 48"TDPK311A is the same kit without the plate
- Expansion — TDPK312
- 2 × 6" × 48"TDPK312A is the same kit without the plates
- Connecting blocks — TDC320
- Twin packflush-mount bolts plus set screws to level one cart against the other
FAQ
Questions, answered
Straight answers on height, the two packages, what fits which cart, joining two together and how to buy.
- How tall is the cart, and can I change the height?

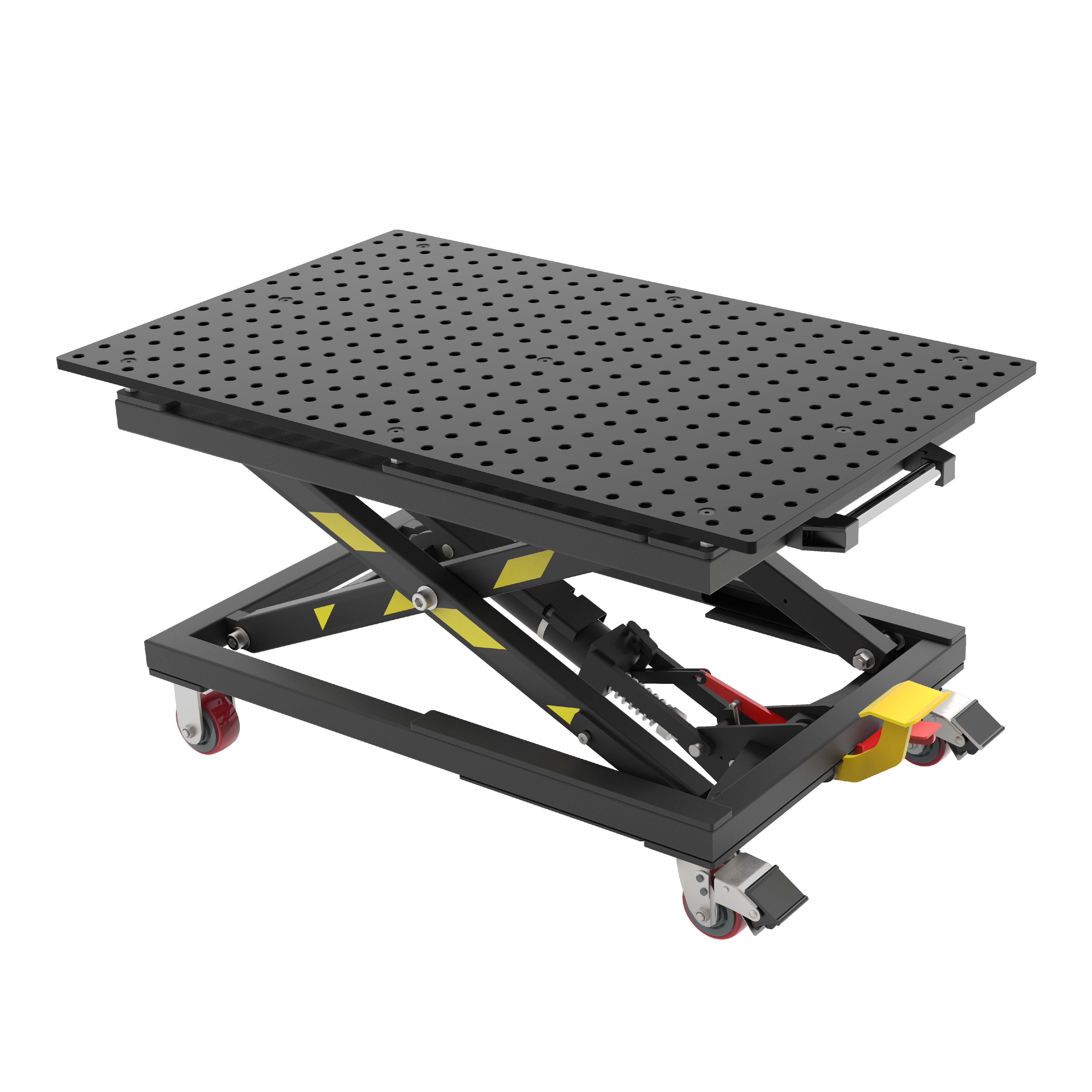

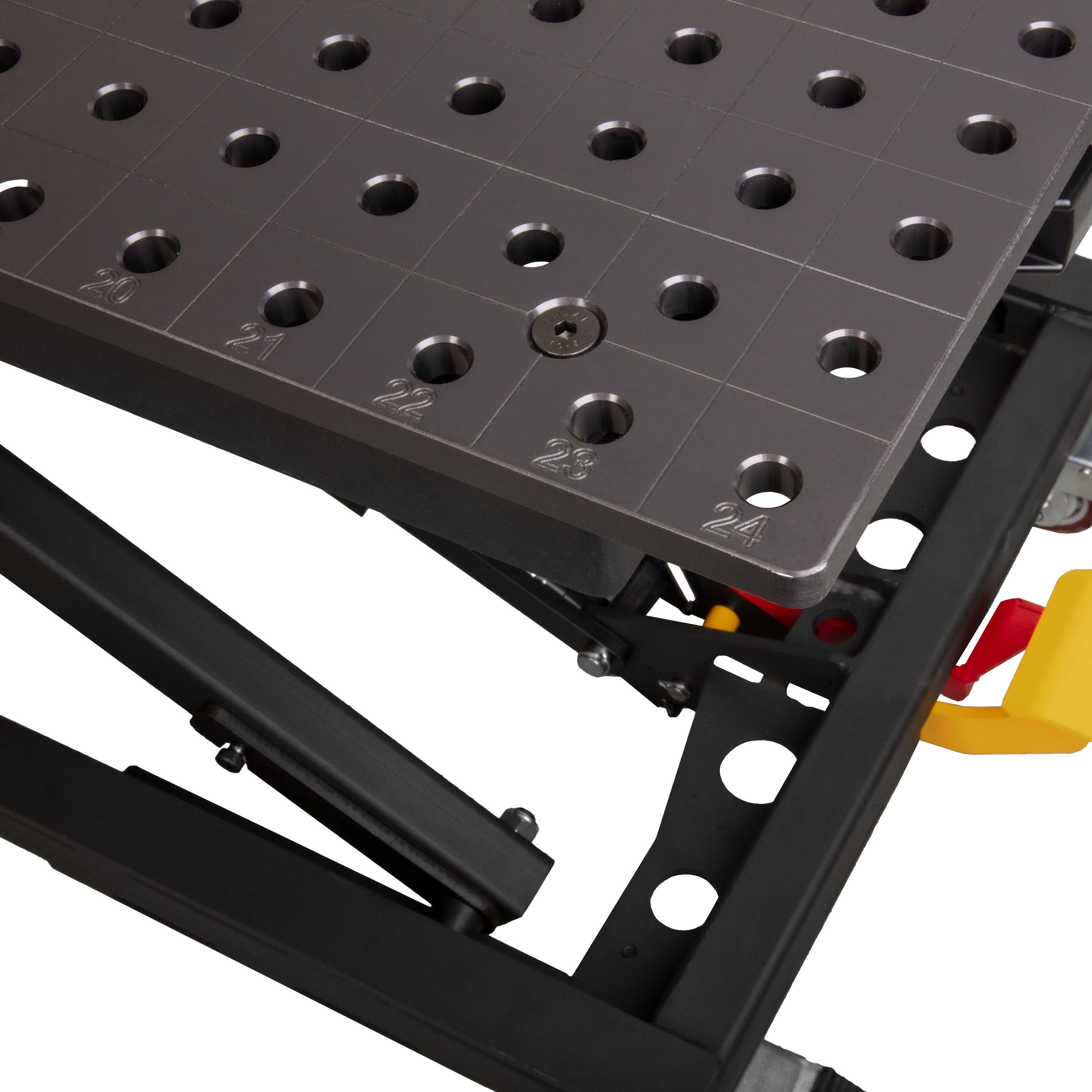

- 36" (914 mm) to the top of the plate, and no. The height is fixed — the four leveling feet screw down to lift the cart off its casters and set the top flat, but they are for levelling, not for raising the bench. If you need the work to move up and down, that is the electric Rhino scissor lift.
- What is the difference between F3 and K3?
- Only the fixturing kit. Both are the same cart with the same top, chassis, casters, pegboard and trays. K3 has the 66-piece 5/8" fixturing kit packed with it; F3 does not. Pick the package above the grid and the price and part number follow it.
- Which shelves and boxes fit which cart?
- Shelves are sized to the top; the boxes are not. SHF4830 fits the 48" × 30" and the 60" × 30"; SHF4848 fits the 48" × 48". Both tool boxes drop into the cart bay on any of the three — choose TDB1824 or TDB2224 by how wide you want the drawers.

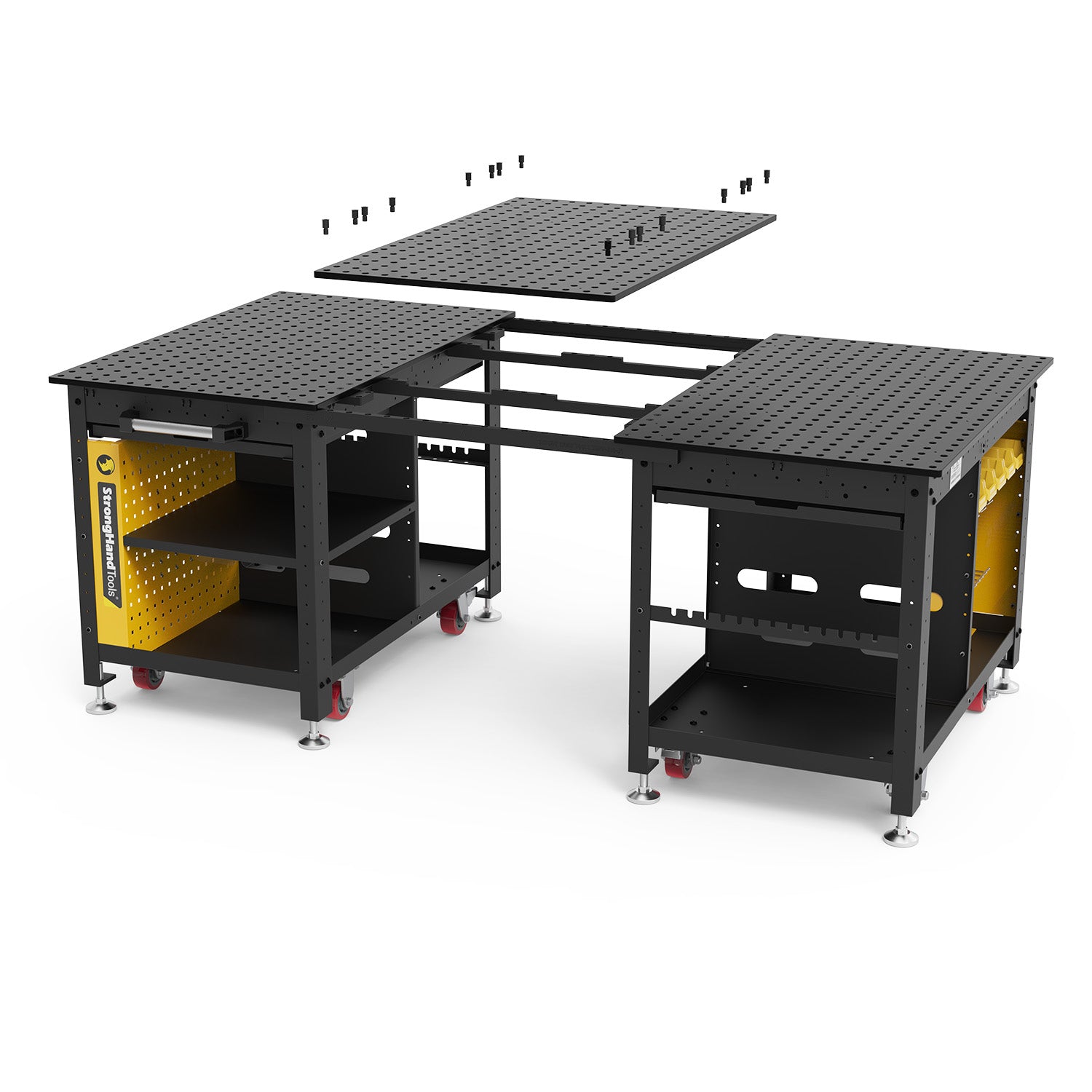

- Can I join two carts into one surface?

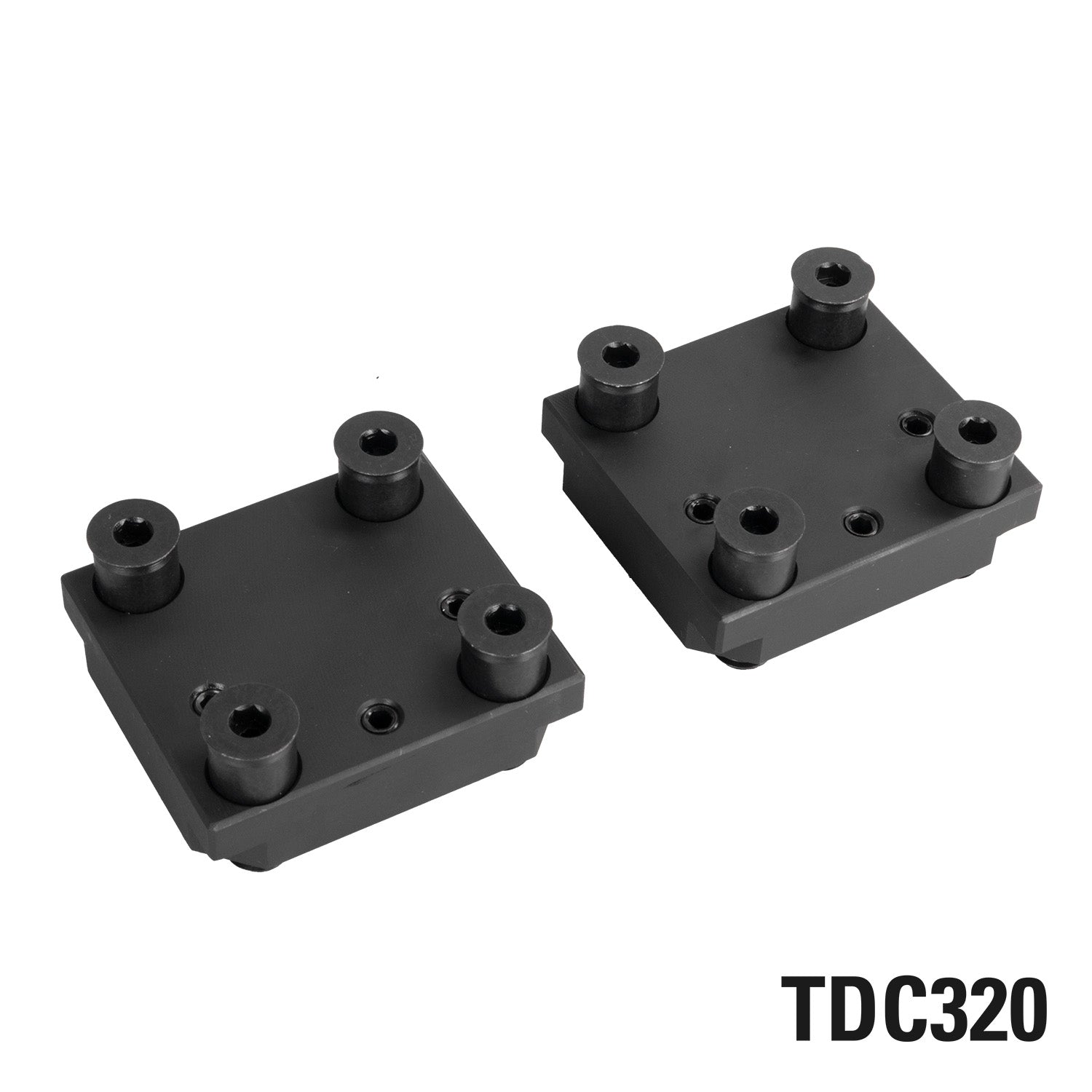

- Yes. The connecting blocks (TDC320) pull two tops together with flush-mount bolts and level one against the other with set screws. The bridge and expansion kits add a 30" × 48" plate or a pair of 6" × 48" plates between them.
- Does the 5/8" tooling I already own fit?

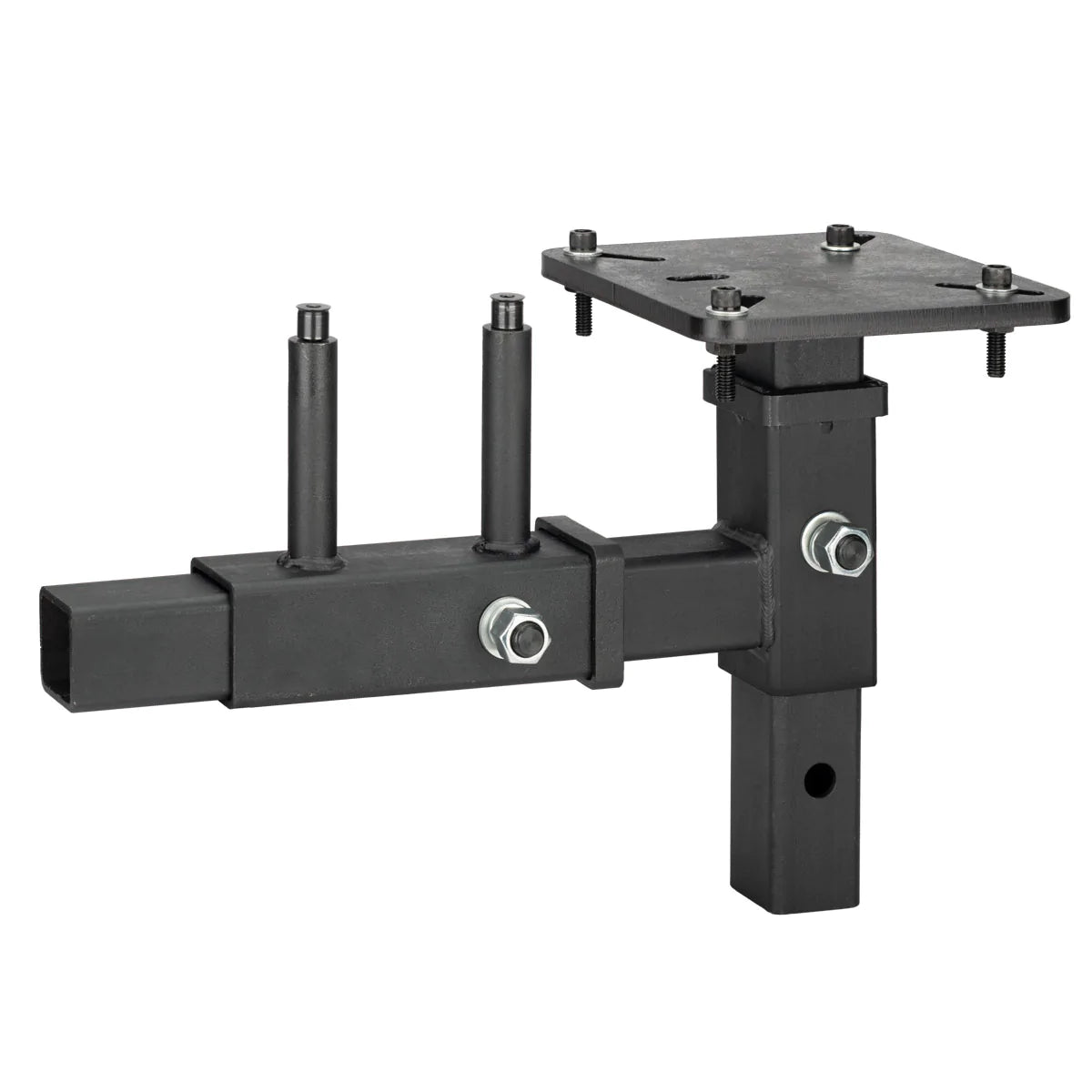

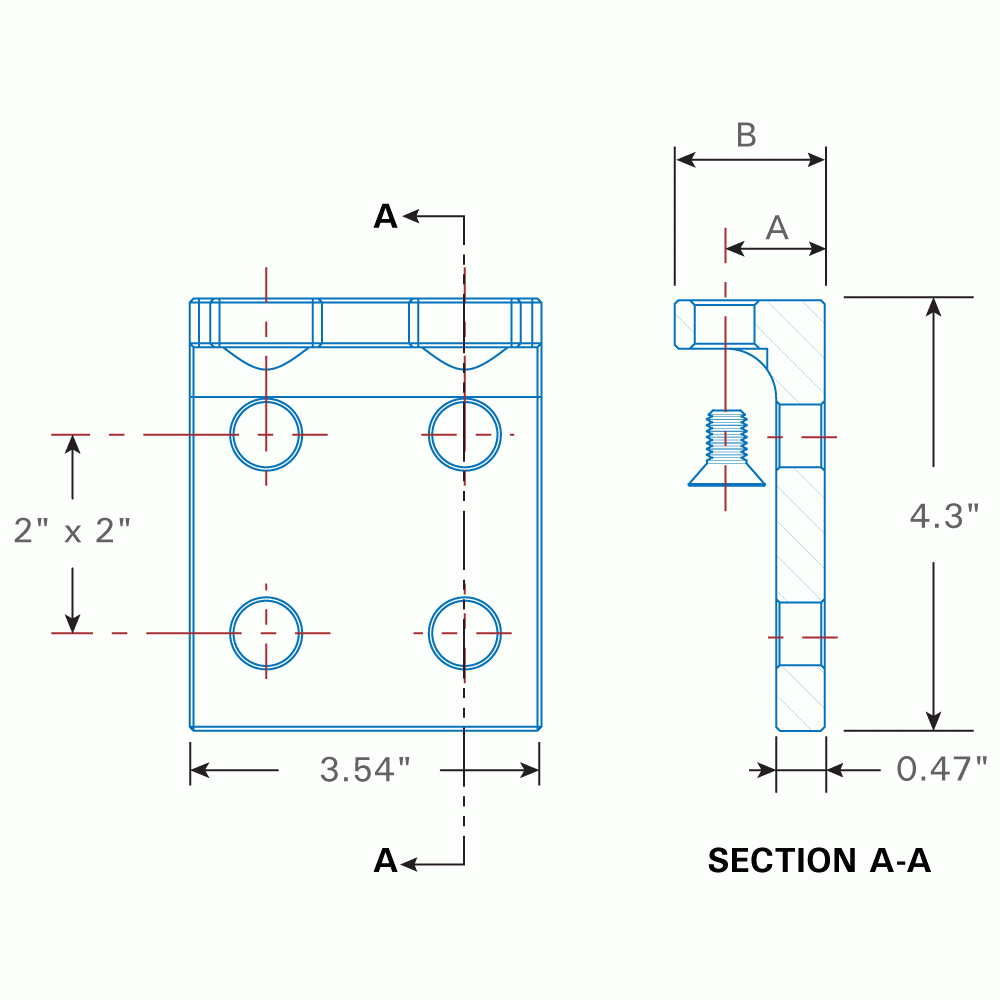

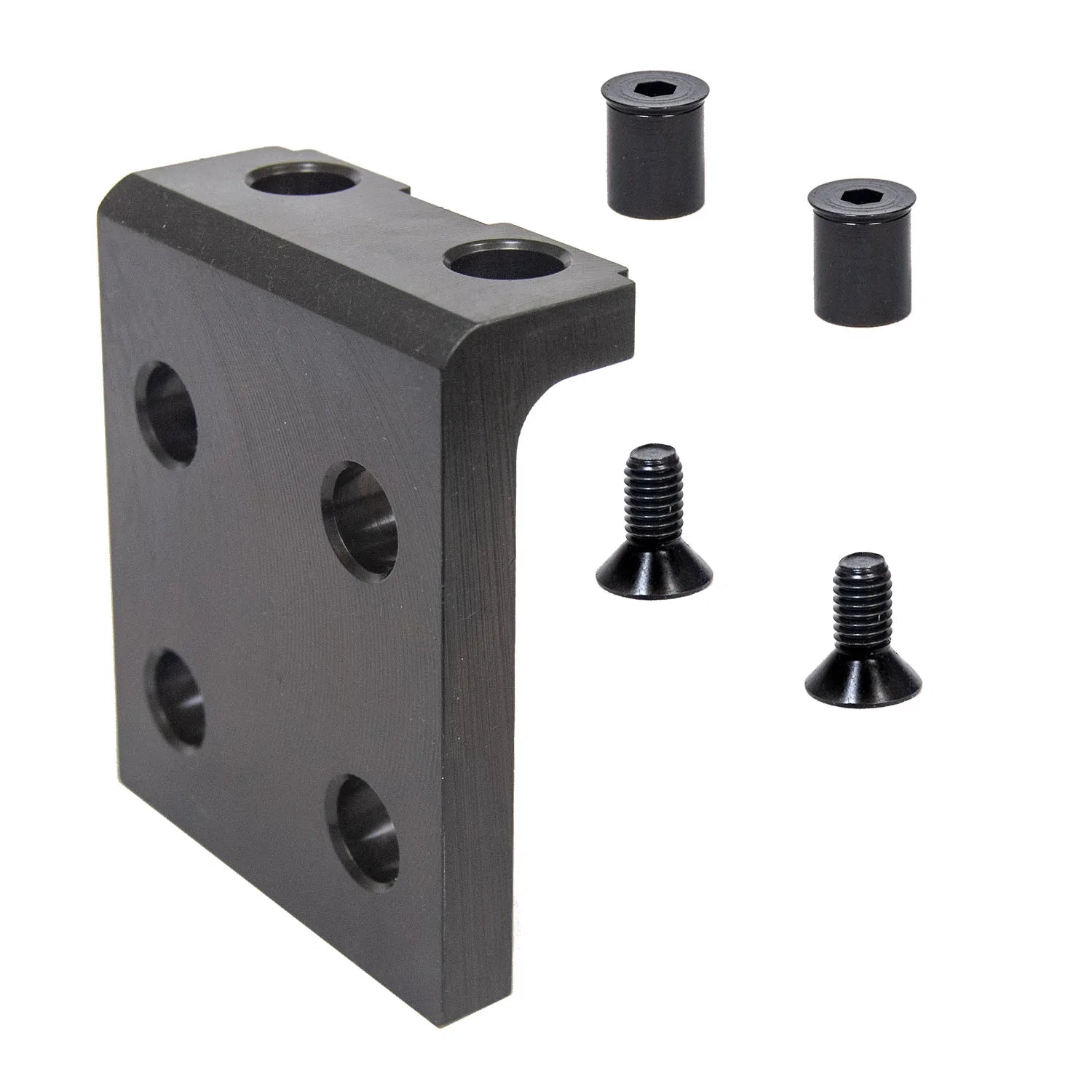

- Yes. Ø5/8" holes on 2" centers, the same grid as every other BuildPro 5/8" table — Inserta clamps, stops, squares, V-blocks and risers all drop straight in. The side brackets (T51825) mount tooling off the edge of the cart as well.
- How do I buy one?
- Straight through the cart. Pick the size and package above and add it to your cart — Rhino Carts are not quote-only. They ship freight, so shipping is quoted at checkout.
Ready to roll
Pick your size.
Add it to the cart.
Every Rhino Cart is sold through the cart. Prices shown are for the cart on its own (F3); the 66-piece fixturing kit package (K3) is the second option on each product page. Carts ship freight — shipping is quoted at checkout.
