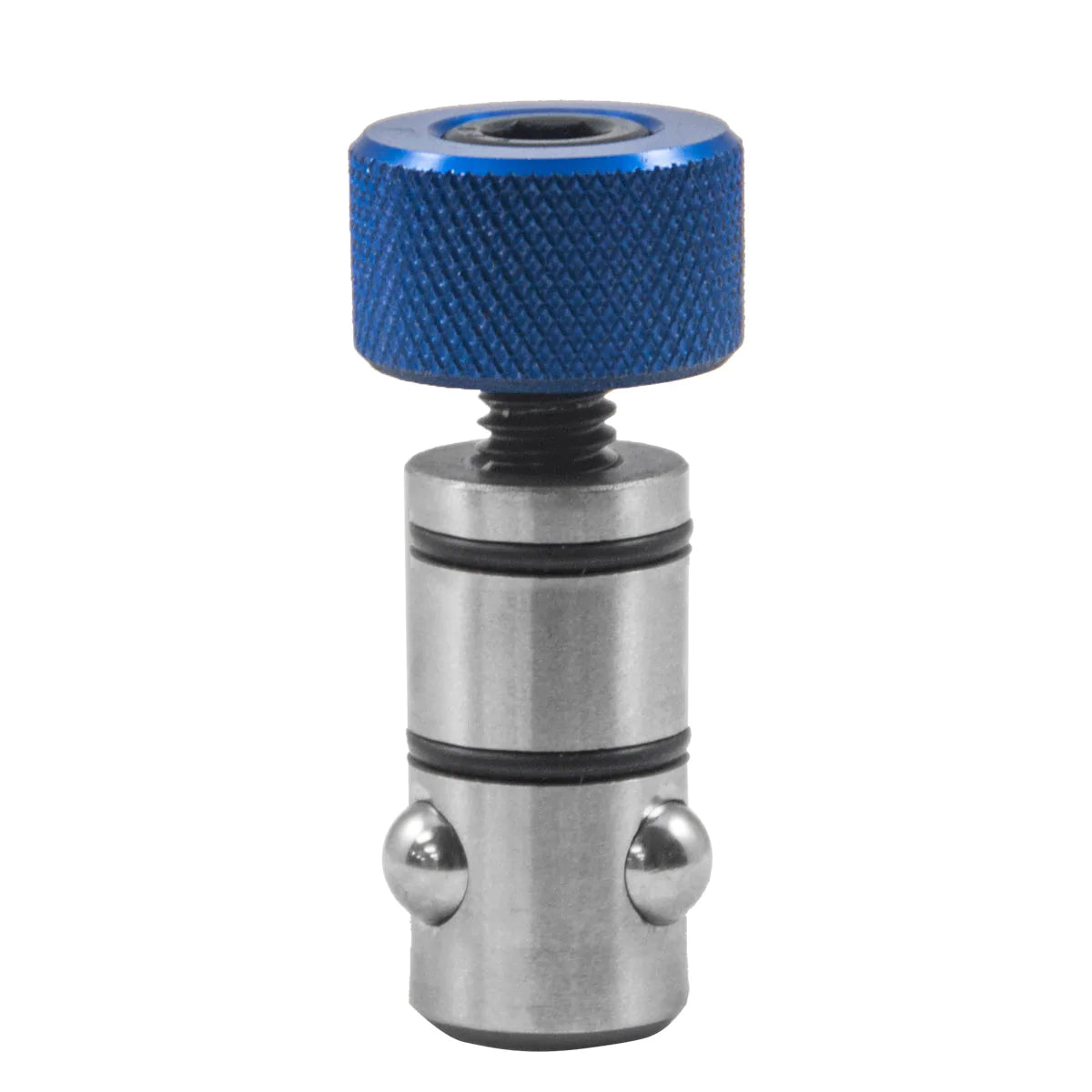

Load image into Gallery viewer, Adjustable Range from 0.88 inch to 1.08 inch

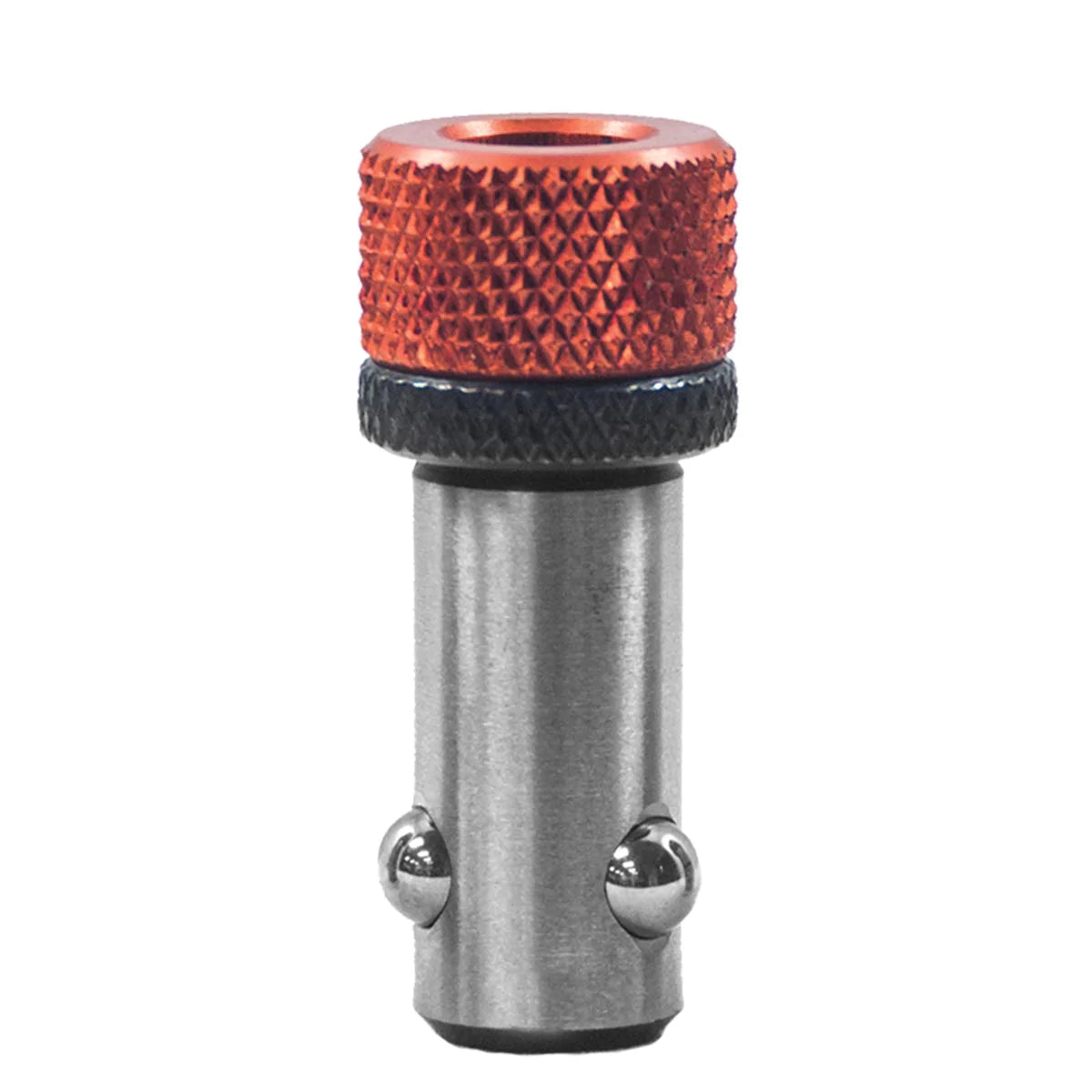

Load image into Gallery viewer, Fixed Length Ball Lock Bolt T55010

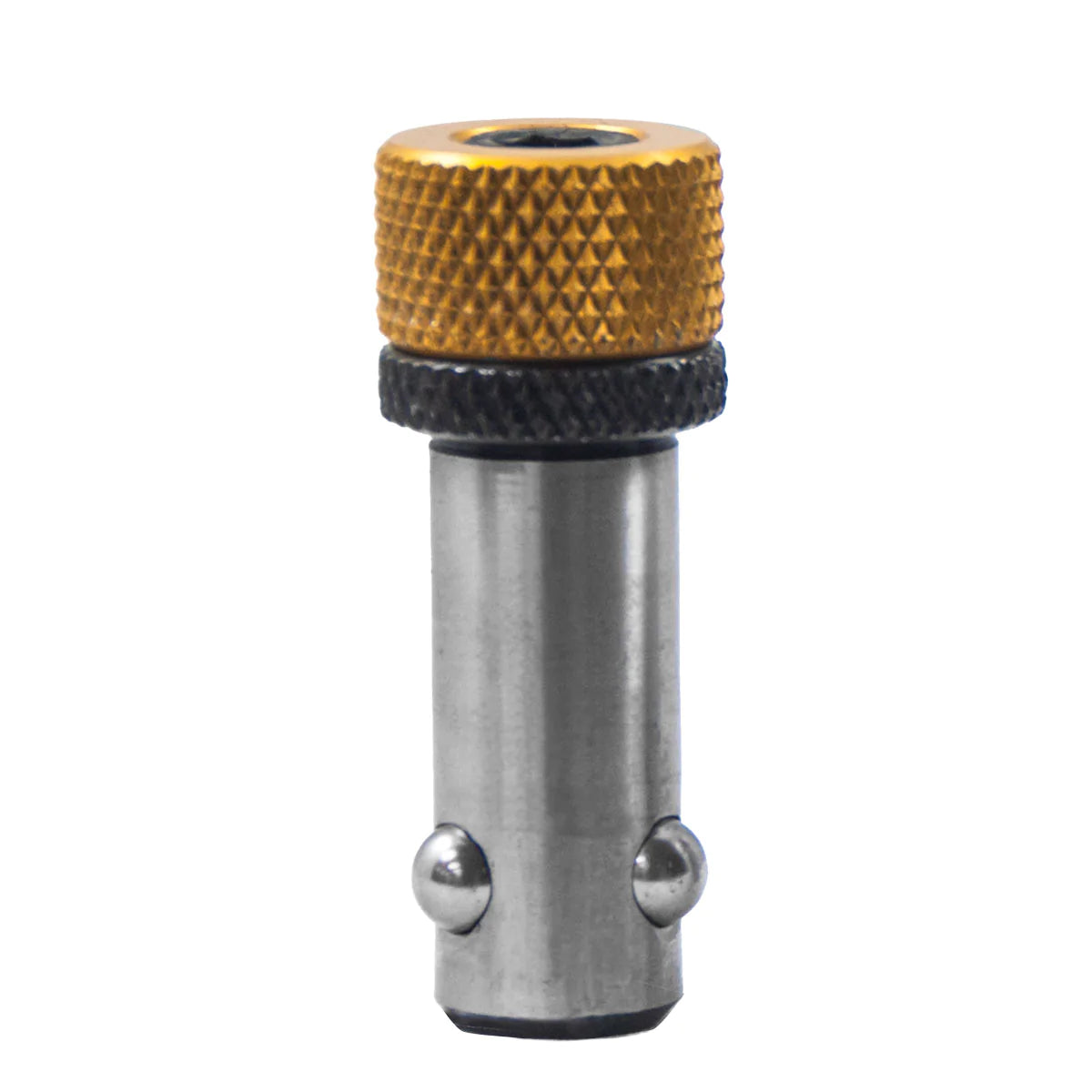

Load image into Gallery viewer, Fixed Length Ball Lock Bolt T55015

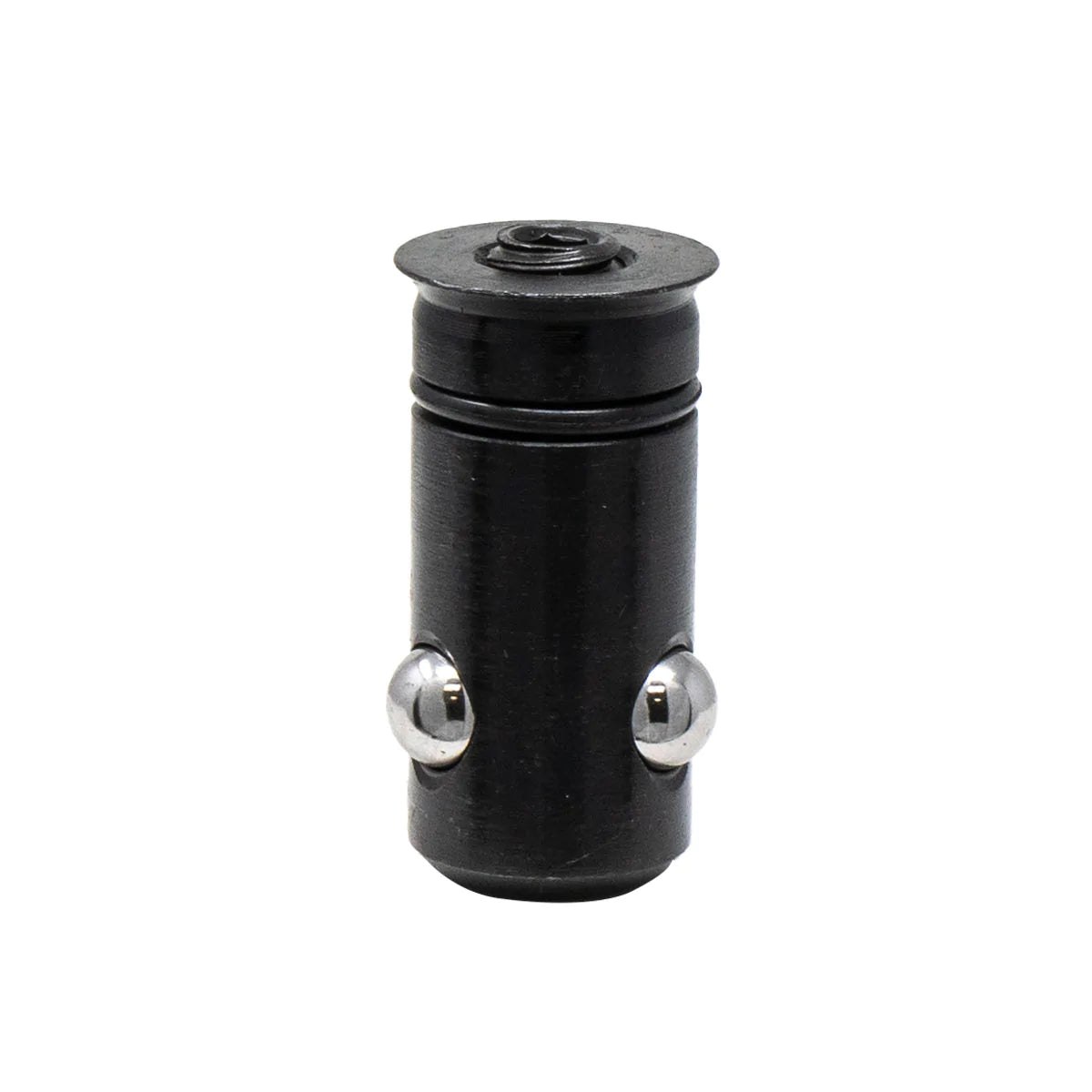

Load image into Gallery viewer, Flush Mount Ball Lock Bolt T55020

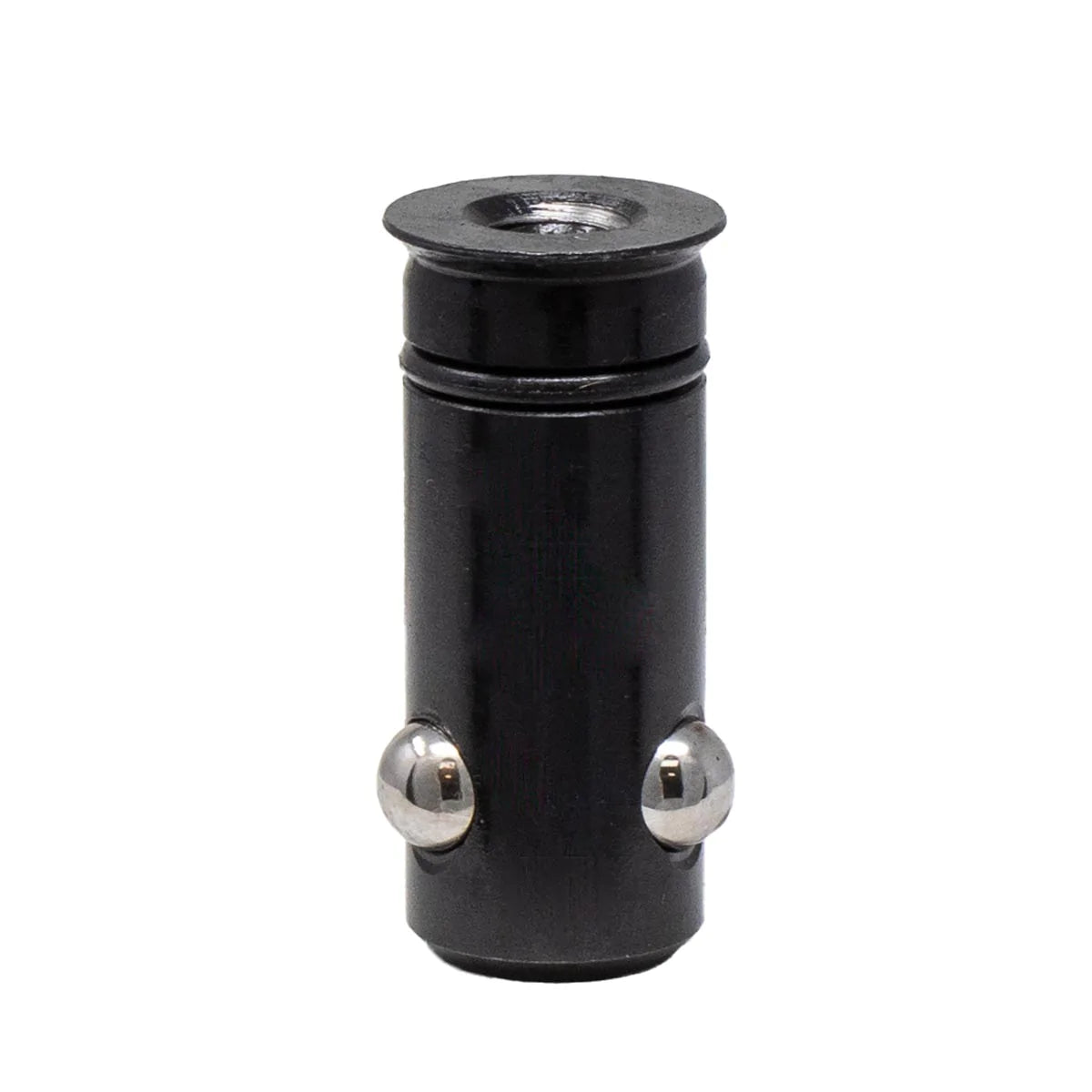

Load image into Gallery viewer, Flush Mount Ball Lock Bolt T55025

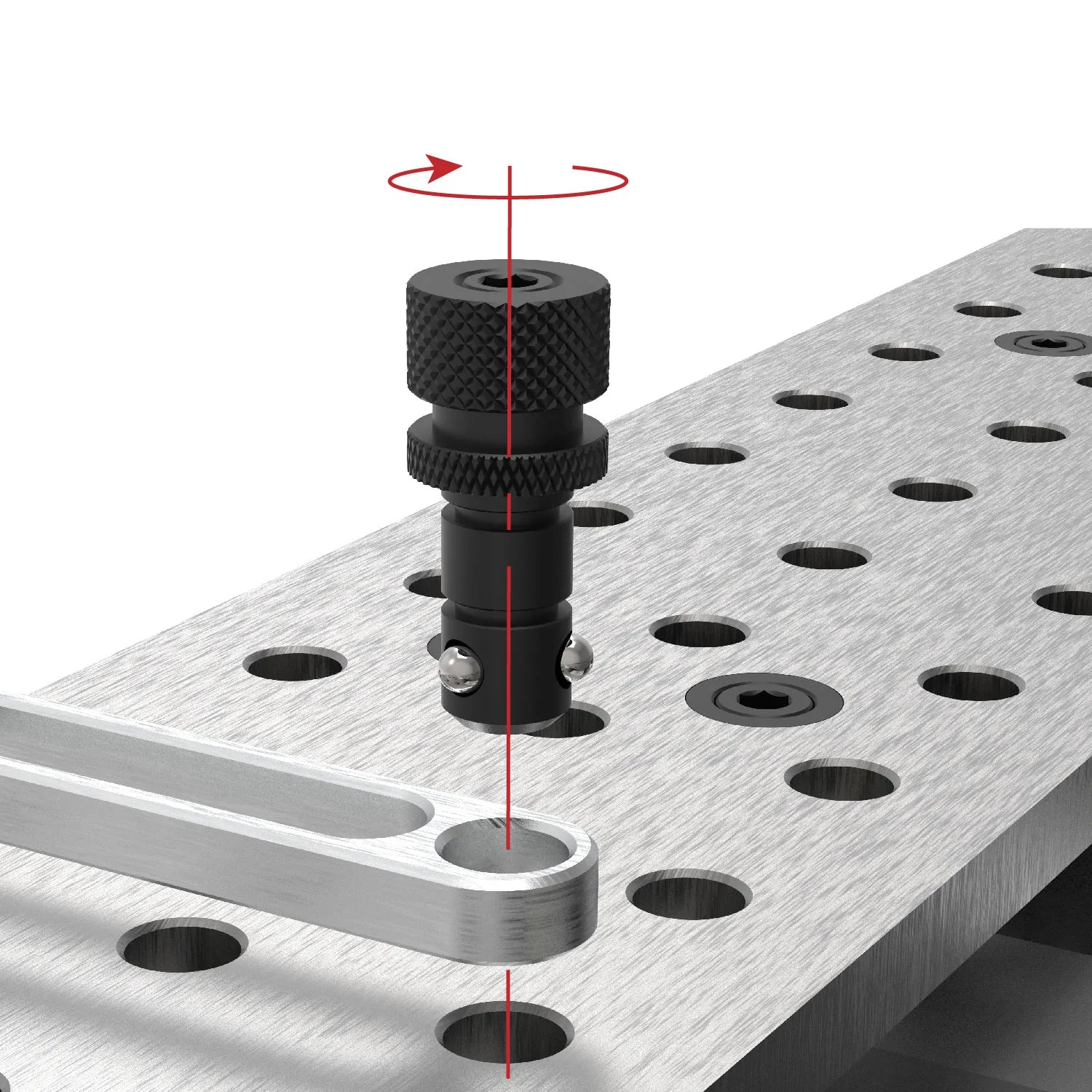

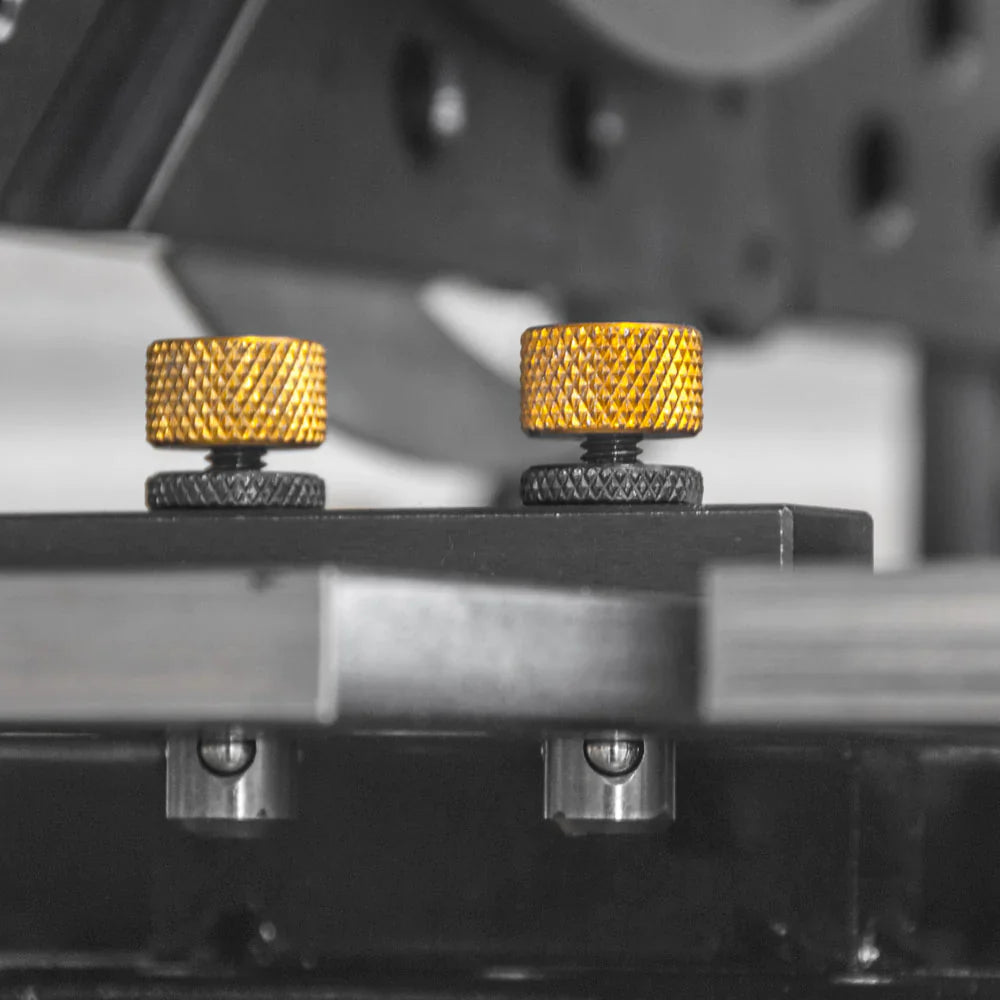

Load image into Gallery viewer, Finger tighten the knurled head after insertion to preload before tightening with Hex Key.

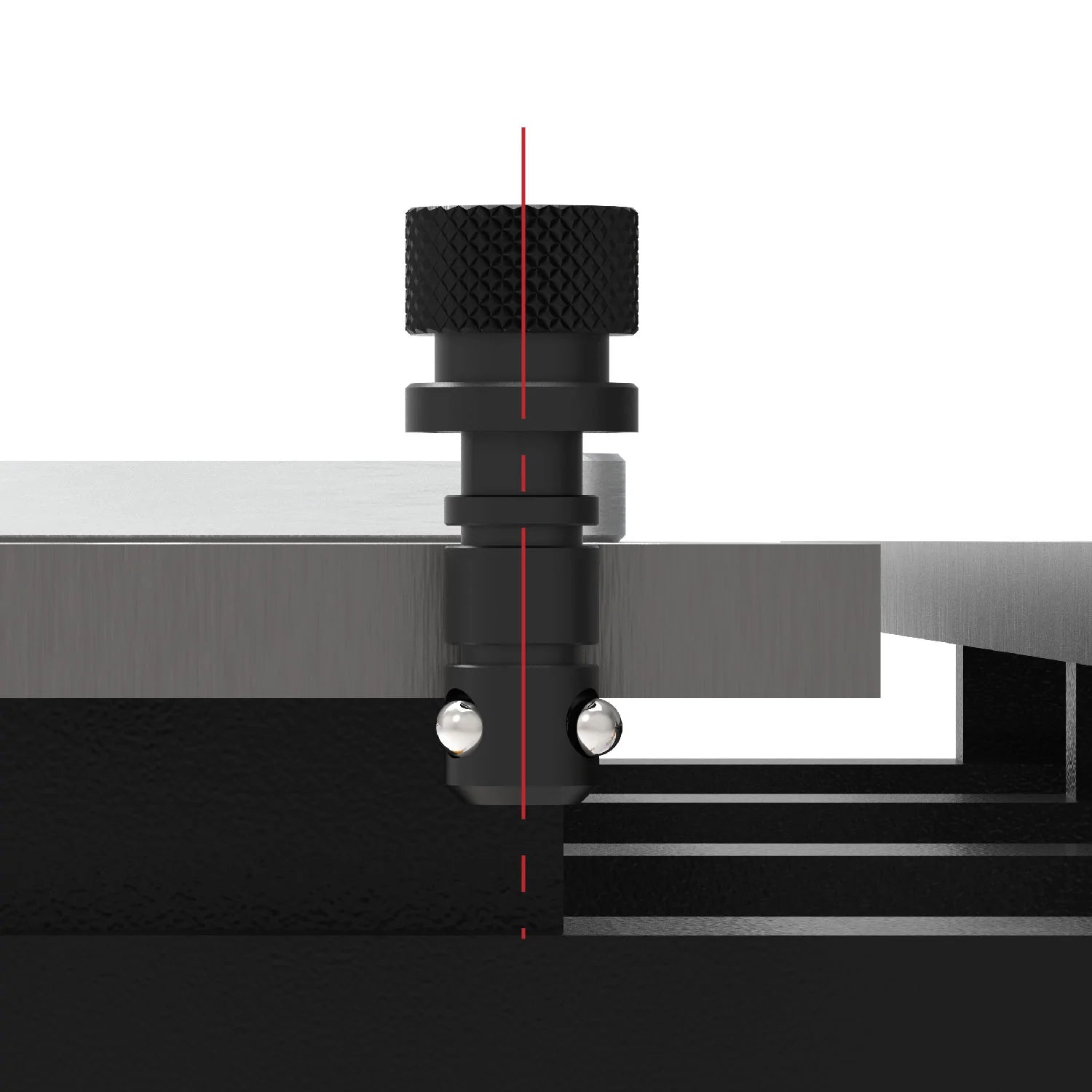

Load image into Gallery viewer, Three locking steel balls move outward to lock the bolt in position.
Load image into Gallery viewer, Ball Lock Bolts, Fit 5/8 Holes

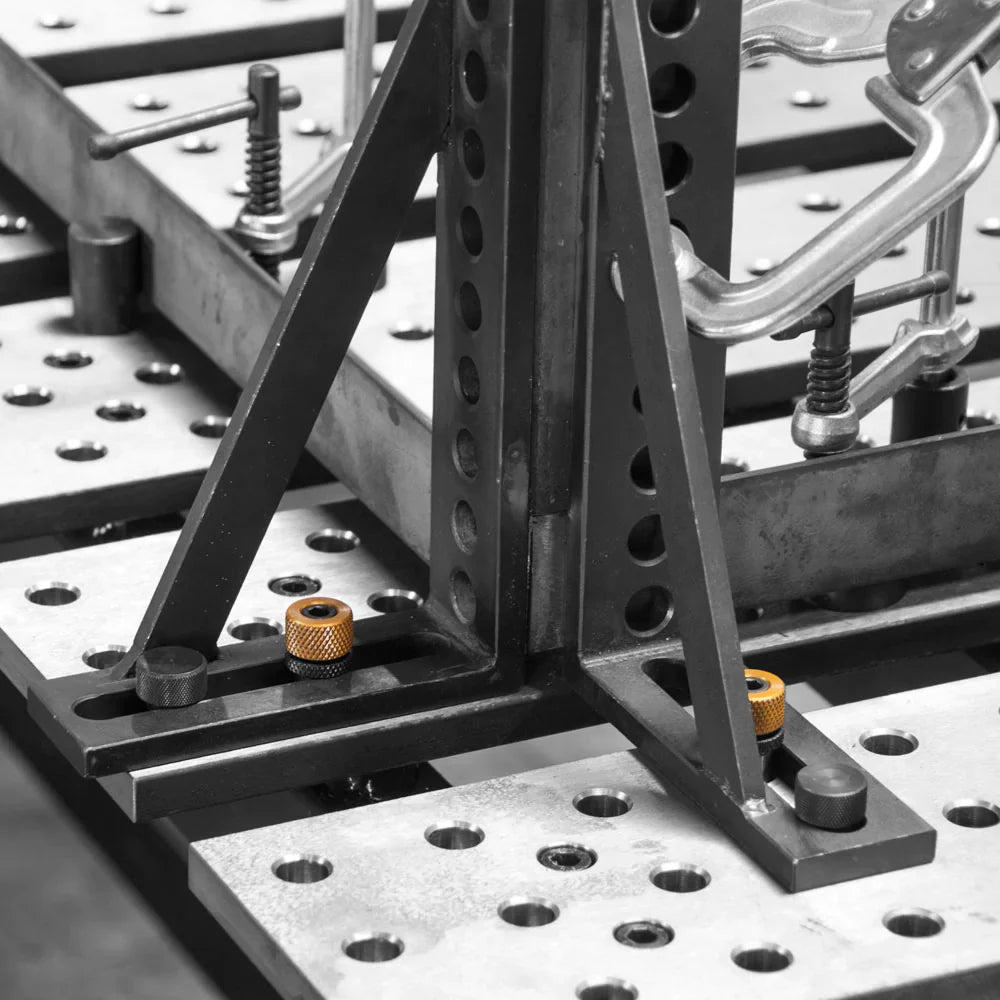

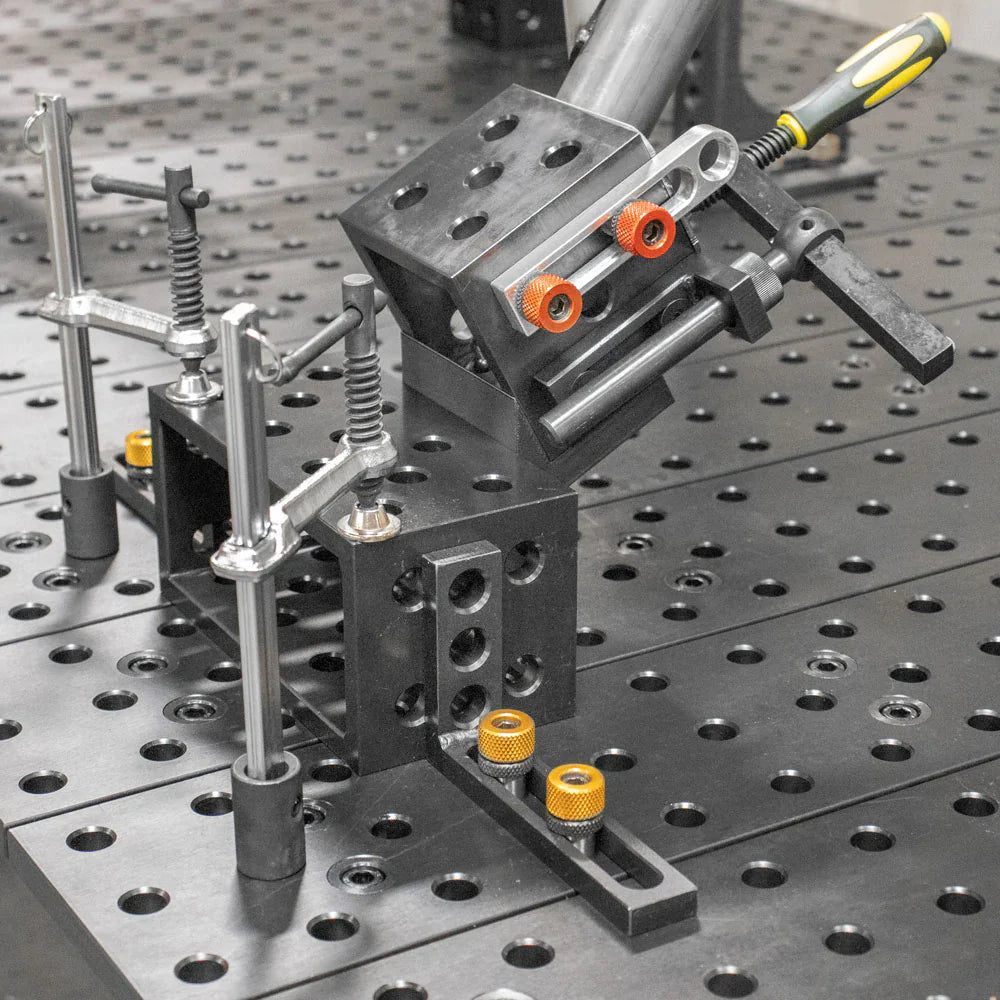

Load image into Gallery viewer, Ball lock bolts mount right angle brackets on the table.

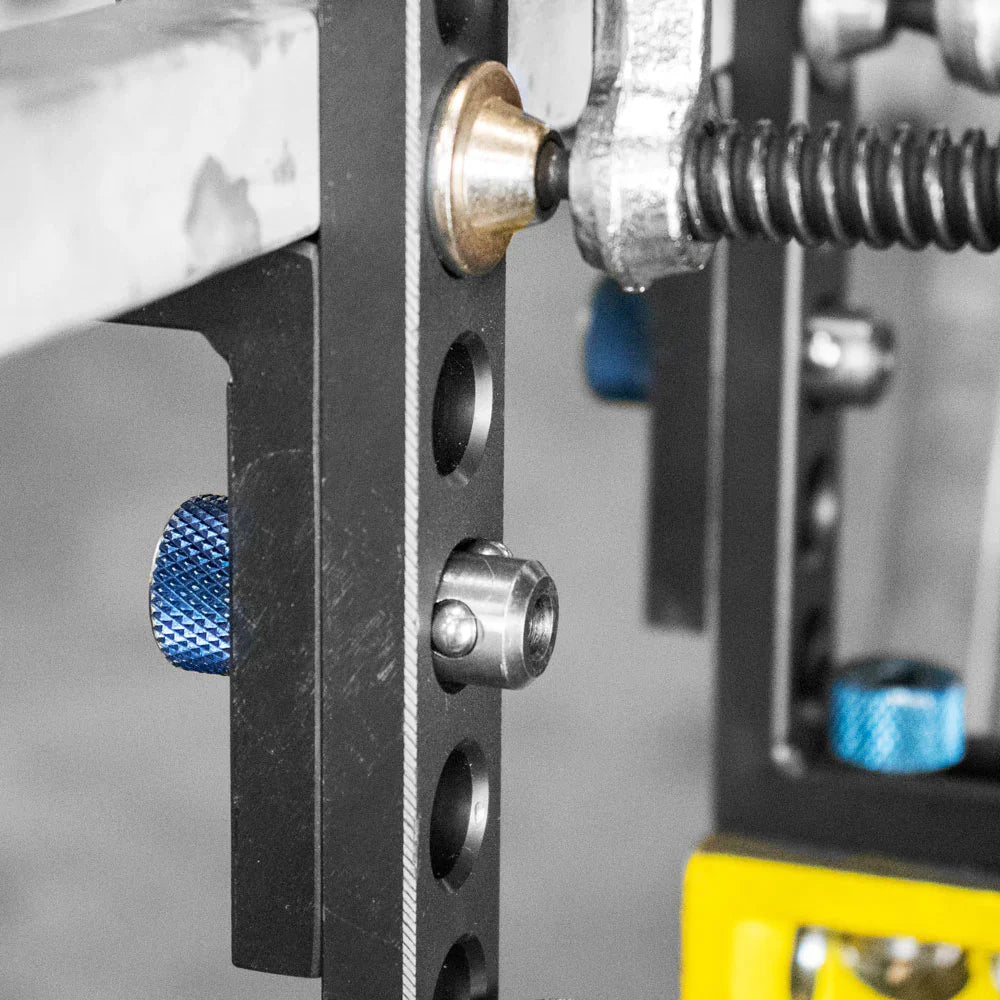

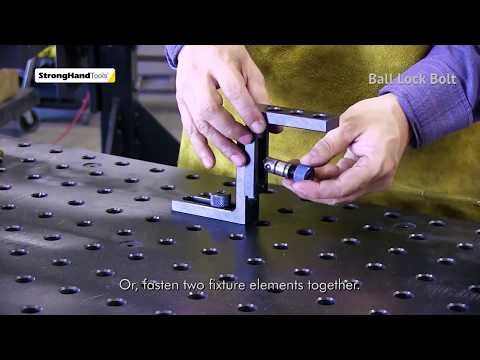

Load image into Gallery viewer, Adjustable ball lock bolt join two right angle bracket together

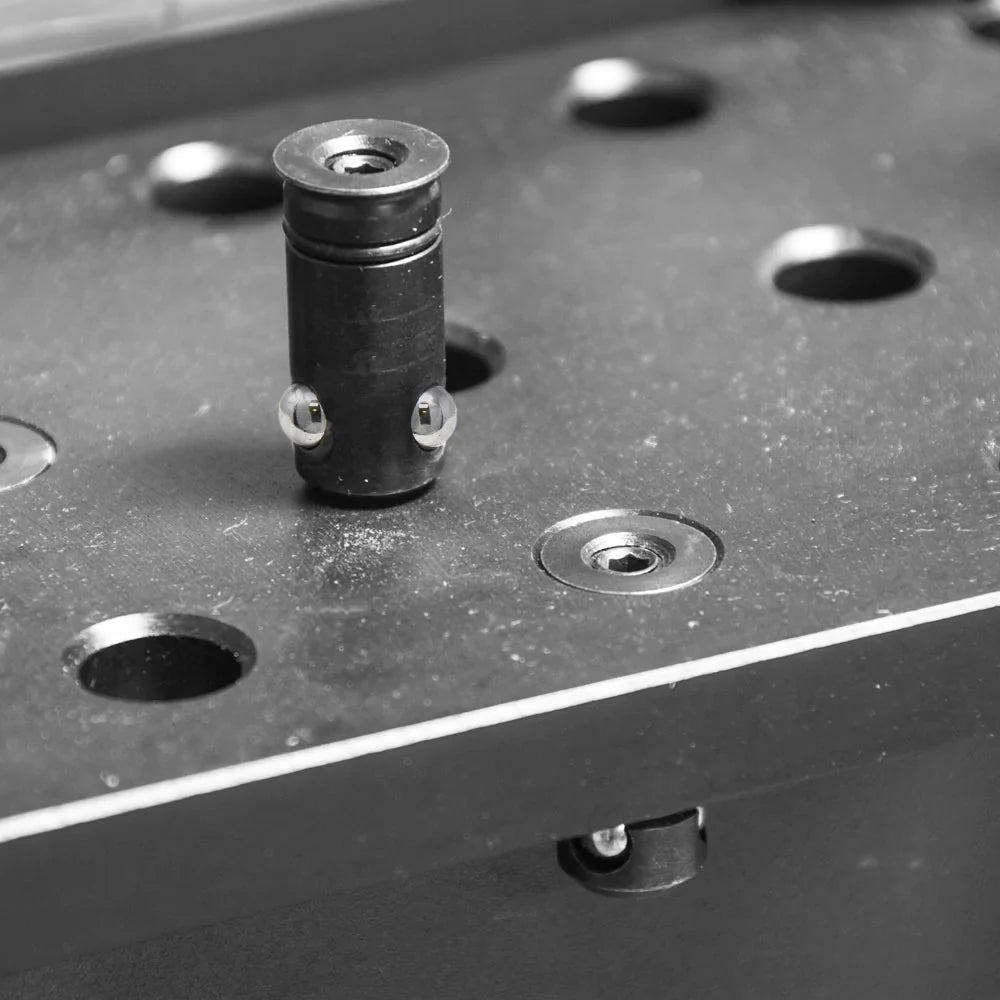

Load image into Gallery viewer, Flush Mount Ball Lock Bolts on table
Load image into Gallery viewer, Ball Lock Bolts, Fit 5/8 Holes
Load and play video in Gallery viewer, Ball Lock Bolts, Fit 5/8 Holes
Vendor BuildPro

Ball Lock Bolts, Fit 5/8 Holes

SKU: T55010

An essential time-saving fastener.

All Ball Lock Bolts are a time-saving and efficient method of locating and fastening fixture elements to the tabletop without having to reach underneath the table.
Insert the Ball Lock Bolt over the fixturing element and turn the knurled head with your hand for initial positioning.

The Ball Lock Bolt consists of three locking steel balls in the bolt shank that move outward to lock against the bottom chamfer of the table plate, pulling the fixture components securely downward and tightening them in place. Once all the Bolts are positioned, tighten the socket head cap screw top of the Bolts with a light turn of a hex wrench. Ball Lock Bolts release quickly from the Bolt top with a turn of your hex wrench.

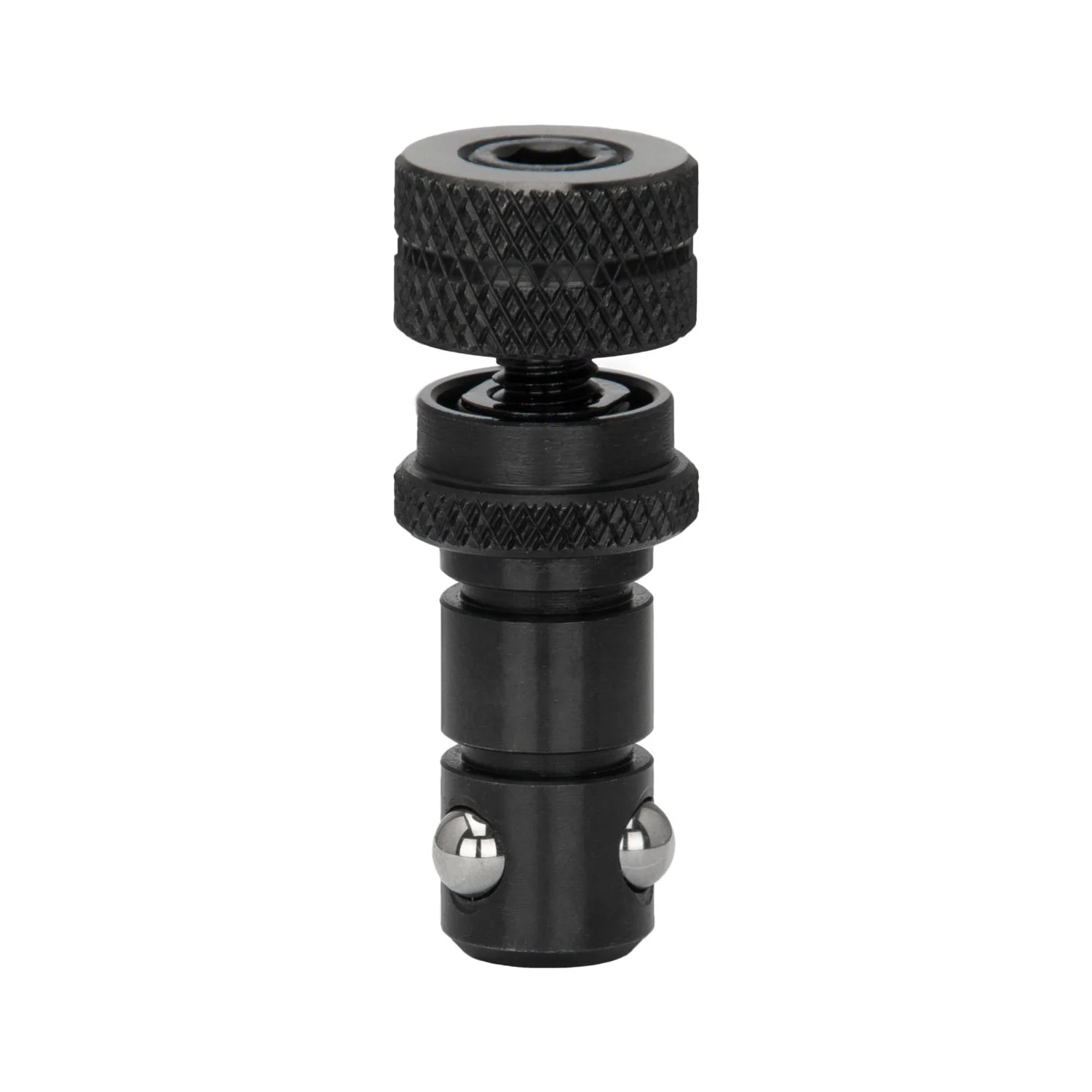

The Universal Ball Lock Bolt T55057 features an adjustable sliding shoulder bushing, providing better surface contact while also reducing friction when torquing down screws.

Regular price $22.00
Sale price $22.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

T55010 - STEP

T55015 - STEP

T55020 - STEP

T55025 - STEP

T55055 - STEP

T55050 - STEP

T55057 -STEP
