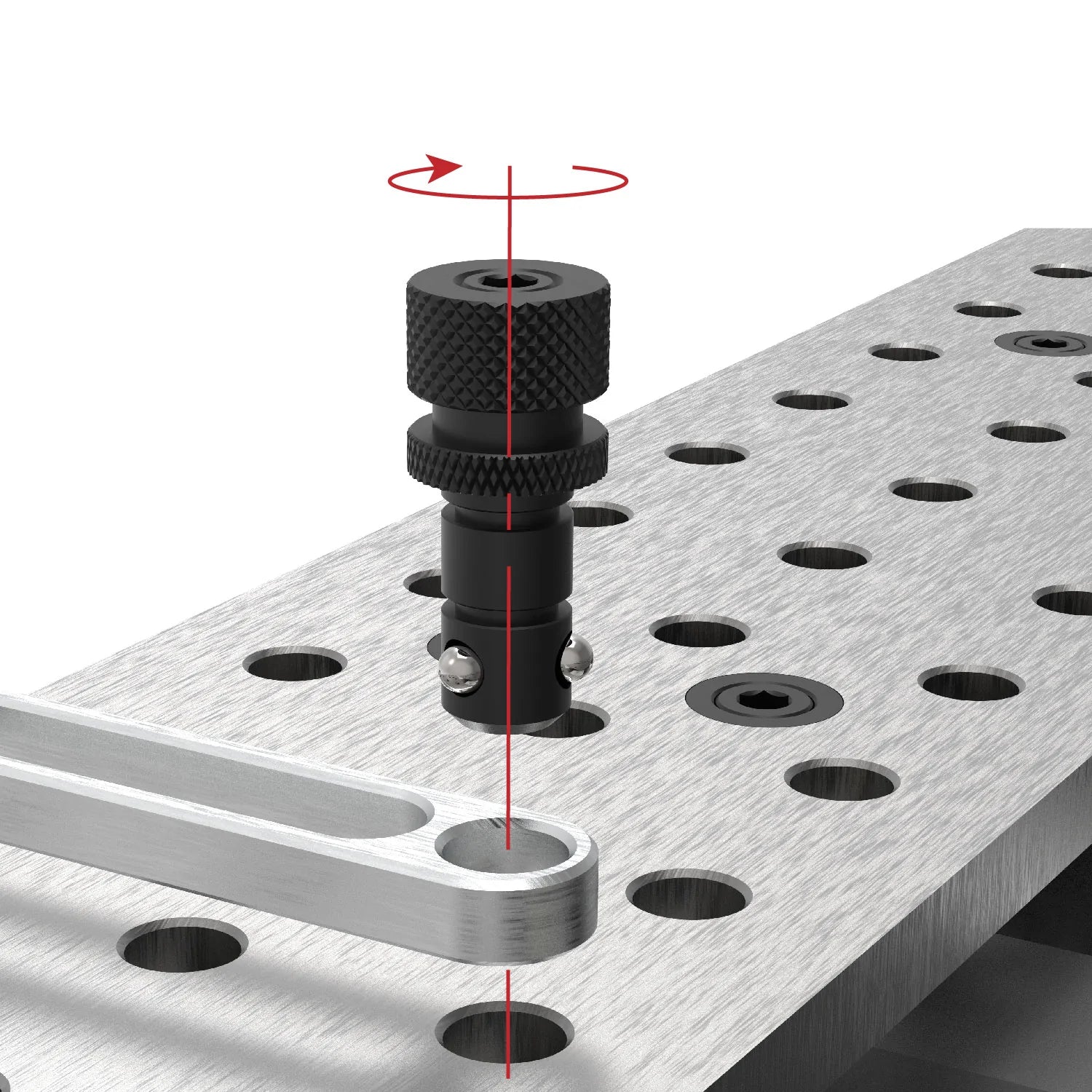

Finger tighten the knurled head after insertion to preload before tightening with Hex Key.

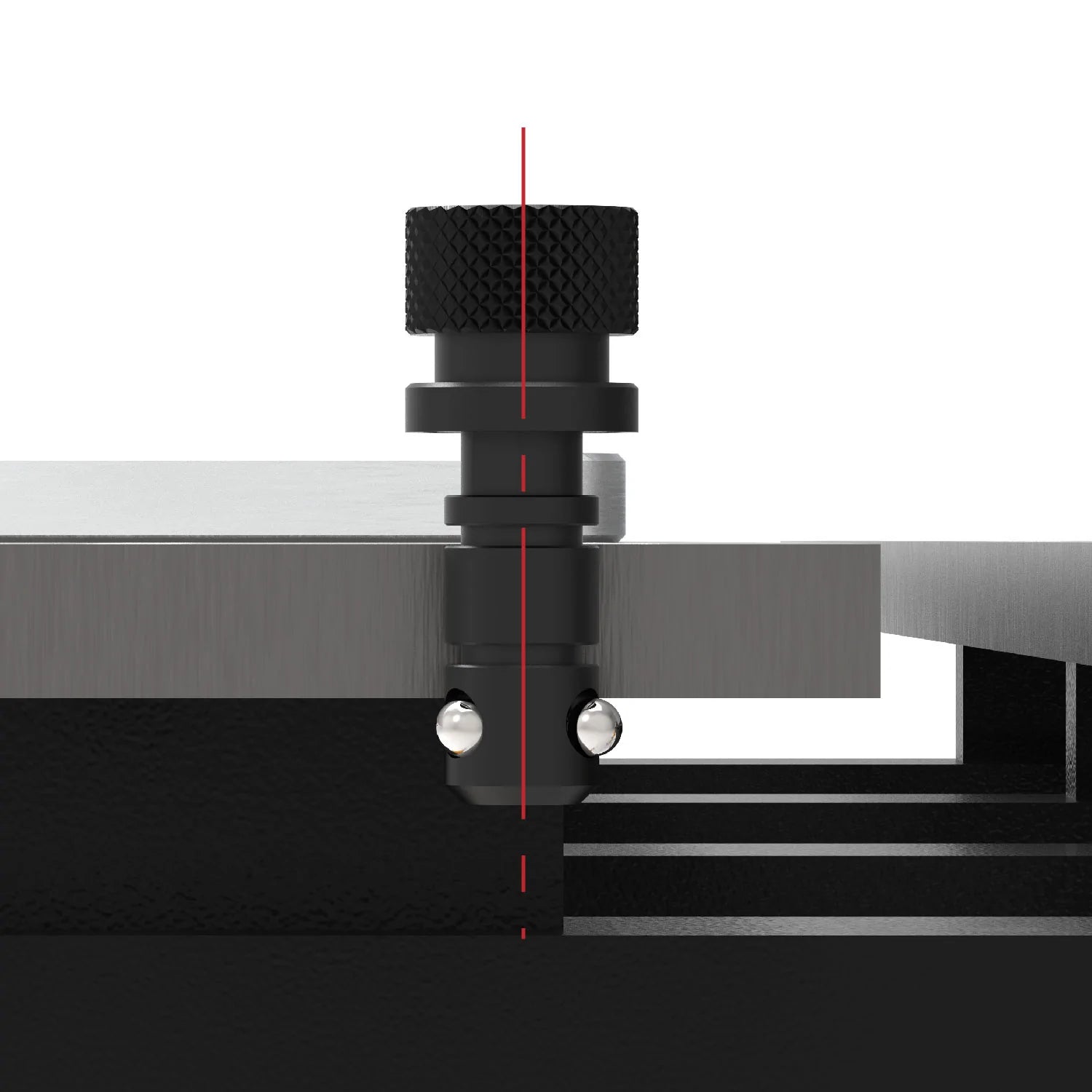

Three locking steel balls move outward to lock the bolt in position.
Ball Lock Bolts Bulk Package, Fit 5/8 Holes

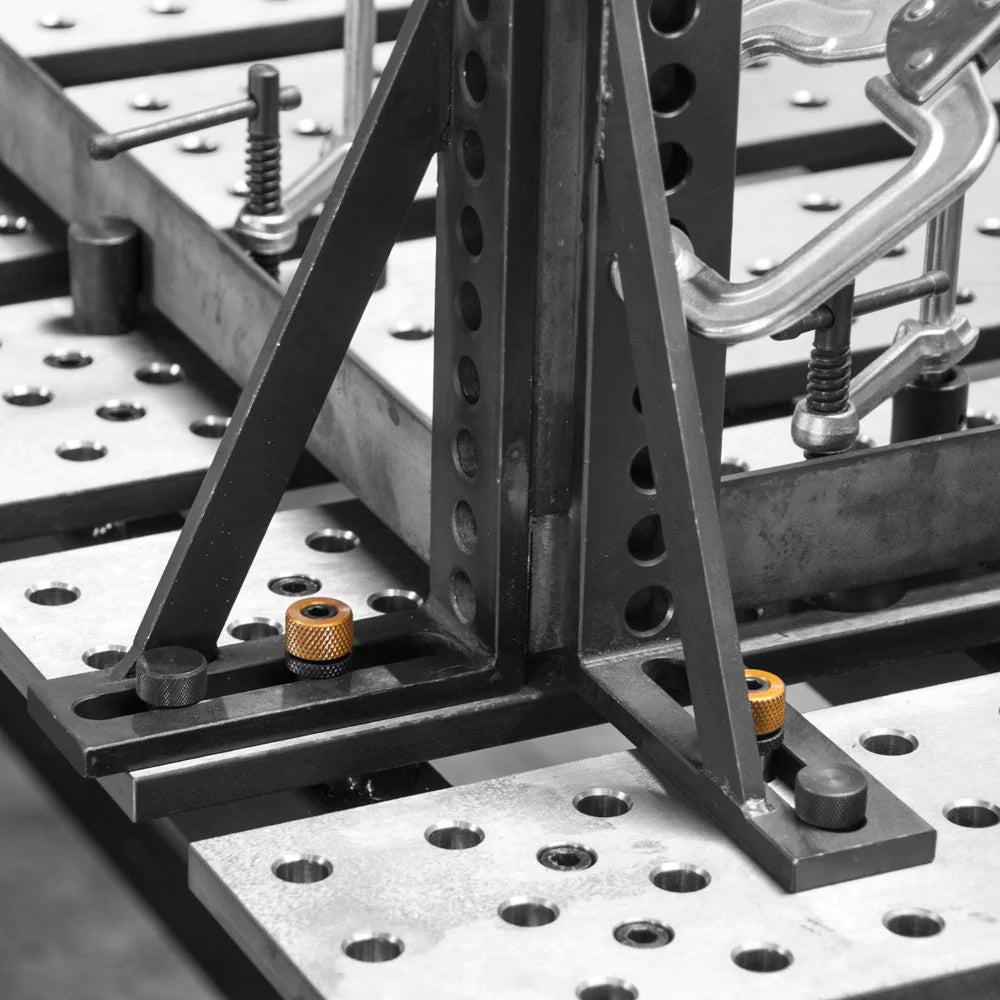

Ball lock bolts mount right angle brackets on the table.

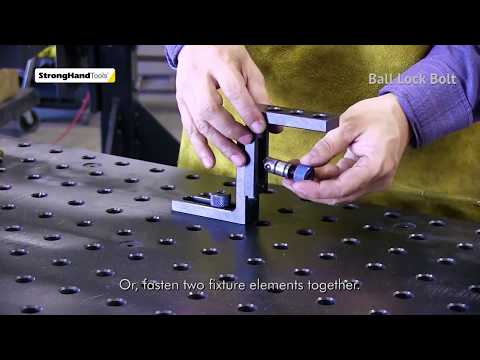

Adjustable ball lock bolt join two right angle bracket together
Ball Lock Bolts Bulk Package, Fit 5/8 Holes
Load image into Gallery viewer, Ball Lock Bolts Bulk Package, Fit 5/8 Holes
Load image into Gallery viewer, Ball Lock Bolts Bulk Package, Fit 5/8 Holes
Load image into Gallery viewer, Ball Lock Bolts Bulk Package, Fit 5/8 Holes
Load image into Gallery viewer, Ball Lock Bolts Bulk Package, Fit 5/8 Holes
Load image into Gallery viewer, Finger tighten the knurled head after insertion to preload before tightening with Hex Key.
Load image into Gallery viewer, Three locking steel balls move outward to lock the bolt in position.
Load image into Gallery viewer, Ball Lock Bolts Bulk Package, Fit 5/8 Holes
Load image into Gallery viewer, Ball lock bolts mount right angle brackets on the table.
Load image into Gallery viewer, Adjustable ball lock bolt join two right angle bracket together
Load image into Gallery viewer, Ball Lock Bolts Bulk Package, Fit 5/8 Holes
Load and play video in Gallery viewer, Ball Lock Bolts Bulk Package, Fit 5/8 Holes
BuildPro

Ball Lock Bolts Bulk Package, Fit 5/8 Holes

SKU: T55010-12PPK

Get the 12 pc. bulk packages to save more!

Ball Lock Bolts are the essential component in Modular Fixturing, a time-saving, efficient method of locating and fastening fixture elements to the tabletop with 5/8" boreholes.

Please note that T55015-12PPK is not compatible with Alpha 5/8 tables.

* Ball Lock Bolts are also available individually.

$237.00
$237.00
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

T55010 - STEP

T55015 - STEP

T55055 - STEP

T55057 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Type Description Hex Wrench Size (in) Weight (lb)

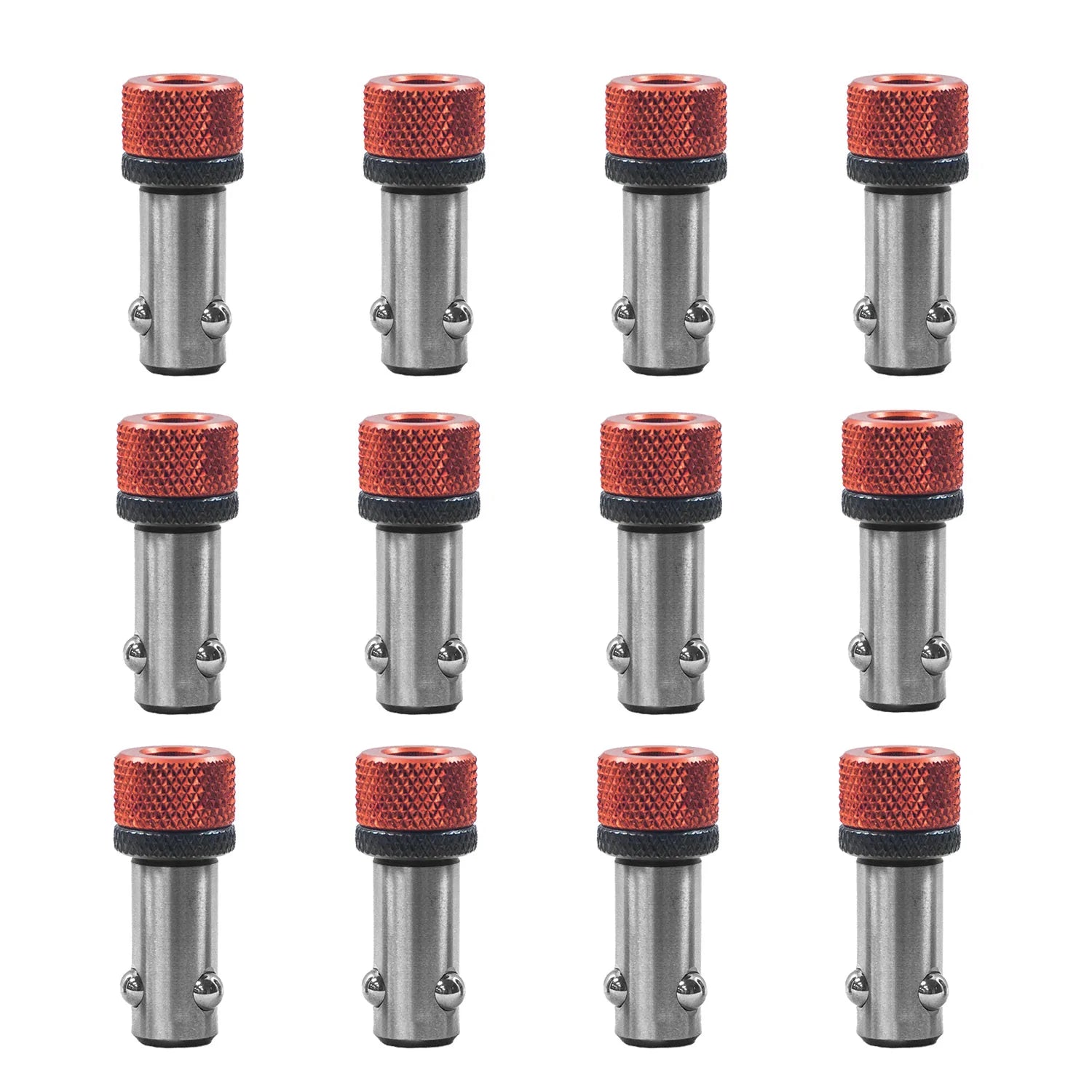

T55010-12PPK Fixed 12 pc. of T55010, for connecting 2 accessories together. 0.9" capacity. 1/4 2.0

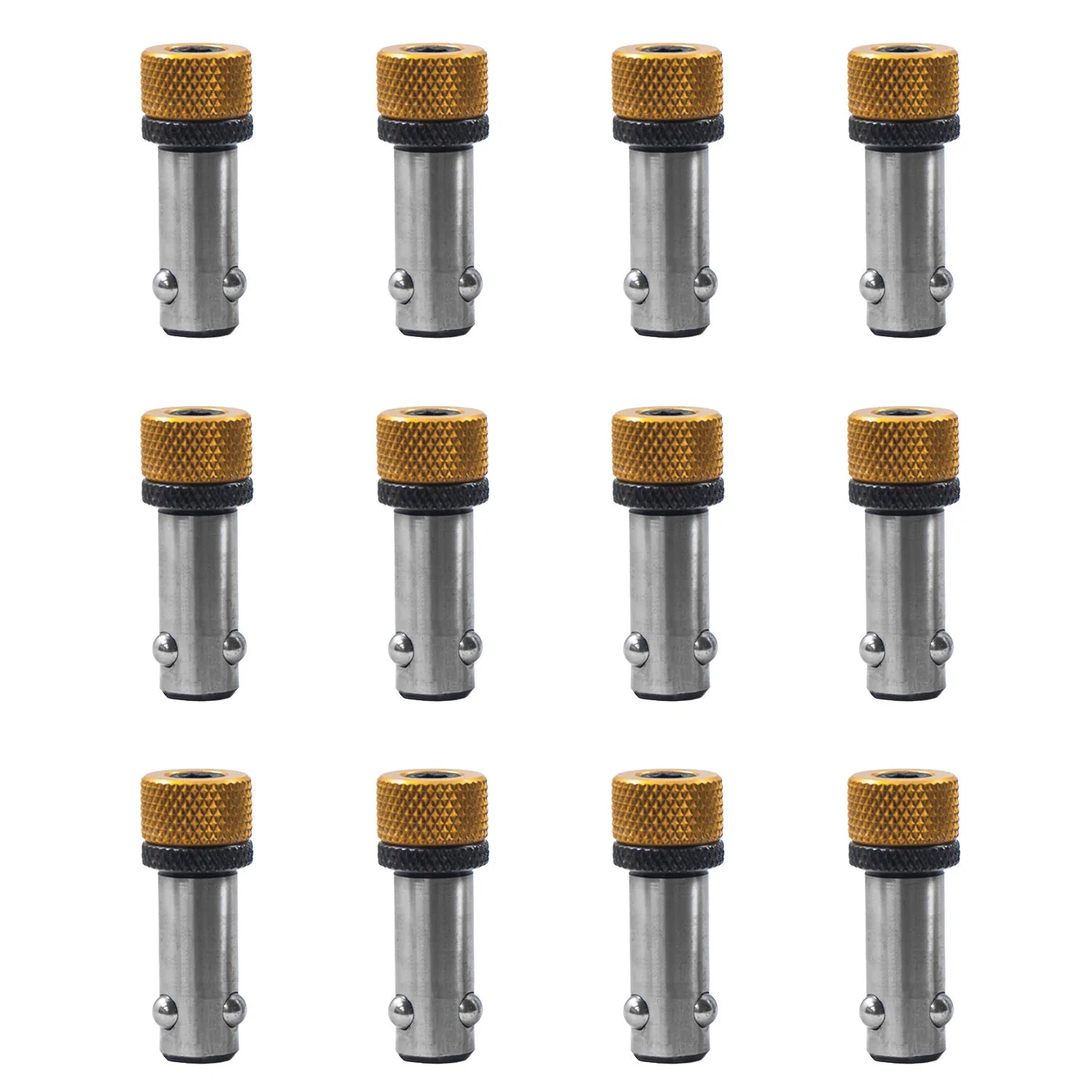

T55015-12PPK Fixed 12 pc. of T55015, for connecting an accessory to the tabletop. 1.1" capacity. (NOT compatible with Alpha 5/8 tabletops) 1/4 2.0

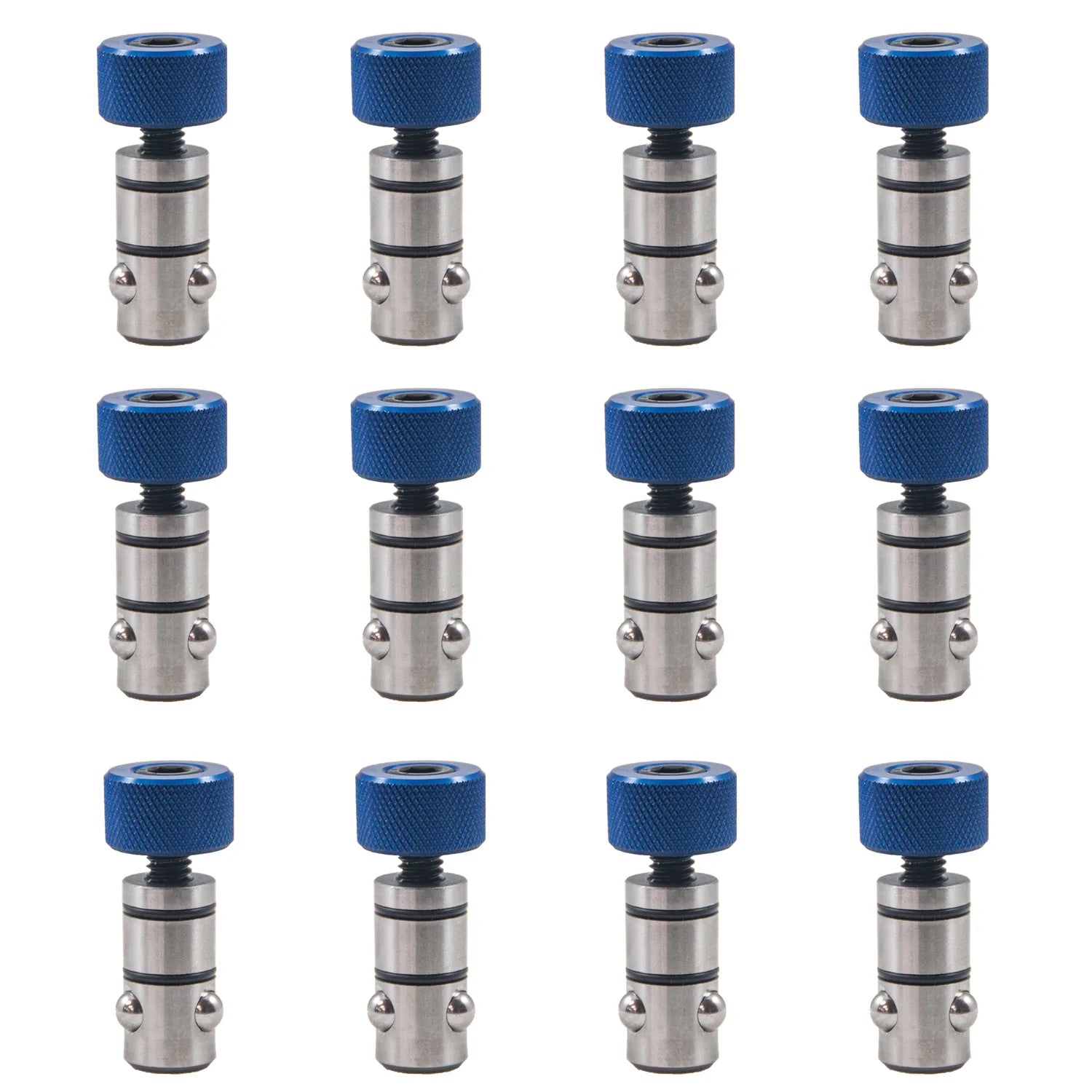

T55055-12PPK Adjustable 12 pc. of T55055, adjustable range: 0.9" ~ 1.1", connecting tables to accessories, and accessories to accessories. 1/4 1.5

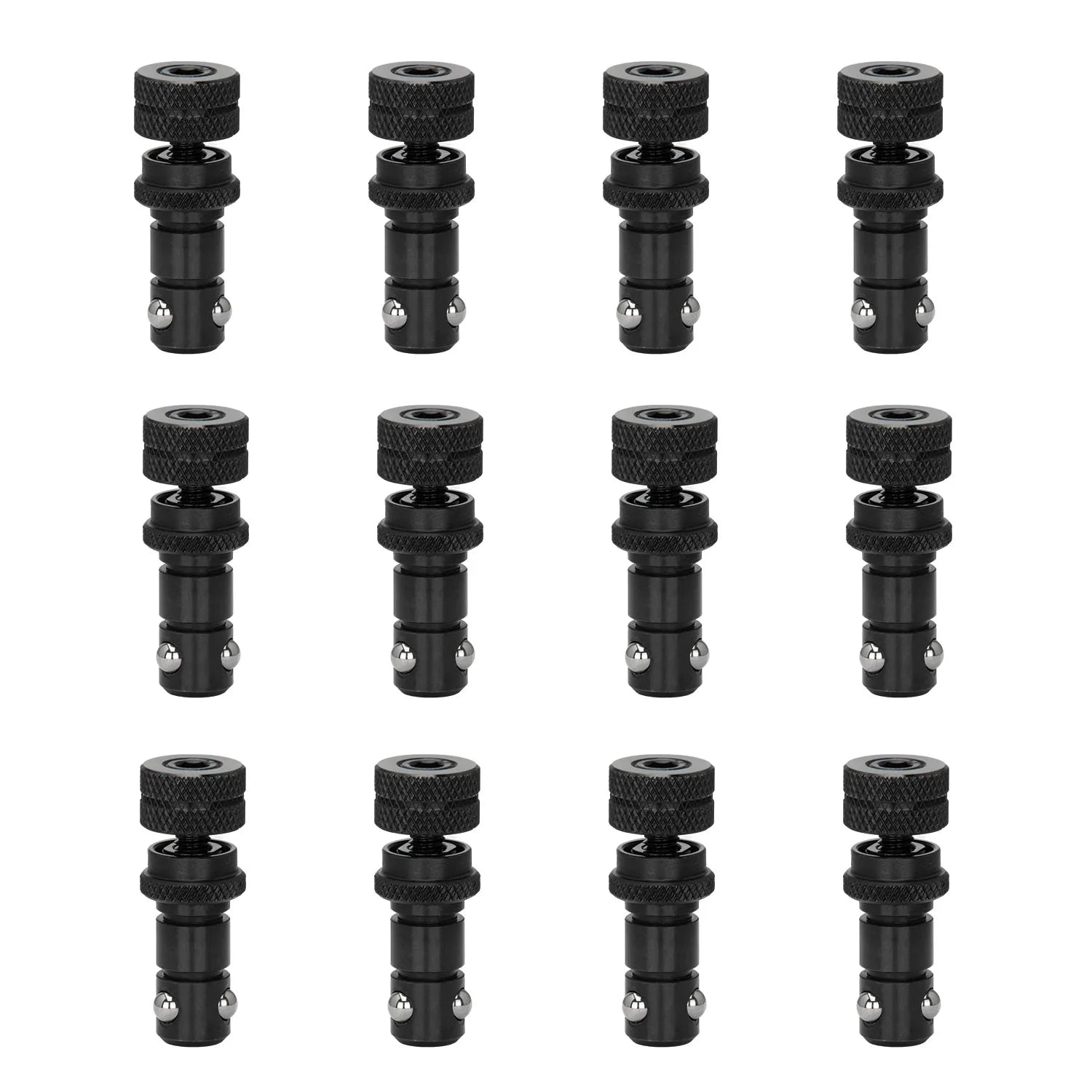

T55057-12PPK Universal 12 pc. of T55057, adjustable range: 0.9" ~ 1.1", connecting tables to accessories, and accessories to accessories. 1/4 2.0
