Save 10%

MagTabs, Replaceable Magnet on V-Pad

MagTabs, Replaceable Magnet on V-Pad

Patented

SKU: MDT50

$11.25
$11.25 $12.50
Shipping calculated at checkout.

Time-saving magnetic tools for use in the shop & in the field.

Hold tabs, or any small metal pieces, parallel or perpendicular to the substructure. The Adjustable Magnetic V-shape base adjusts for different shapes: round, flat, and angle metal surfaces.

MAGTAB 2.0 features more magnets that are now fully replaceable and provide 3X more magnetic holding force than the original design. Get REPLACEABLE MAGNETS for the MagTabs.

Magnetic Holding: Hold tabs and small metal pieces, parallel or perpendicular to your substructure.

V-Pads: MagTabs feature an integrated V-Pad that allows you to magnetically attach to various types of surface shapes; flat, curved, or with varying angles.

* Remove the MagTab bracket to use the Adjustable Magnetic V-Pad for light-duty holding of steel plates.

* Must be used for tack welding only and removed before completing weld. Avoid prolonged exposure of magnetic products to heat sources of 175ºF / 80ºC and above.

U.S. PAT. 8789821

Click here to see the original MagTab (MFT10)

Model: Mini Magtab (MDT50)
  • Eligible for Return Within 30 Days.
  • One Year Limited Warranty
  • Estimated delivery: Apr 10 - Apr 14
Part No. Description Dimension (in) Max. Pull Force (lb) Weight (lb)

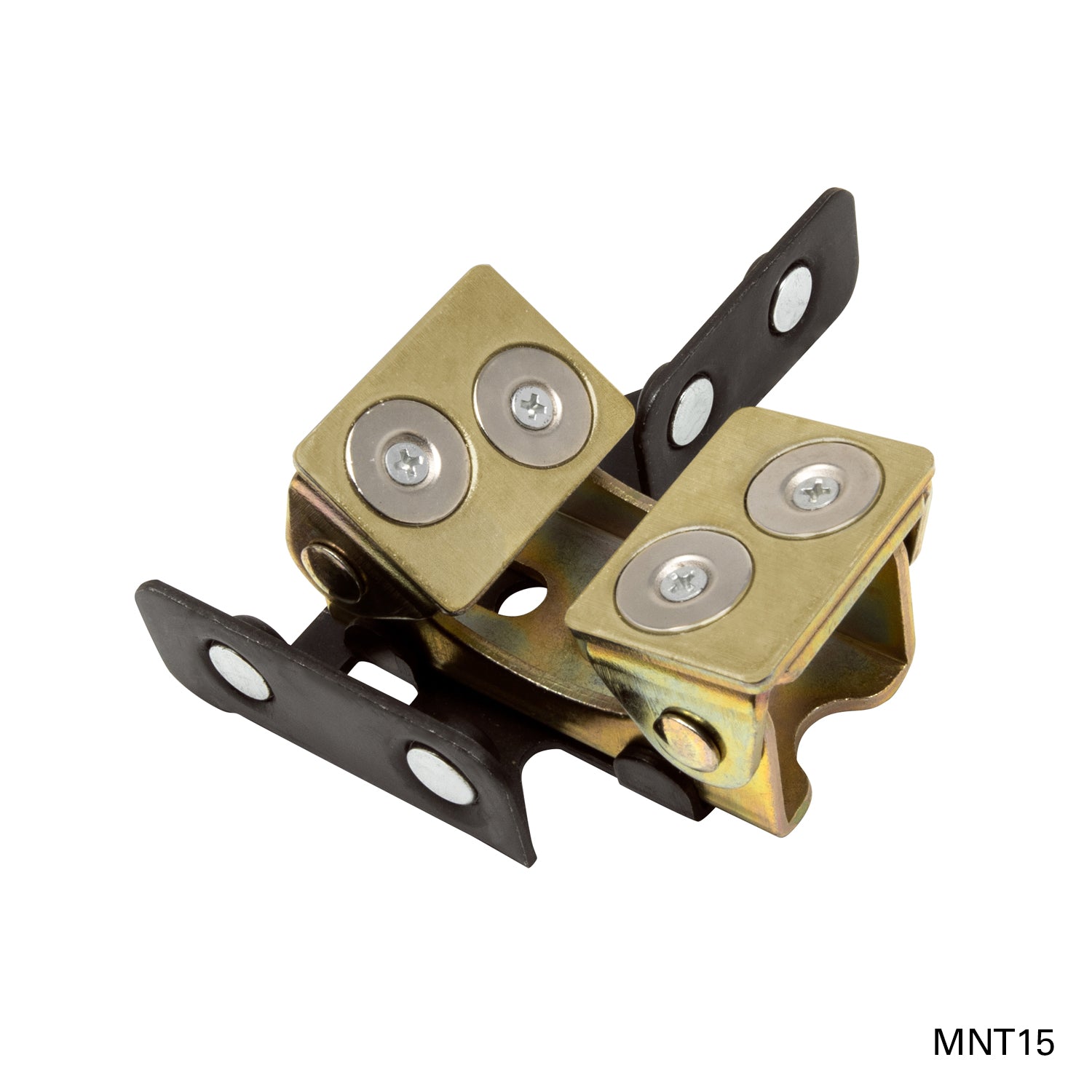

MNT15 MagTab Large 5.2 x 4.5 x 2.8 80 1.0
MET11 Magtab 2.0 4.5 x 2.6 x 2 44 0.6

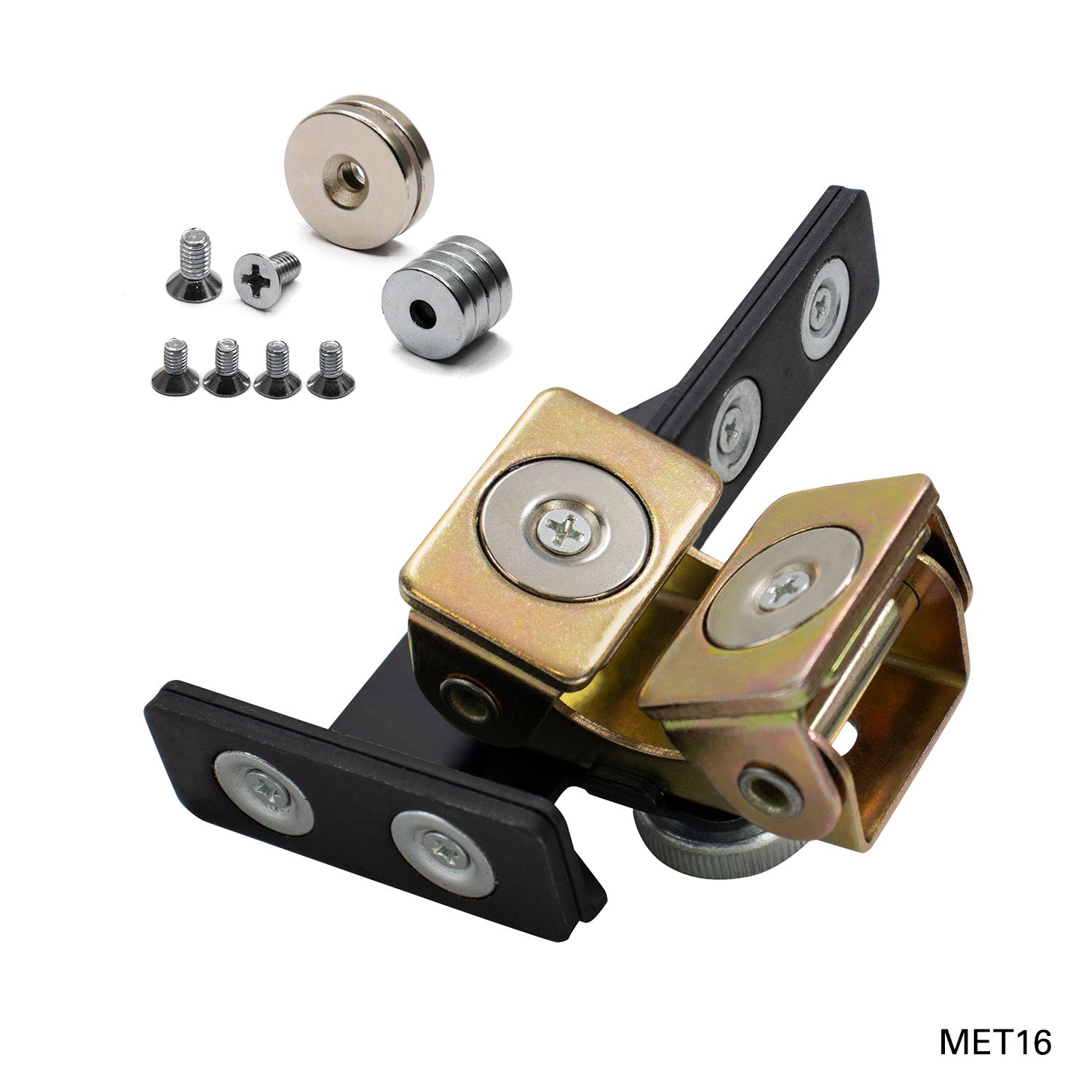

MET16 Magtab 2.0 with extra replacement magnets - MRP8 4.5 x 2.6 x 2 44 0.7

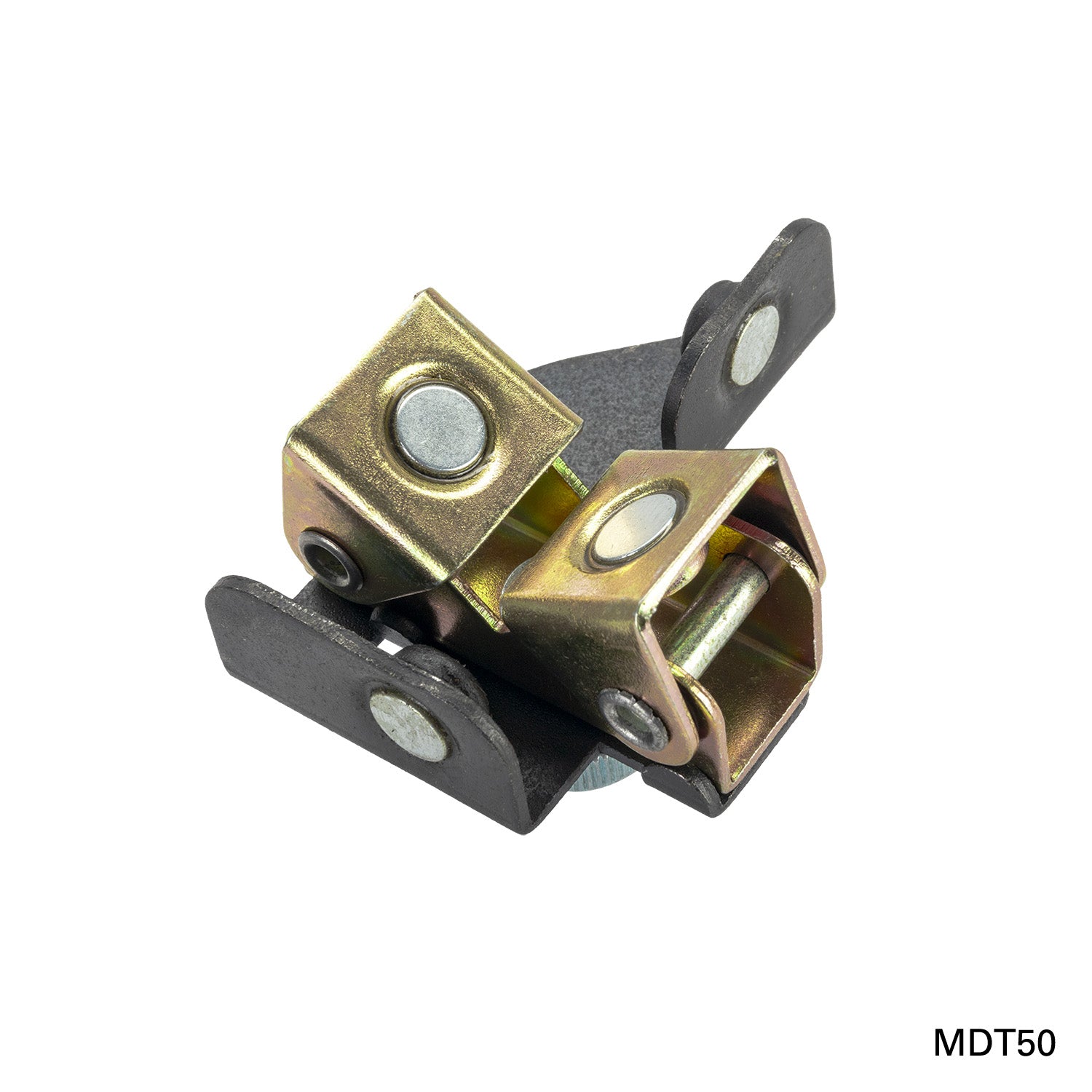

MDT50 Mini Magtab 2.8 x 2.2 x 1.75 12 0.3

* Magnetic force is based on 0.08” flat steel surface.

Time-saving magnetic tools for use in the shop & in the field.

Hold tabs, or any small metal pieces, parallel or perpendicular to the substructure. The Adjustable Magnetic V-shape base adjusts for different shapes: round, flat, and angle metal surfaces.

MAGTAB 2.0 features more magnets that are now fully replaceable and provide 3X more magnetic holding force than the original design. Get REPLACEABLE MAGNETS for the MagTabs.

Magnetic Holding: Hold tabs and small metal pieces, parallel or perpendicular to your substructure.

V-Pads: MagTabs feature an integrated V-Pad that allows you to magnetically attach to various types of surface shapes; flat, curved, or with varying angles.

* Remove the MagTab bracket to use the Adjustable Magnetic V-Pad for light-duty holding of steel plates.

* Must be used for tack welding only and removed before completing weld. Avoid prolonged exposure of magnetic products to heat sources of 175ºF / 80ºC and above.

U.S. PAT. 8789821

Features

Multiple Magnets

Delivers strong, stable holding power with multiple contact points. Keeps components securely in place during setup and tack welding.

Sliding Channel

Allows quick, precise positioning along the channel. Easily adjust and lock into place for repeatable alignment.

Metallic component with four magnets arranged in a rectangular shape.

V-Pad

Designed to cradle round and angled workpieces. Ensures consistent positioning and improved contact for accurate setups.

Sliding channel V-pad for workpiece alignment illustration.

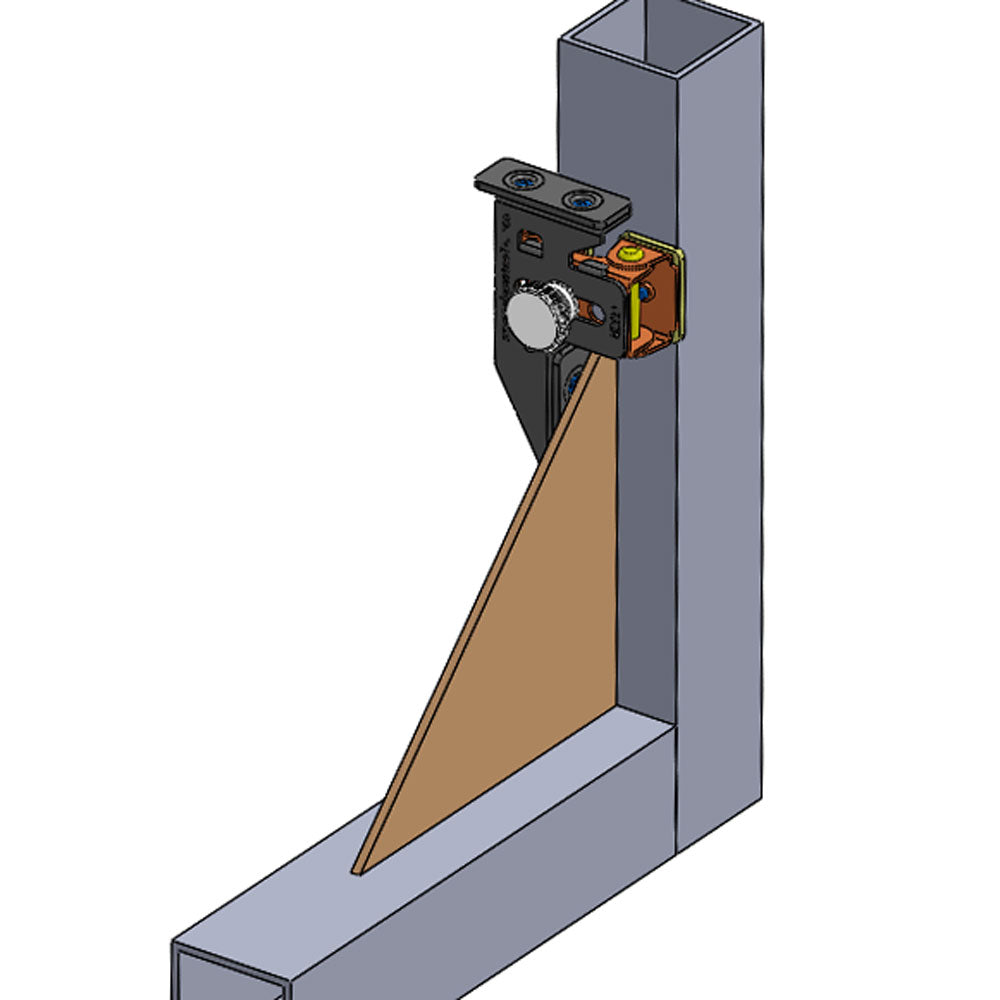

Vertical / Horizontal Tab Holding

Holds tabs firmly in both vertical and horizontal positions. Ideal for fast, hands-free alignment and consistent weld prep.

Variant Comparison

Electrical component with gold contacts, labeled MDT50.

Mini Magtab

Size: 2.8 x 2.2 x 1.75
Use V-pad: XDV2
Magnetic Hold: 12 lb
Weight: 0.3 lb

Metal hinge with black and gold components, labeled MFT10.

Magtab 1.0

Size: 4 x 3 x 1.3
Use V-pad: XFV2
Magnetic Hold: 18 lb
Weight: 0.5 lb

Metal hinge with a gold finish and black components, labeled MET11.

Magtab 2.0

Size: 4.5 x 2.6 x 2
Use V-pad: XEV2
Magnetic Hold: 44 lb
Weight: 0.6 lb

Hinge mechanism with metallic components and black mounting bracket. Model MNT15.

Magtab Large

Size: 5.2 x 4.5 x 2.8
Use V-pad: XNV210
Magnetic Hold: 80 lb
Weight: 1 lb

Hinge with metal and plastic components for door installation.

Magtab PRO

Size: 5.2 x 3.9 x 3.4
Use V-pad: XNV210
Magnetic Hold: 35 lb
Weight: 1.8 lb

Metal brackets with screws and connectors for assembly or construction purposes.

Magtab PRO XL

Size: 6.4 x 5.3 x 3.5
Use V-pad: XPV800
Magnetic Hold: 66 lb
Weight: 2.1 lb
