Heavy Duty Cast Squares - 4 Faces, U28 (inch spacing)
Heavy Duty Cast Squares - 4 Faces, U28 (inch spacing)
Available in stock (99)
-
Estimated delivery: May 15 - May 19
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

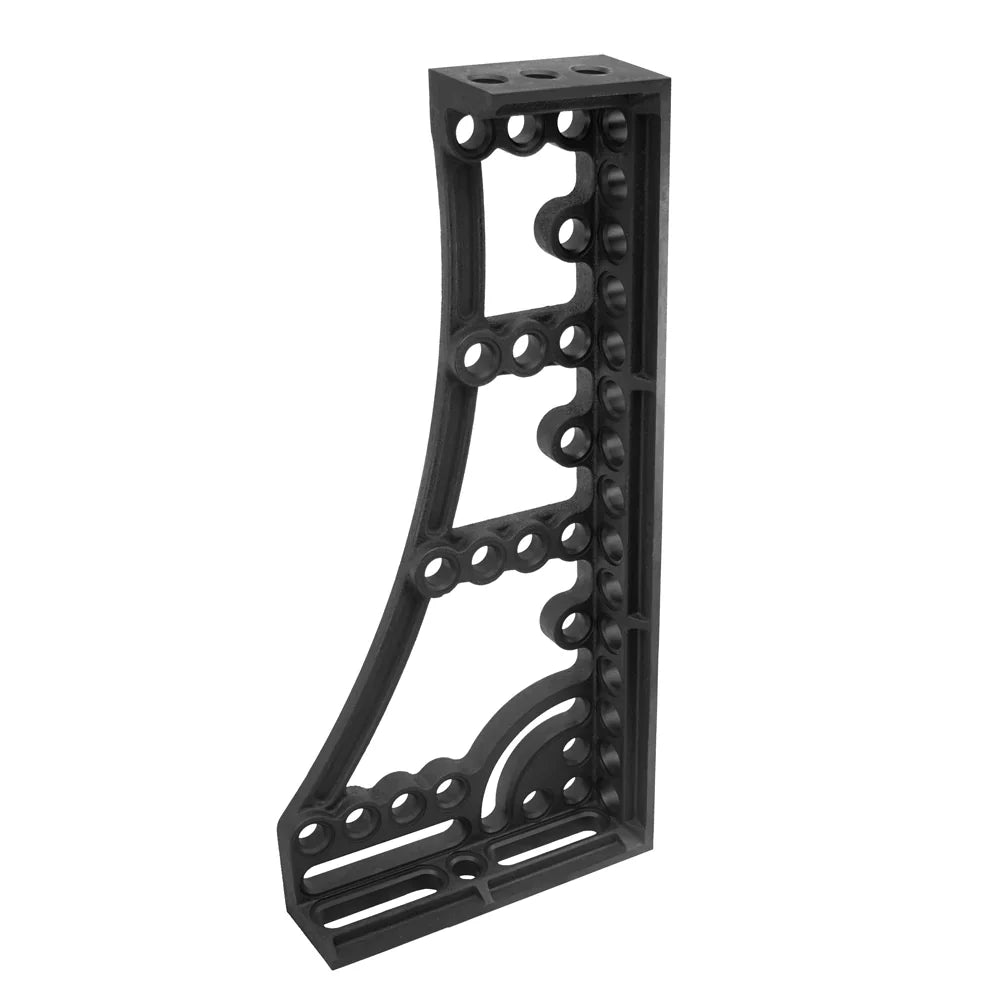

All Heavy Duty Cast Squares feature 28 mm holes with inch spacing. They are manufactured from high-quality ductile cast iron and specifically designed to handle heavy parts.

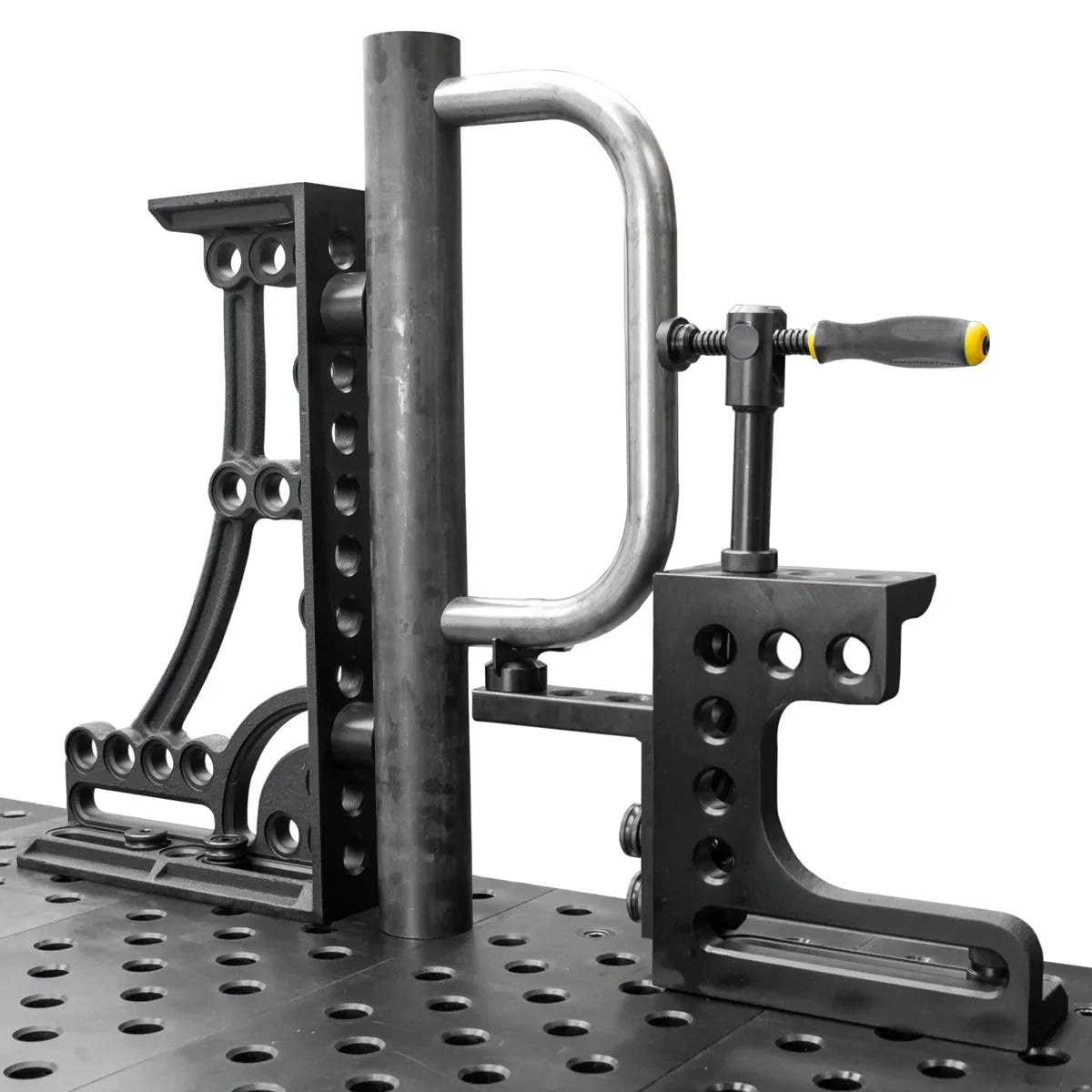

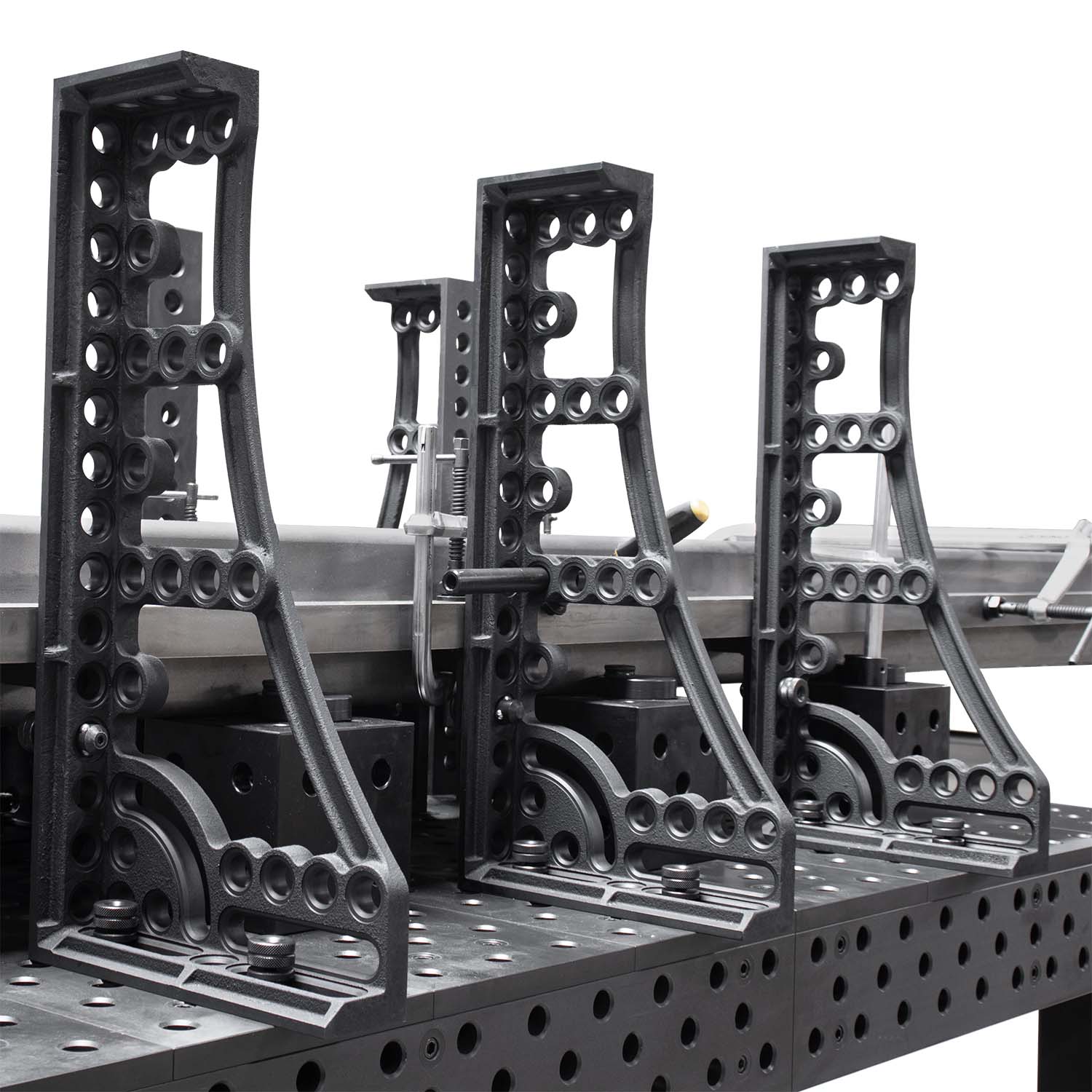

They serve equally well for stopping large parts, serving as table extensions, or building vertically. Cutouts are optimized for lighter weight and easier handling.

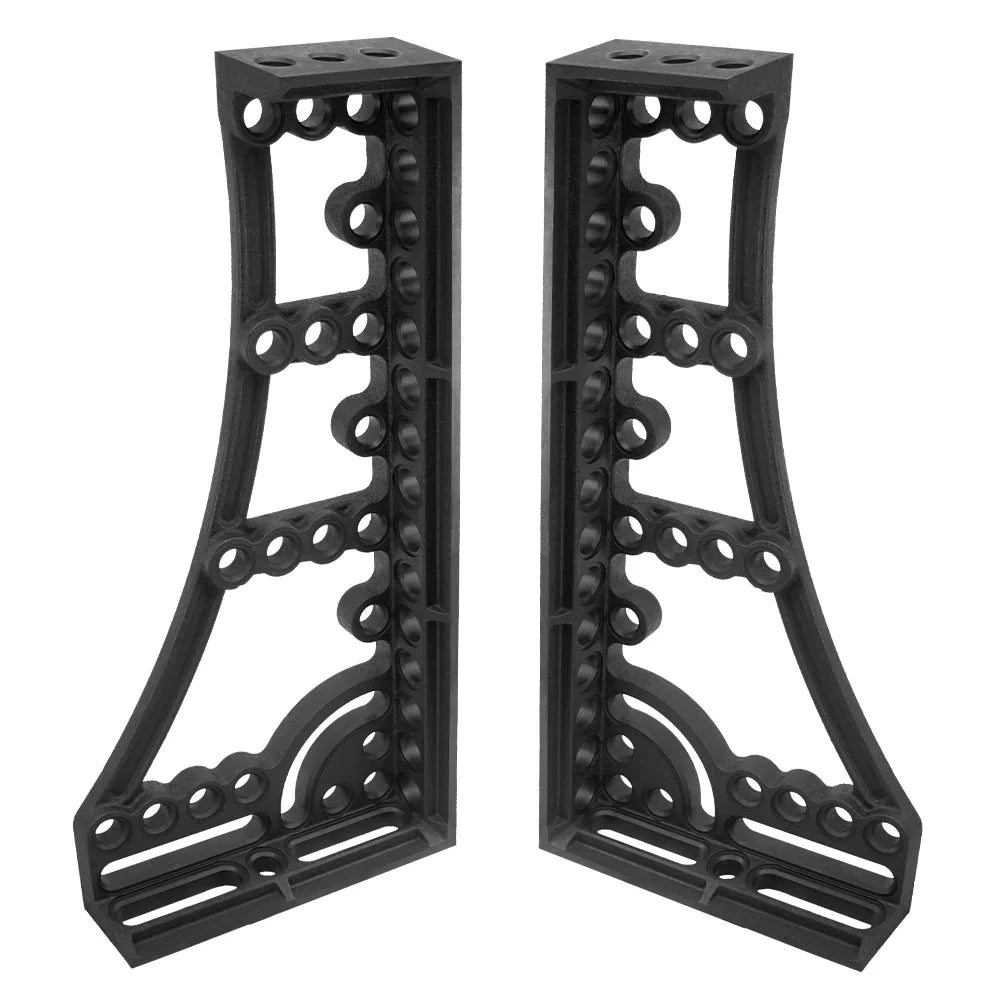

Squares come in two versions with machined faces on either the left or right side.
| Part No. | Name | Length (in) | Width (in) | Height (in) | Thickness (in) | Weight (lb) |
|---|---|---|---|---|---|---|

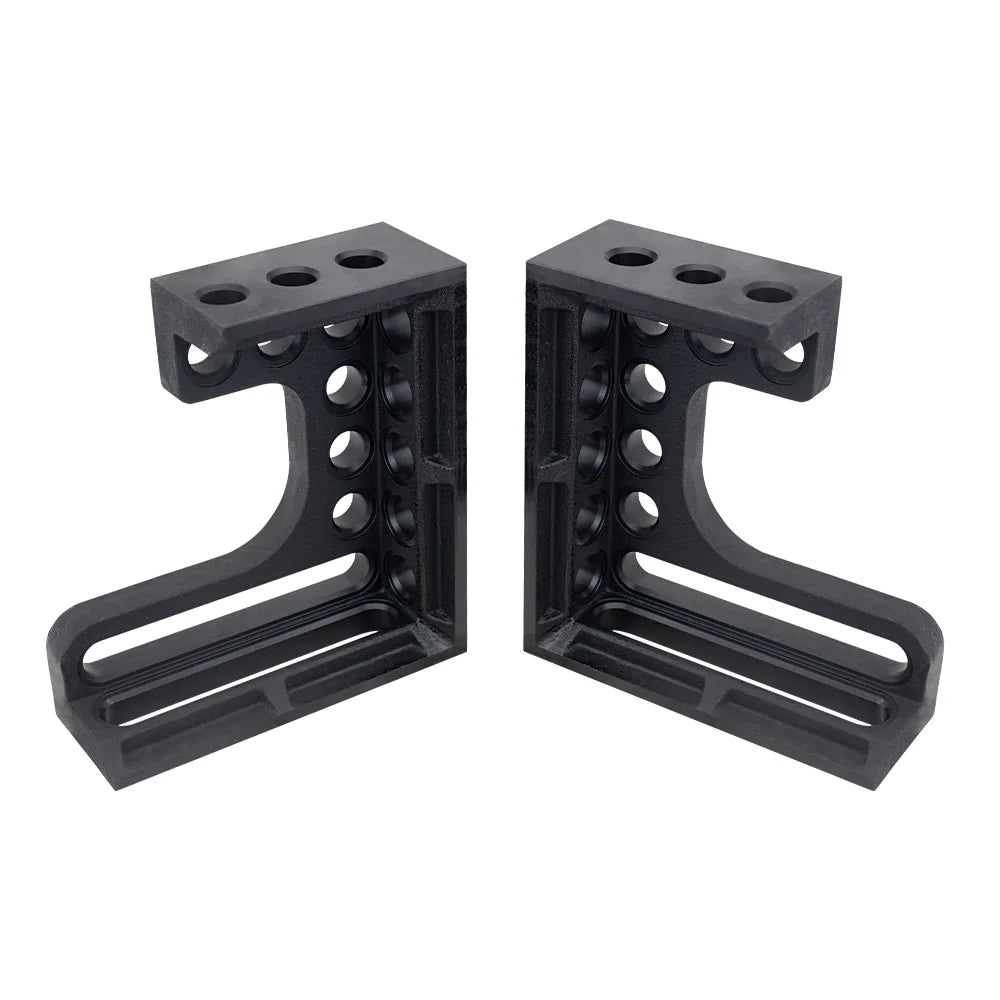

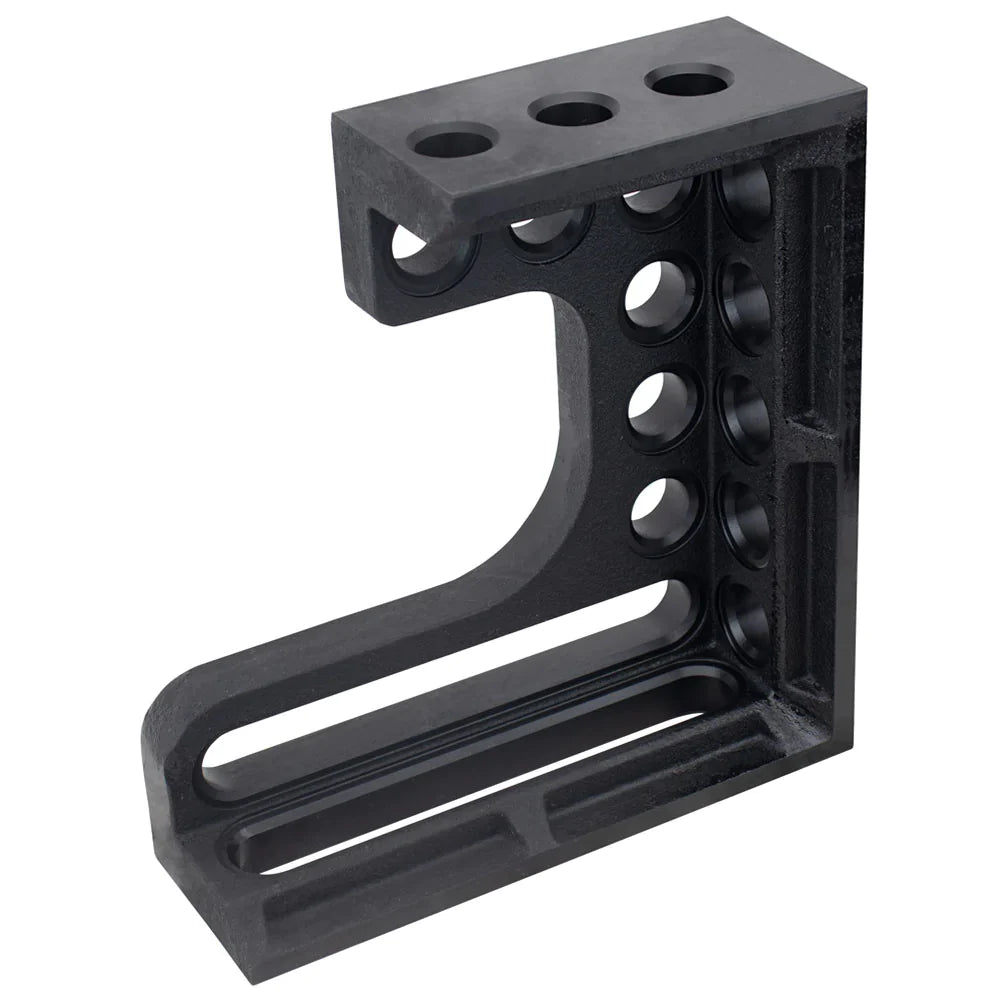

| U28-13028L | HD Cast Square 12 - Left | 11 | 3.8 | 12 | approx. 1.1 | 28 |

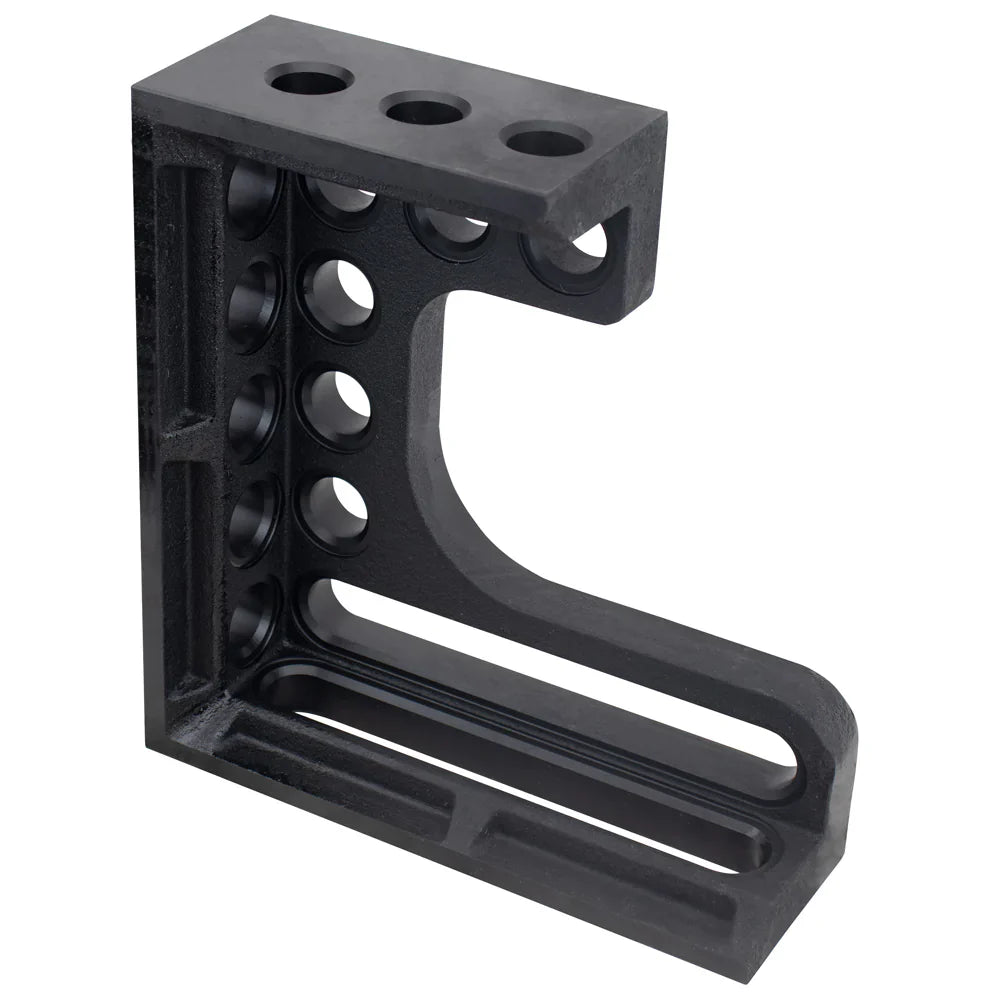

| U28-13028R | HD Cast Square 12 - Right | 11 | 3.8 | 12 | approx. 1.1 | 28 |

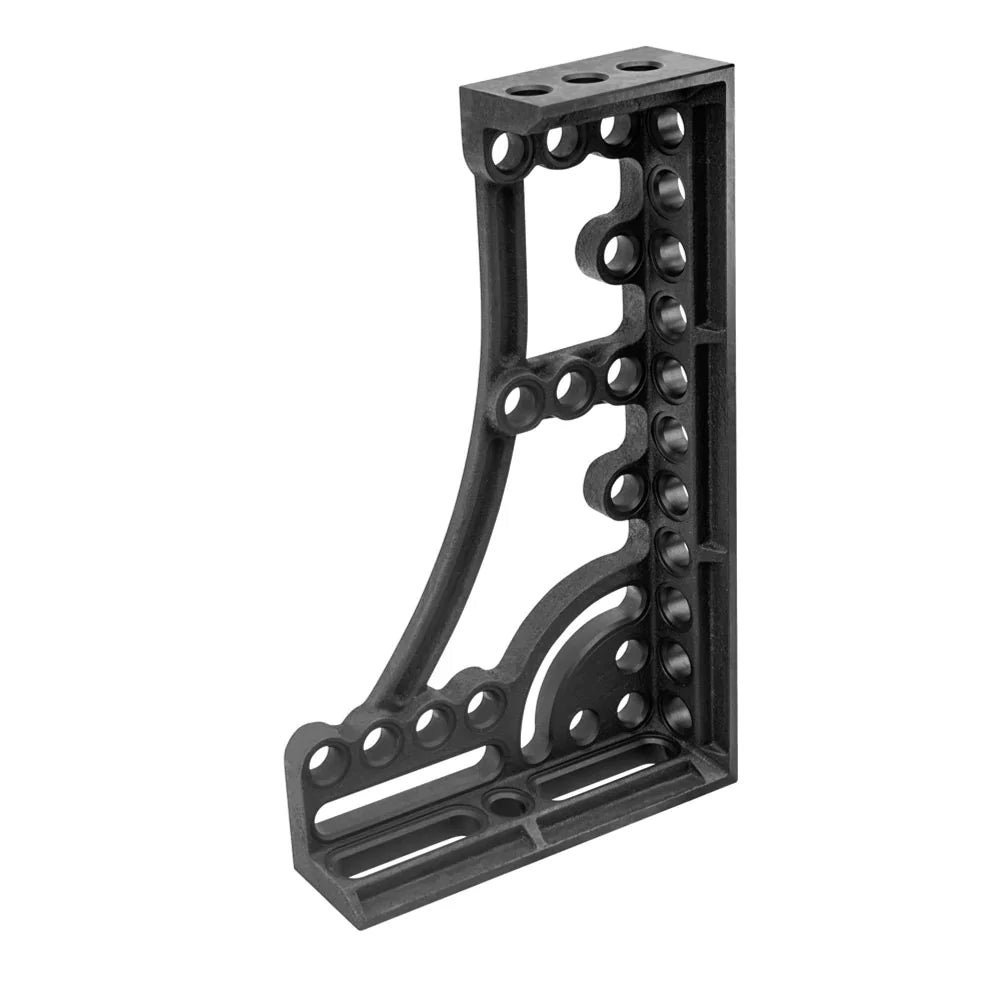

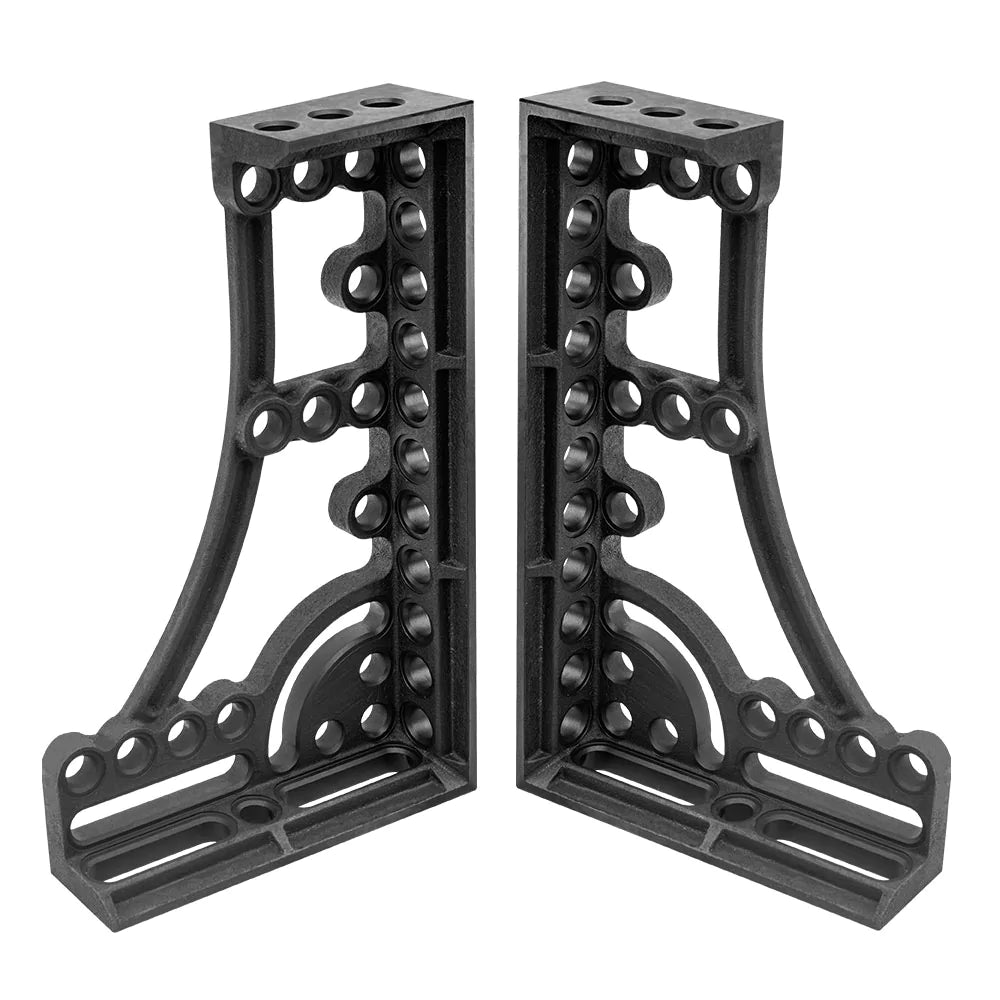

| U28-16038L | HD Square 24 - Left | 15 | 3.7 | 24 | approx. 1.1 | 50 |

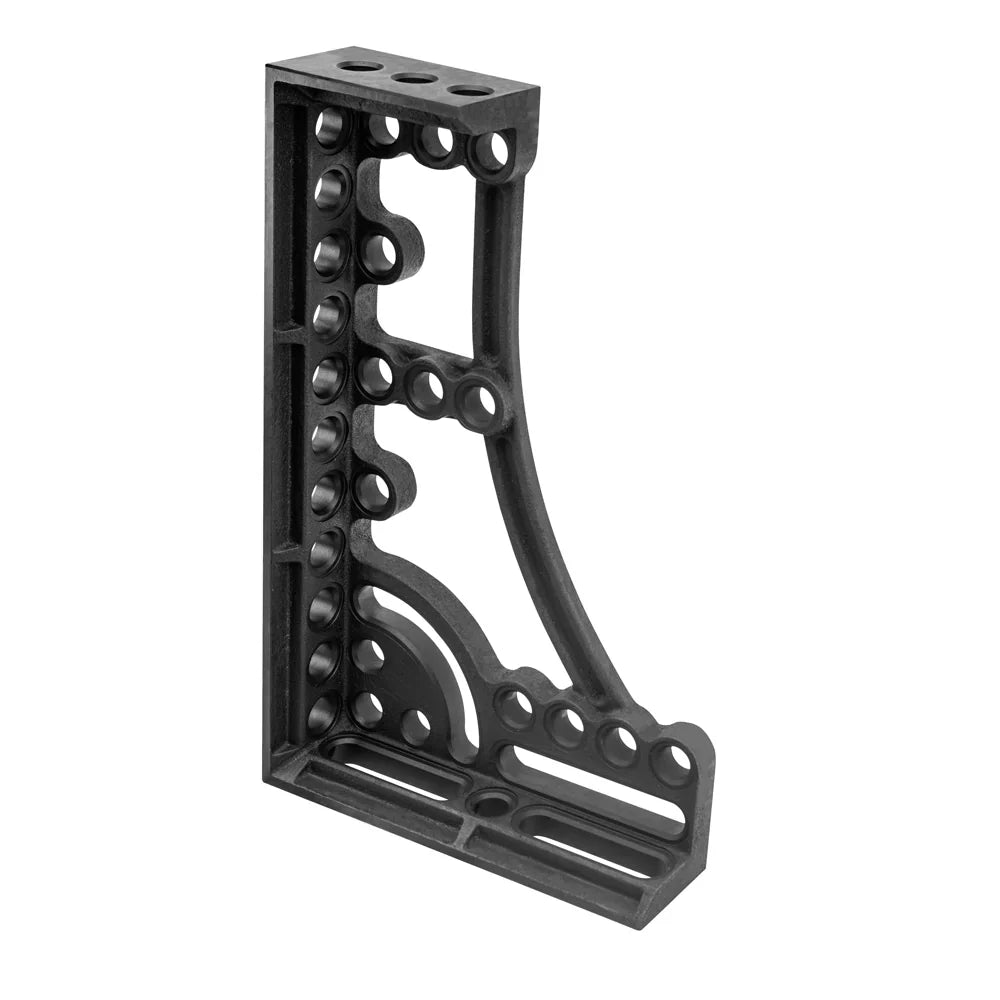

| U28-16038R | HD Square 24 - Right | 15 | 3.7 | 24 | approx. 1.1 | 50 |
| U28-18038L | HD Square 32 - Left | 15 | 3.7 | 32 | approx. 1.1 | 60 |

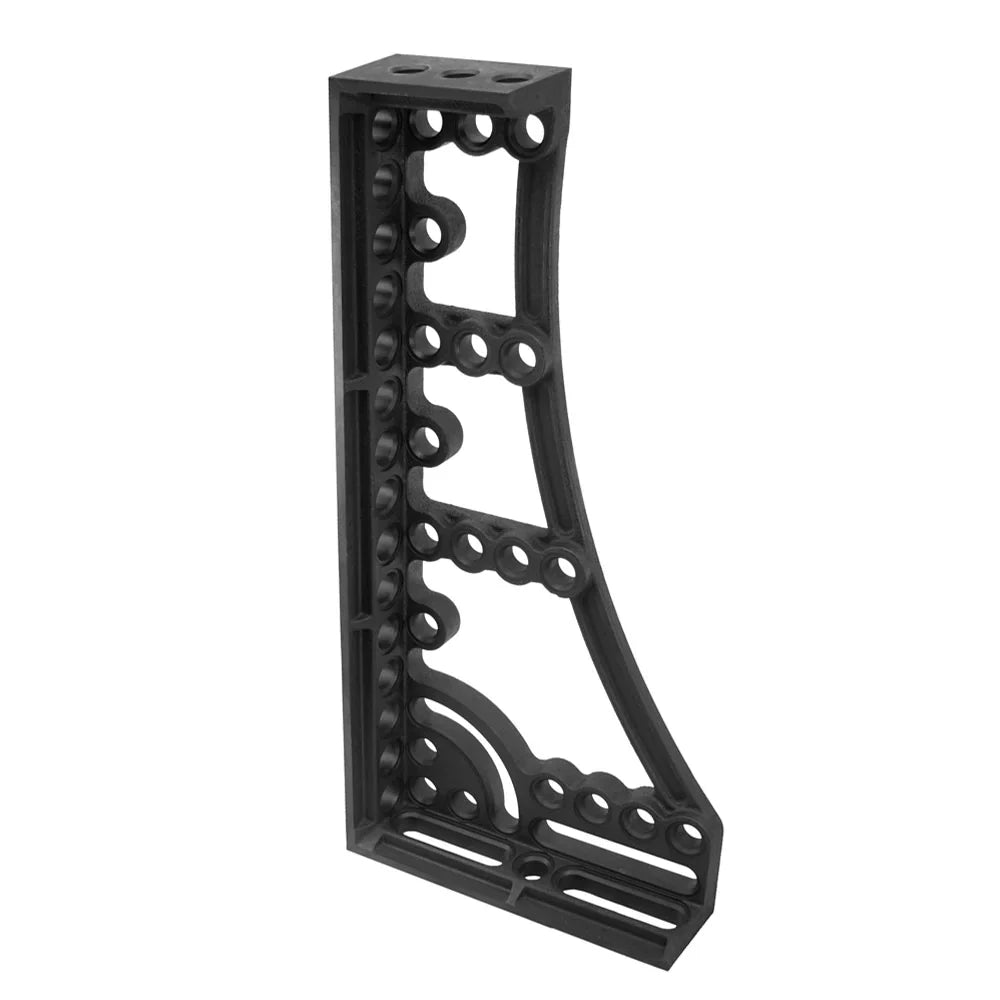

| U28-18038R | HD Square 32 - Right | 15 | 3.7 | 32 | approx. 1.1 | 60 |
