Eccentric Pads, Fit 5/8 Holes
Eccentric Pads, Fit 5/8 Holes
Available in stock (614)
-
Estimated delivery: May 16 - May 20
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

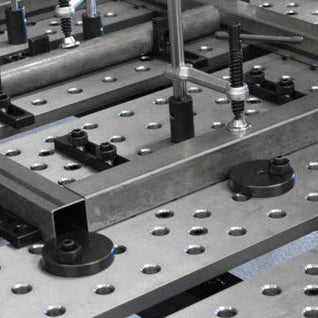

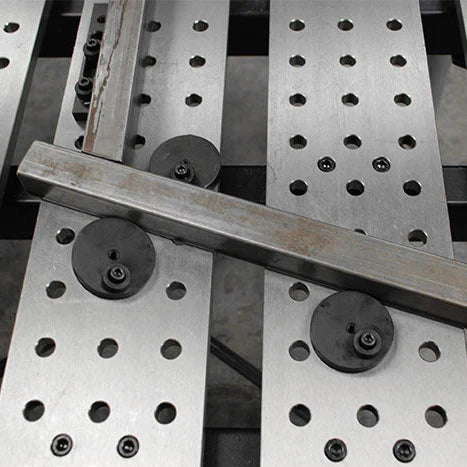

Using the “CAM” design principle, the eccentric pad provides a quick way to position the edge of the workpiece to a locating stop. The 360º rotation allows infinite adjustments.

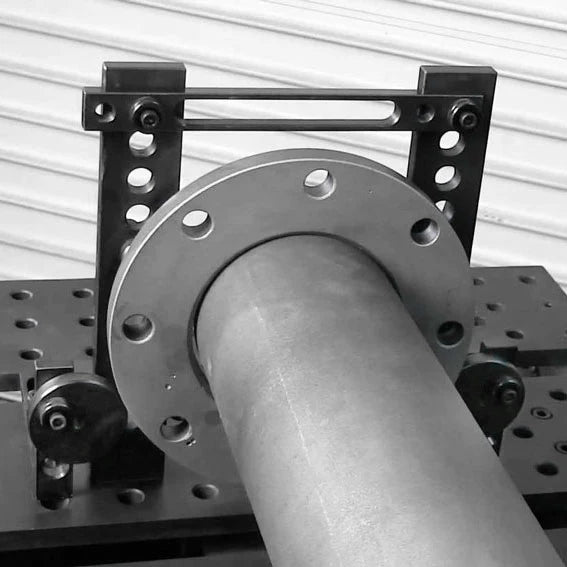

Ideal for locating round and odd shaped parts where conventional edge stops cannot reach.
* Eccentric Pads are 1/2″ thick.
[Use Ball Lock Bolts, not included, to mount the Eccentric Pads]
| Part No. | Adjust Range (in) |
Offset (in) |
Thread | Thickness (in) |
Weight (lb) |
|---|---|---|---|---|---|

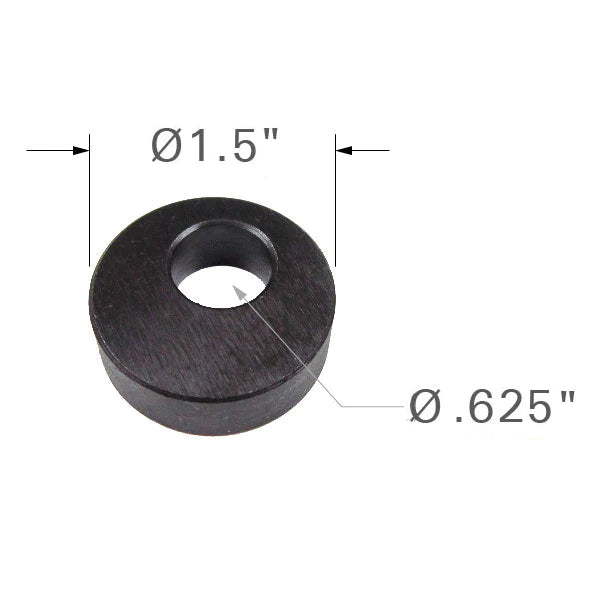

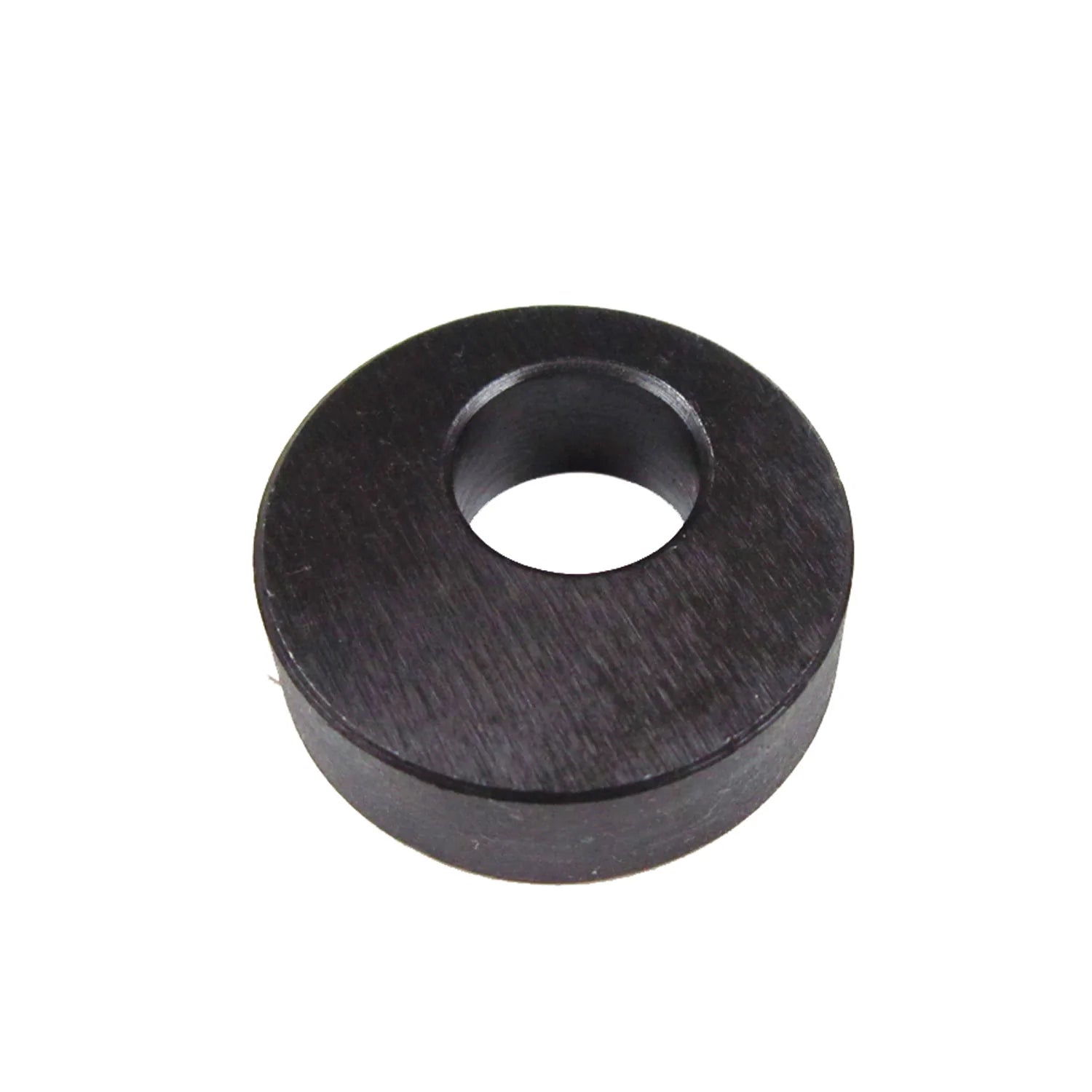

| T54410 | 0.55 ~ 0.95 | 0.2 | - | 1/2 | 0.2 |

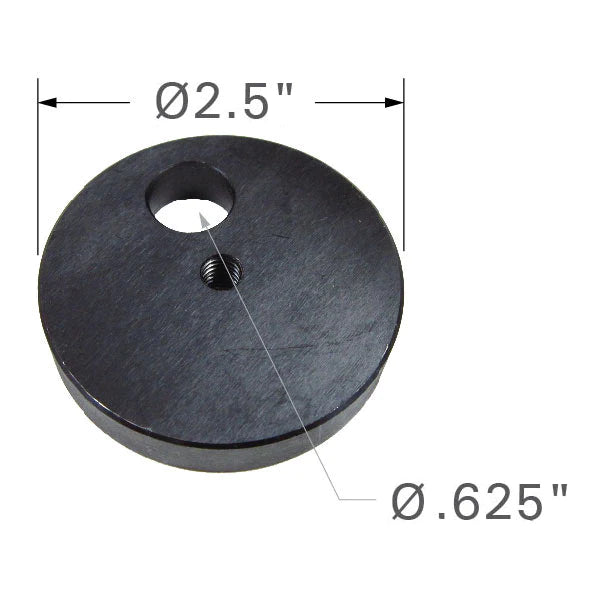

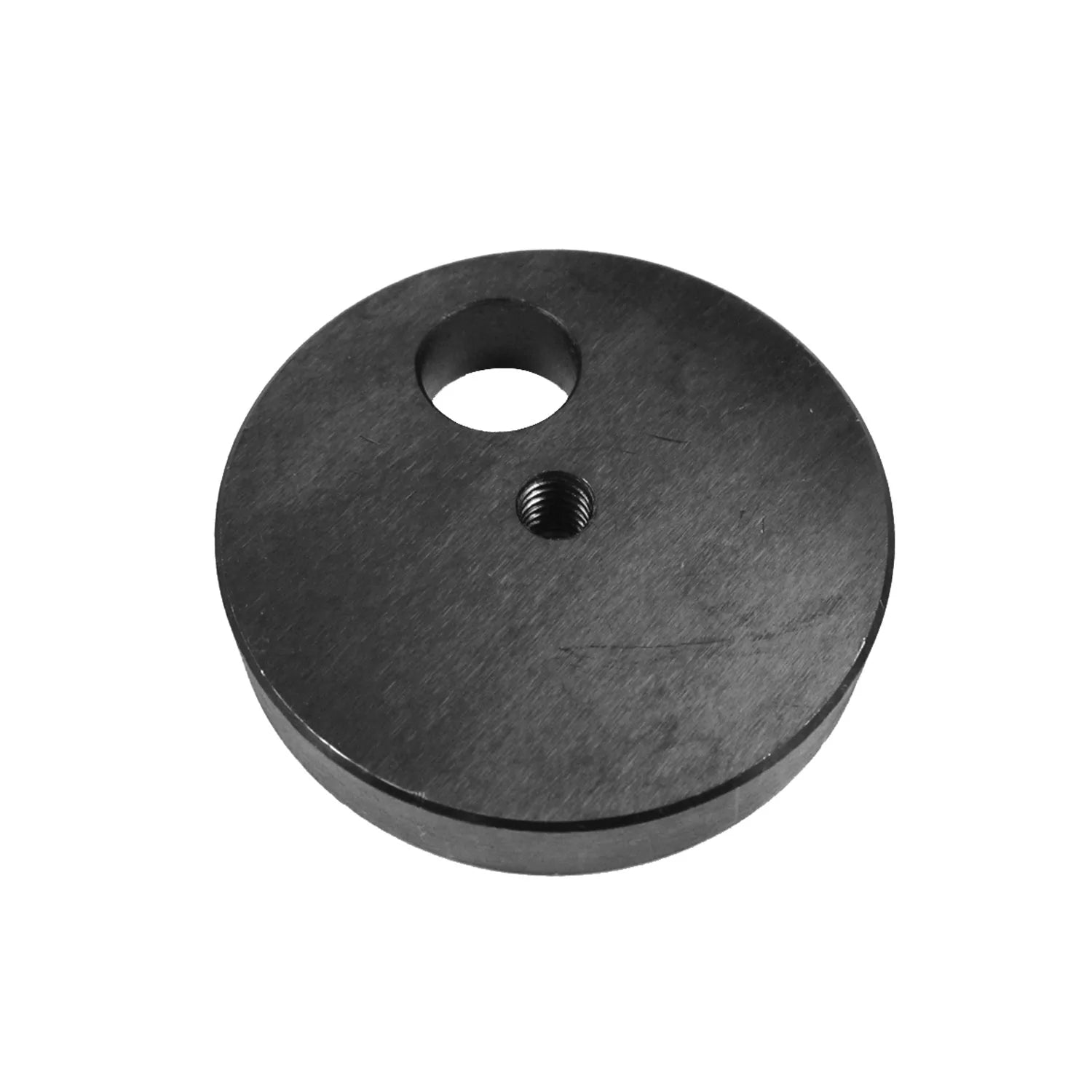

| T54415 | 0.6 ~ 2 | 0.7 | 5/16 - 18 | 1/2 | 0.5 |
