* All MAX TABLES ARE PATENTED: U.S. PAT. 8065967
Our single-sided heavy-duty tables feature boreholes on the top surface and feature patented self-locating and reversible table top plates. Maximum Table Surface, Maximum Capacity. Utilize the additional holes (33% more than slotted tables) for clamping at multiple points.
Available in standard and nitrided tabletop finishes.
Reversible Self-Locating Table Plates
Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!
Tabletop Side Height
6-1/4″ for both MAX and MAX Slotted tables
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.630″ ±0.004
Standard (plain) / Nitrided Finish
Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish.
What people say about us:
Very very well made! Super precise tolerances, clean and ready to be used. Just slap the legs on and off we go! Would recommend!
Kasey S (Gainesville, GA)
Really fast and accurate setup for square joints - big time saver in setup and by minimizing repairs to poor welds.
Dan L (EMI)
Has improved prototype building to a make sure parts are welded accordingly.
Craig M (CUMMINS SERVICE TRAINING)
Use with 6x Heavy Duty Legs
Capacity: 1,500 lb / leg
| Part No. (Standard Finish) | Part No. (Nitrided Finish) | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|---|

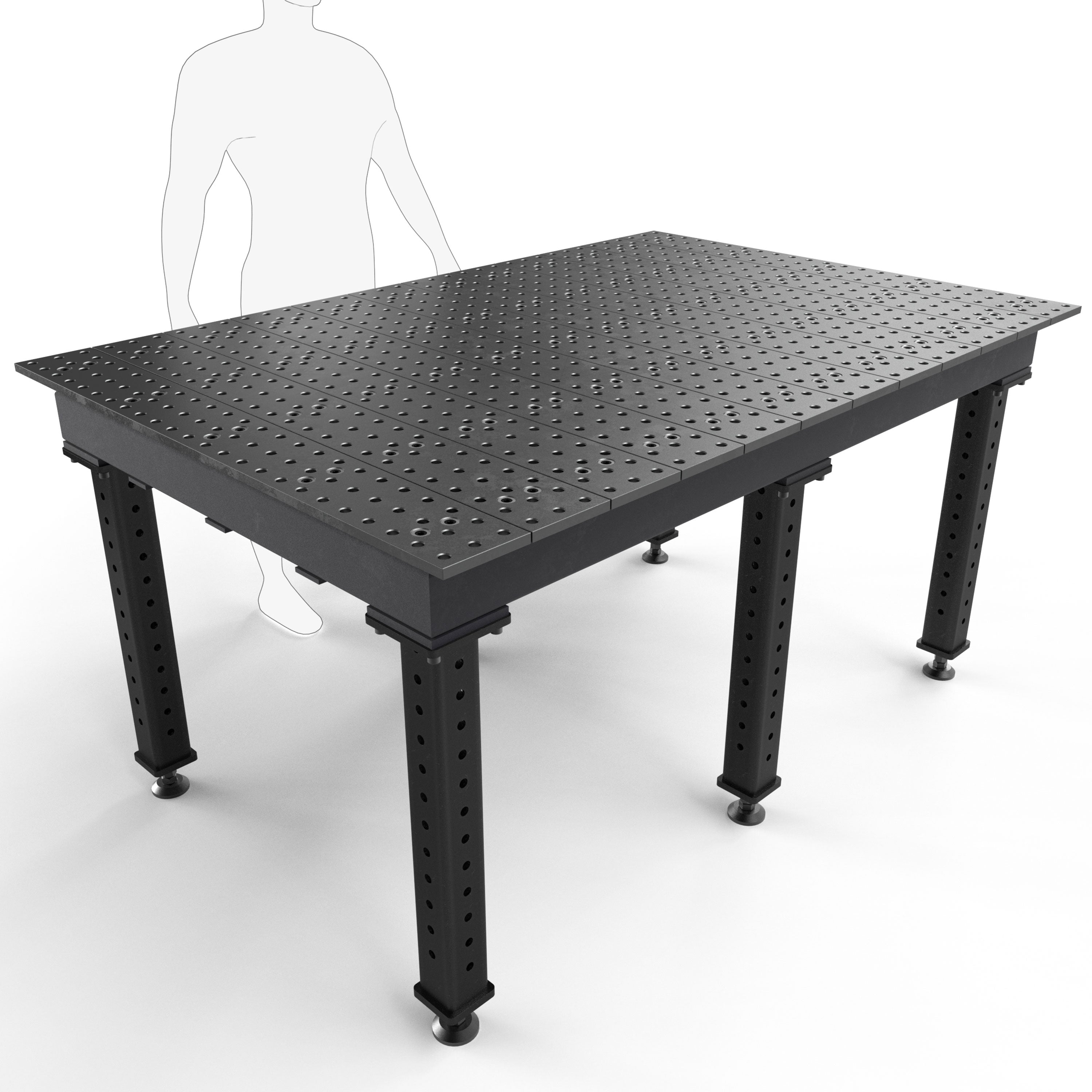

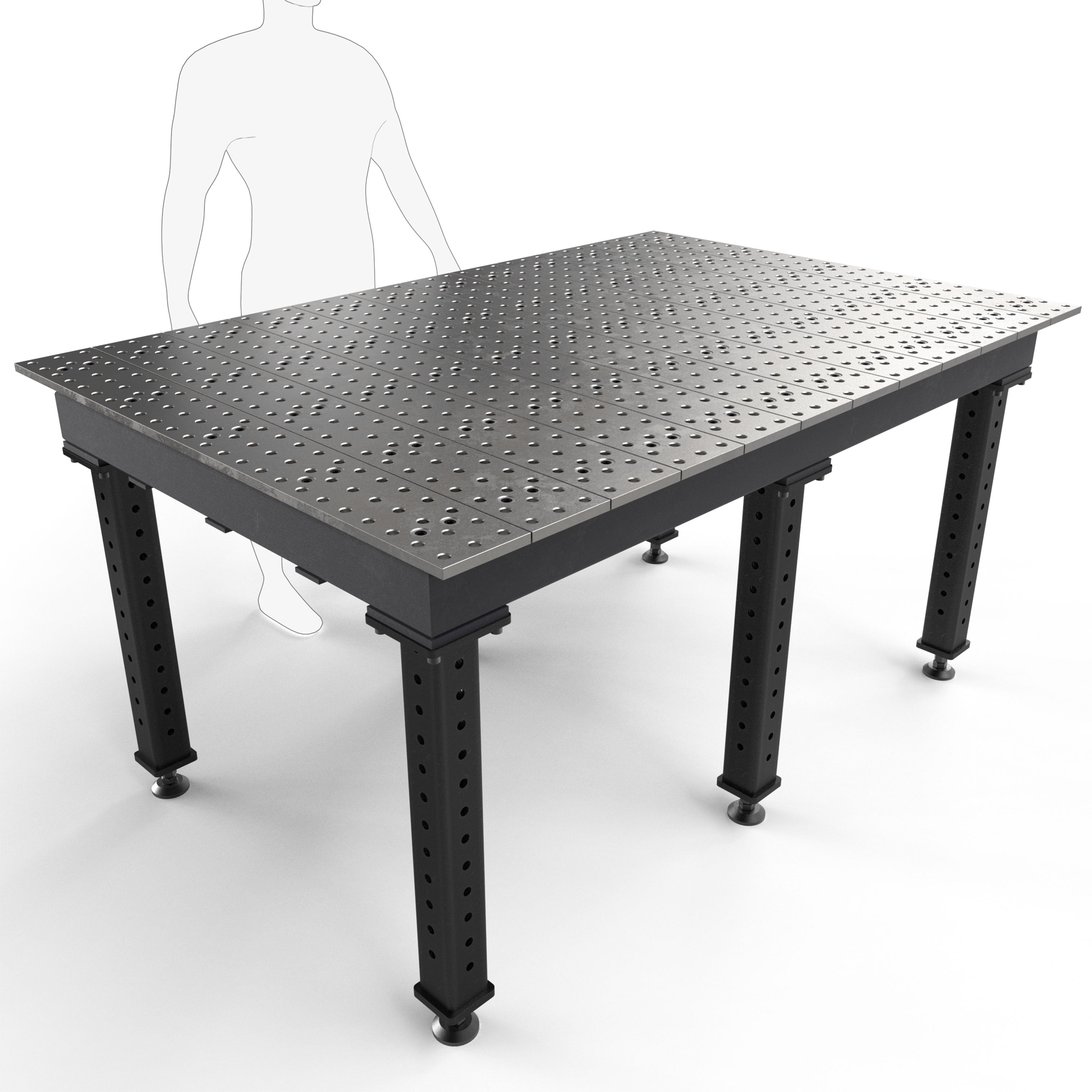

| TMA57248F | TMQA57248F | TML3130 | 36-1/2 | 1,069 |

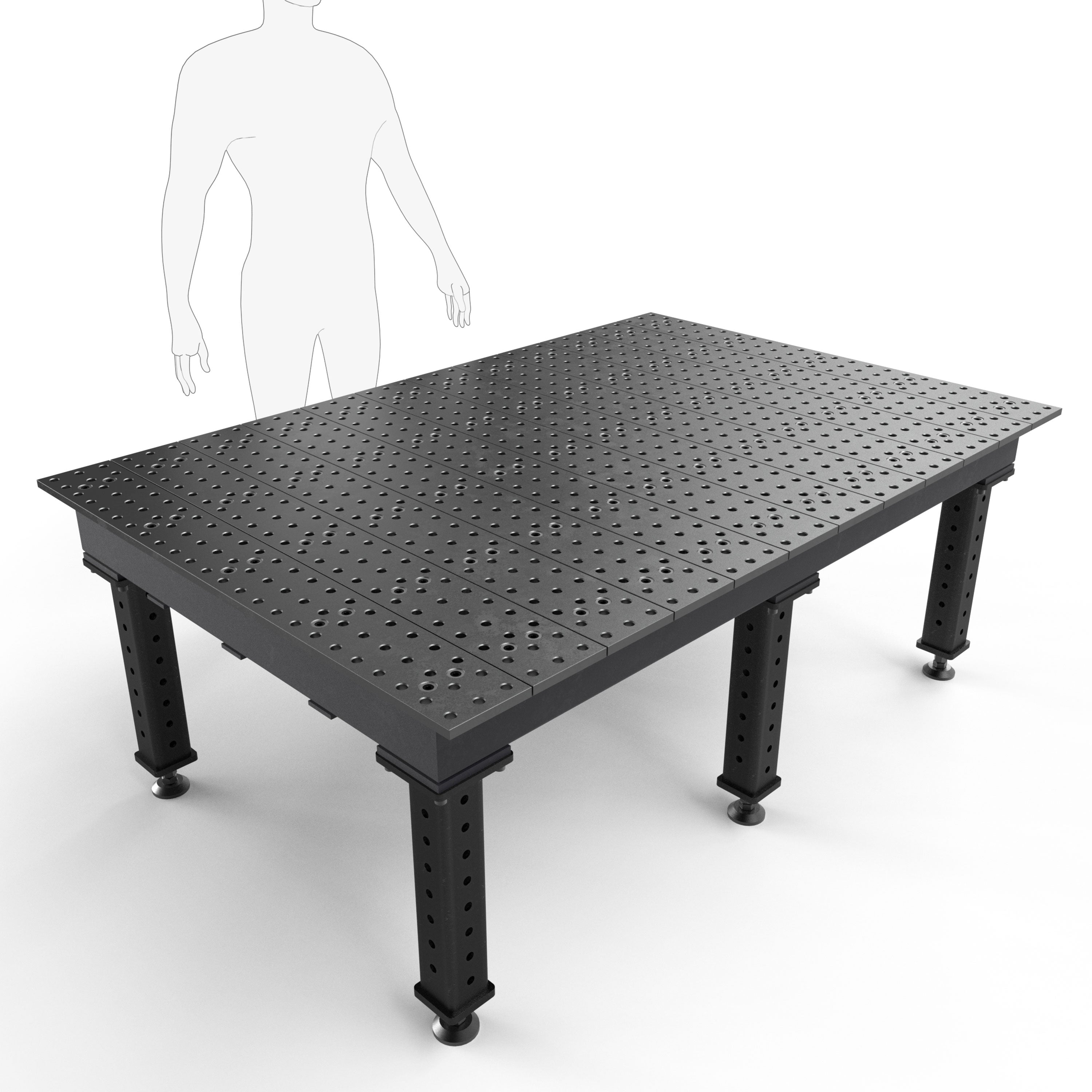

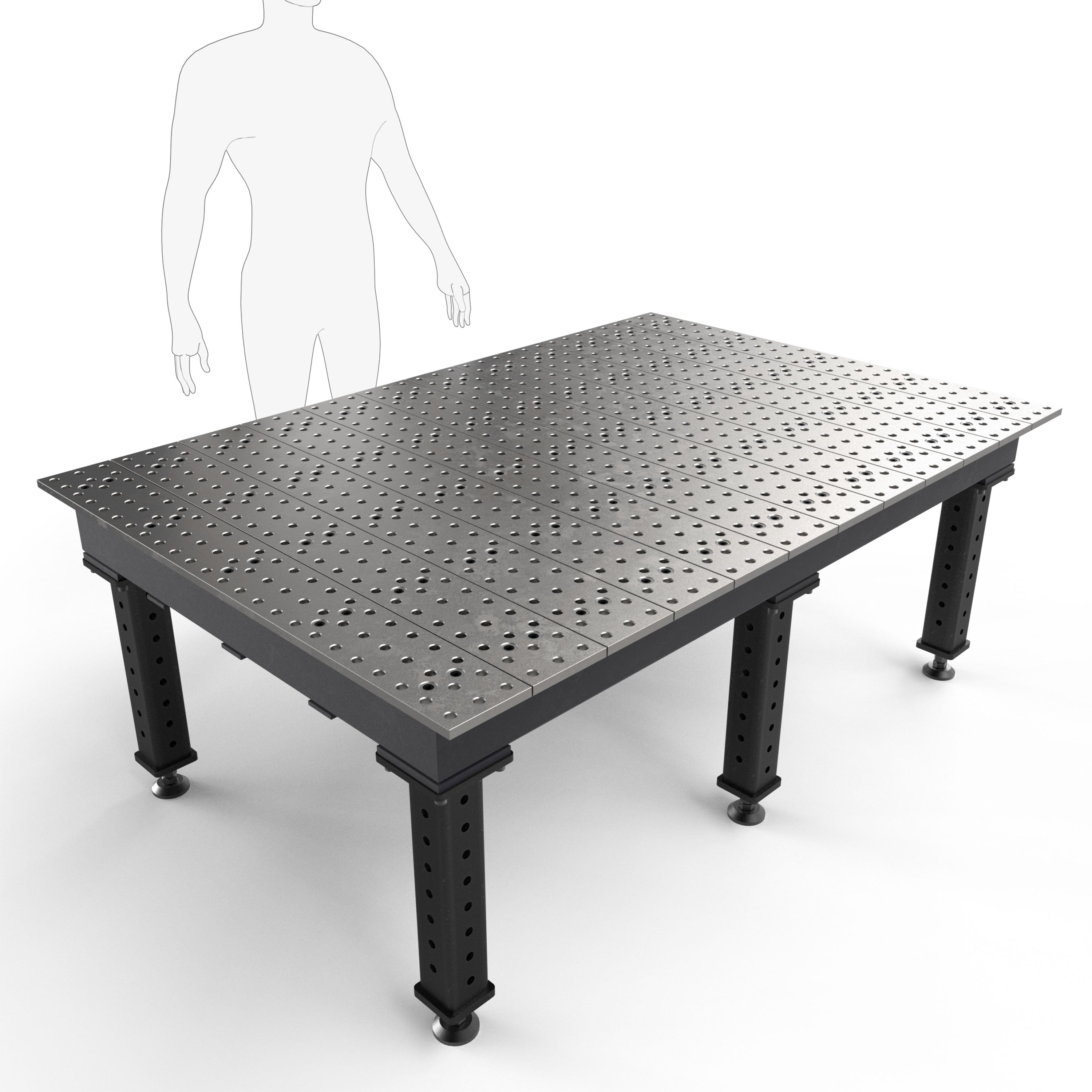

| TMB57248F | TMQB57248F | TML2530 | 30-1/2 | 1,057 |
Use with 6x adjustable legs - adjustable at 1" increments
Capacity: 1,500 lb / leg
| Part No. (Standard Finish) | Part No. (Nitrided Finish) | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|---|

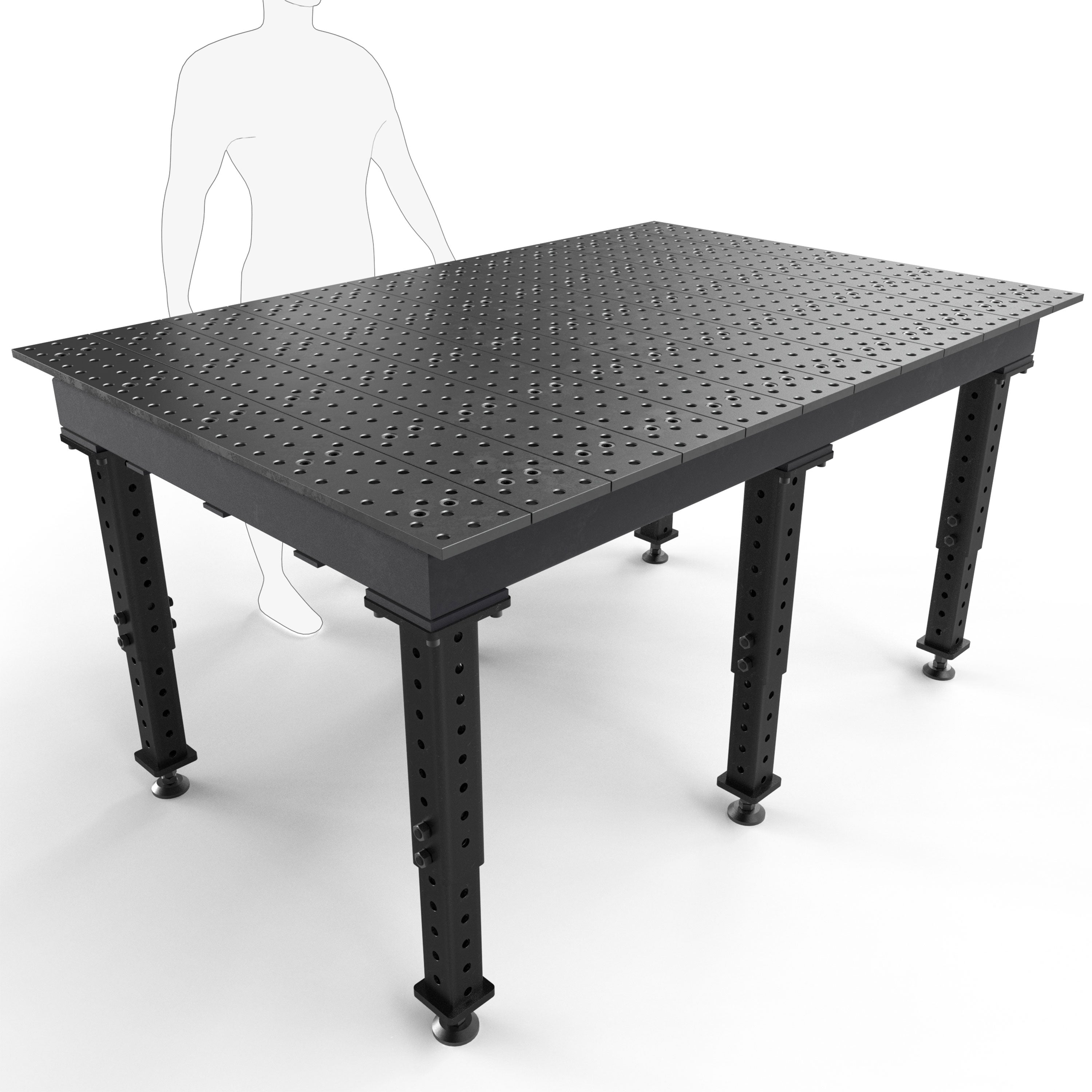

| TMR57248F | TMQR57248F | TMLR30 | 28-1/2 ~ 38-1/2 | 1,090 |

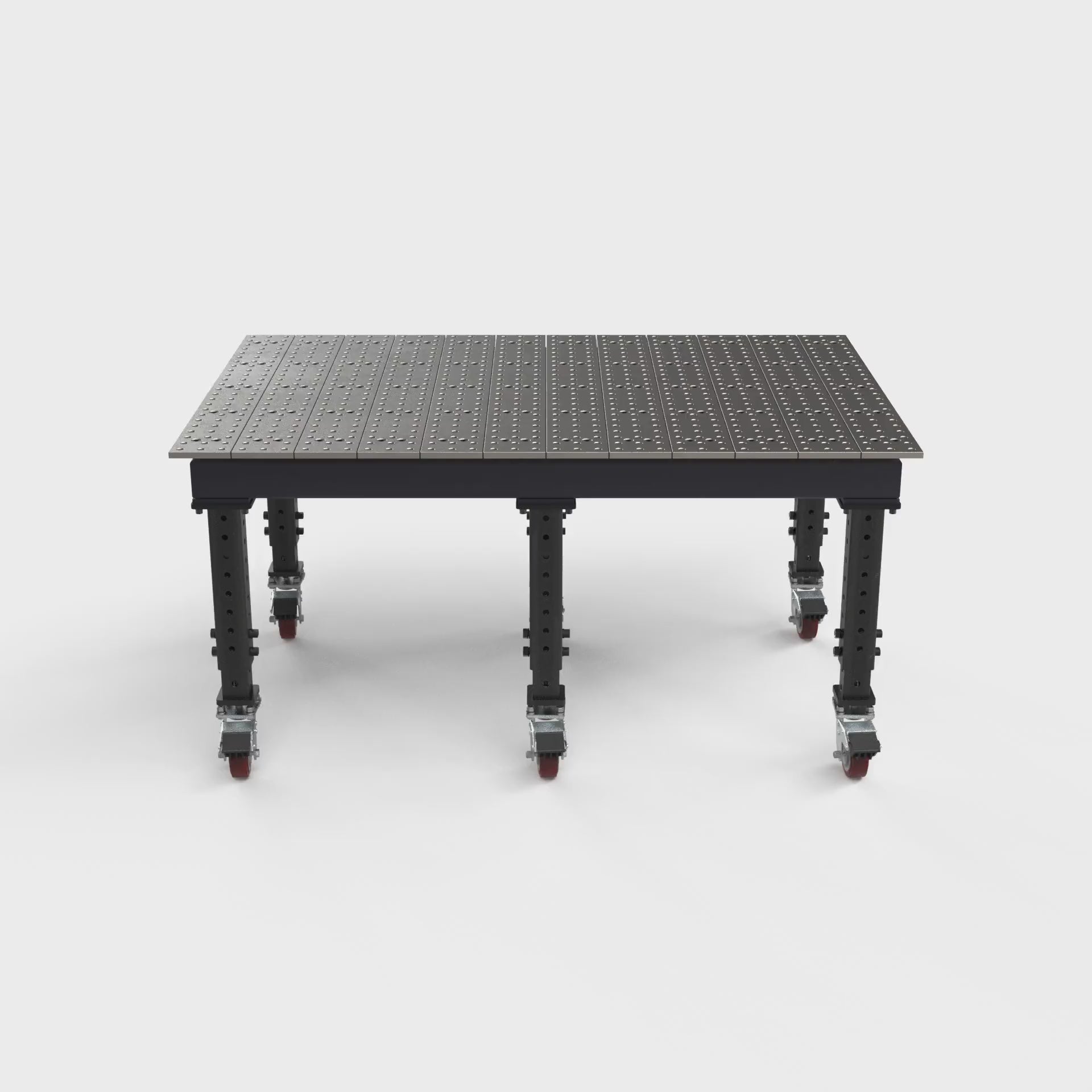

Use with 6x adjustable legs with mobility caster
Capacity: 650 lb / leg
| Part No.(Standard Finish) | Part No.(Nitrided Finish) | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|---|

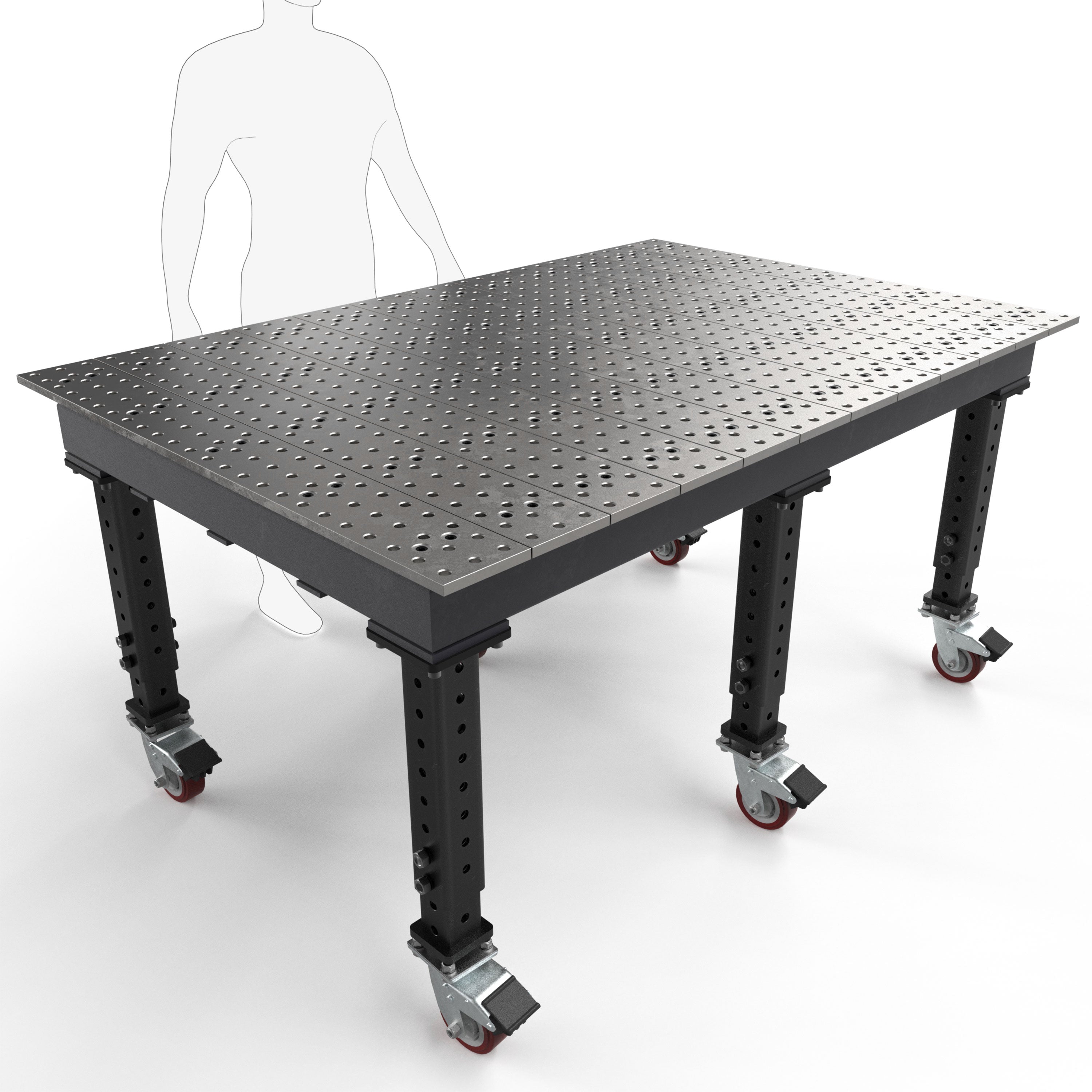

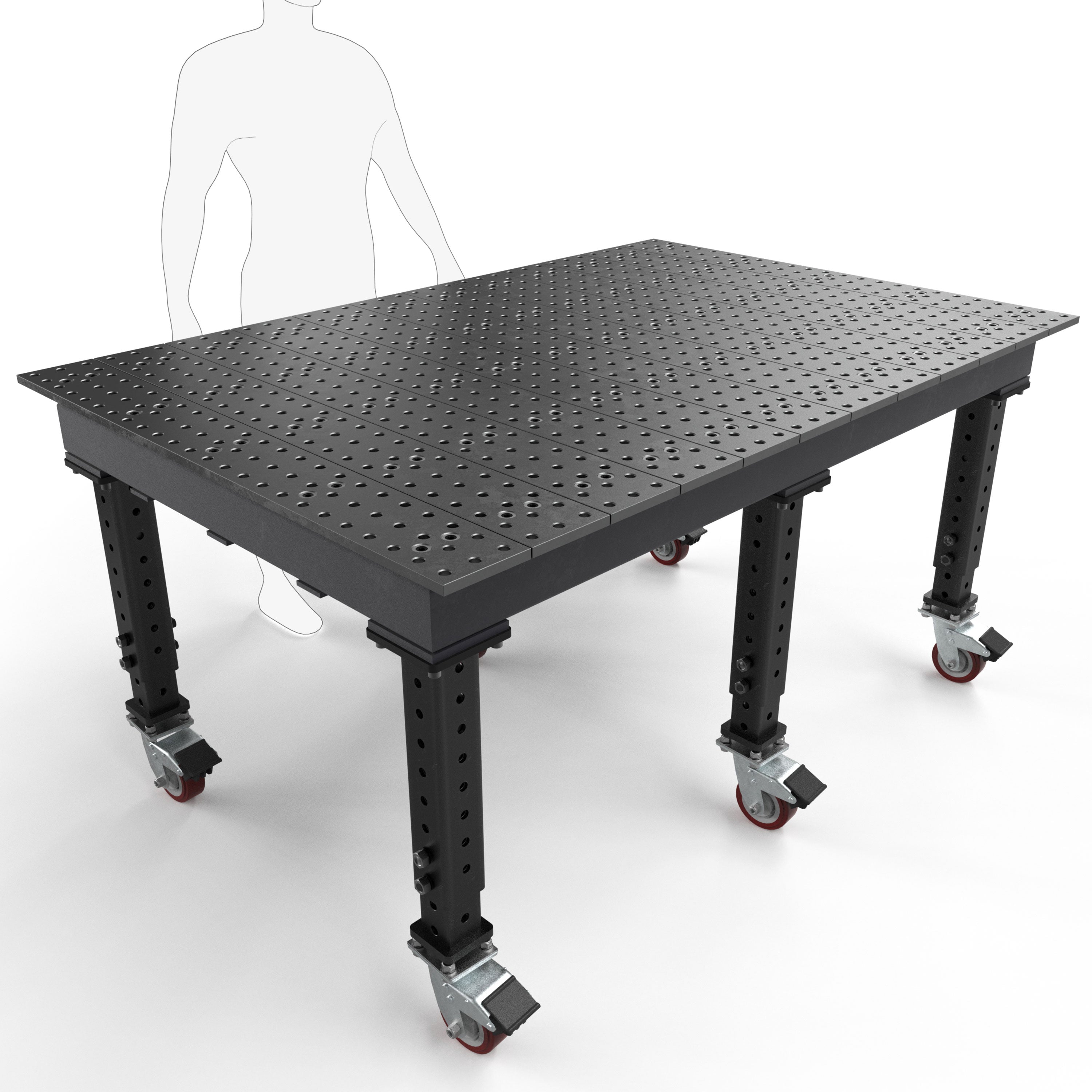

| TMRC57248F | TMQRC57248F | TMLC30 | 33-1/4 ~ 43-1/4 | 1,124 |
