Actual Table Surface Dimension: 96″ x 48″
Tabletop Side Height: 6-1/4″
* All load capacities are calculated based on static load.
* Optional Leg Brace Assembly TMLB96 is suggested.
U.S. PAT. 8065967
MAX Tables, 8' x 4'
MAX Tables, 8' x 4'
Regular price
$5,690.00 USD
Sale price
$5,690.00 USD
Regular price
Shipping calculated at checkout.
In stock
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.
View this table in your shop
* All MAX TABLES ARE PATENTED: U.S. PAT. 8065967
Our single-sided heavy-duty tables feature boreholes on the top surface and feature patented self-locating and reversible table top plates. Maximum Table Surface, Maximum Capacity. Utilize the additional holes (33% more than slotted tables) for clamping at multiple points.
Available in standard and nitrided tabletop finishes.
Reversible Self-Locating Table Plates
Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!
Tabletop Side Height
6-1/4″ for both MAX and MAX Slotted tables
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.630″ ±0.004
Standard (plain) / Nitrided Finish
Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish.
What people say about us:
Very very well made! Super precise tolerances, clean and ready to be used. Just slap the legs on and off we go! Would recommend!
Kasey S (Gainesville, GA)
Really fast and accurate setup for square joints - big time saver in setup and by minimizing repairs to poor welds.
Dan L (EMI)
Has improved prototype building to a make sure parts are welded accordingly.
Craig M (CUMMINS SERVICE TRAINING)
Use with 6x Heavy Duty Legs
Capacity: 1,500 lb / leg
| Part No. (Standard Finish) | Part No. (Nitrided Finish) | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|---|

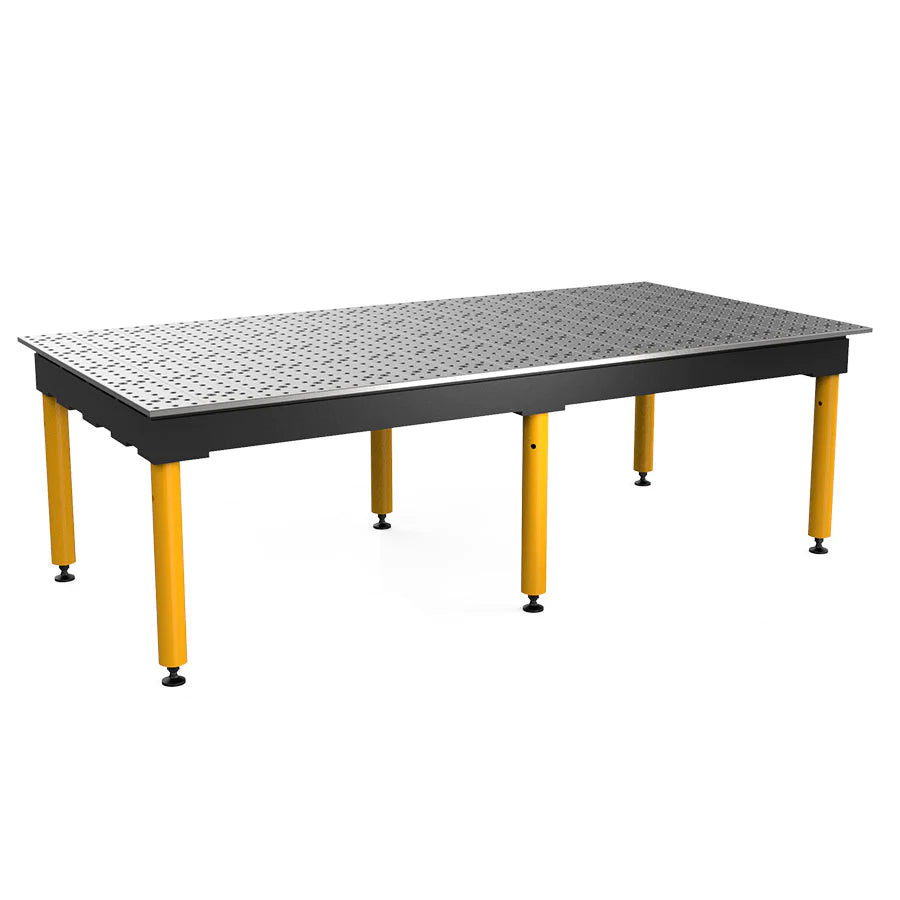

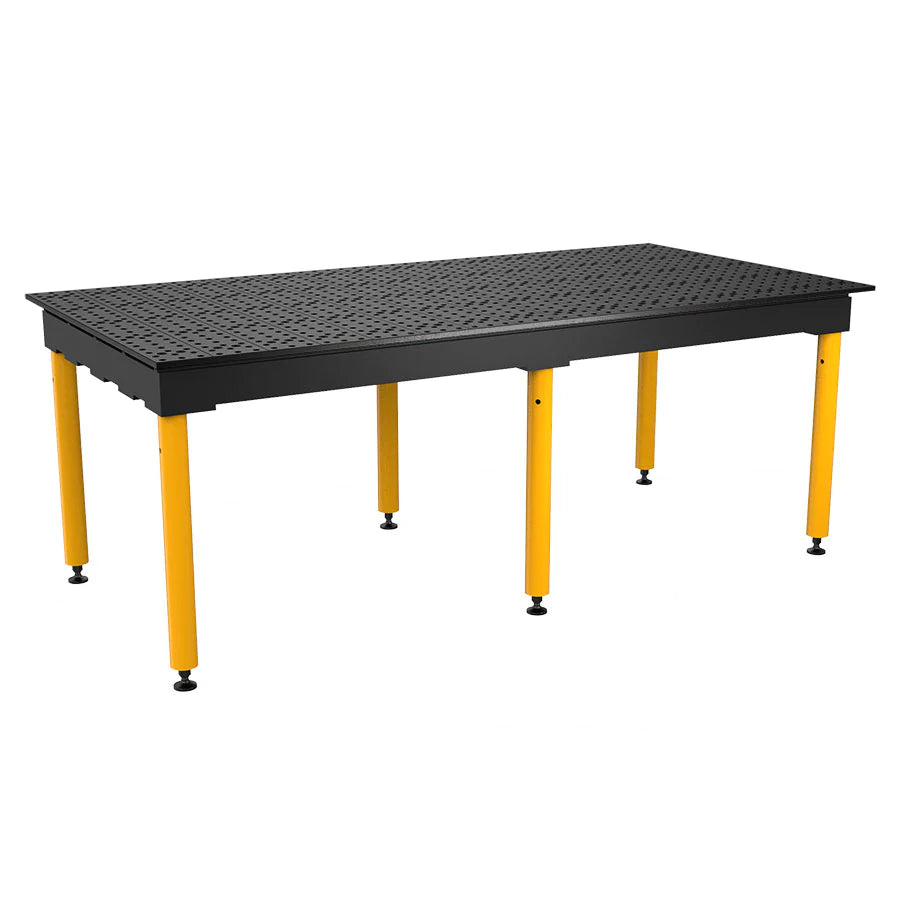

| TMA59648F | TMQA59648F | TML3130 | 36-1/2 | 1,370 |

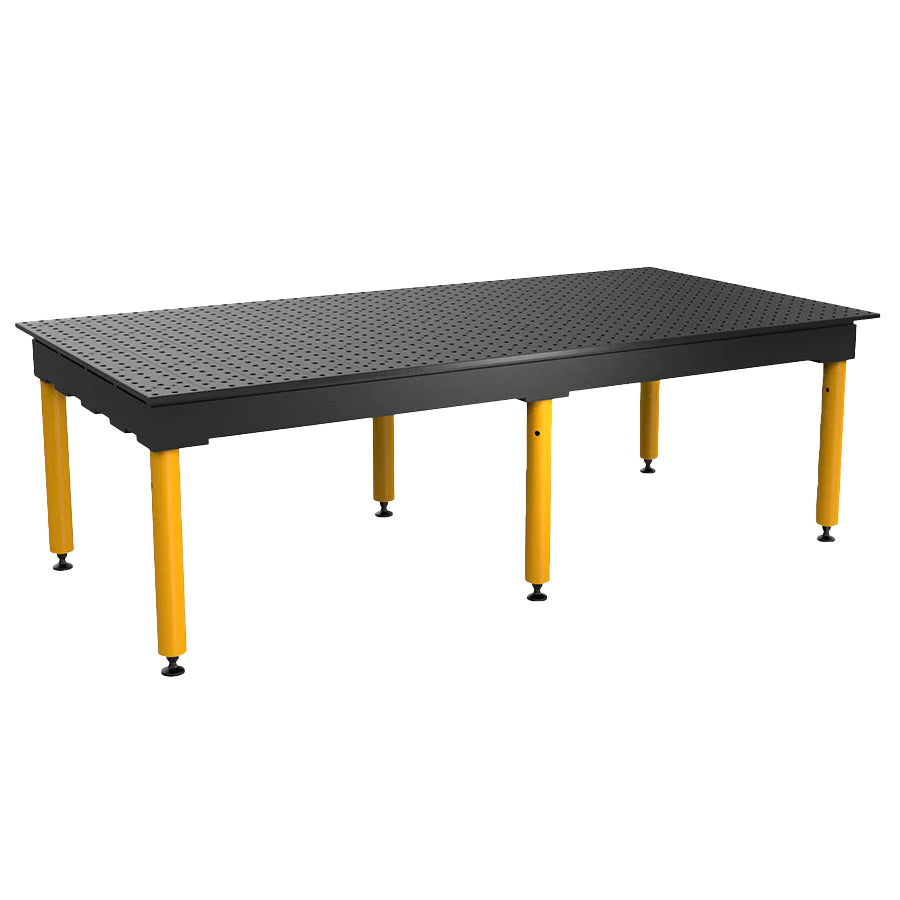

| TMB59648F | TMQB59648F | TML2530 | 30-1/2 | 1,358 |

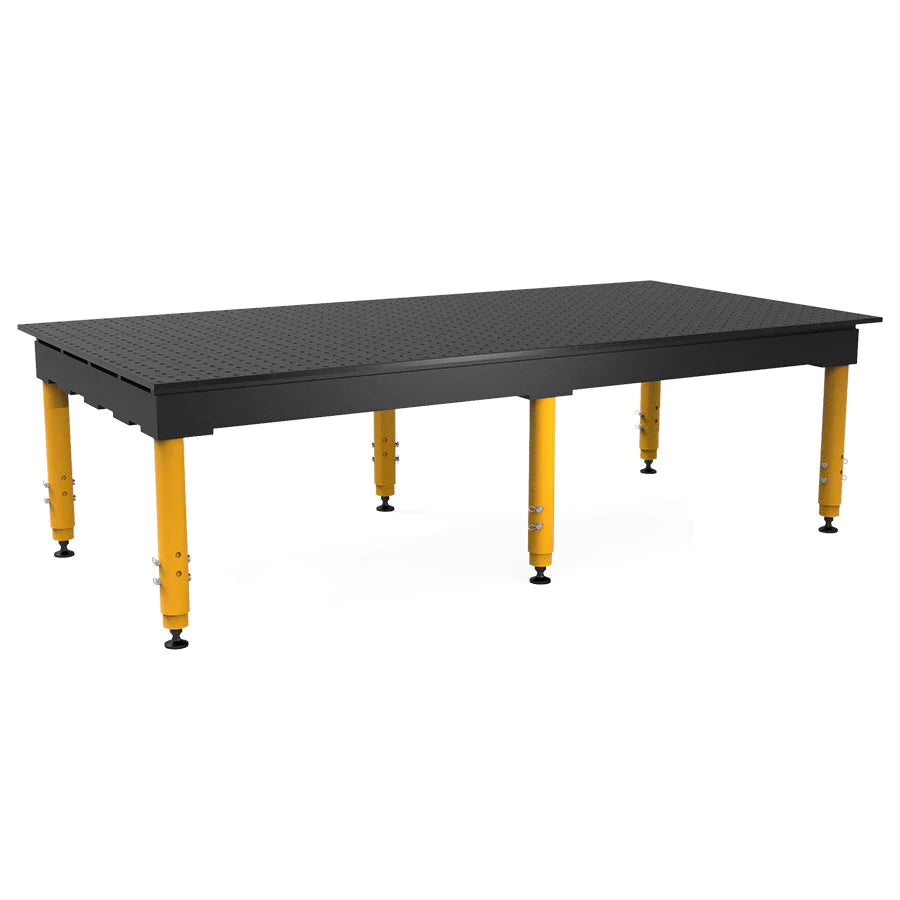

Use with 6x adjustable legs - adjustable at 1" increments
Capacity: 1,500 lb / leg
| Part No. (Standard Finish) | Part No. (Nitrided Finish) | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|---|

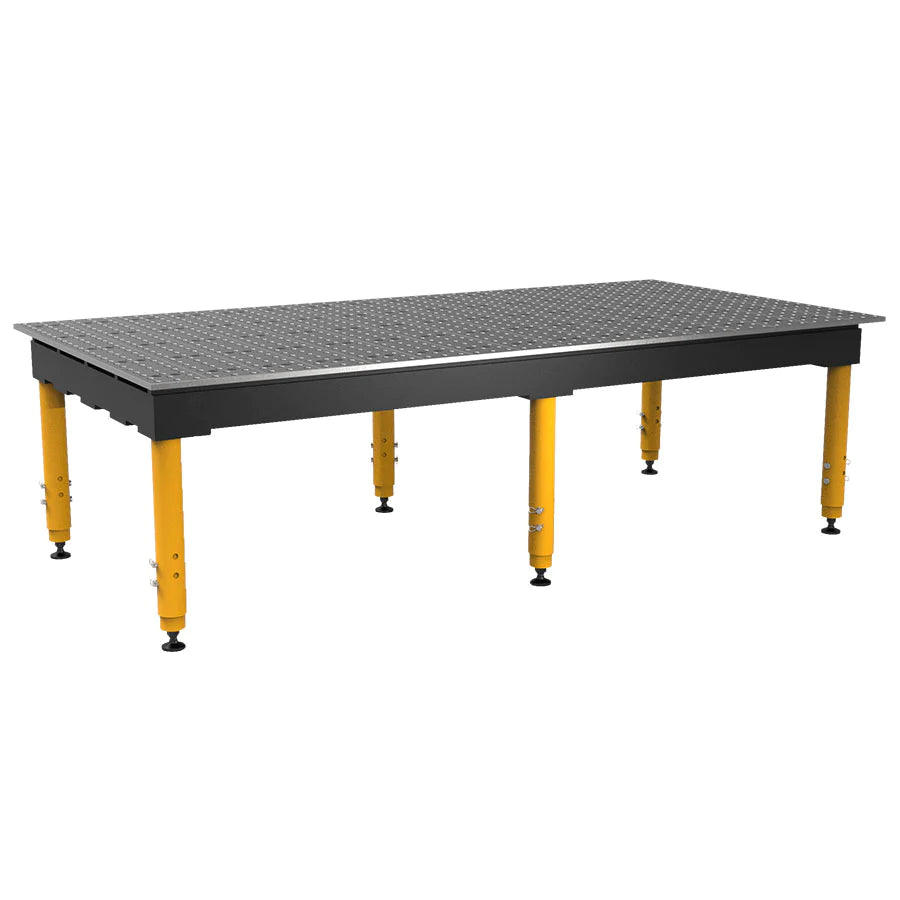

| TMR59648F | TMQR59648F | TMLR30 | 28-1/2 ~ 38-1/2 | 1,391 |

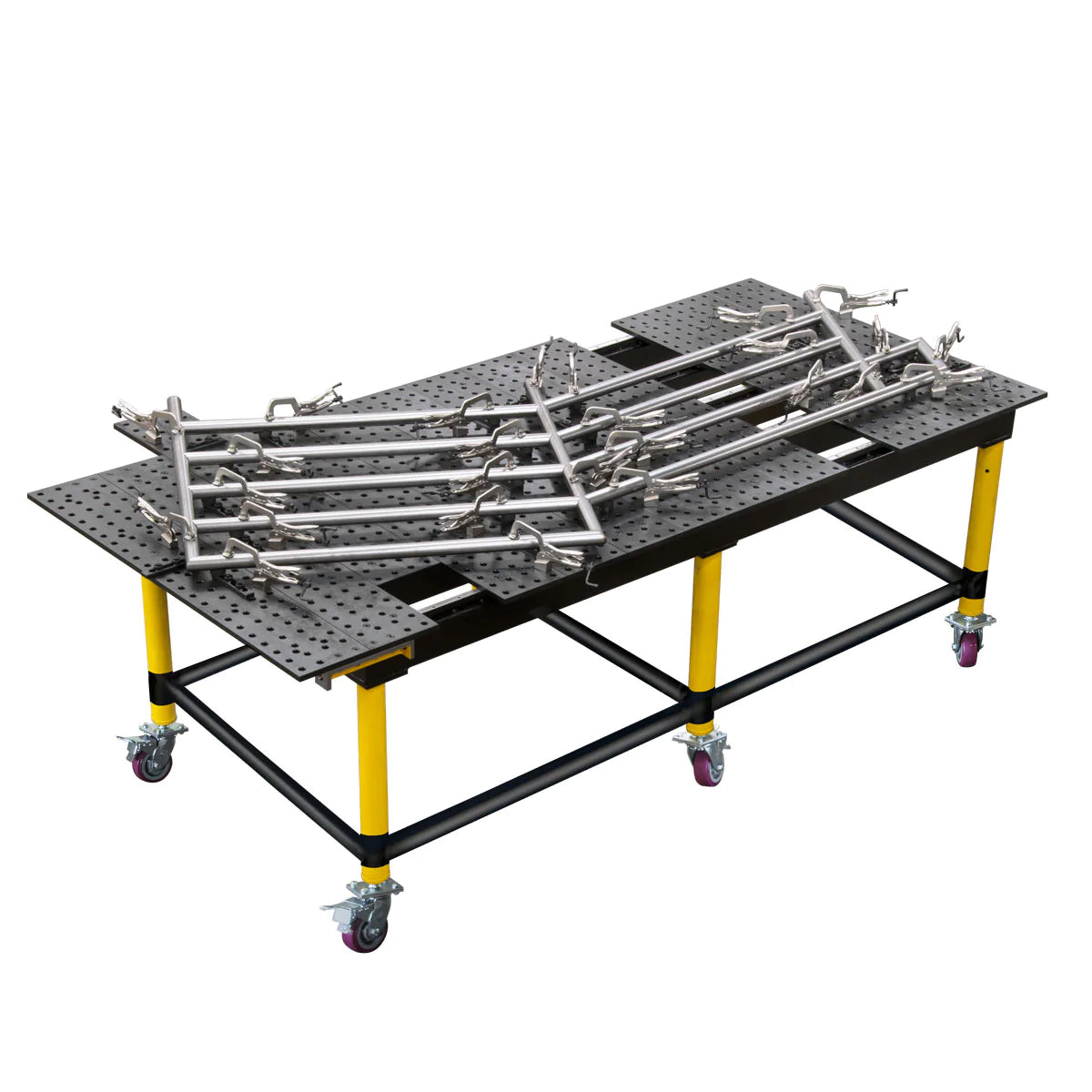

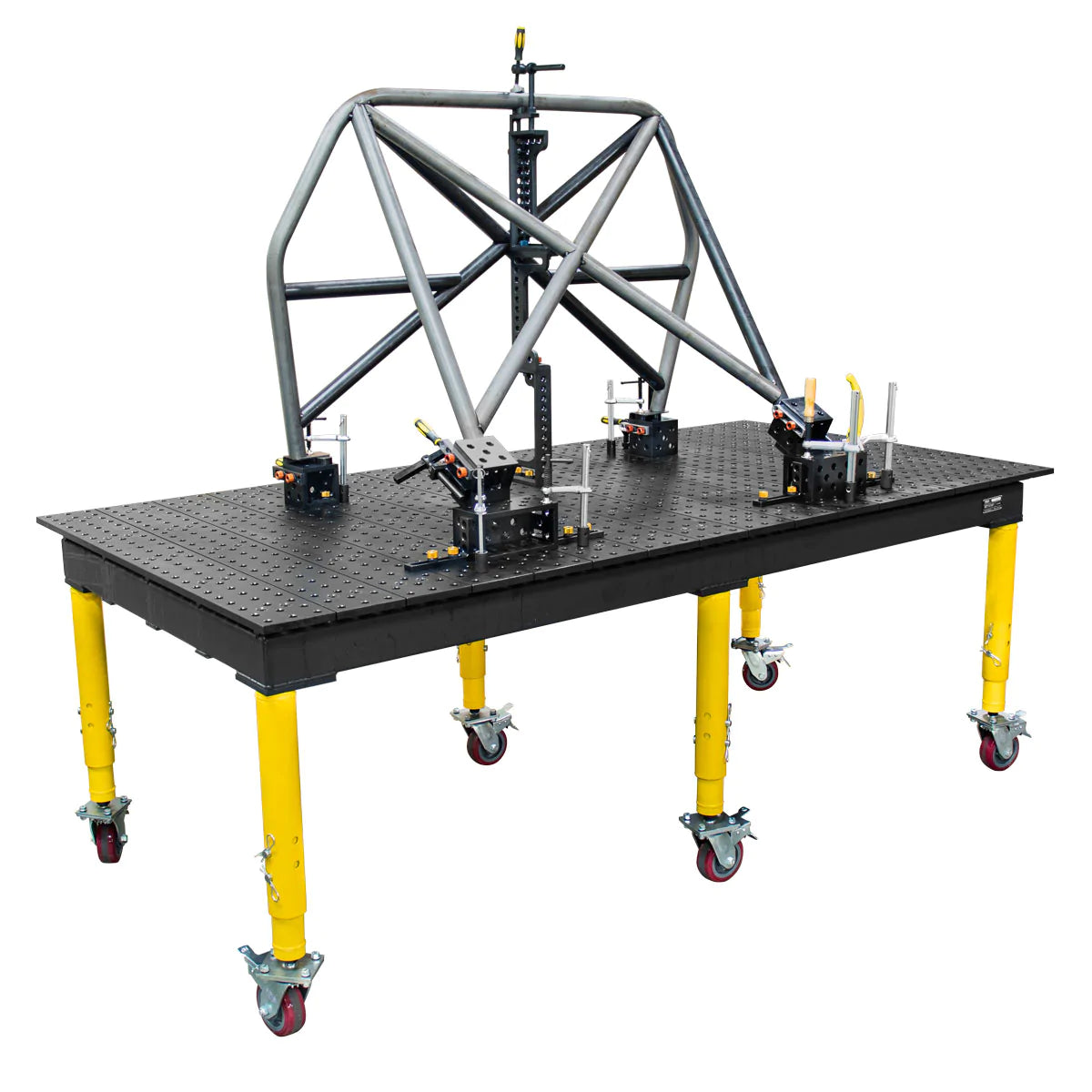

Use with 6x adjustable legs with mobility caster
Capacity: 650 lb / leg
| Part No. (Standard Finish) | Part No. (Nitrided Finish) | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|---|

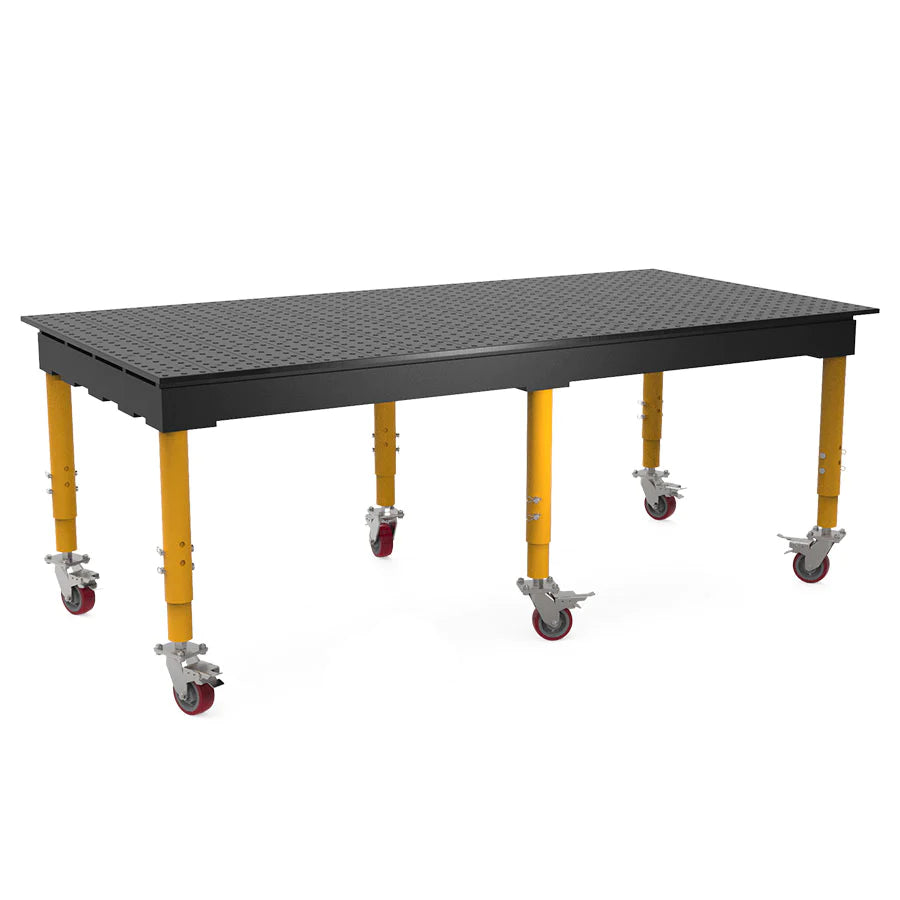

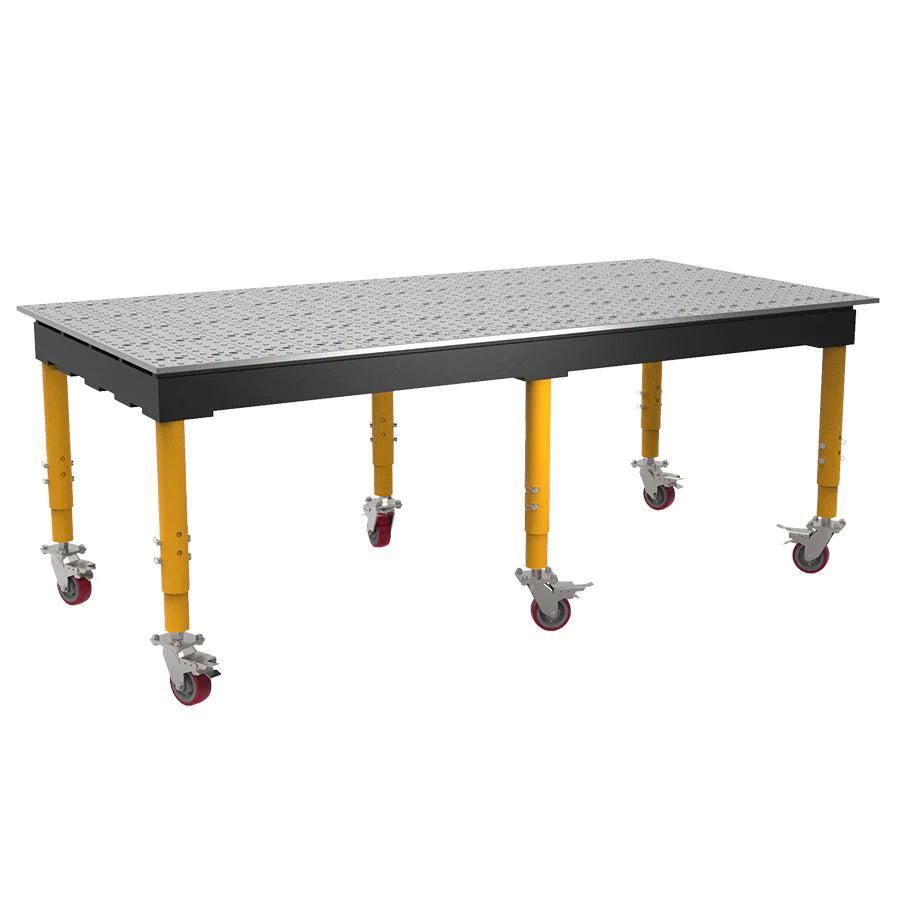

| TMRC59648F | TMQRC59648F | TMLC30 | 33-1/4 ~ 43-1/4 | 1,425 |
