Forged Vise, Fit 5/8 Holes
Forged Vise, Fit 5/8 Holes
In stock
-
Estimated delivery: May 15 - May 19
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

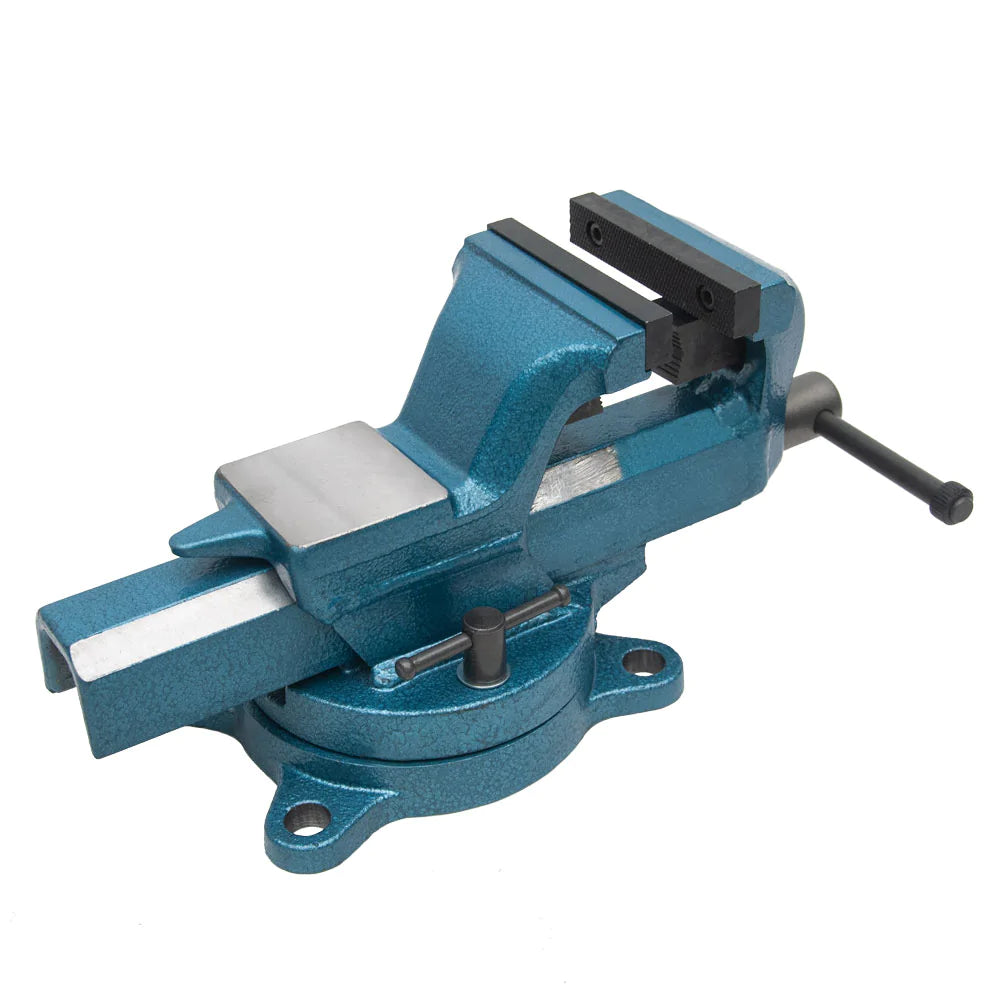

This forged steel 4″ Bench Vise features a 360° swivel base, large machined anvil surface, and powder coated finish. Made of 90,000 PSI tensile strength forged steel. The swivel base is patterned to bolt directly to the table.
Rear jaw of the vise hangs over the edge of the table when mounted on the edge. Vise can also be mounted with Ball Lock Bolts for quick mounting and dismounting.
* Four Socket Shoulder Screws (PN: T831610) included.
* TXV5-4-K is NOT compatible with TXH8022
| Part No. | Jaw Width (in) | Jaw Opening (in) | Pipe Capacity (in) | Throat Depth (in) | Clamping Force (lb) | Handle Dia. (in) | Handle Length (in) | Max Torque (ft/lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| TXV5-4-K | 4.0 | 5.0 | 0.5 ~ 2.0 | 2.9 | 5,000 | 0.435 | 7.125 | 118 | 20 |
