MagTabs, Replaceable Magnet on V-Pad
MagTabs, Replaceable Magnet on V-Pad
Available in stock (263)
-
Estimated delivery: May 15 - May 19
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
Time-saving magnetic tools for use in the shop & in the field.
Hold tabs, or any small metal pieces, parallel or perpendicular to the substructure. The Adjustable Magnetic V-shape base adjusts for different shapes: round, flat, and angle metal surfaces.

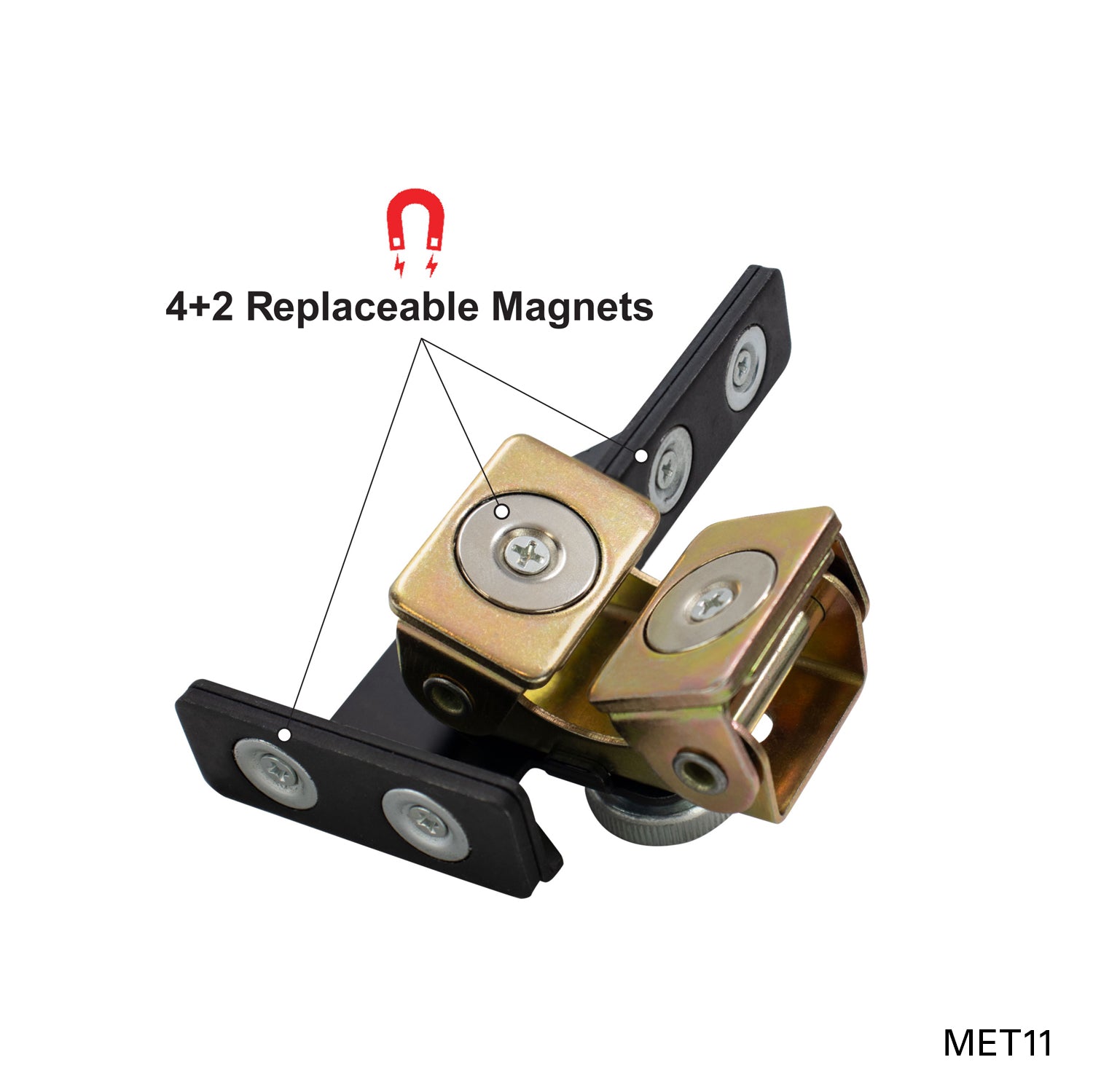

MAGTAB 2.0 features more magnets that are now fully replaceable and provide 3X more magnetic holding force than the original design. Get REPLACEABLE MAGNETS for the MagTabs.

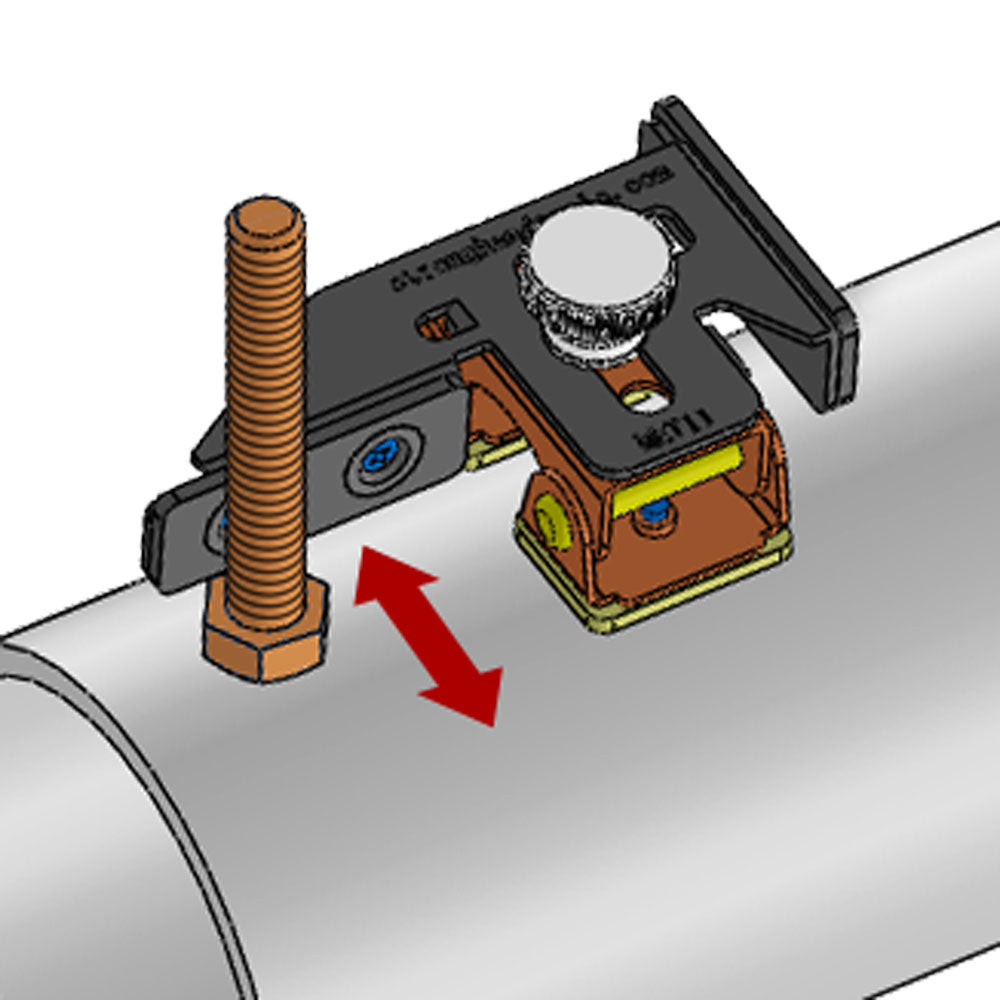

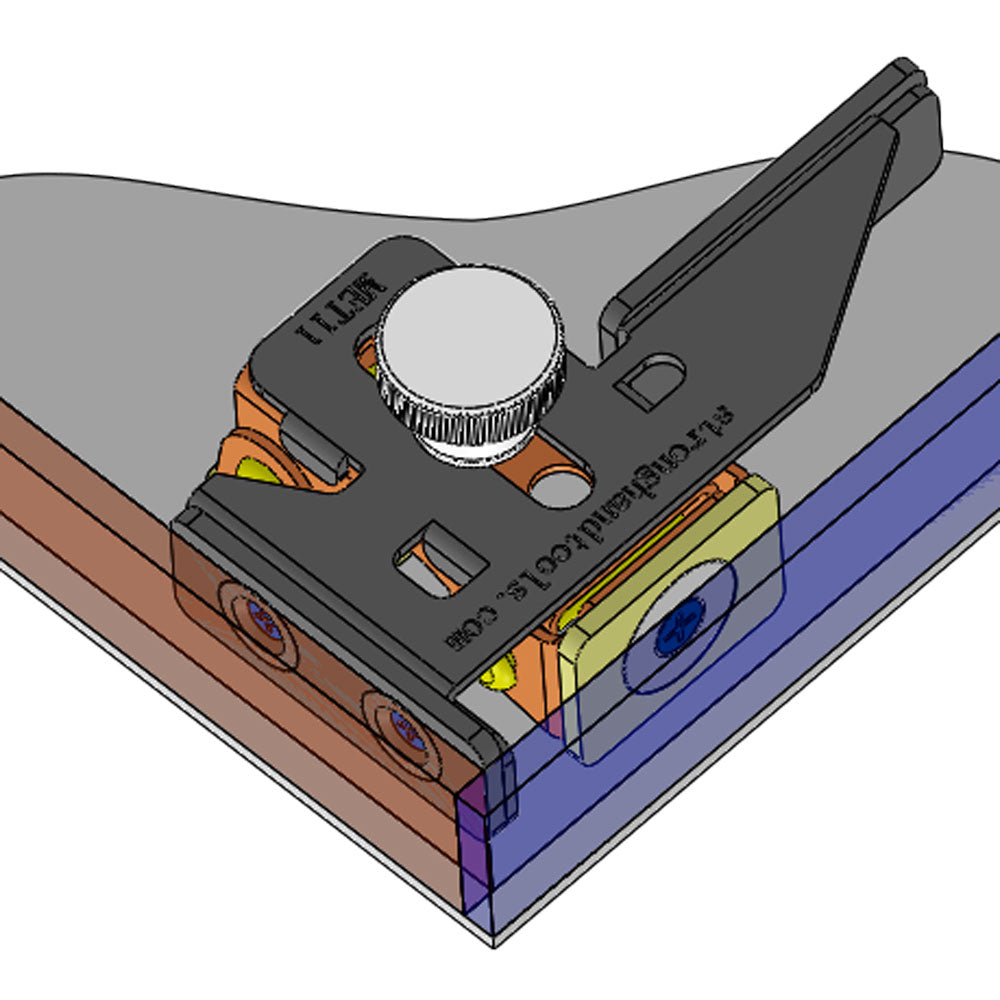

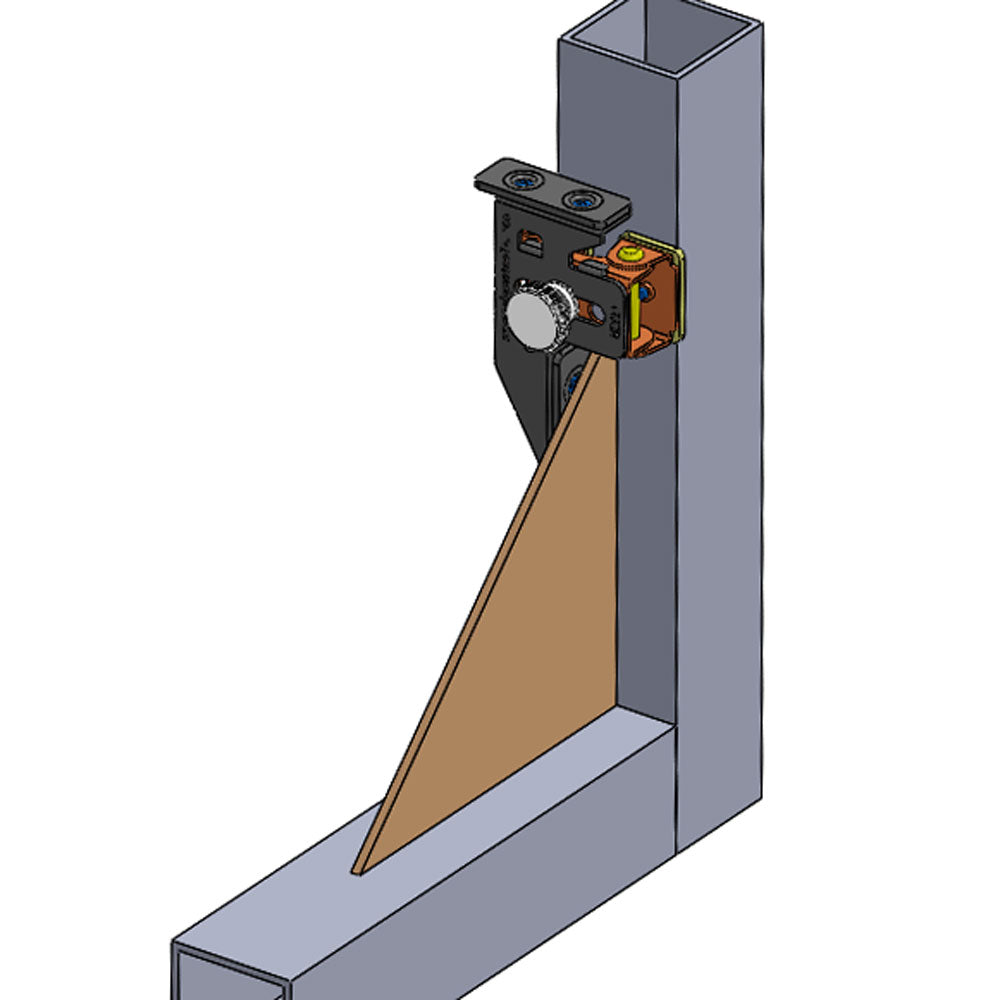

Magnetic Holding: Hold tabs and small metal pieces, parallel or perpendicular to your substructure.

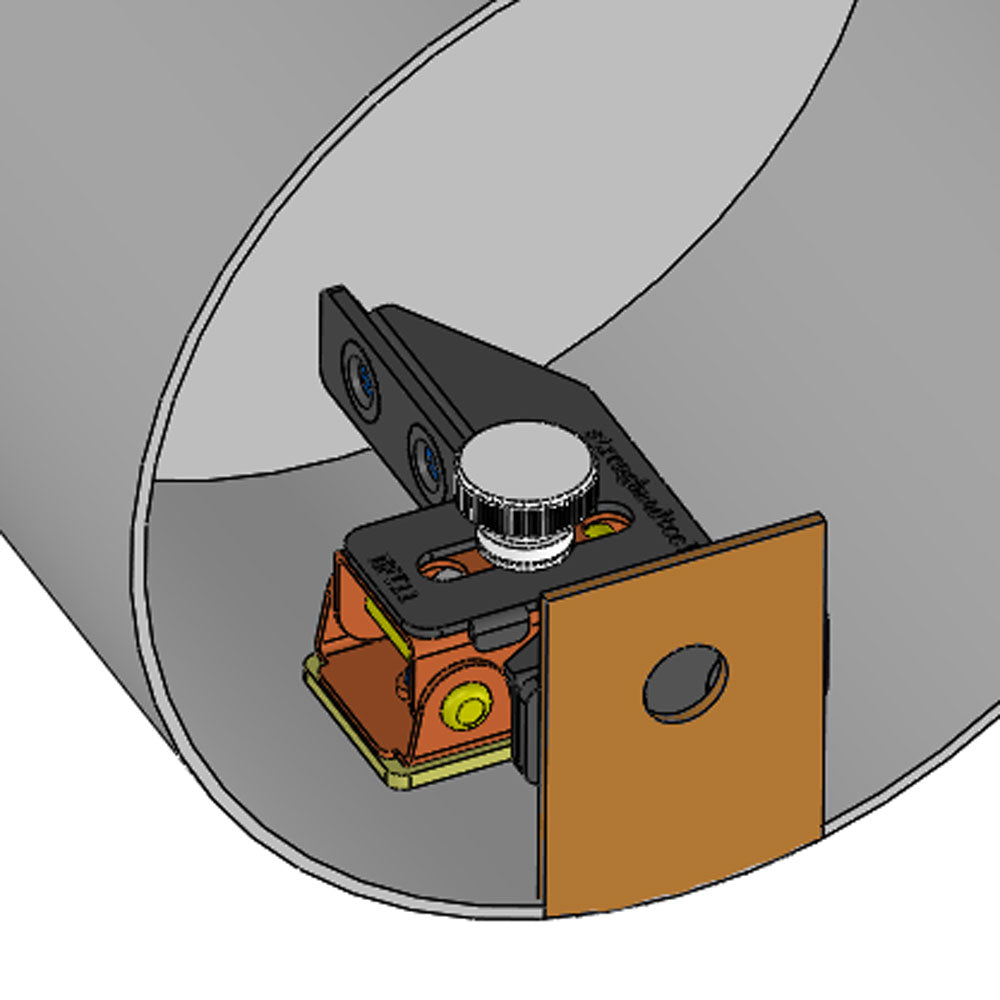

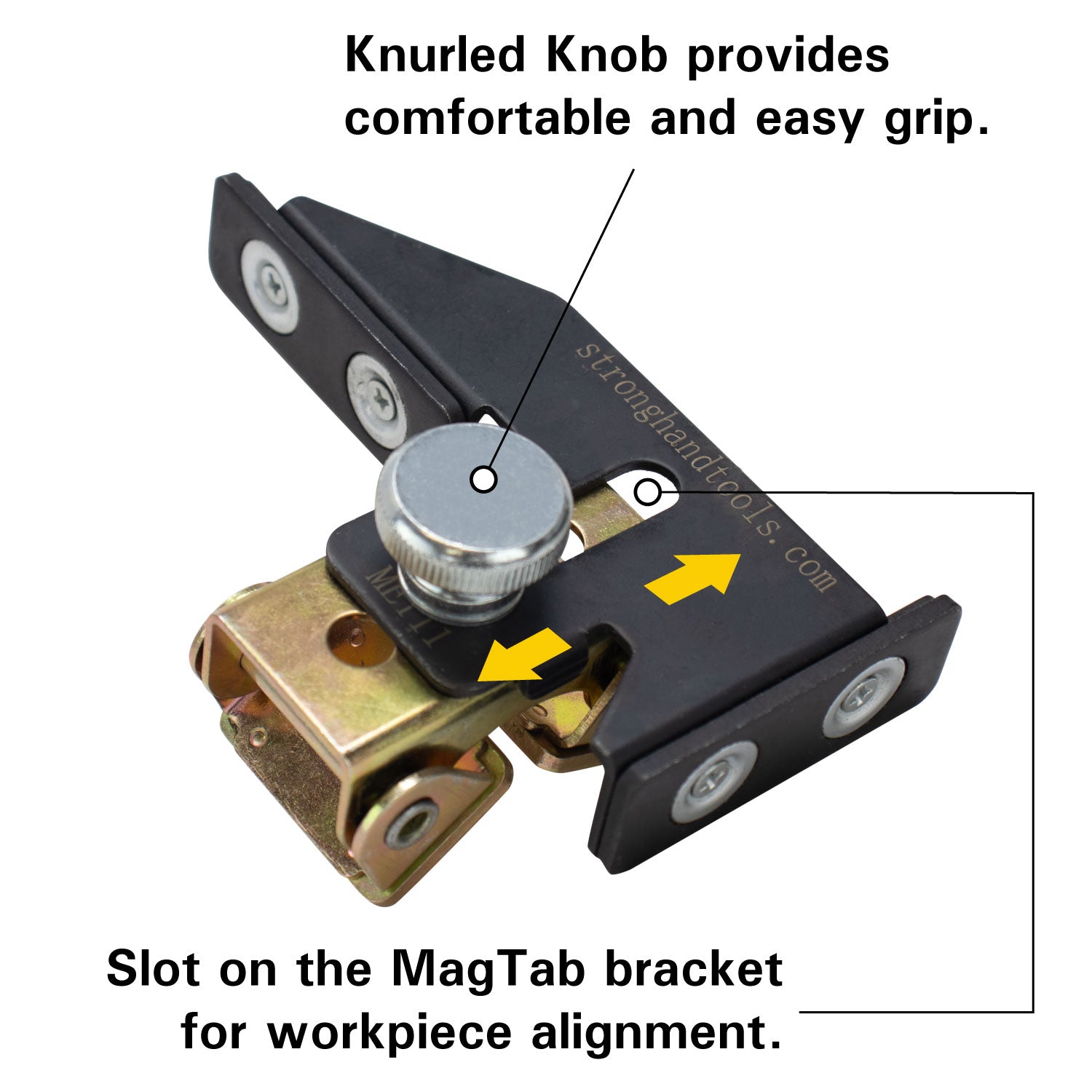

V-Pads: MagTabs feature an integrated V-Pad that allows you to magnetically attach to various types of surface shapes; flat, curved, or with varying angles.
* Remove the MagTab bracket to use the Adjustable Magnetic V-Pad for light-duty holding of steel plates.
* Must be used for tack welding only and removed before completing weld. Avoid prolonged exposure of magnetic products to heat sources of 175ºF / 80ºC and above.
U.S. PAT. 8789821

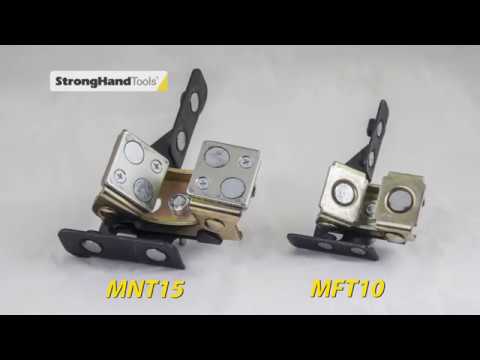

Click here to see the original MagTab (MFT10)
| Part No. | Description | Dimension (in) | Max. Pull Force (lb) | Weight (lb) |
|---|---|---|---|---|

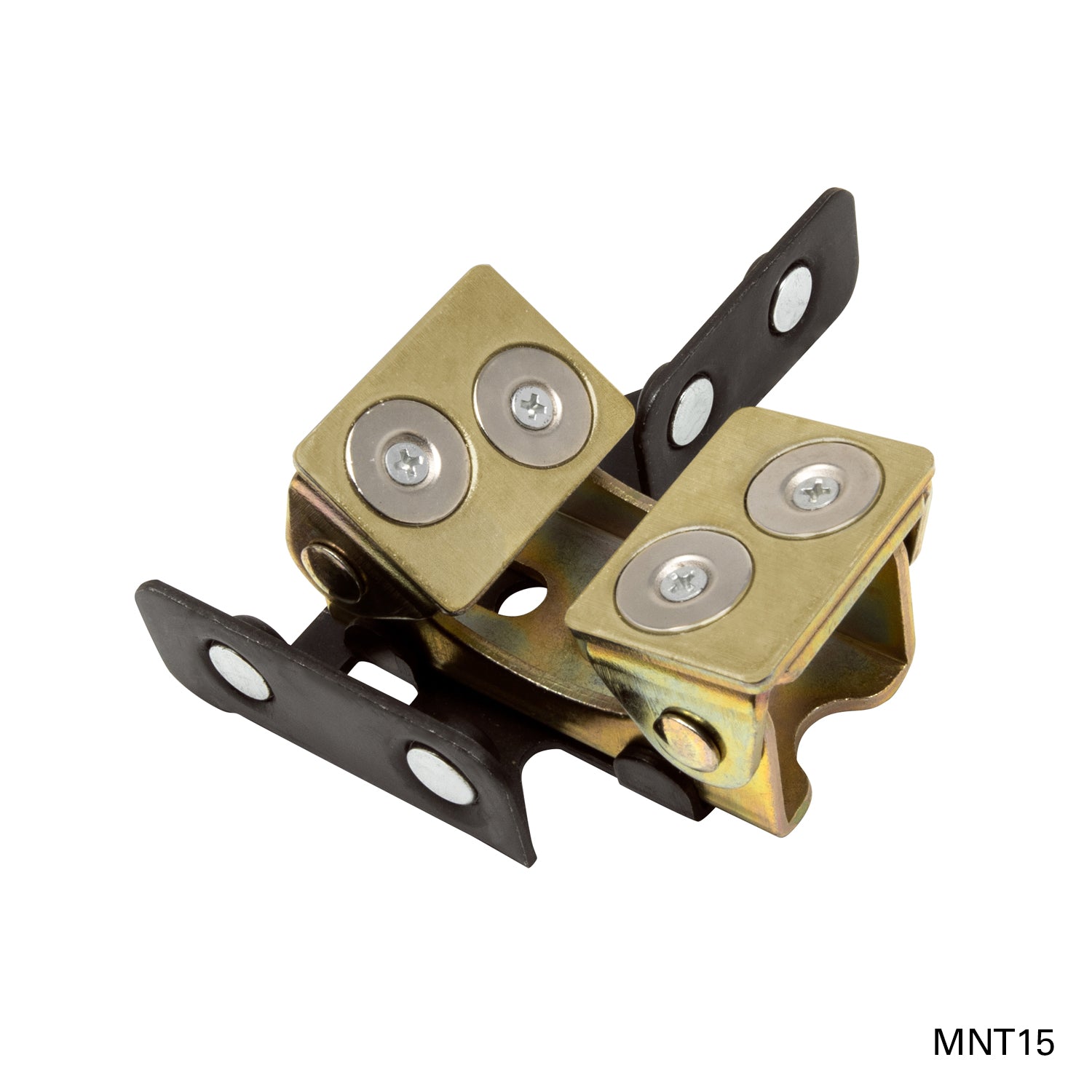

| MNT15 | MagTab Large | 5.2 x 4.5 x 2.8 | 80 | 1.0 |

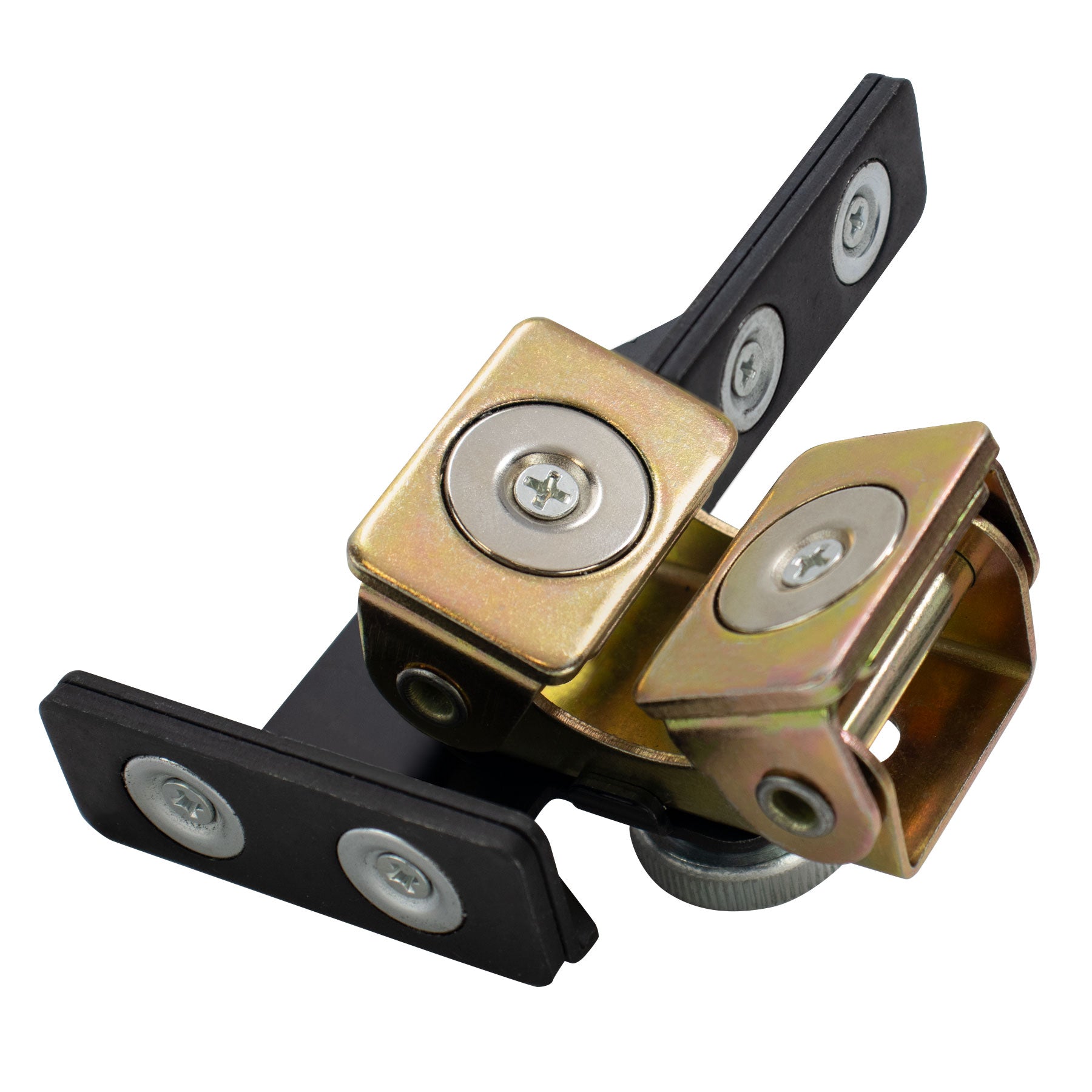

| MET11 | Magtab 2.0 | 4.5 x 2.6 x 2 | 44 | 0.6 |

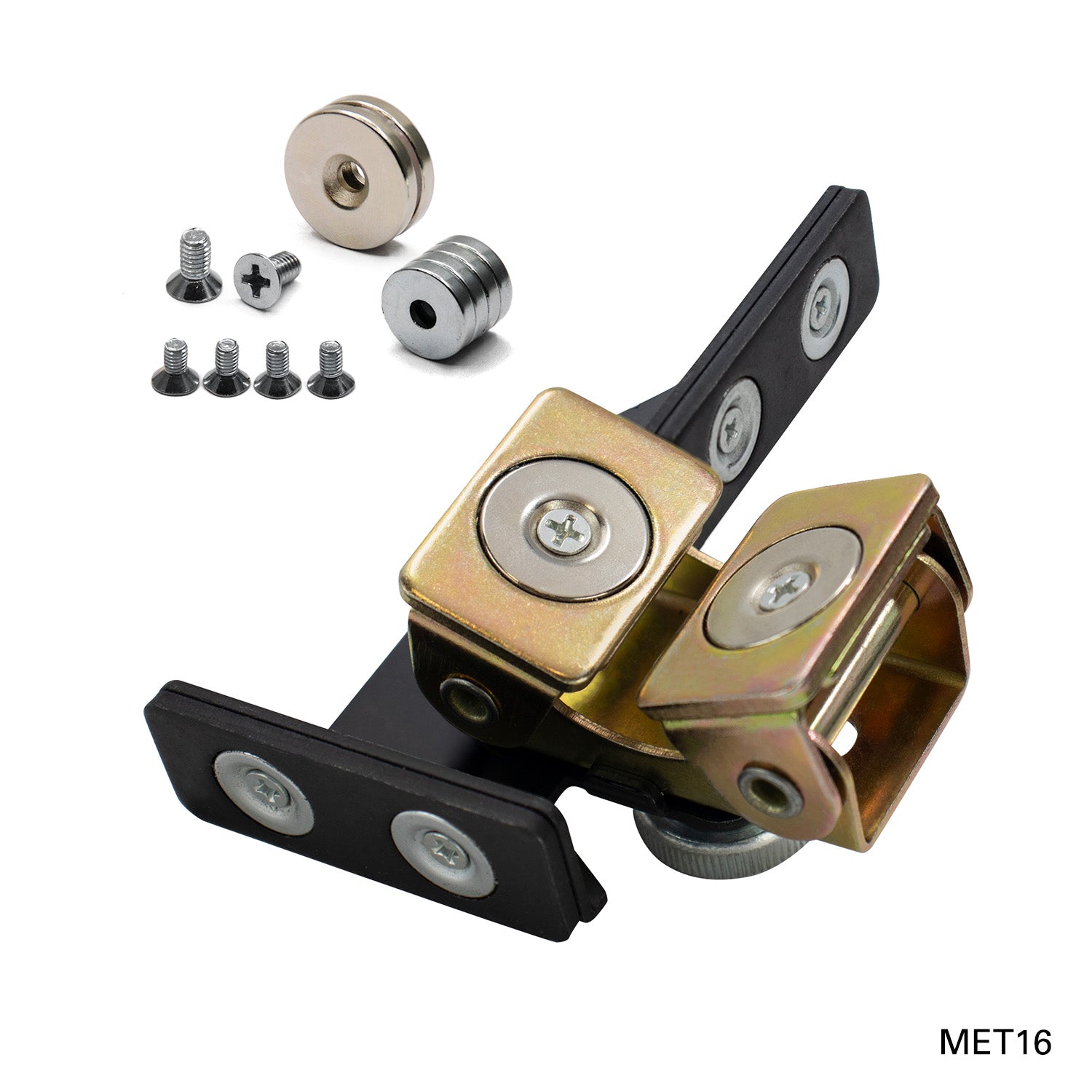

| MET16 | Magtab 2.0 with extra replacement magnets - MRP8 | 4.5 x 2.6 x 2 | 44 | 0.7 |

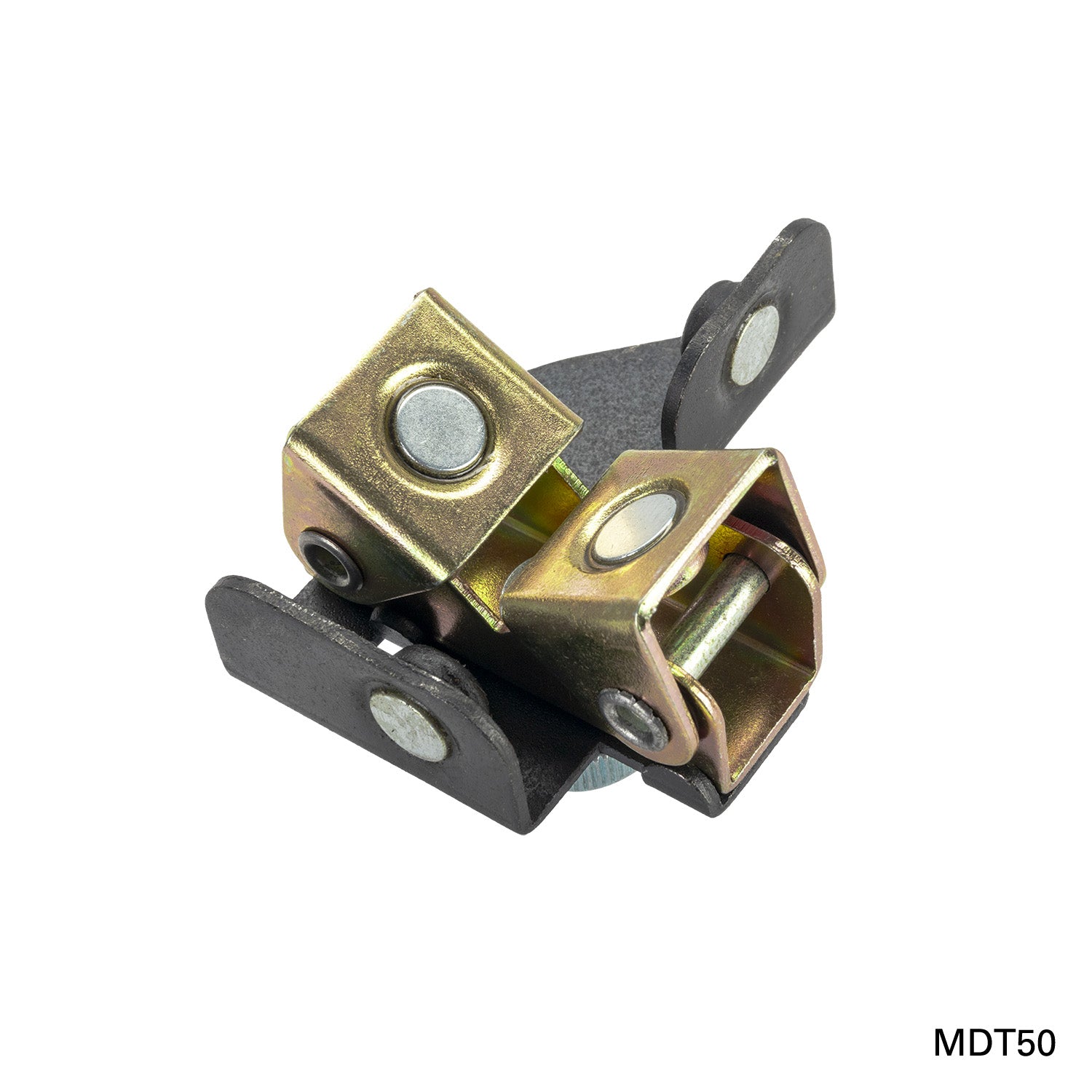

| MDT50 | Mini Magtab | 2.8 x 2.2 x 1.75 | 12 | 0.3 |
* Magnetic force is based on 0.08” flat steel surface.
