Mounting Adapter Plates for Toggle Clamps

Fast & easy application for putting on a Toggle Clamp. The markings on the block indicate which clamps work with this block. The direction indicator (arrow), will show you what direction to apply your Clamp. The thickness of the Adapter Plates adds 0.37″ to the maximum capacity of the Toggle Clamp.

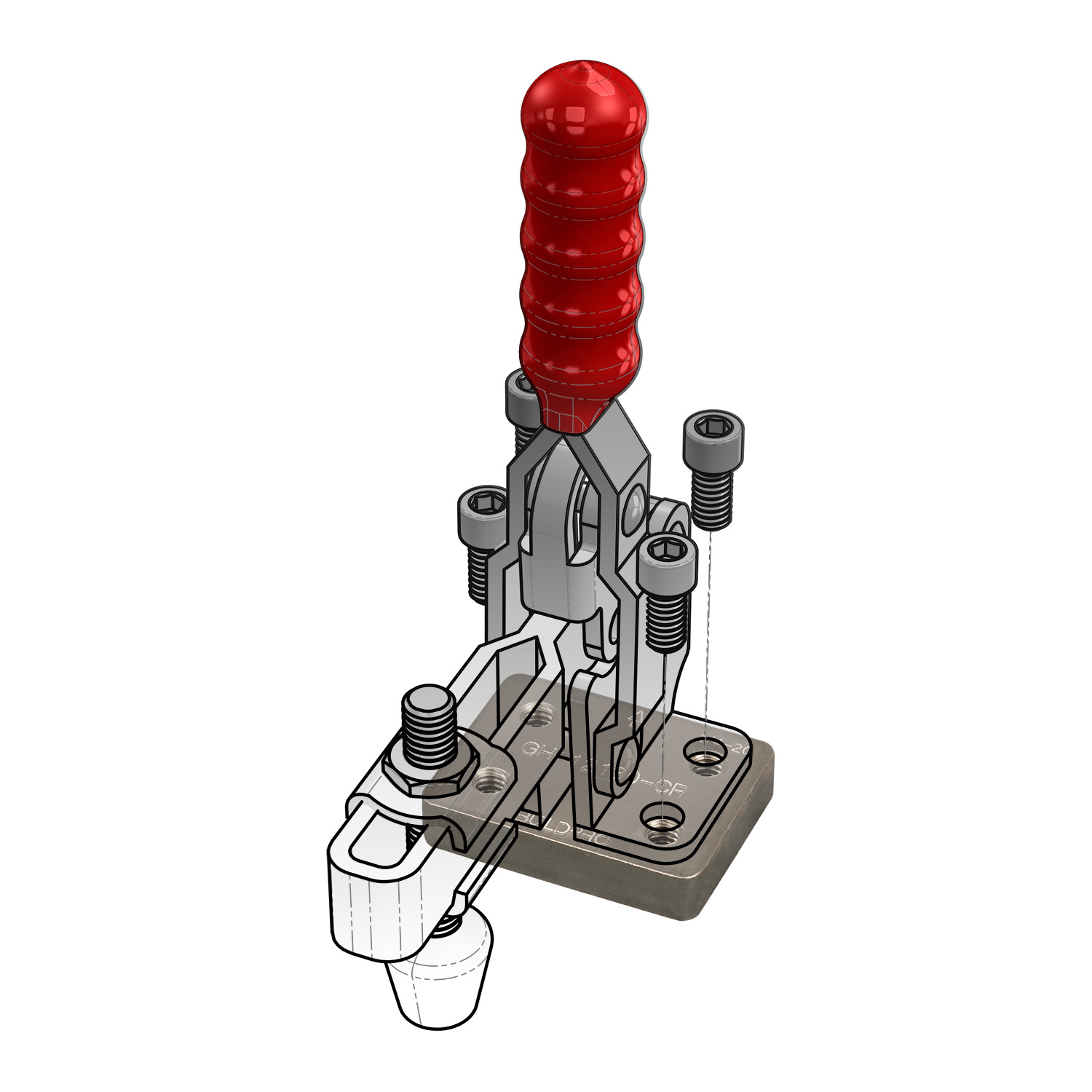

How to use:

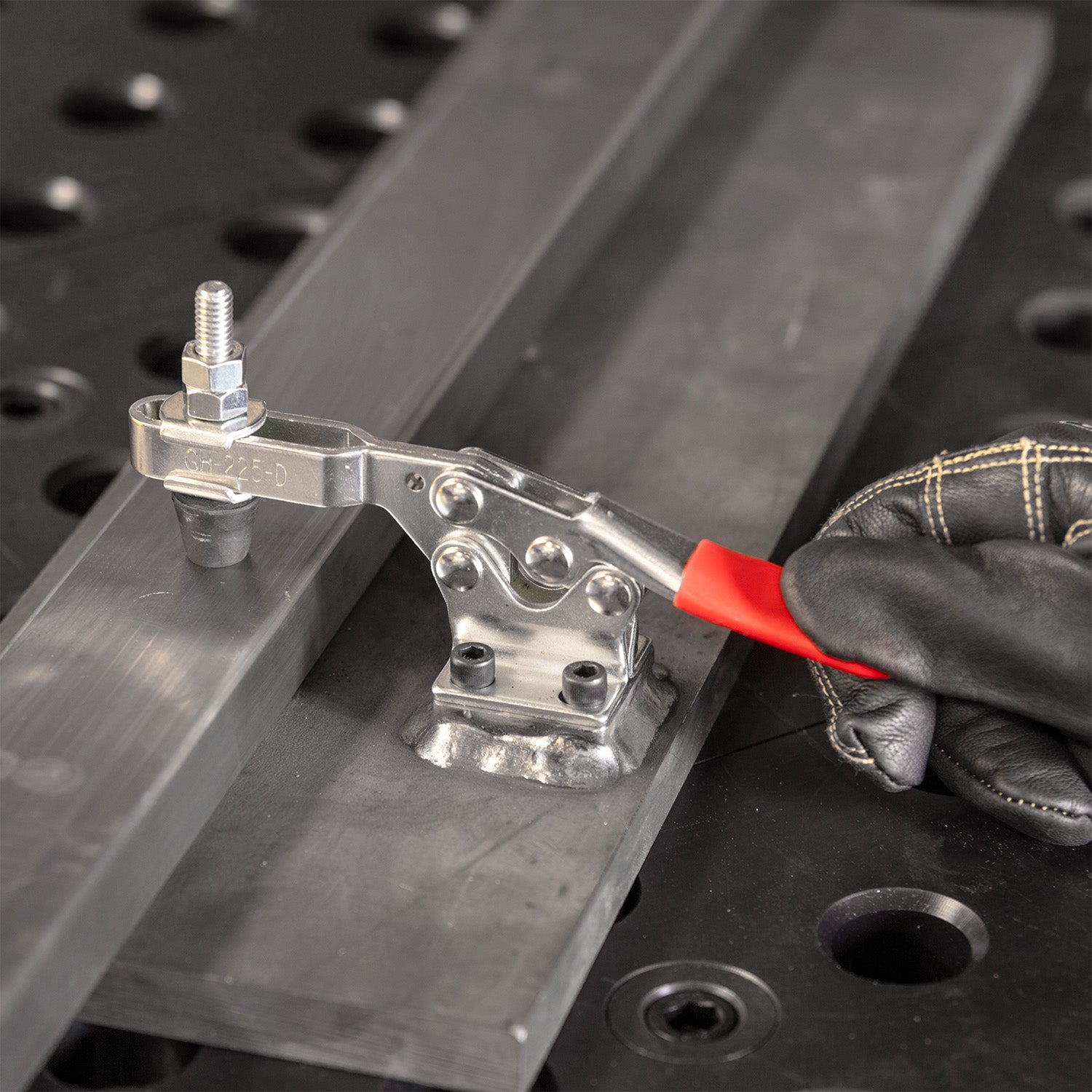

• Weld mounting block wherever you need a clamp
• Bolt the clamp on top of the block
• Once finished, unbolt the clamp.
• The clamp is now reusable.

* By using our patented mounting blocks, you can move your clamp from one fixture to another, cutting your costs and the time spent on reordering toggle clamps.

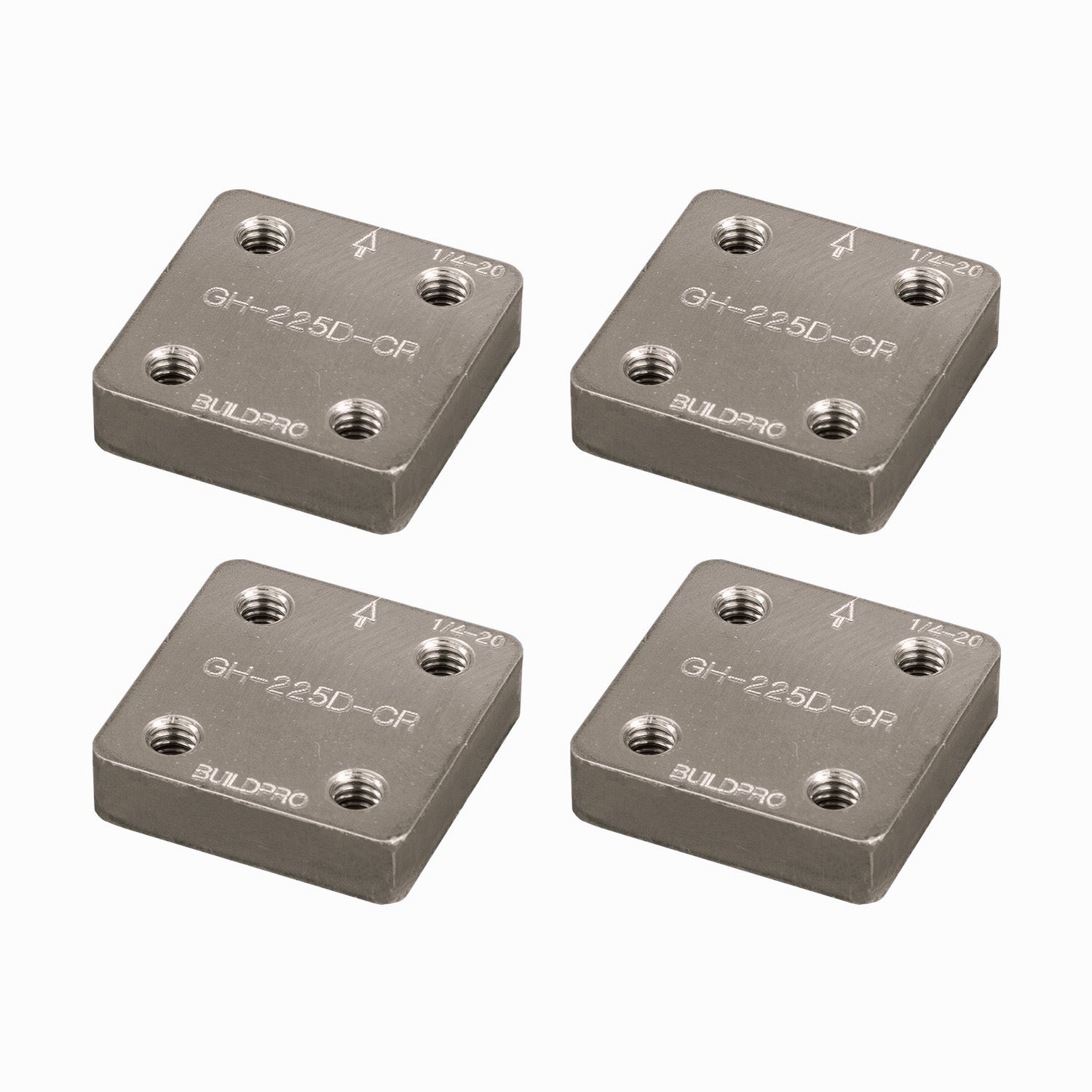

Each model comes with 4 pieces of Adapter Plates and Socket Head Cap Screws.

Part No. (Steel)	Part No. (Alum.)	Fit Good Hand Clamp	Dimensions / ea. (in)	Screw Size (in)	Weight (lb) (Steel)	Weight (lb) (Alum.)

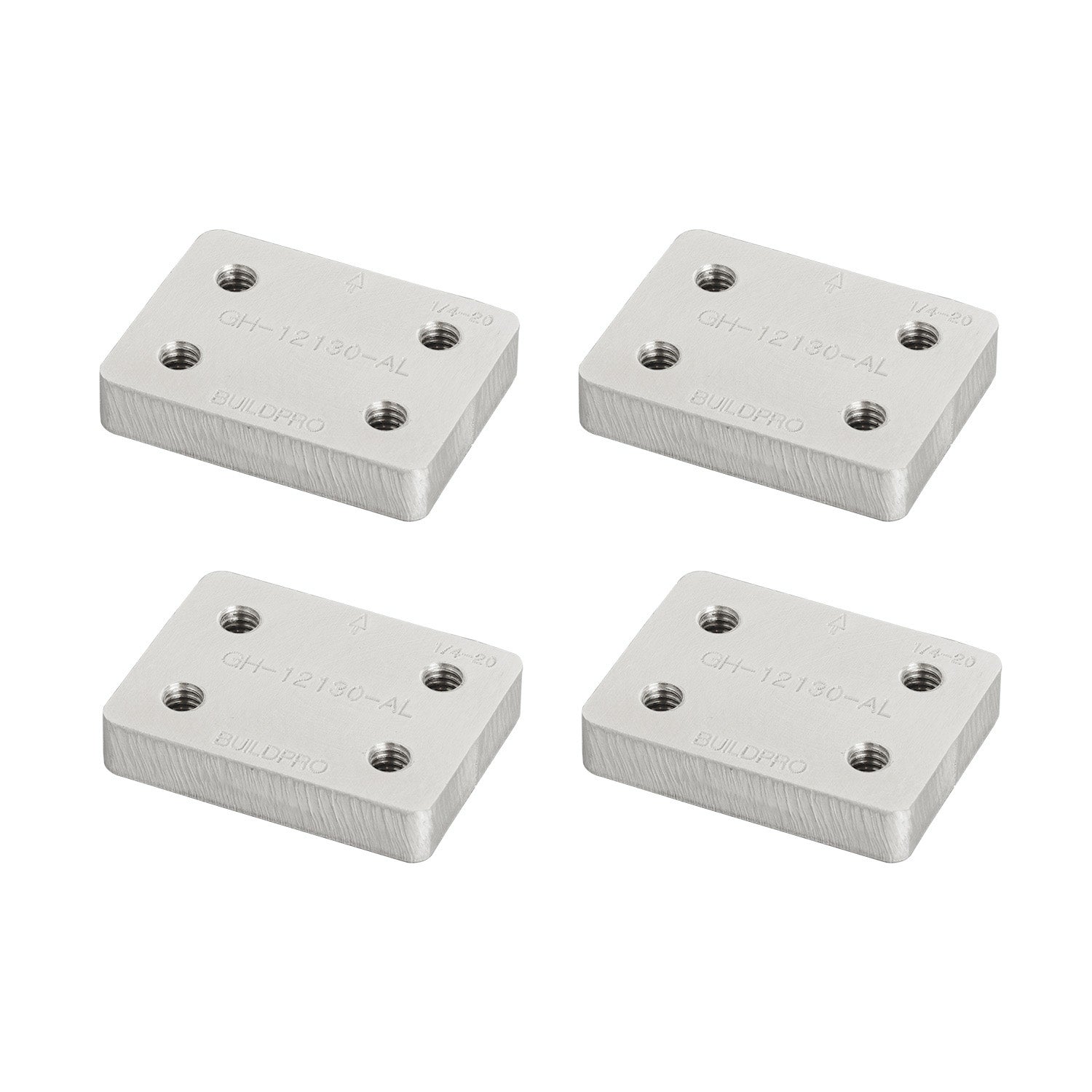

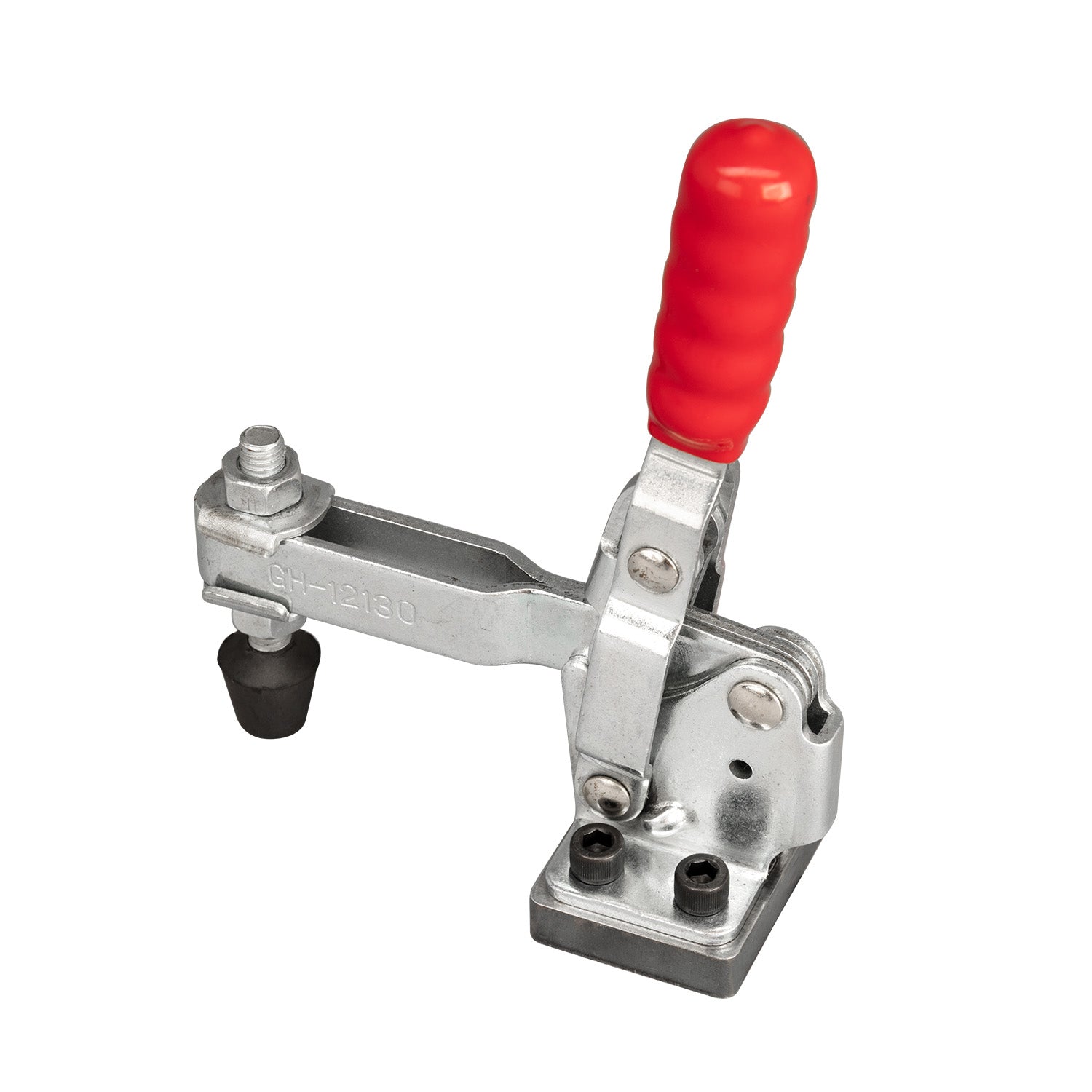

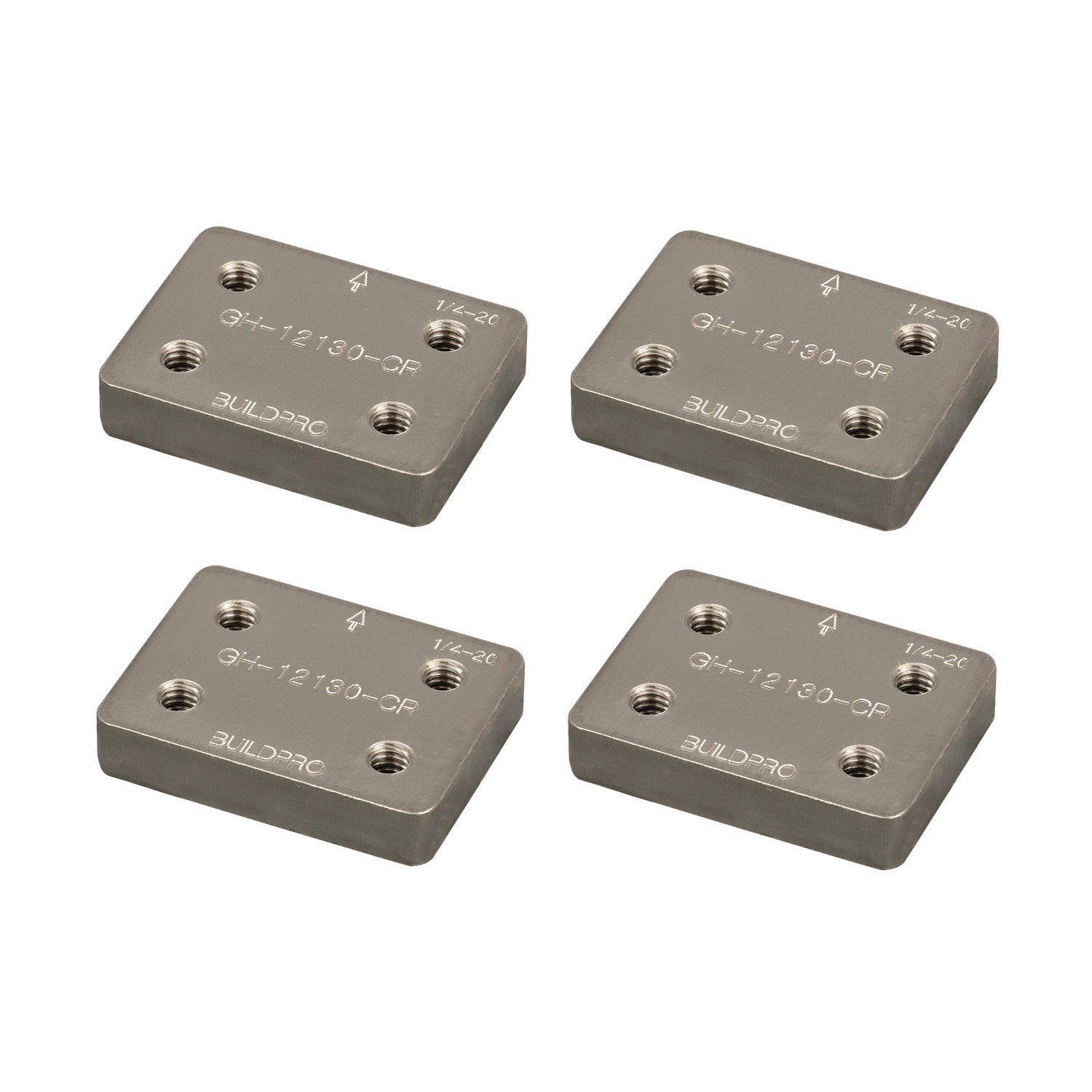

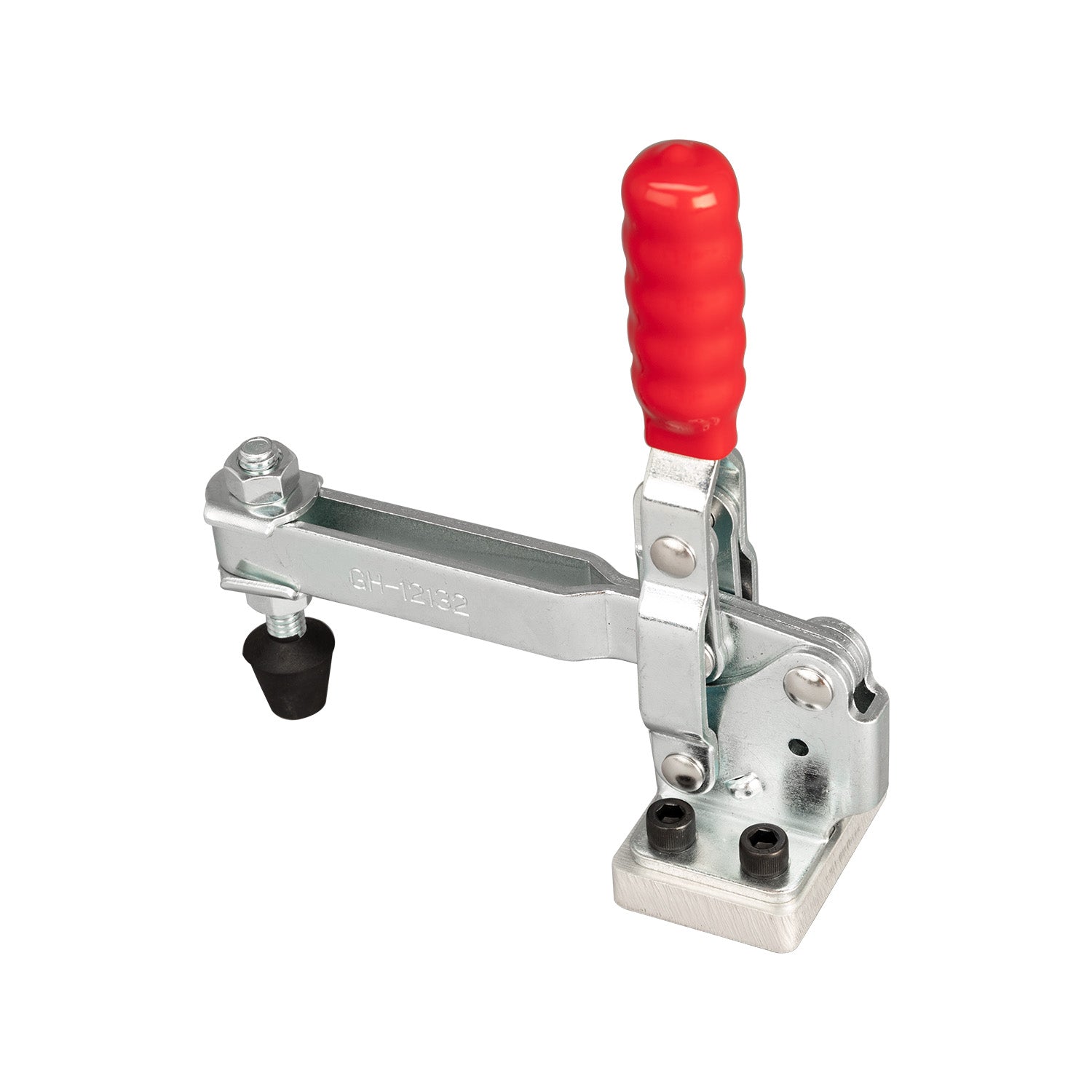

T57130GH-FE-4PK	T57130GH-AL-4PK	GH-12130	1.50 x 2.00 x 0.37	1/4-20 unc.	1.33	0.56

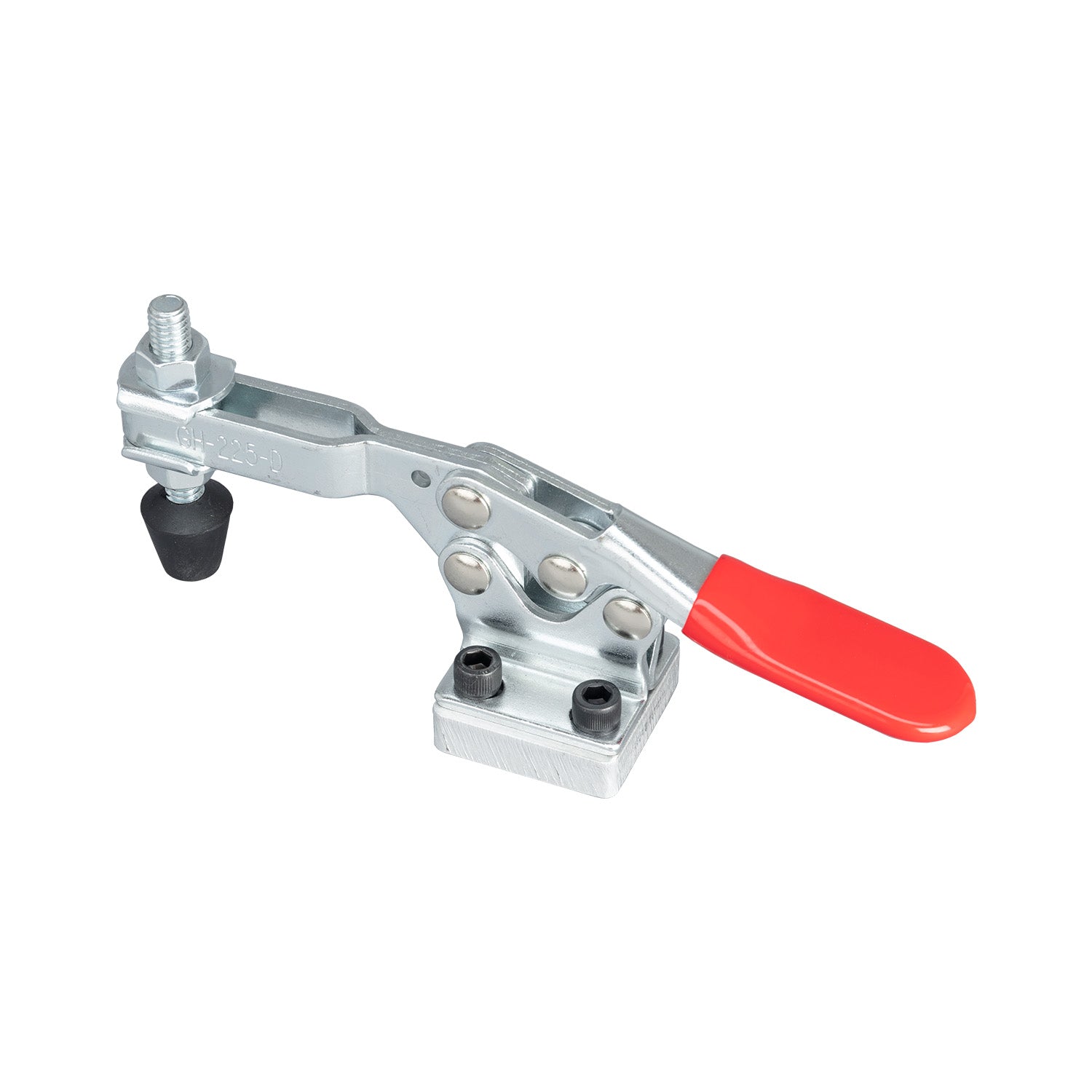

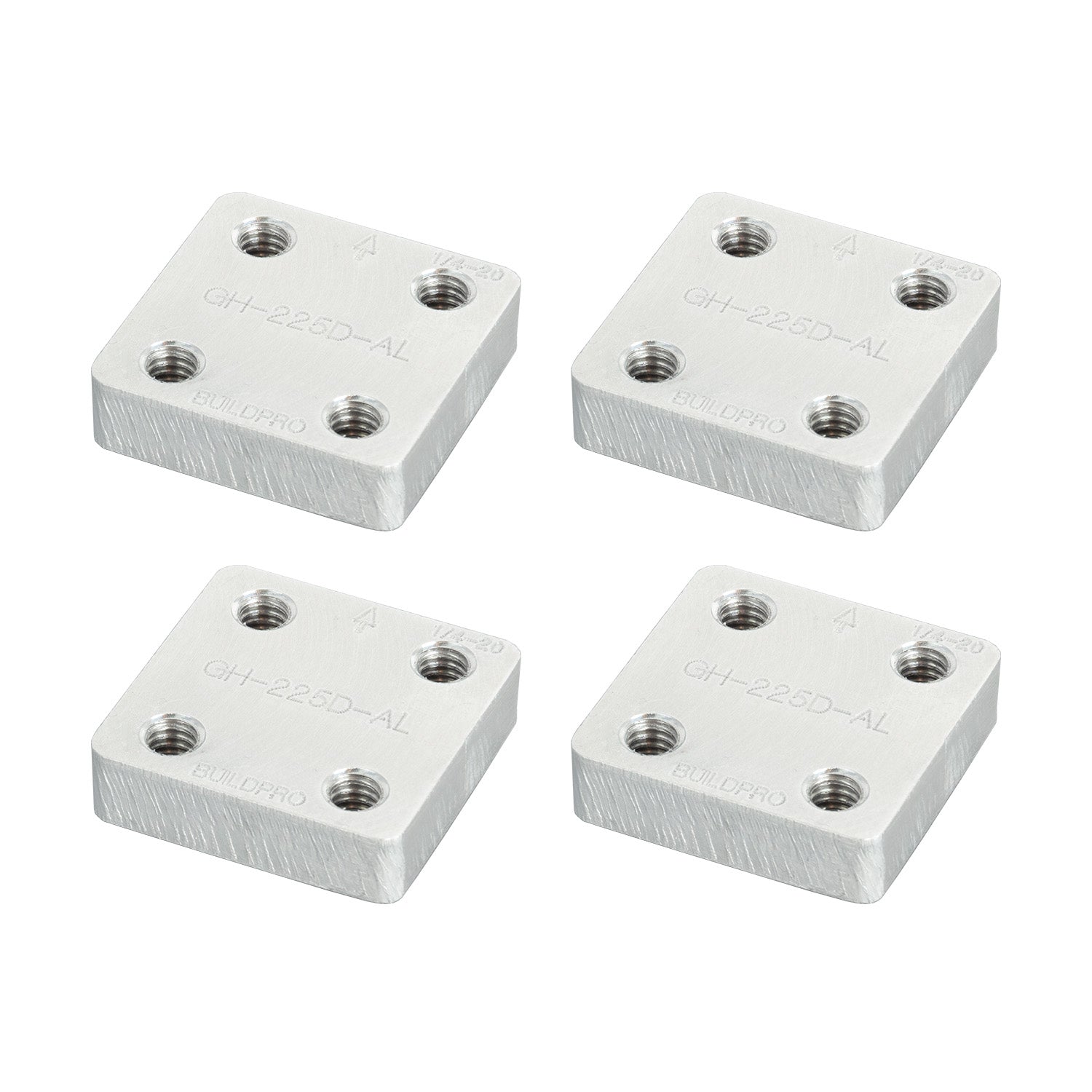

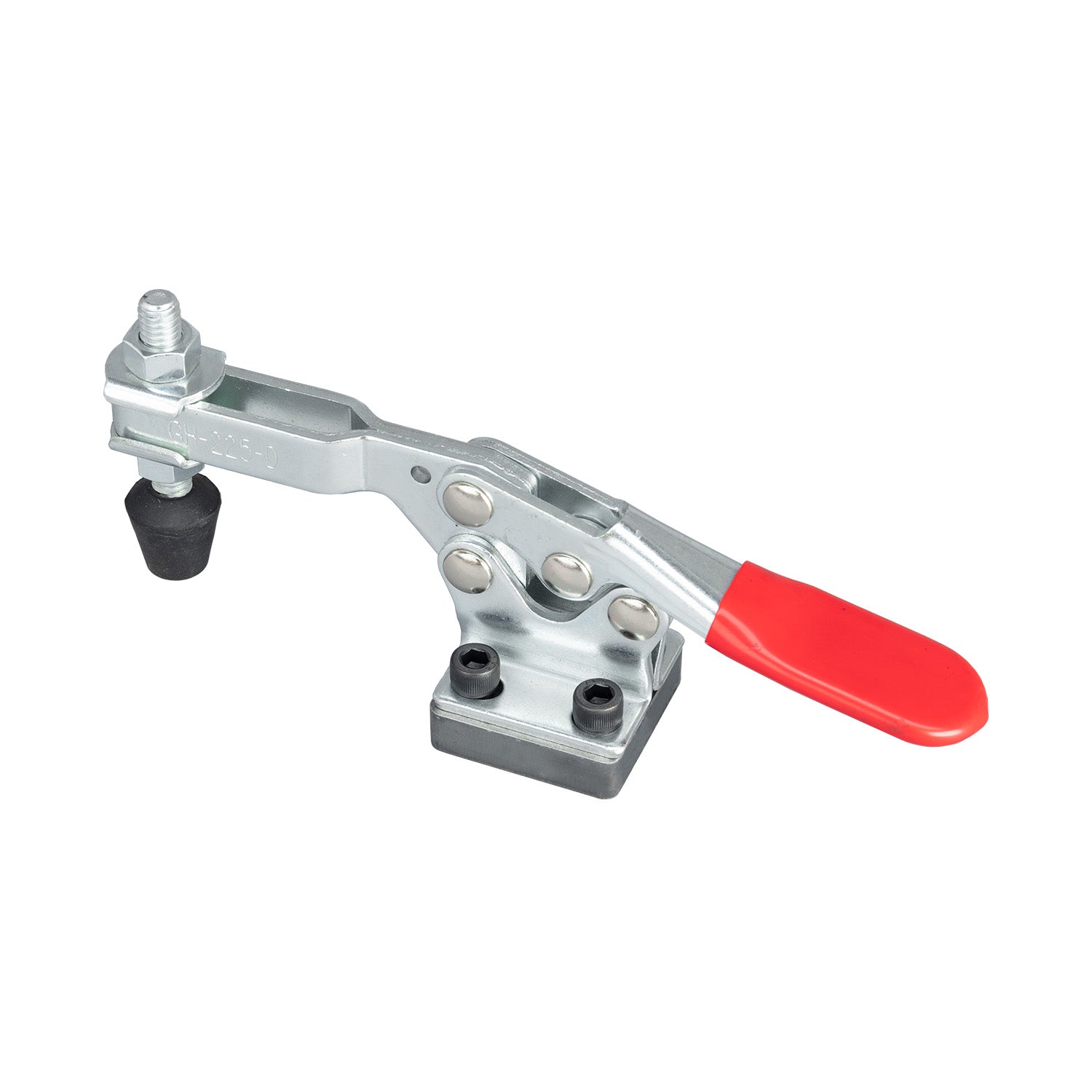

T57250GH-FE-4PK	T57250GH-AL-4PK	GH-225-D	1.50 x 1.50 x 0.37	1/4-20 unc.	1.00	0.45

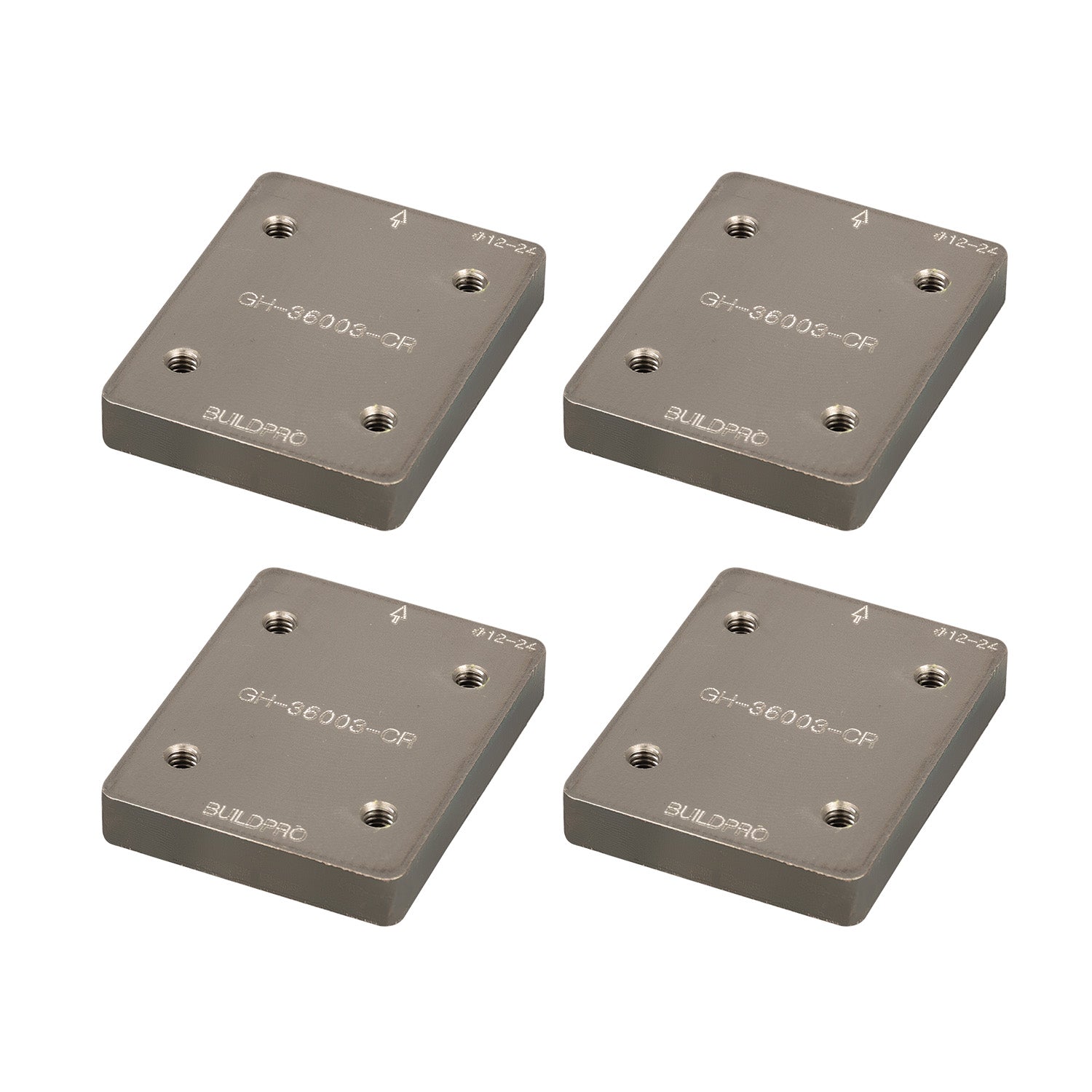

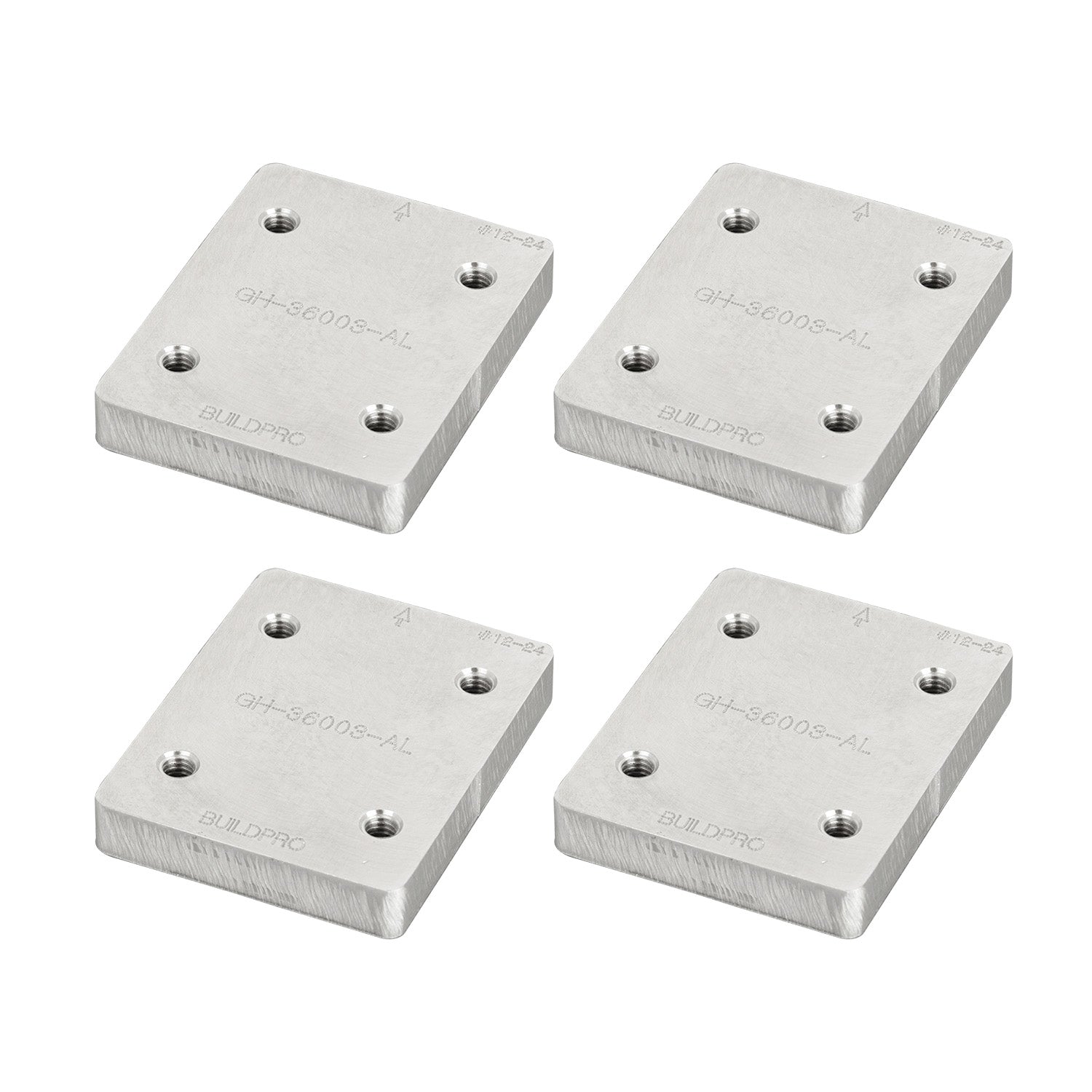

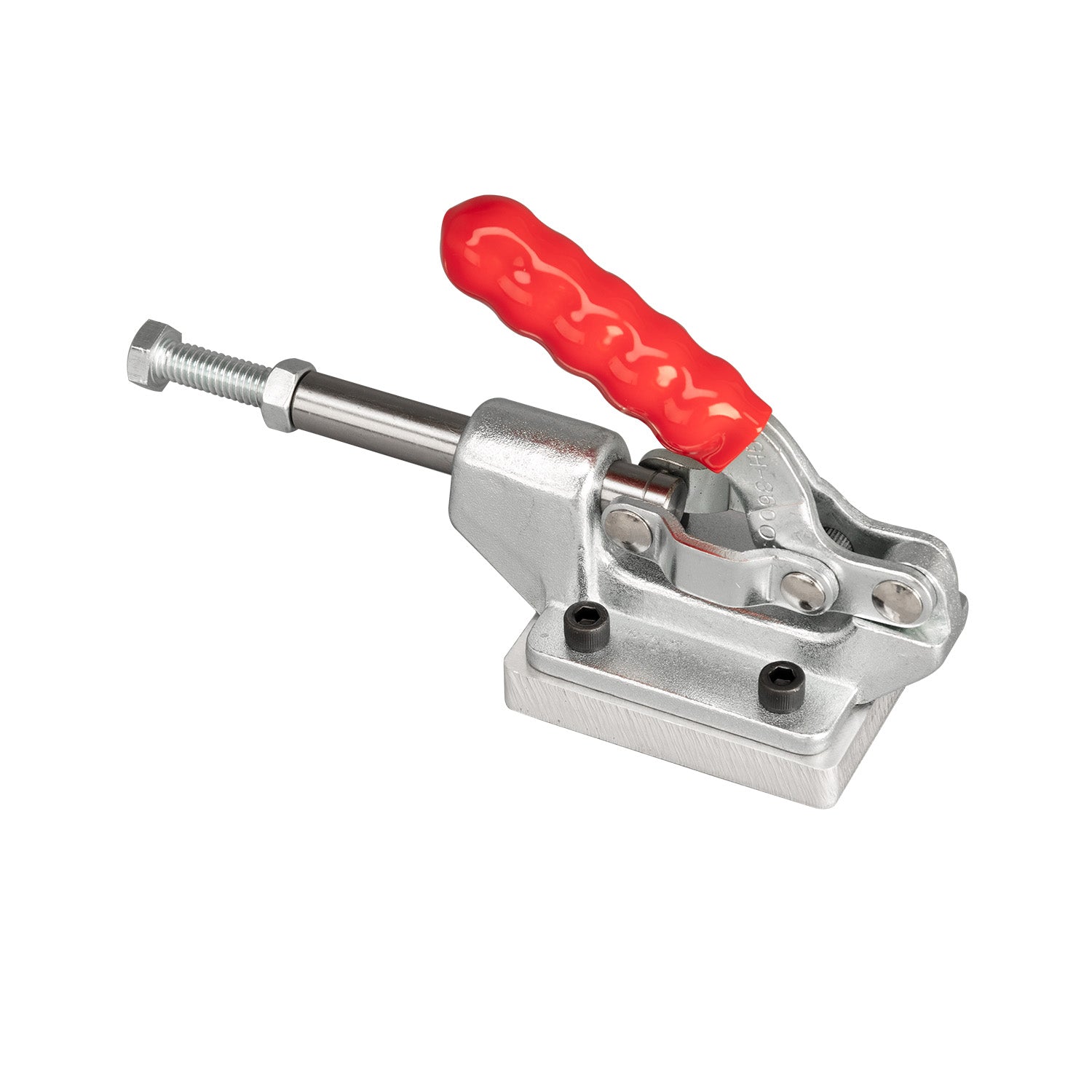

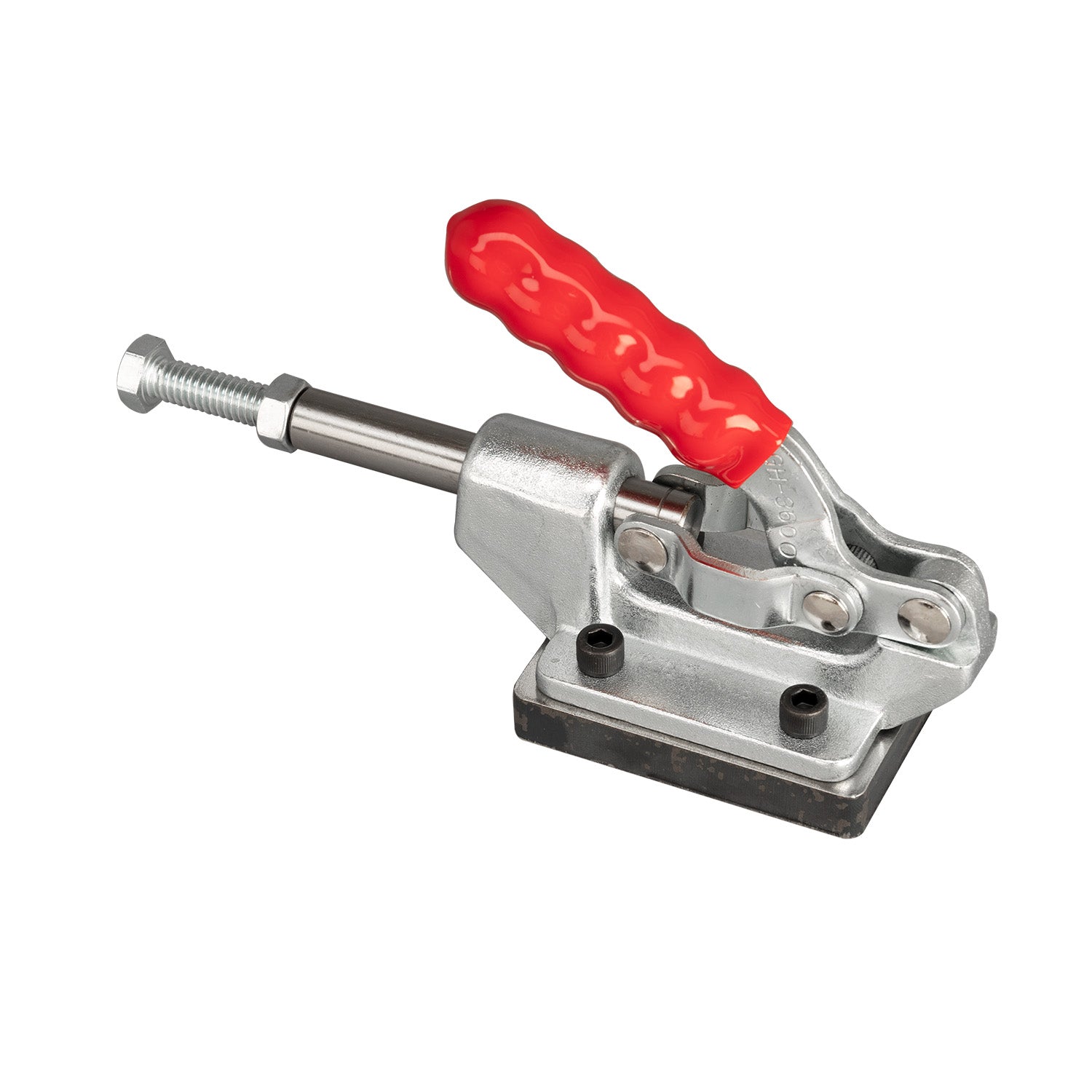

T57603GH-FE-4PK	T57603GH-AL-4PK	GH-36003	2.00 x 2.50 x 0.37	12-24 unc.	2.10	0.84
