- Hold tight, for load-bearing, as much as 50 lb.
- V-Pad on top jaw and spindle on the bottom jaw securely clamp the round pipe against a flat surface.
- Two aluminum V-Blocks on the aluminum bracket can be used with additional pliers or clamps for holding on to different diameter size tubes at different angles.

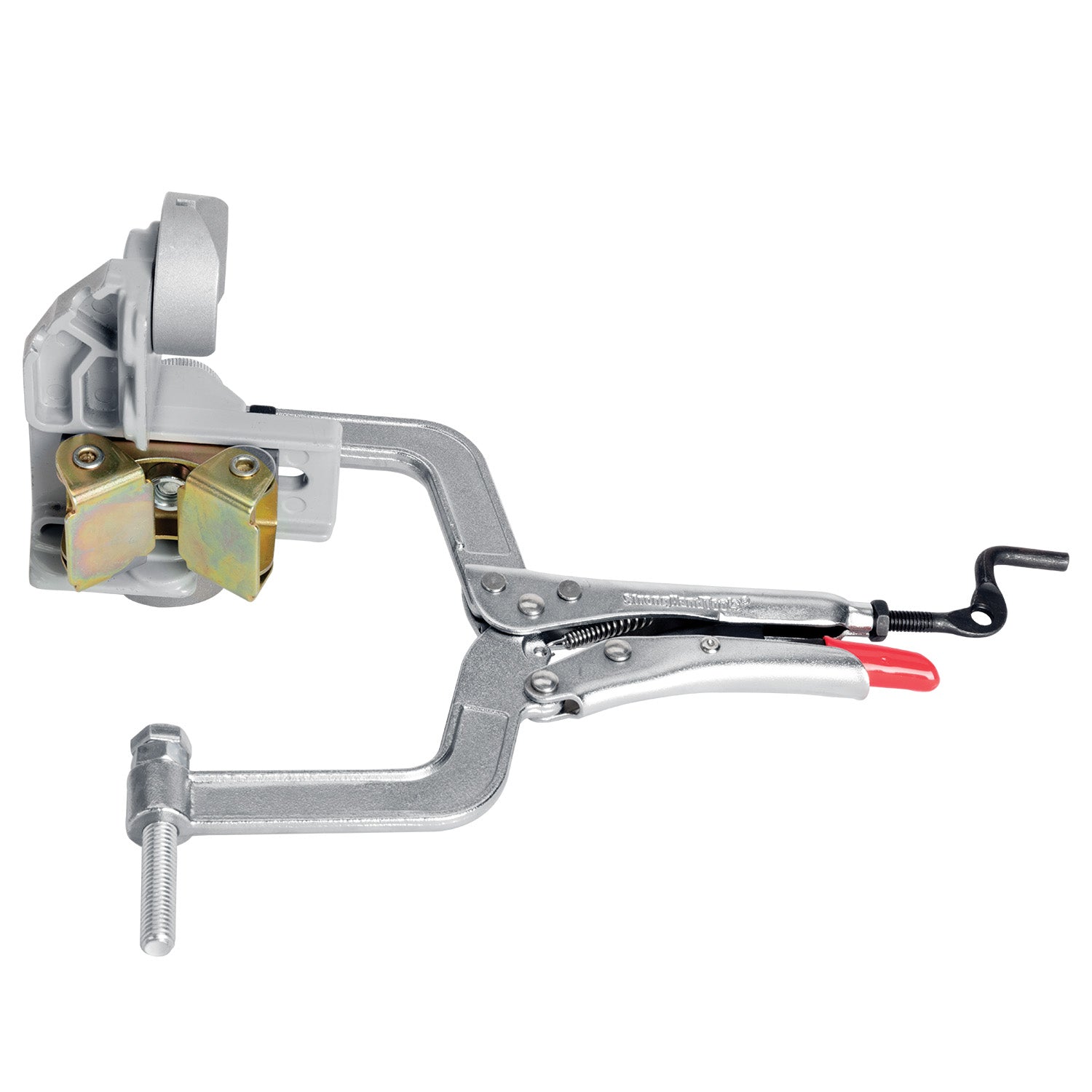

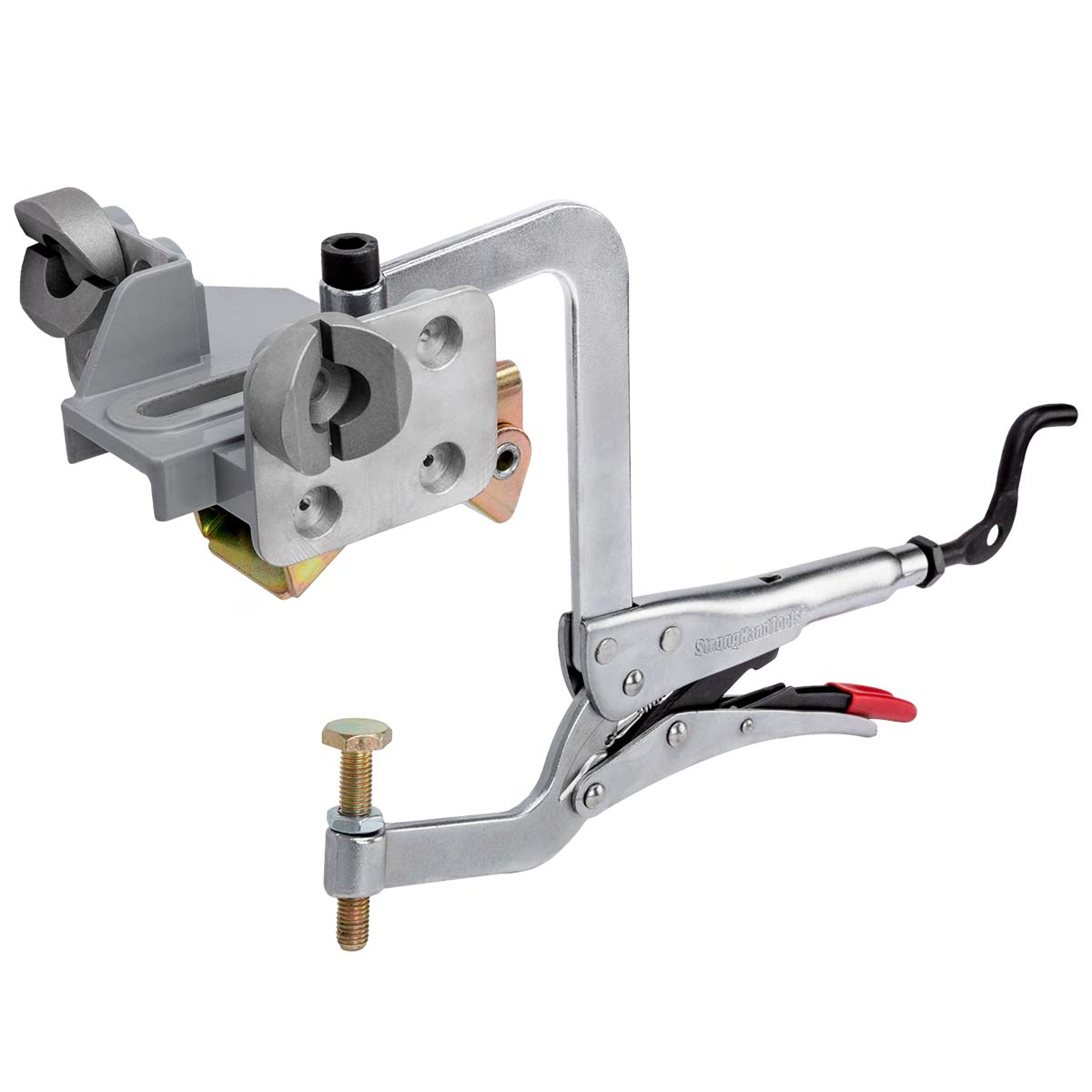

Pipe Joint Pliers
Pipe Joint Pliers
Regular price
$52.08 USD
Sale price
$52.08 USD
Regular price
Shipping calculated at checkout.
Available in stock (174)
-
Estimated delivery: May 15 - May 19
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

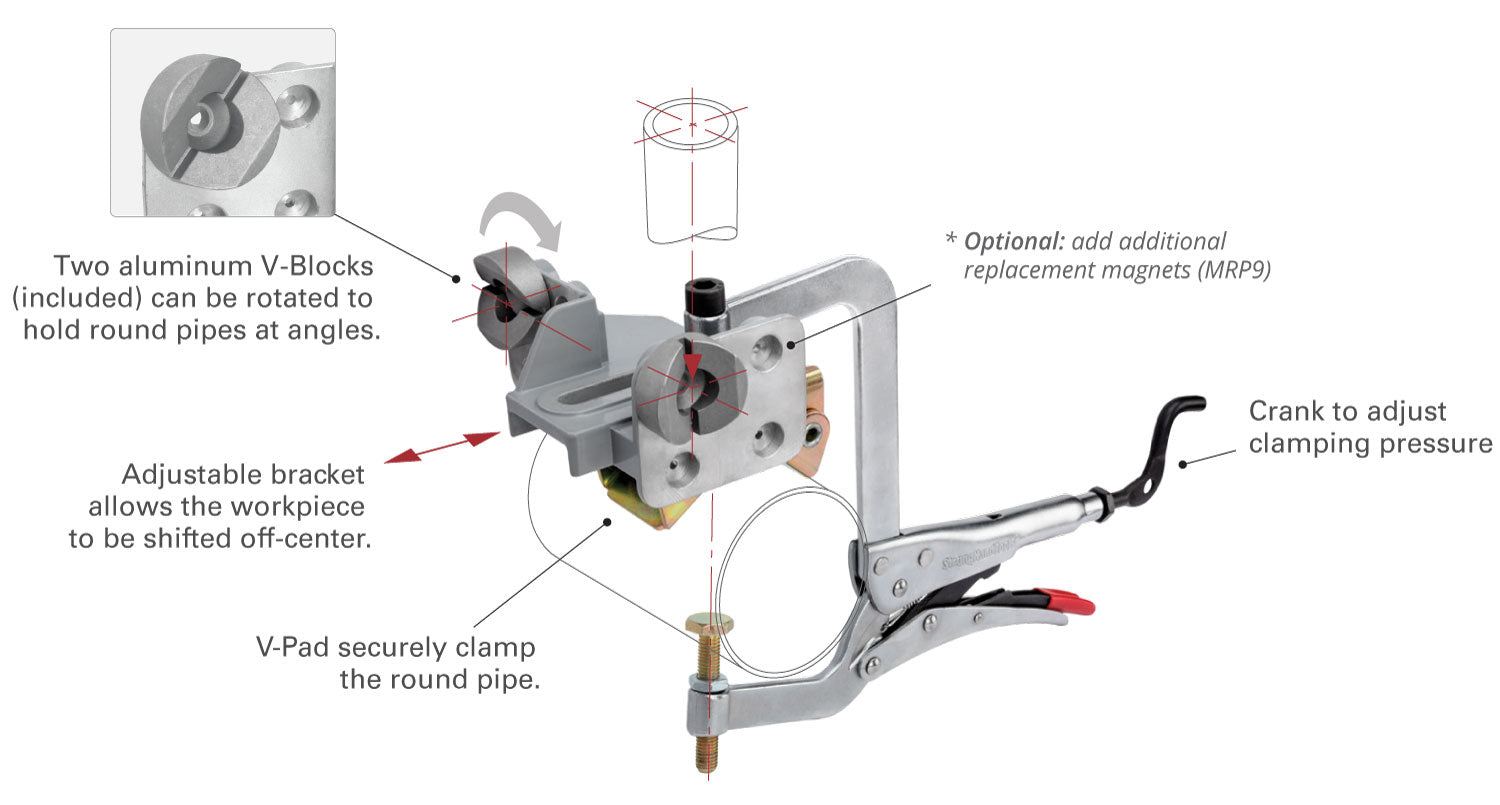

- Hold tight, for load-bearing, as much as 50 lb.

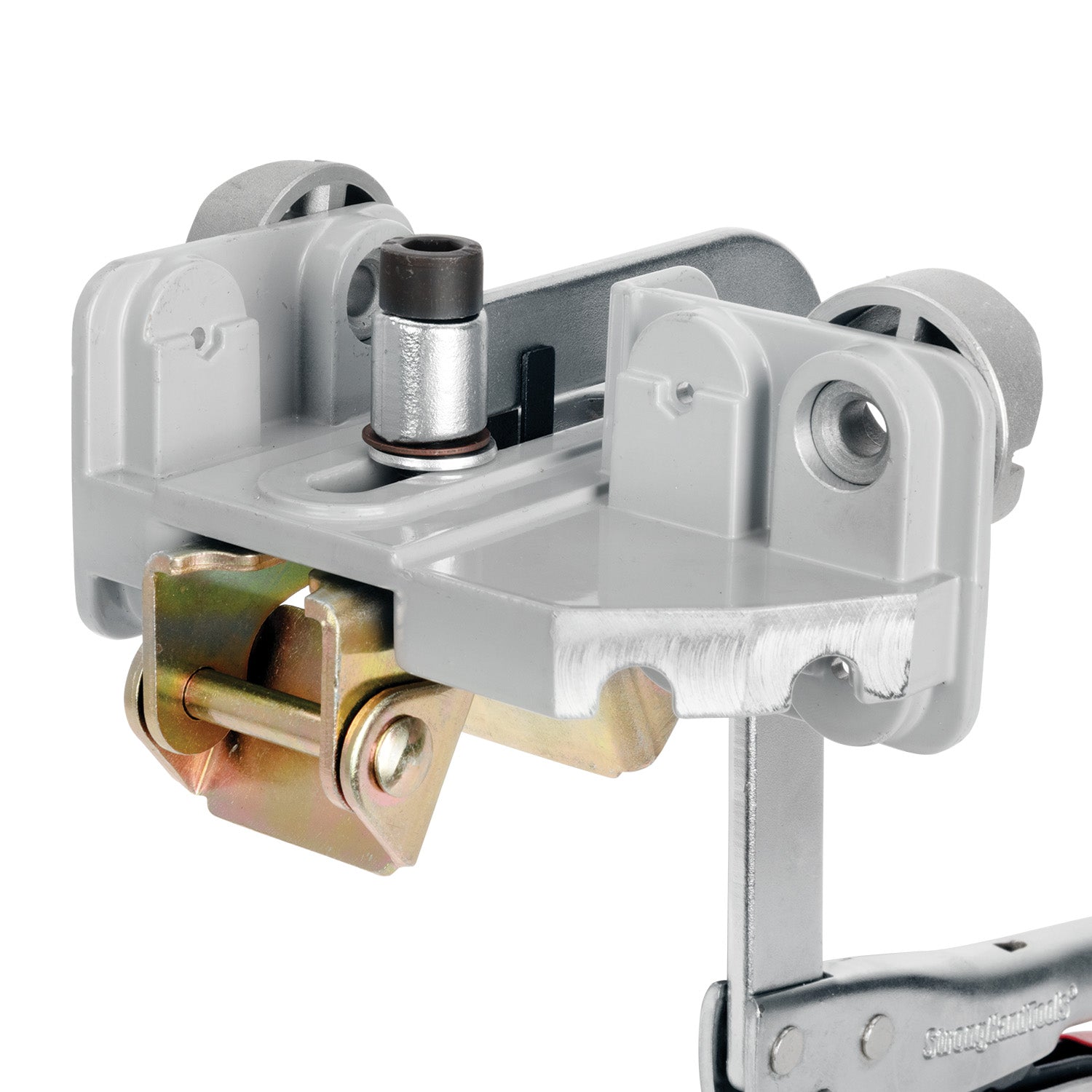

- Two aluminum V-Blocks (included) can be rotated to hold round pipes at angles.

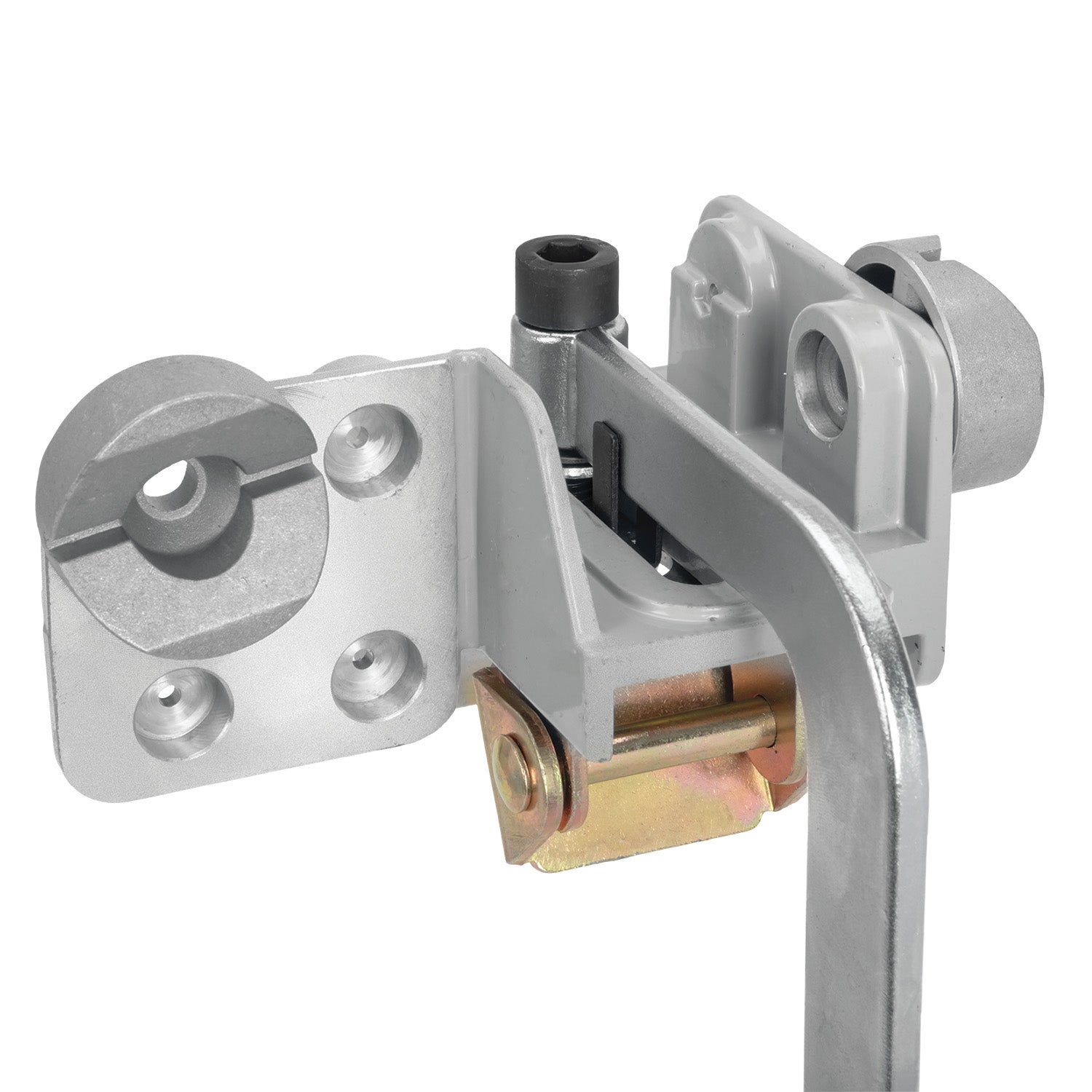

- Adjustable bracket allows the workpiece to be shifted off-center.
- Replaceable Magnets (sold separately) can be added to the bracket to hold metal piece up.

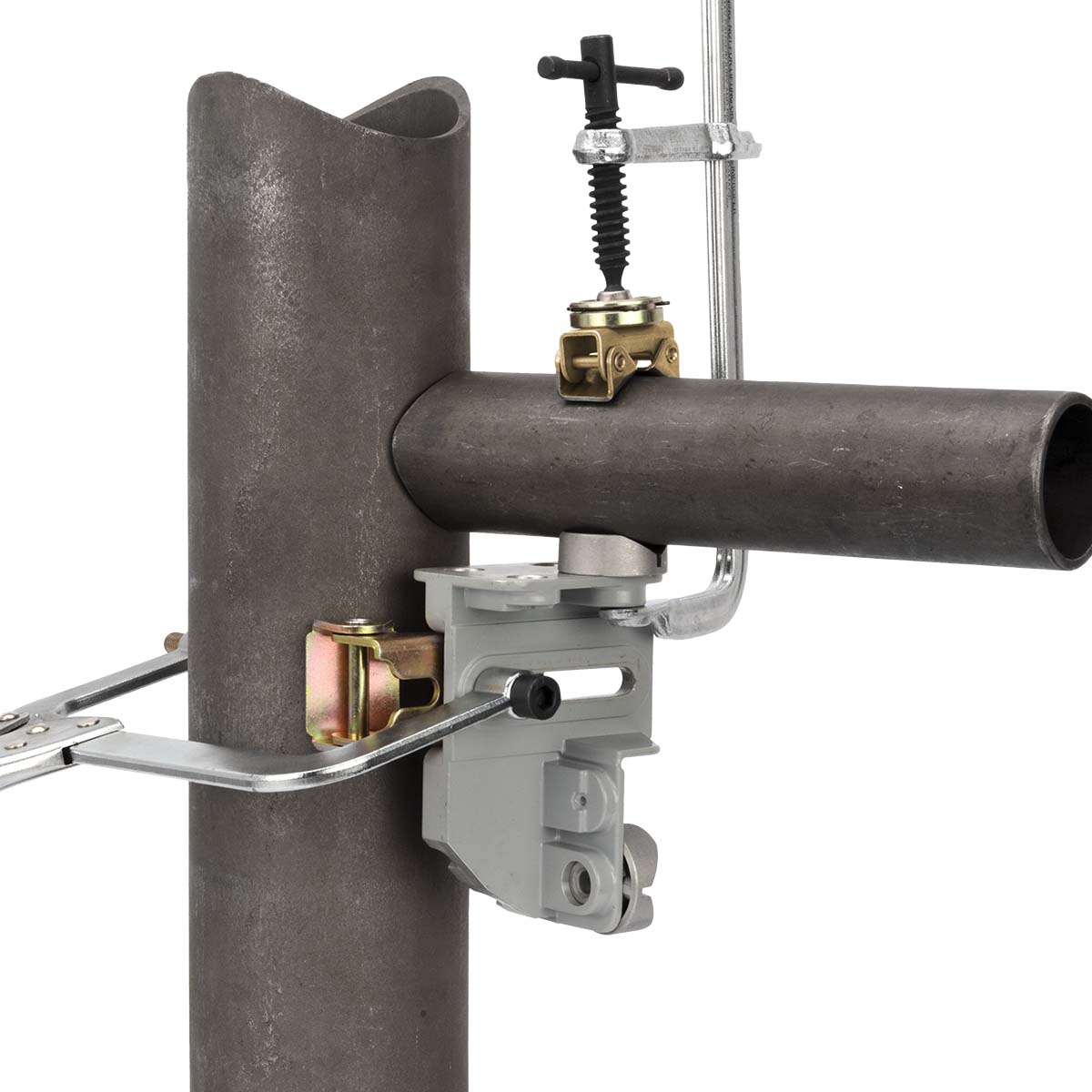

Use with Utility Clamp with Clip-on Top V-Pad to hold pipe at 90 degree

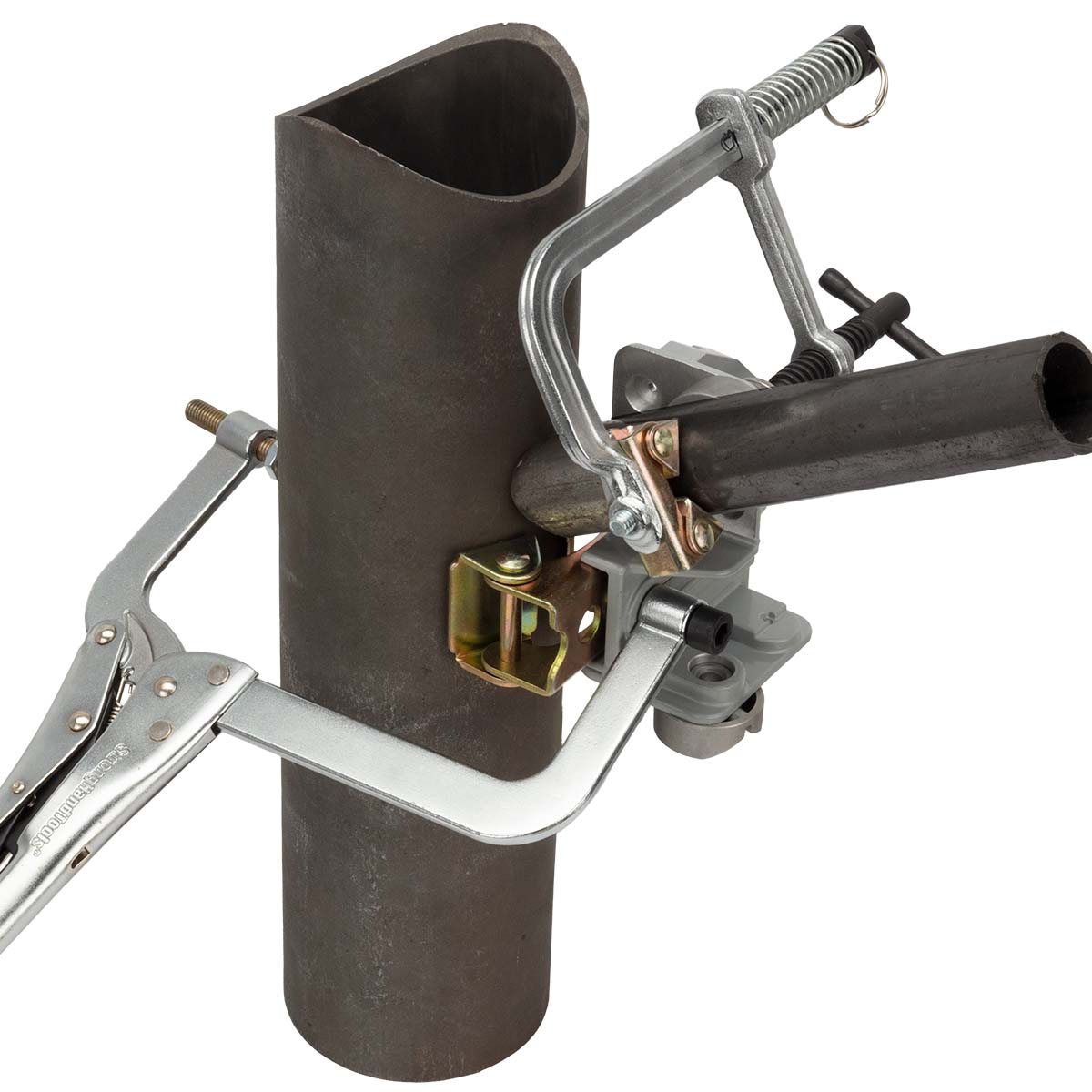

Use with MagSpring Clamp to join pipe at angle

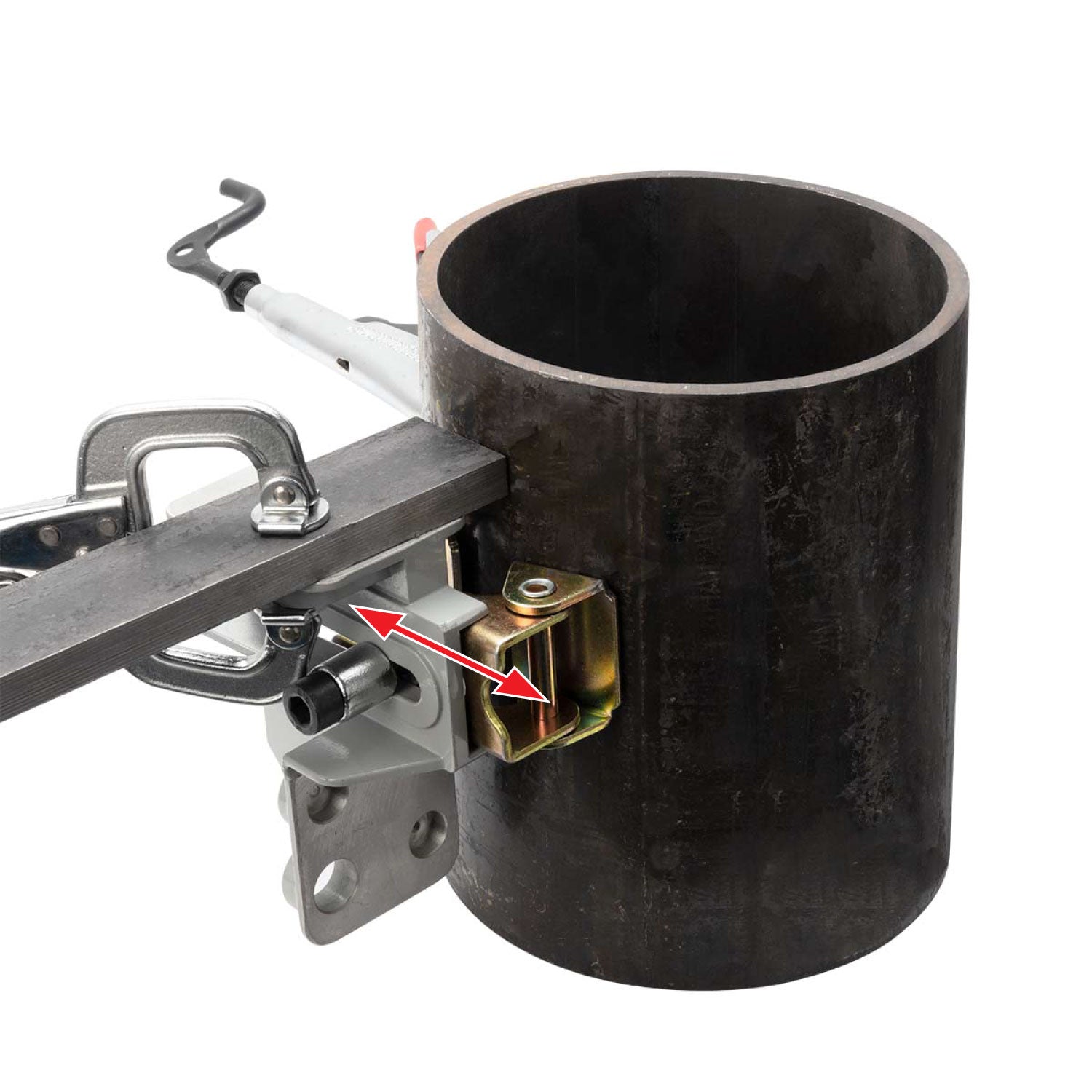

Use with Locking C-Clamp to hold square pipe

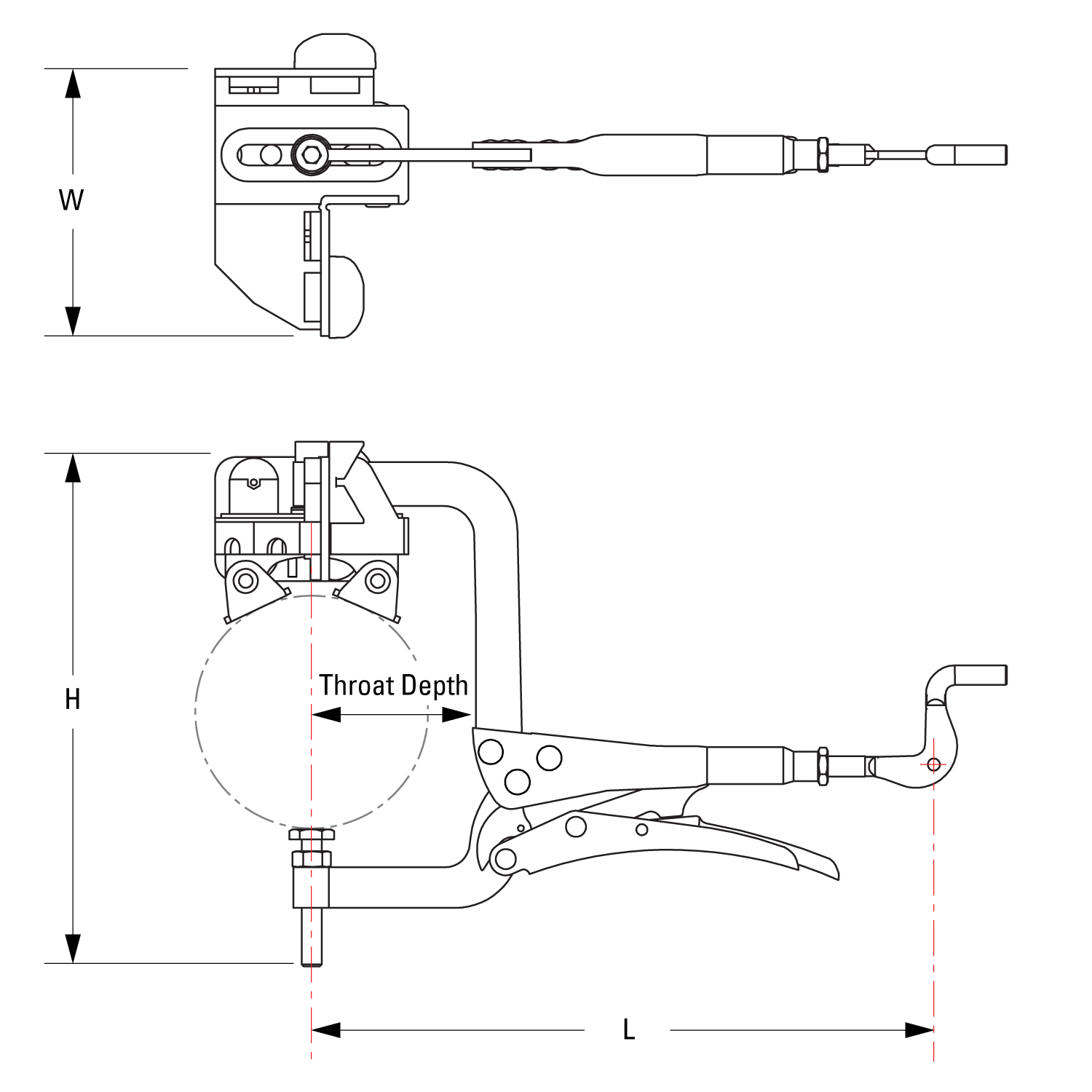

| Part No. | Hold Pipe (in) | L (in) | W (in) | H (in) | Throat Depth (in) | Weight (lb) |
|---|---|---|---|---|---|---|

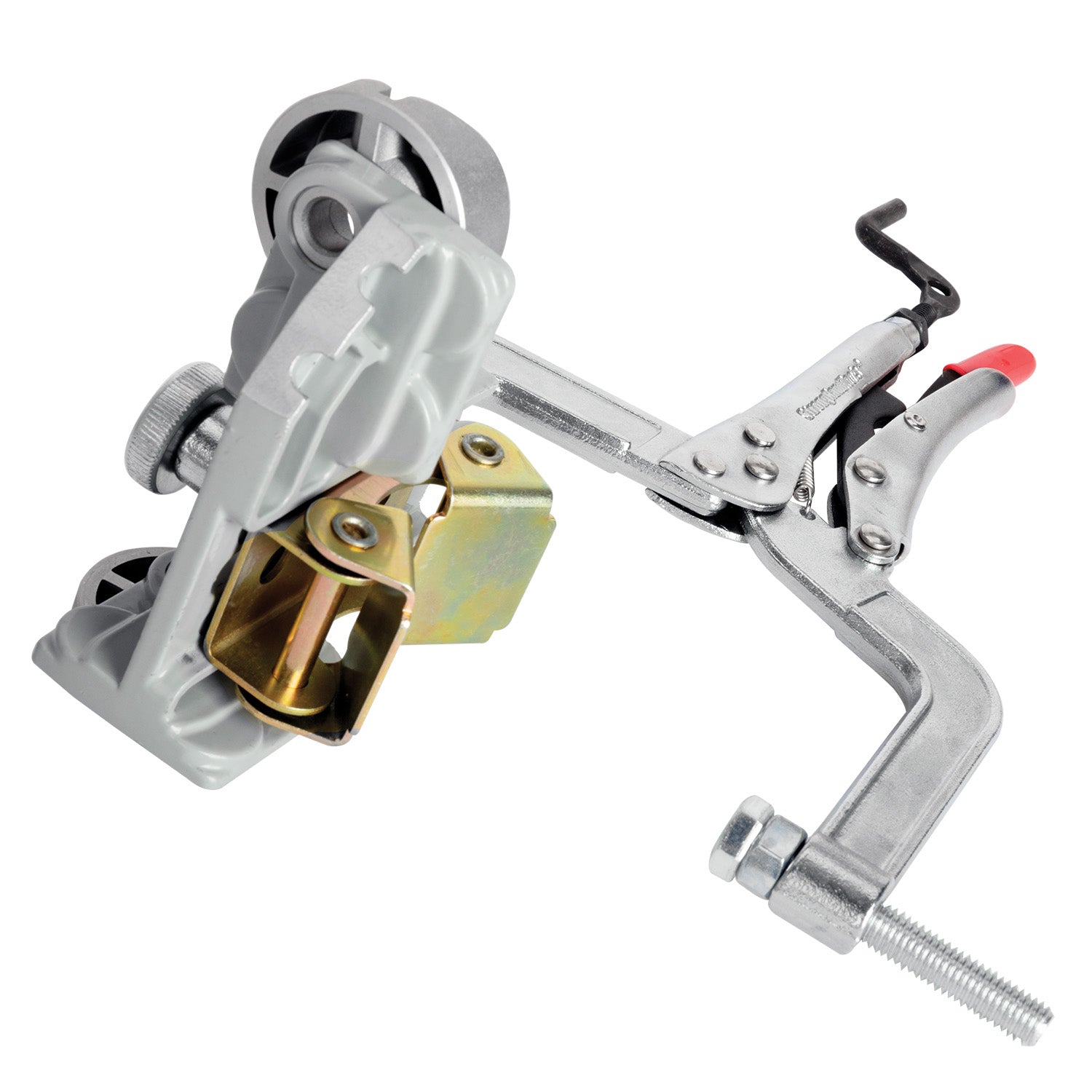

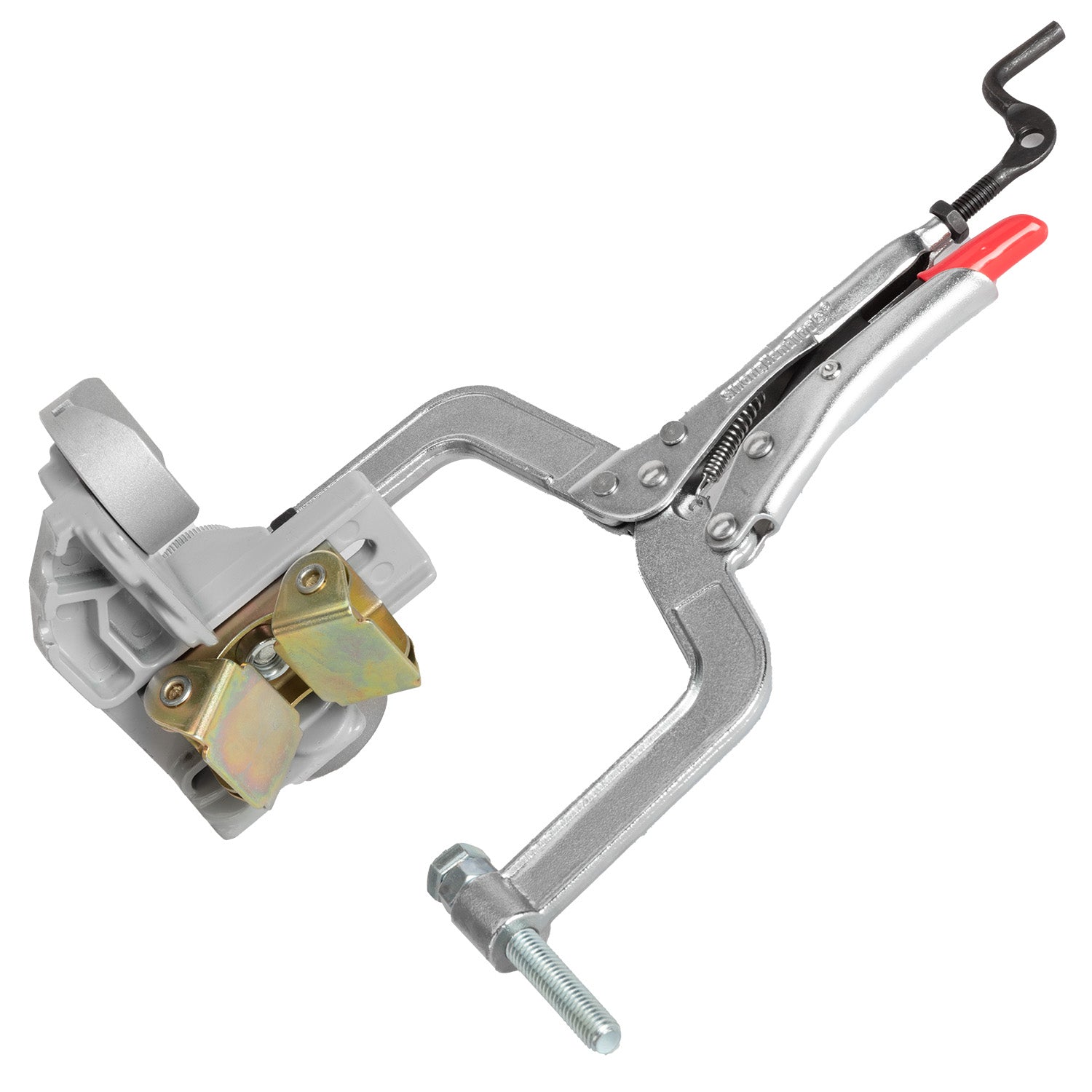

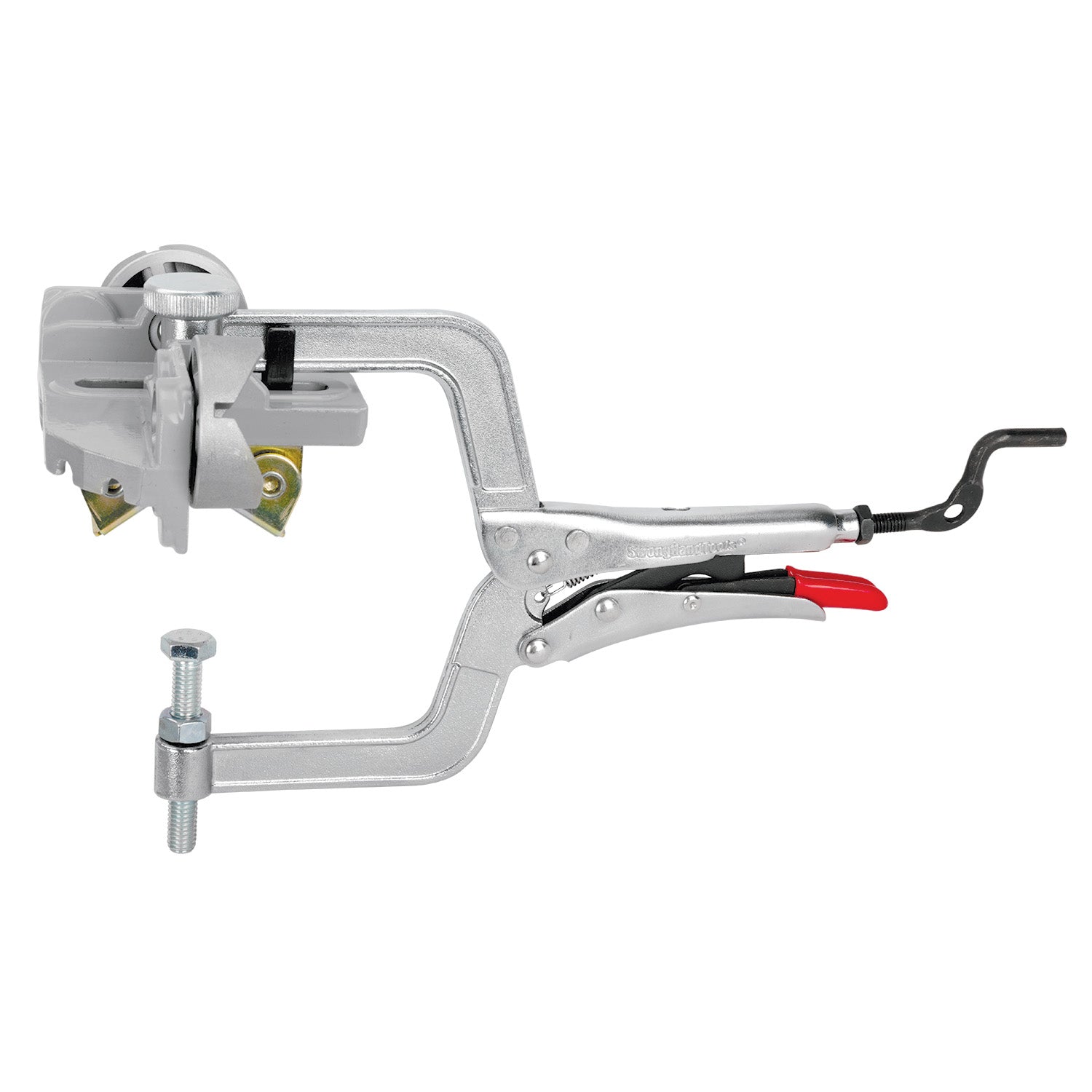

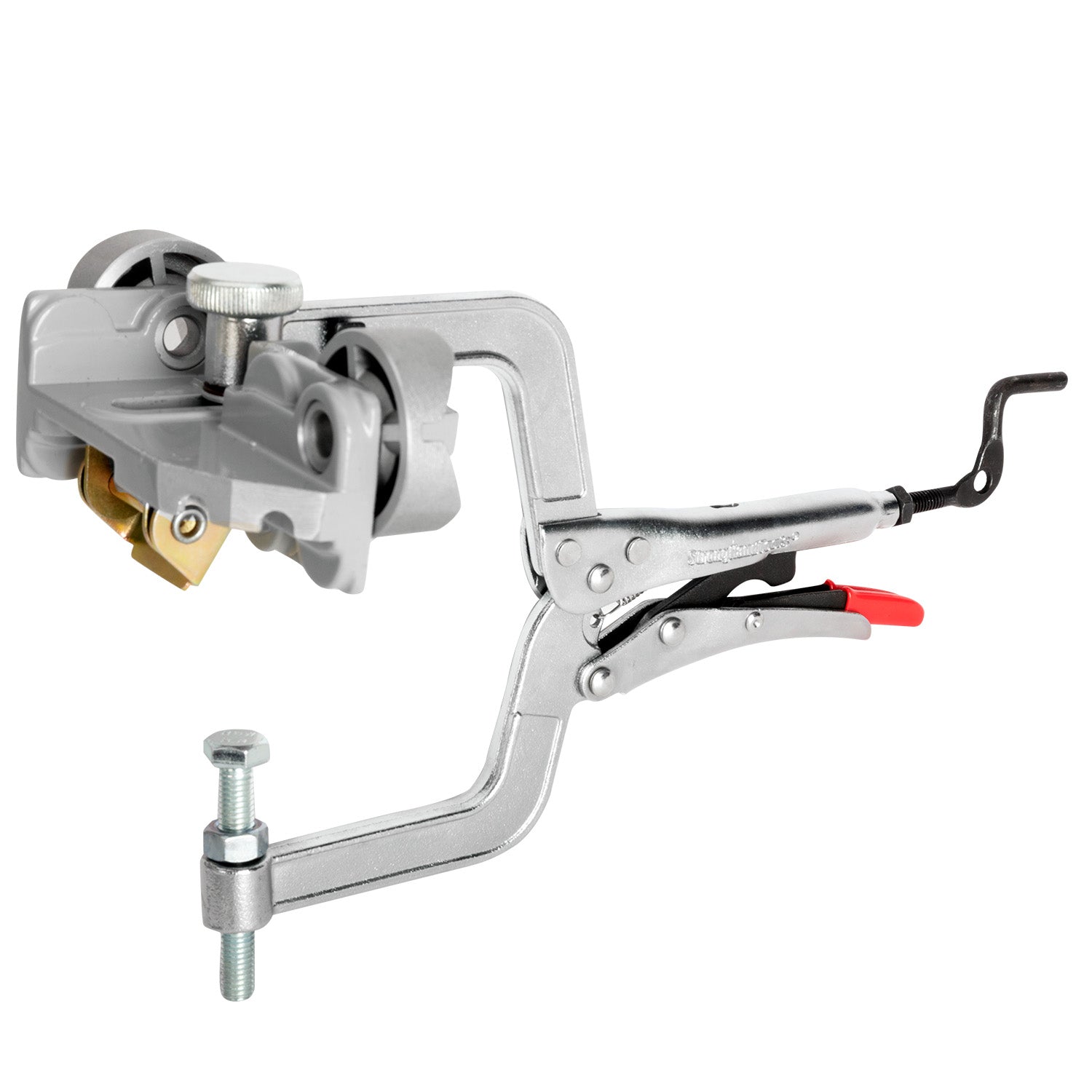

| PPJ634 | Up to Ø2.5" | 8.3 | 3.1 | 6.3 | 3 | 1.5 |

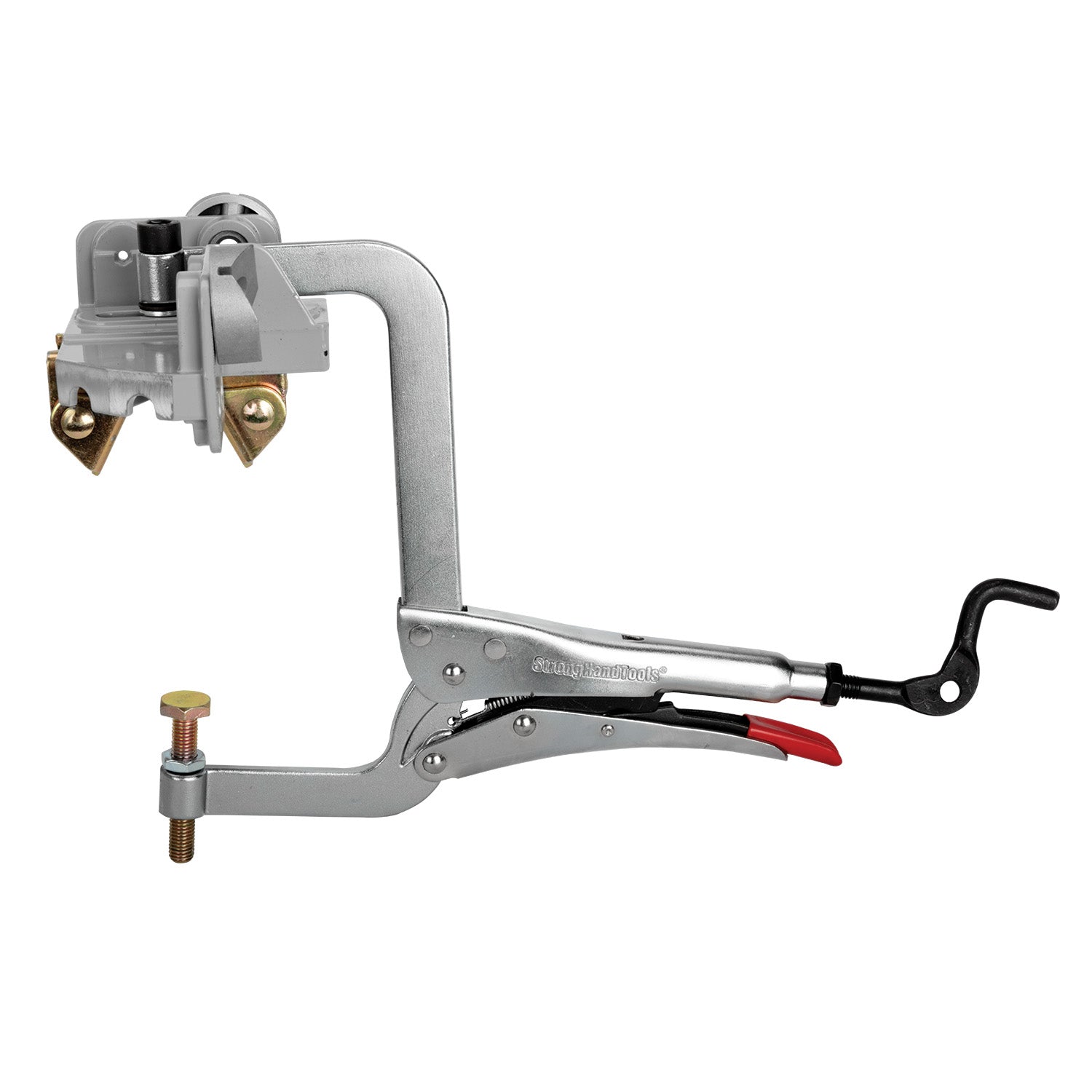

| PPJ1107 | Up to Ø5" | 11.5 | 5.2 | 10.2 | 3.1 | 3.7 |
