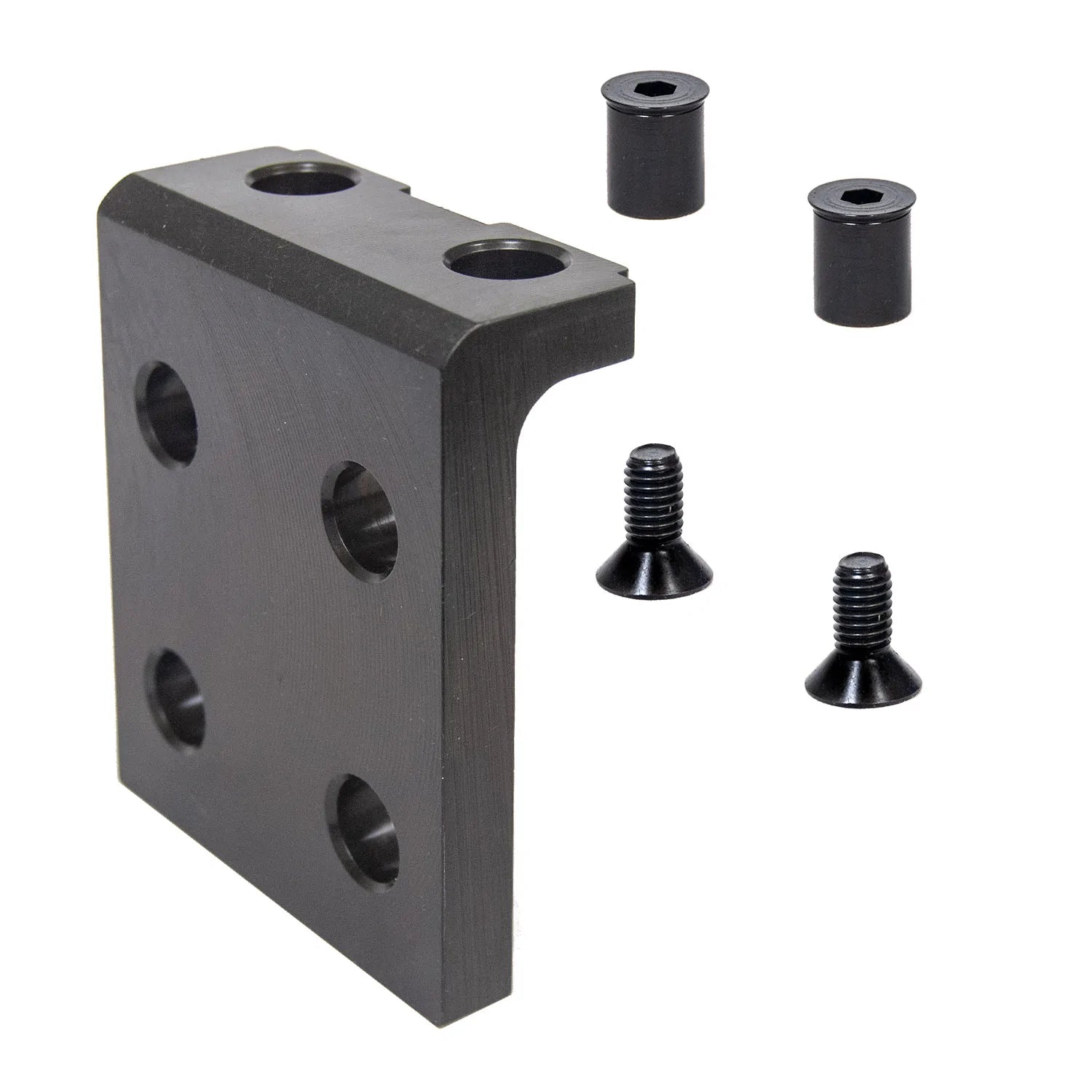

Side Brackets, 5/8 Holes, mounting on MAX and Rhino Carts
Side Brackets, 5/8 Holes, mounting on MAX and Rhino Carts
Available in stock (153)
-
Estimated delivery: May 15 - May 19
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

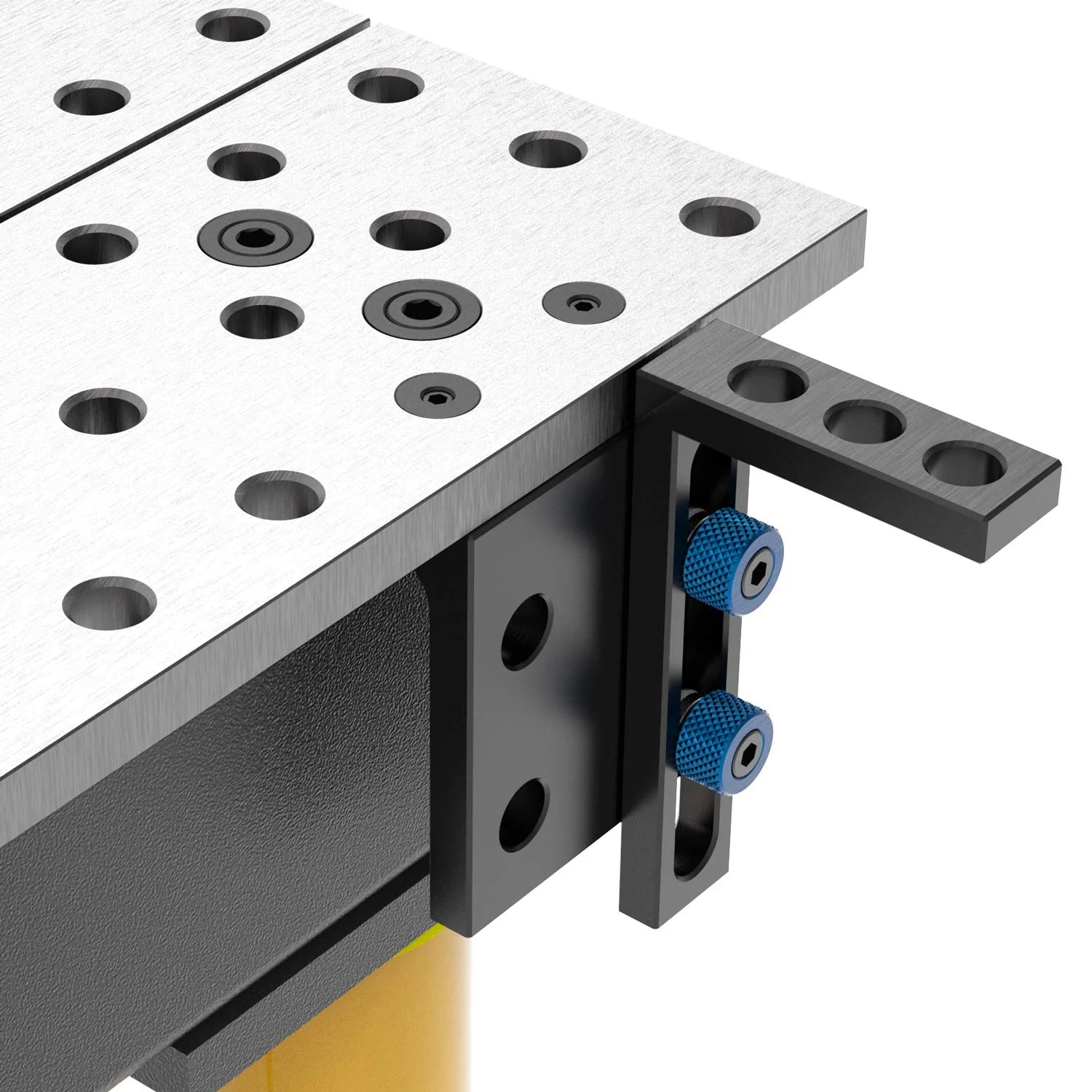

Locate or clamp your weldment at or beyond the table edge, by mounting the Side Bracket at the edge of your Slotted or MAX Welding Table.

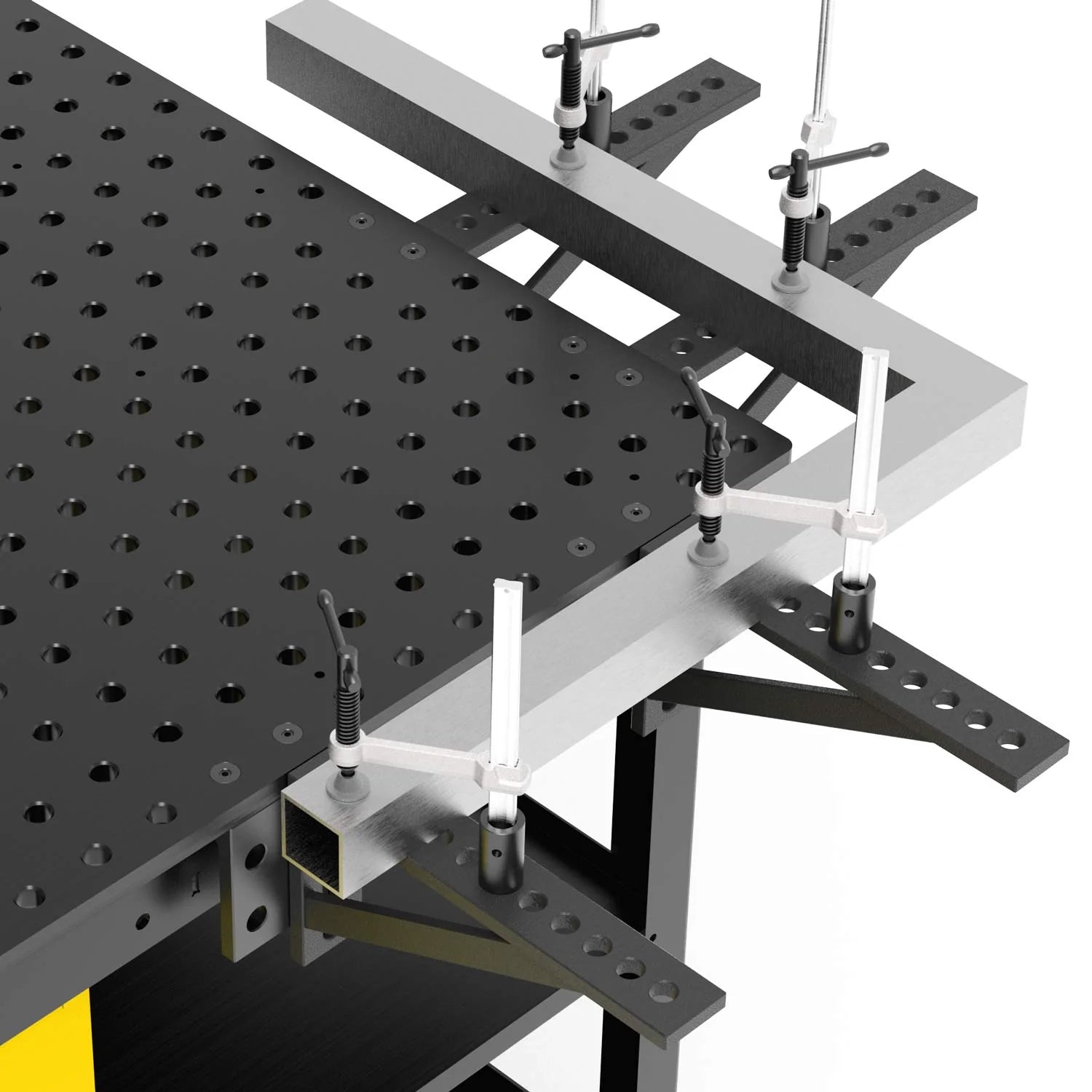

Use the Side Bracket to vertically mount clamping elements, such as the Straight Edge Stops or Right Angle Brackets to add greater functionality to your table in fixturing oversized weldments.
See model T51830 for mounting on the side of slotted tables option.

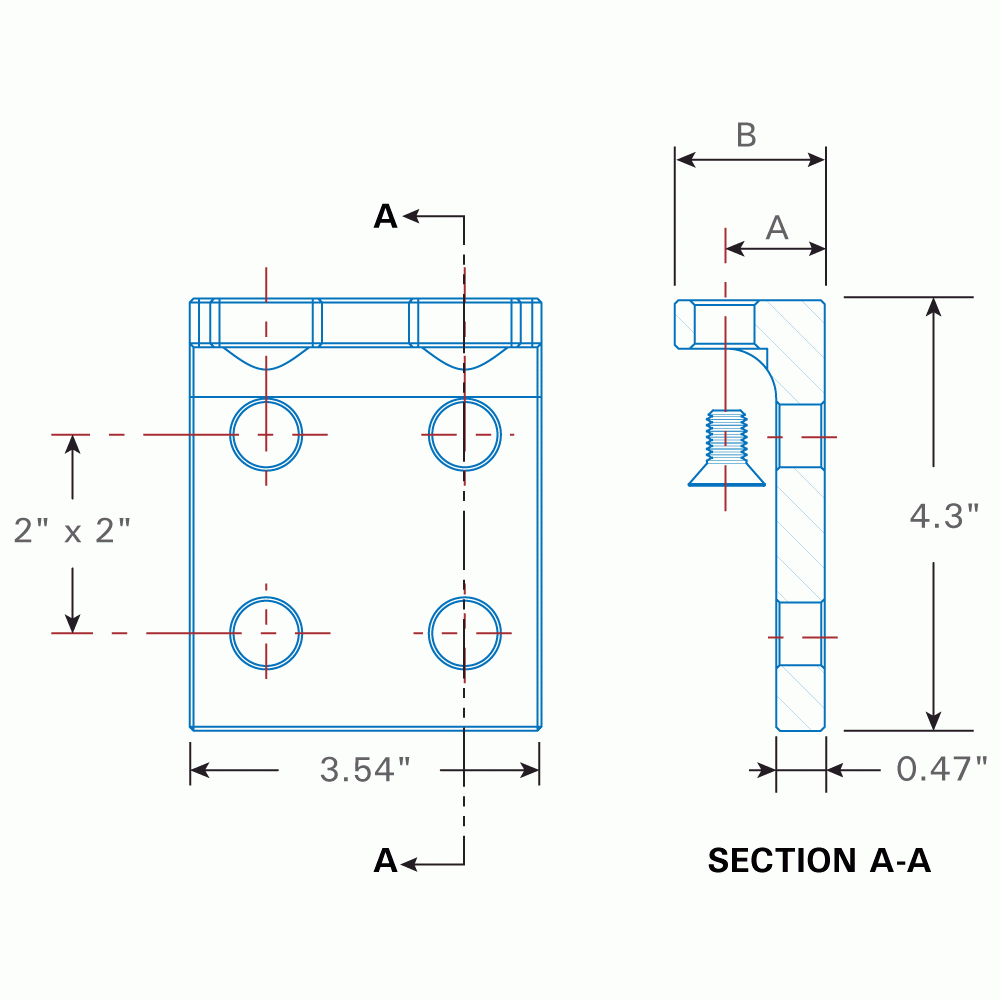

| Part No. | A (in) | B (in) | Mounting Location | Weight (lb) |
|---|---|---|---|---|
| T51825 | 1.010 | 1.475 |
MAX Tables – END or SIDE Slotted Tables - END Rhino Cart - ANY SIDE |
2.5 |
