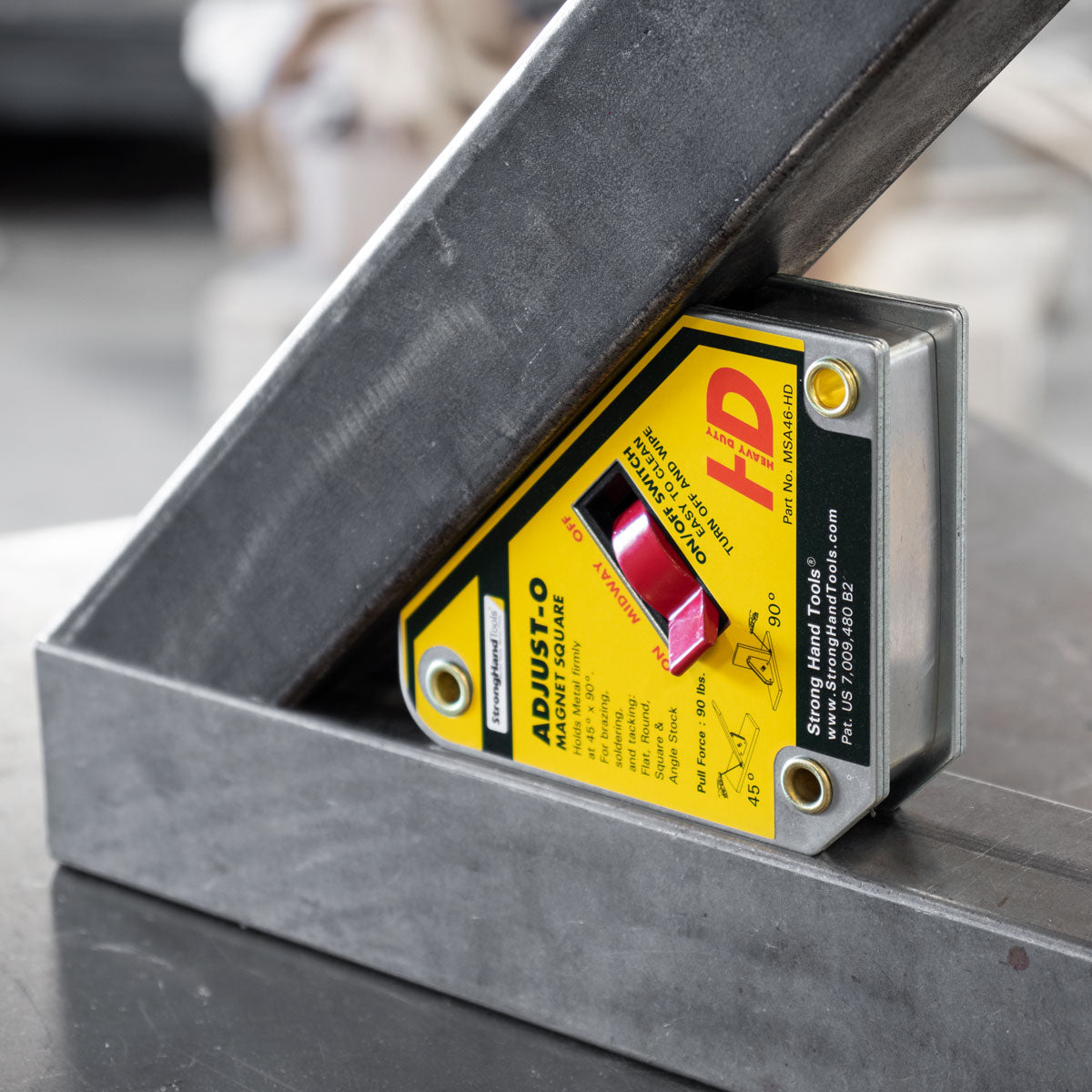

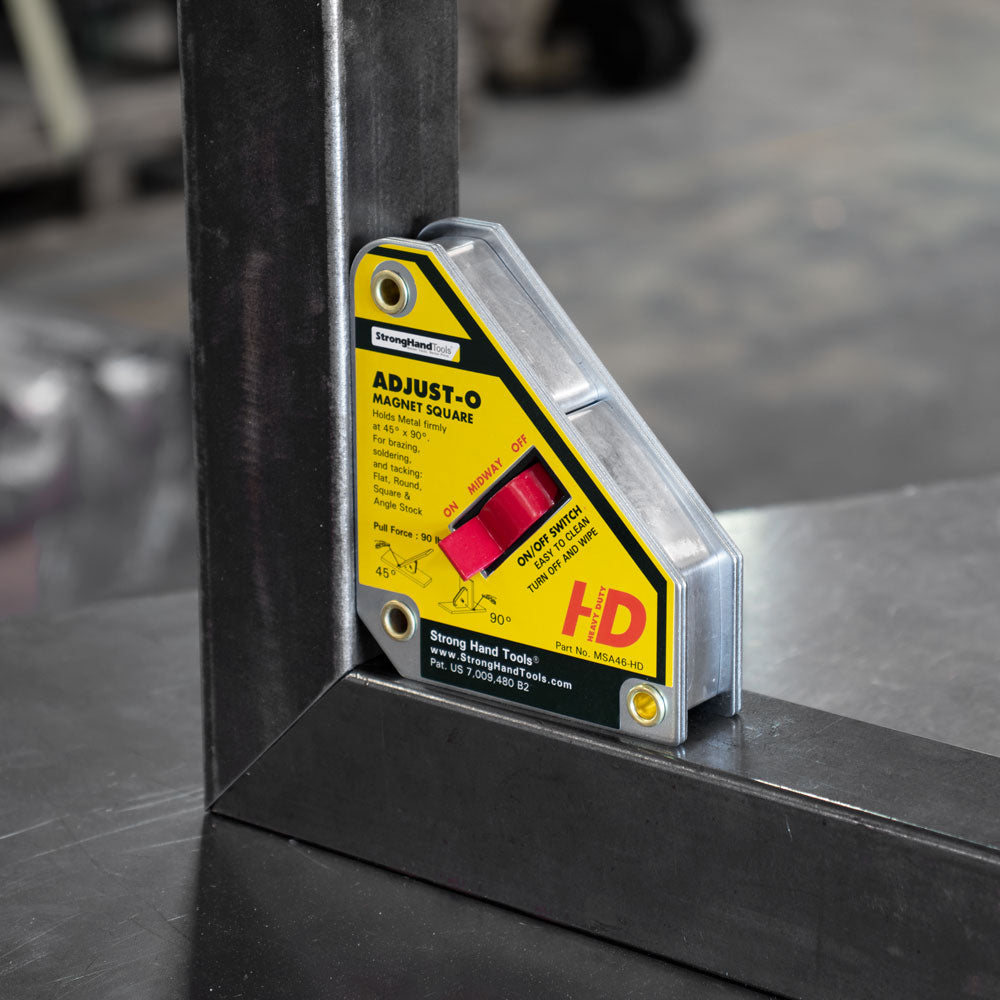

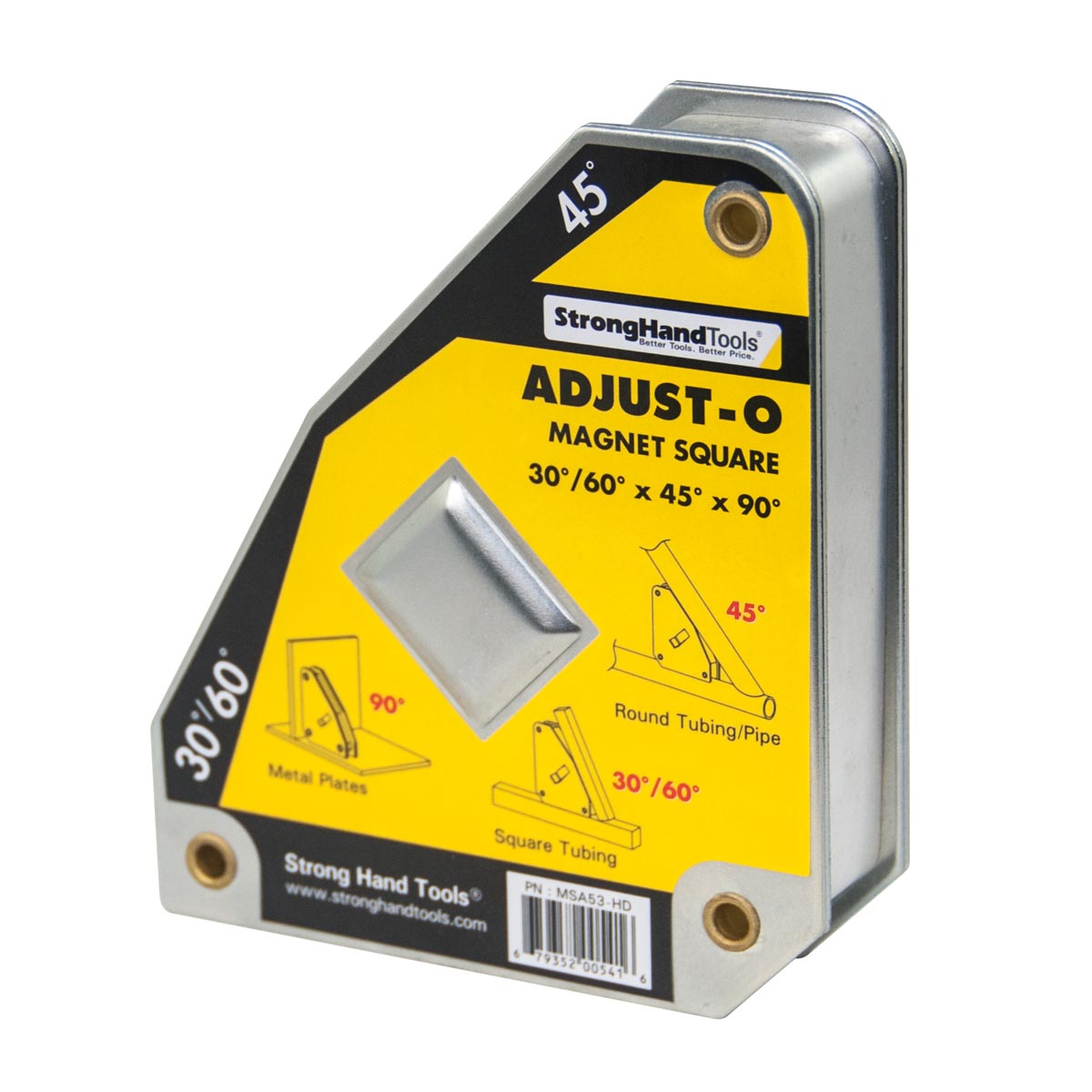

The fast & easy way to hold metal workpieces at 30°/ 60°, 45°, and 90°.
Turn the magnet Off or at the mid-point position when setting up, turn on when you’re ready to work.
Fast and safe set-up! Ideal for round and square tubing, angle, and flat stock. Easy to clean. Simply turn Off and wipe.
U.S. PAT. 7009480
If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

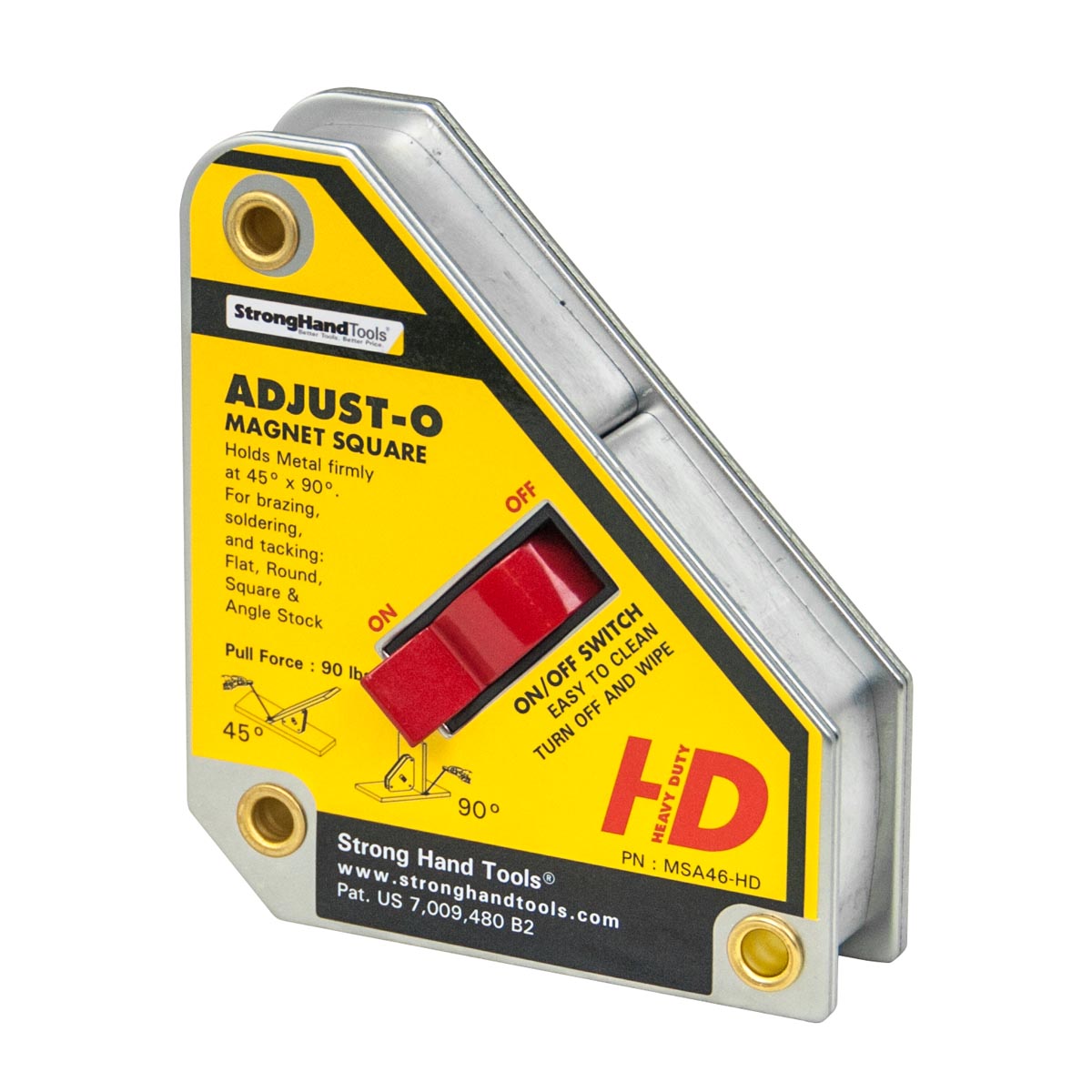

ON / OFF Switch for quick setup. Mid point switch position for alignment / easy part placement.
Made with strong rare earth magnets. Fully enclosed for easier cleaning.
DOUBLE Plate - Optimize magnetic full force ( HD models )
| Part No. | Max. Pull Force (lb) | Dimension (in) | Weight (lb) |
|---|---|---|---|

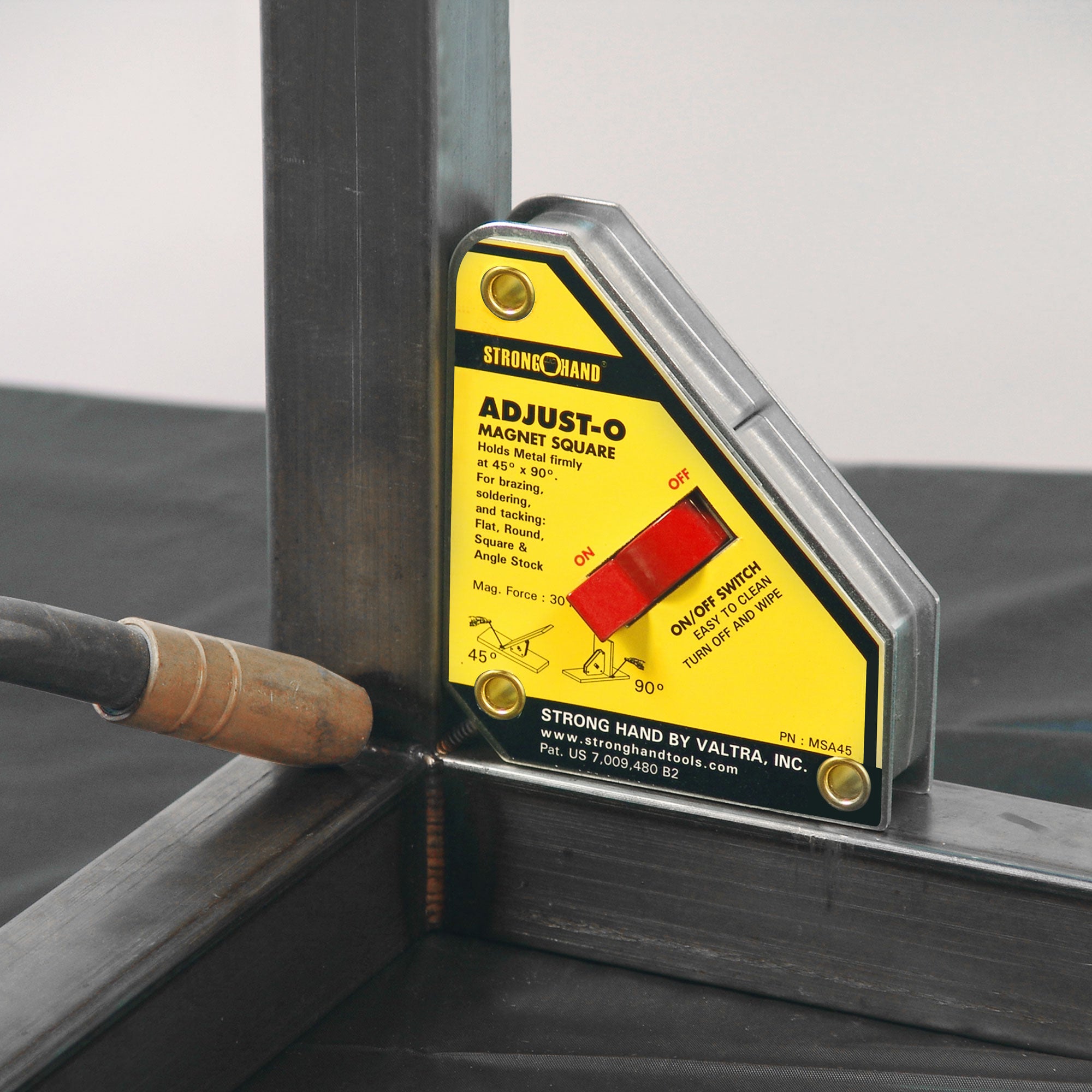

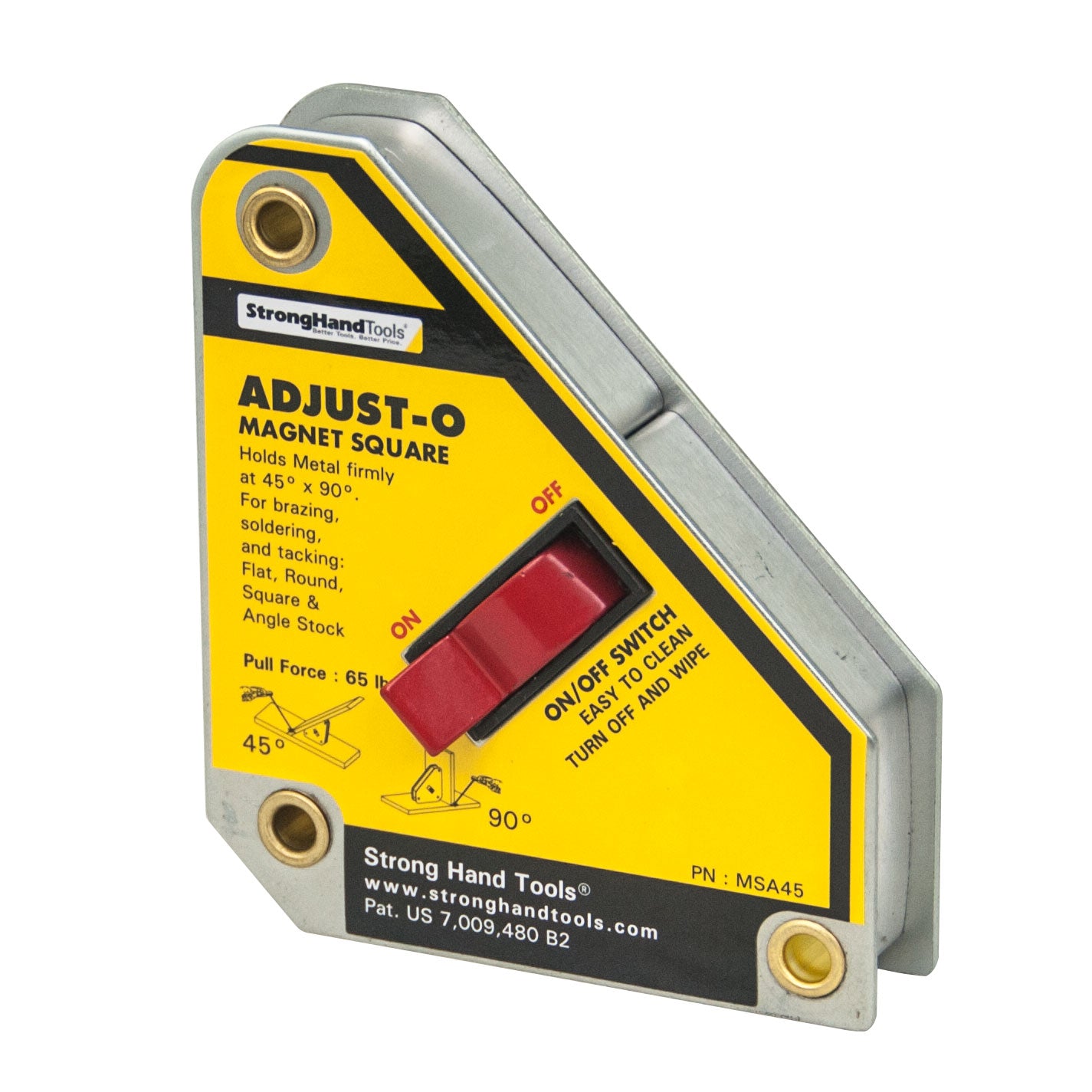

| MSA45 | 65 | 4.4 x 3.8 x 1 | 1.0 |

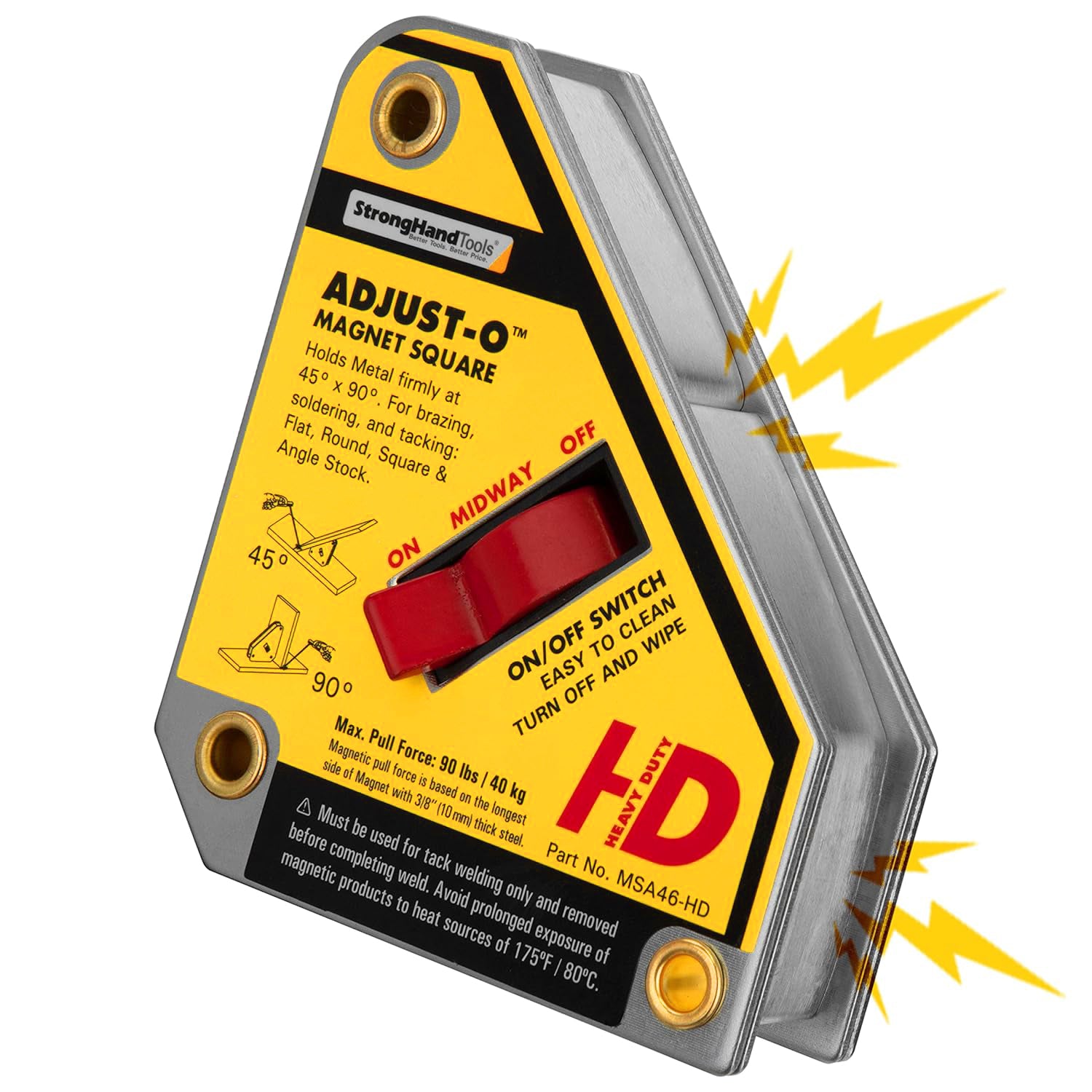

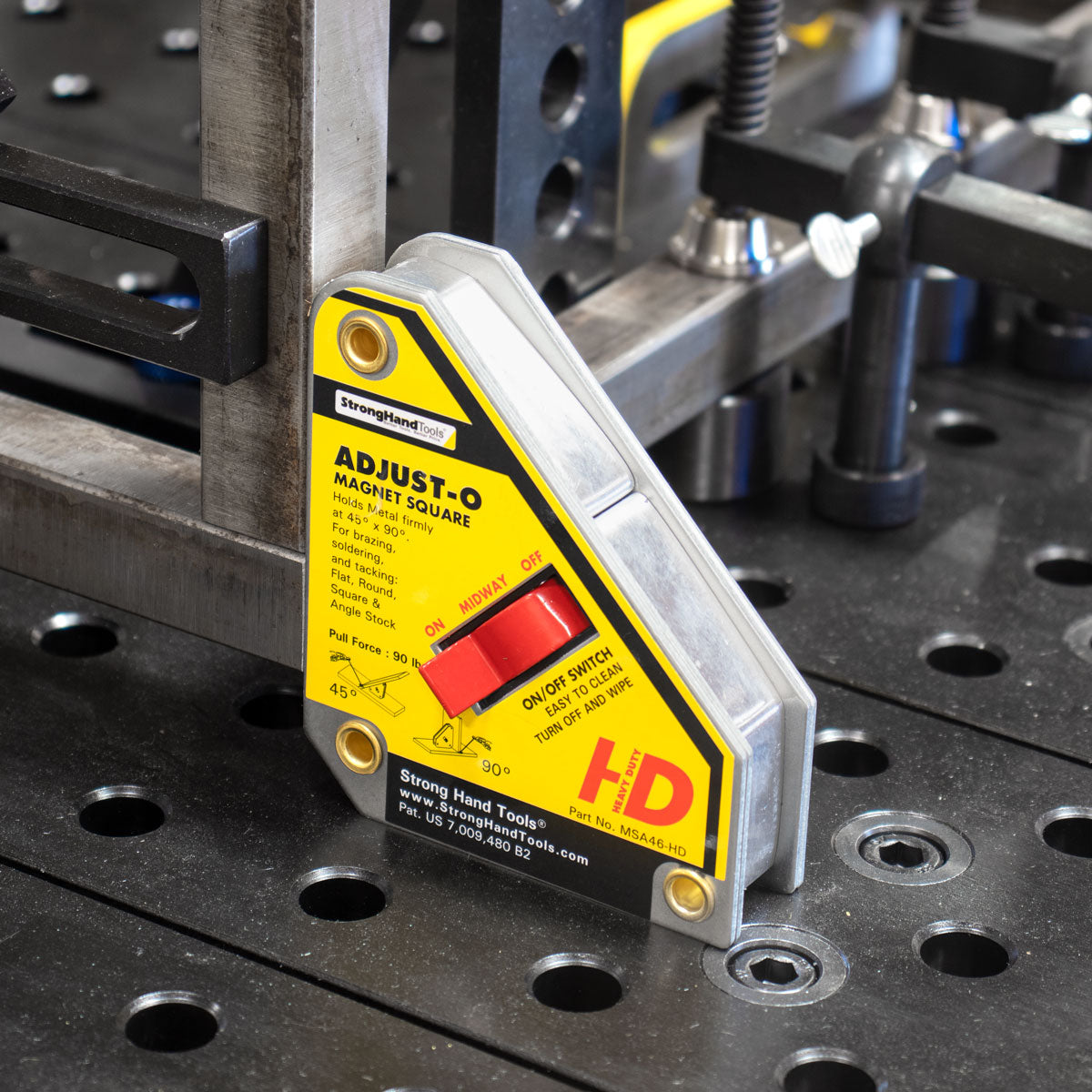

| MSA46-HD | 90 | 4.4 x 3.8 x 1.1 | 1.5 |
| MSA47 | 75 | 6 x 5.1 x 1.3 | 2.2 |

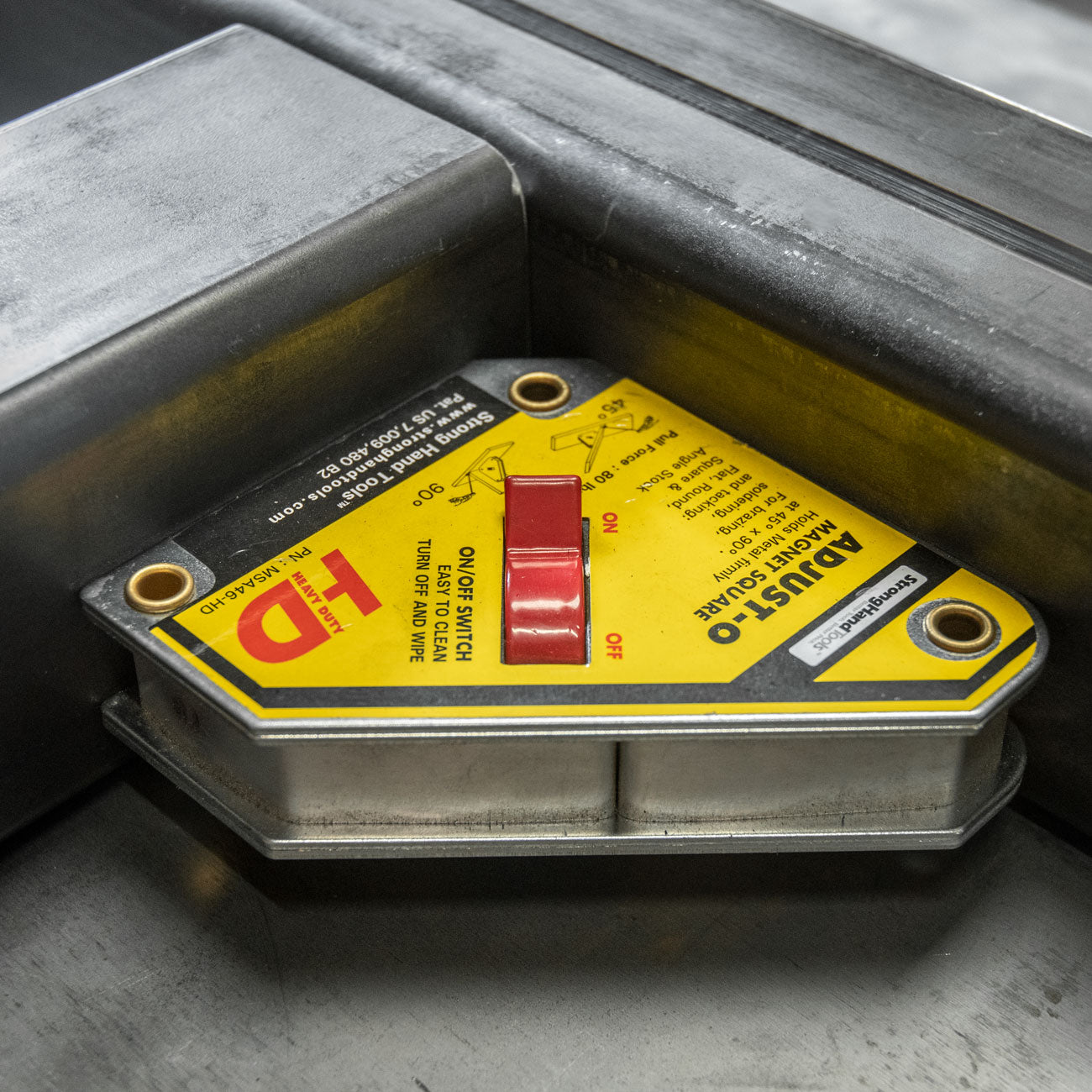

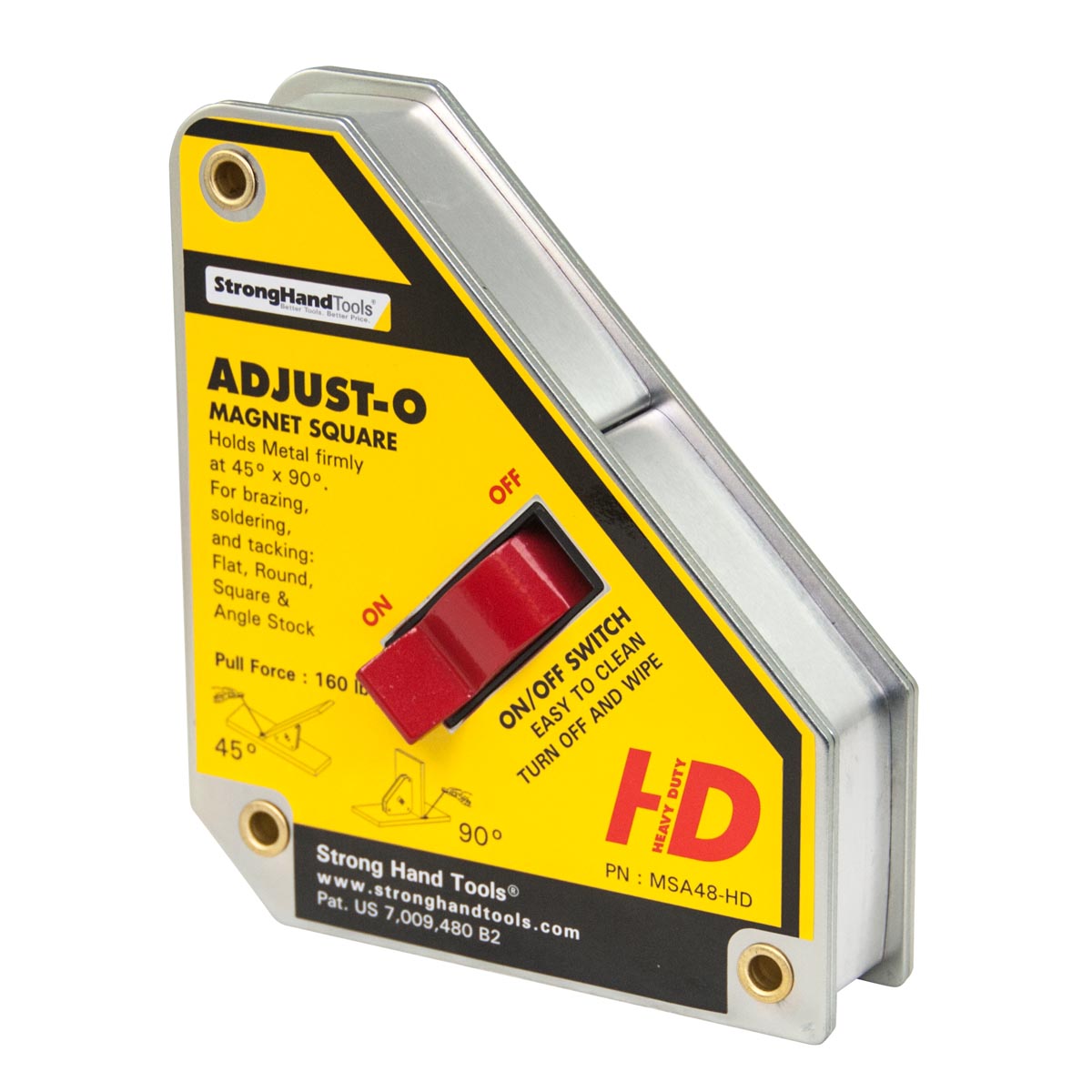

| MSA48-HD | 160 | 6 x 5.1 x 1.4 | 3.0 |

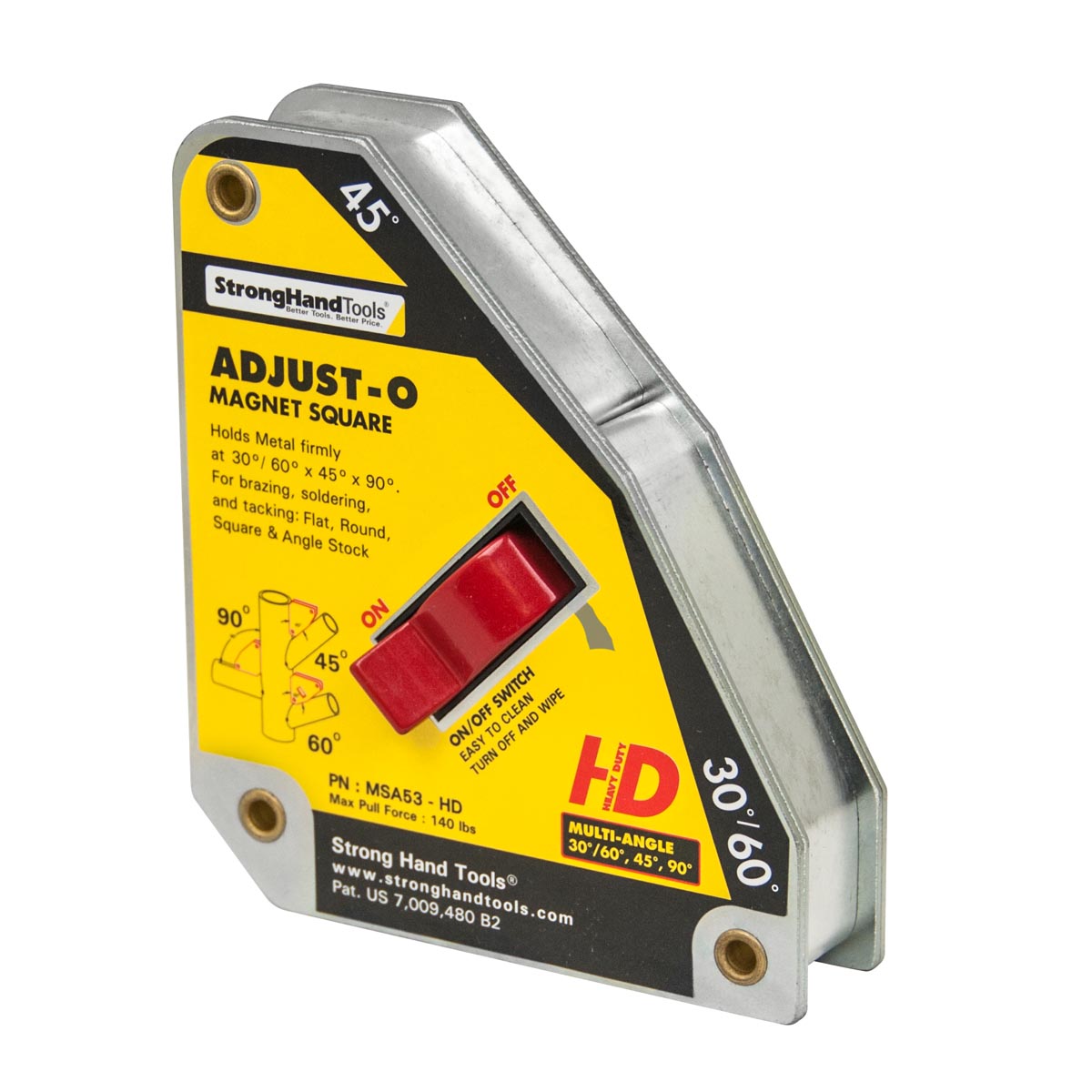

| MSA53-HD | 140 | 6 x 5.1 x 1.4 | 3.0 |
* Magnetic force is based on the longest side of Magnet with 3/8″ thick steel.
* Must be used for tack welding only and removed before completing weld. Avoid prolonged exposure of magnetic products to heat sources of 175ºF / 80ºC and above.
| Description |
| Product variants |
| Price |
| The fast & easy way to hold metal workpieces at 30°/ 60°, 45°, and 90°. Turn the magnet Off or at the mid-point position when setting up, turn on when you’re ready to work. Fast and safe set-up! Ideal for round and square tubing, angle, and flat stock. Easy to clean. Simply turn Off and wipe. U.S. PAT. 7009480 |
Regular price
From $46.50 USD
Sale price
From $46.50 USD
