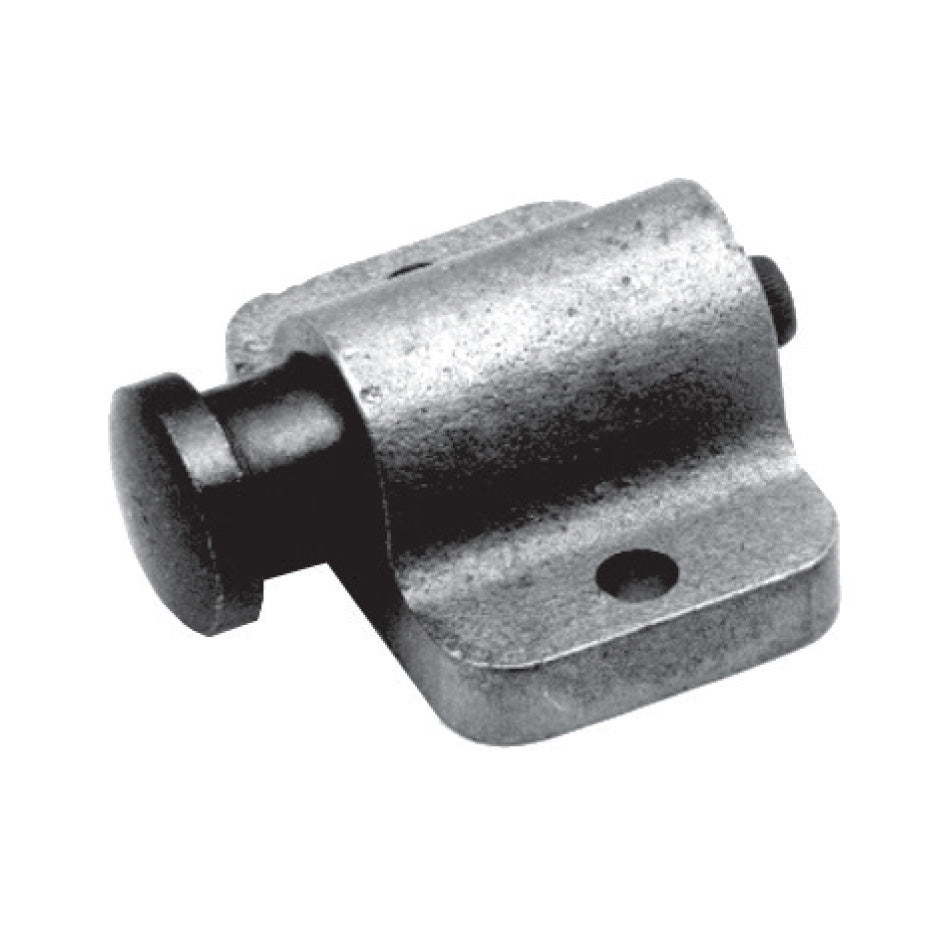

Spring Stops
Spring Stops
Regular price
$7.20 USD
Sale price
$7.20 USD
Regular price
Shipping calculated at checkout.
In stock
-
Estimated delivery: May 18 - May 22
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
Material:
Body - Cast Iron (Medium and Large Sizes)
- Aluminum (All Sizes)
Nose - Heat Treated Steel
Finish:
Body - Plain
Nose - Black Oxide

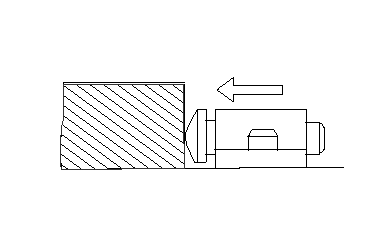

- Temporarily hold work tight against locators.

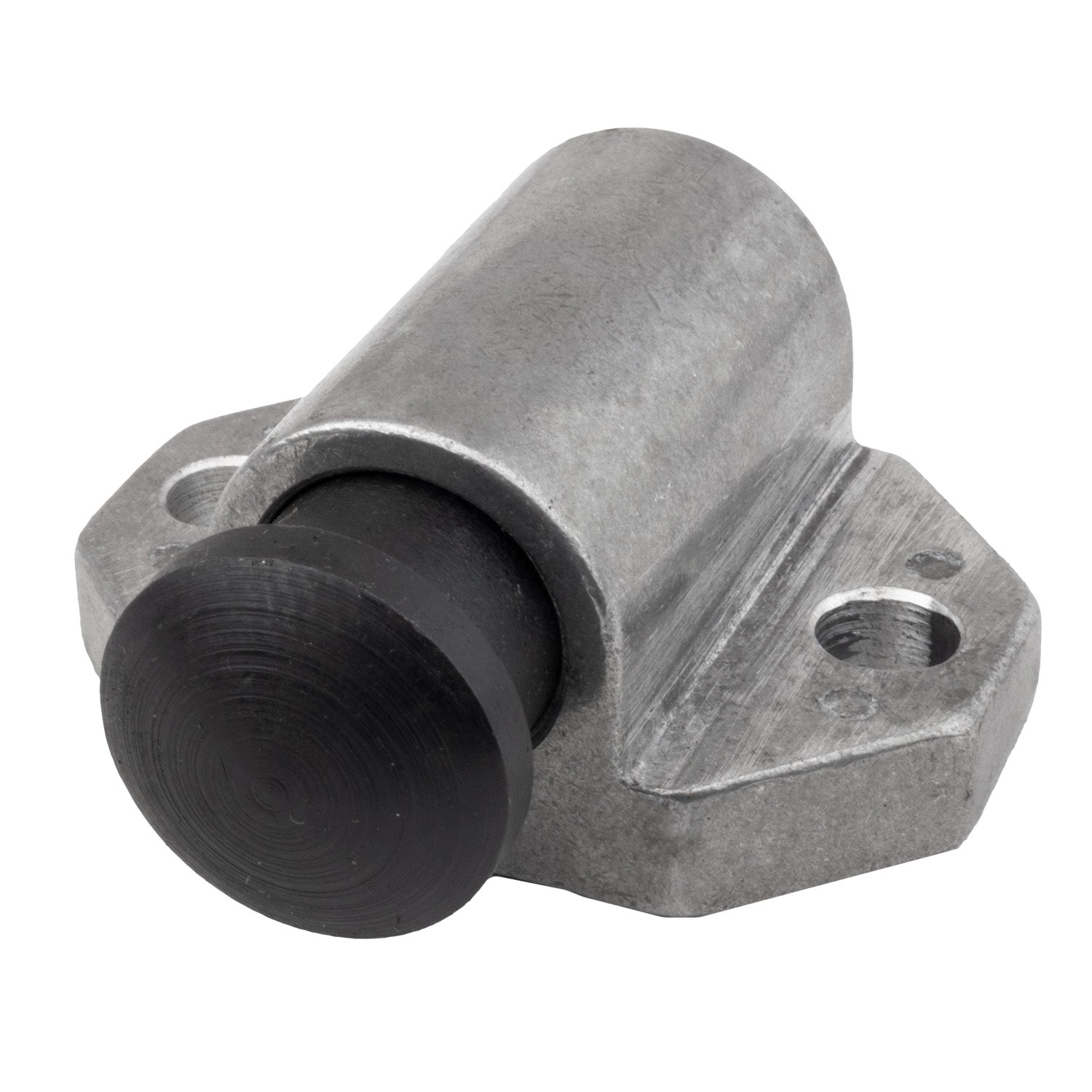

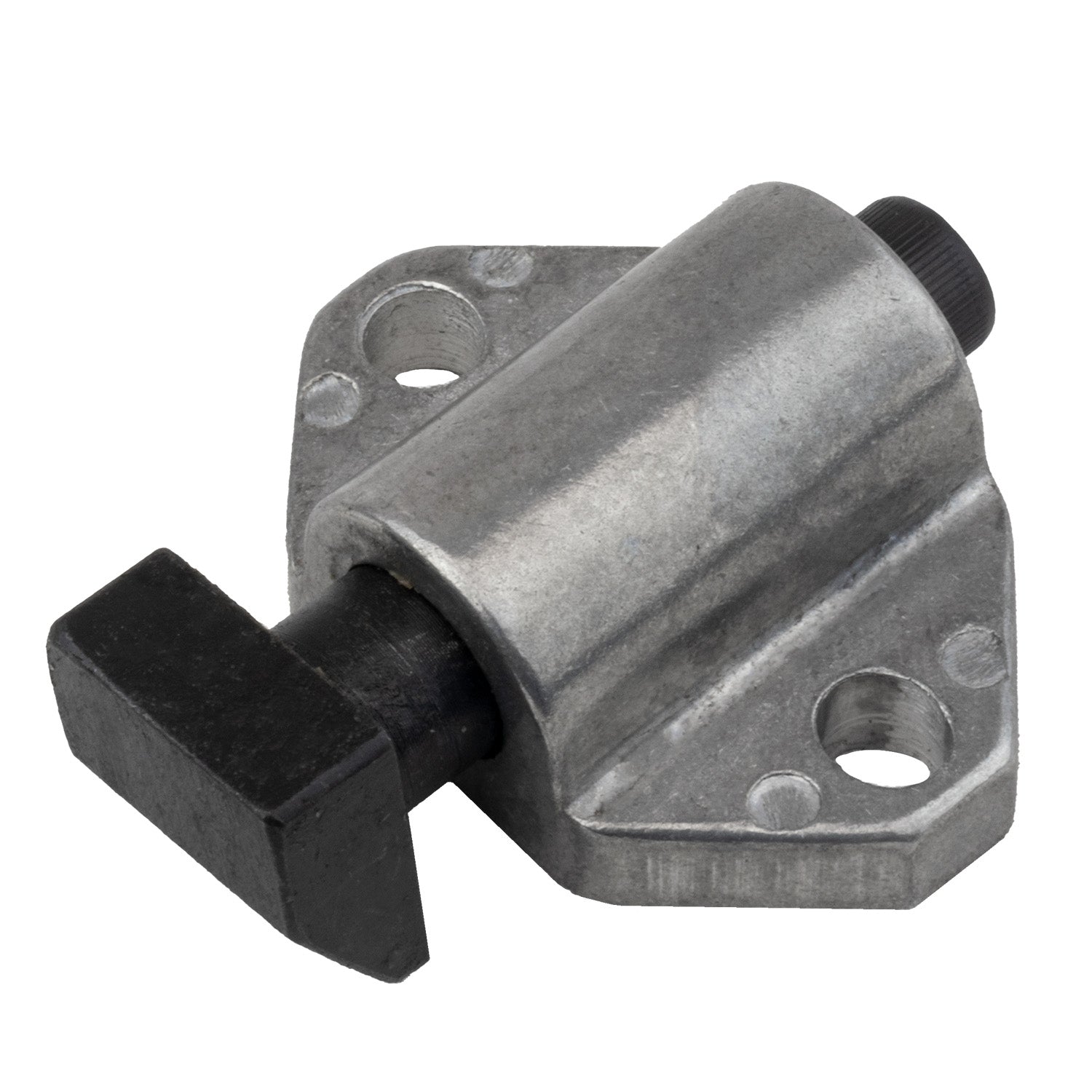

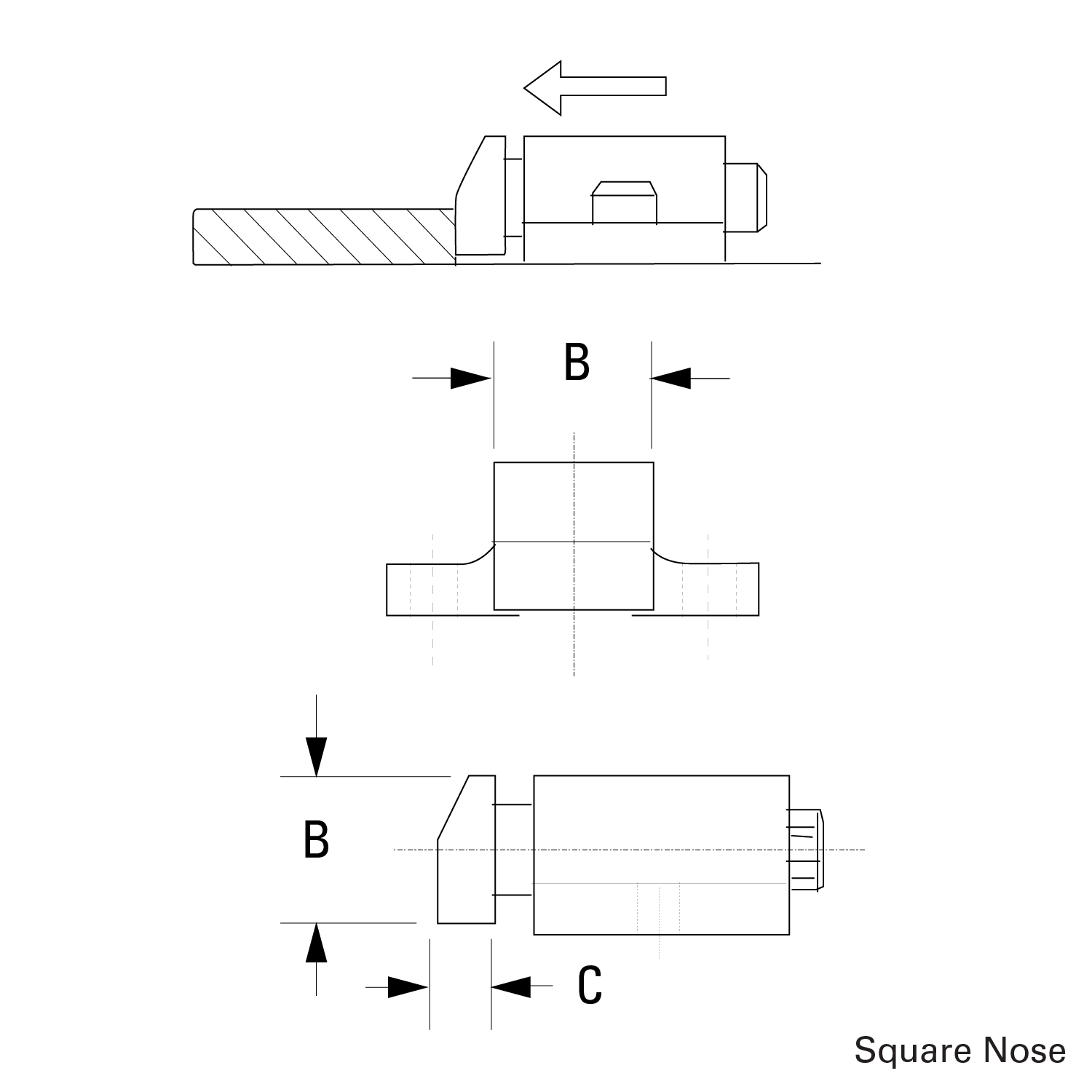

- We have different spring stops to fulfill different needs: the round nose for general purpose tooling, the square one for thin parts
| Part No. | Nose | Size | A | B | C | * End Pressure (LBS.) | |
|---|---|---|---|---|---|---|---|
| Aluminum | Cast Iron | ||||||

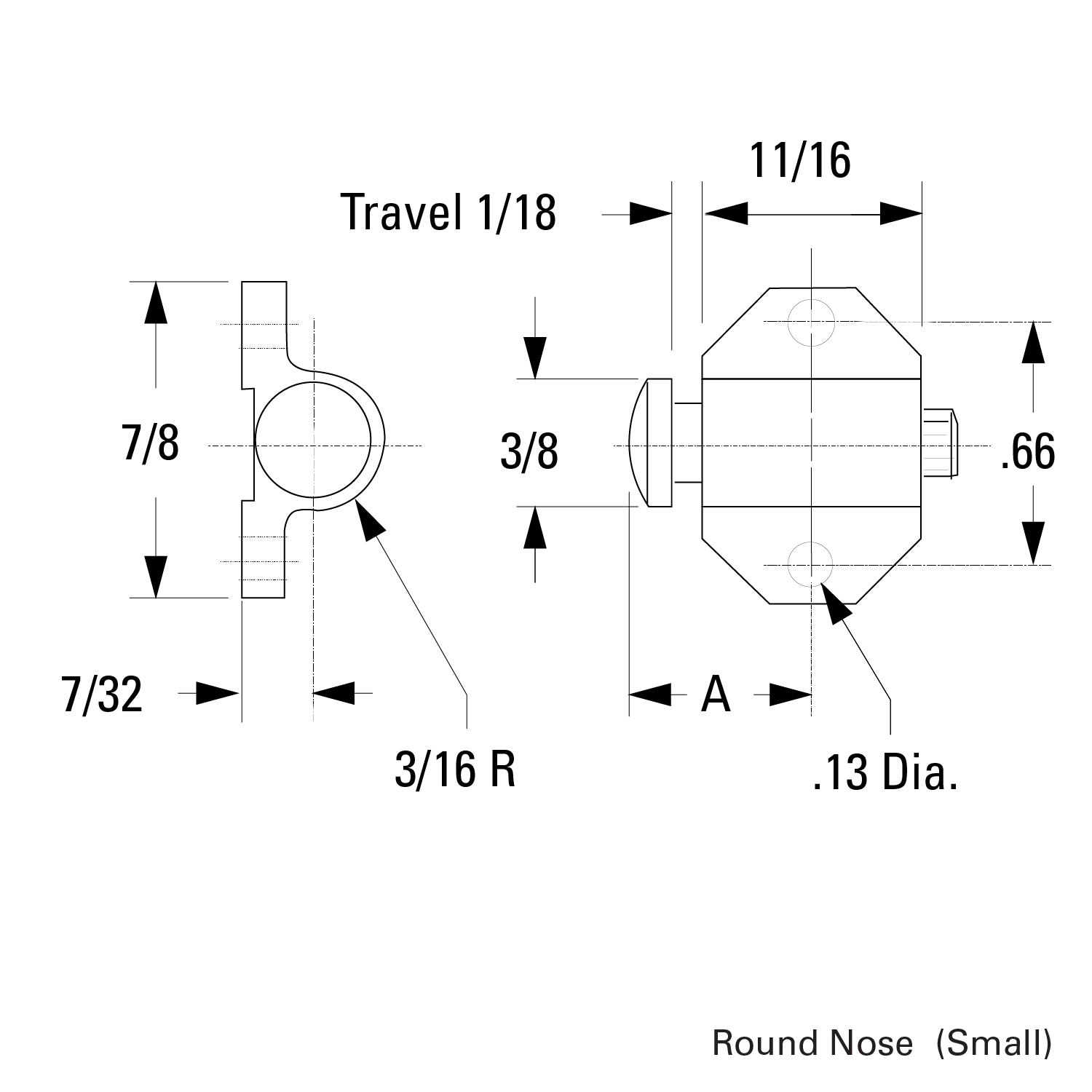

| 855000 | -- | Round | Small | 19/32 | -- | -- | 10 |

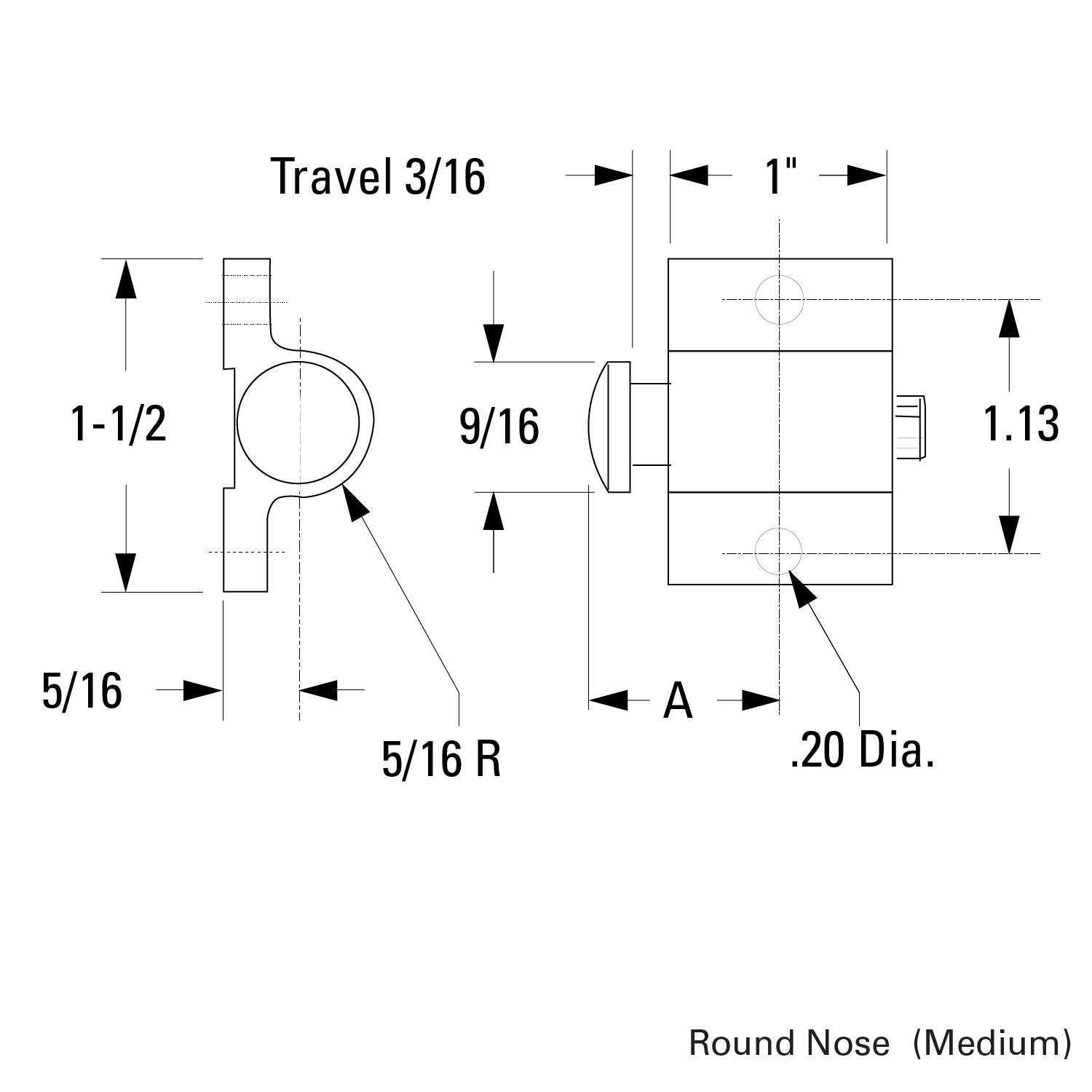

| 855015 | 855010 | Round | Medium | 7/8 | -- | -- | 14 |

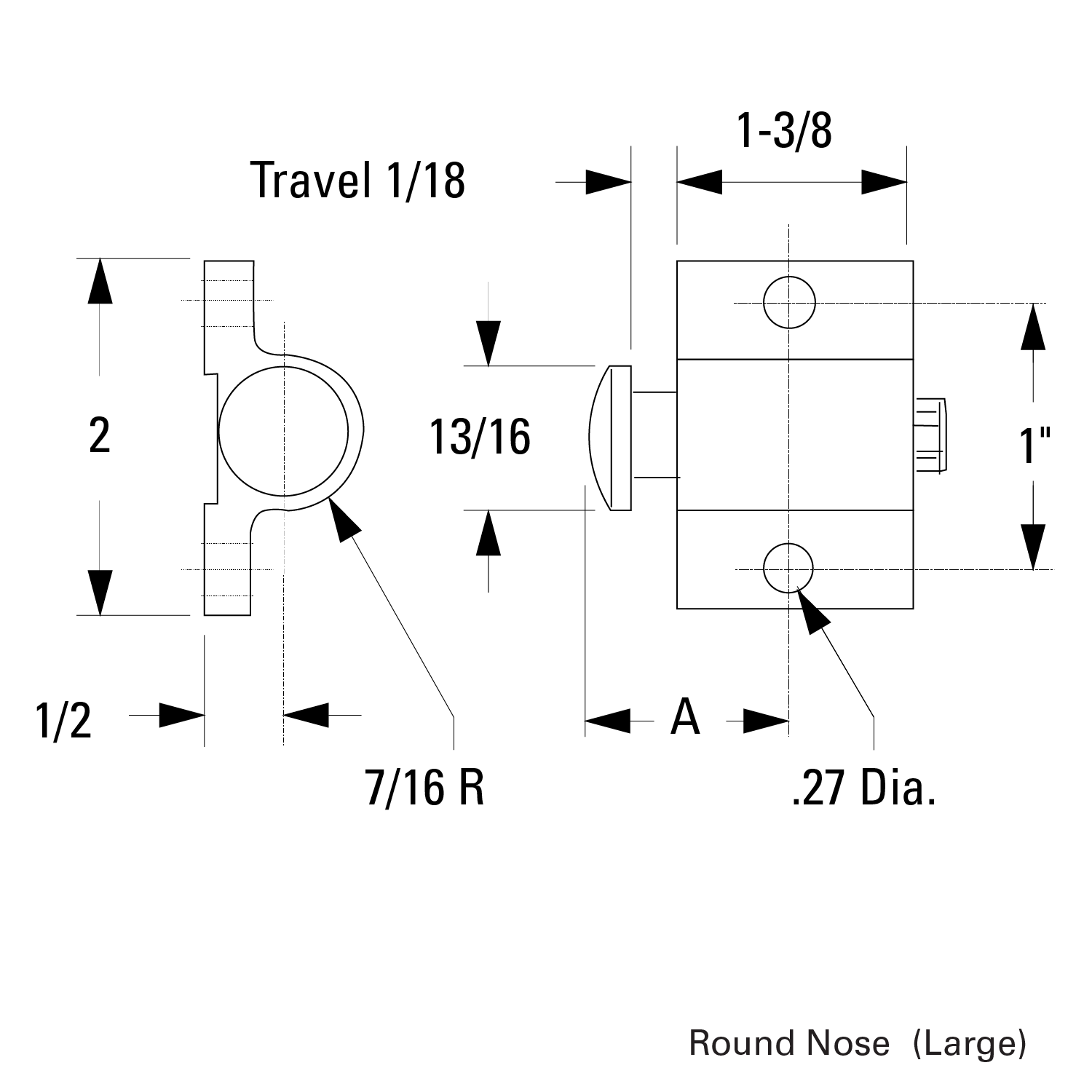

| 855025 | 855020 | Round | Large | 1-7/32 | -- | -- | 32 |

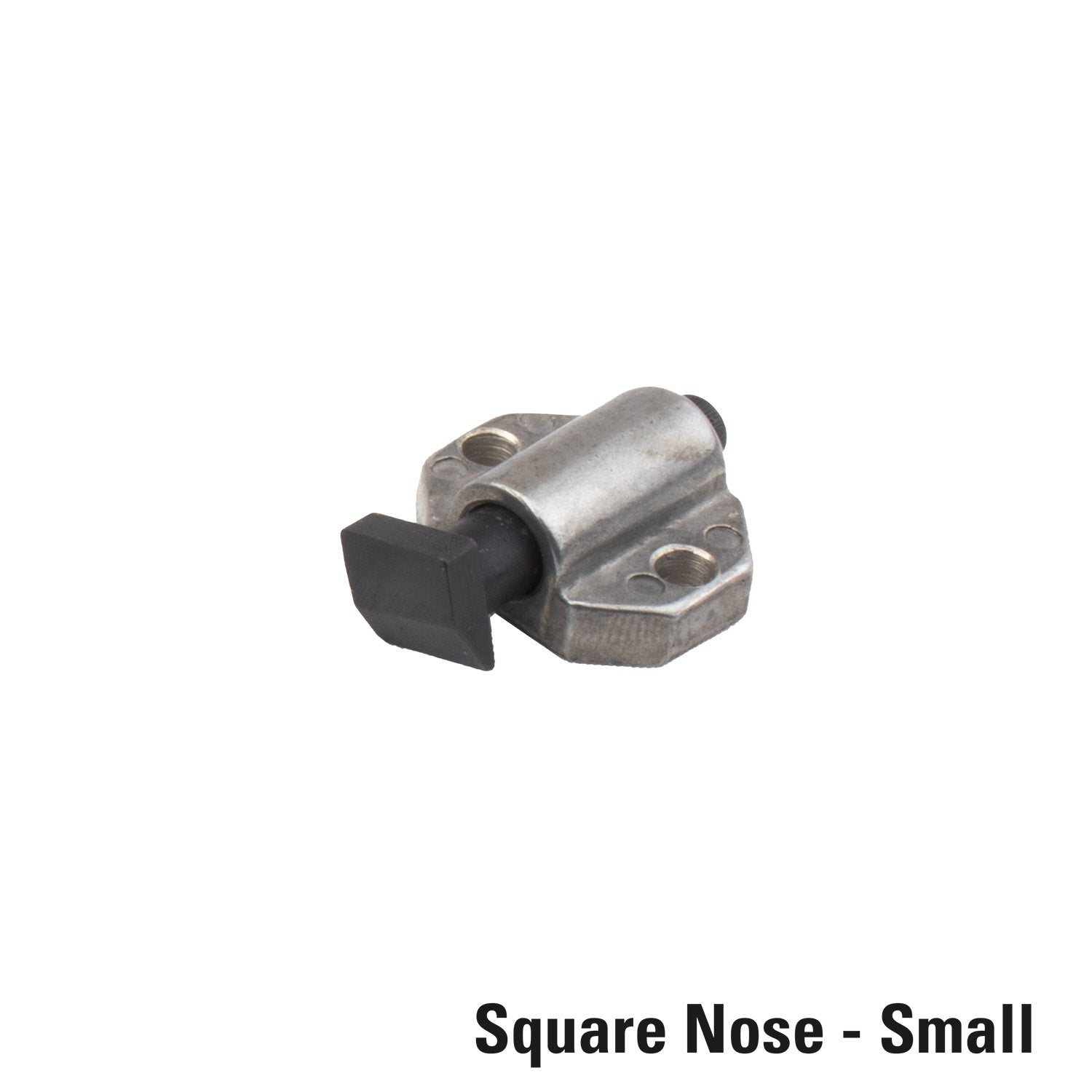

| 855050 | -- | Square | Small | 19/32 | 3/8 | 1/8 | 10 |

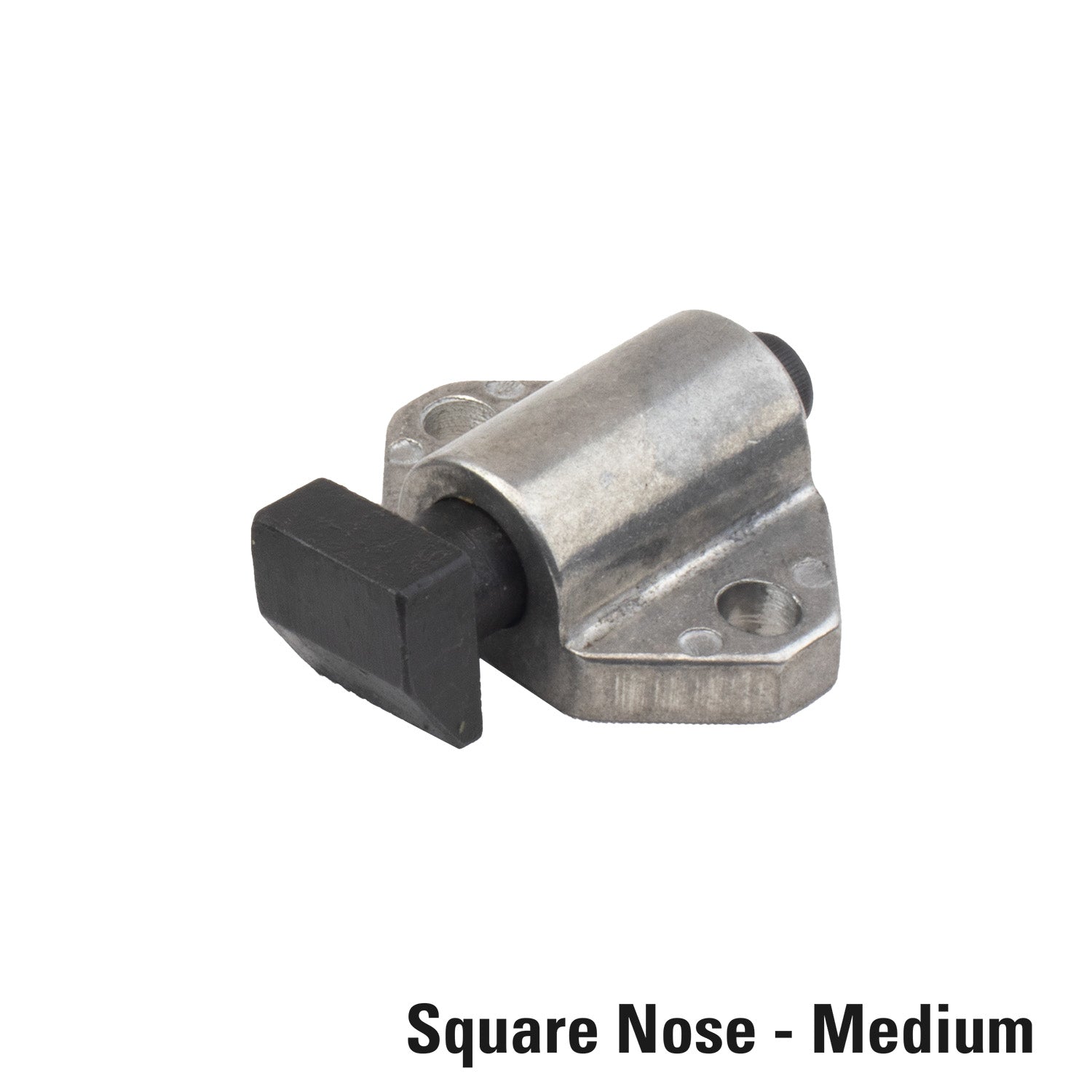

| 855060 | 855055 | Square | Medium | 9/16 | 19/32 | 1/4 | 14 |
| 855070 | 855065 | Square | Large | 1-9/32 | 3/4 | 5/16 | 32 |
