Pipe Clamp Universal, 28 mm [Open Box]

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

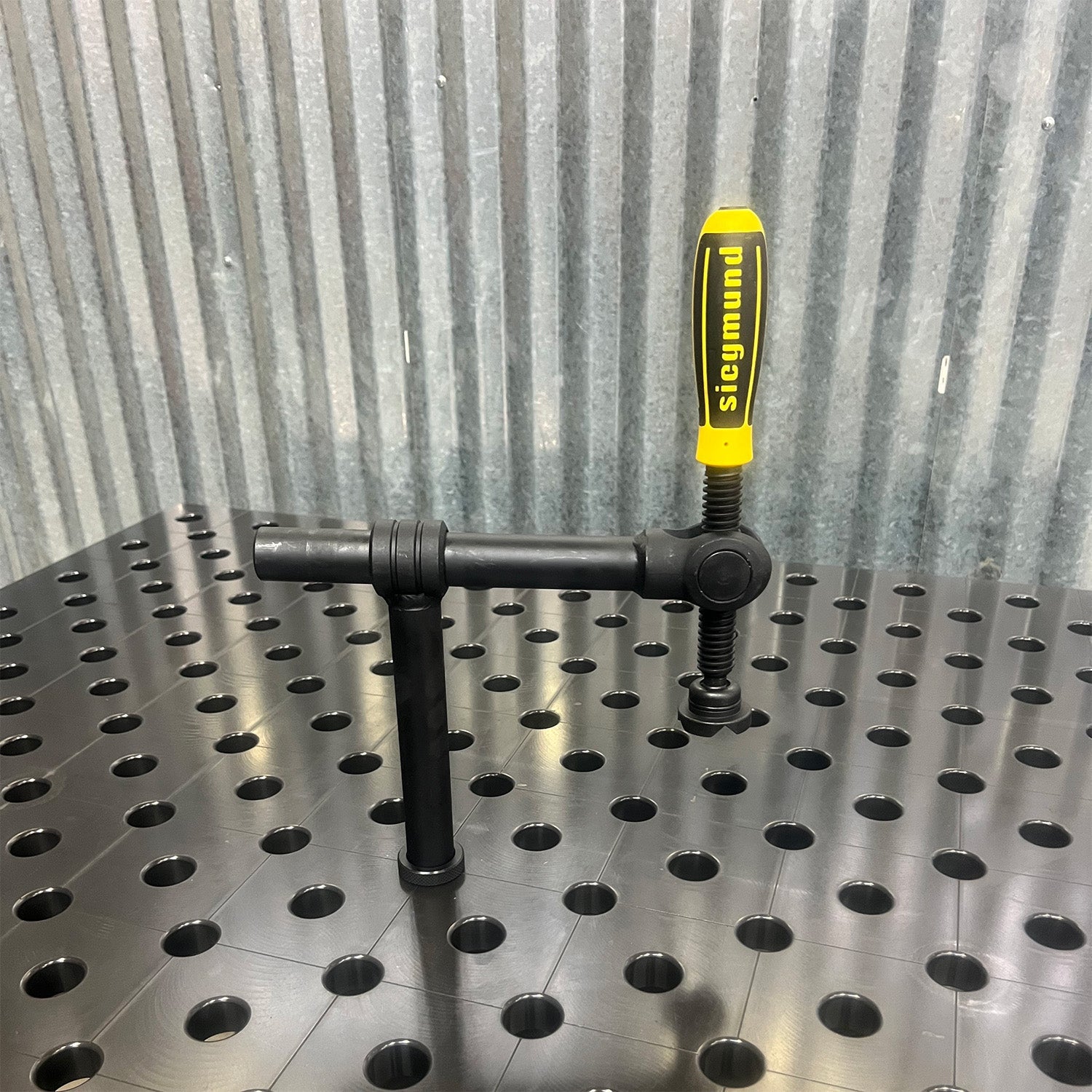

Pipe Clamp Universal, with swiveling Arbor enables flexible clamping at a + / - 42 degree angle. This Pipe Clamp combines the advantages of conventional 45° or 90° clamps. It can be used at an angle as well as straight, resulting in additional clamping options and a more variable clamping range.

The horizontal round tube with a length of 200 mm is fully adjustable and creates, combined with the swiveling arbor, a variable clamping range. The length of the vertical pipe is 250 mm.

To integrate the vertical pipe into the system boreholes, an adjusting ring is used (Item No. 280653.N). As a standard feature, the Round Pipe Clamp Universal is equipped with a 135 mm threaded arbor.

A long lifetime and efficiency is guaranteed by the high-quality material, as well as the option to order spare parts individually.

‐ Interchangeable prism
‐ Ball diameter spindle 16 mm
‐ Trapezoid thread of spindle 20 x 4 mm
