Sold out

Alpha 28 Tables, 2.4 x 1.2 M

SKU: T28-2412XQ-A1

$10,050.00 USD

Shipping calculated at checkout.

Out of stock

6x Legs: 650 mm (25.5") Fixed Length Legs (T28-2412XQ-A1)

650 mm (25.5") Fixed Length Legs (T28-2412XQ-A1) 500 mm (19.5") Fixed Length Legs (T28-2412XQ-A2) 400 mm (15.5") Fixed Length Legs (T28-2412XQ-A3) 620 - 970 mm (24 - 38") Height-Adjustable Legs (T28-2412XQ-B1) 575 - 780 mm (22.6 - 30.7") Height-Adjustable Legs + Caster w/ Locking Brake (T28-2412XQ-C1) 845 mm (33.3") Fixed Length Legs + Caster w/ Locking Brake (T28-2412XQ-C2)

Eligible for Return Within 30 Days.
One Year Limited Warranty

Estimated delivery: Jun 08 - Jun 12

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

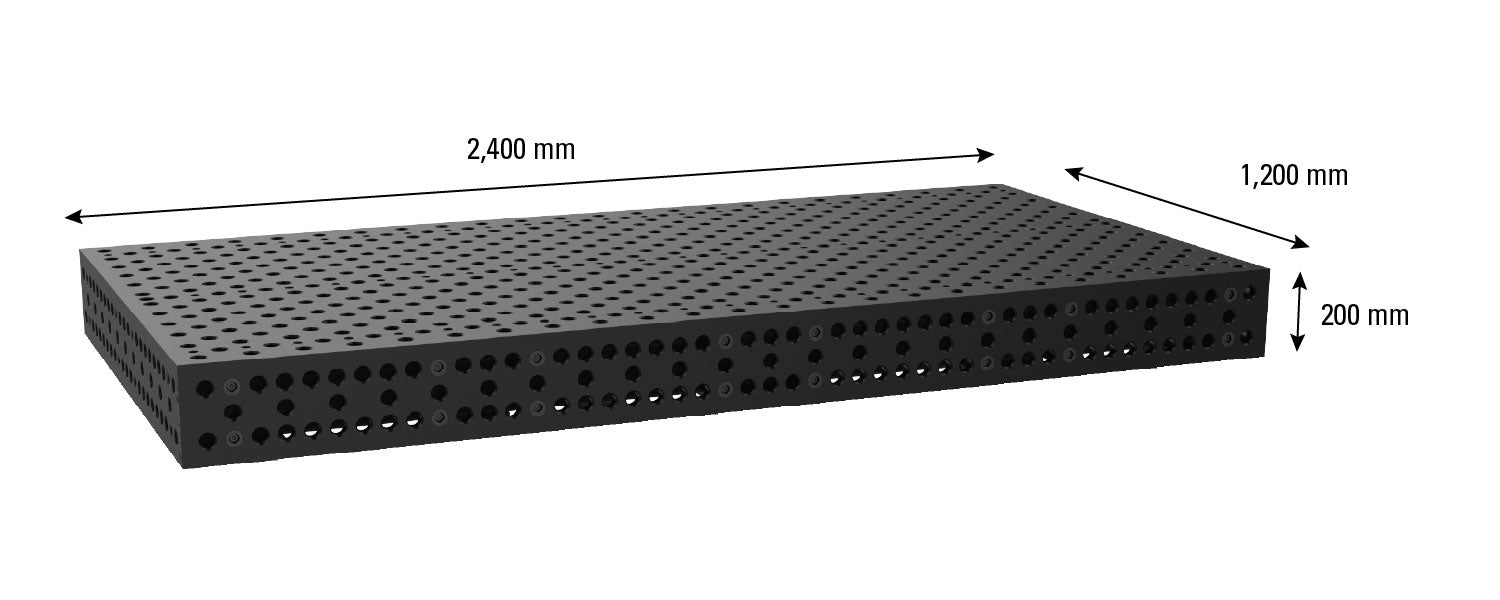

Tabletop size: 2,400 x 1,200 x 200 mm

Each plate of the table is made from a low alloy tool steel that’s tough enough for use in the mold-making industry. After surface grinding and machining, each plate is further enhanced with a QPQ nitriding process that improves hardness, corrosion resistance, and resistance to weld spatter.

Plates on the table can be repositioned, or removed as applications dictate; a patented plate locating system means the spacing of the holes are always within tolerance without the need for special re-calibration.

View this table in your shop

The only modular ultra heavy duty welding table with positionable, self-locating, reversible Table Plates for unlimited possibilities in heavy duty fixturing for welding and fabrication. Accurately locate, position and clamp stock for higher quality welding.

BuildPro Engineers developed the Alpha 28 line by customer demand for an affordable, heavy duty, metric Welding Table. The five-face Alpha 28 Table is the optimal solution for precision vertical and horizontal fixturing to expand your capabilities in welding and fabrication.

VIEW ALL ALPHA 28 TABLES

VIEW ALL ALPHA 28 FIXTURING KITS

Table Accuracy

Hole Diameter:	28 + .20 /-0 mm
Hole Spacing:	100 ±0.05 mm
Table Flatness:	±0.125 mm per 600 x 600 mm
Plate Thickness:	25 ±0.06 mm
Tabletop Finish:	Nitrided (Heat-Treated)
Surface Hardness:	58-62 HRC
Coefficient of Friction:	0.37

Top Plate

Material:	P20
Hardness:	58-62 HRC

Side Plate

Material:	Q345B
Hardness:	50-55 HRC

VIEW ALPHA 28 TABLES

VIEW ALPHA 28 FIXTURING KITS

Table Accuracy

Hole Diameter:	28 + .20 /-0 mm
Hole Spacing:	100 ±0.05 mm
Table Flatness:	±0.125 mm per 600 x 600 mm
Plate Thickness:	25 ±0.06 mm
Tabletop Finish:	Nitrided (Heat-Treated)
Surface Hardness:	58-62 HRC
Coefficient of Friction:	0.37

Top Plate

Material:	P20
Hardness:	58-62 HRC

Side Plate

Material:	Q345B
Hardness:	50-55 HRC

Table Top Plates are made from tough P20 low alloy tool steel for a 60.5HRC hardness, then CNC machined for flatness.

QPQ Nitriding Treatment provides corrosion and weld spatter resistance for superior performance and wear.

Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.

Table Top Plates are made from tough P20 low alloy tool steel for a 60.5HRC hardness, then CNC machined for flatness.

QPQ Nitriding Treatment provides corrosion and weld spatter resistance for superior performance and wear.

Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.

System Borehole

Hole Diameter: 28 +0.20/-0 mm
Hole Spacing: 100 ±0.050 mm

Large chamfer on top for easy insertion. Chamfer on underside as well to maximize bolt clamping force.

Material Thickness

Plate Thickness: 25 ±0.06 mm

Tabletop Finish: Nitrided (Heat-Treated)

Coefficient of Friction: 0.37

Table surface

Table Flatness: ±0.125 mm per 600 x 600 mm (±0.005 per 24″ x 24″)

Material: P20

Surface Hardness: 58-62 HRC

Base Material Hardness: 25.1-29.6HRC

Borehole spacing 100 mm with additional 100 mm grid offset by 50 mm in the x and y axis, aka diagonal grid.

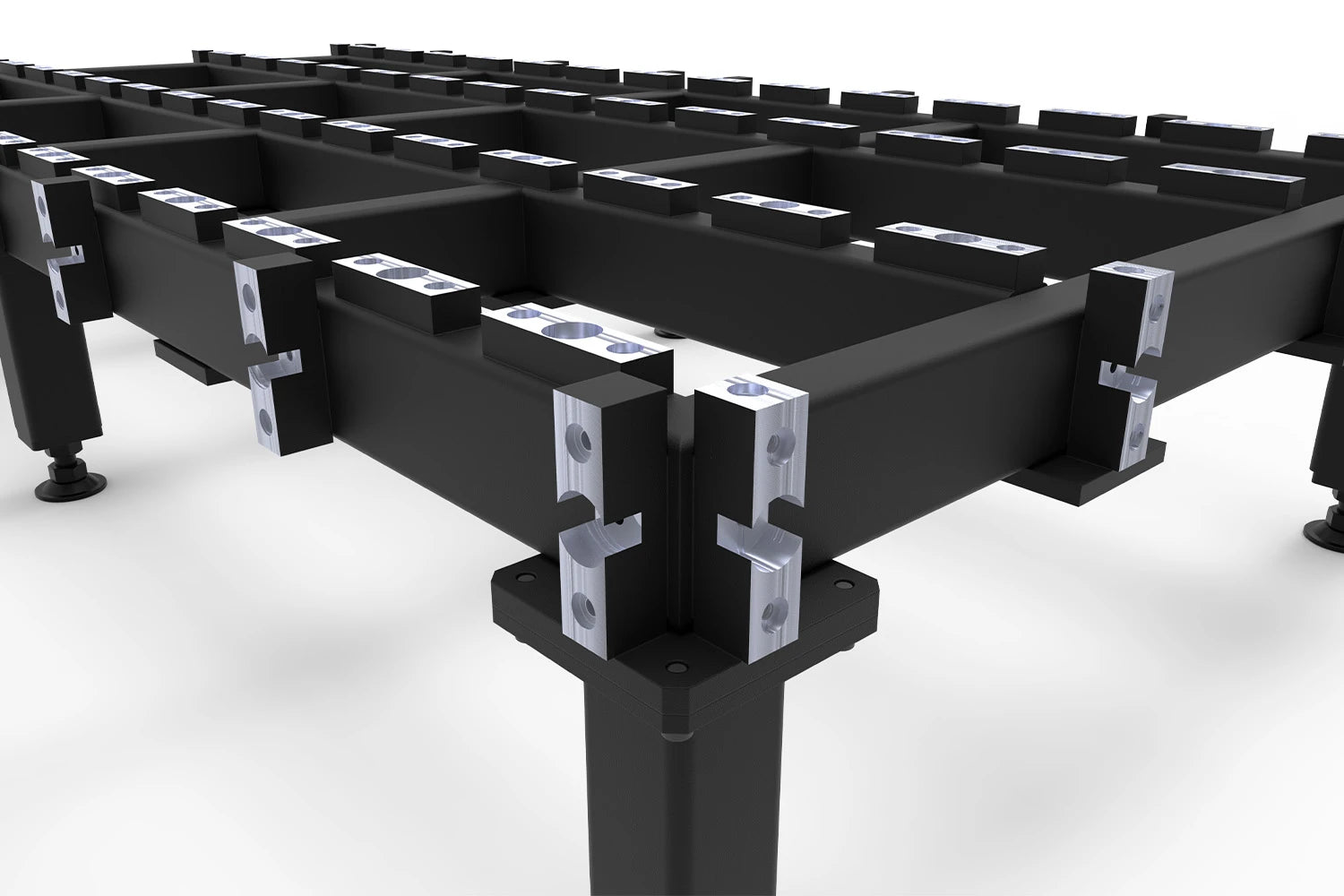

Self-locating Plate System for Top and Side Plates

Locating features in the table frame and plate combine with our locator bushings for self alignment.

Table Side Panel

Material: Q345B
Hardness: 50-55 HRC
Tabletop: 200 mm high

Plate Mounting Detail for Side Plates

Side Plates also use self locating bushing system.

System Borehole

Hole Diameter: 28 +0.20/-0 mm
Hole Spacing: 100 ±0.050 mm

Large chamfer on top for easy insertion. Chamfer on underside as well to maximize bolt clamping force.

Material Thickness

Plate Thickness: 25 ±0.06 mm

Tabletop Finish: Nitrided (Heat-Treated)

Coefficient of Friction: 0.37

Table surface

Table Flatness: ±0.125 mm per 600 x 600 mm (±0.005 per 24″ x 24″)

Material: P20

Surface Hardness: 58-62 HRC

Base Material Hardness: 25.1-29.6HRC

Borehole spacing 100 mm with additional 100 mm grid offset by 50 mm in the x and y axis, aka diagonal grid.

Self-locating Plate System for Top and Side Plates

Locating features in the table frame and plate combine with our locator bushings for self alignment.

Table Side Panel

Material: Q345B
Hardness: 50-55 HRC
Tabletop: 200 mm high

Plate Mounting Detail for Side Plates

Side Plates also use self locating bushing system.

What people say about us:

I am still waiting on the fixture kit but so far am very impressed with the craftsmanship put into this table. It is super heavy but easy to assemble with the help of a forklift.

Kevin T

Morro Bay, CA

These tables are exceeding my expectations. They are built much heavier than what I envisioned.

Don W

Manitowoc, WI

Excellent size. Good access for mounting and tool insertion. Very stiff. Very straight.

David S

San Luis Obispo, CA

Table Care & Service

Maintenance

To ensure your welding table performs at its best and lasts for years, regular maintenance is key. From rust prevention to surface care, our maintenance solutions are tailored to meet the unique needs of heavy-duty welding equipment. Details

Shipping

We provide free ground shipping via FedEx for all table orders delivered within the contiguous 48 U.S. states. If a liftgate is required for delivery, additional Liftgate fees or LTL delivery surcharges may apply. To request liftgate service, please contact cs@stronghandtools.com.

Warranty

By registering your table, we can offer you a best-in-class warranty service and help you with your table when needed. As a token of our appreciation, when you register your new welding table, we'll send you a special gift. It's our way of saying 'Thank you' for choosing us!

Register Your Table

Modular. Reversible. Unstoppable.

The only ultra heavy-duty welding table with positionable, self-locating plates — engineered for unlimited fixturing possibilities.

Alpha28 System Overview

BuildPro® Engineers developed the Alpha 28 line by customer demand for an affordable, heavy duty welding table. The five-face Alpha 28 Table is the optimal solution for precision vertical and horizontal fixturing to expand your capabilities in welding and fabrication

Why Choose Alpha 28?

Ultra Heavy-Duty Construction

Made from tough P20 low-alloy tool steel, the 25 mm thick table plates are ground for flatness to ±0.125 mm — built for serious fabrication.

Modular & Expandable

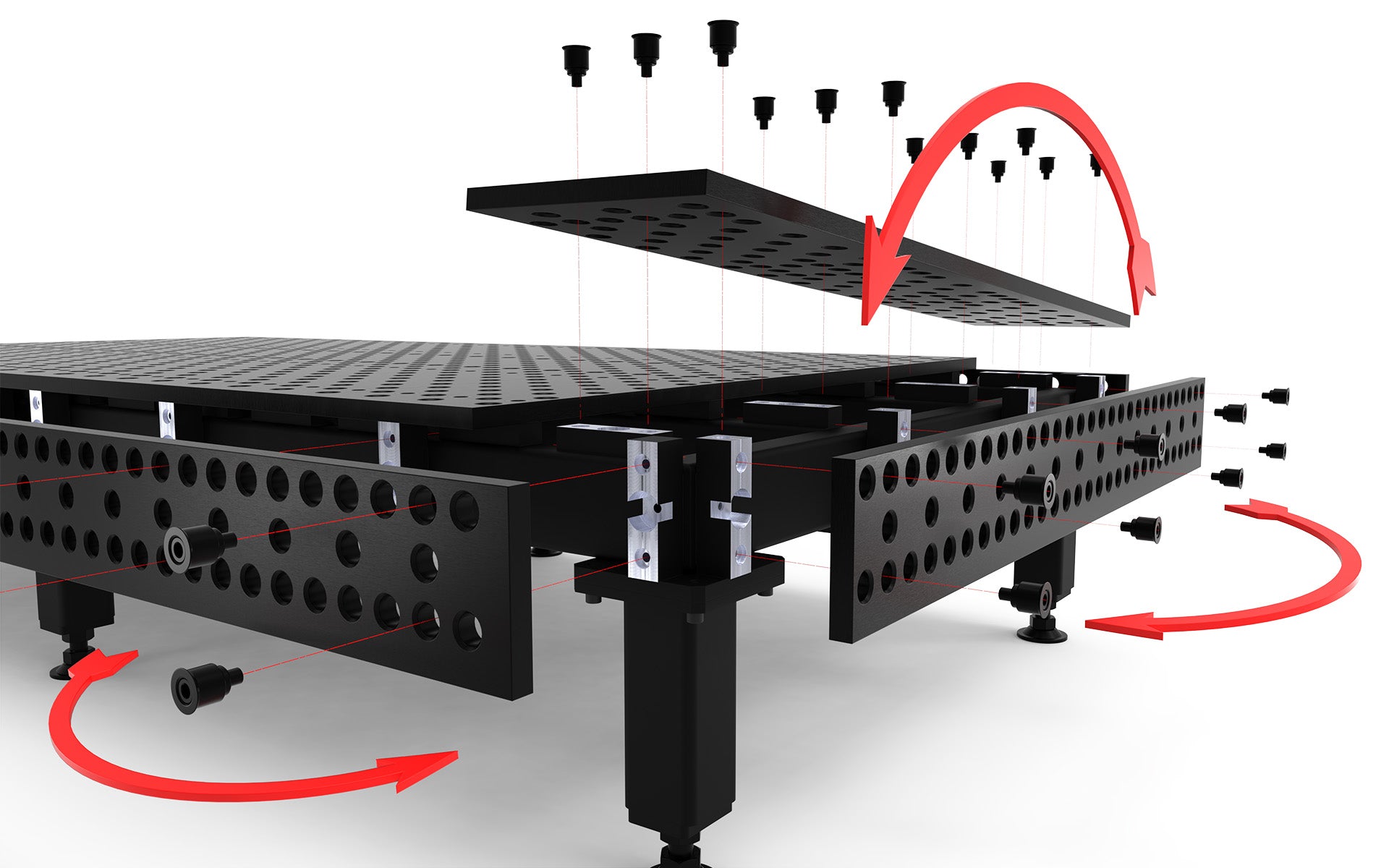

Locating Bushings let you easily remove, re-position, re-align, and reverse the plates. Configure your work surface to match any fixturing need.

Self-Locating, Reversible Plates

Positionable table plates align themselves and flip for extended life.

Five-Sided Fixturing Surface

Fixture vertically and horizontally for complex assemblies with ease.

28 mm Boreholes in 100 mm Grid

Precision CNC-machined for repeatable setups and universal metric tooling.

Nitrided Finish

QPQ Nitriding adds a 58–62 HRC hardened, corrosion- and spatter-resistant surface for lasting durability and easy cleanup.

Customer-Driven Design

Developed by BuildPro Engineers in response to real fabricator needs.

Affordable Precision

Delivers high-end fixturing capabilities without the high-end price tag.

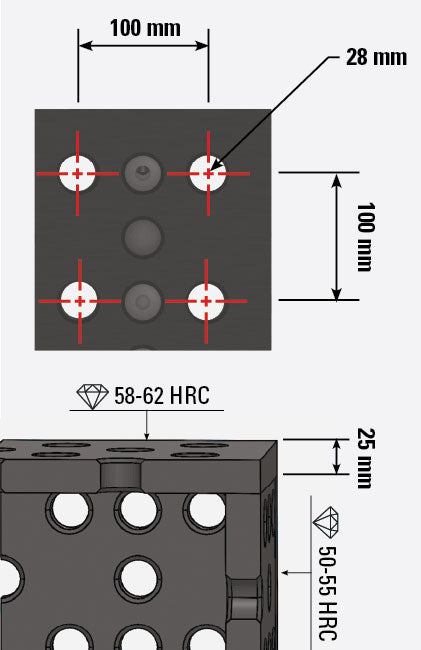

Technical drawing of a block with dimensions and hardness specifications.

Table Accuracy

Hole Diameter:	28 + .20 /-0 mm
Hole Spacing:	100 ±0.05 mm
Table Flatness:	±0.125 mm per 600 x 600 mm
Plate Thickness:	25 ±0.06 mm
Tabletop Finish:	Nitrided (Heat-Treated)
Surface Hardness:	58-62 HRC
Coefficient of Friction:	0.37

Top Plate

Material:	P20
Hardness:	58-62 HRC

Side Plate

Material:	Q345B
Hardness:	50-55 HRC

Stronger, More Rigid Frame

The machined tubular frame construction of the Alpha 28 table provides improved flatness and torsional stiffness compared to plate only frames. The rigid frame with modular plates on the Alpha 28 means less high spots and less twisting compared to welded plate designs. The welded construction of a plate only design often leads to distortion and high spots around the corners and center.

Black grid structure with rectangular openings on a white background.

Ribbing

Load capacity of over 10 metric tons

A rectangular grid with compartments, designed for organizing items.

Alpha 28 Tubular Frame Design

Black metal frame structure with adjustable legs and corner connectors.

Side Plate Mounting

Side Plates also use self-locating bushing system.

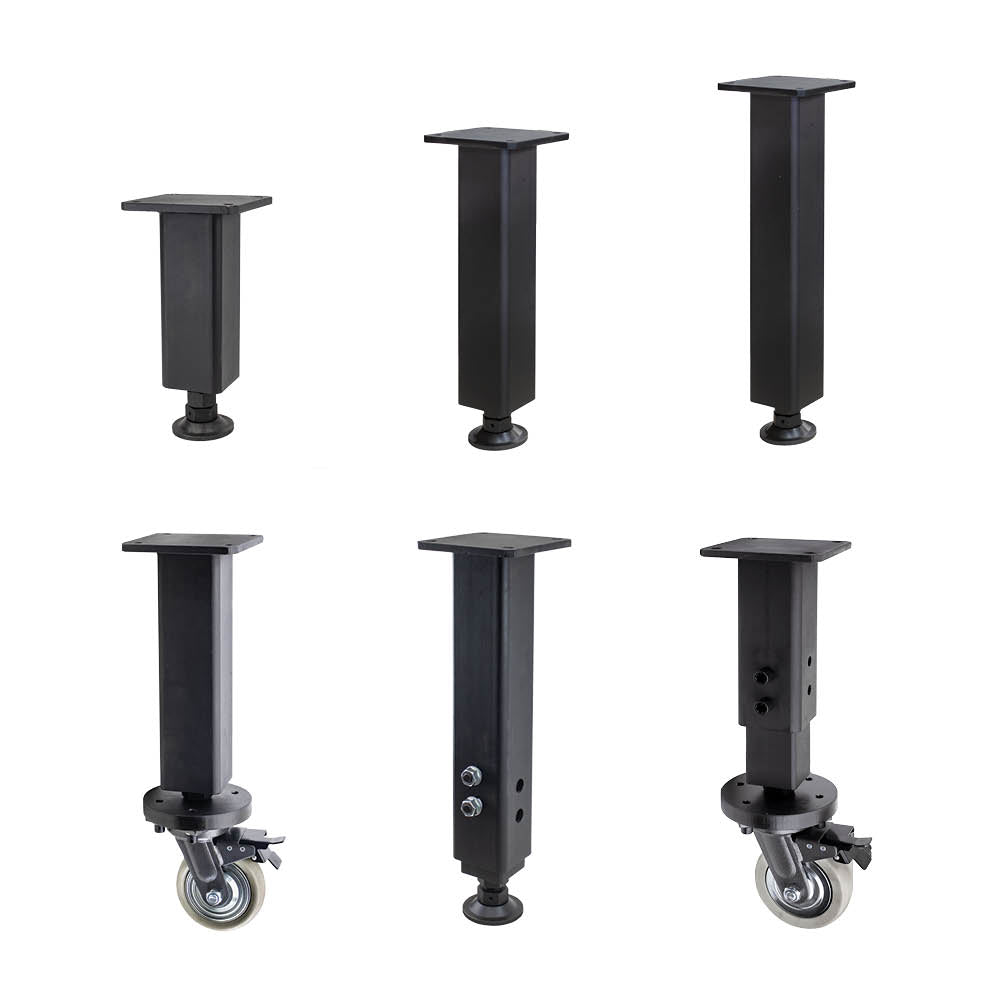

Leg Options

Black adjustable table leg with a square top and round base.

370 mm H fixed length
Table Surface Height: 560 mm
2,000 kg static load capacity

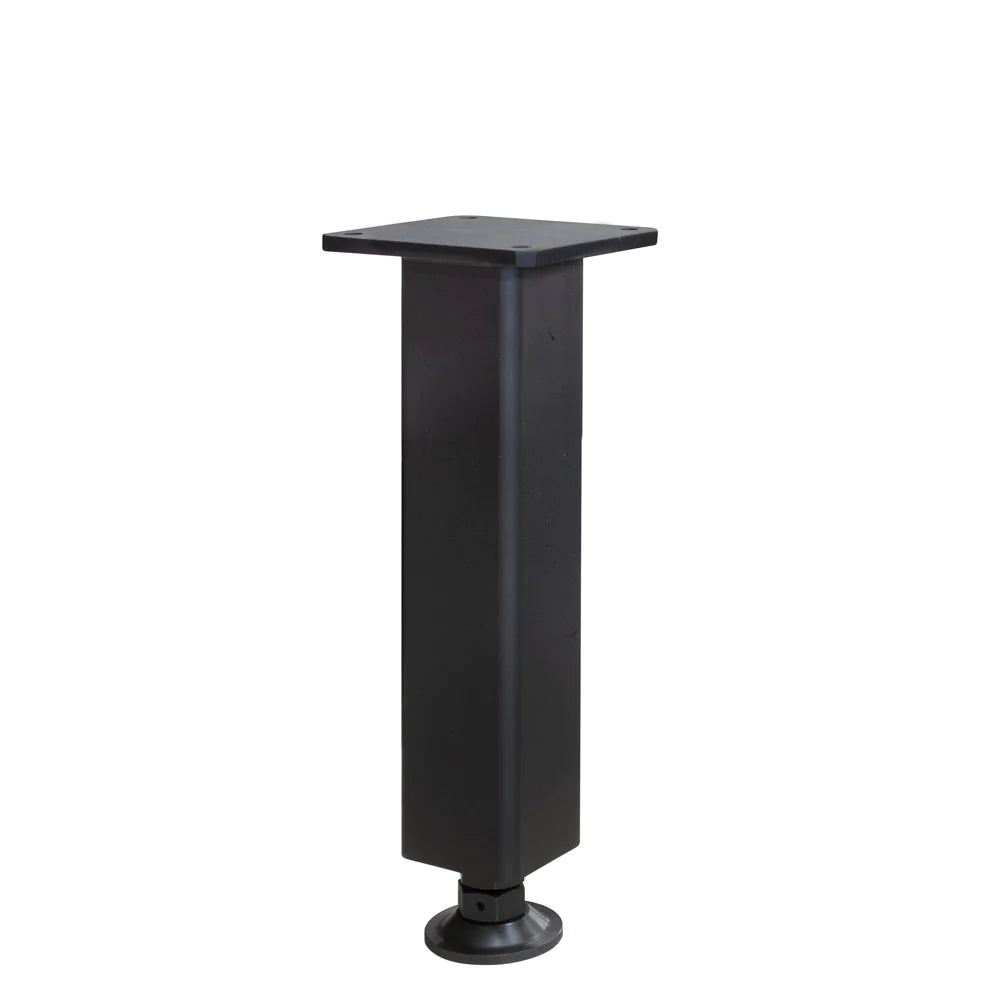

520 mm H fixed length
Table Surface Height: 710 mm
2,000 kg static load capacity

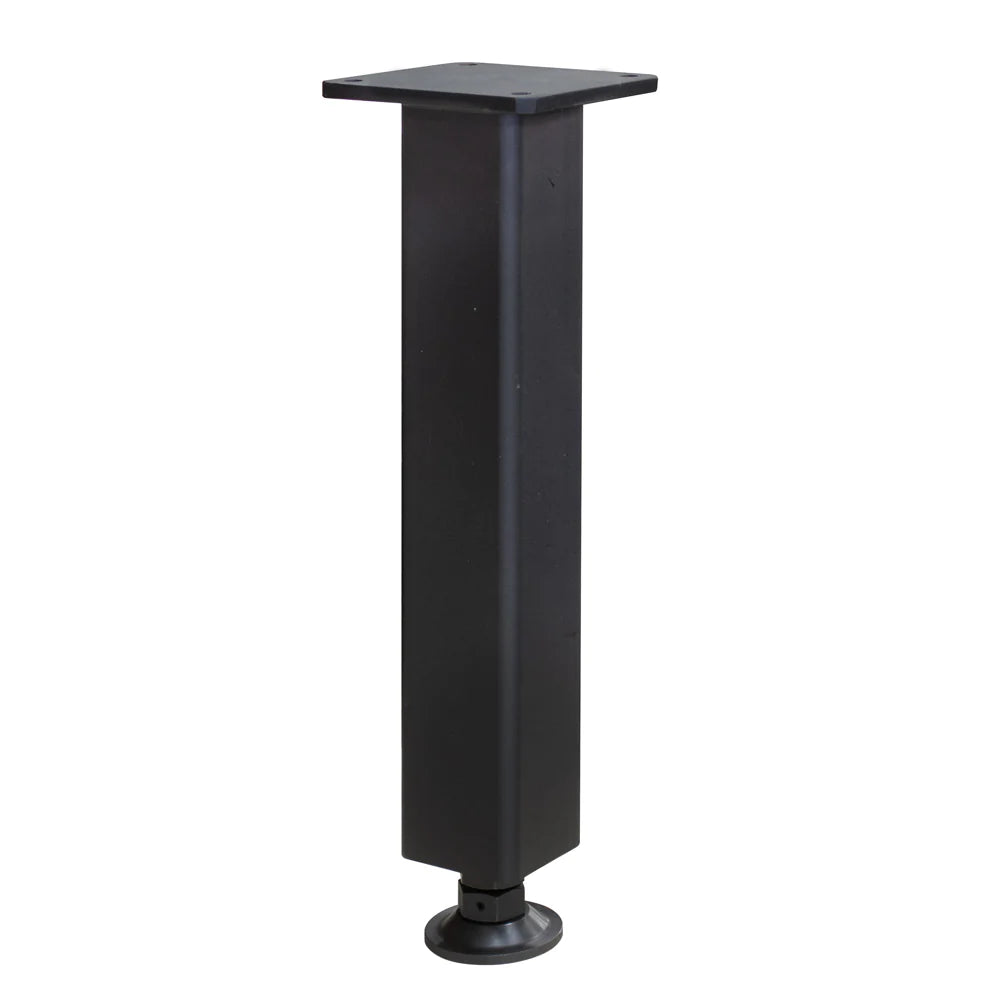

675 mm H fixed length
Table Surface Height: 860 mm
2,000 kg static load capacity

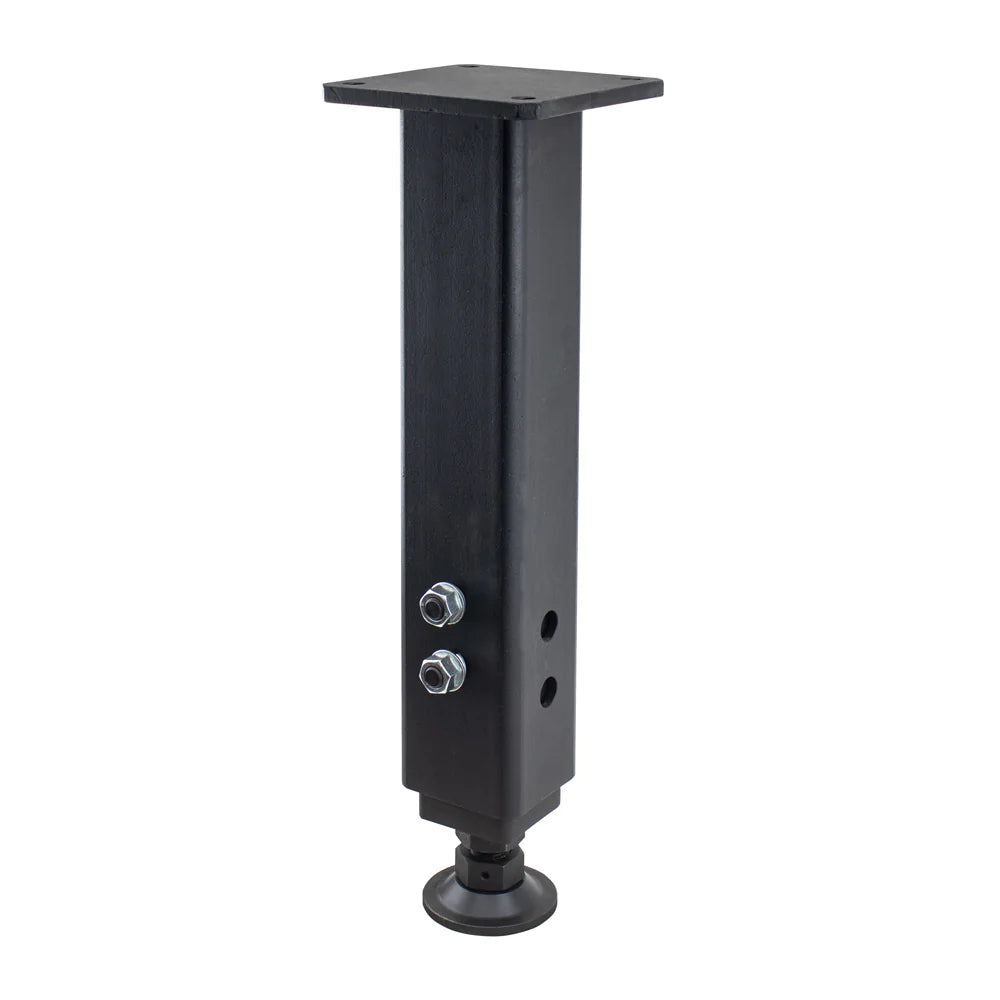

Height-adjustable 620 ~ 970 mm H
Table Surface Height: 810 ~ 1,160 mm
2,000 kg static load capacity

Fixed leg with Caster and Locking Brake, 845 mm H
Table Surface Height: 1,035 mm
800 kg static load capacity

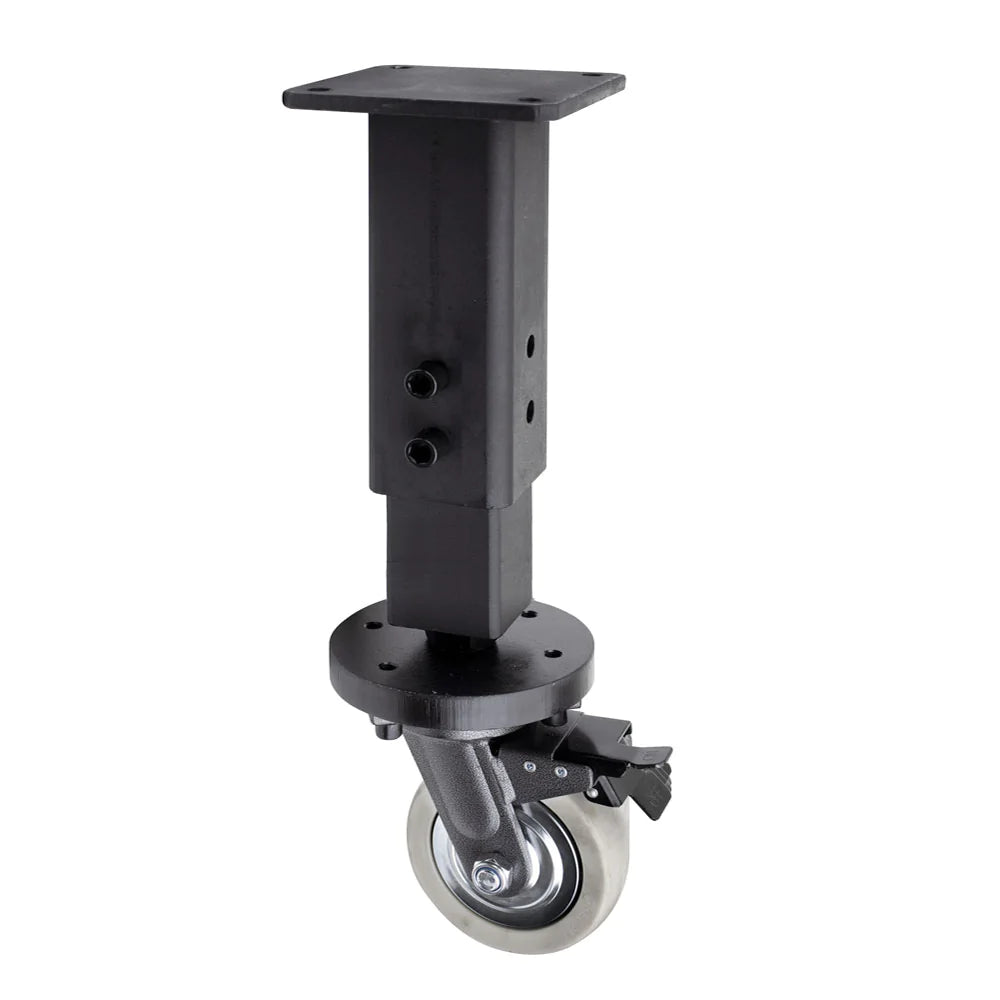

Height-adjustable with Caster and Locking Brake 575 ~ 780 mm H
Table Surface Height: 765 ~ 970 mm
8200 kg static load capacity

Four M12 hex drive cap screws and washers are included with each leg to mount onto flanges at the bottom of the table frame.

Leveling feet with spindles at the bottom of the legs offer fine adjustment and leveling.

Anchoring pads can be used in place of leveling feet and include a plate flange with two 18 mm diameter holes for anchoring your table down to the floor.

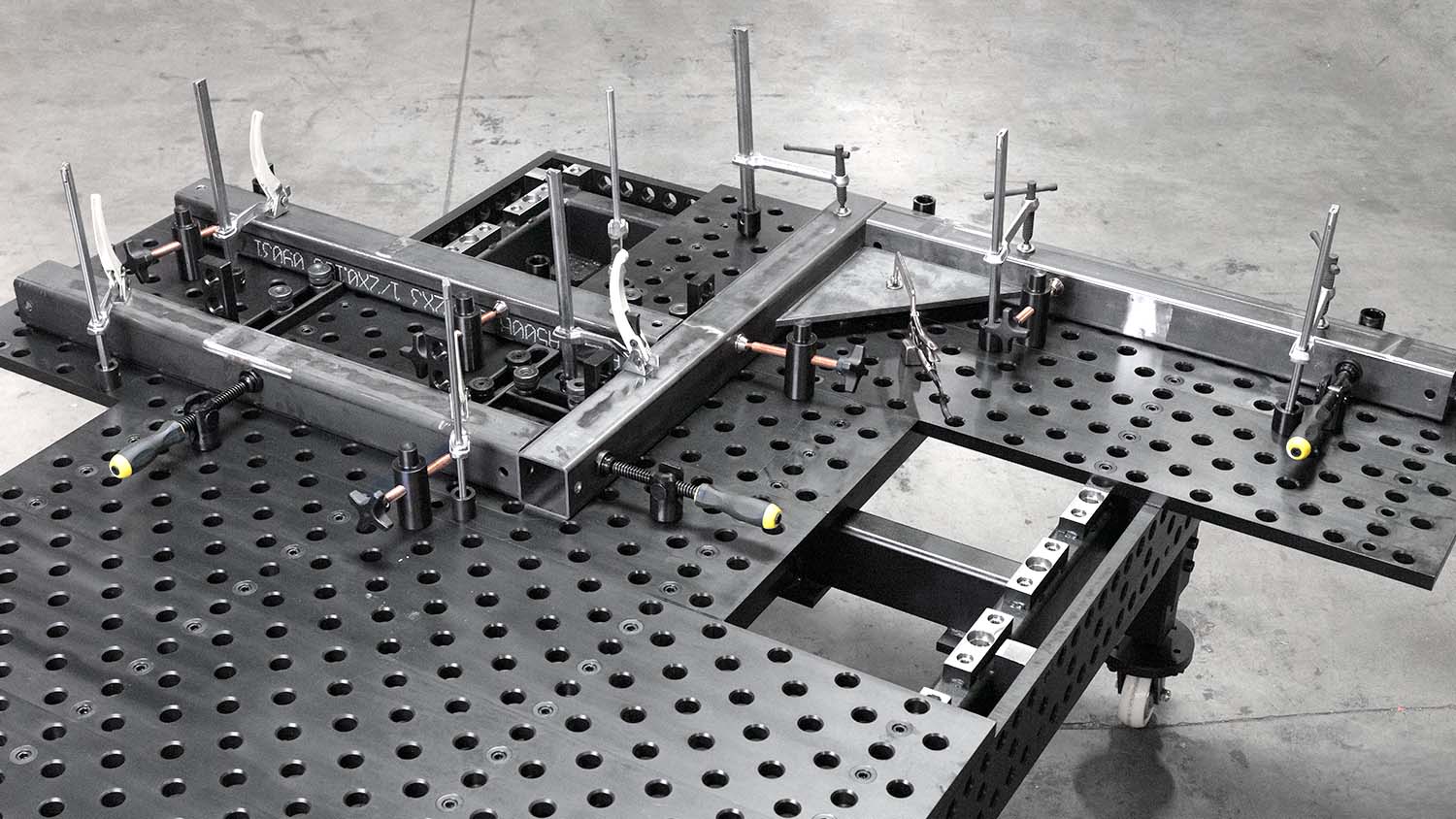

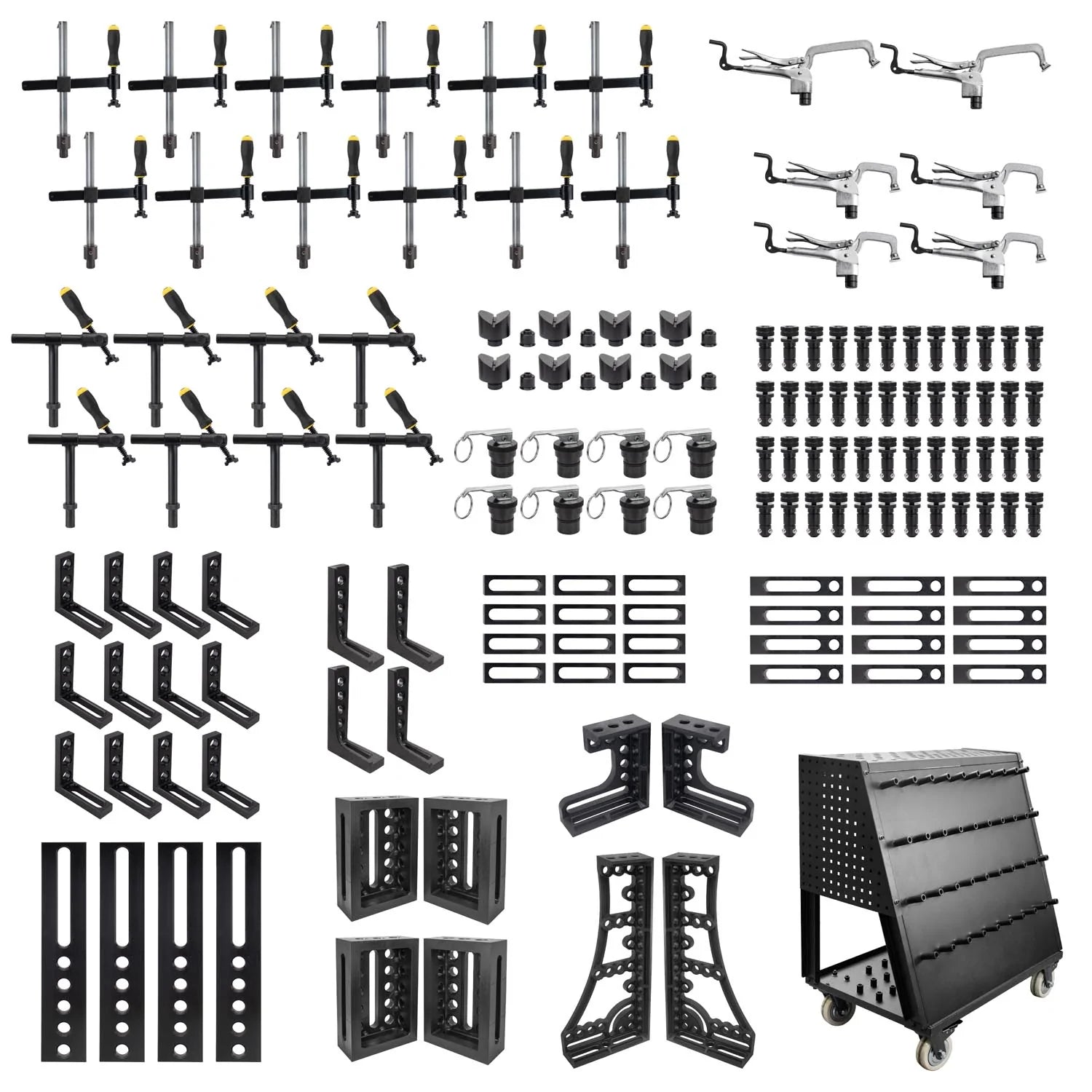

Alpha28 Fixturing Kits and Tool Packs

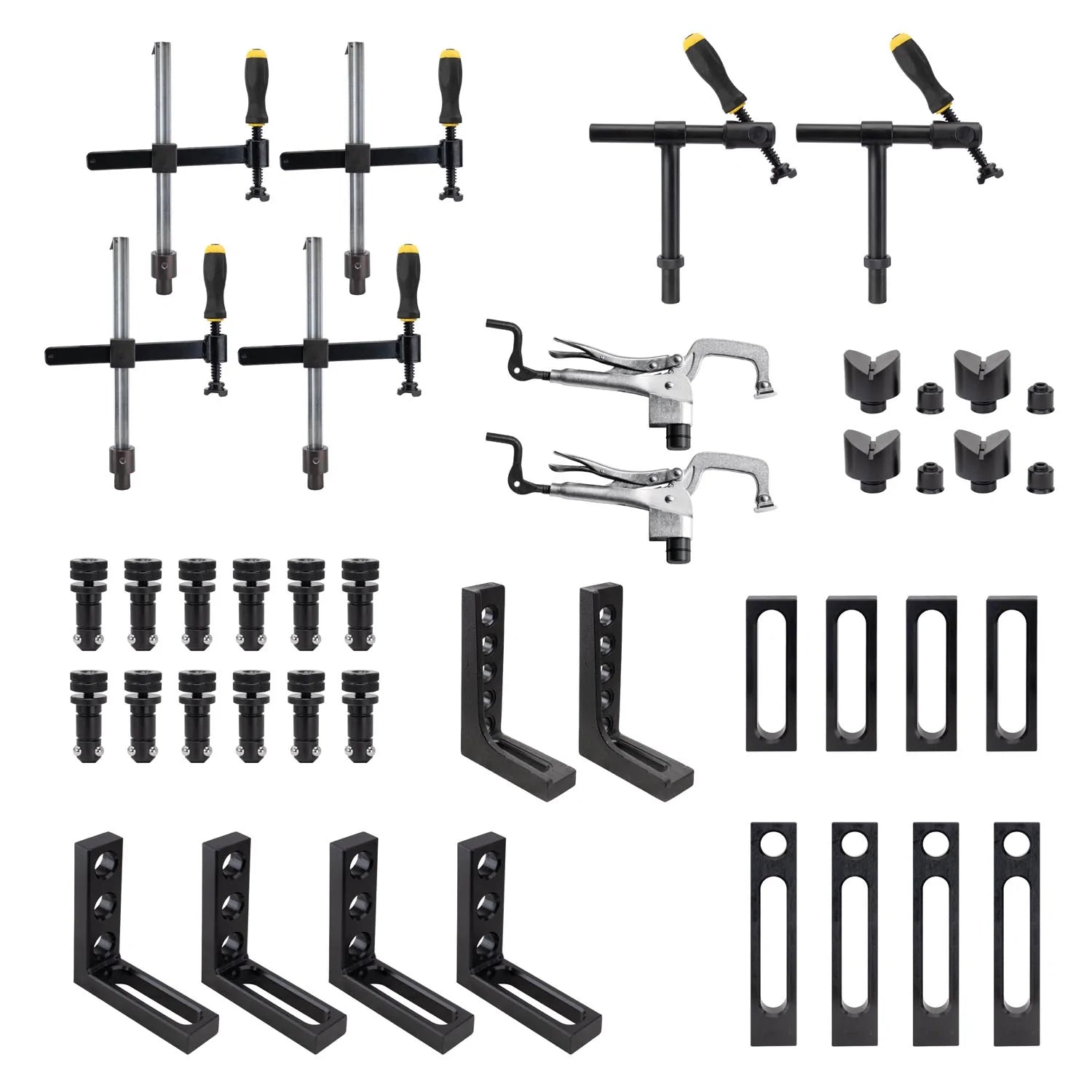

38-pc. Fixturing Kit, 28 mm

$3,260.00

70-pc. Fixturing Kit, 28 mm

$5,575.00

92-pc. Fixturing Kit, 28 mm

$8,630.00

113-pc. Fixturing Kit, 28 mm

$10,765.00

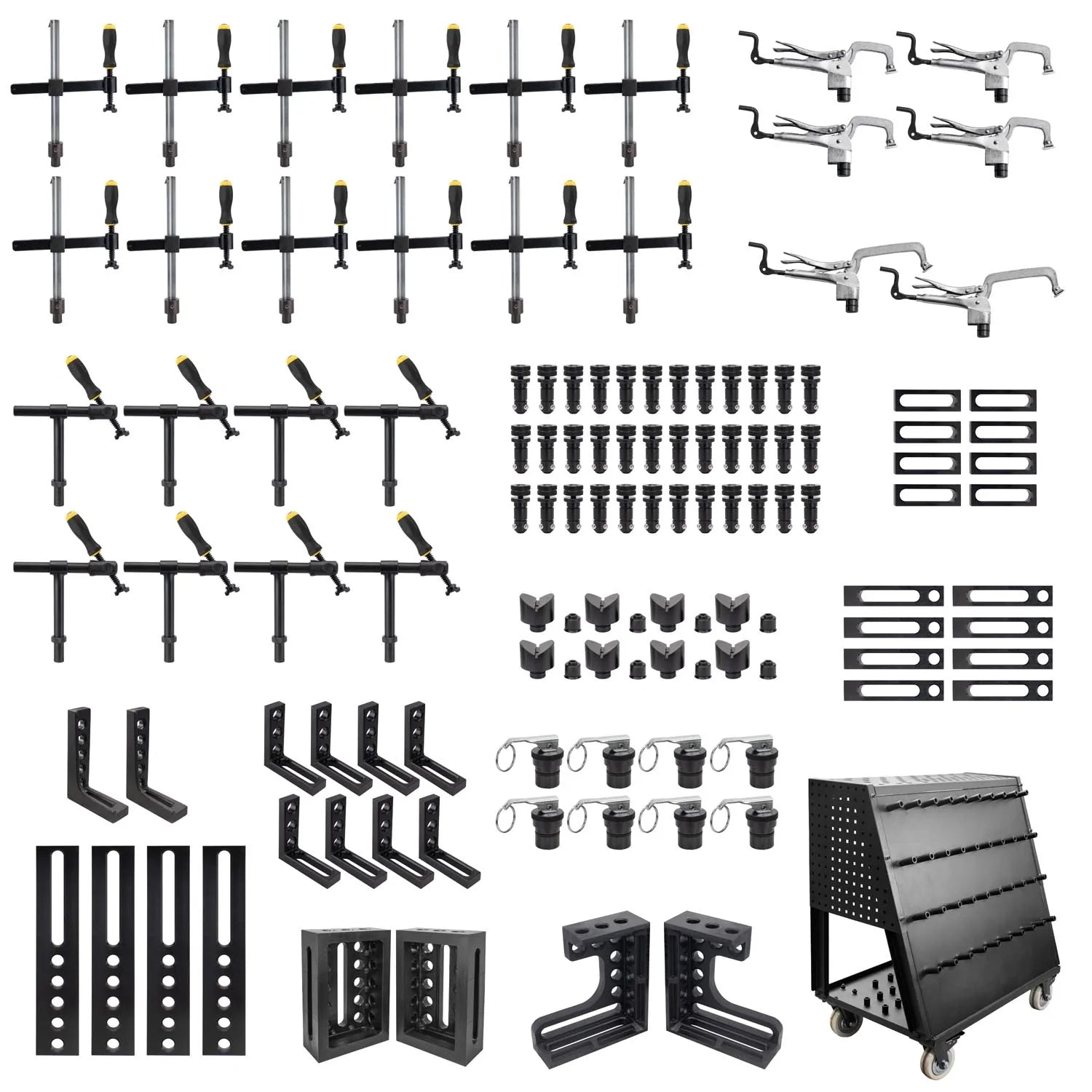

143-pc. Fixturing Kit, 28 mm

$15,175.00

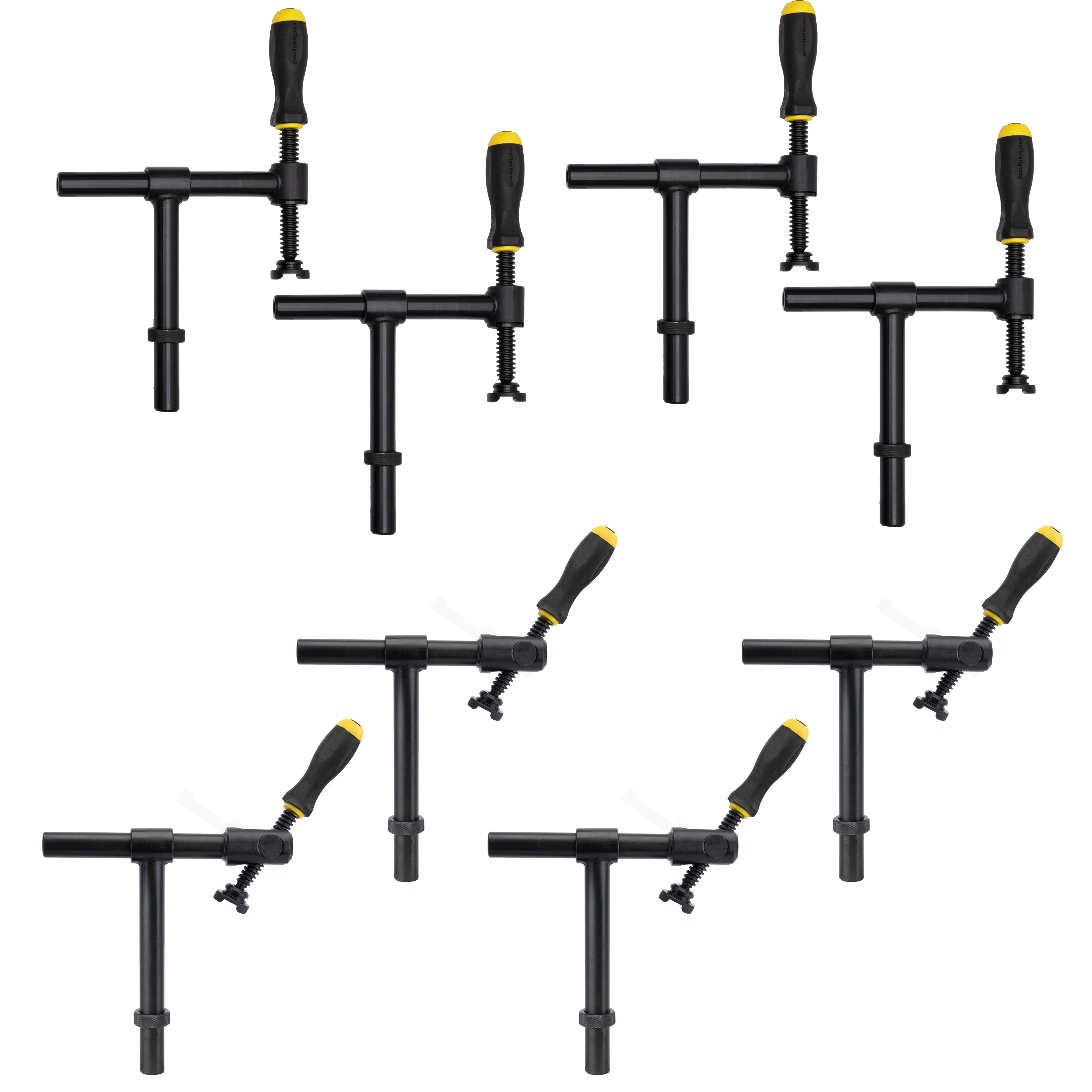

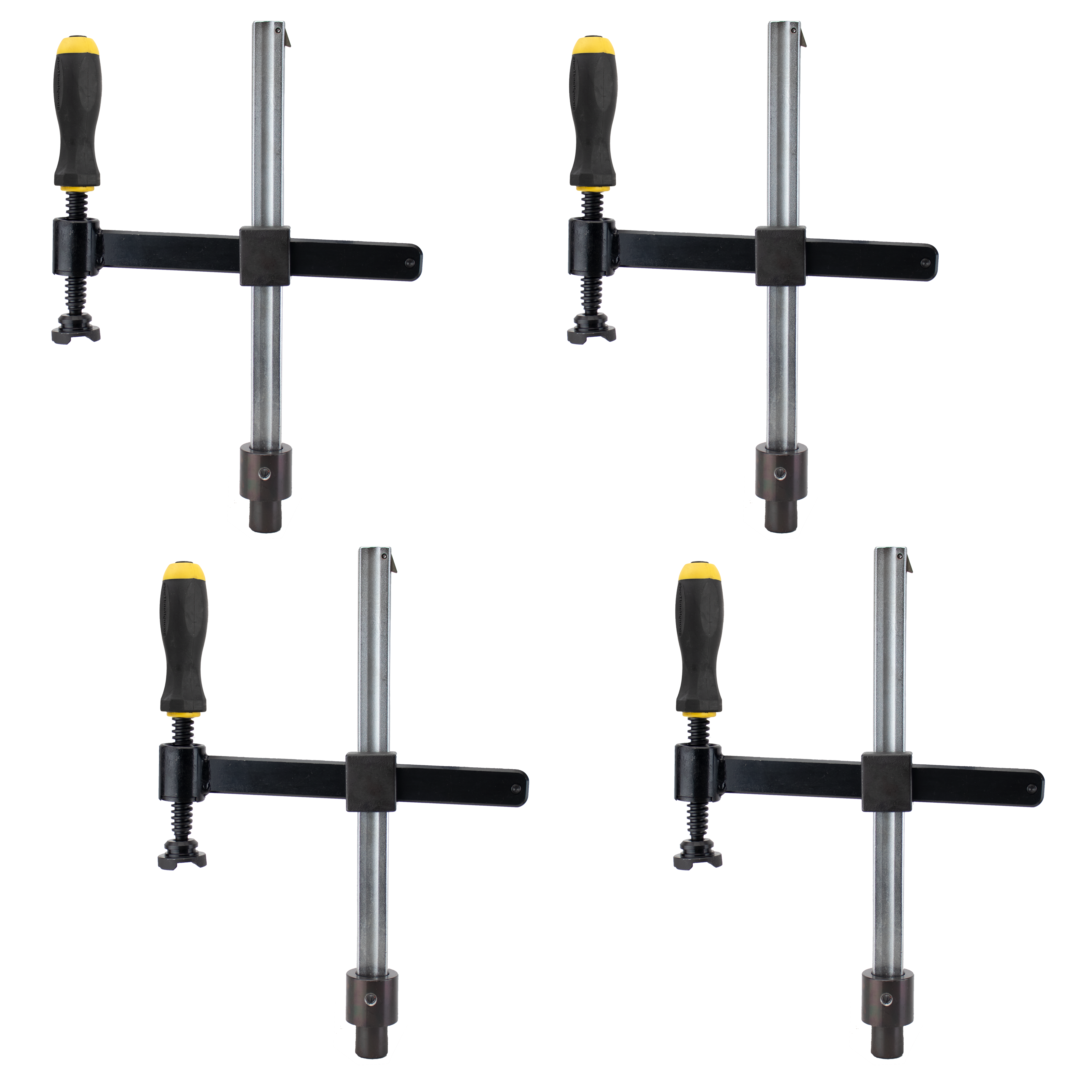

4-pc Cross Post Bar Clamps

$421.80

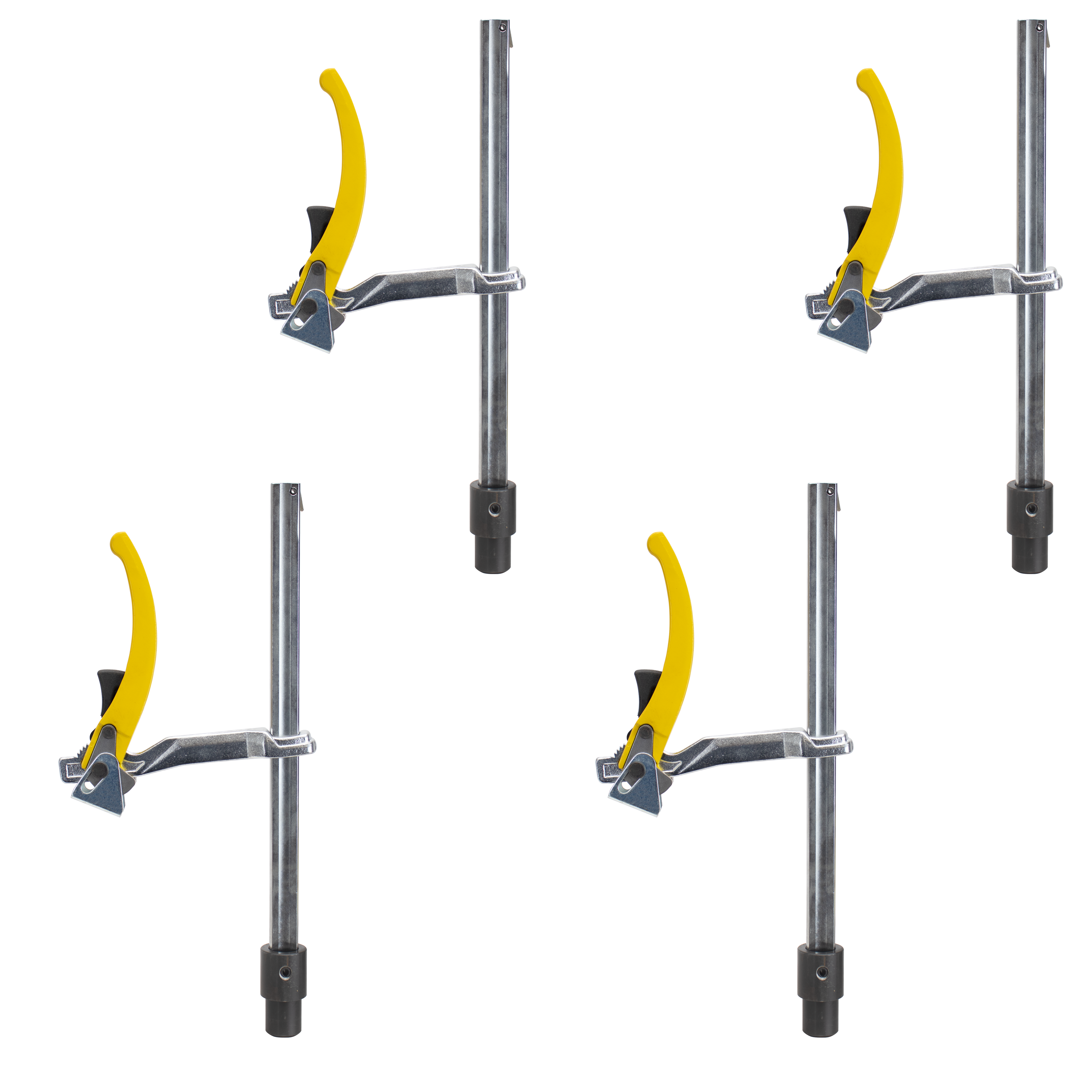

4-pc Ratchet Action Inserta Clamp

$273.60

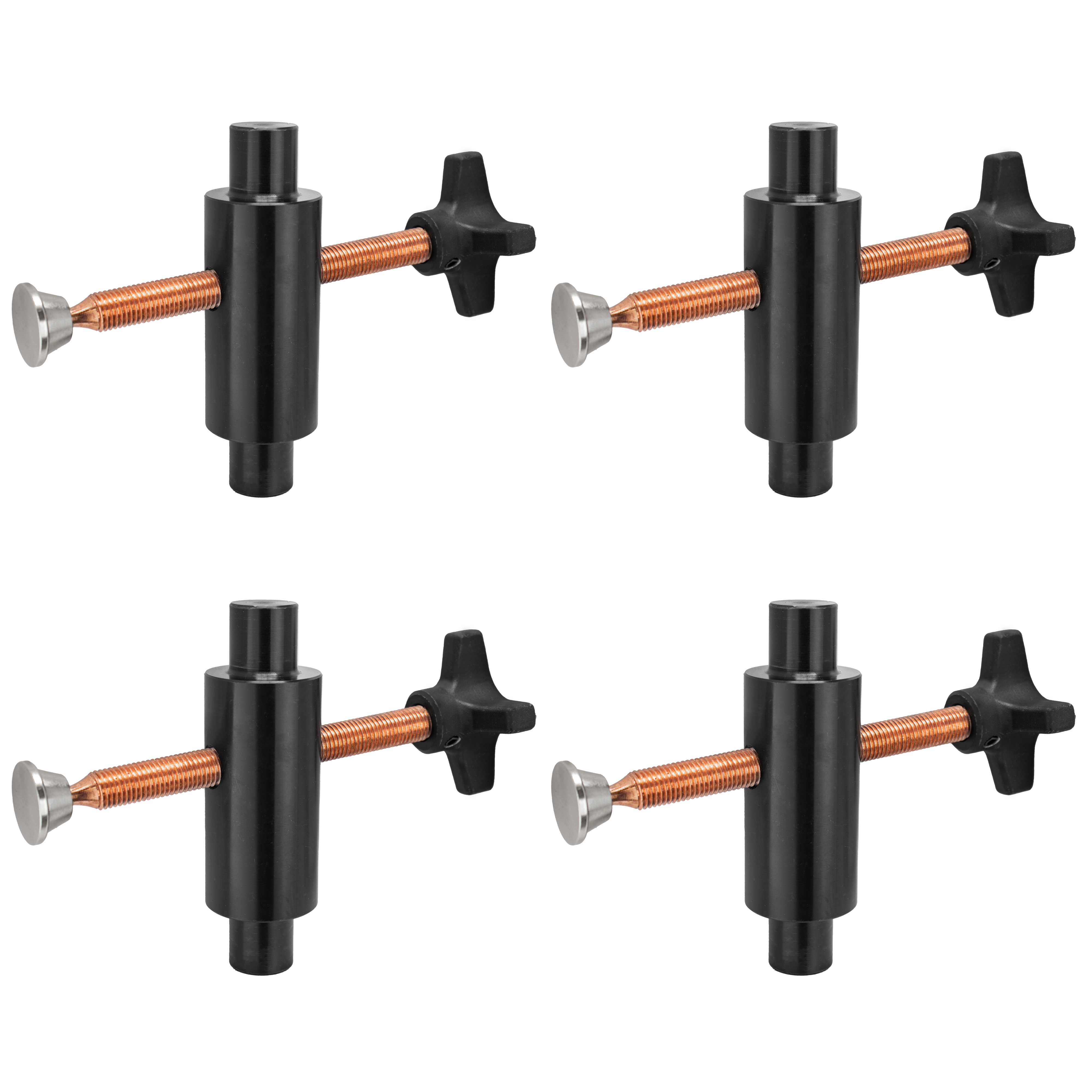

4-pc Side Push Clamps

$277.40

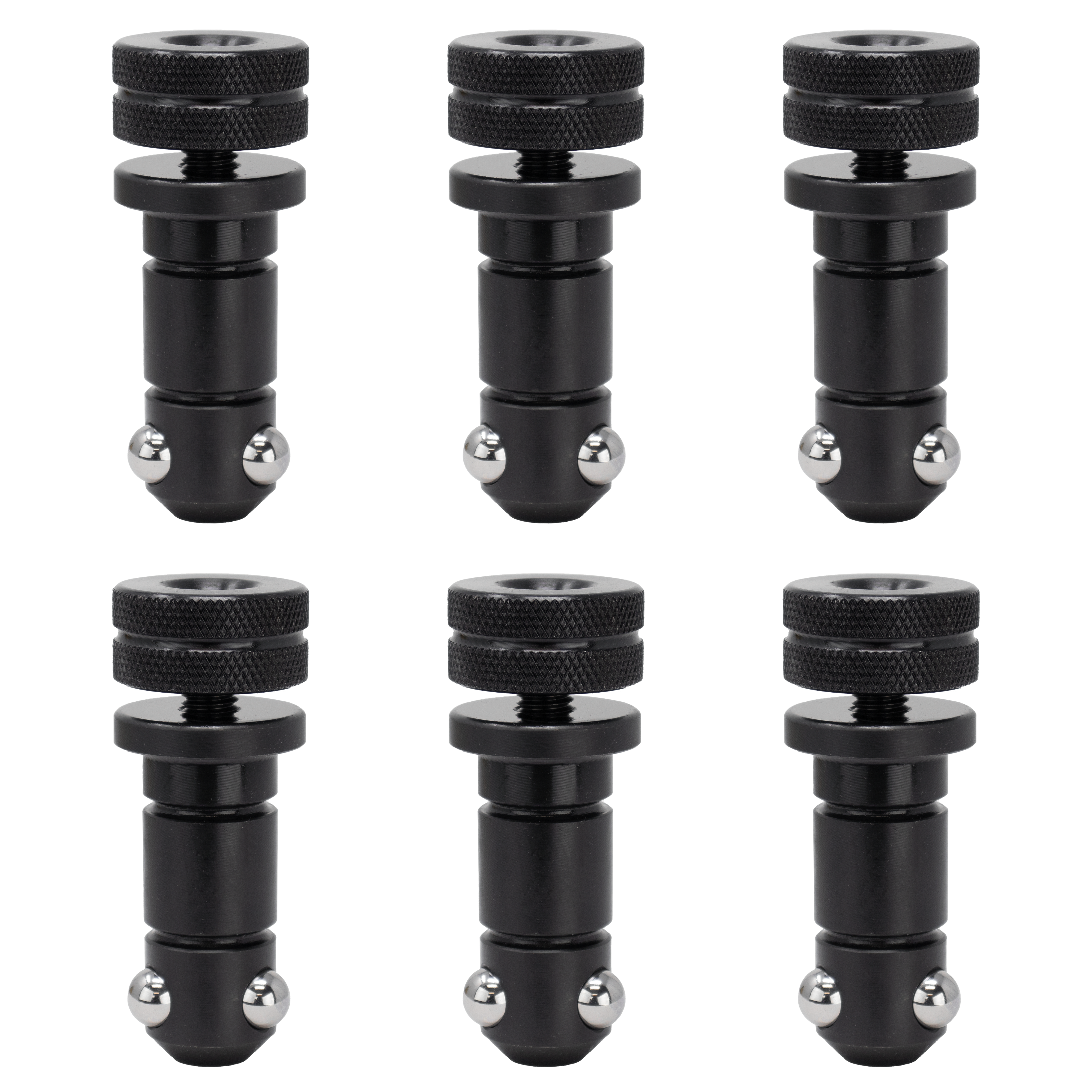

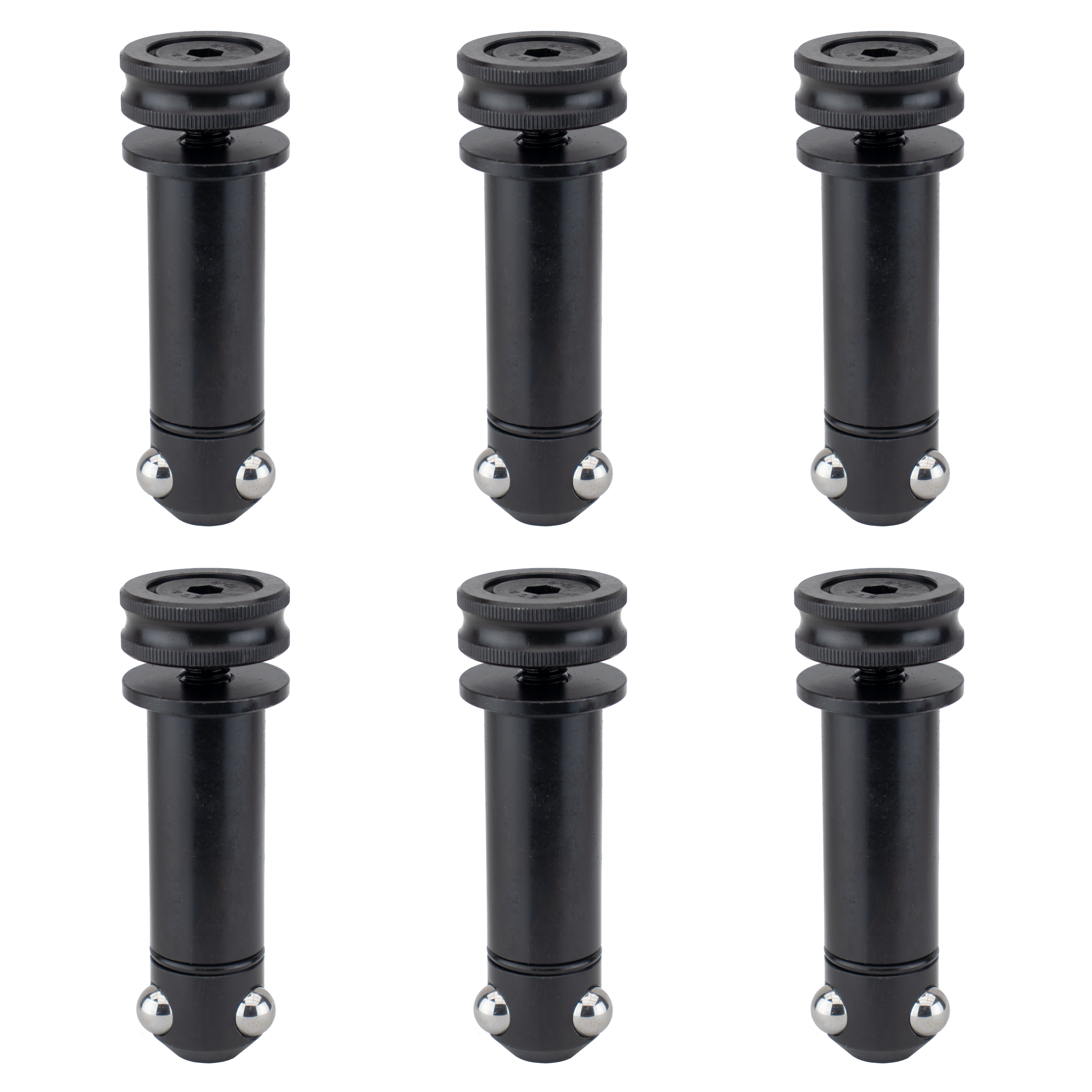

6-pc Ball Lock Bolt, Long

$421.80

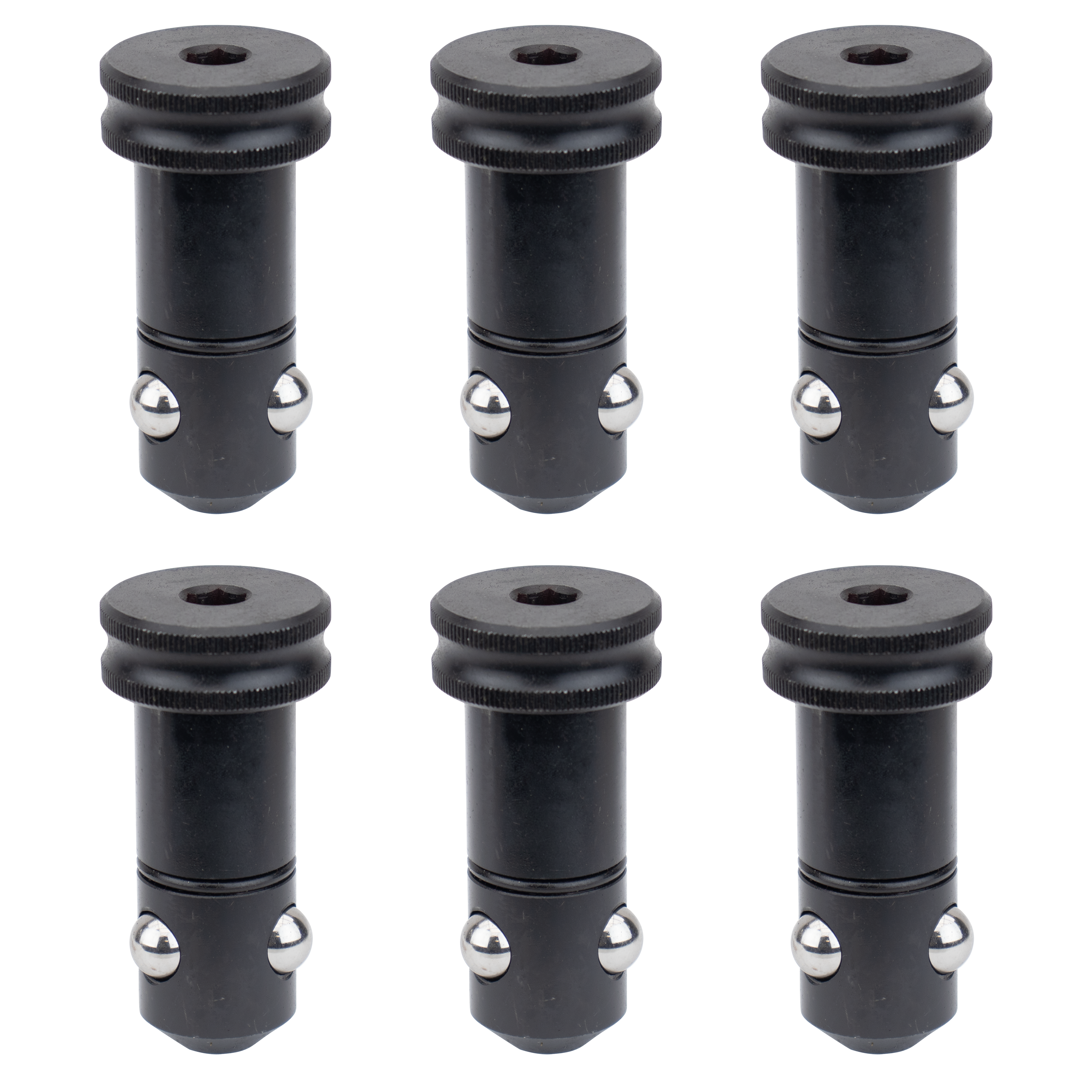

6-pc Ball Lock Bolt, Short

$421.80

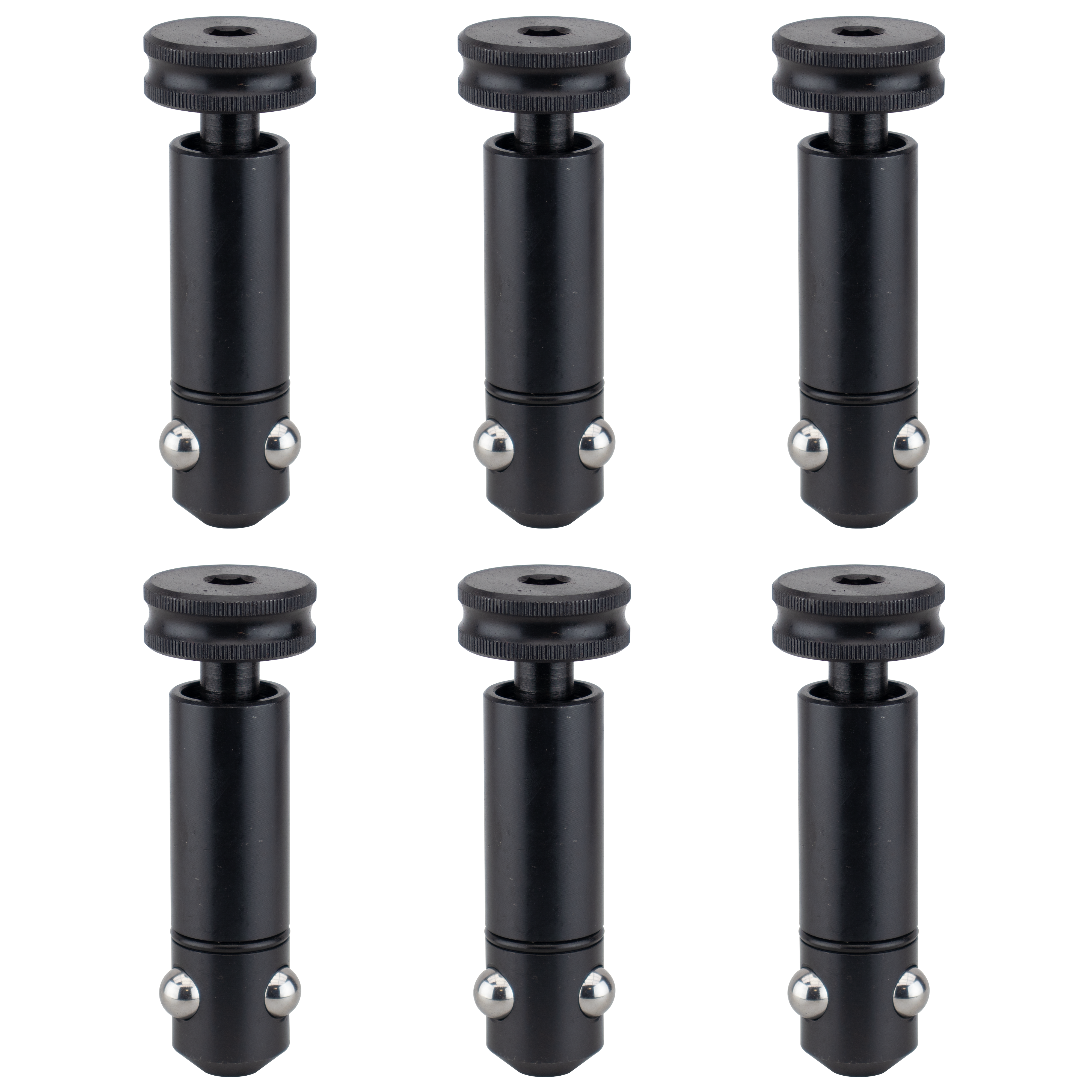

6-pc Ball Lock Bolt, Universal, Long

$421.80

6-pc Ball Lock Bolt, Universal, Short

$421.80

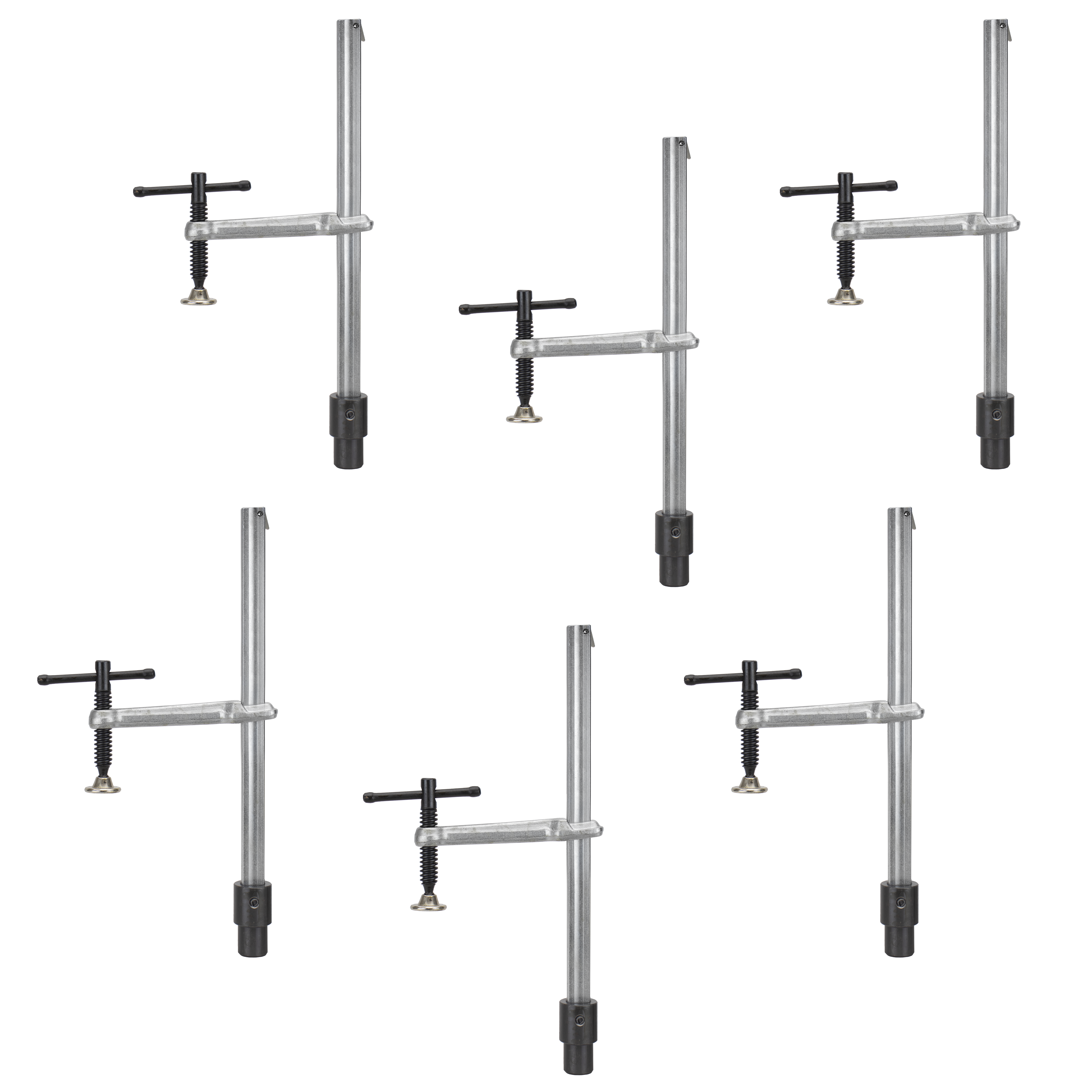

6-pc Inserta Clamps, 120 mm

$364.80

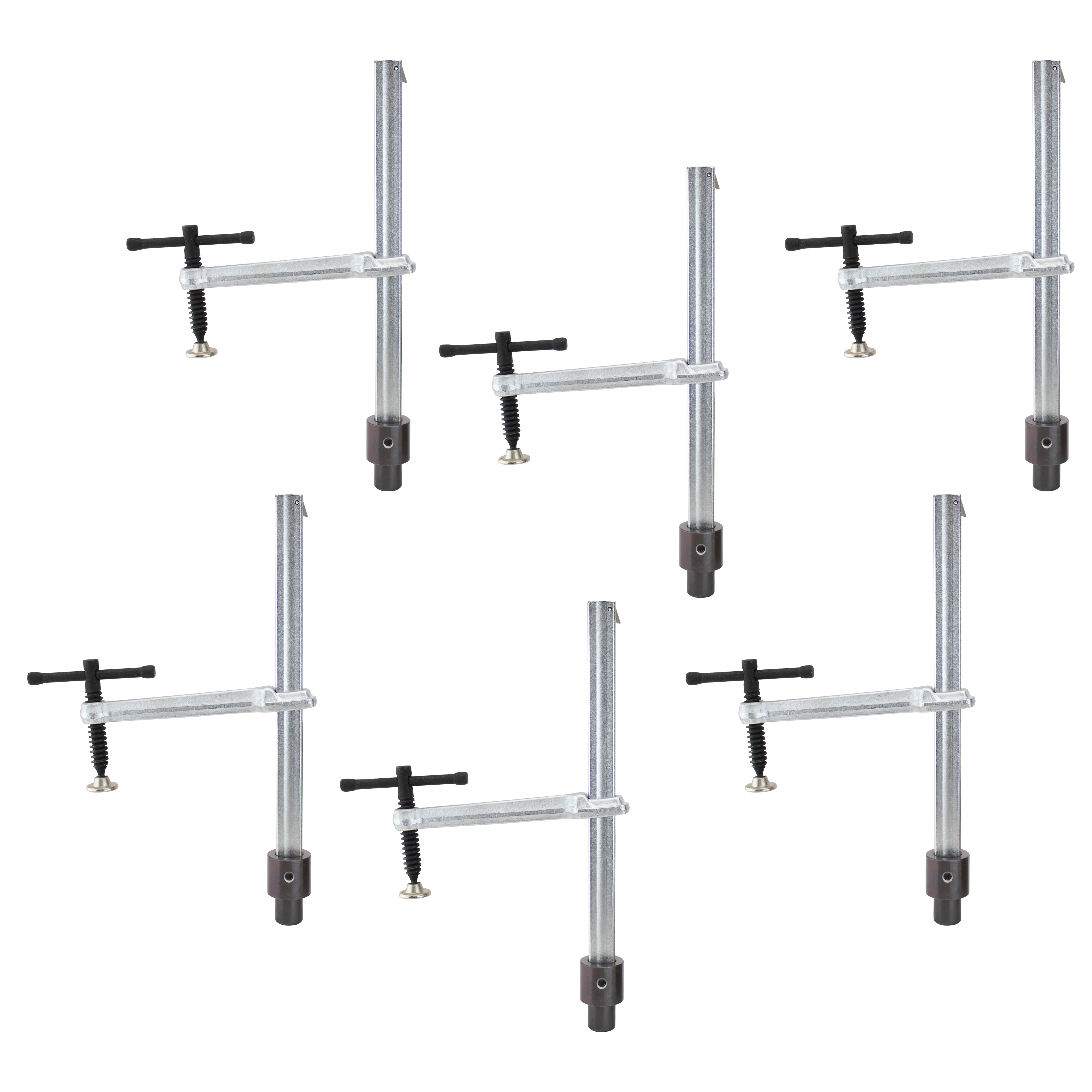

6-pc Inserta Clamps, 178 mm

$461.70

6-pc Inserta Pliers, 100 mm

$313.50

6-pc Inserta Pliers, 160 mm

$421.80

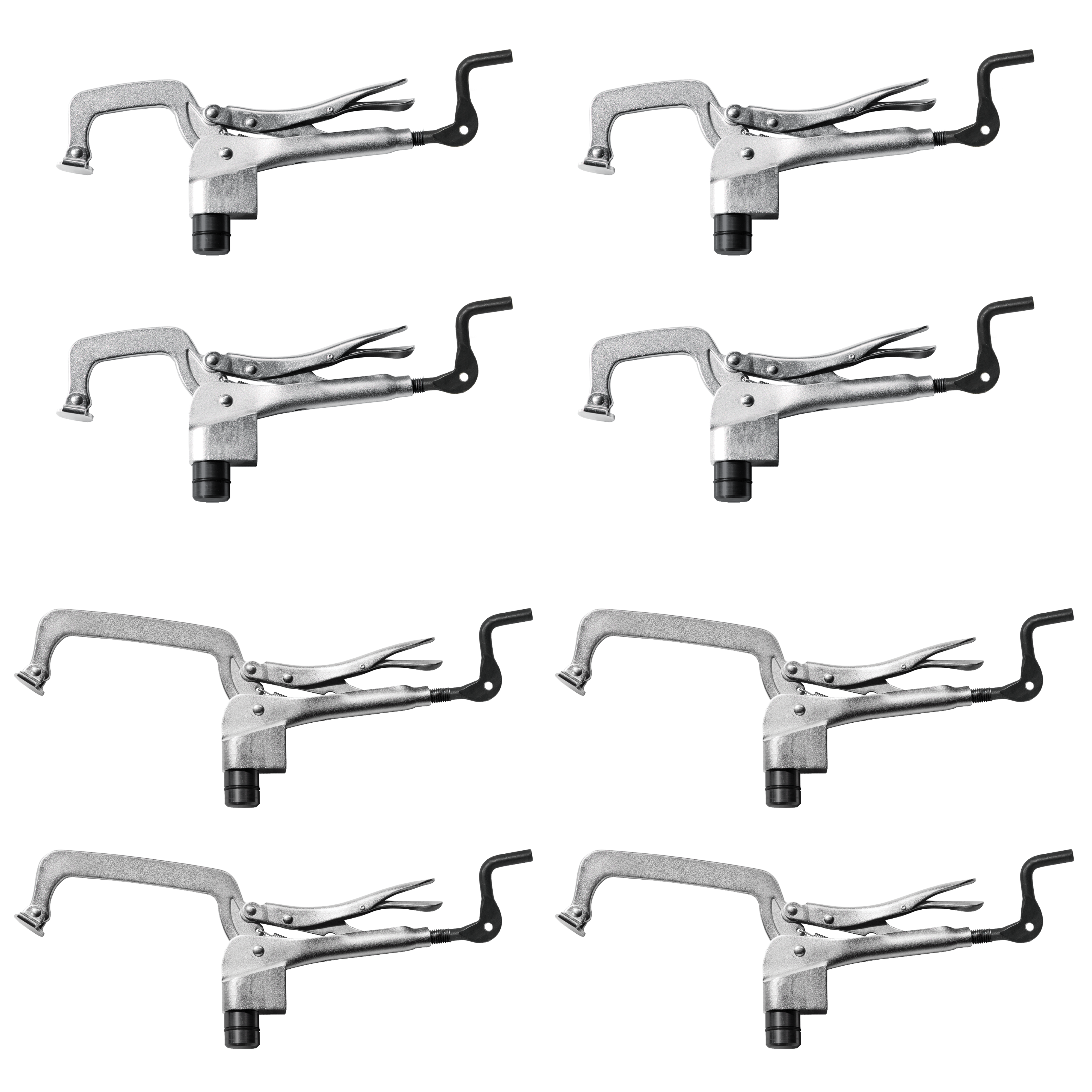

8-pc Bar Clamps & T-Post Pipe Clamps

$820.80

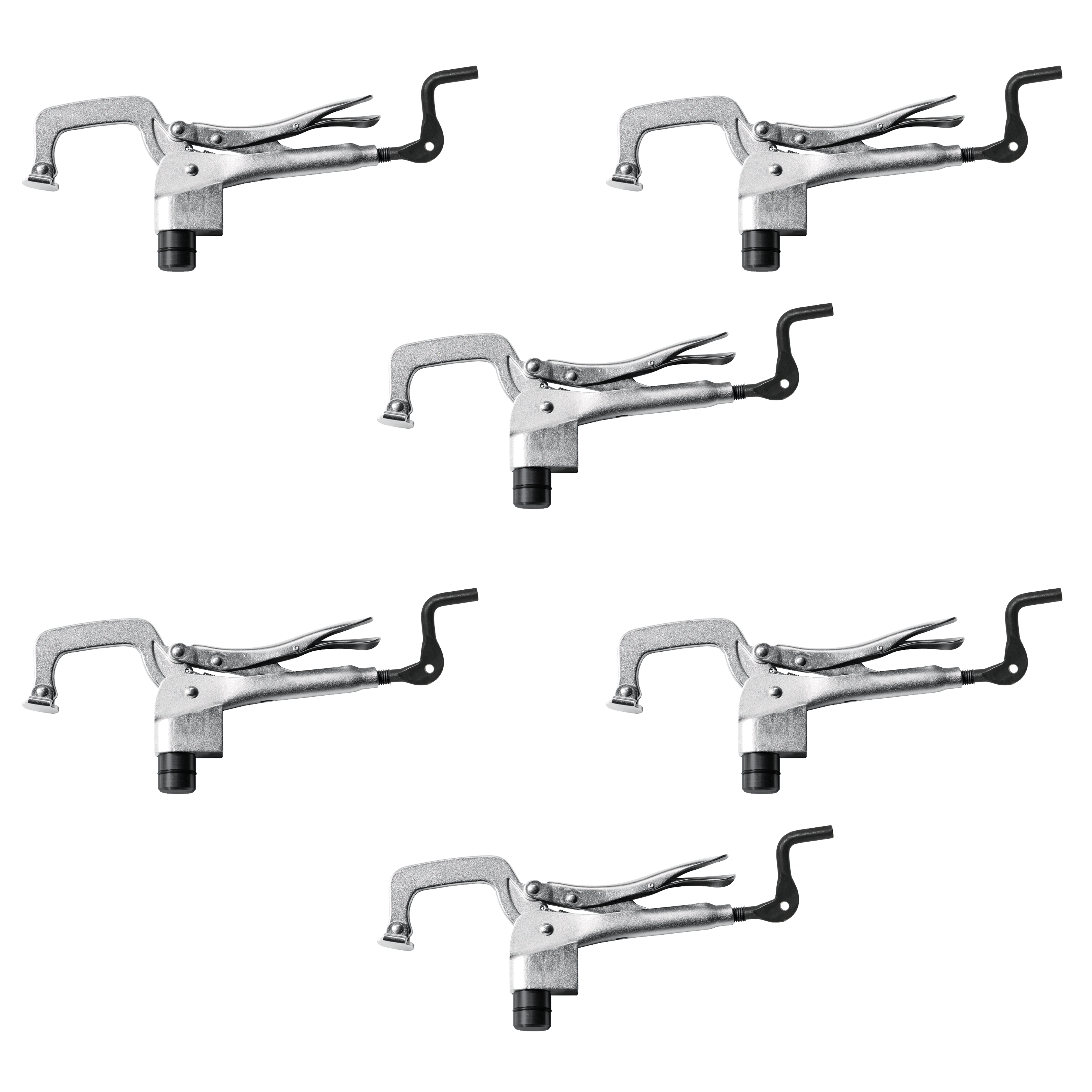

8-pc Inserta Pliers

$490.20

What people say about us:

I am still waiting on the fixture kit but so far am very impressed with the craftsmanship put into this table. It is super heavy but easy to assemble with the help of a forklift.

Kevin T

Morro Bay, CA

These tables are exceeding my expectations. They are built much heavier than what I envisioned.

Don W

Manitowoc, WI

Excellent size. Good access for mounting and tool insertion. Very stiff. Very straight.

David S

San Luis Obispo, CA

Tabletop + Fixed Length Legs

Part No.	Includes Leg	Table Surface Height (mm)	Capacity (kg)	Gross Weight (kg)
T28-2412XQ-A1	T28-81007	860	6,000	1,126

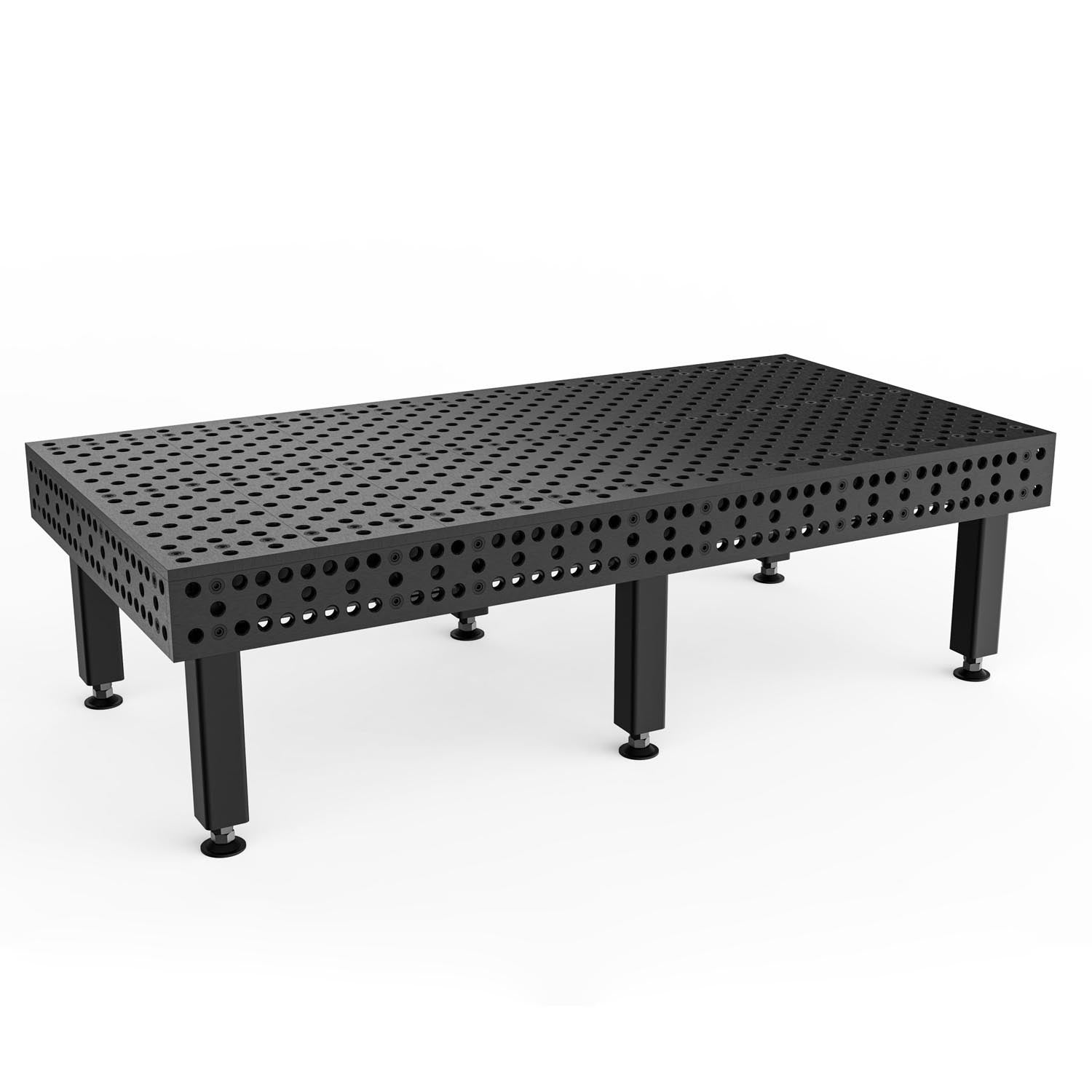

T28-2412XQ-A2	T28-81005	710	6,000	1,123

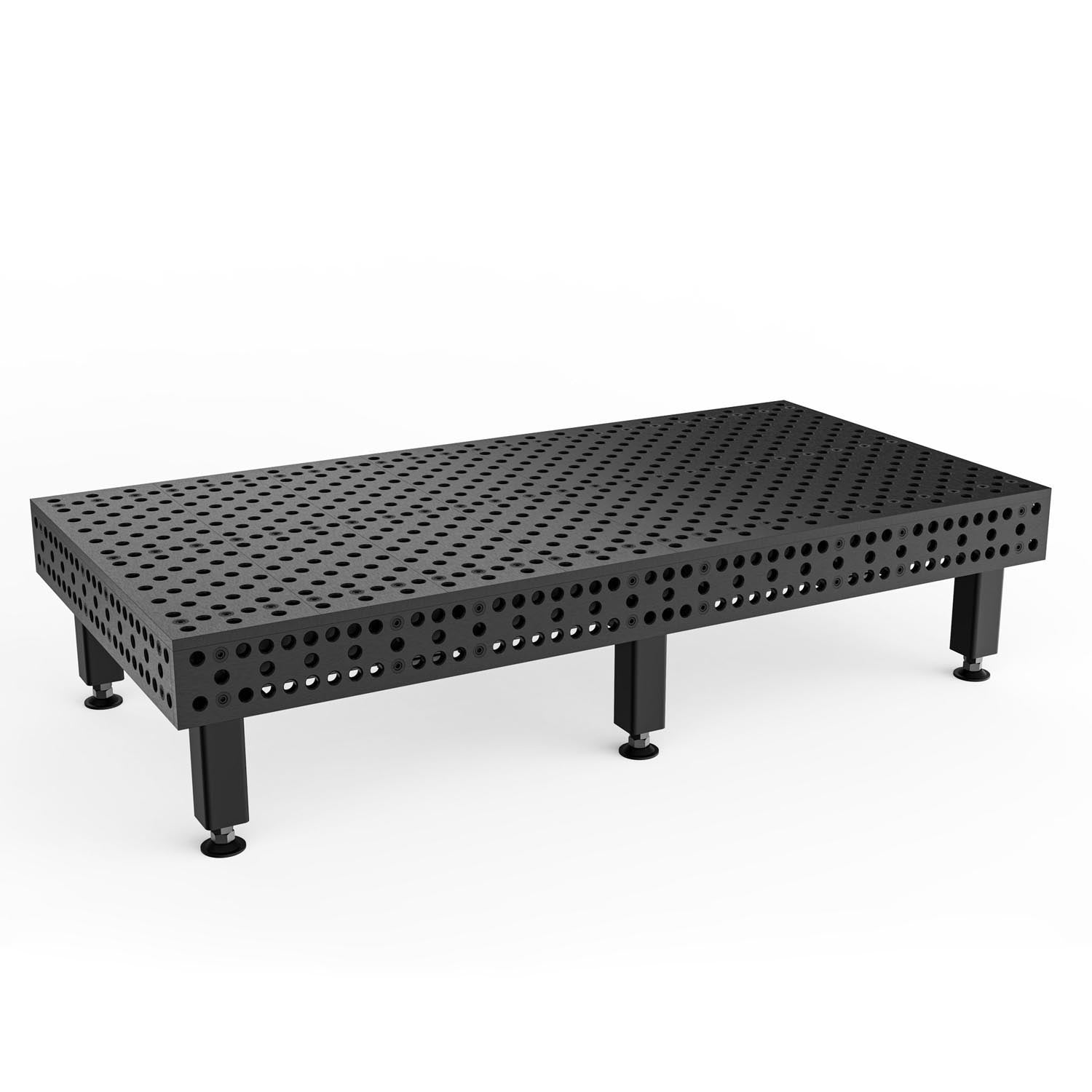

T28-2412XQ-A3	T28-81004	560	6,000	1,118

Tabletop + Height-Adjustable Legs 620 ~ 970 mm

Part No.	Includes Leg	Table Surface Height (mm)	Capacity (kg)	Gross Weight (kg)
T28-2412XQ-B1	T28-82009	810 ~ 1,160	6,000	1,188

Tabletop + Height-Adjustable Legs + Caster and Locking Brake 575 ~ 780 mm

Part No.	Includes Leg	Table Surface Height (mm)	Capacity (kg)	Gross Weight (kg)
T28-2412XQ-C1	T28-82407	765 ~ 970	4,800	1,258

Tabletop + Fixed Length Legs + Caster and Locking Brake 845 mm

Part No.	Includes Leg	Table Surface Height (mm)	Capacity (kg)	Gross Weight (kg)
T28-2412XQ-C2	T28-81406	1,035	4,800	1,195

We came across the StrongHand booth at IMTS2024. We liked the way the table is built and the modularity of the system. We also ordered the 113-piece fixturing kit. Our welder has used it on a couple projects, and it has allowed more accurate positioning of components and square setups.
