Clamp Arm
- Removable
- Reversible
Ergonomic Comfort Handle included with G/M Rail clamps.
UG Models: Plastic Handle + Cap
UM Models: Plastic handle ONLY
UD Models: Remove the Key Ring.
UE, UF, UG, UM Models: Press the Spring Stop
UP Models: Remove the Screw Stop
Clamp Arm
- Removable
- Reversible
Ergonomic Comfort Handle included with G/M Rail clamps.
UG Models: Plastic Handle + Cap
UM Models: Plastic handle ONLY
UD Models: Remove the Key Ring.
UE, UF, UG, UM Models: Press the Spring Stop
UP Models: Remove the Screw Stop
The Strong, economical 4-IN-1 Utility Clamps adapt to serve four different applications.

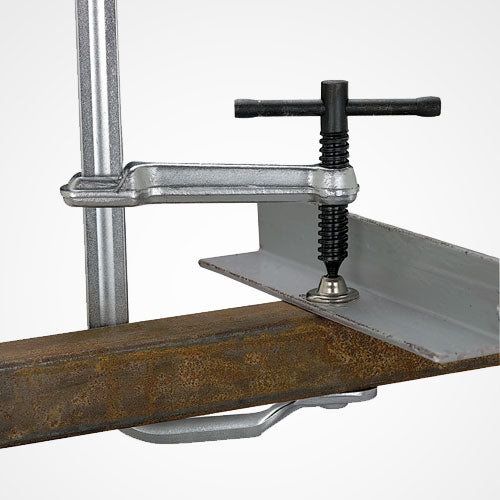

1. Standard
Sliding Arm Clamps are 10x faster than a C-Clamp!

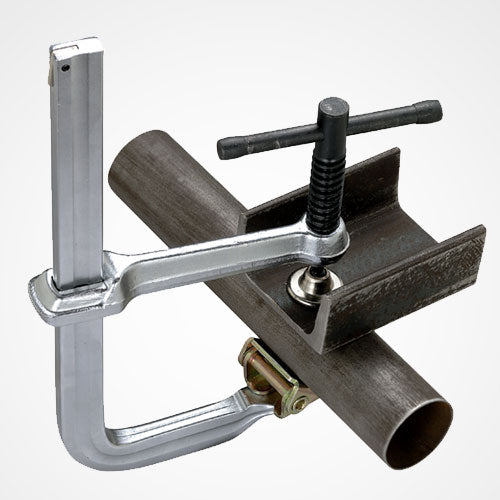

2. Pipe
Add the exclusive V-Pad to create a Pipe Clamp!

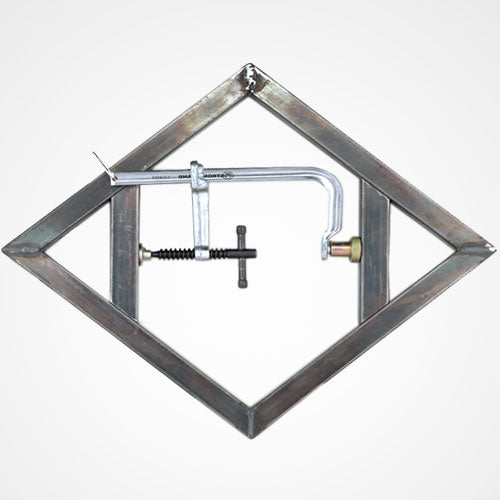

3. Spreader
Reverse the clamp arm and create a Spreader Clamp.

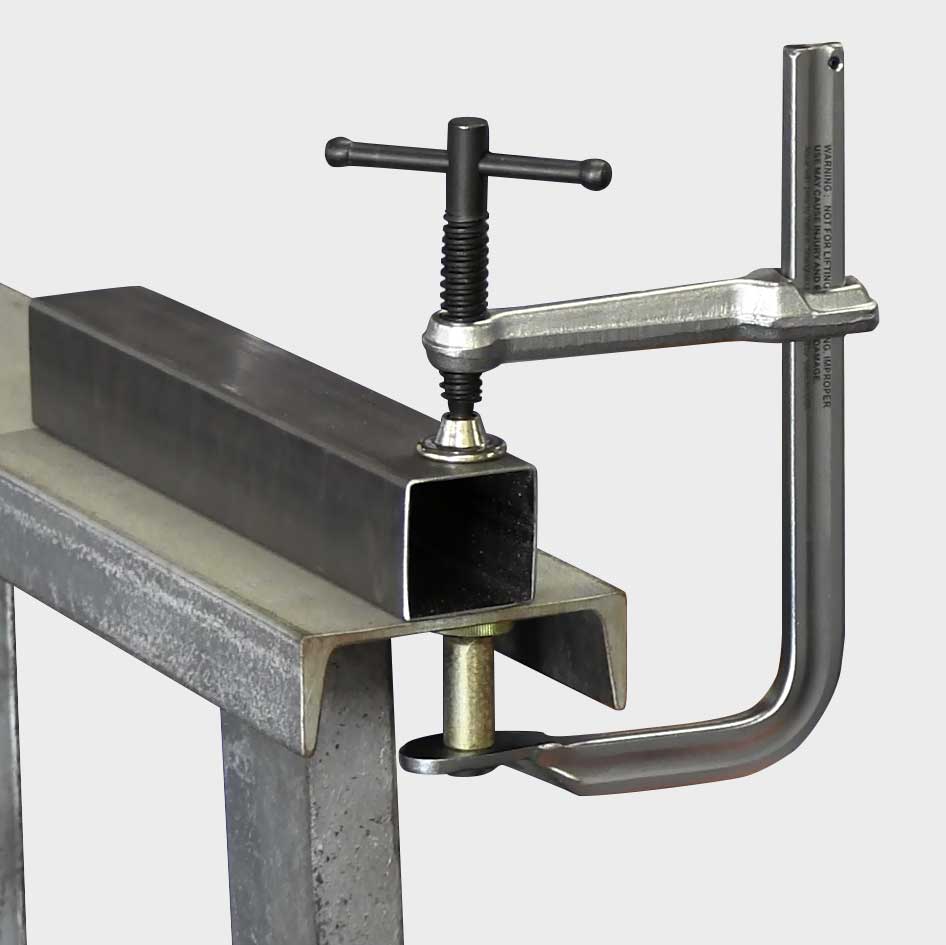

4. Step-Over
Add the Extender Block to create a Step-Over Clamp.
Standard Pad
For Light Duty clamps.
Self-aligning, Replaceable Heavy Duty Pad
For Heavy Duty and some Medium Duty clamps.
Tapped Hole - (D)
For attaching accessories such as the V-Pad or Extender Block.
Standard Pad
For Light Duty clamps.
Self-aligning, Replaceable Heavy Duty Pad
For Heavy Duty and some Medium Duty clamps.
Tapped Hole - (D)
For attaching accessories such as the V-Pad or Extender Block.
| Part No. | Capacity - A (in) | Throat Depth - B (in) | Clamping Pressure (lb) | Pads | Rail Size - C (in) | Tapped Hole - D | Weight (lb) |
|---|---|---|---|---|---|---|---|

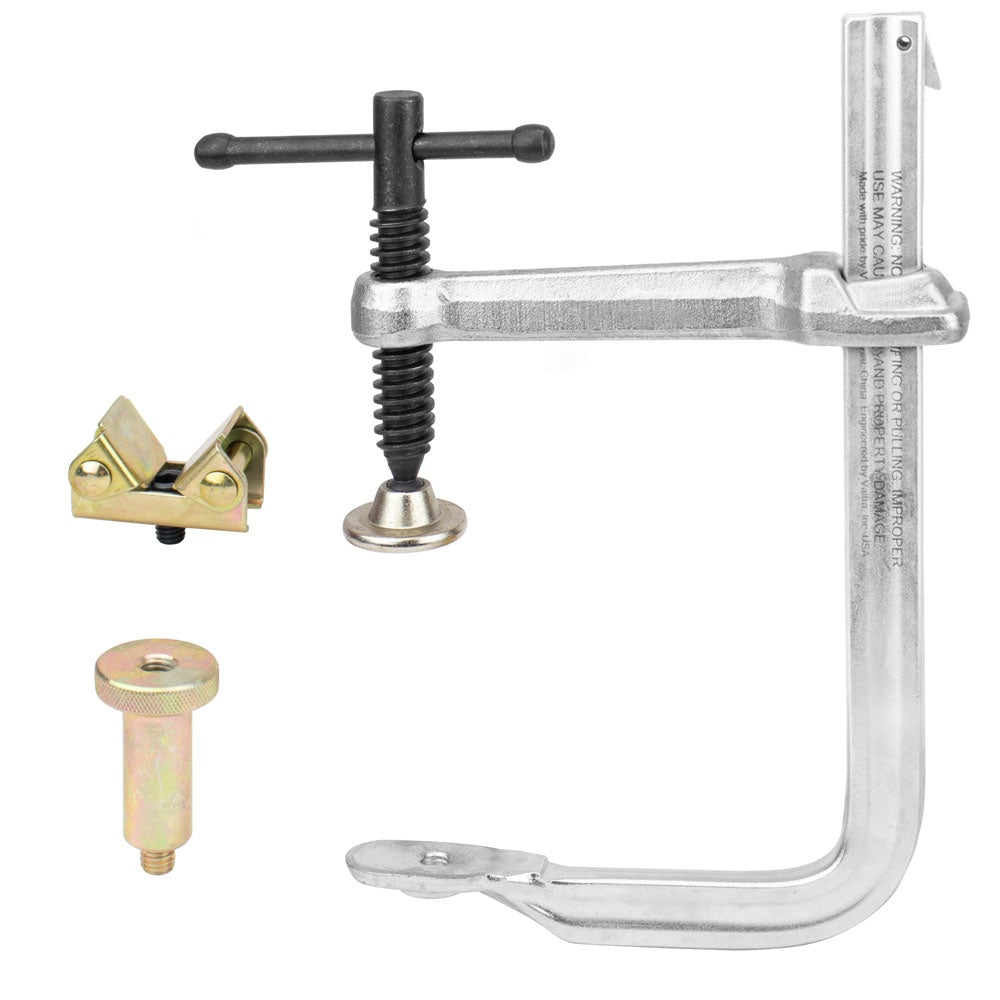

| UF65-C3 | 6-1/2 | 4-3/4 | 1,000 | Standard | 7/8 x 7/16 | 3/8-16 | 2.9 |

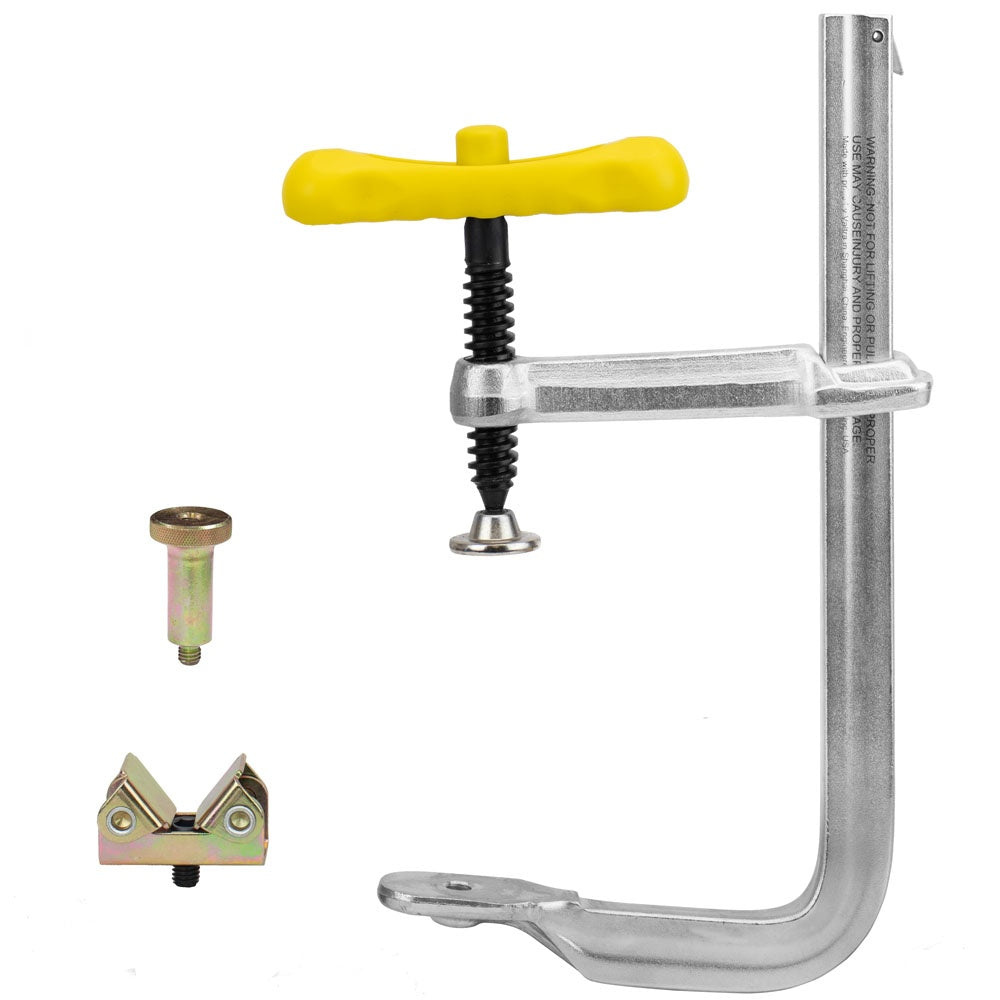

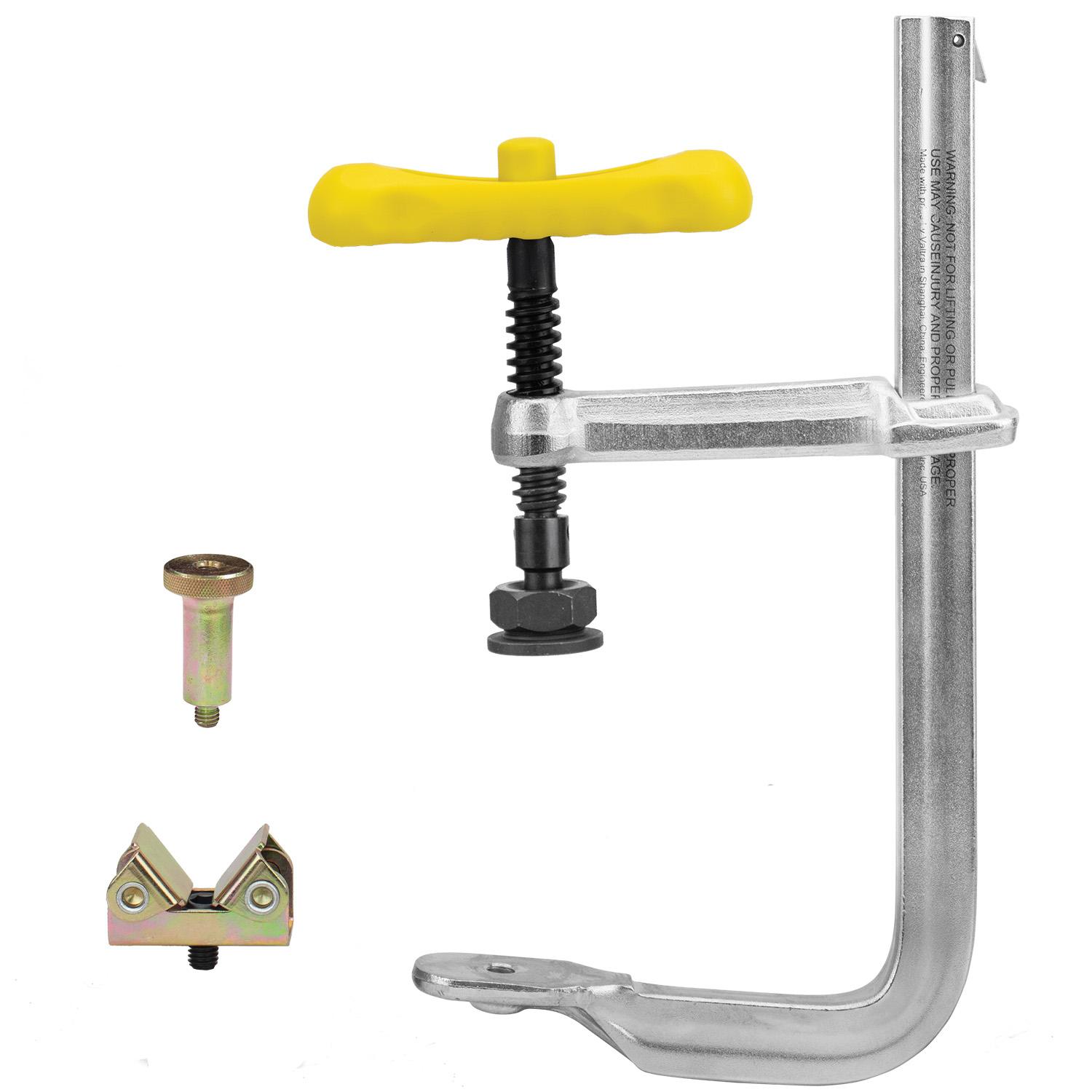

| UG85-C3 | 8-1/2 | 4-3/4 | 1,200 | Standard | 1 x 15/32 | 3/8-16 | 4.1 |

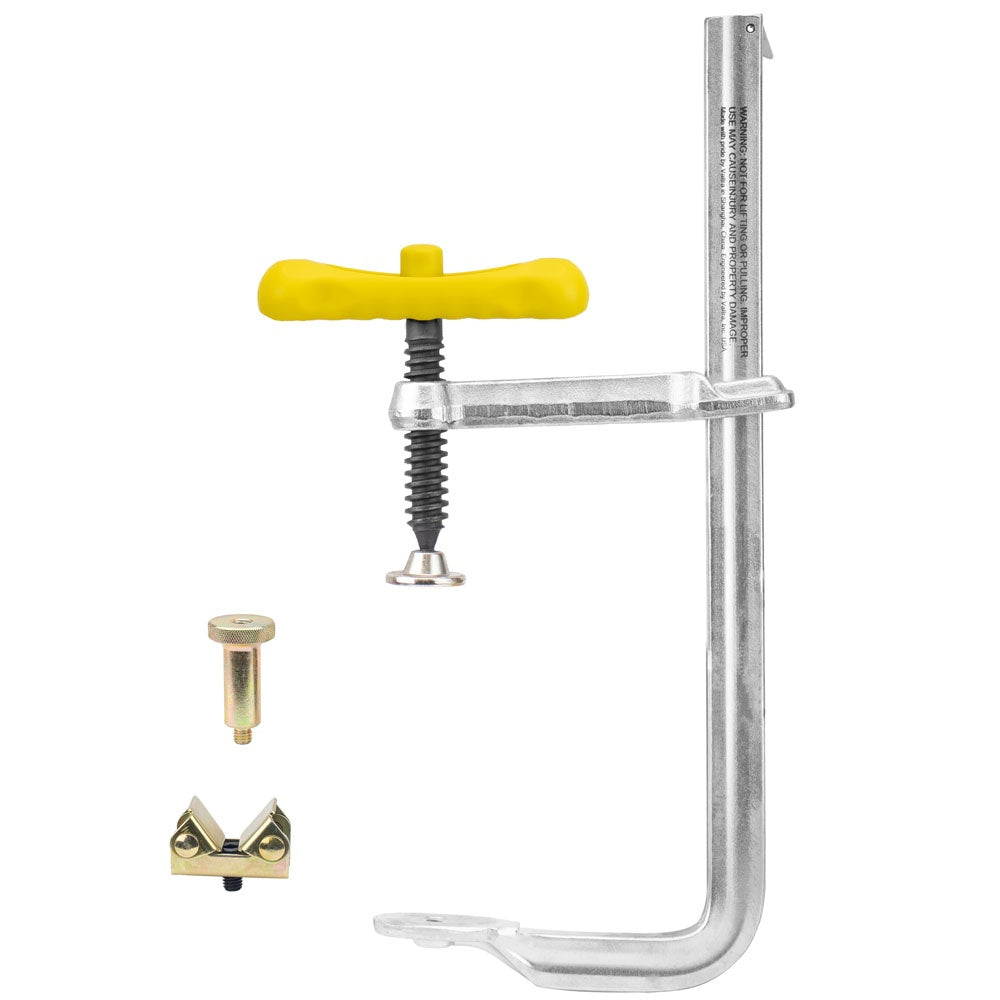

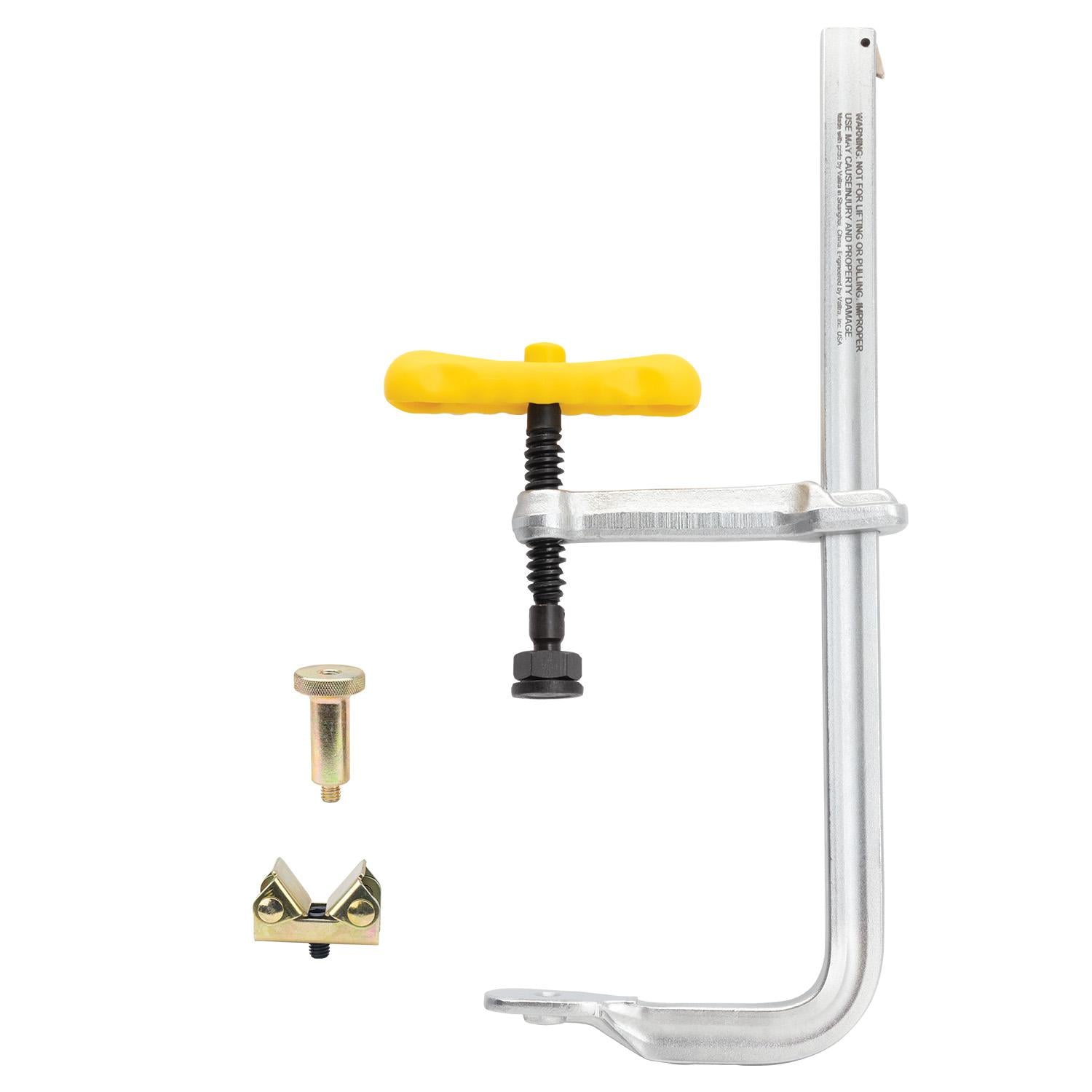

| UG125-C3 | 12-1/2 | 4-3/4 | 1,200 | Standard | 1 x 15/32 | 3/8-16 | 4.5 |

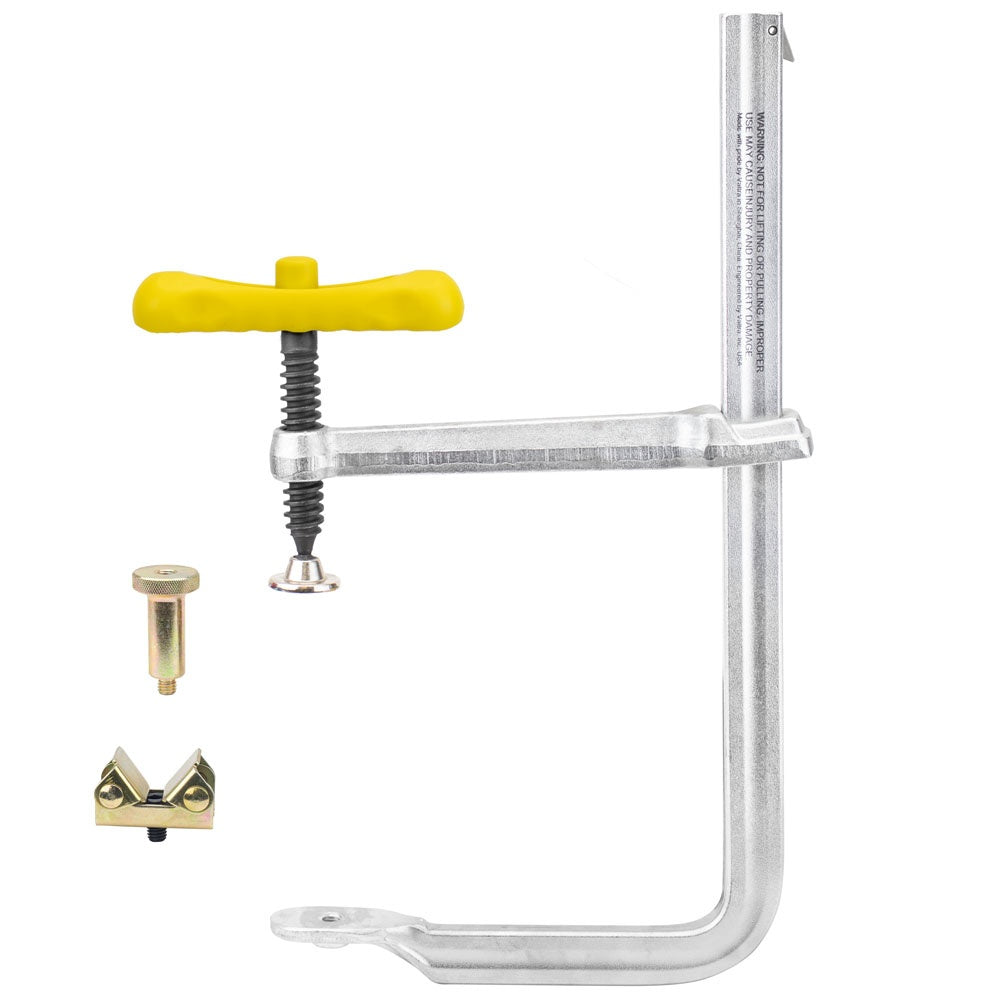

| UG1257-C3 | 12-1/2 | 7 *Deep Throat | 800 | Standard | 1 x 15/32 | 3/8-16 | 6.5 |

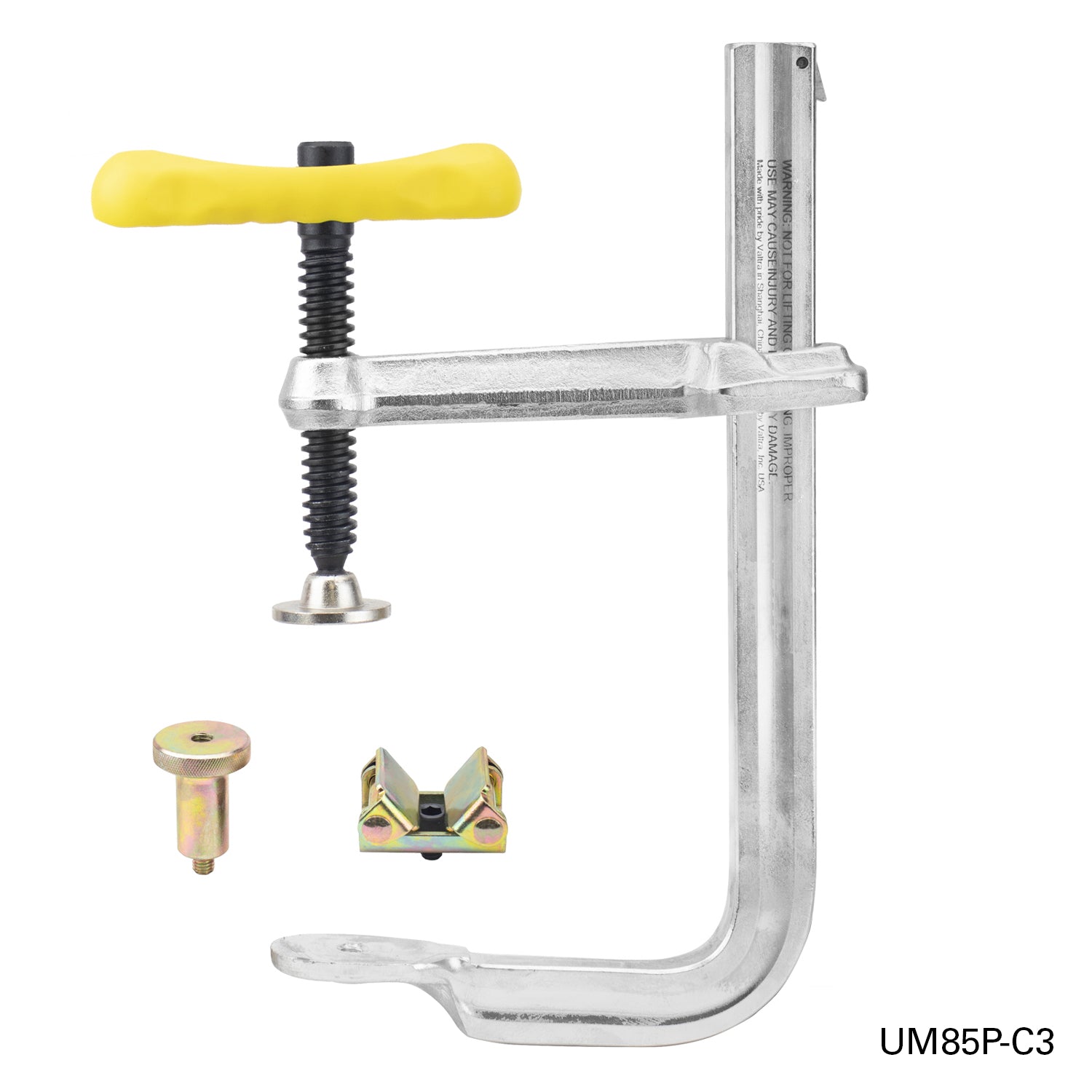

| UM85P-C3 | 8-1/2 | 5-1/2 | 2,400 | Standard | 1-3/16 x 9/16 | 3/8-16 | 6.6 |

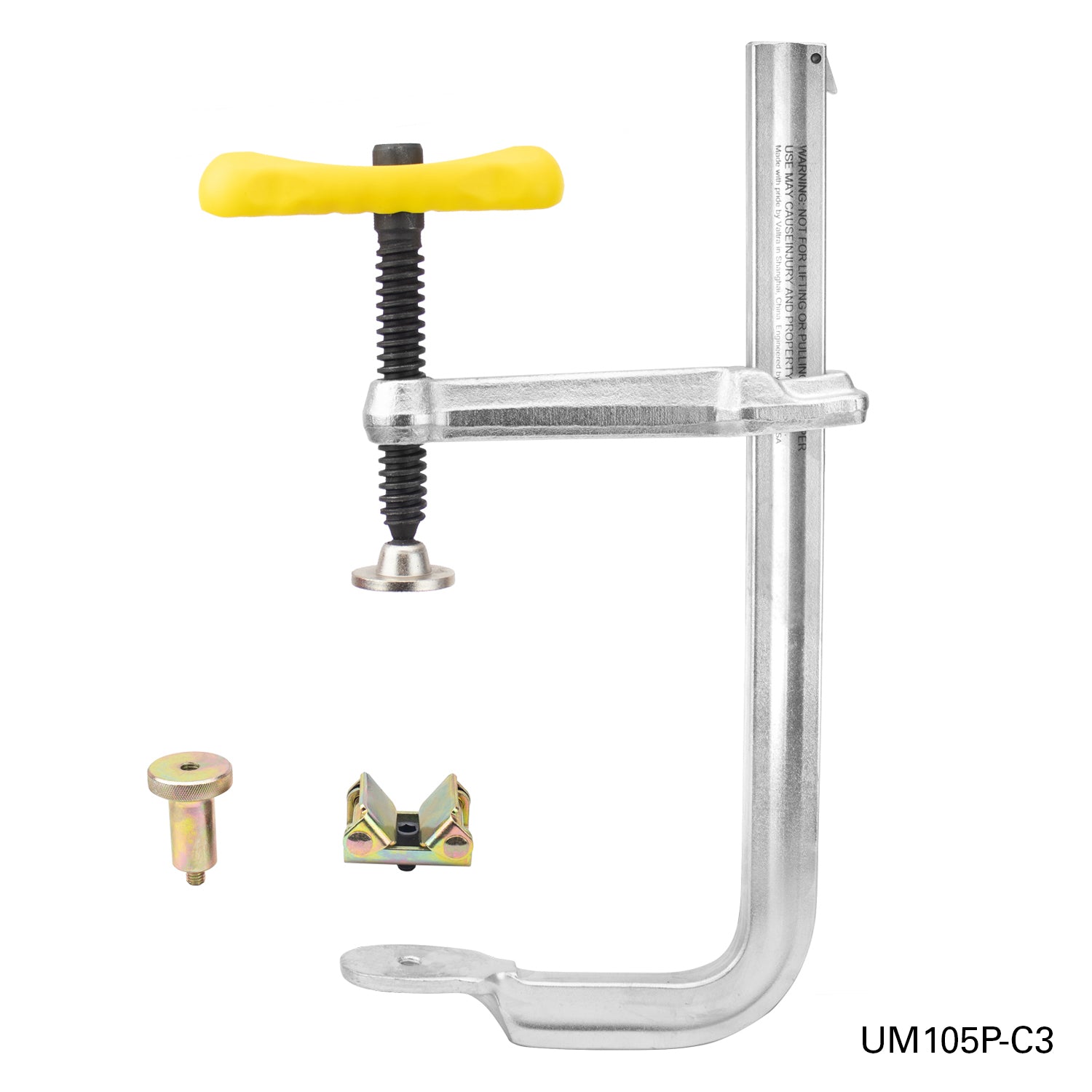

| UM105P-C3 | 10-1/2 | 5-1/2 | 2,400 | Standard | 1-3/16 x 9/16 | 3/8-16 | 7.4 |

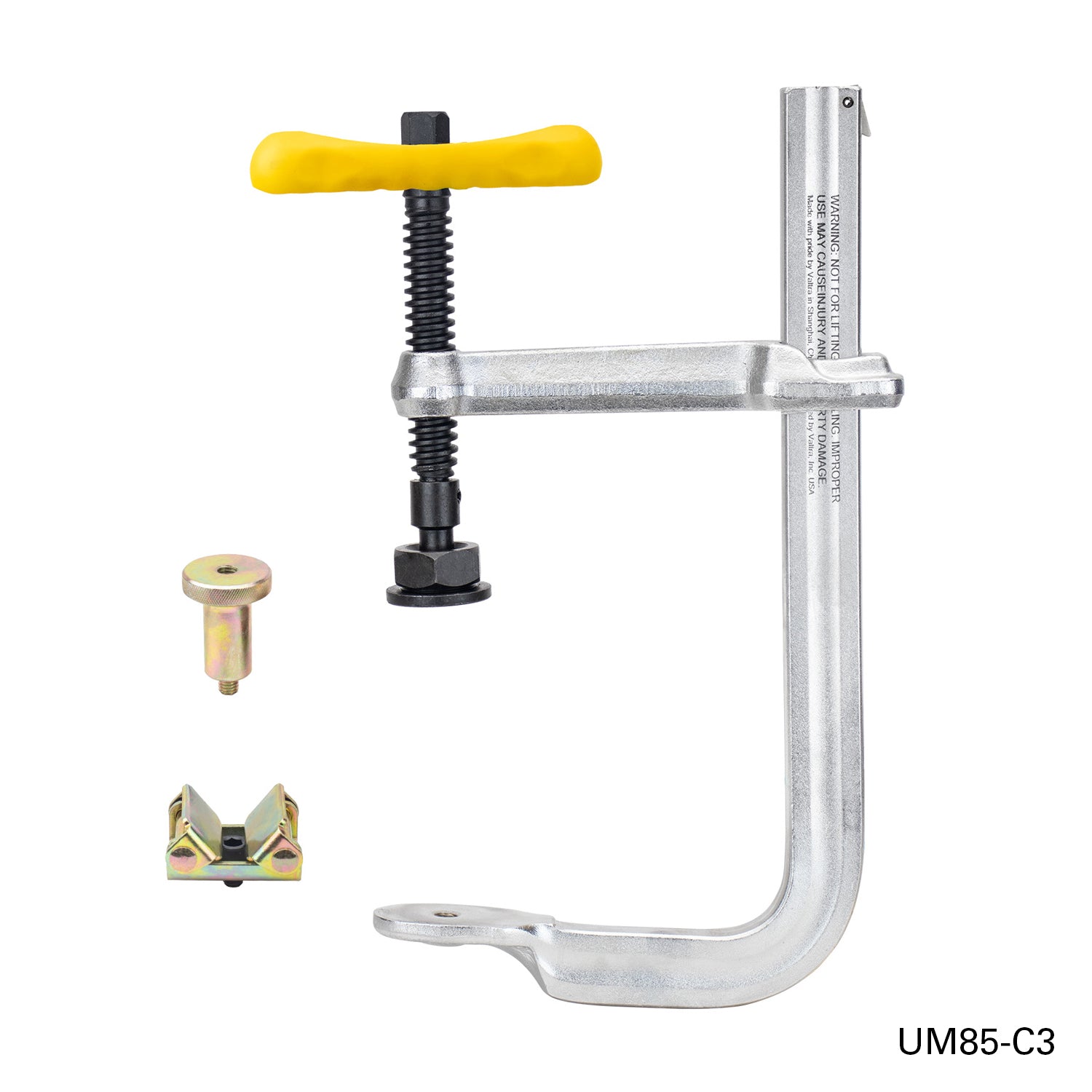

| UM85-C3 | 8-1/2 | 5-1/2 | 2,400 | Heavy Duty | 1-3/16 x 9/16 | 3/8-16 | 7.0 |

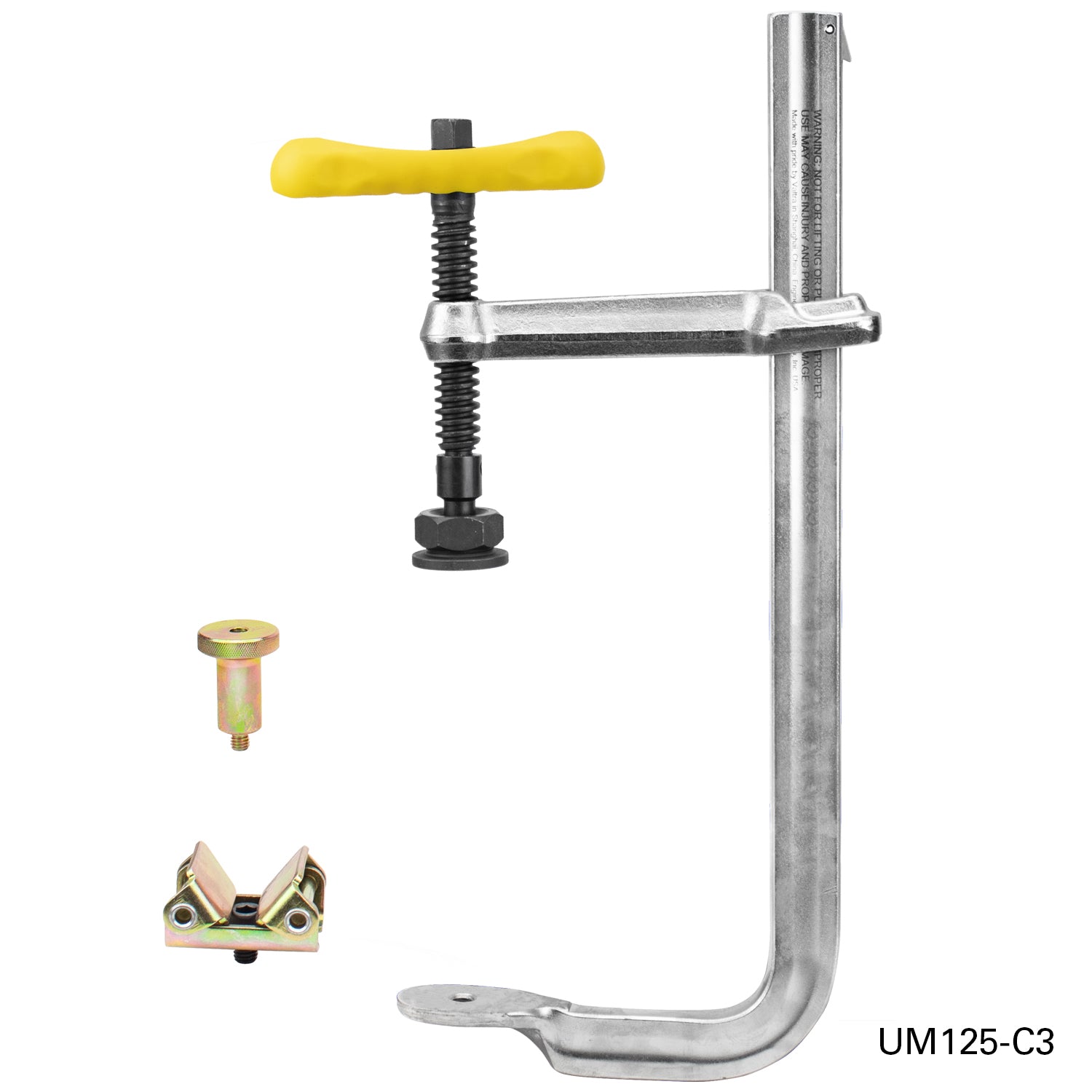

| UM125-C3 | 12-1/2 | 5-1/2 | 2,400 | Heavy Duty | 1-3/16 x 9/16 | 3/8-16 | 7.6 |

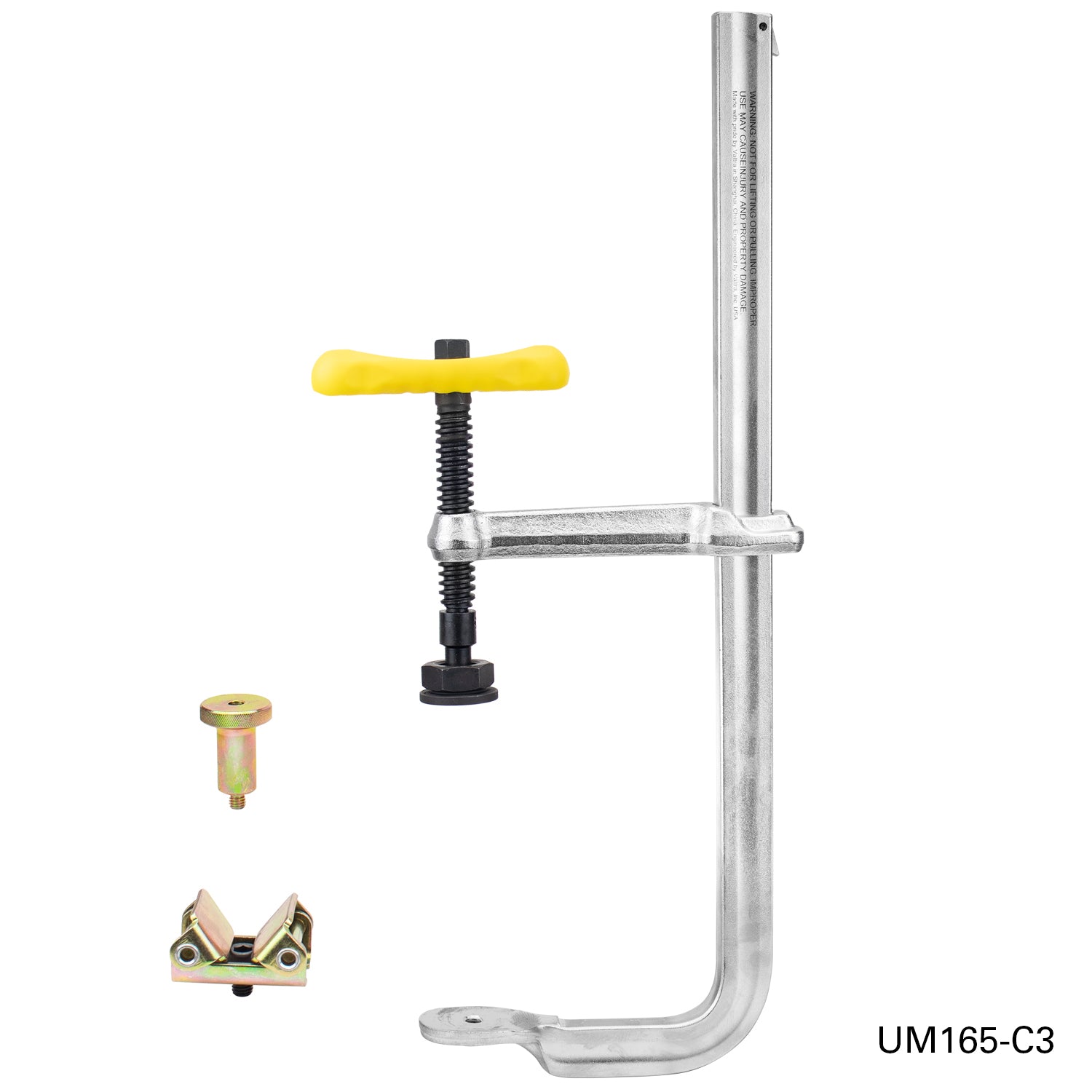

| UM165-C3 | 16-1/2 | 5-1/2 | 2,400 | Heavy Duty | 1-3/16 x 9/16 | 3/8-16 | 8.7 |

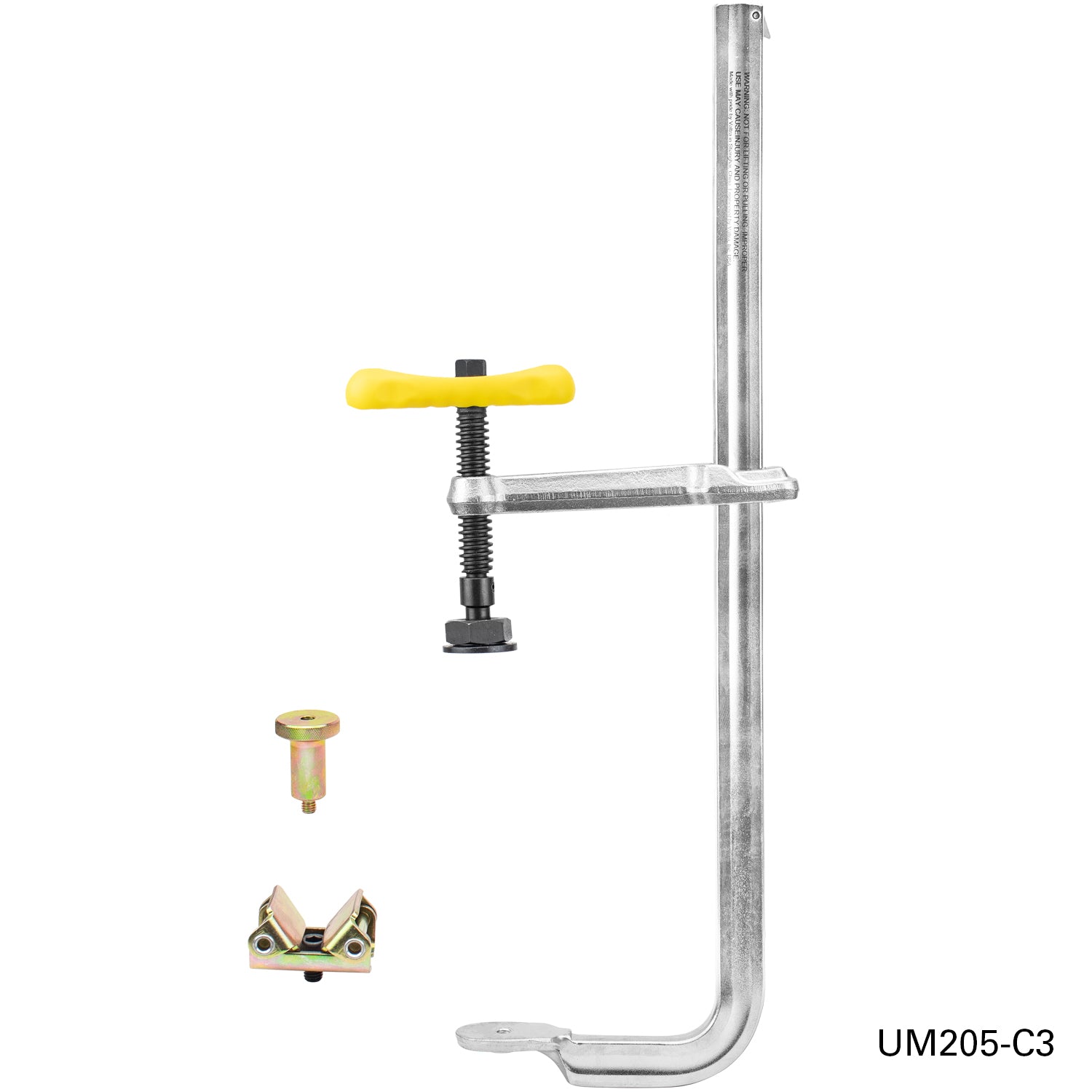

| UM205-C3 | 20-1/2 | 5-1/2 | 2,400 | Heavy Duty | 1-3/16 x 9/16 | 3/8-16 | 9.8 |
