Light Duty. Clamping Pressure: 300 ~ 500 lb.
The spring-loaded, one-handed clamp with quick-set V-Pad.
The Spring Arm in conjunction with the V-Pad allows users to free up one hand to position the workpiece.
* Do not use with impact wrenches.
MagSpring™ Clamps
MagSpring™ Clamps
Regular price
$24 USD
Sale price
$24 USD
Regular price
Shipping calculated at checkout.
Available in stock
-
Estimated delivery: Sep 02 - Sep 06
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
Manual Download
Manual Download
Spec Download
Spec Download
CAD Drawings Download
CAD Drawings Download
Spring Loaded Arm
The MagSpring™ holds onto metal, wood and synthetic materials.

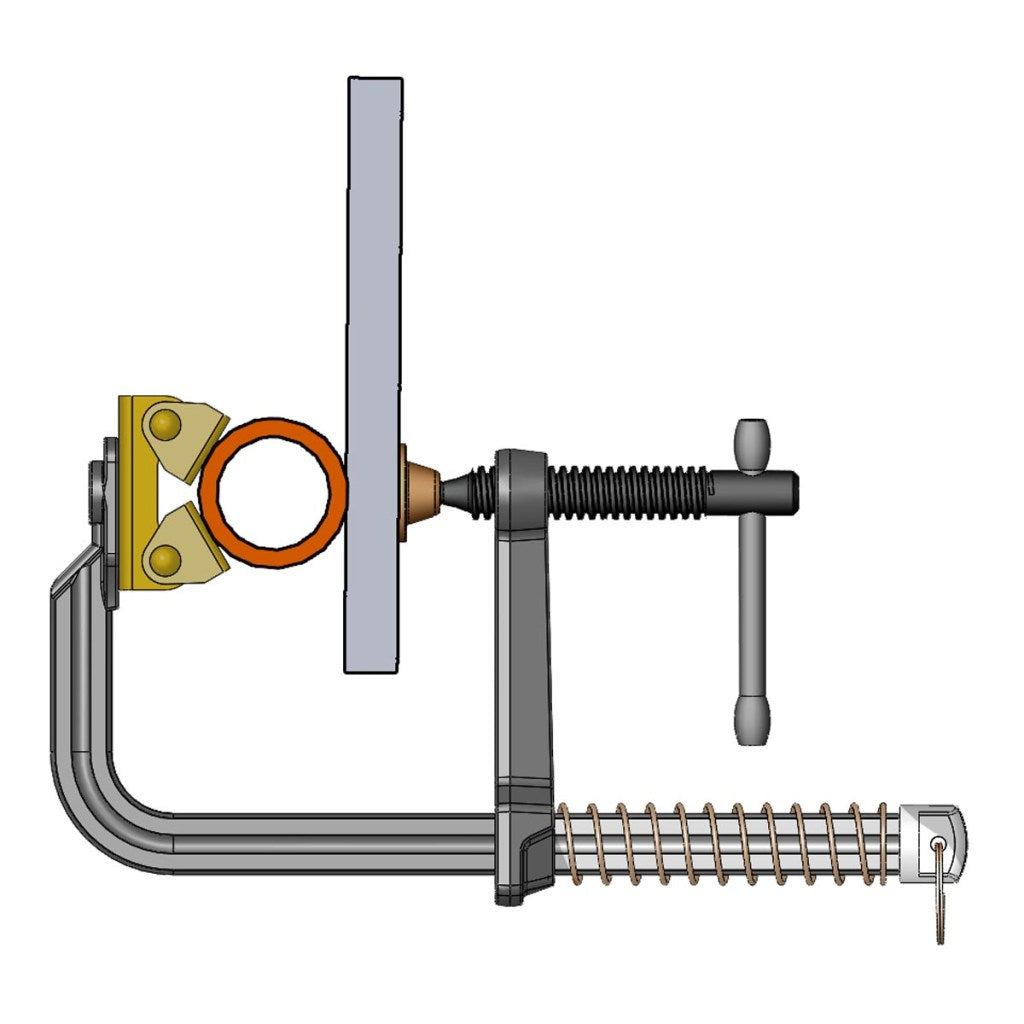

Adjustable Magnetic V-Pad
Instantly adjusts for different shapes: round, flat and angle steel surfaces.
| Part No. | Capacity (in) | Throat Depth (in) | Clamping Pressure (lb) | Tapped Hole (in) | Weight (lb) |
|---|---|---|---|---|---|
| UBV65 | 4.5 | 2.5 | 300 | 1/4-20 | 0.9 |
| UDV45 | 3 | 3.3 | 500 | 5/16-18 | 1.0 |
| UDV65 | 4.5 | 3.3 | 500 | 5/16-18 | 1.1 |
