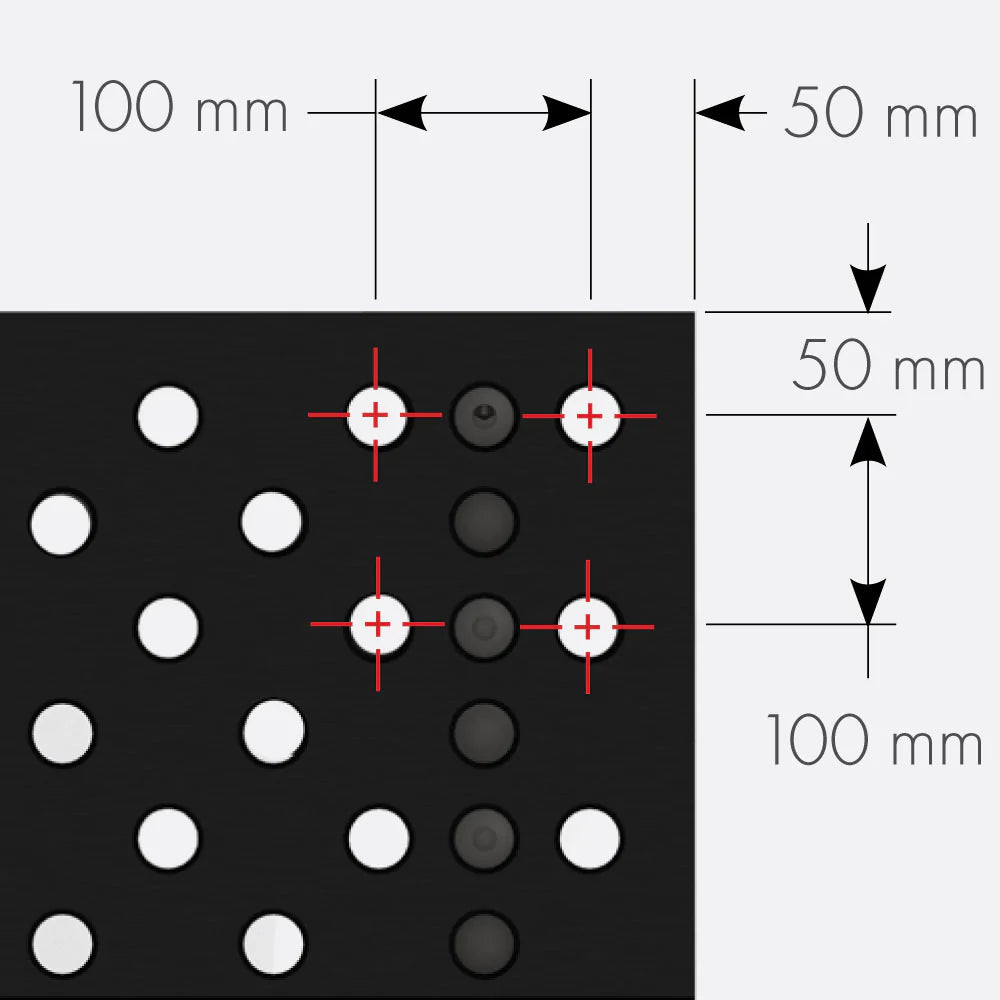

Borehole spacing 100 mm with additional 100 mm grid offset by 50 mm in the x and y axis, aka diagonal grid.
25 ±0.06 mm thickness.

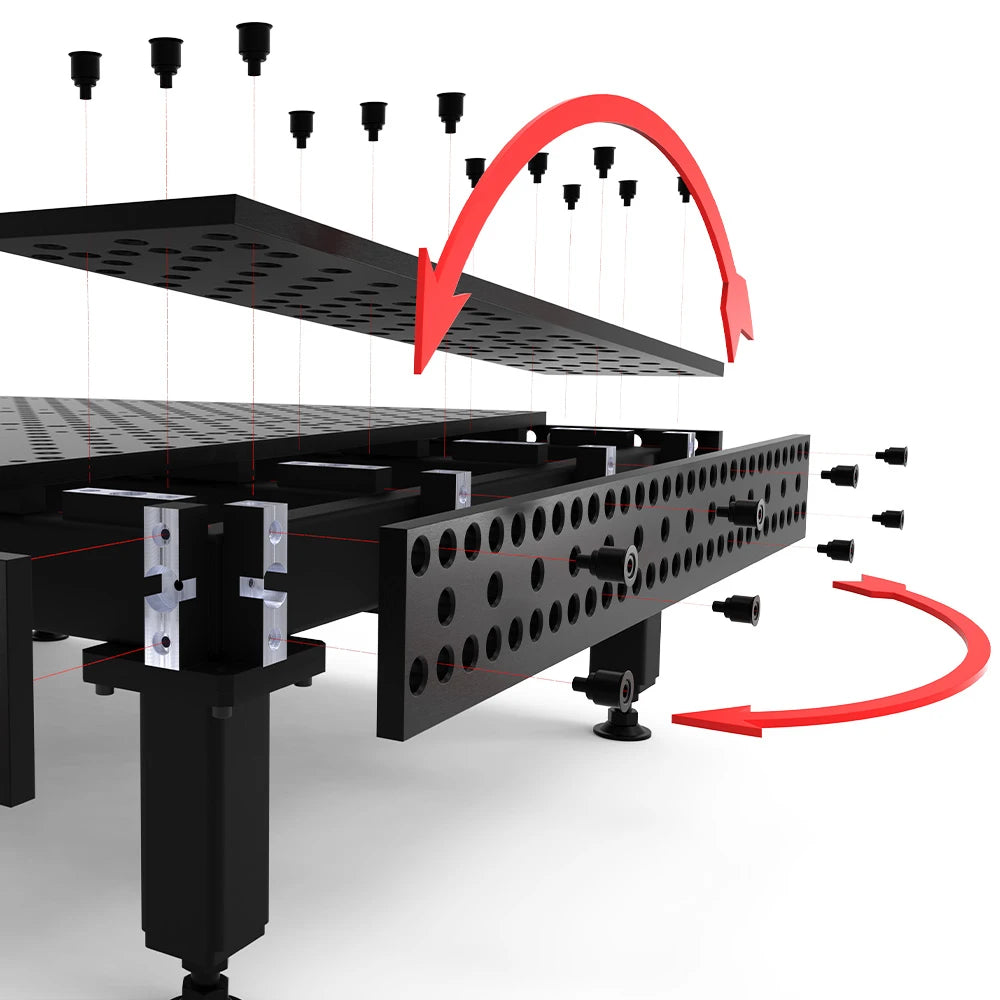

Each top plate can be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
* Mounting hardware sold separately. See Mounting Kit for ordering information.
If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.
All top and side plates of Alpha 28 table are made from a low alloy tool steel that’s tough enough for use in the mold making industry. After surface grinding and machining, each plate is further enhanced with a QPQ nitriding process that improves hardness, corrosion resistance, and resistance to weld spatter.
Plates on the table can be repositioned, or removed as applications dictate; a patented plate locating system means the spacing of the holes are always within tolerance without the need for special re-calibration.
| Ref. | Part No. | Dimension (mm) | Weight (kg) |
|---|---|---|---|
| A | T28-Y12000275X-01 | 1,200 x 275 | 56.3 |
| B | T28-Y12000300X-02 | 1,200 x 300 | 60.8 |
| C | T28-Y12000325X-03 | 1,200 x 325 | 66.7 |
| D | T28-Y10000275X-01 | 1,000 x 275 | 46.8 |
| E | T28-Y10000300X-02 | 1,000 x 300 | 50.5 |
| F | T28-Y10000225X-03 | 1,000 x 225 | 38.6 |
| G | T28-Y10000325X-01 | 1,000 x 325 | 55.5 |
| H | T28-Y15000275X-01 | 1,500 x 275 | 69.5 |
| I | T28-Y15000300X-02 | 1,500 x 300 | 75.0 |
| J | T28-Y15000325X-03 | 1,500 x 325 | 82.4 |
| K | T28-Y12250175X-05 | 1,225 x 175 | 34.4 |
| L | T28-Y11750175X-07 | 1,175 x 175 | 33.1 |
| M | T28-Y10250175X-05 | 1,025 x 175 | 28.8 |
| N | T28-Y09750175X-07 | 975 x 175 | 27.5 |
| O | T28-Y15250175X-05 | 1,525 x 175 | 42.8 |
| P | T28-Y14750175X-07 | 1,475 x 175 | 41.5 |
| Q | T28-Y11500175X-06 | 1,150 x 175 | 32.3 |
| R | T28-Y09500175X-06 | 950 x 175 | 26.7 |
| S | T28-Y14500175X-06 | 1,450 x 175 | 40.7 |
| Description |
| Product variants |
| Price |
| Borehole spacing 100 mm with additional 100 mm grid offset by 50 mm in the x and y axis, aka diagonal grid. 25 ±0.06 mm thickness. Each top plate can be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down. * Mounting hardware sold separately. See Mounting Kit for ordering information. |
