Bend Rests, Fit 5/8 Holes
Bend Rests, Fit 5/8 Holes
Available in stock
-
Estimated delivery: Jul 25 - Jul 29
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

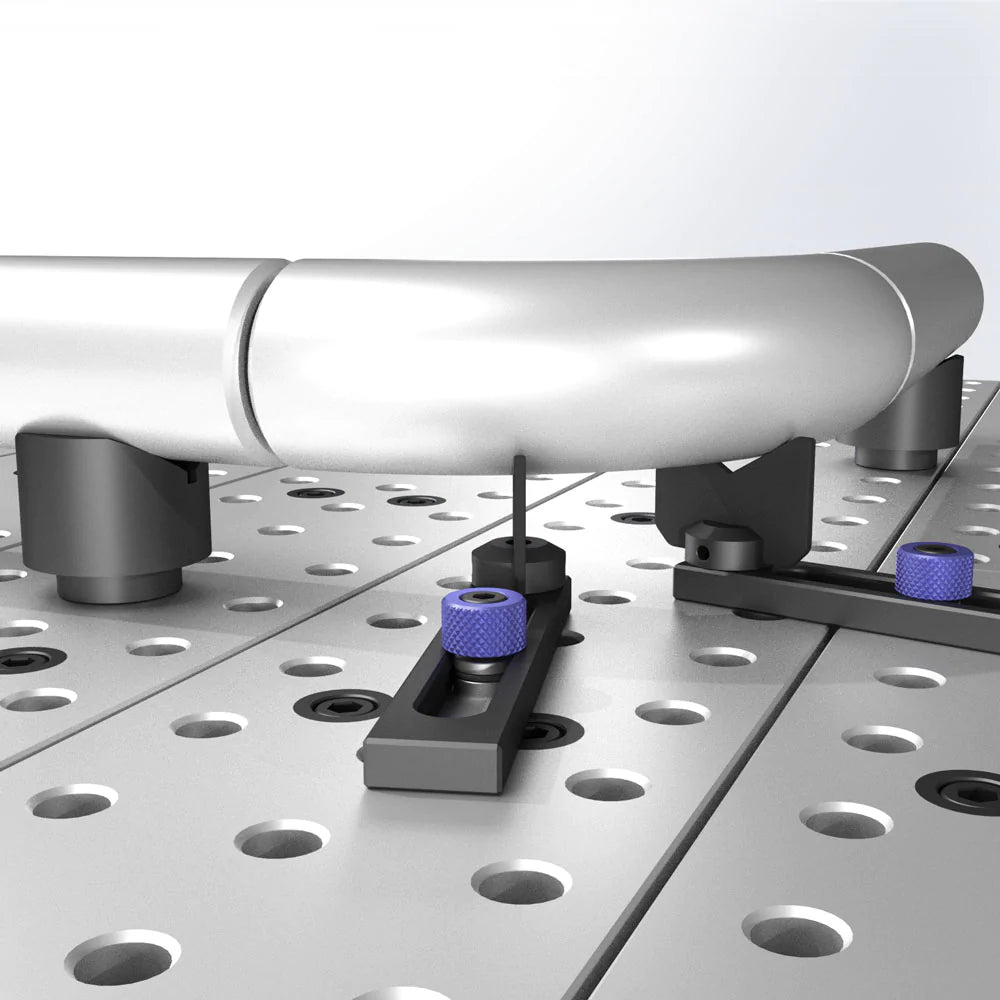

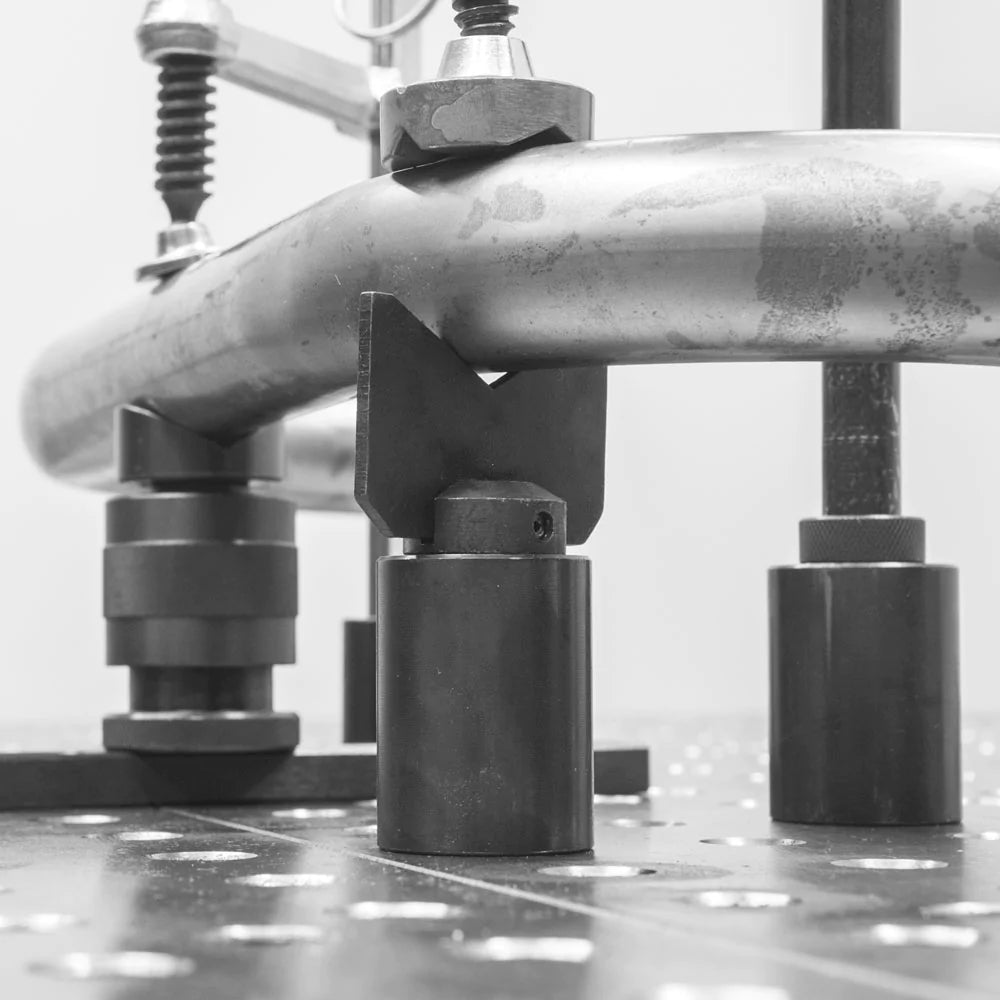

The Bend Rest supports round stock at bends and elbows in fixturing, preventing lateral movement and providing clamp support.

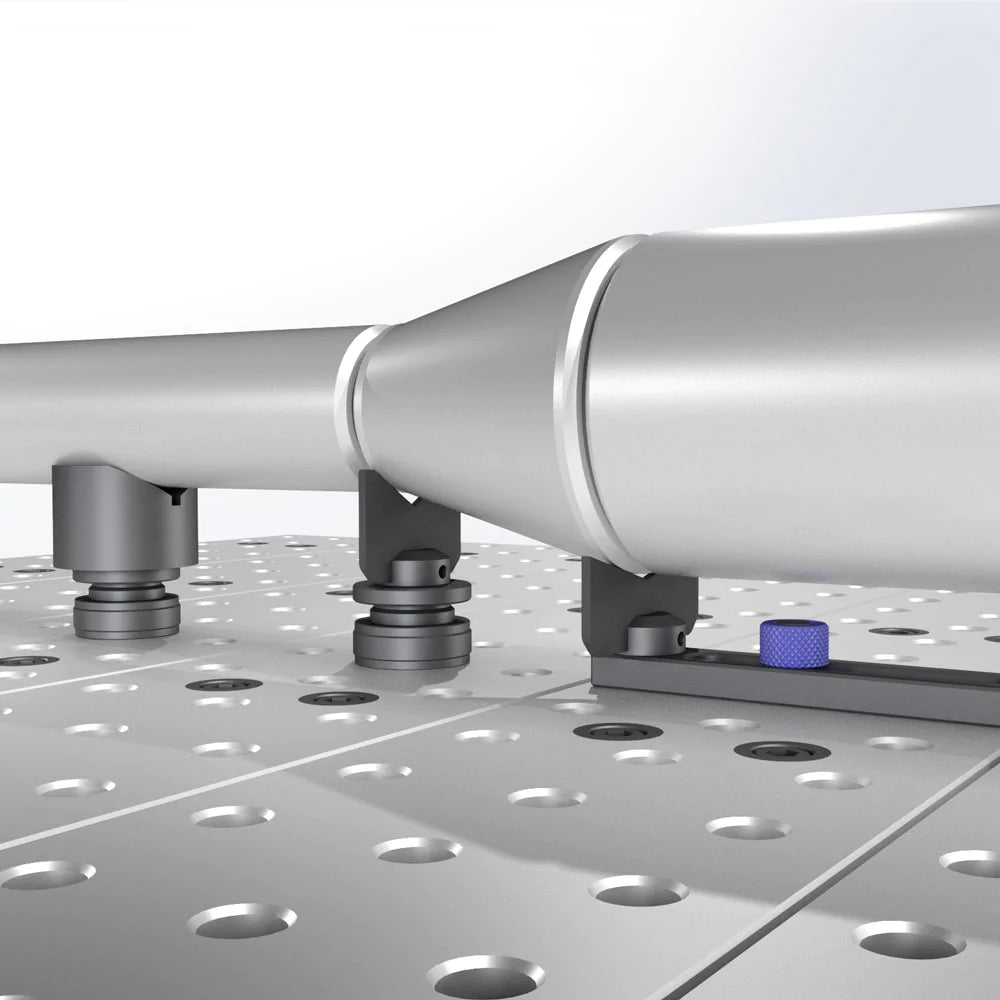

The low profile design allows use of multiple Bend Rests as needed to elevate stock, leaving ample space for clamping.
Place Bend Rests directly into any hole on the BuildPro® Tabletop, or use in combination with Adjustable Rest, Fixed Rest or V-Block Spacer to set at desired height to meet clearance or alignment requirements for each unique fixture.

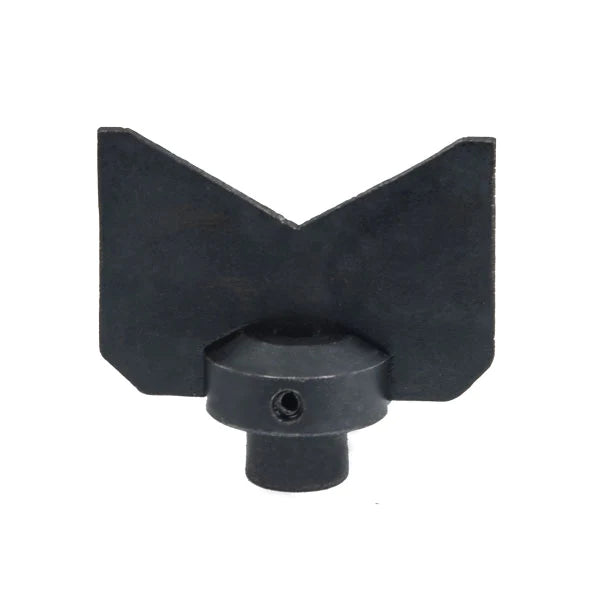

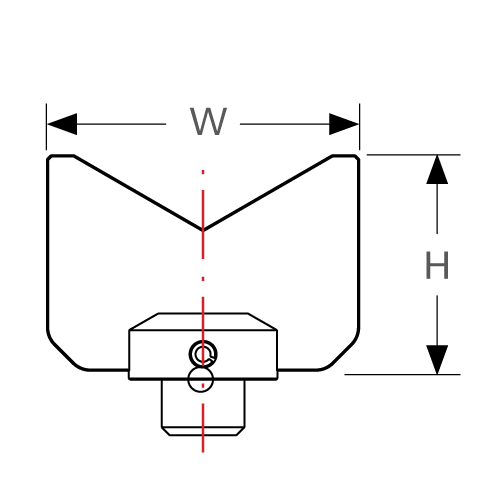

Part No. | Angle | W x H (in) | Max. Tube Size (in) | Weight (lb) |
---|---|---|---|---|
T54320 | 120° | 2.4 x 1.2 | 2.5 | 0.3 |
T54325 | 120° | 2.4 x 1.7 | 3 | 0.3 |
T54330 | 150° | 3.2 x 1.3 | 8 | 0.3 |
