Strong Hand Tools

F-Clamps, Heavy Duty

SKU: UP125

F-Clamps with the Removable / Reversible Clamp Arm, set up 10x faster than a C-Clamp!

  • Clamping Pressure: 4,800 lb
  • Throat Depth: 7″
  • Rail Size: 1-9/16 x 3/4″
  • Tapped Hole: 3/8-16
  • Heavy Duty Replaceable Pads

You can create your own 4-IN-1 kit with the 4-IN-1 Accessory Pack!

$173.00
$173.00
Sale Sold out
/
Shipping calculated at checkout.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Reverse the clamp arm and create a Spreader Clamp.

Part No. Capacity - A (in) Throat Depth - B (in) Clamping Pressure (lb) Rail Size - C (in) Tapped Hole - D Weight (lb)
UP125 12-1/2 7 4,800 1-9/16 x 3/4 3/8-16 12.3

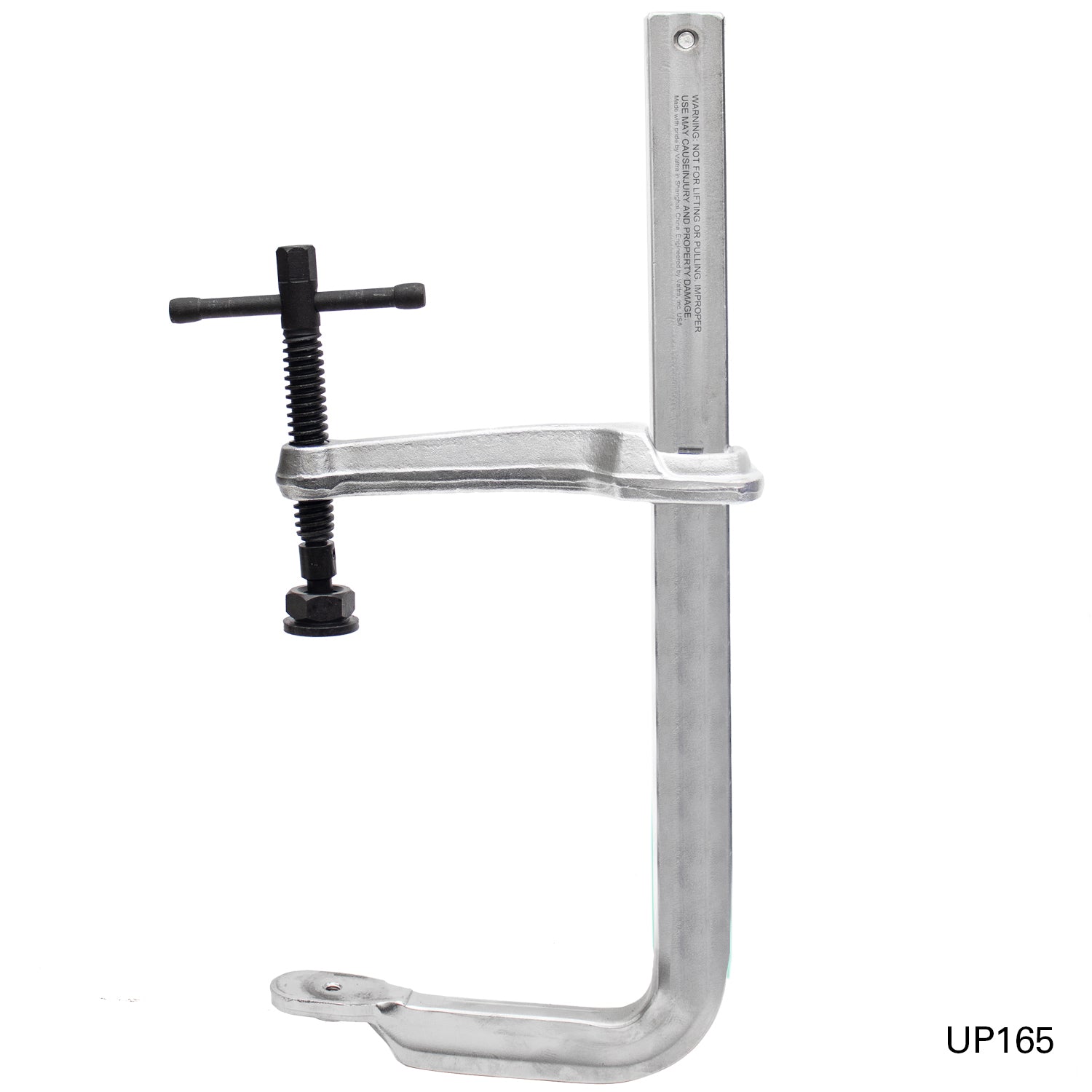

UP165 16-1/2 7 4,800 1-9/16 x 3/4 3/8-16 13.6

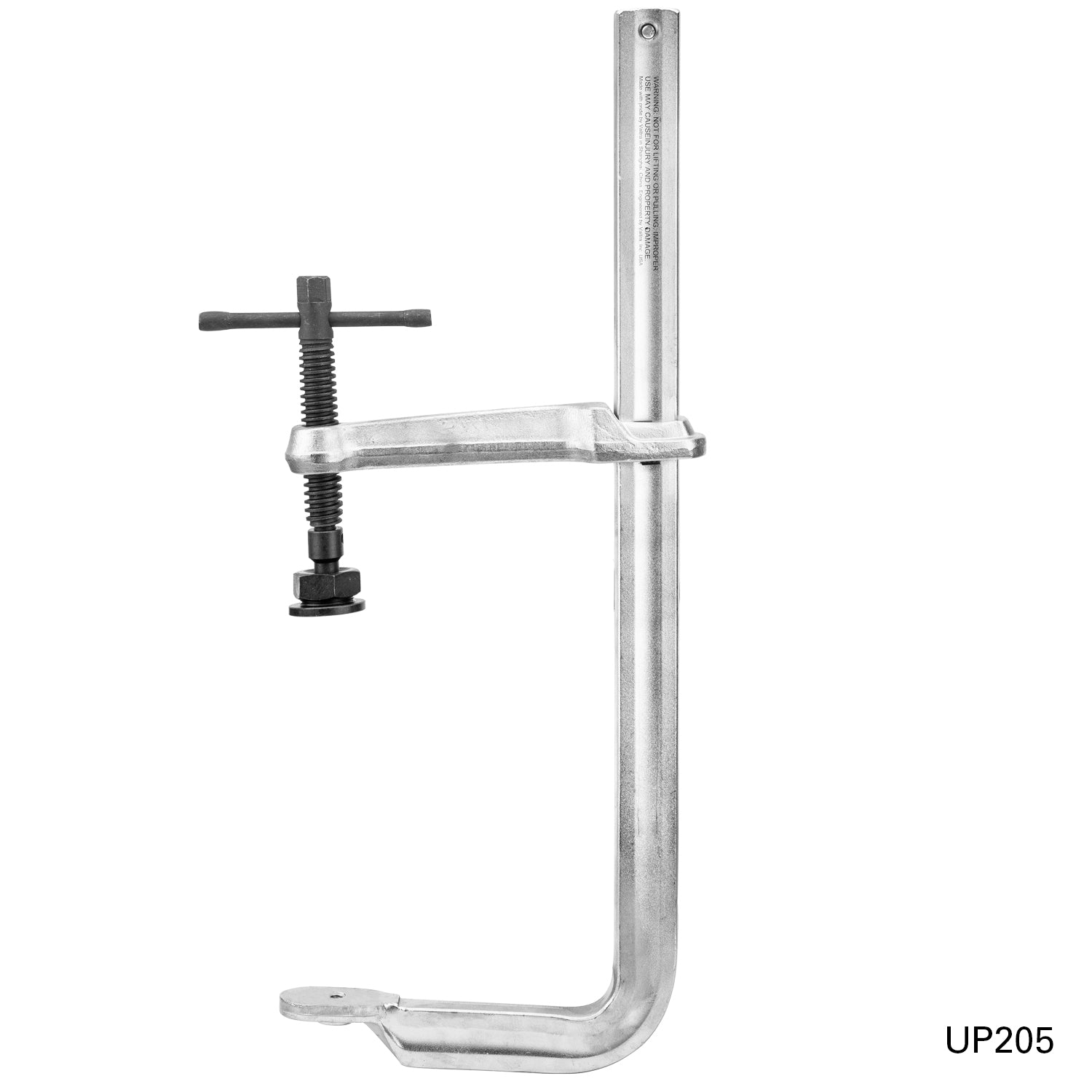

UP205 20-1/2 7 4,800 1-9/16 x 3/4 3/8-16 15.0

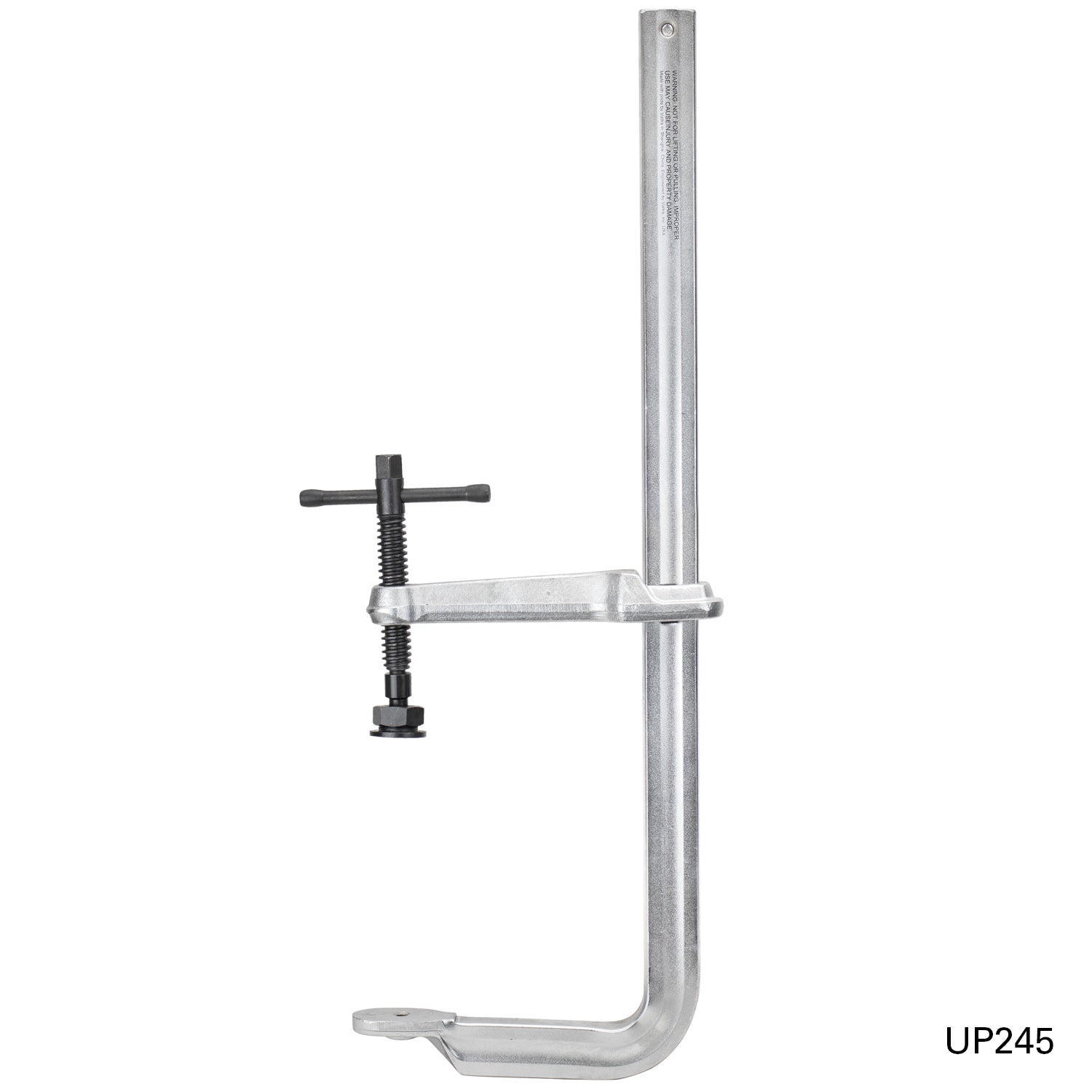

UP245 24-1/2 7 4,800 1-9/16 x 3/4 3/8-16 16.5

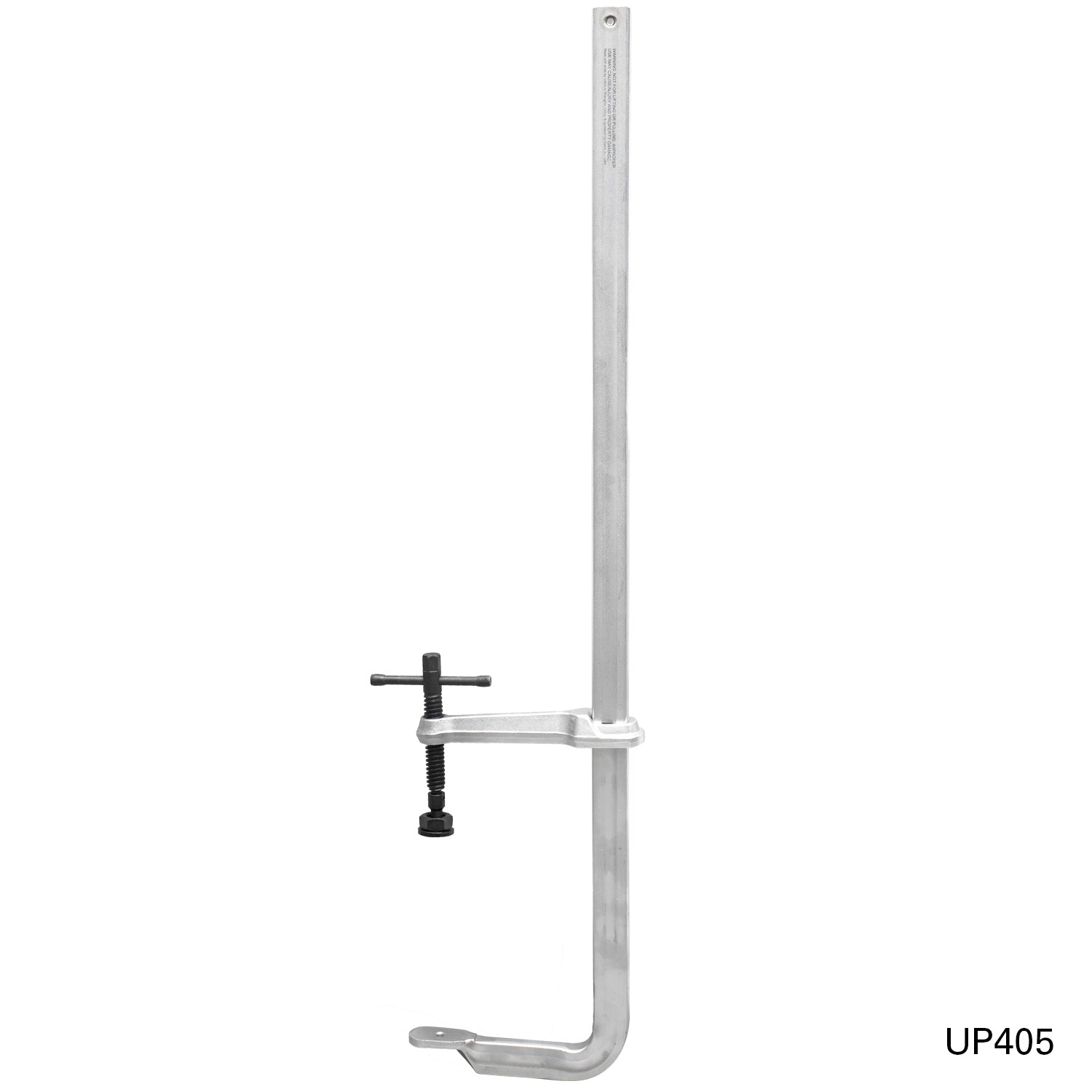

UP405 40-1/2 7 4,800 1-9/16 x 3/4 3/8-16 22.0
UP605 60-1/2 7 4,800 1-5/8 x 3/4 3/8-16 28.0
