Strong Hand Tools

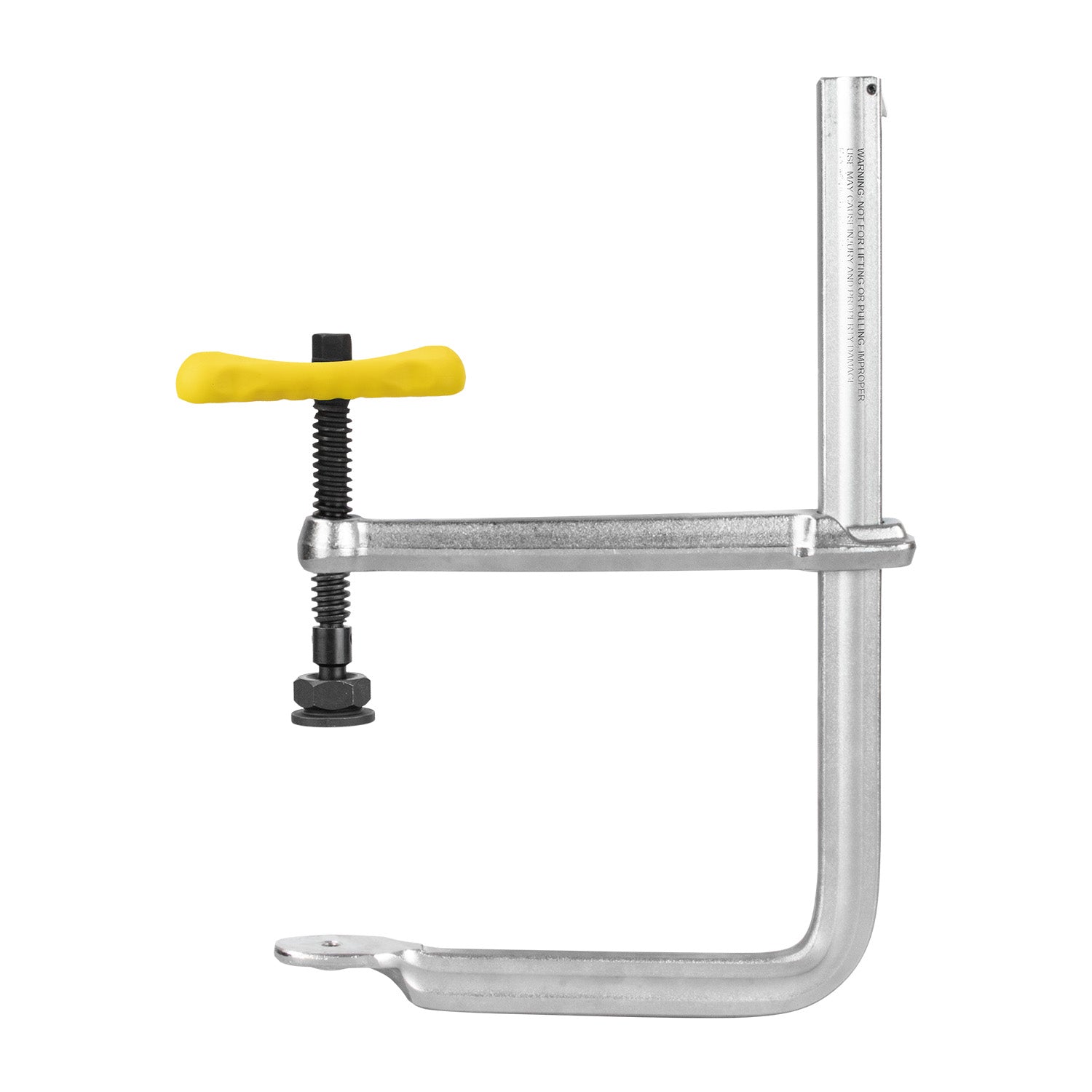

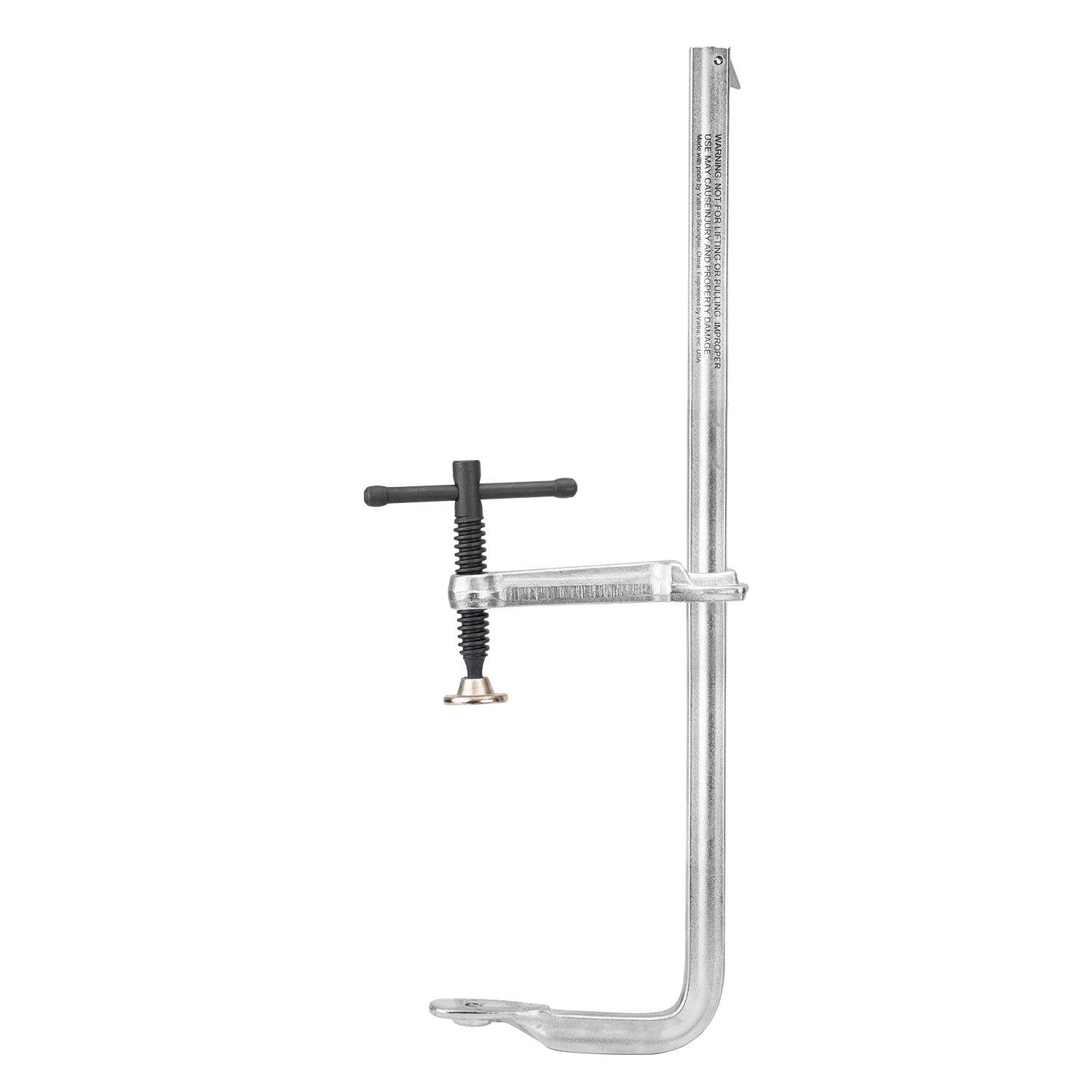

F-Clamps, Medium Duty

SKU: UF65

F-Clamps with the Removable / Reversible Clamp Arm, set up 10x faster than a C-Clamp!

  • Clamping Pressure: 800 ~ 2,400 lb
  • Throat Depth: 4 ~ 7″
  • Rail Size: 25/32 x 3/8 ~ 1-3/16 x 9/16″
  • Tapped Hole: 3/8-16
  • FREE Ergonomic Comfort Handle & Cap with purchase of G & M Series clamps.

You can create your own 4-IN-1 kit with the 4-IN-1 Accessory Pack!

$30.00
$30.00
Sale Sold out
/
Shipping calculated at checkout.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

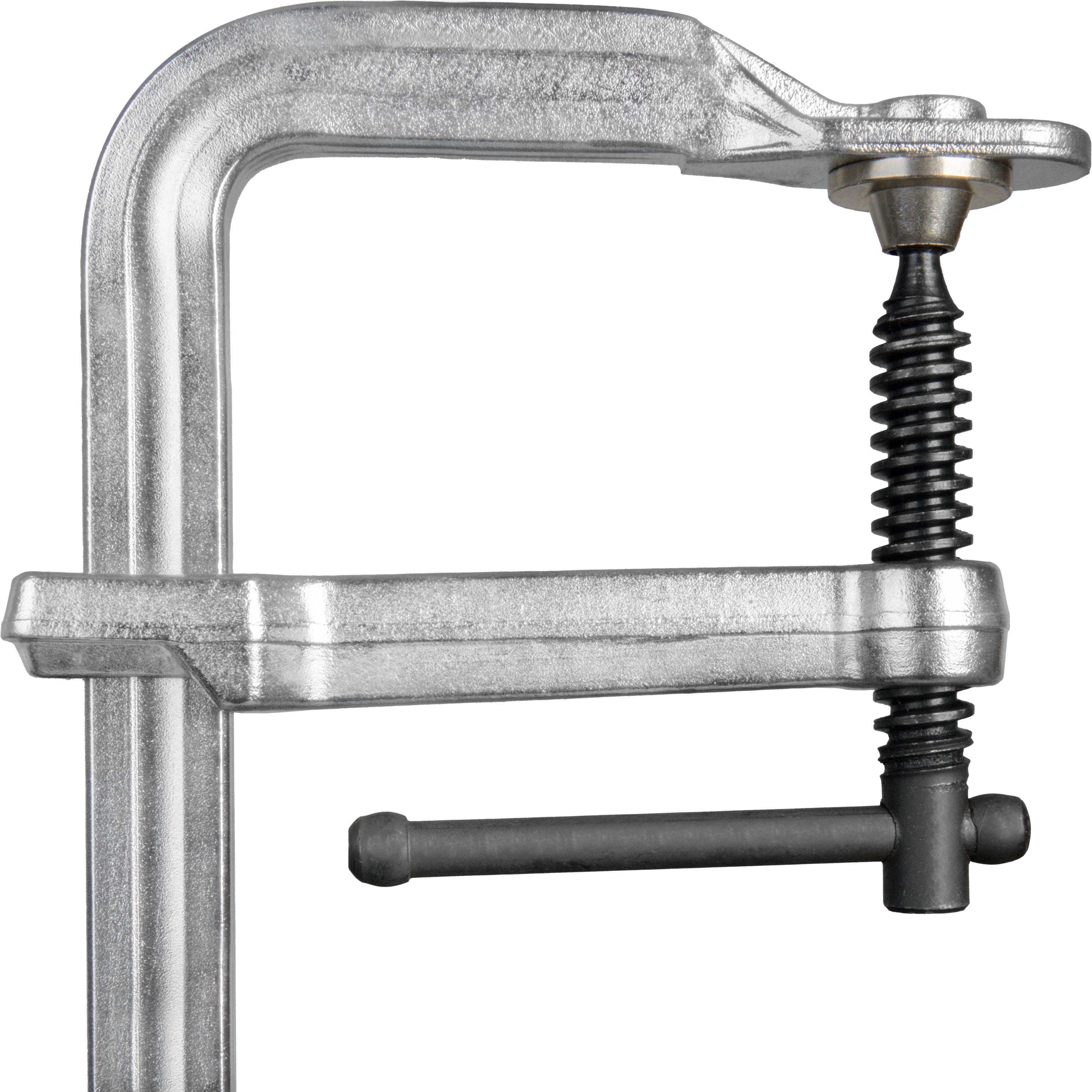

Reverse the clamp arm and create a Spreader Clamp.

Ergonomic Comfort Handle included

Part No. Capacity - A (in) Throat Depth -B (in) Clamping Pressure (lb) Rail Size - C (in) Tapped Hole - D Weight (lb)
UE85 8-1/2 4 850 25/32 x 3/8 3/8-16 2.3

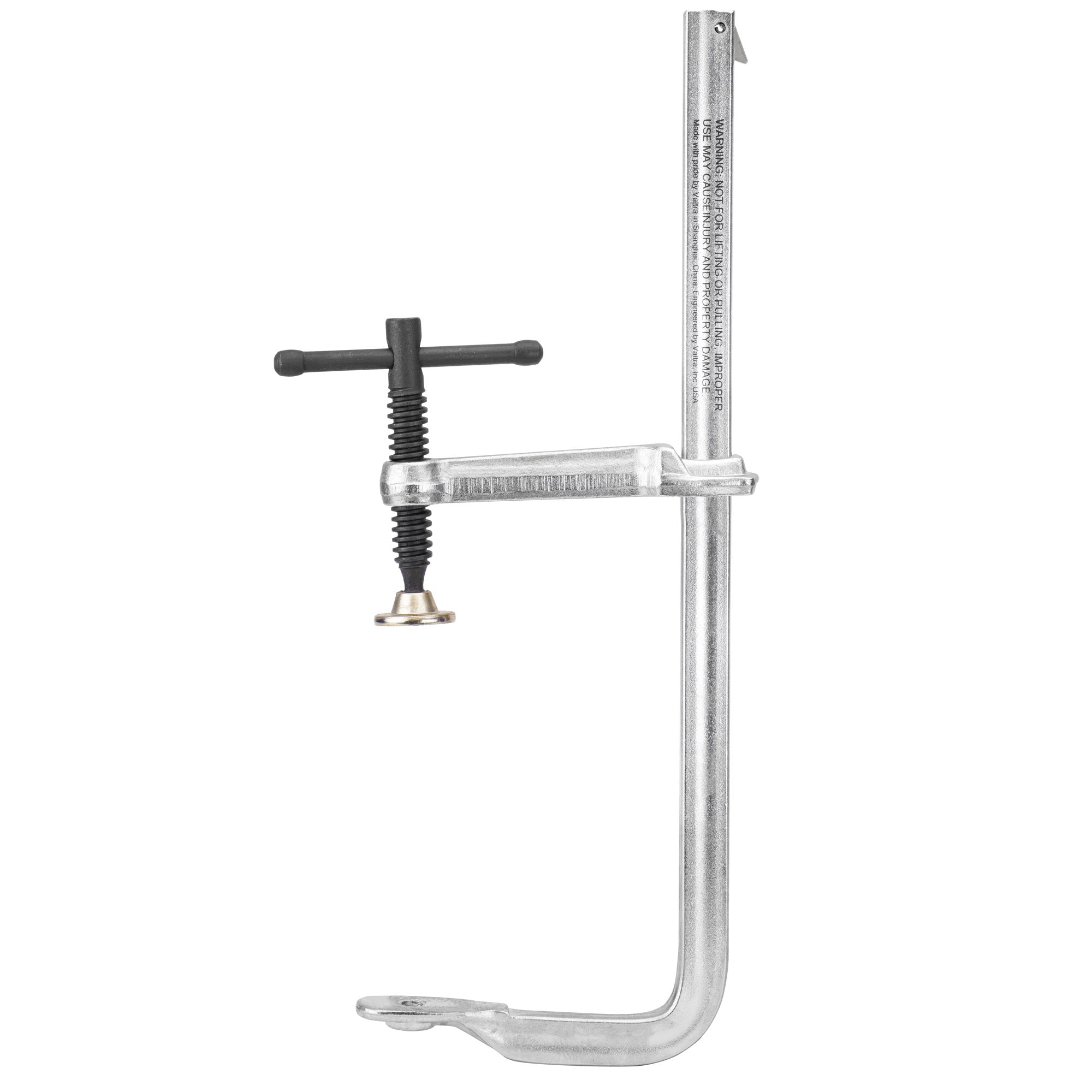

UE125 12-1/2 4 850 25/32 x 3/8 3/8-16 2.5

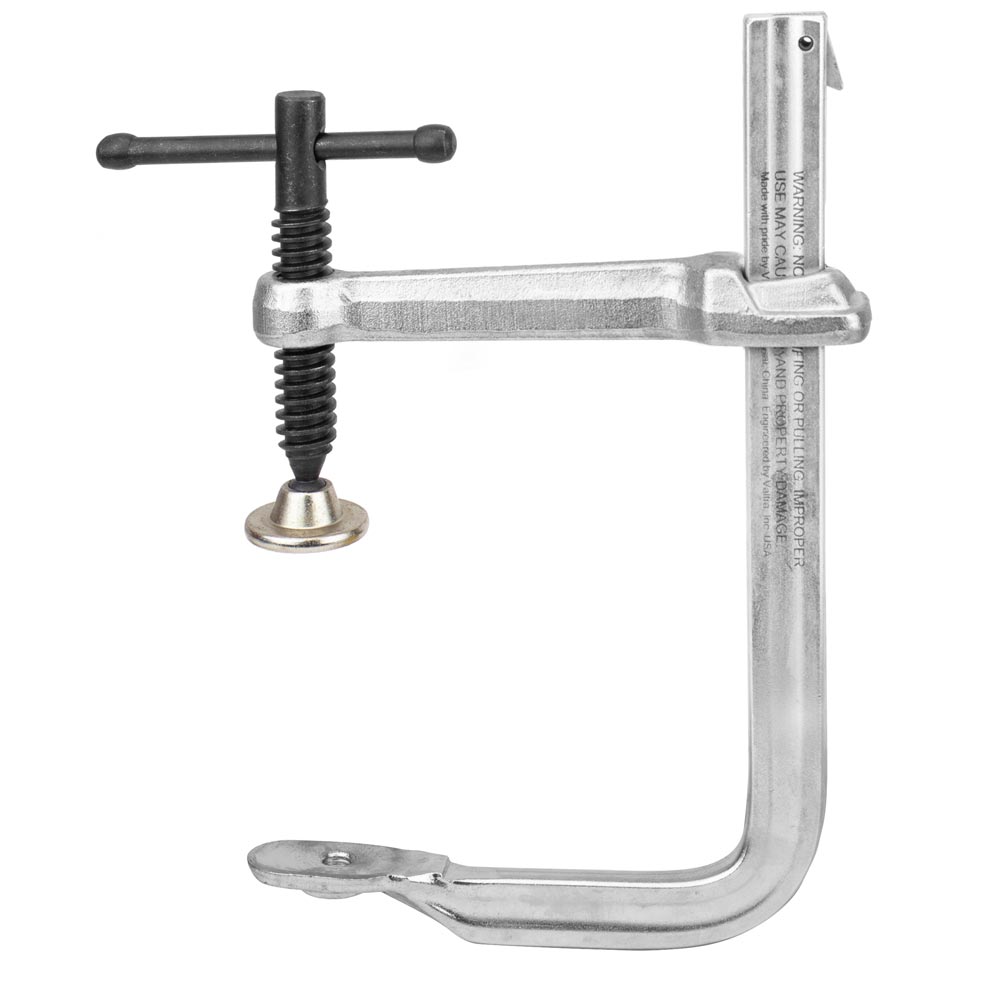

UF65 6-1/2 4-3/4 1,000 7/8 x 7/16 3/8-16 2.4

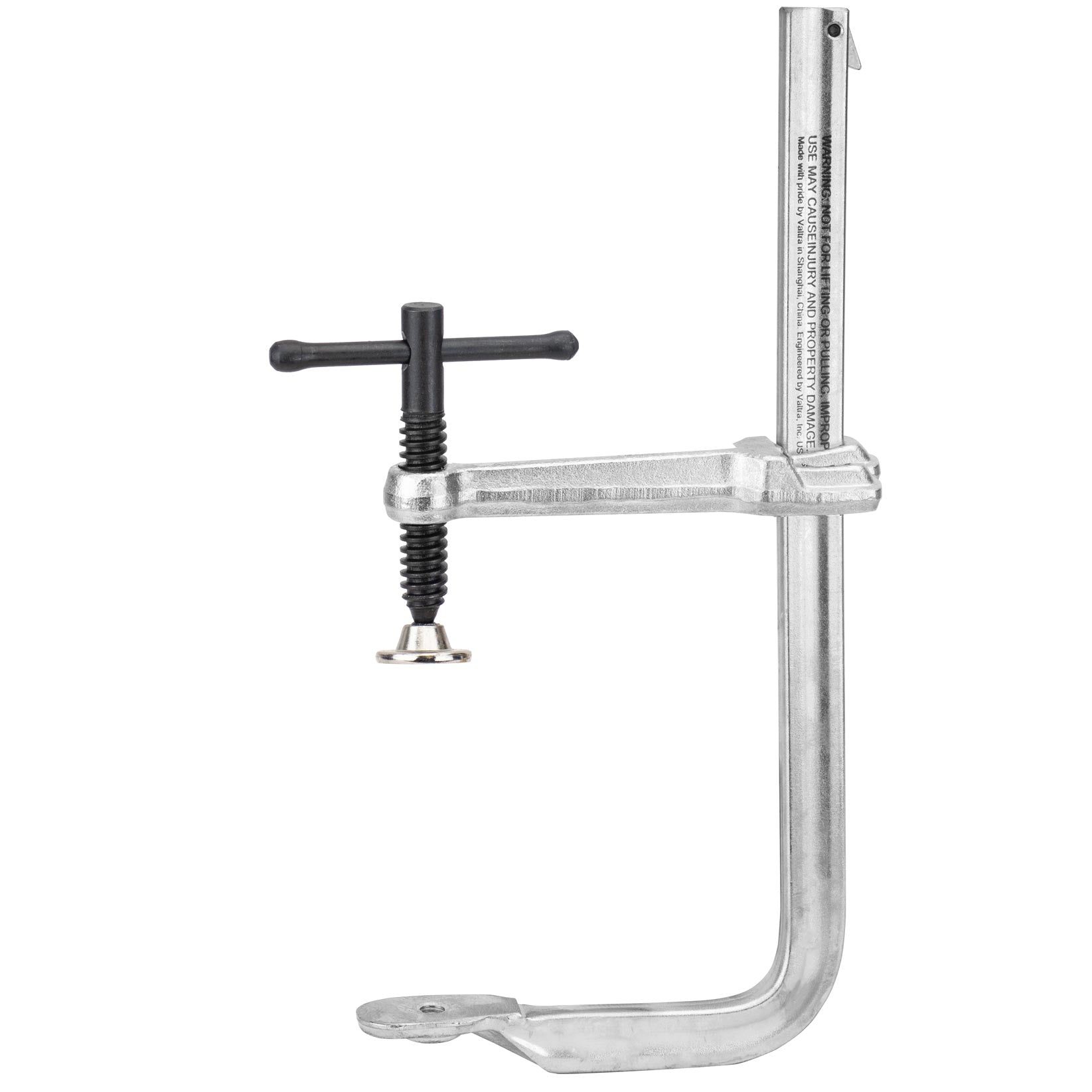

UF100 10 4-3/4 1,000 7/8 x 7/16 3/8-16 2.8

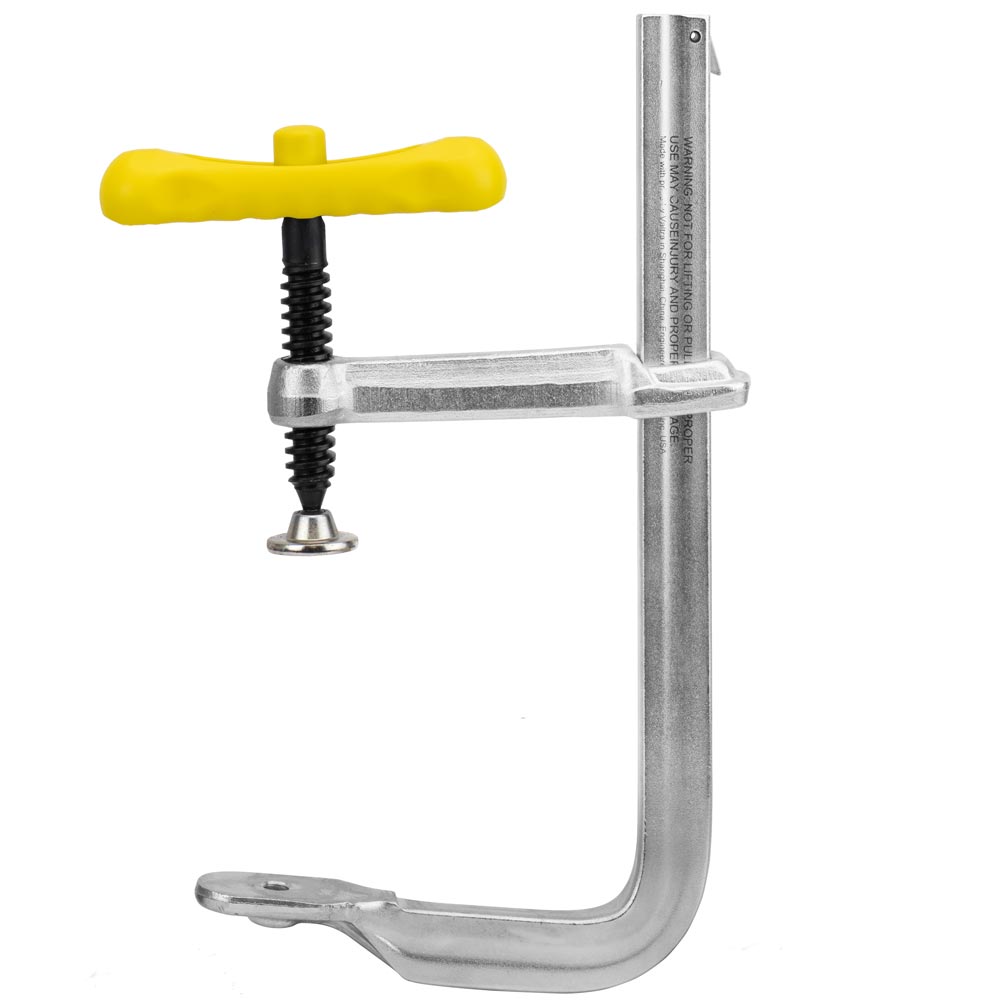

UG85 8-1/2 4-3/4 1,200 1 x 15/32 3/8-16 3.6
UG125 12-1/2 4-3/4 1,200 1 x 15/32 3/8-16 4.0
UG205 20-1/2 4-3/4 1,200 1 x 15/32 3/8-16 4.8
UG1257 12-1/2 7 *Deep Throat 800 1 x 15/32 3/8-16 5.0

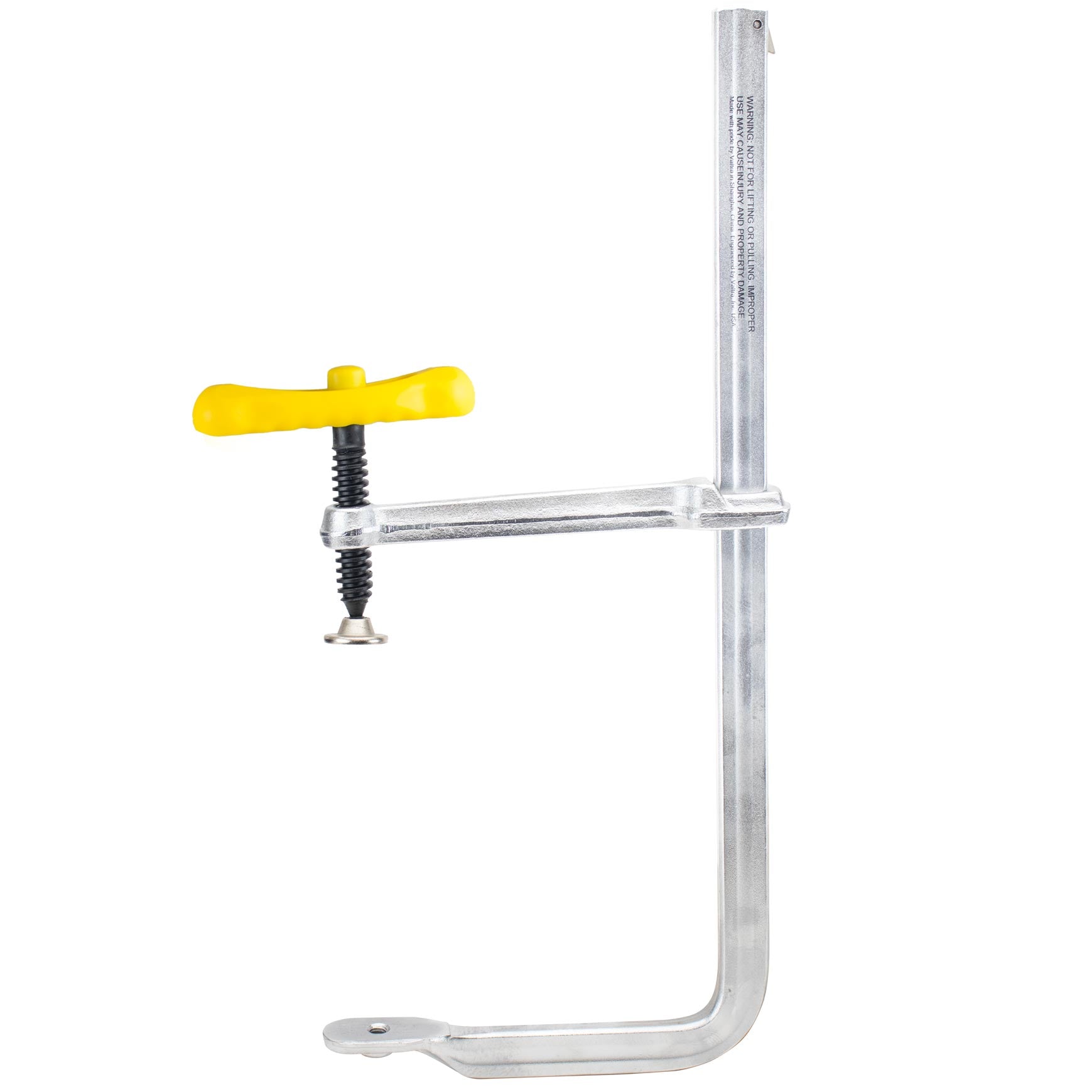

UG1657 16-1/2 7 *Deep Throat 800 1 x 15/32 3/8-16 5.3

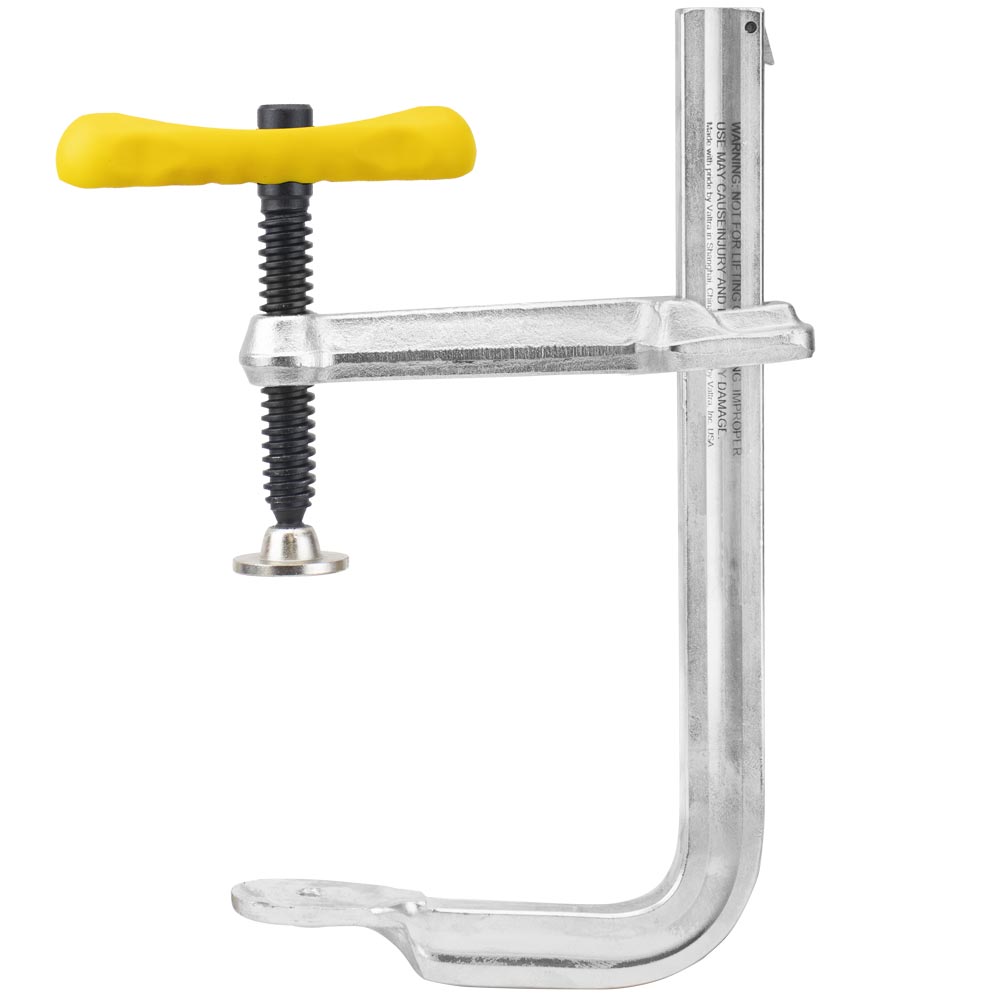

UM85P 8-1/2 5-1/2 2,400 1-3/16 x 9/16 3/8-16 5.7

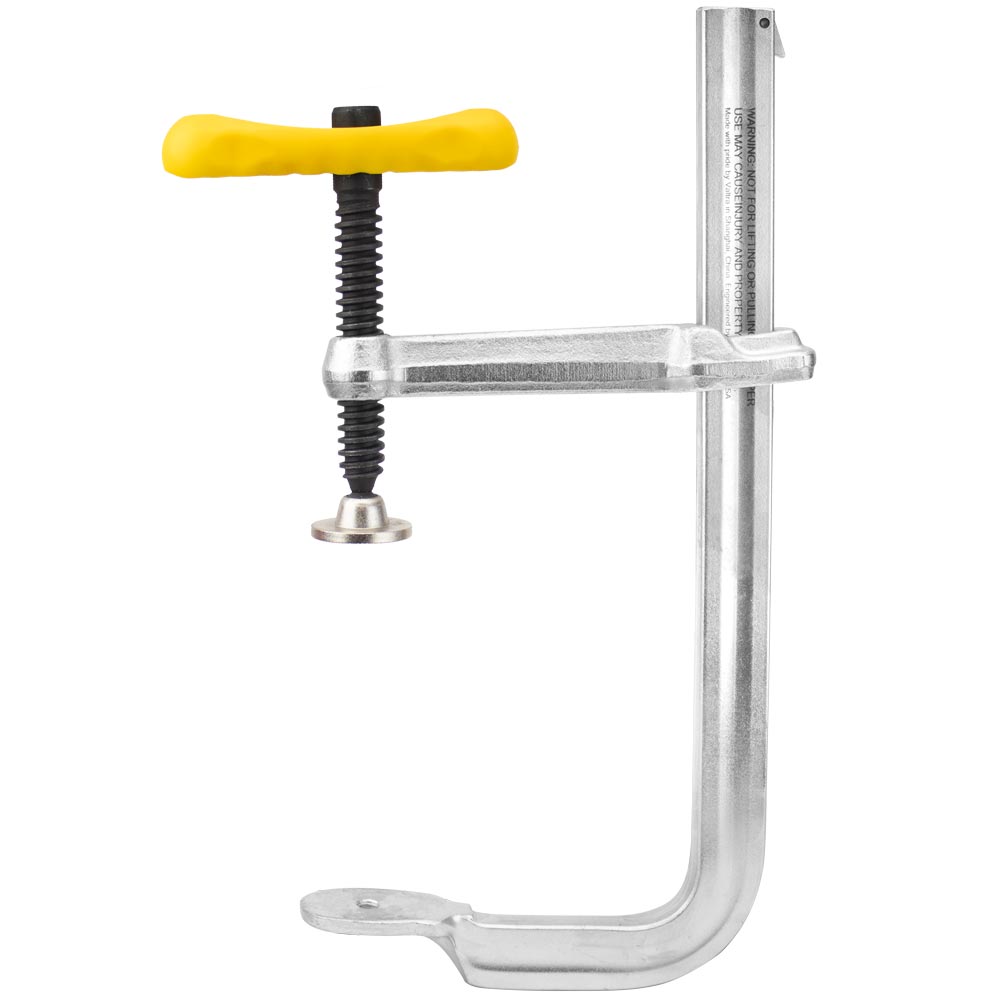

UM105P 10-1/2 5-1/2 2,400 1-3/16 x 9/16 3/8-16 6.3

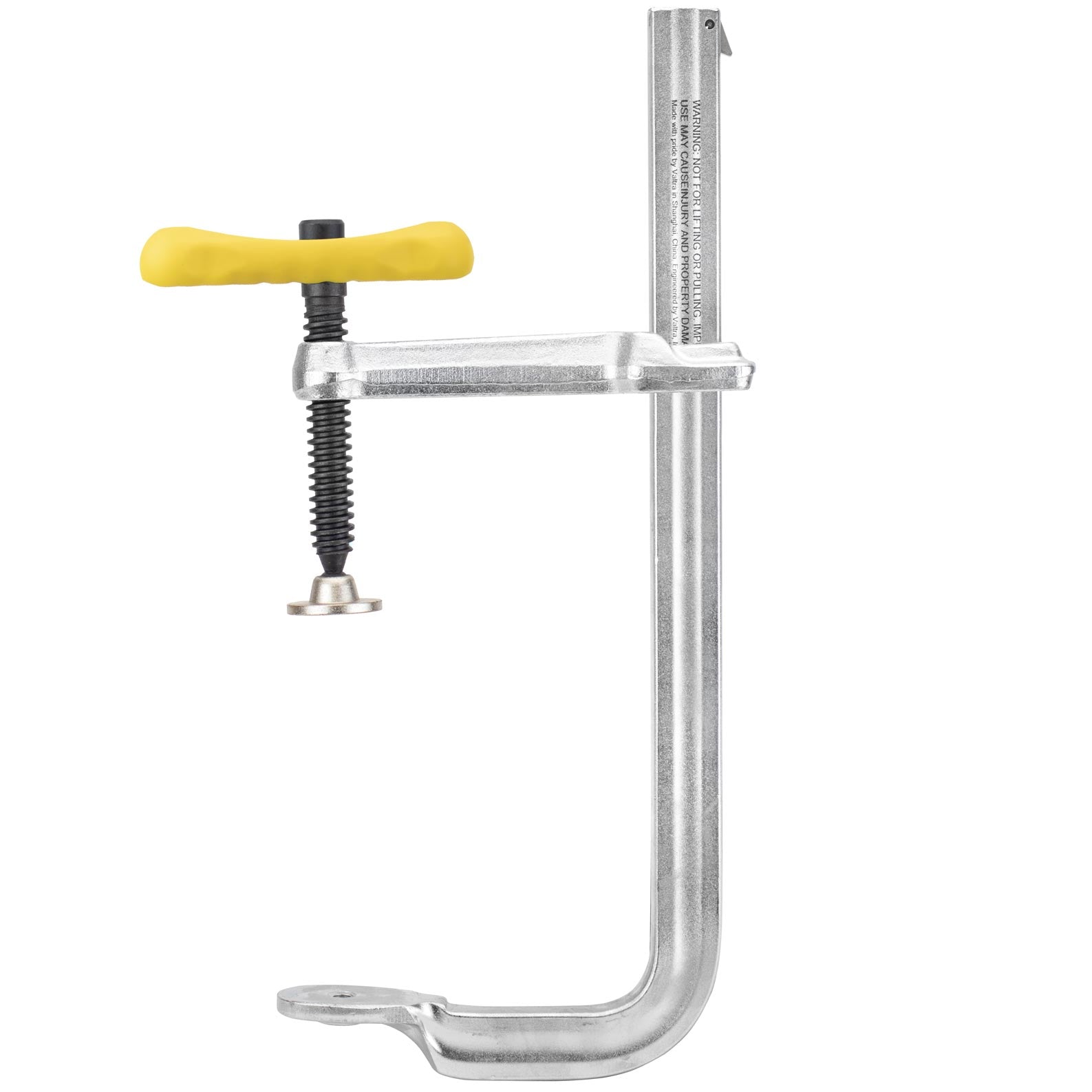

UM125P 12-1/2 5-1/2 2,400 1-3/16 x 9/16 3/8-16 6.4
Part No. Capacity - A (in) Throat Depth -B (in) Clamping Pressure (lb) Rail Size - C (in) Tapped Hole - D Weight (lb)
UG85XG 8-1/2 4-3/4 1,200 1 x 15/32 3/8-16 4.0
UG125XG 12-1/2 4-3/4 1,200 1 x 15/32 3/8-16 4.4

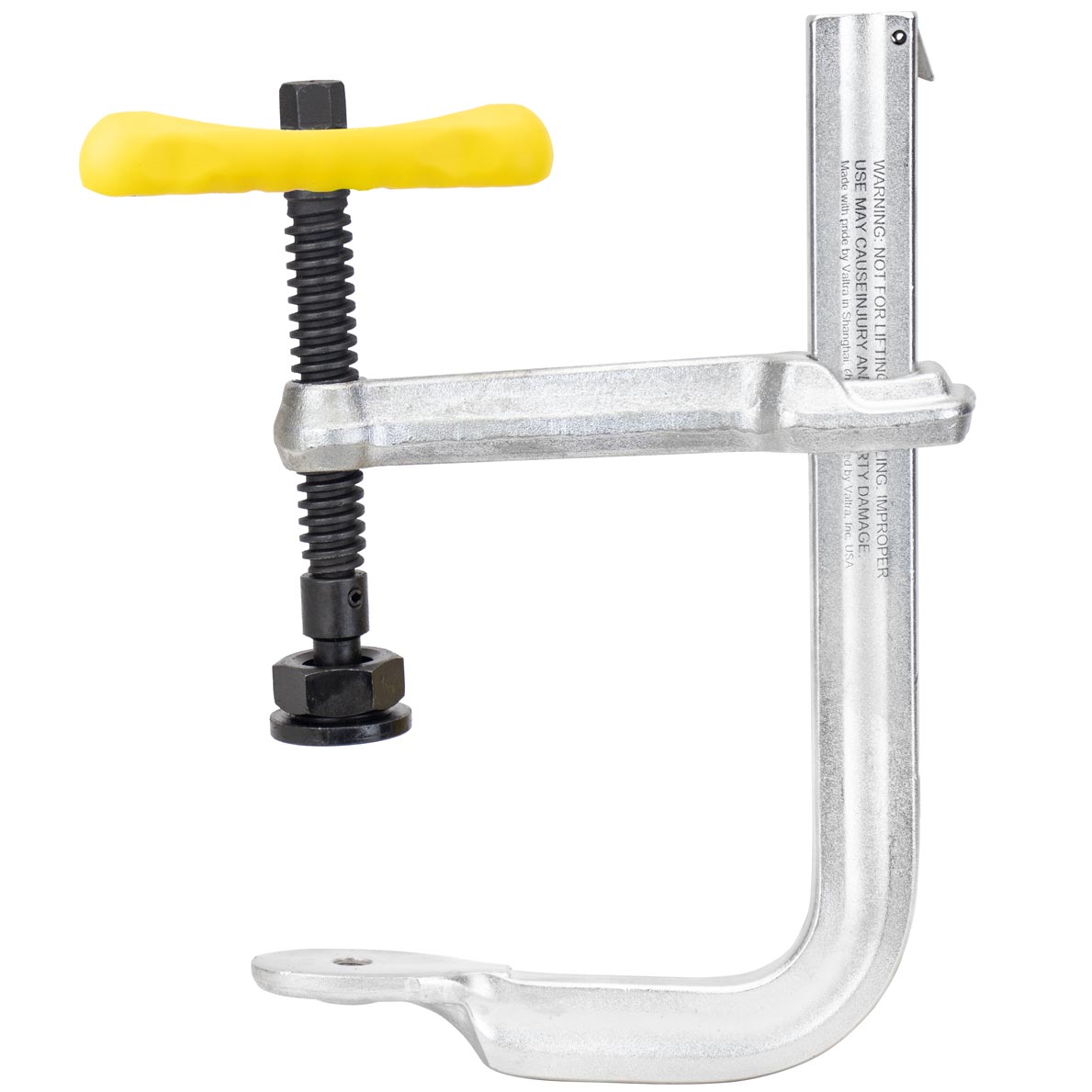

UM65 6-1/2 5-1/2 2,400 1-3/16 x 9/16 3/8-16 5.4

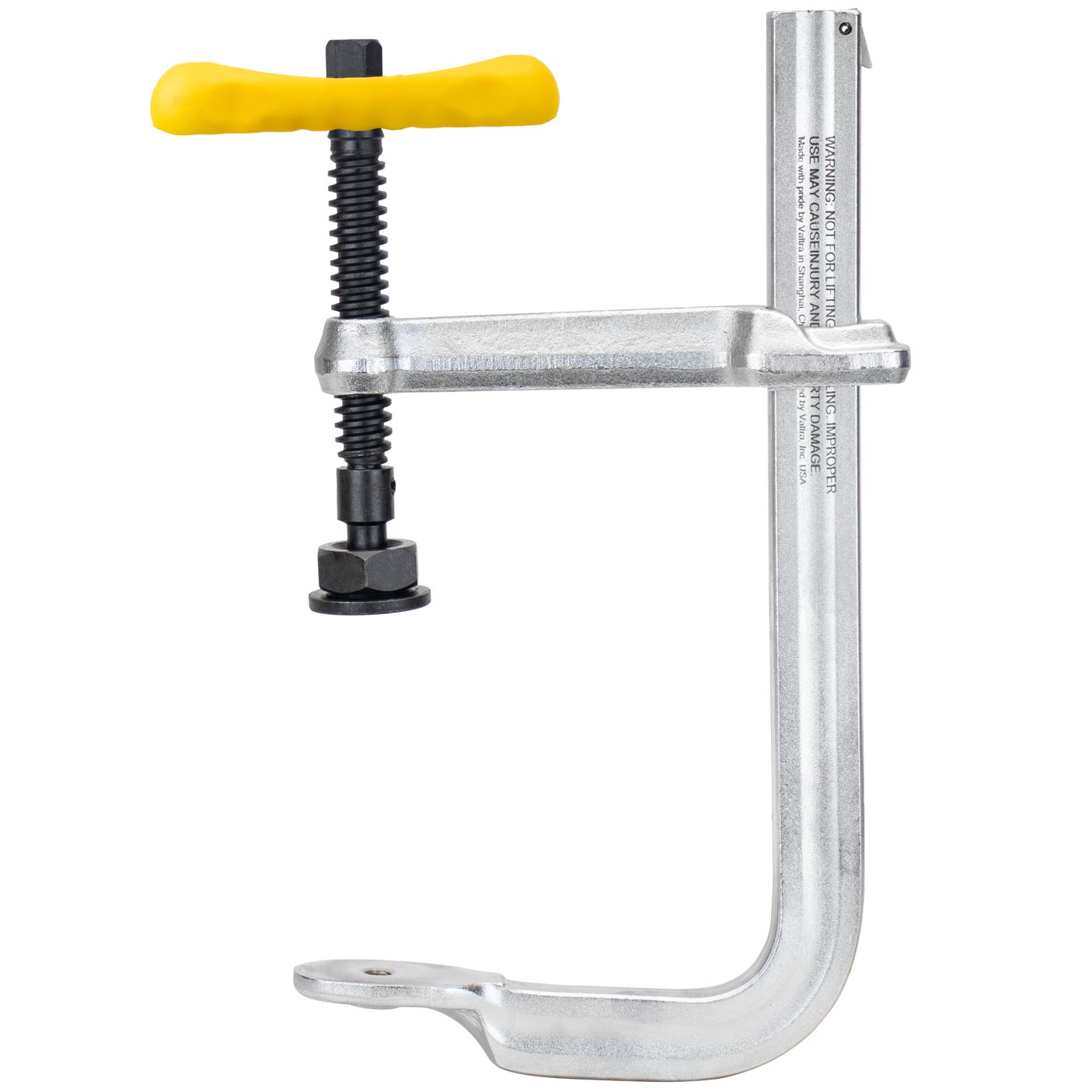

UM85 8-1/2 5-1/2 2,400 1-3/16 x 9/16 3/8-16 5.9

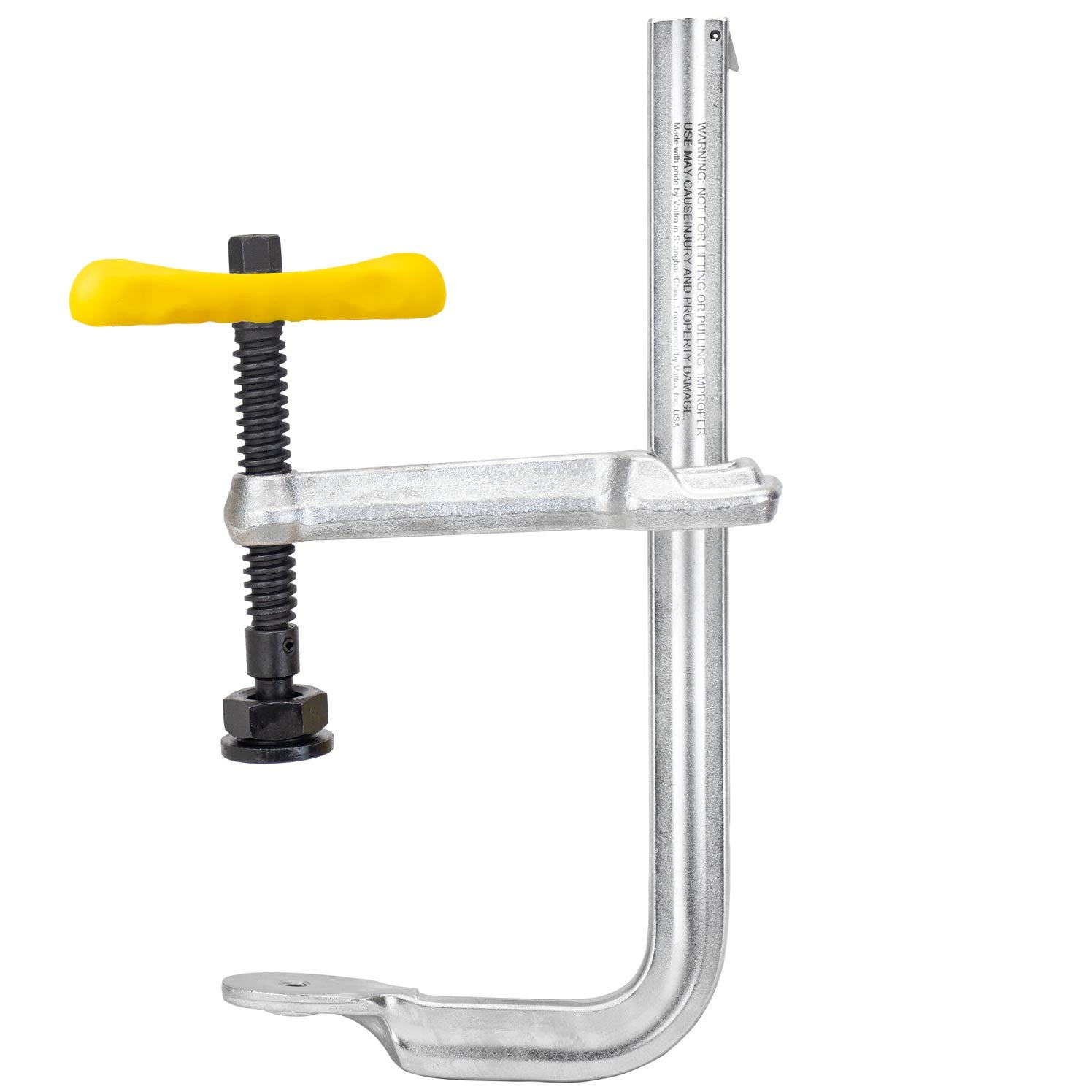

UM105 10-1/2 5-1/2 2,400 1-3/16 x 9/16 3/8-16 6.4

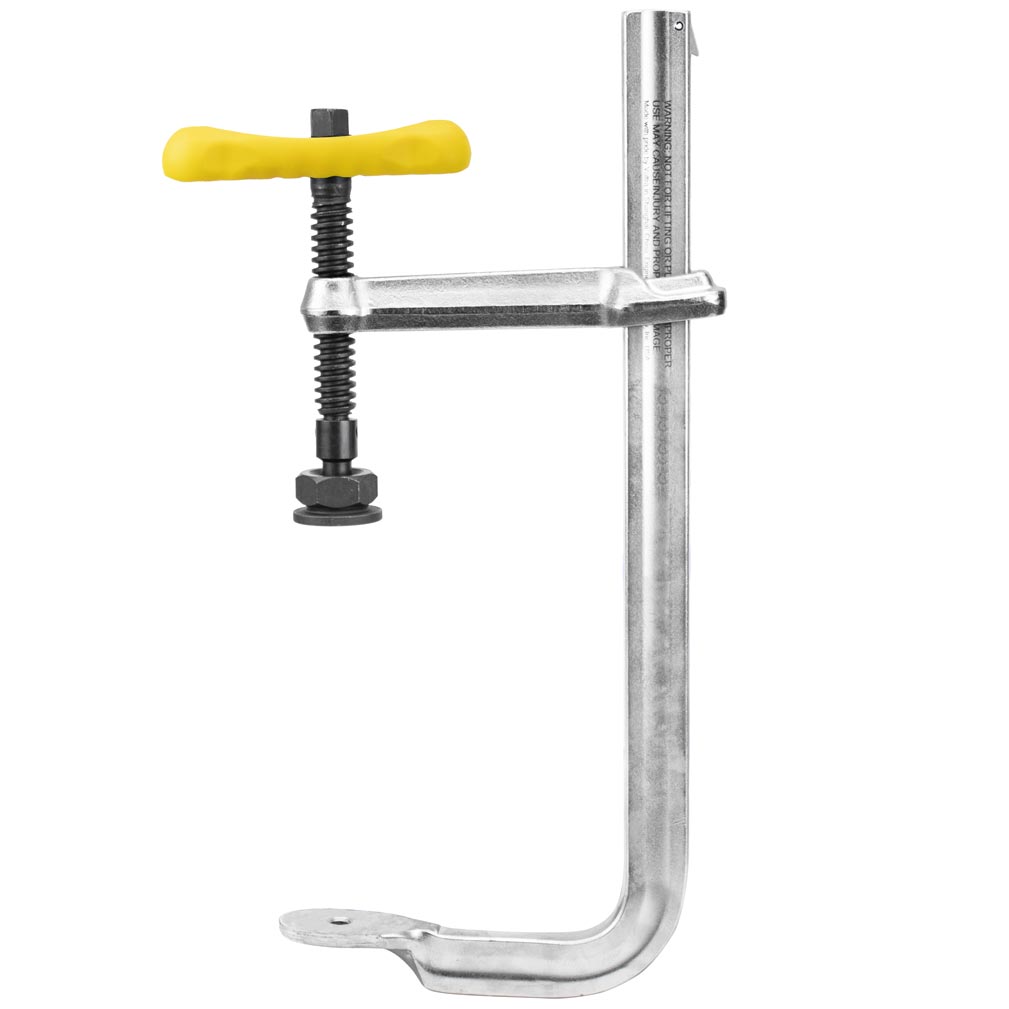

UM125 12-1/2 5-1/2 2,400 1-3/16 x 9/16 3/8-16 7.0

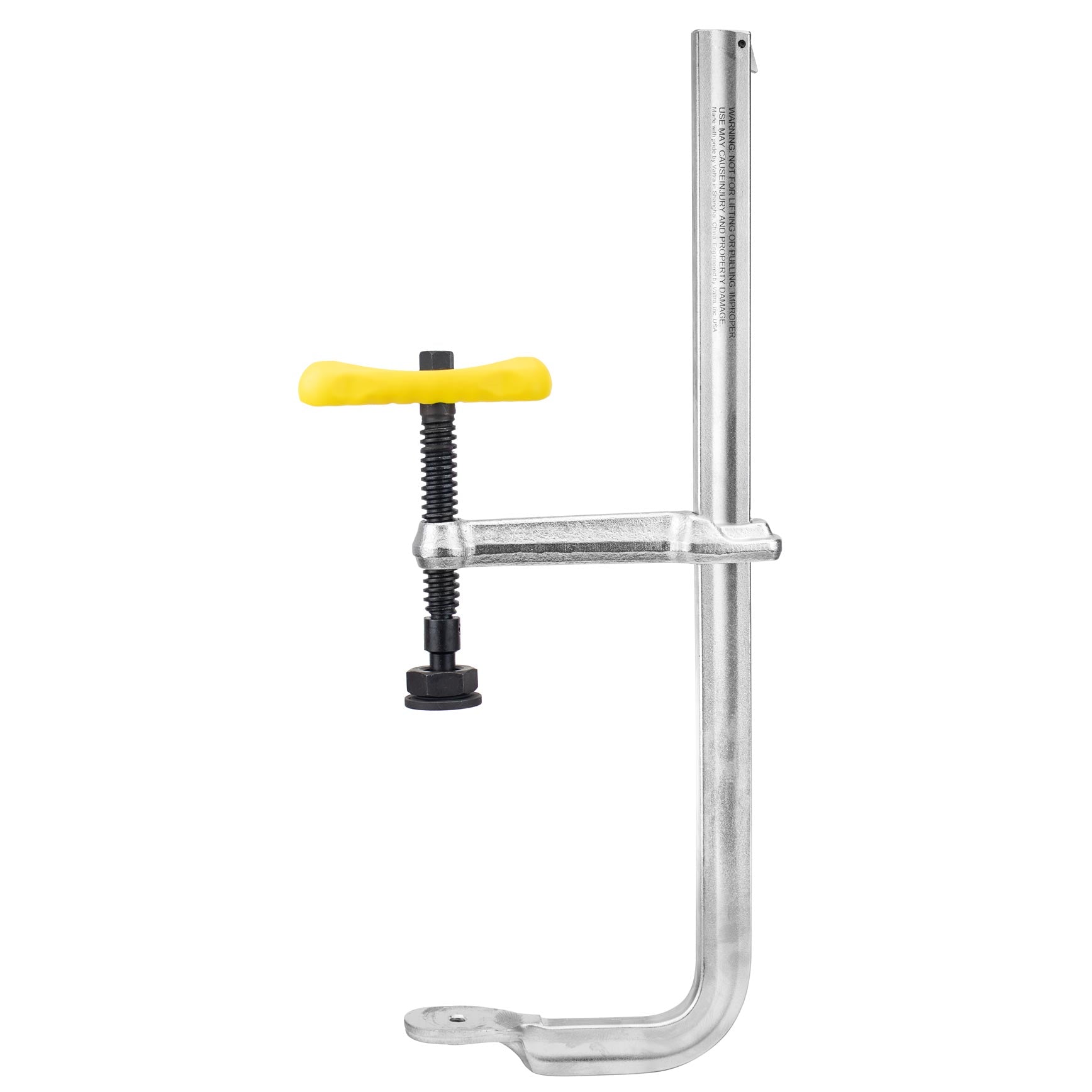

UM165 16-1/2 5-1/2 2,400 1-3/16 x 9/16 3/8-16 7.6
UM205 20-1/2 5-1/2 2,400 1-3/16 x 9/16 3/8-16 8.7
