Vendor Strong Hand Tools

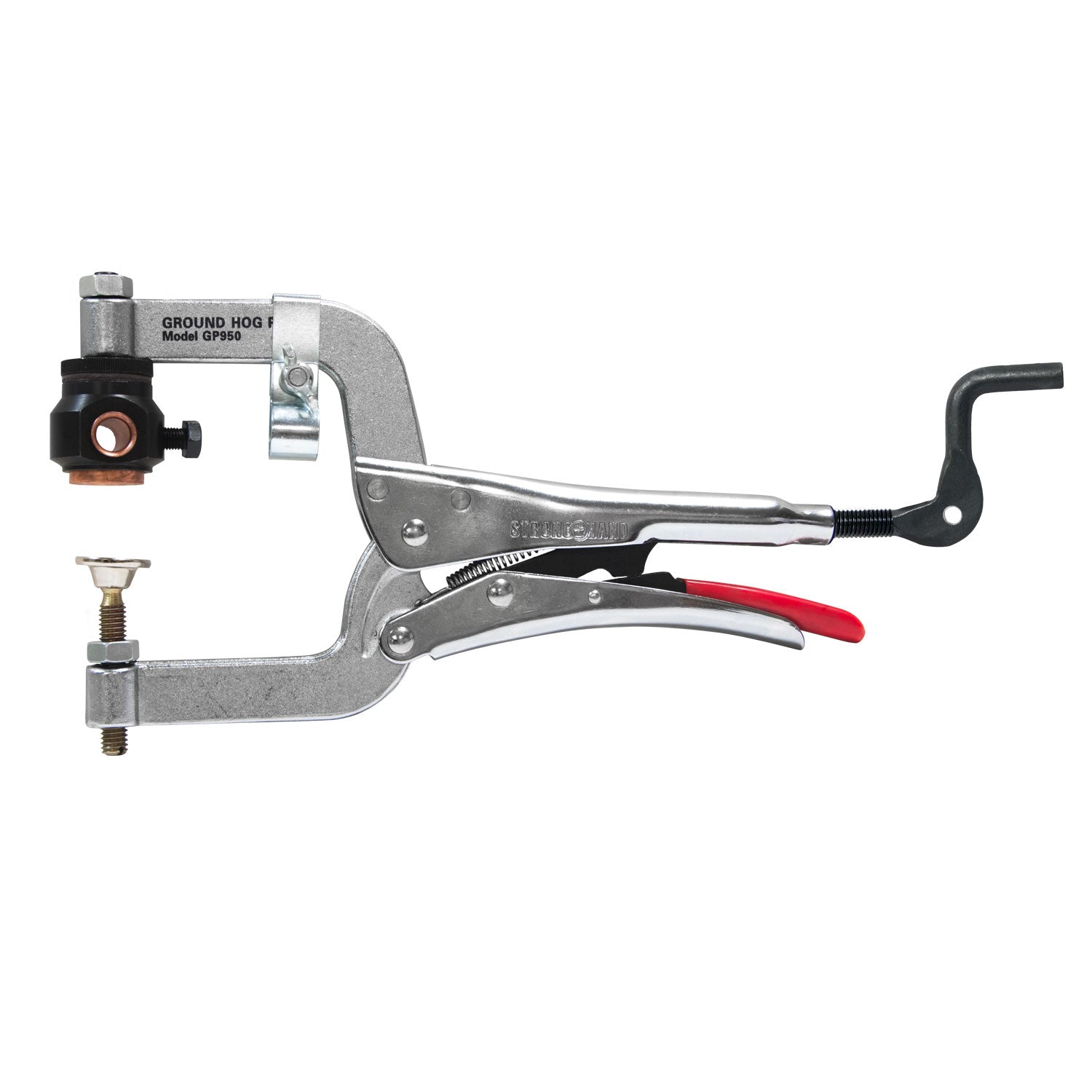

Ground Hog™ Grounding Pliers

SKU: GP950

Insulated Grounding Contact

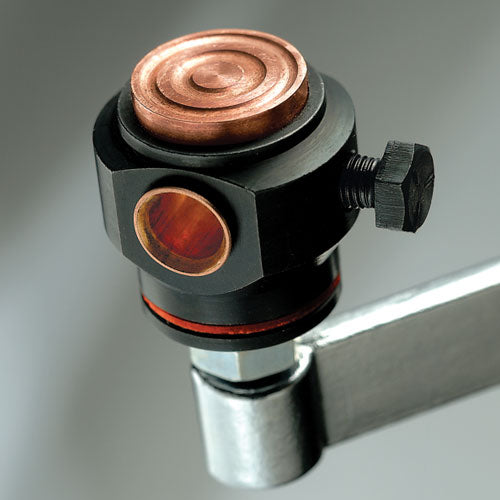

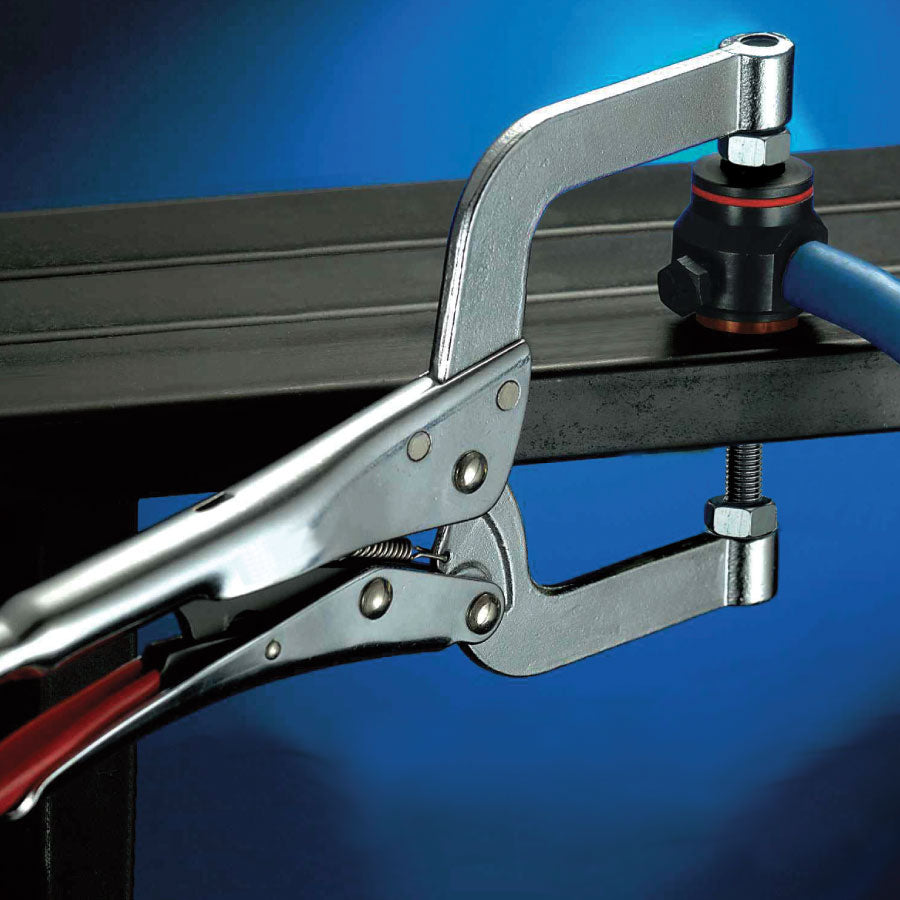

The groove design on the copperhead seals out weld spatter and reduces particle buildup. Side screw provides a secure cable connection. Ground Hog body rotates for cable positioning.

  • Controls the electrical current by isolating the contact surface and the cable connection.
  • Improve arc stability and cable life, and reduce power consumption.
U.S. PAT. 7637753
Regular price $73.00
Sale price $73.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

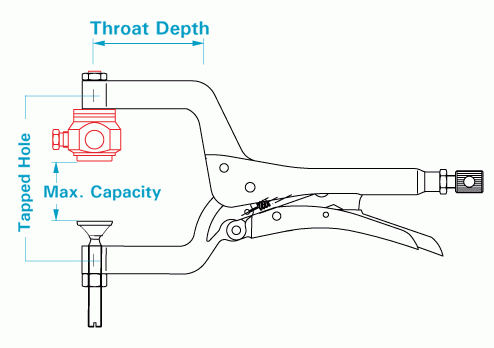

Part No. Amperage / Cable Size Throat Depth (in) Max. Capacity (in) Tapped Hole Clamping Pressure (lb) Overall Length (in) Weight (lb)
GP950 450A / 2/0 - 0.475” 3.5 2.5 M10 400 11.0 2.4
