Available in stock (30)
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

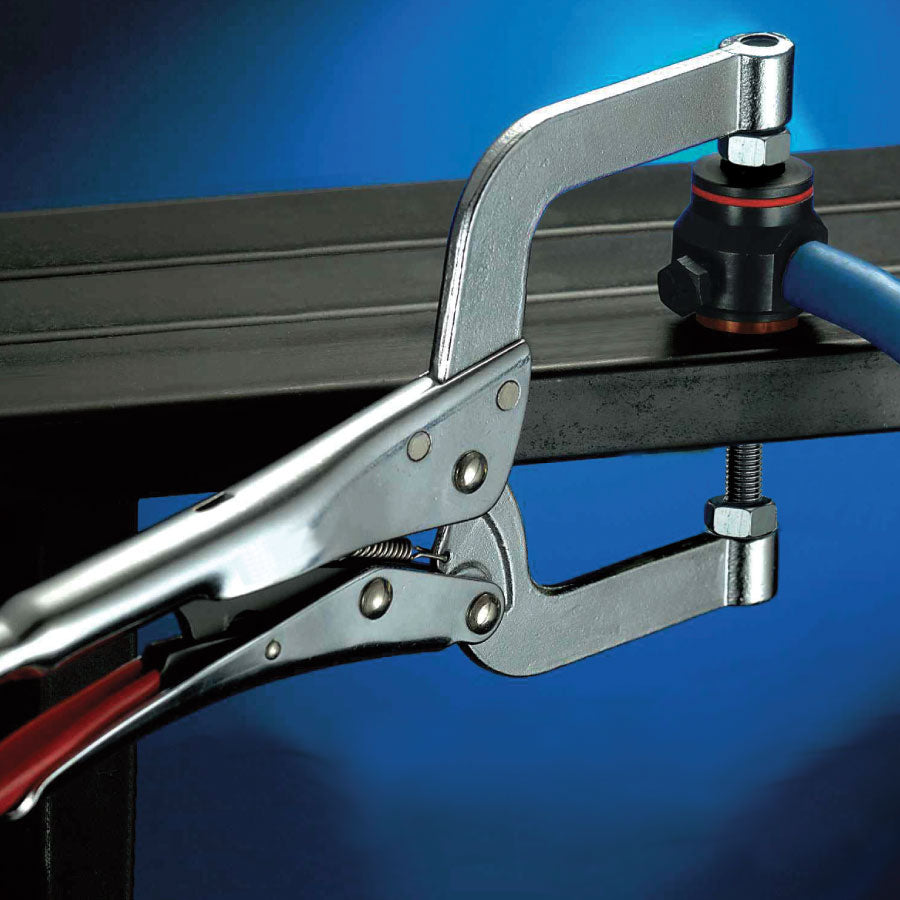

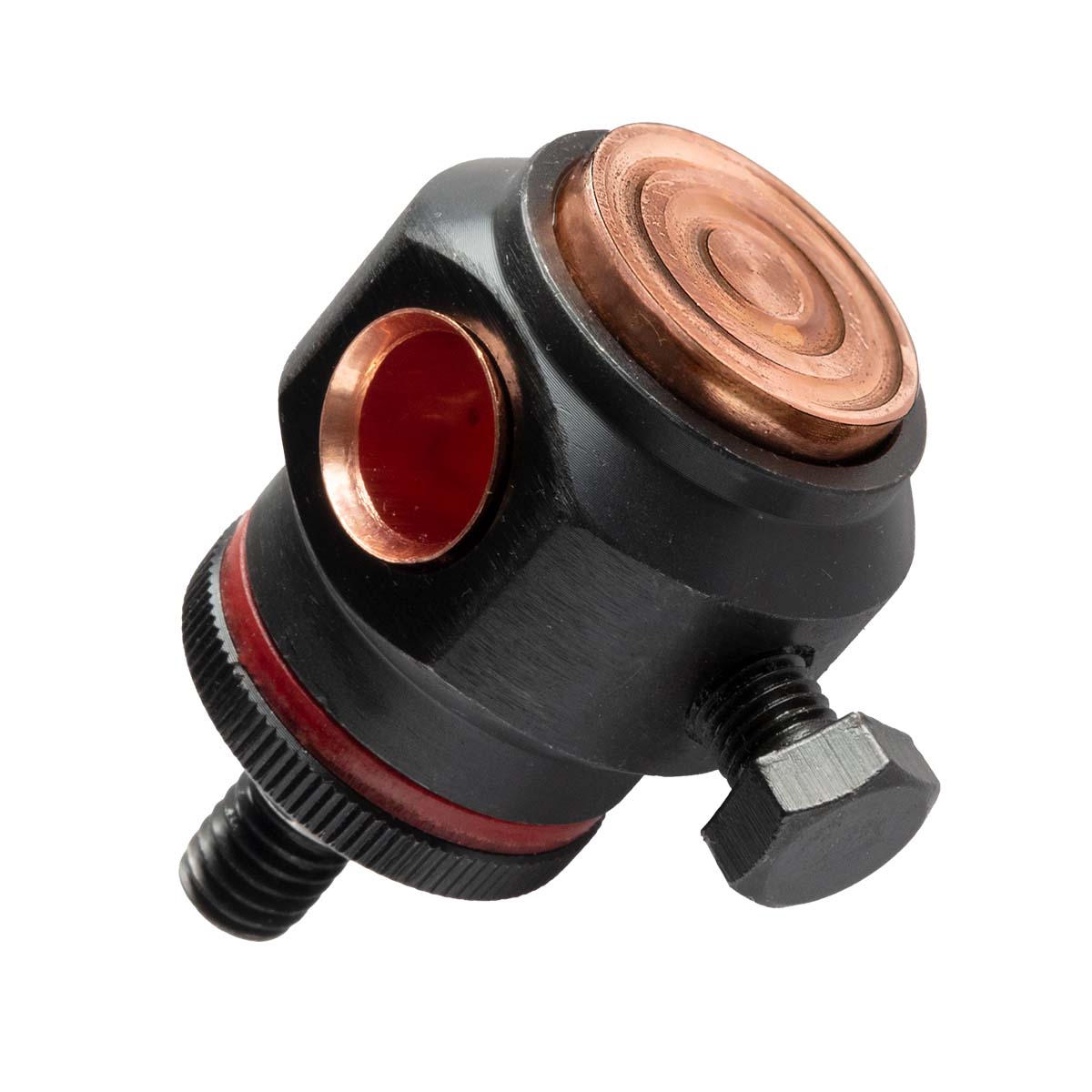

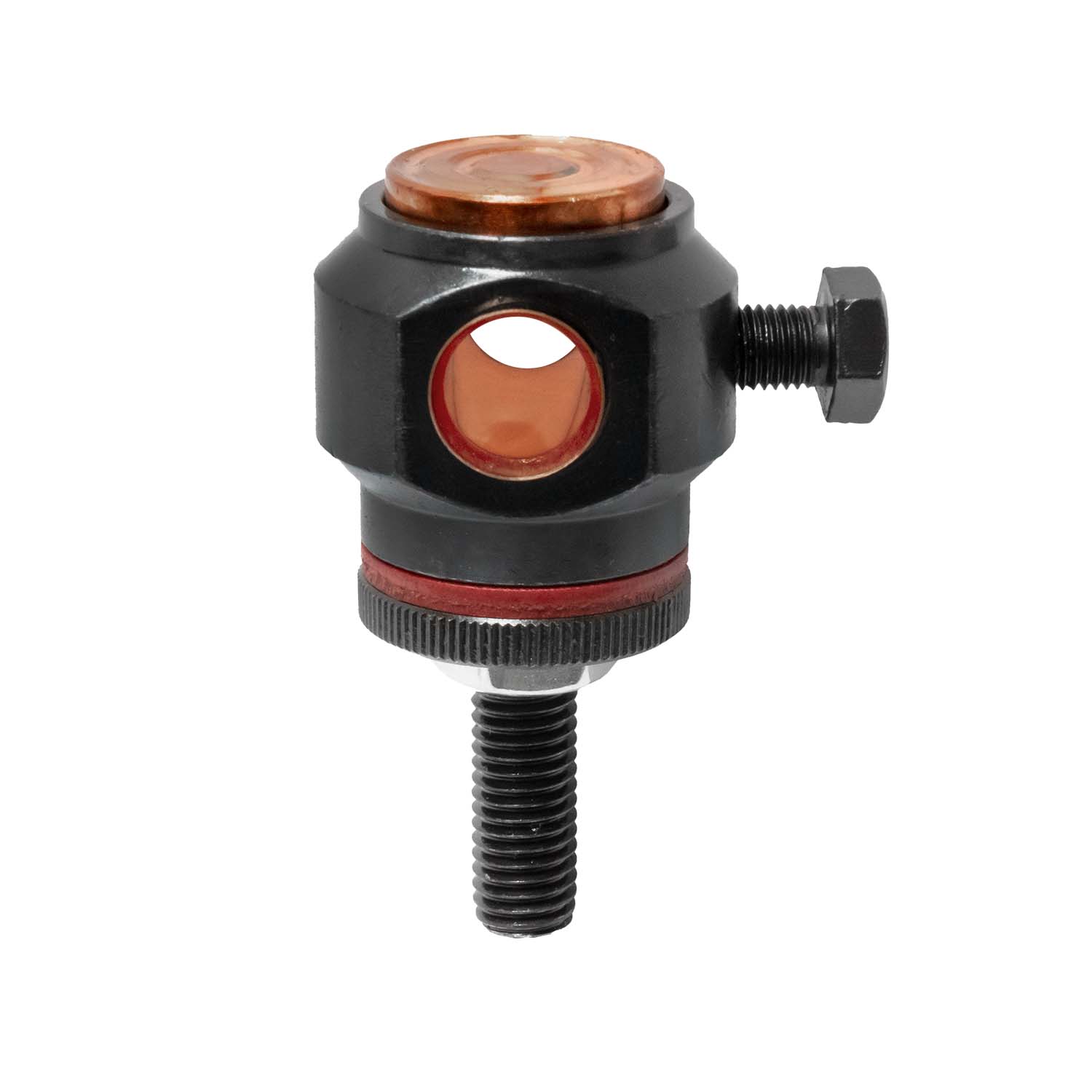

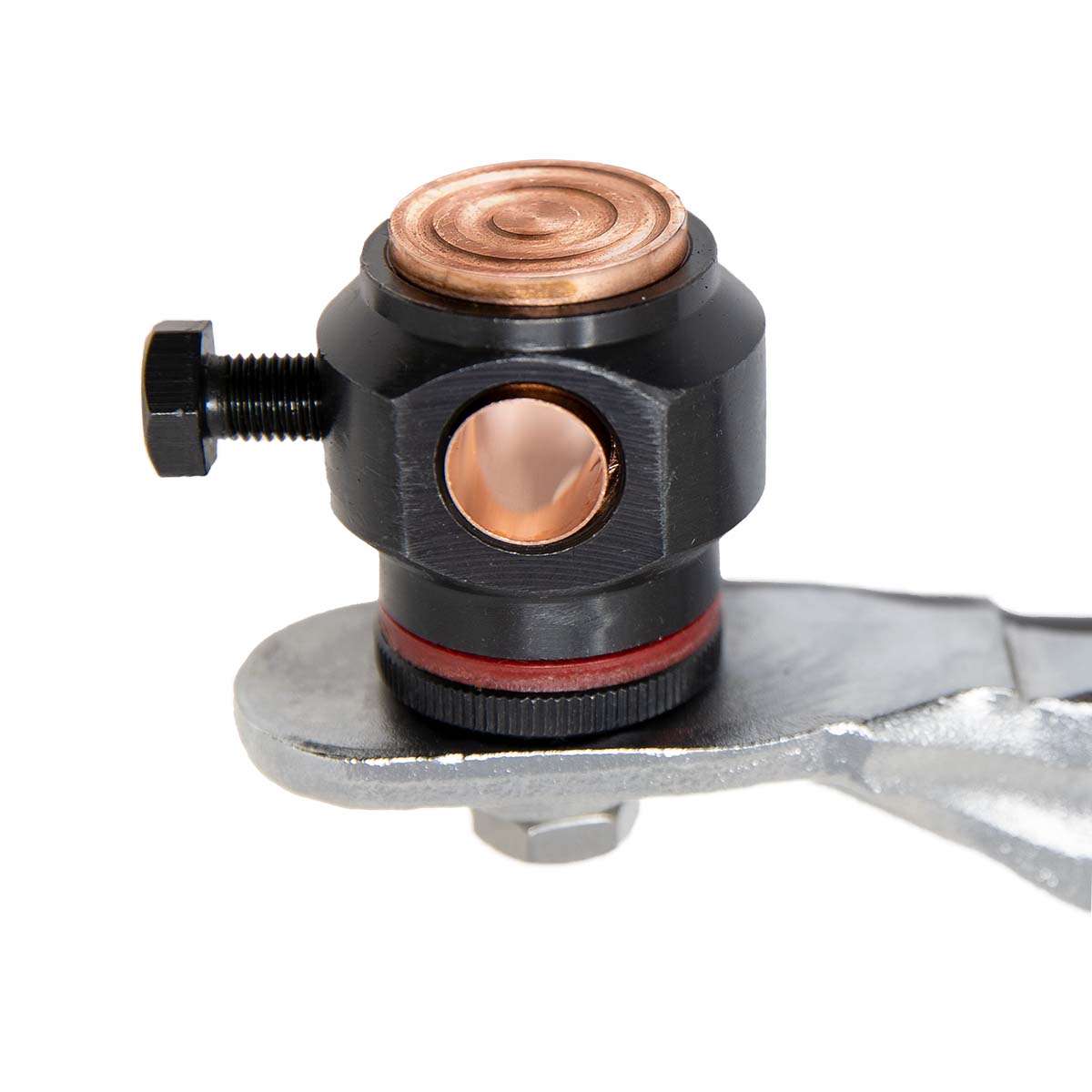

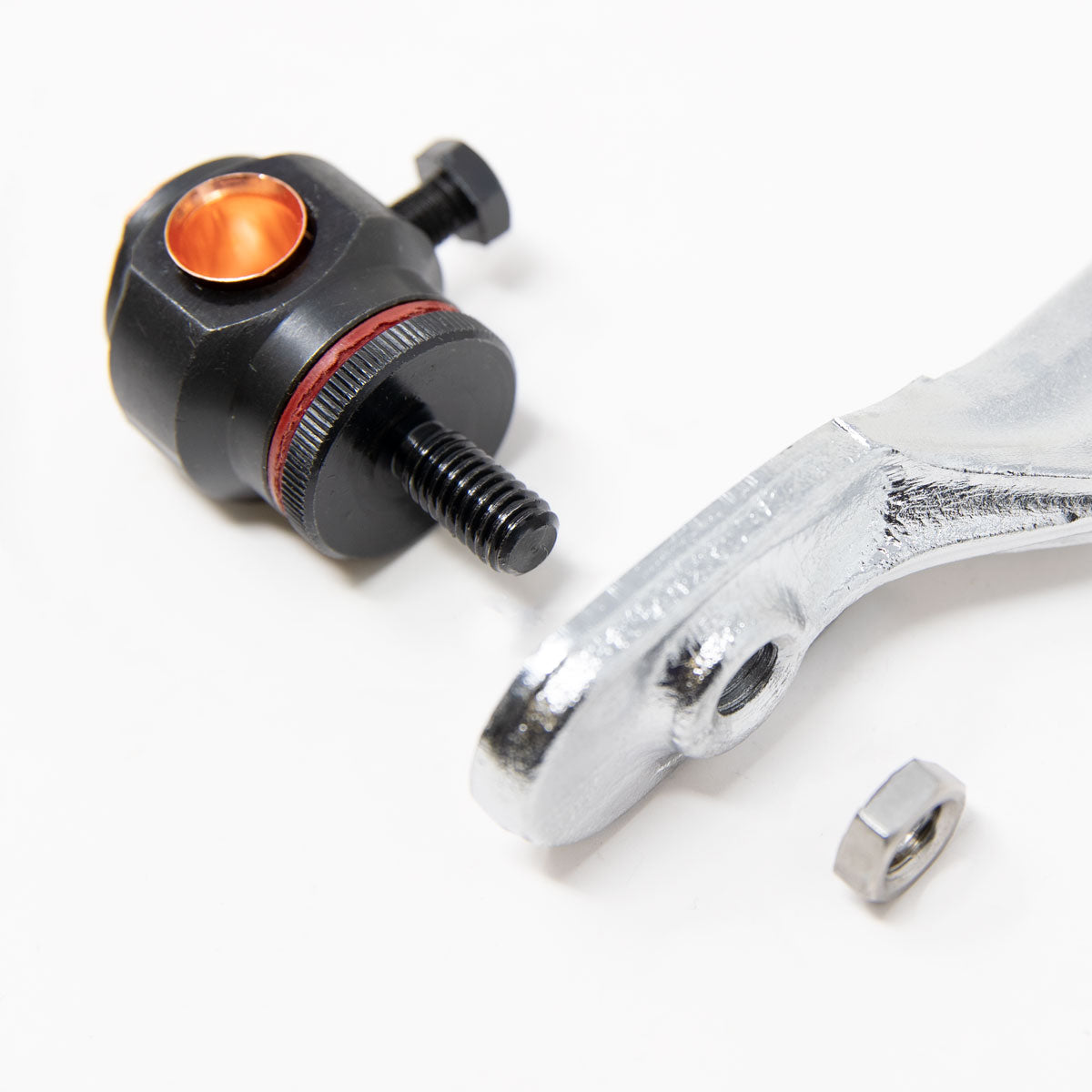

These are the replacement unit for Ground Hog™ Grounding Pliers (GP950) and Large Diameter Pipe Grounding Clamps (GUG970 & GUG1370).
The groove design on the Copperhead seals out the weld spatter and reduces particle buildup. The side screw provides a secure cable connection.
Ground Hog body rotates for cable positioning.
If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.
The groove design seals out weld spatter and reduces particle buildup. The side screw provides a secure cable connection. Ground Hog body rotates for cable positioning.

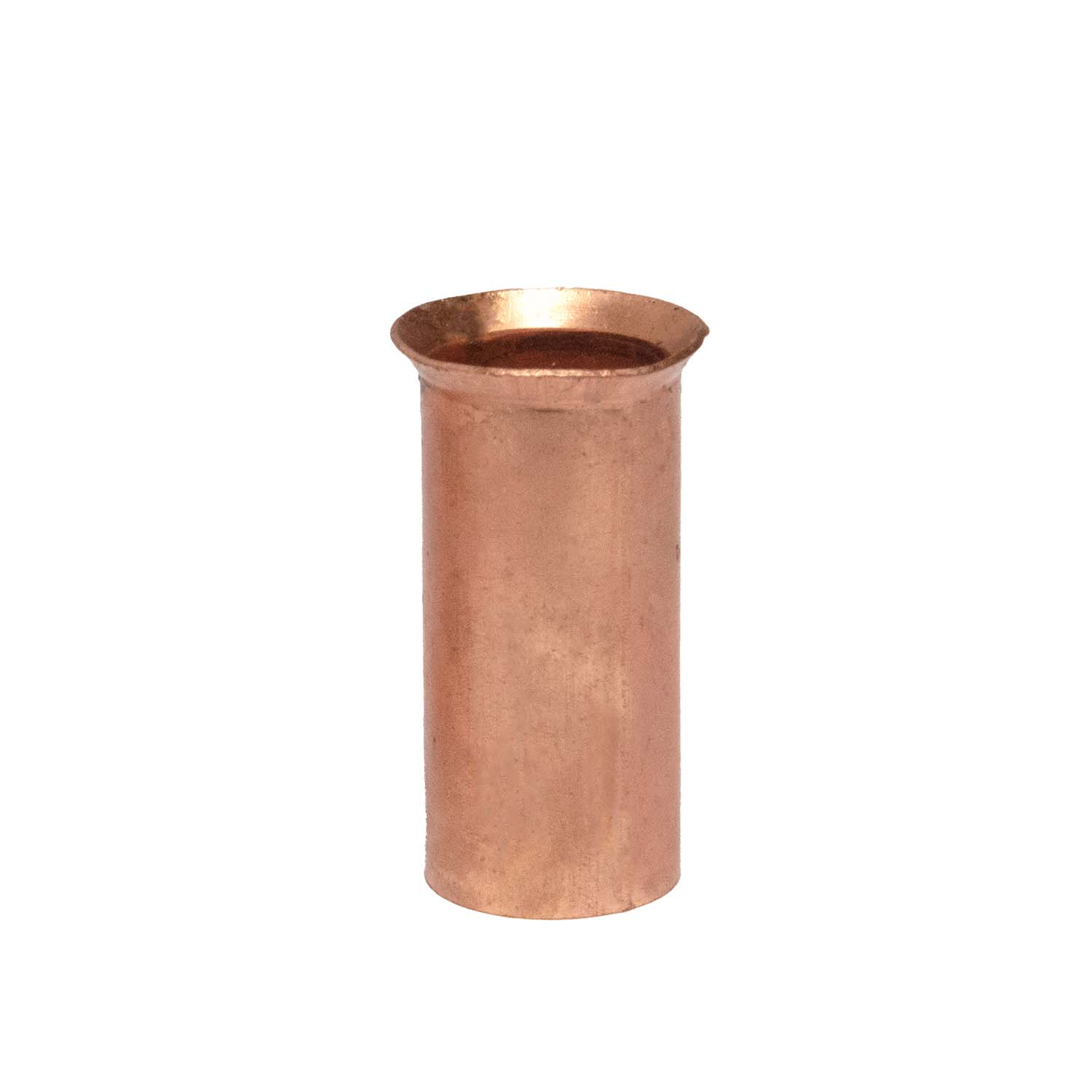

Copper Sleeve is replaceable. Available for purchase separately. See the chart below.
The Ground Hog’s large copperhead contact point prevents current restriction, allowing a complete transfer of the electrical current in a full circuit. The Ground Hog controls the electrical current by isolating the contact surface and the cable connection.
Get a smooth, continuous arc with no fade, and no heat transfer while improving cable life, and reducing power consumption.

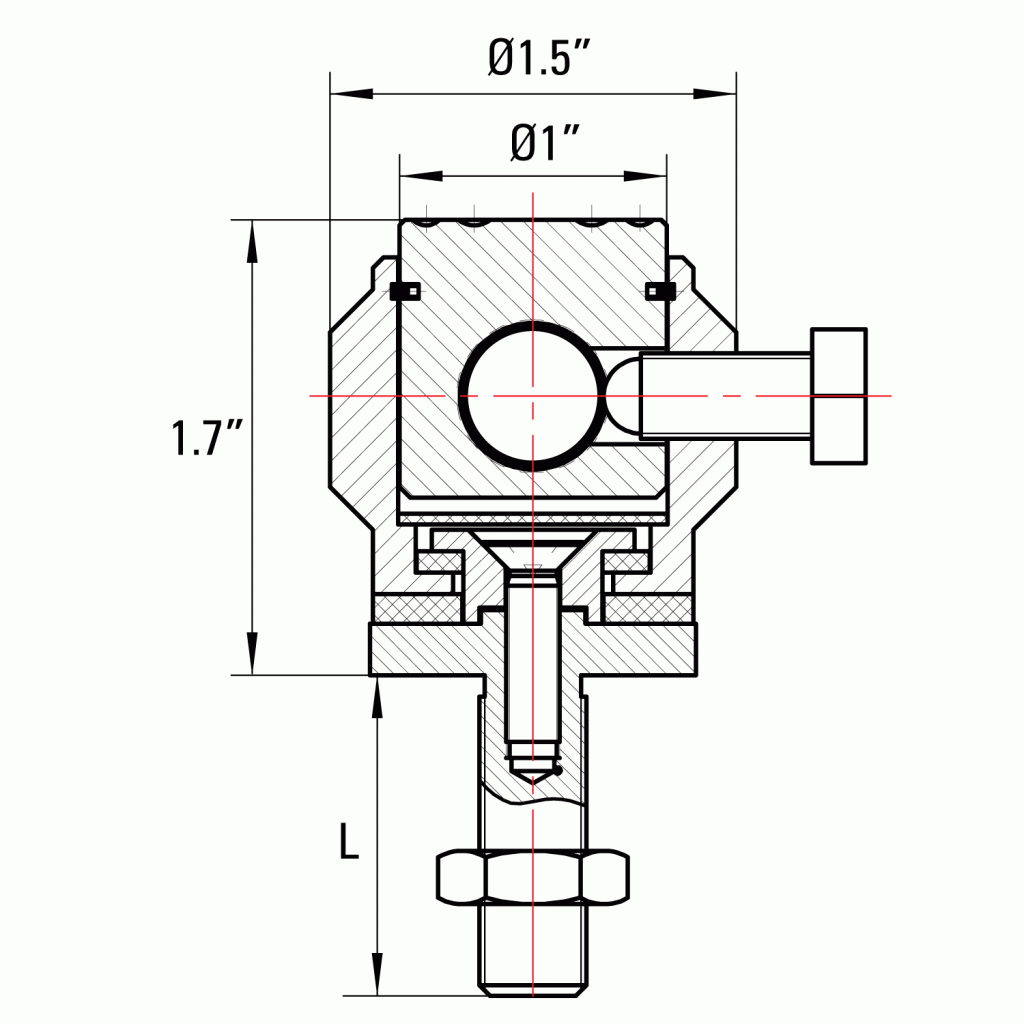

| Part No. | Replacement for | Amperage / Cable Size (in) | Thread | L (in) | Weight (lb) |
|---|---|---|---|---|---|
| GC5010 | GP950 | 450A / 2/0 | M10 x 1.5 mm | 1.18 | 0.5 |
| GC5310 | GP950 | 530A / 3/0 | M10 x 1.5 mm | 1.18 | 0.5 |
| GC512 | GUG970 & GUG1370 | 530A / 3/0 | 3/8-16 | 0.71 | 0.5 |
2 pieces per package.

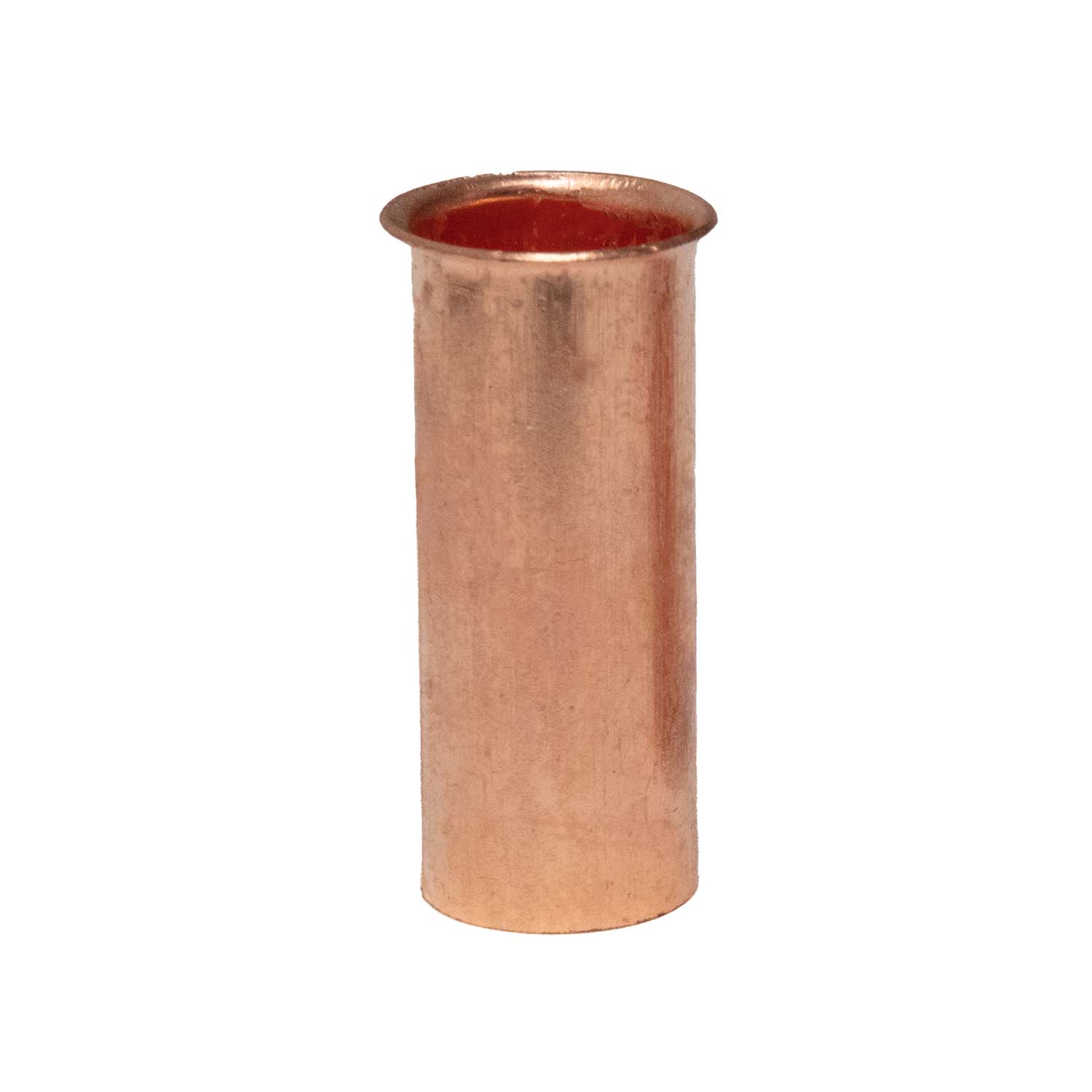

| Part No. | Fit Unit | Inner Dia. (in) | Height (in) | Weight (lb) |
|---|---|---|---|---|
| GXF504 | GC5010 | 0.4 | 1.3 | 0.02 |
| GXF514 | GC512, GC5310 | 0.5 | 1.3 | 0.02 |
| Description |
| Product variants |
| Price |
| These are the replacement unit for Ground Hog™ Grounding Pliers (GP950) and Large Diameter Pipe Grounding Clamps (GUG970 & GUG1370). The groove design on the Copperhead seals out the weld spatter and reduces particle buildup. The side screw provides a secure cable connection. Ground Hog body rotates for cable positioning. |
Regular price
From $3.60 USD
Sale price
From $3.60 USD
Regular price
|
Available in stock (30)
These are the replacement unit for Ground Hog™ Grounding Pliers (GP950) and Large Diameter Pipe Grounding Clamps (GUG970 & GUG1370).
The groove design on the Copperhead seals out the weld spatter and reduces particle buildup. The side screw provides a secure cable connection.
Ground Hog body rotates for cable positioning.
