Vendor Strong Hand Tools

MagTab™ Pro

SKU: MNT17

More magnetic force and a heavy-duty build for larger tabs and metal pieces.

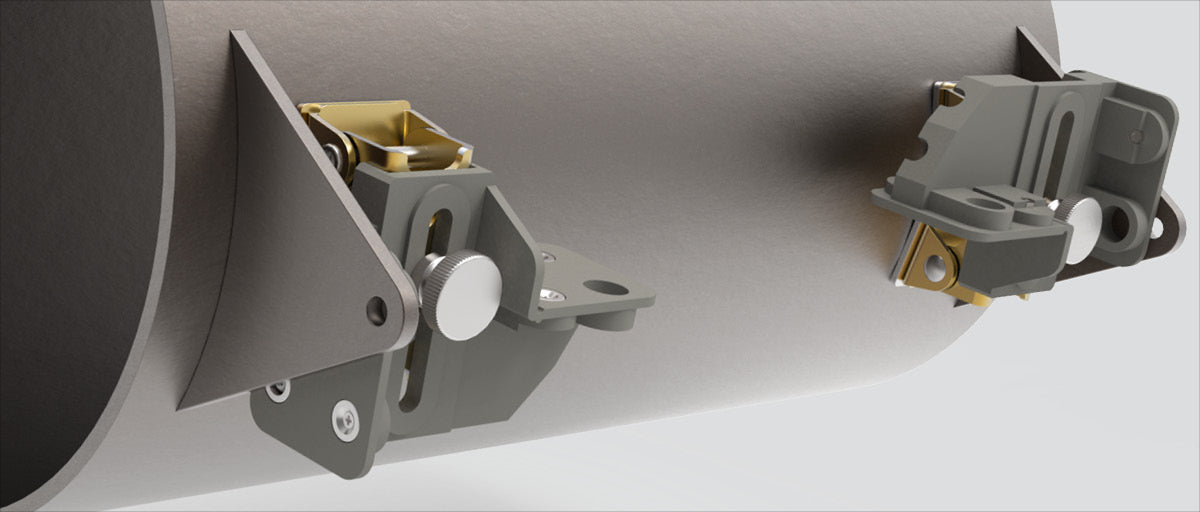

Designed and build from a single piece of cast aluminum, the MagTab PRO provides solid and sturdy magnetic holding of tabs in larger applications.

Replaceable Magnets: MagTab PRO features fully replaceable magnets that allow you to quickly and easily change out weak or damaged magnets.

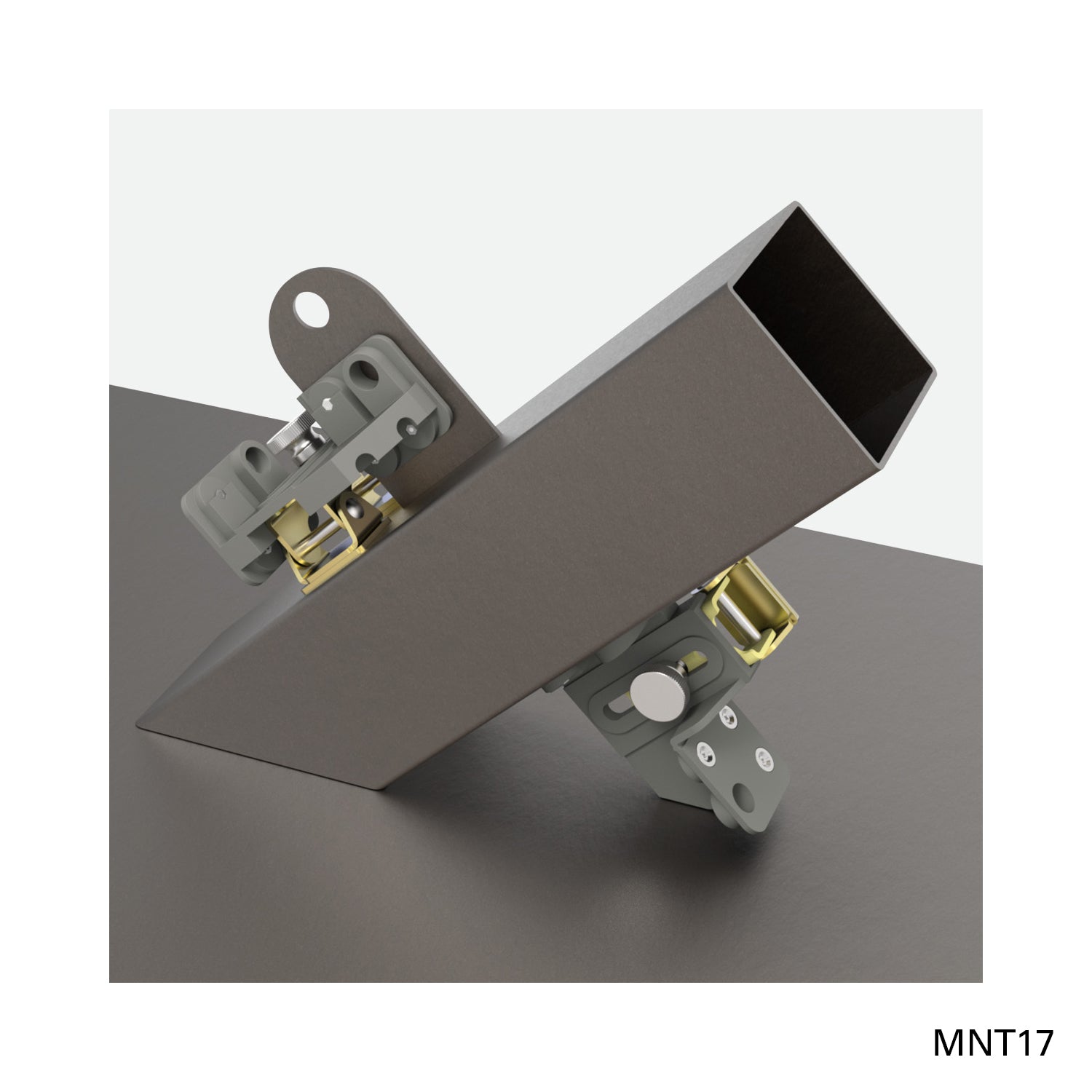

V-Pads: The integrated V-Pad allows you to magnetically attach to various types of surface shapes; flat, curved or with multiple angles. Two 5/8” holes that allow you to use (optional) V-Blocks when needing to hold on to different diameter size tubes.

* Remove the MagTab bracket to use the Adjustable Magnetic V-Pad for light-duty holding of steel plates.

* Must be used for tack welding only and removed before completing weld. Avoid prolonged exposure of magnetic products to heat sources of 175ºF / 80ºC and above.

Regular price $46.50
Sale price $46.50 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No.Description Dimension (in) Max. Pull Force (lb) Weight (lb)
MNT17 MagTab Pro Large with Replaceable Magnets and Knurled Knob 5.2 x 3.9 x 3.4 35 1.8
MPT18 MagTab Pro X-Large with Replaceable Magnets and Knurled Knob 6.4 x 5.3 x 3.5 66 2.1
* Magnetic force is based on 0.4″ flat steel surface.

Replacement Magnets

Replaceable Magnets with Flush Mount Screws for MagTab Pro.

Part No. Description Weight (lb)
MRP9 Replacement Magnets for MNT17, 4 + 6 pc. 0.1
MRP13 Replacement Magnets for MPT18, 8 + 6 pc. 0.2
