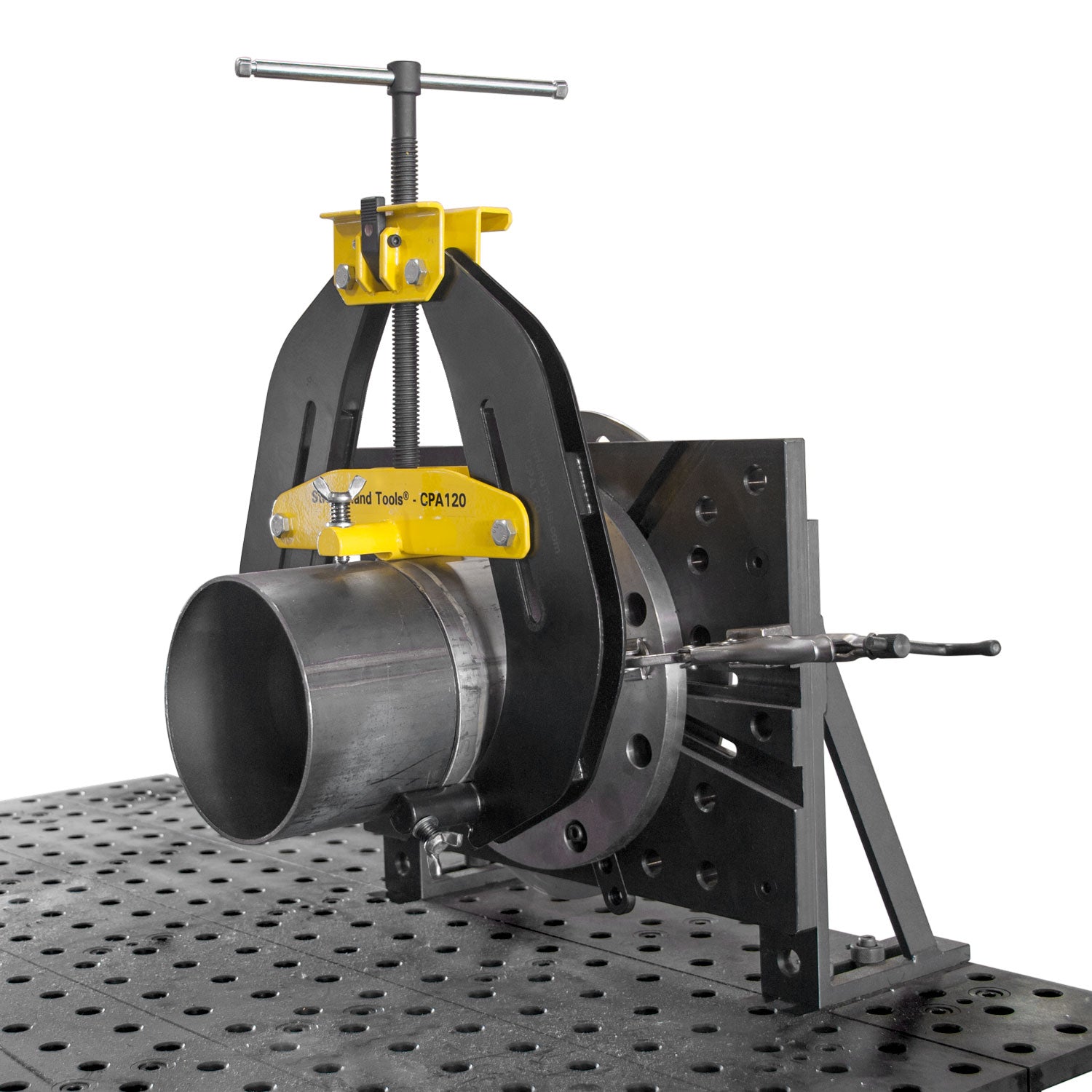

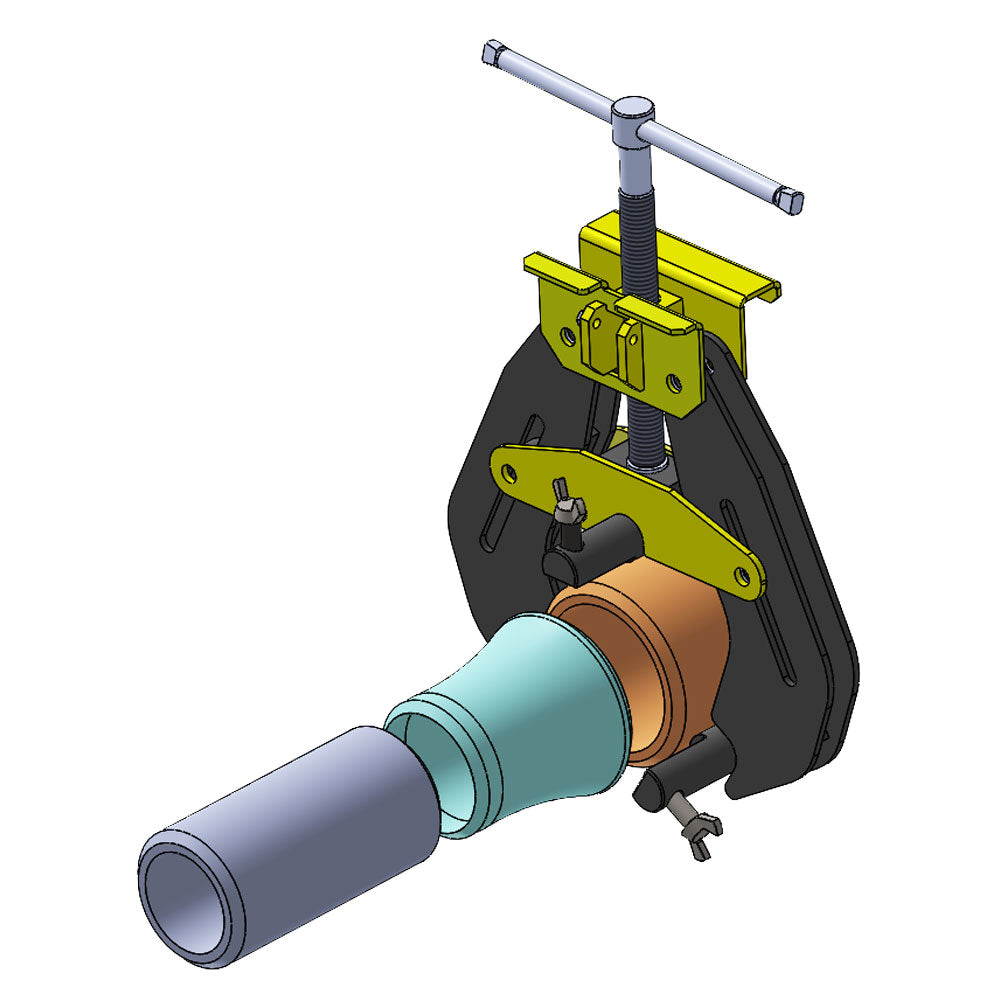

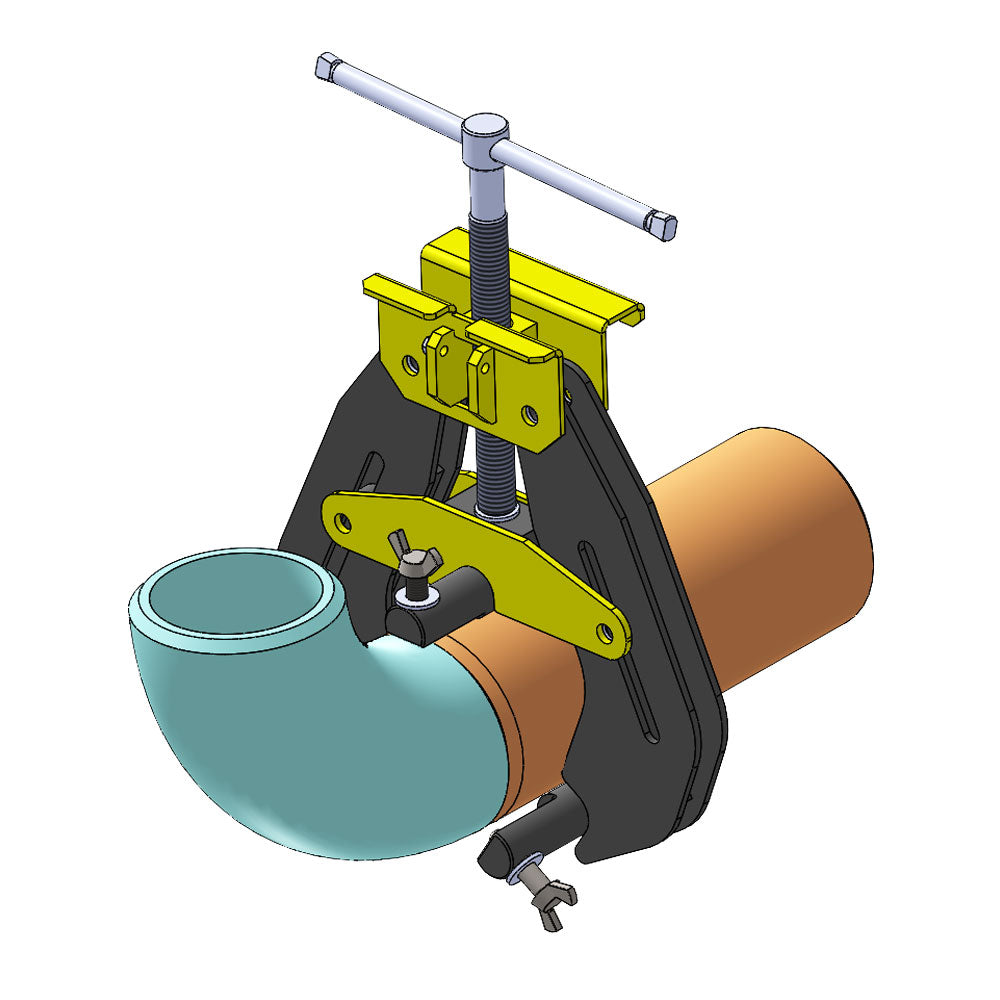

Achieving the perfect fit-up is 90% of the battle in pipe welding. The Strong Hand Tools Pipe Alignment Clamp is a heavy-duty, fast-acting fit-up tool engineered to securely hold pipes, elbows, tees, and flanges in perfect concentric alignment. Designed for professional structural, fabrication, and pipeline welders, it takes the frustration, physical strain, and wasted time out of pipe prep so you can focus on laying down a flawless root pass.
Pipe Alignment Clamps
Regular price
$400.00
Sale price
Regular price
Shipping calculated at checkout.
Quick Release
Button
Stanless Steel
Contacts
Adjustable
Diameter

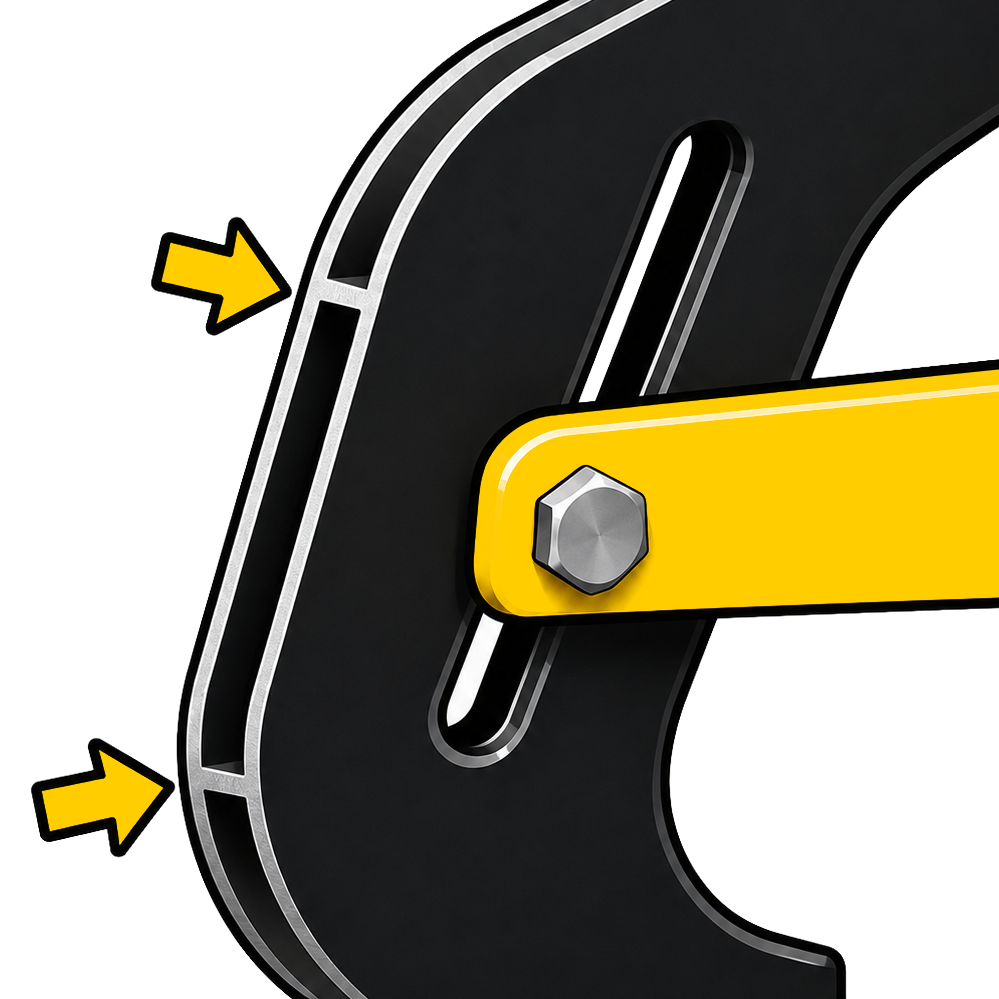

Double-walled Steel
Body
-
Estimated delivery: Jul 04 - Jul 08
Couldn't load pickup availability
Pipe Alignment Clamps

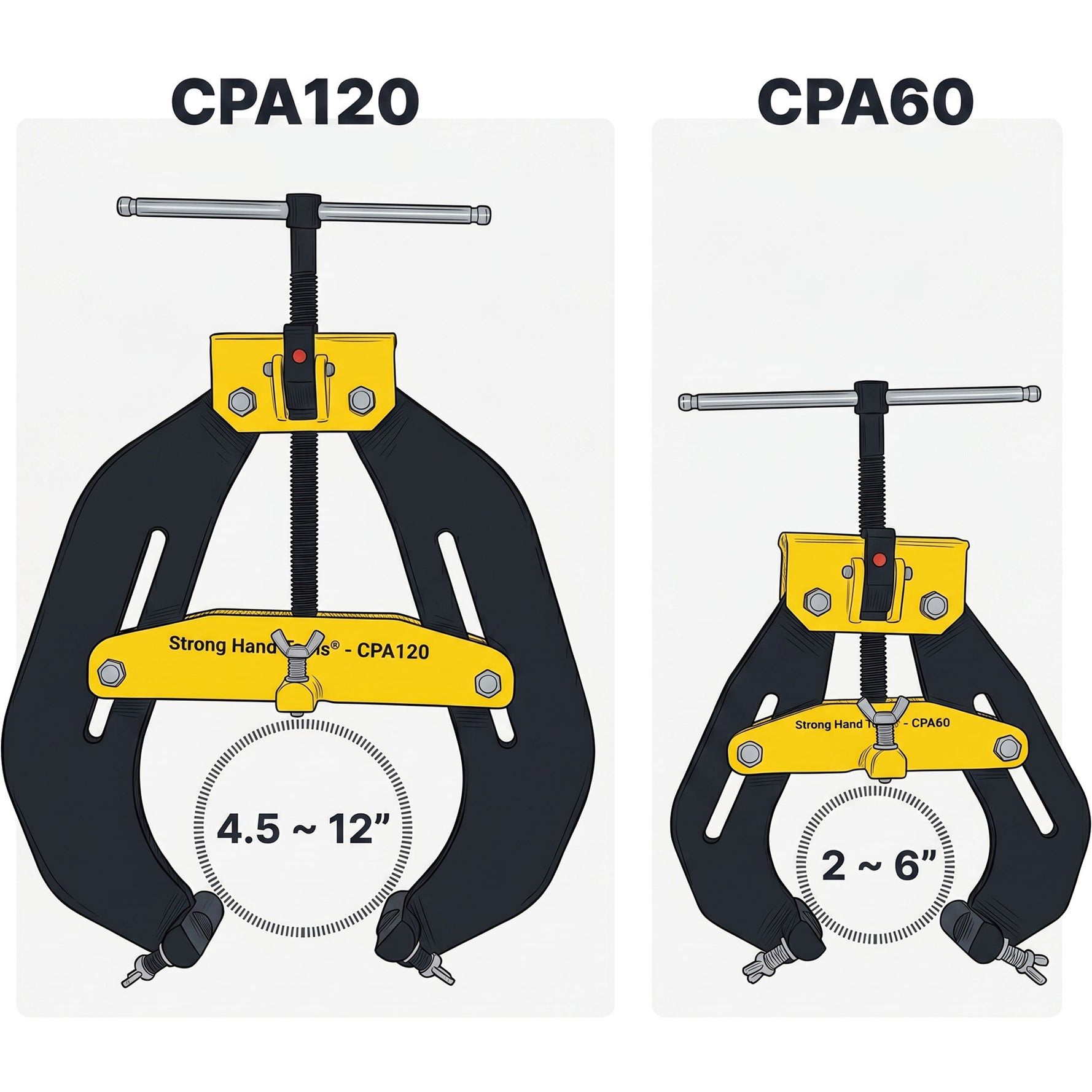

Product Series Overview

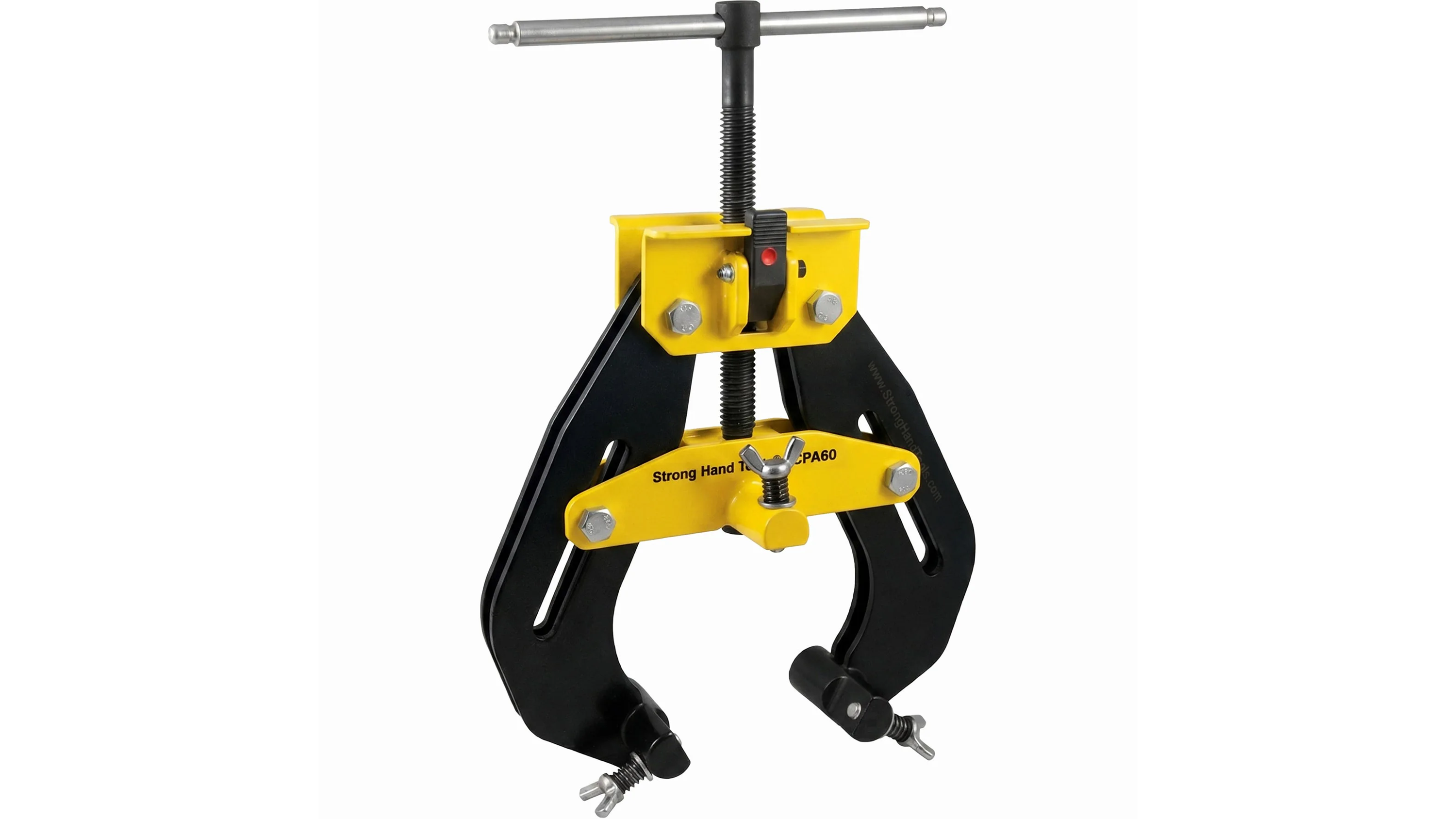

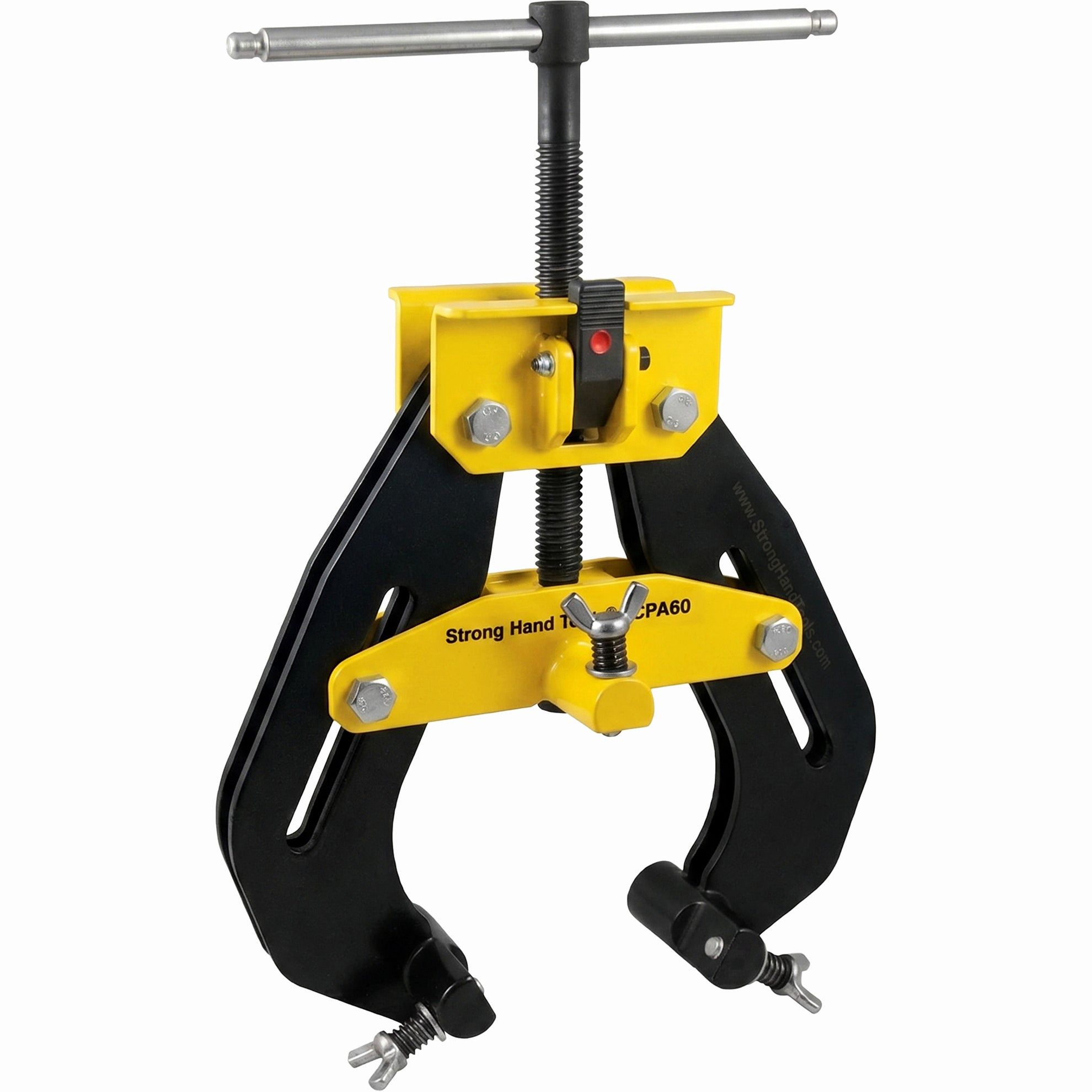

CPA60

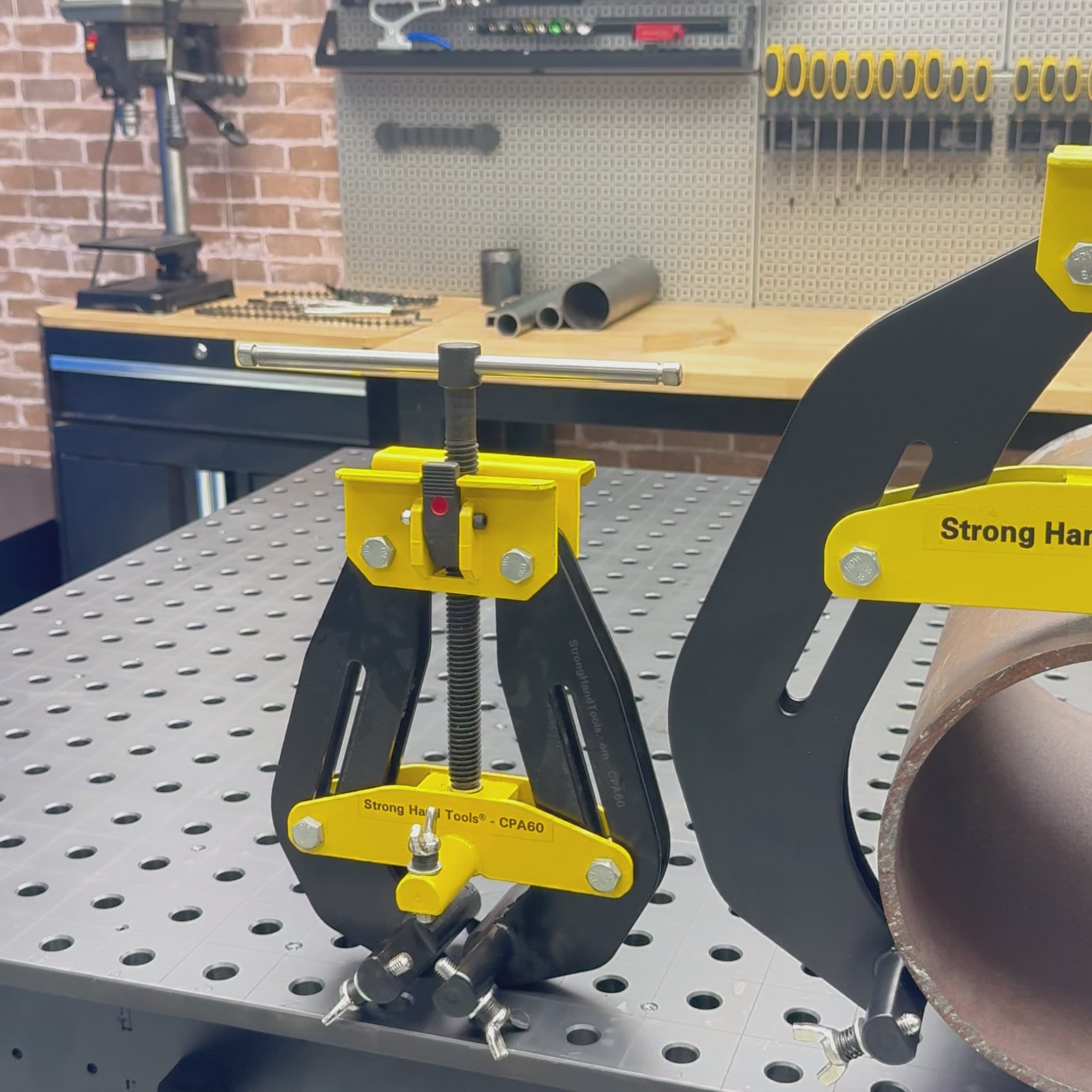

When you are running medium-diameter pipe for headers, roll cages, or process piping, speed and precision are everything. The CPA60 is the ultimate "grab-and-go" fit-up tool. Engineered to securely align 2.0" to 6.0" pipe, elbows, tees, and flanges, this 11-pound workhorse takes the physical strain out of pipe prep so you can focus on the weld.

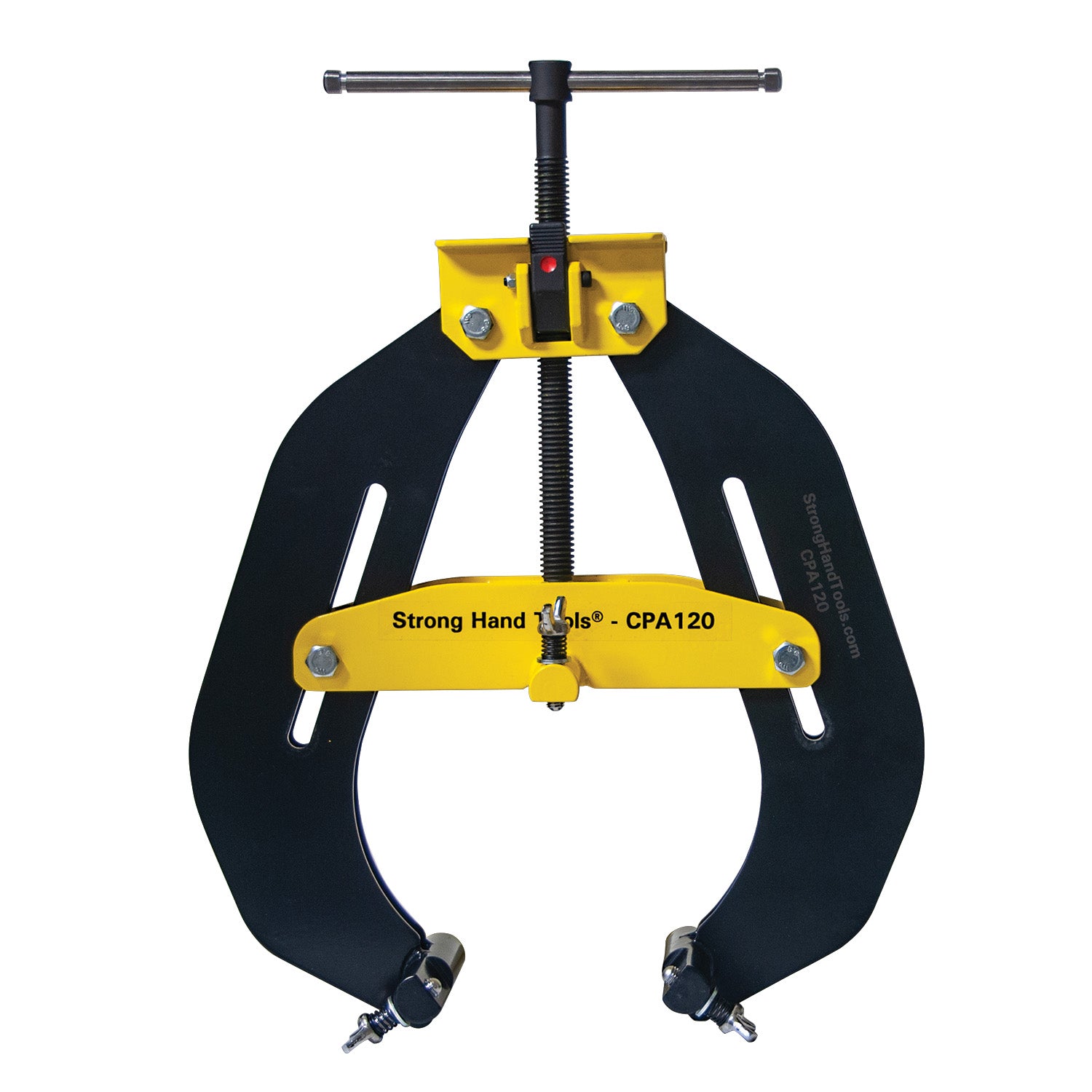

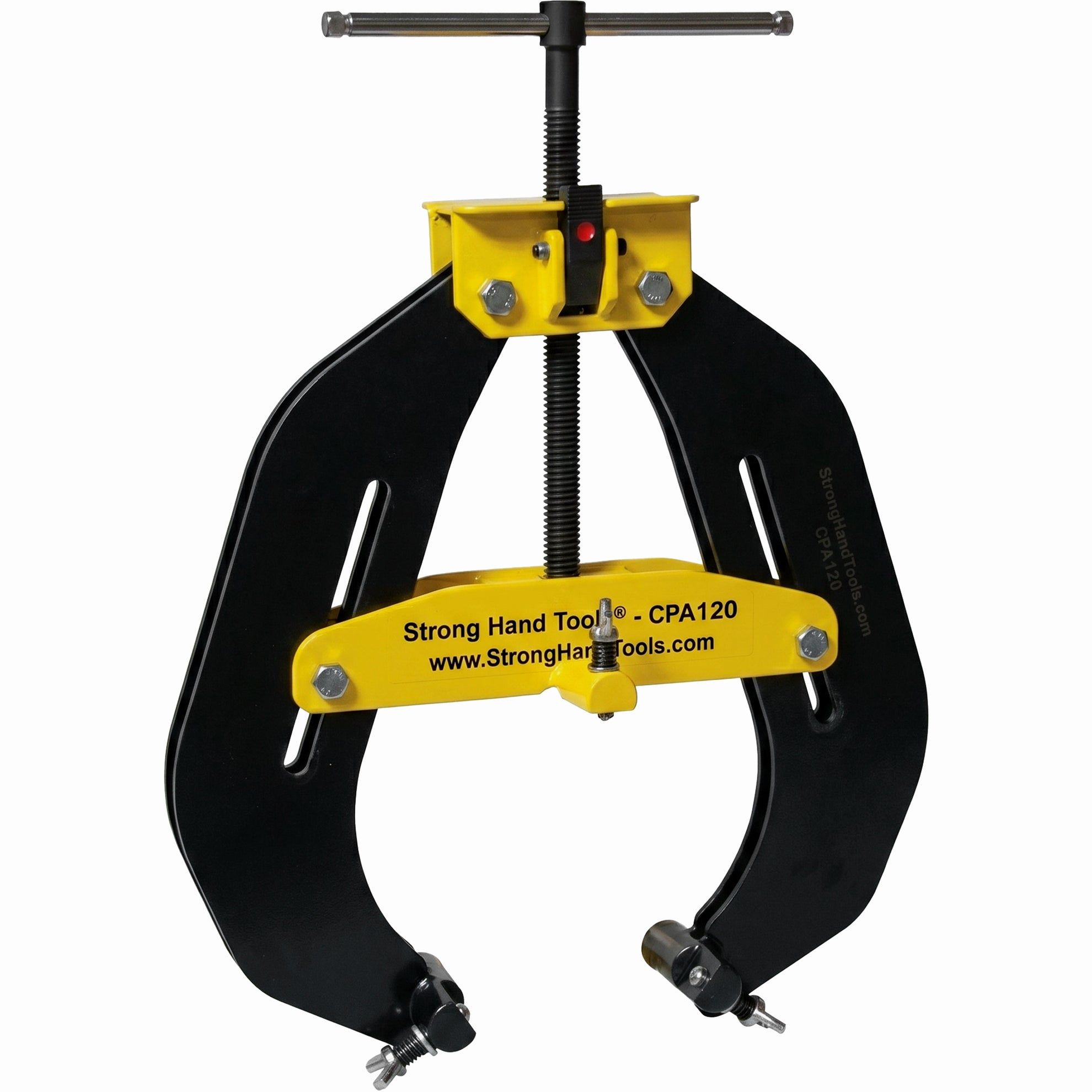

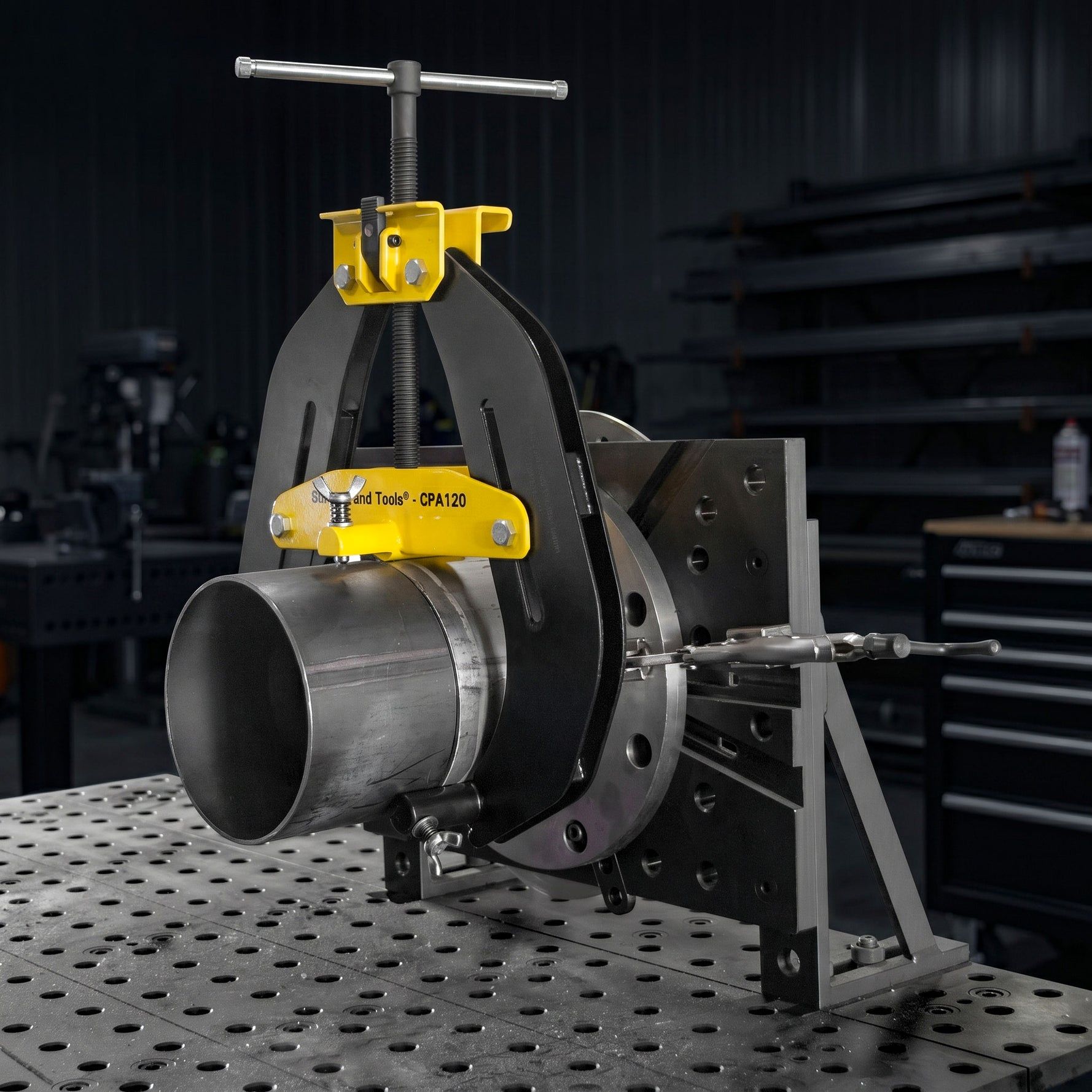

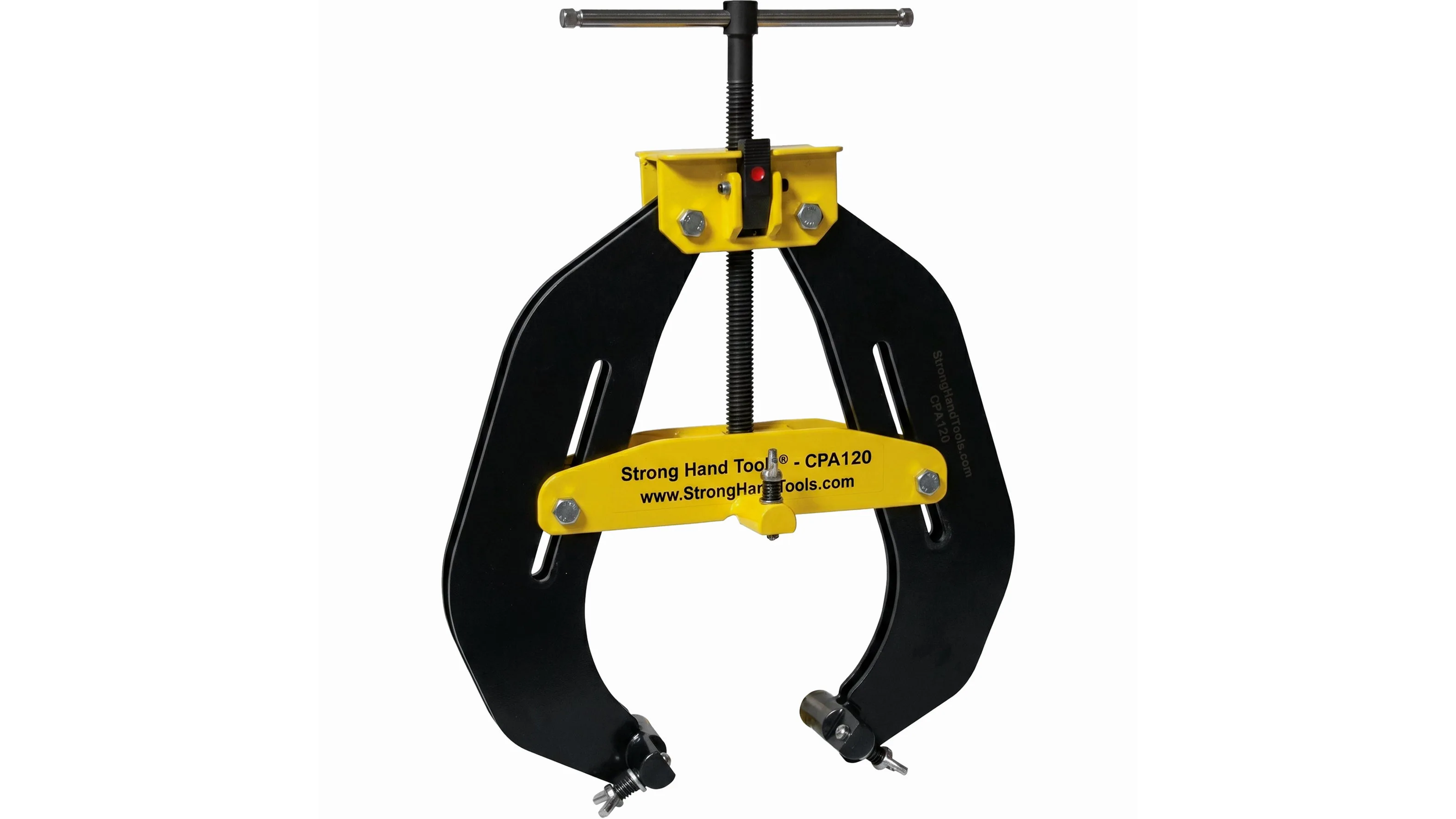

CPA120
Large diameter piping demands serious clamping power. The CPA120 is a rugged, heavy-duty fit-up titan engineered specifically for large mains, heavy industrial pipelines, and heavy-wall fabrication. Built to effortlessly align massive 4.5-inch to 12-inch pipes, elbows, tees, and flanges, the CPA120 dominates heavy fit-ups, eliminating the need for makeshift wedges, dogs, and time-wasting screw clamps.
Solves the "Third Hand" Problem
Ergonomic Wide Grip Plates are built right into the frame to minimize hand fatigue. This lets a solo fabricator easily hold and balance the tool with one hand while adjusting heavy pipe with the other.

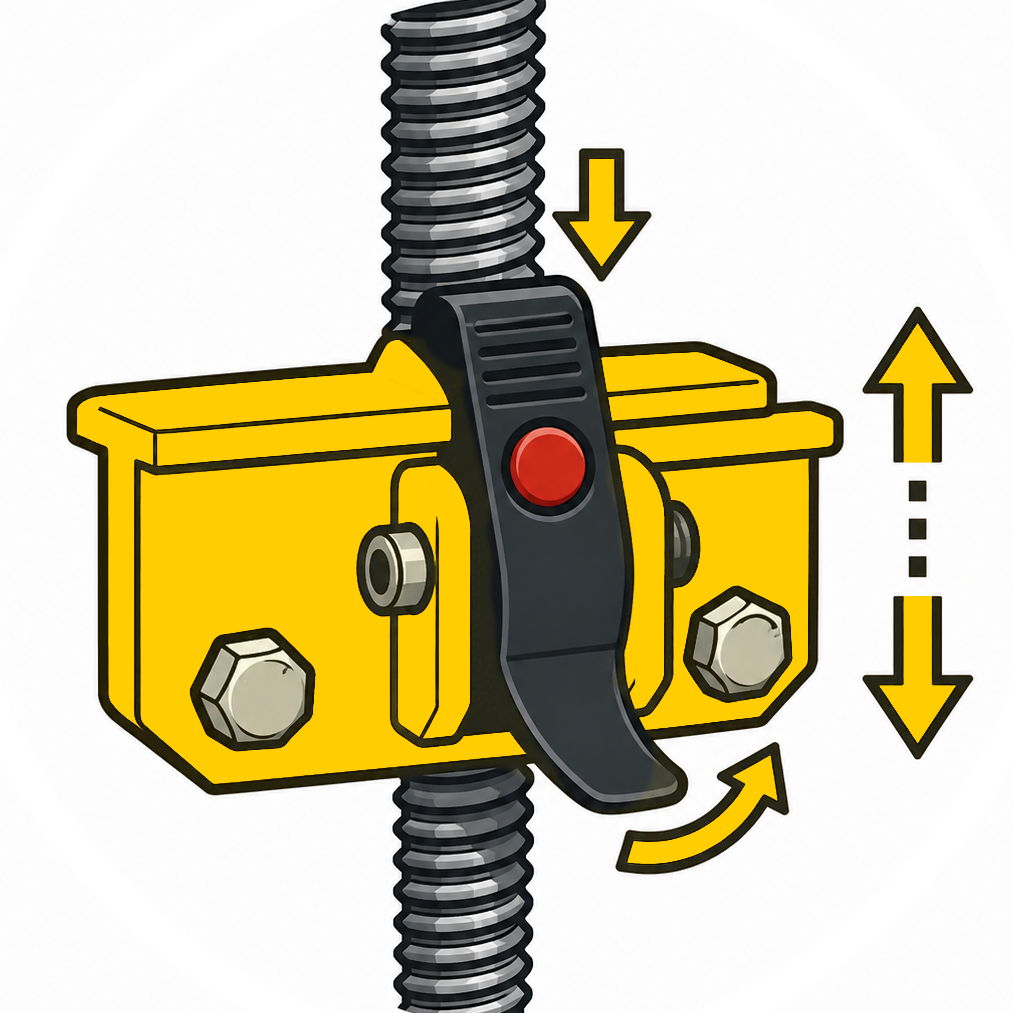

The "Quick-Acting Lever

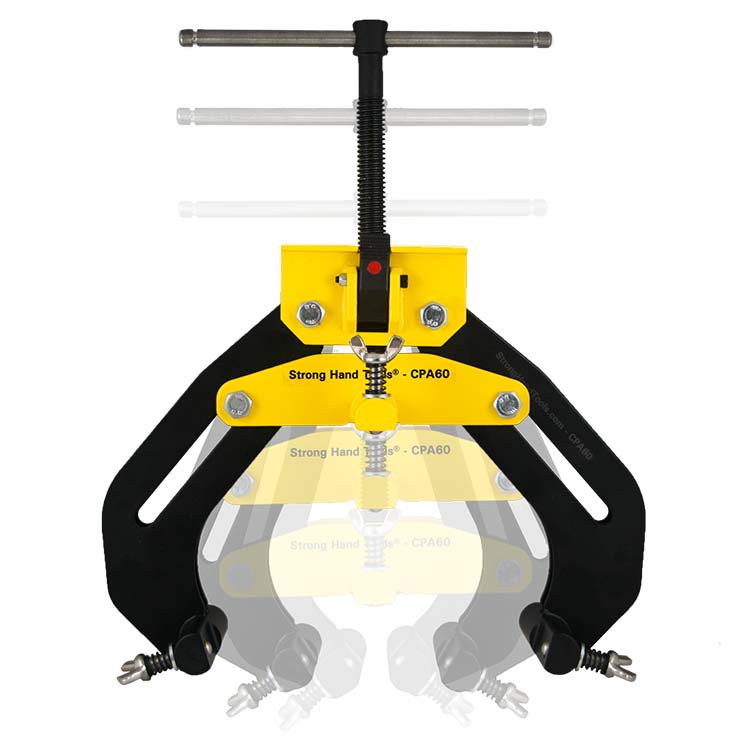

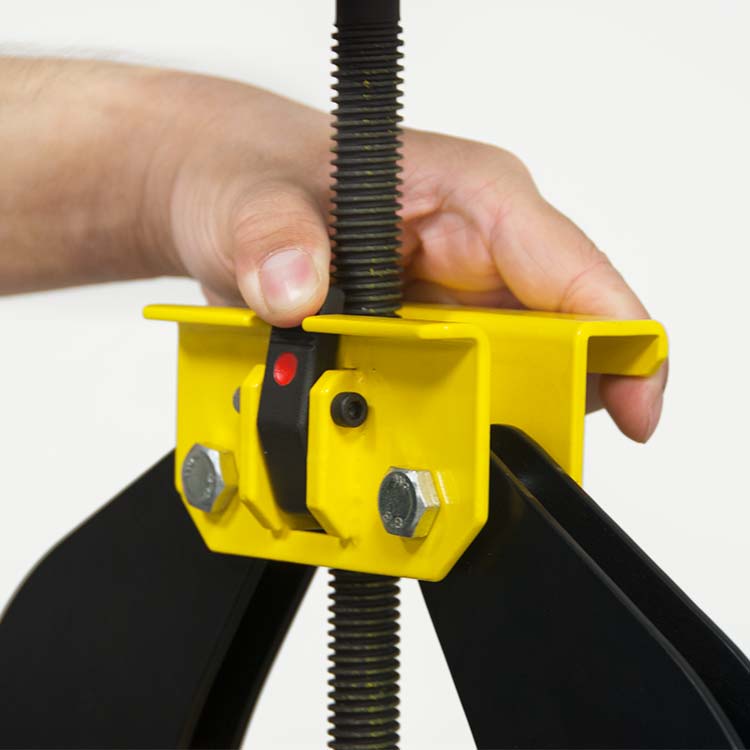

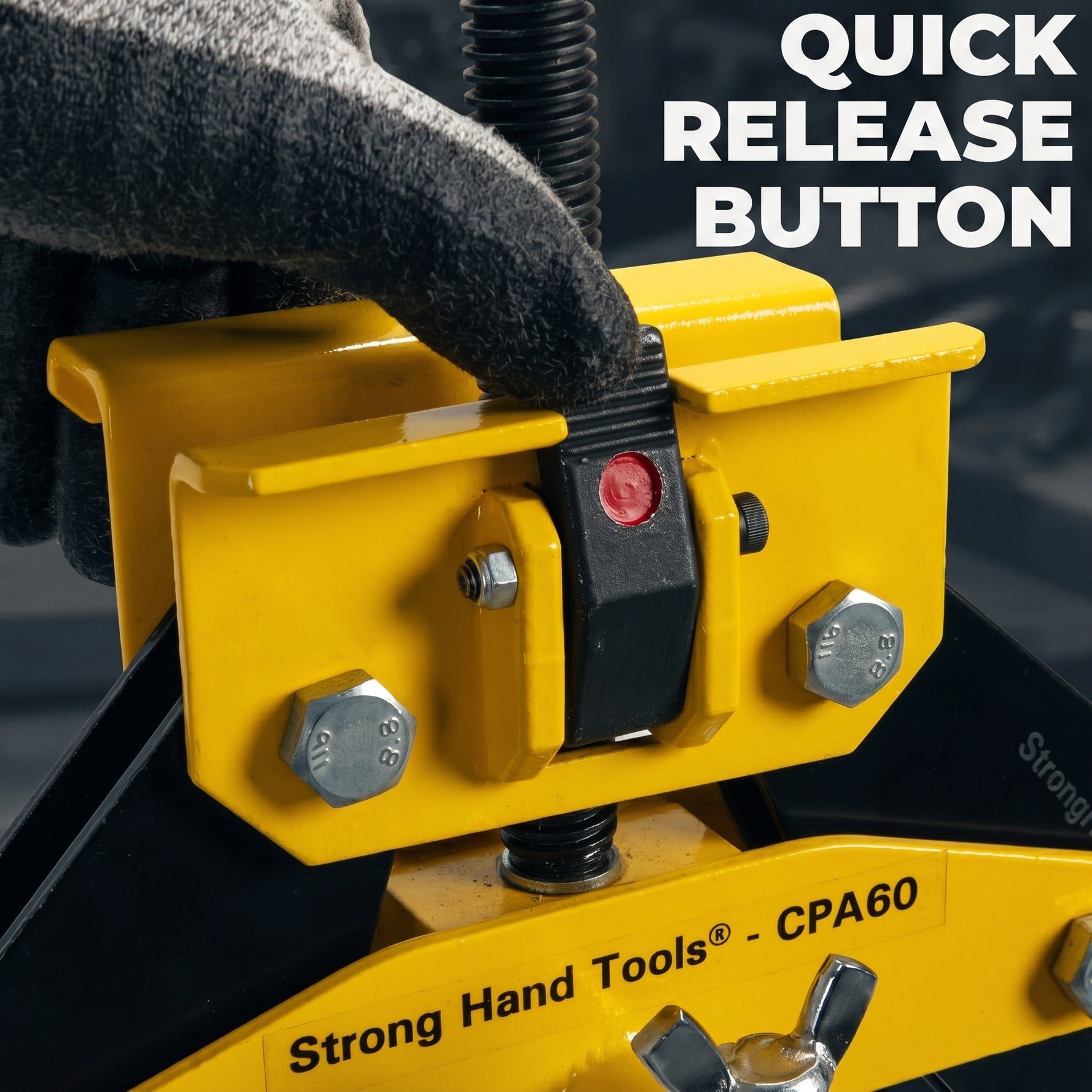

Stop endlessly spinning a threaded T-handle. A built-in quick-release button allows the main screw to glide up and down. Just press, slide, and set to lock it down or remove it in a fraction of the time.

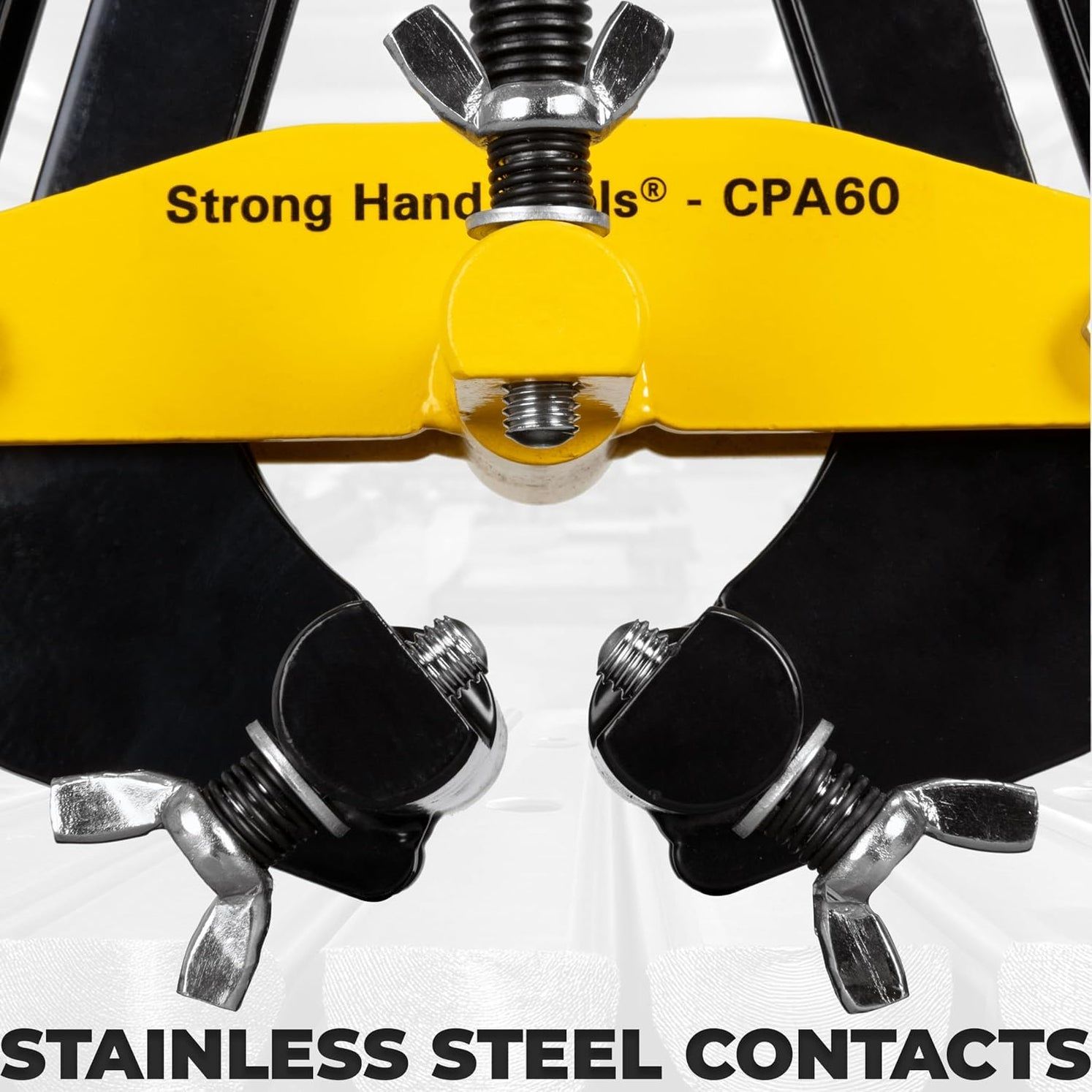

Zero-Contamination on Exotic Metals

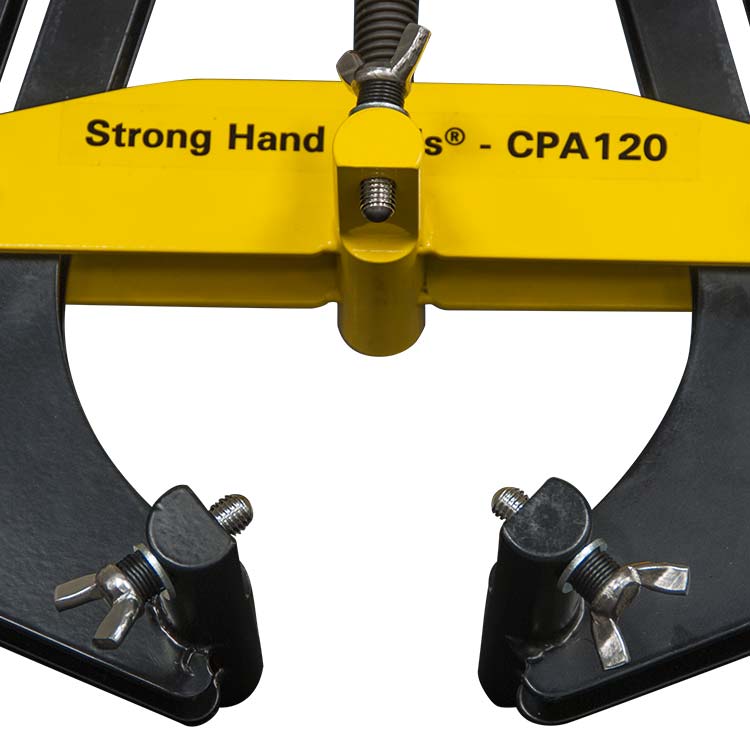

Alignment screws and contact points are 100% solid stainless steel right out of the box. Instantly clamp onto stainless, aluminum, or exotic alloys without risking rust-transfer or needing slip-on booties.
Eliminates "Hi-Lo" Misalignment
Poor fit-up causes blown-out roots and failed X-rays. This tool uses three fine-adjustment screws to push pipe walls perfectly flush, guaranteeing a highly accurate, code-compliant weld gap every time.
SKU
CPA60

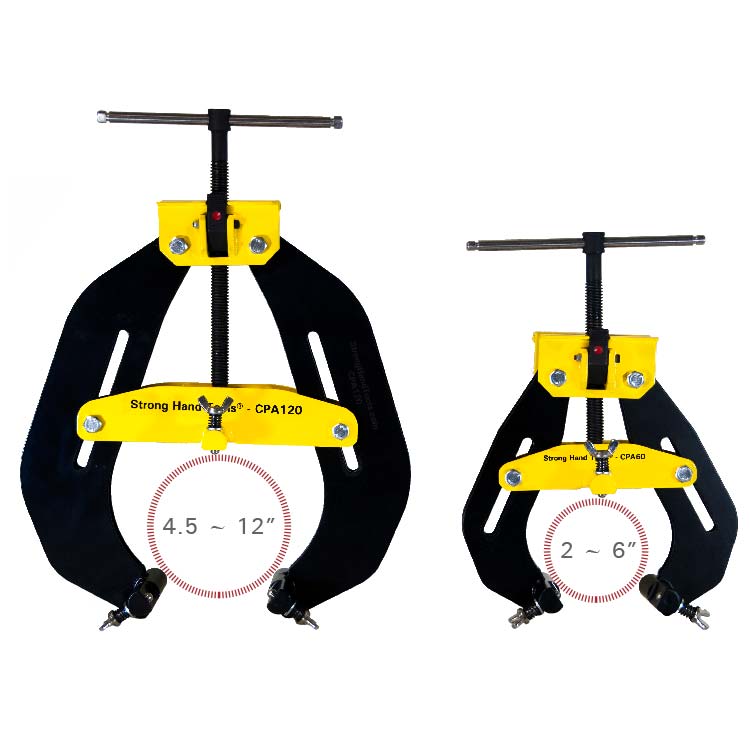

Pipe Capacity
2.0" to 6.0" (50–152 mm)
Contact Screw Material
100% Solid Stainless Steel
Fine-Adjustment Mechanism
Three wing-nut adjustment screws
Material
Double-walled, powder-coated steel
Weight
11 lbs (4.99 kg)
SKU
CPA120
Pipe Capacity
4.5" to 12.0" (114–305 mm)
Contact Screw Material
100% Solid Stainless Steel
Fine-Adjustment Mechanism
Three wing-nut adjustment screws
Material
Double-walled, powder-coated steel
Weight
17.0 lbs (7.71 kg)
Product Comparison: CPA Series vs. CPL Series
CPA60
CPA120
CPL45
CPL75
Weight Profile
-
CPA Series: Heavy-duty build, ranging from 11.0 to 17.0 lbs (4.99 to 7.71 kg).
-
CPL Series: Ultra-lightweight design, ranging from 2.8 to 4.7 lbs (1.27 to 2.13 kg).
Wall Thickness & Pipe Schedule
-
CPA Series: Dominates on heavy-duty applications, engineered specifically for Schedule 40, Schedule 80, and heavier walls.
-
CPL Series: Restricted to thin-walled applications, ideal for Schedule 10 through 40 piping.
Reforming Capability
-
CPA Series: Built for reshaping. It relies on a rigid, double-walled cage frame and heavy-duty fine-adjustment screws to actively push out-of-round pipe walls back into perfect concentricity.
-

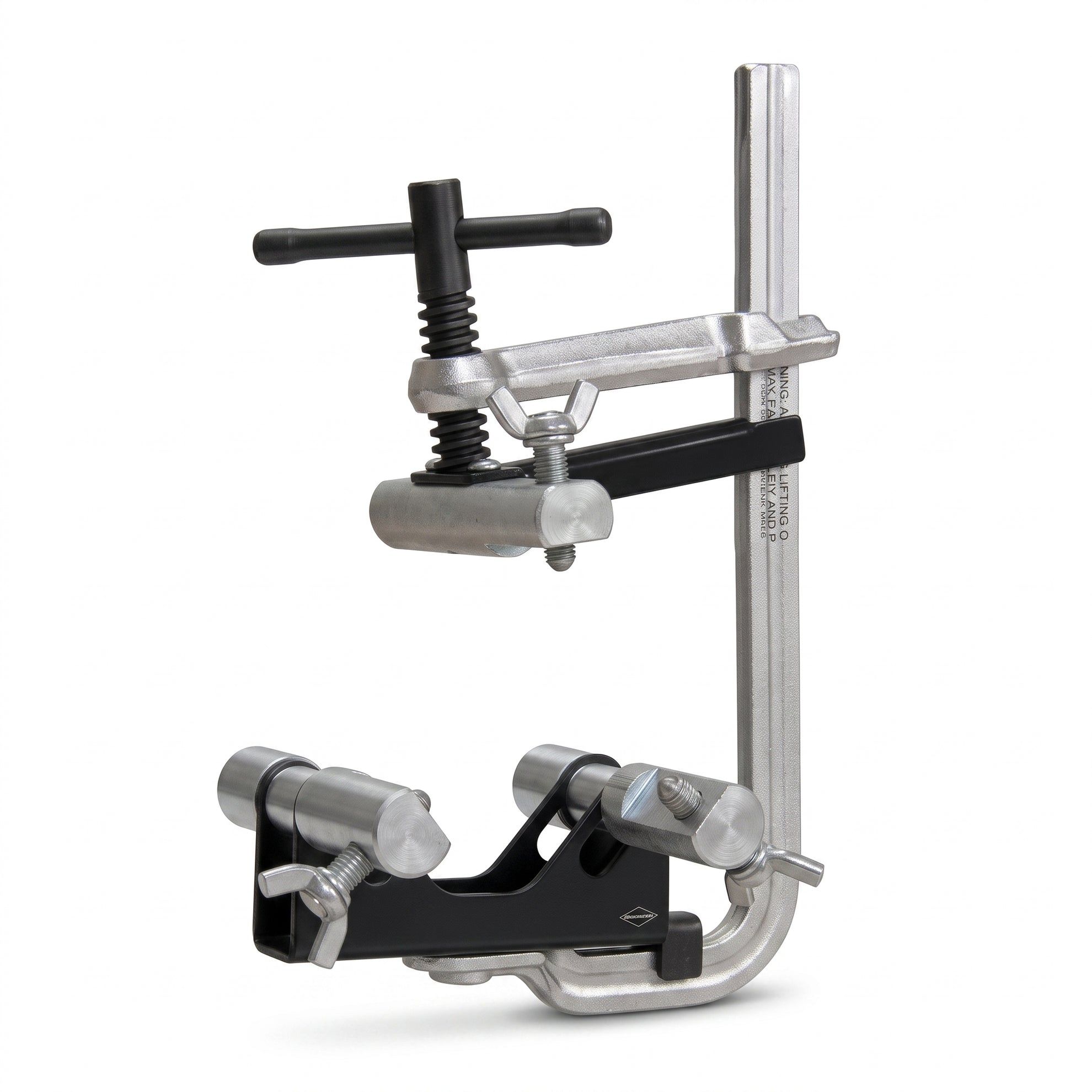

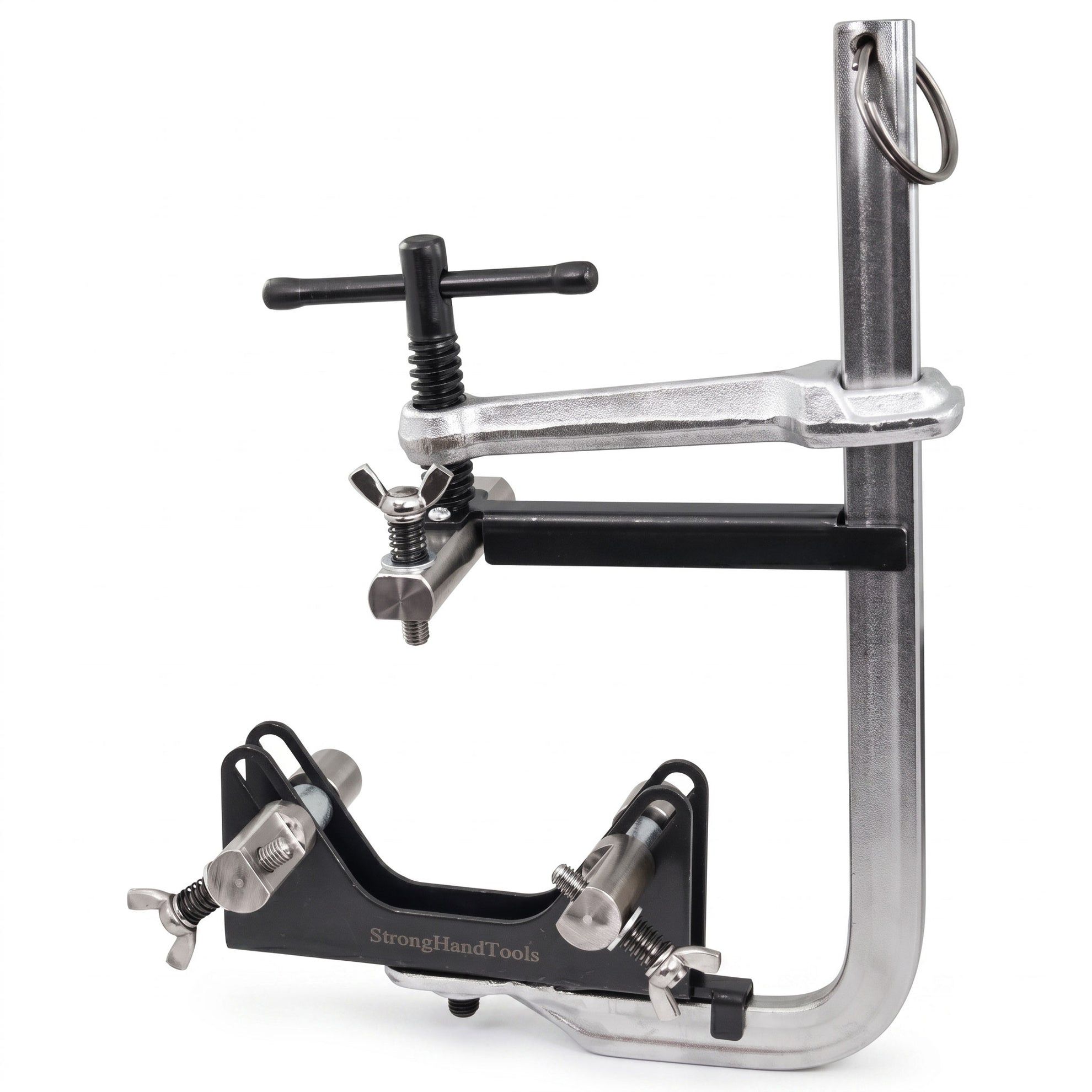

CPL Series: Designed for alignment only. The light, sliding-arm F-clamp lacks the mechanical leverage required to reform steel if a pipe section has been warped or damaged during transport.
