Straight Edge Stops, U28 (inch spacing)

SKU: U28-22155

All Stops are feature 28 mm holes with inch spacing (except U28-22155).

They used to align workpieces anywhere on the table. Slots provide adjustment while holes provide anchoring points for accessories such as clamps and V-Blocks.

$48.50 USD
$48.50 USD
Liquid error (snippets/product-price line 86): divided by 0% OFF Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

U28-22155 - STEP

U28-20255 - STEP

U28-20301 - STEP

U28-20501 - STEP

U28-20751 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Name Length (in) Width (in) Thickness (in) Slot Length (in) Weight (lb)

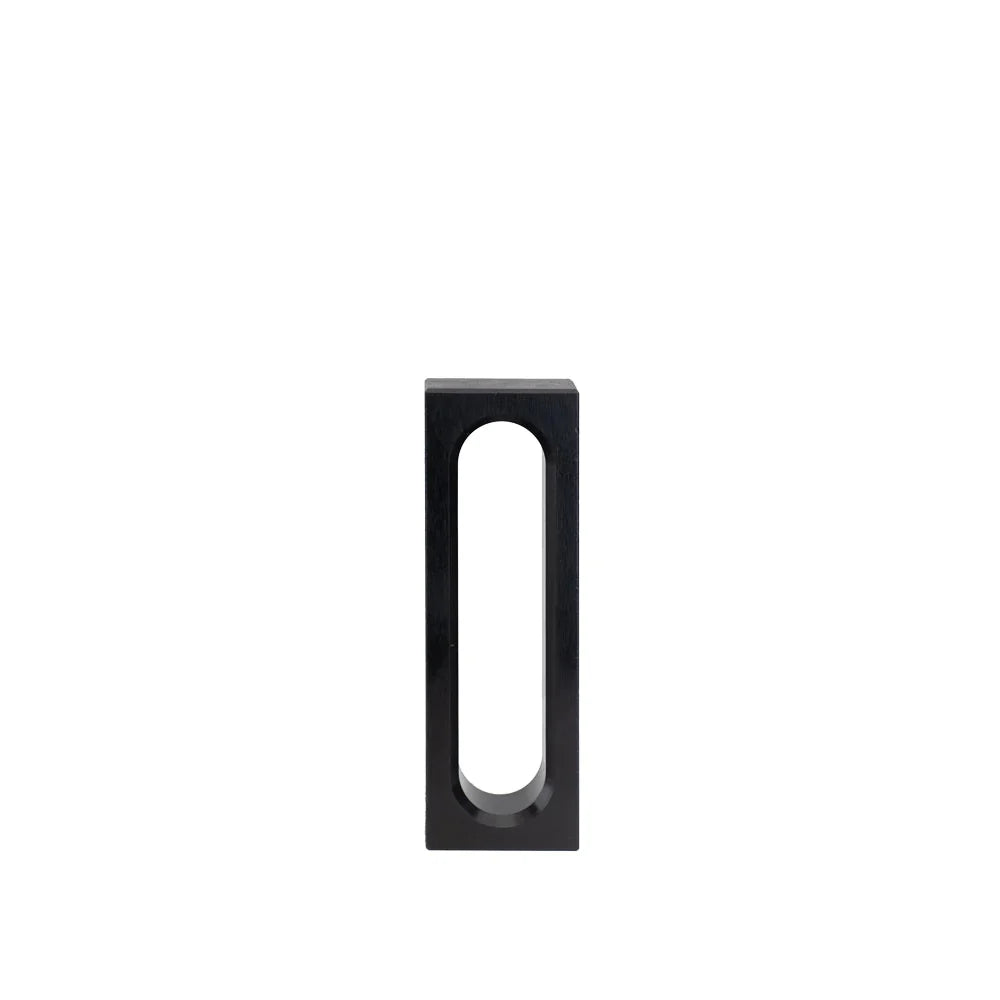

U28-22155 Straight Stop 6 SL 6 2 1 4 1.8

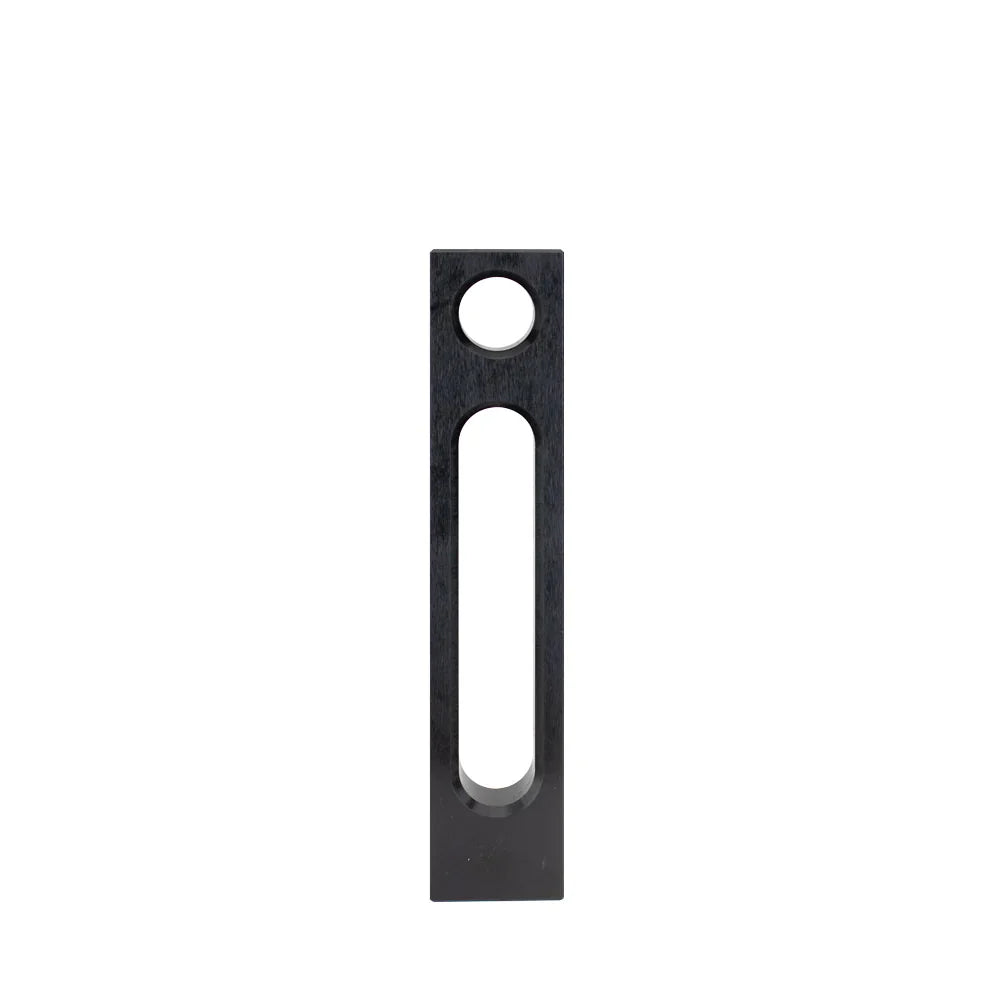

U28-20255 Straight Stop 10 SLH 10 2 1 4 3.3

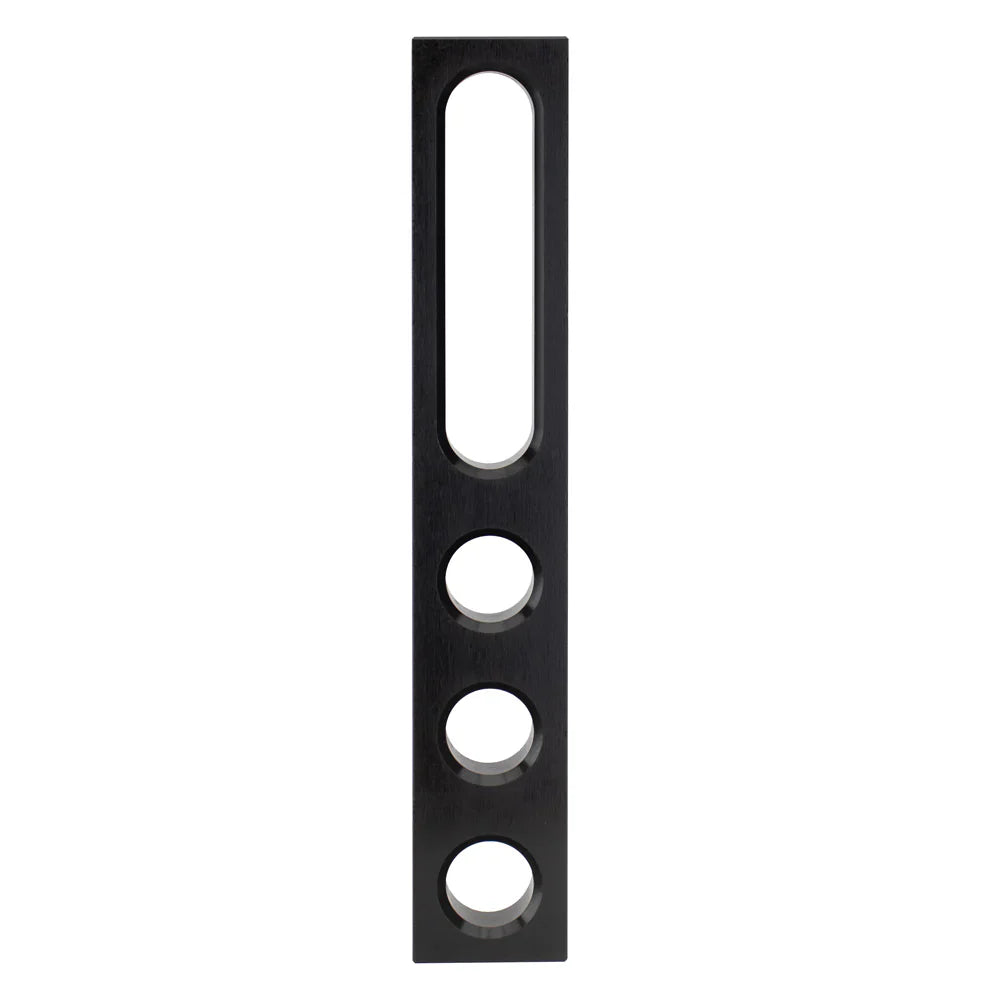

U28-20301 Straight Stop 12 SLH 12 2 1 4 4.1

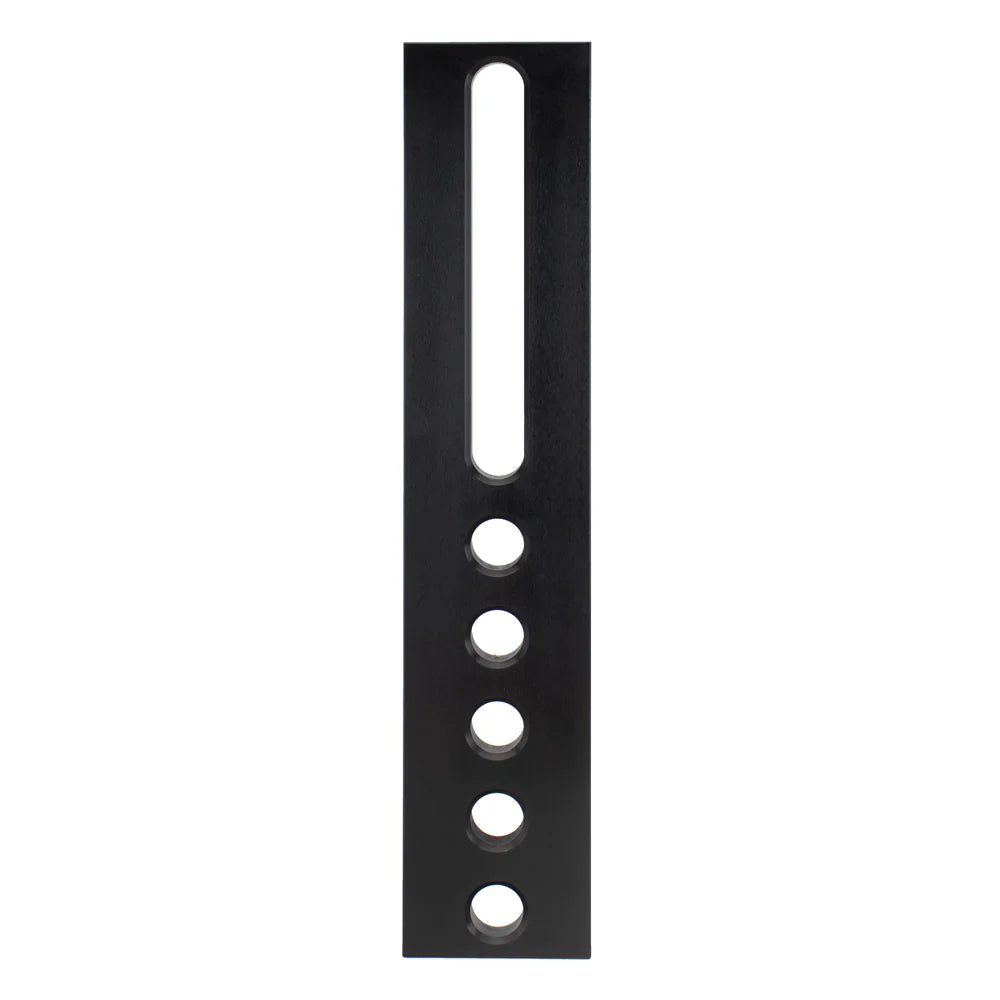

U28-20501 Straight Stop 20 W-SLH 20 4 1 8 17.6

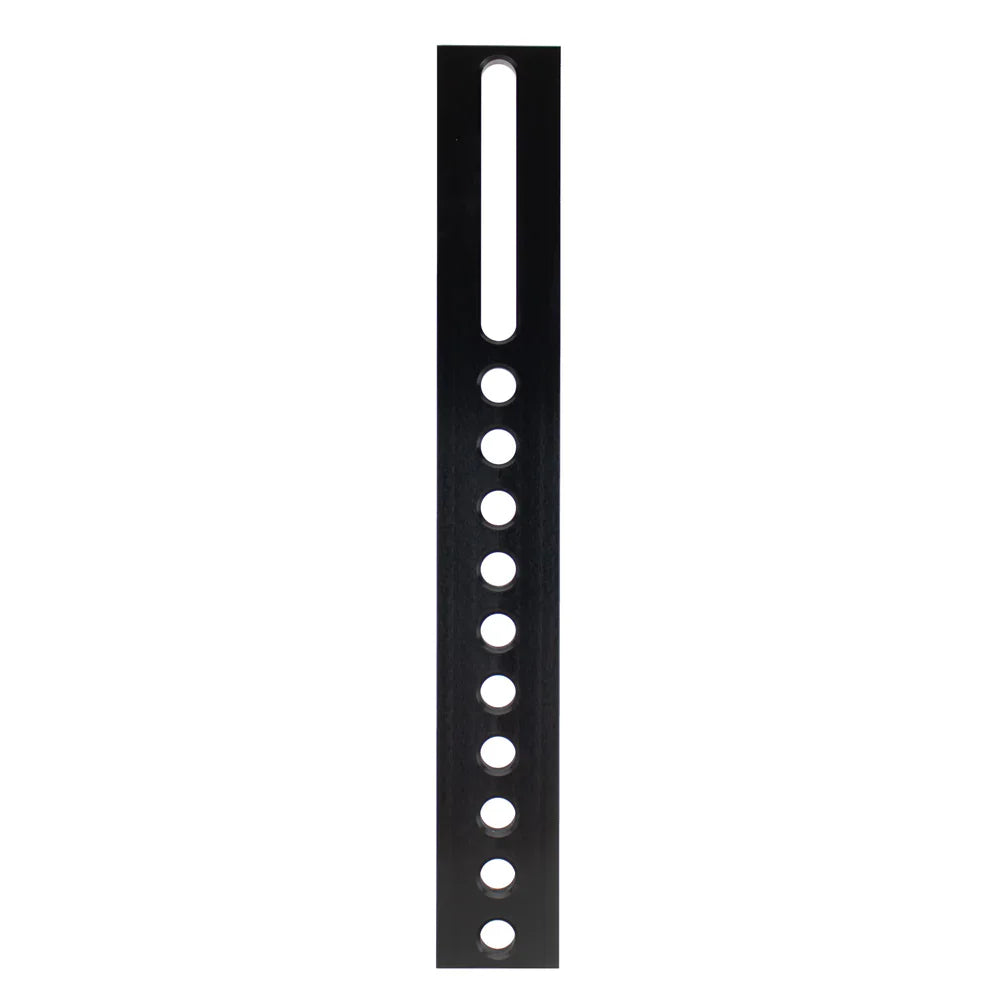

U28-20751 Straight Stop 30 W-SLH 30 4 1 8 27
