Adjustable Rest, 28 mm
Adjustable Rest, 28 mm
Available in stock (216)
-
Estimated delivery: Jun 23 - Jun 27
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

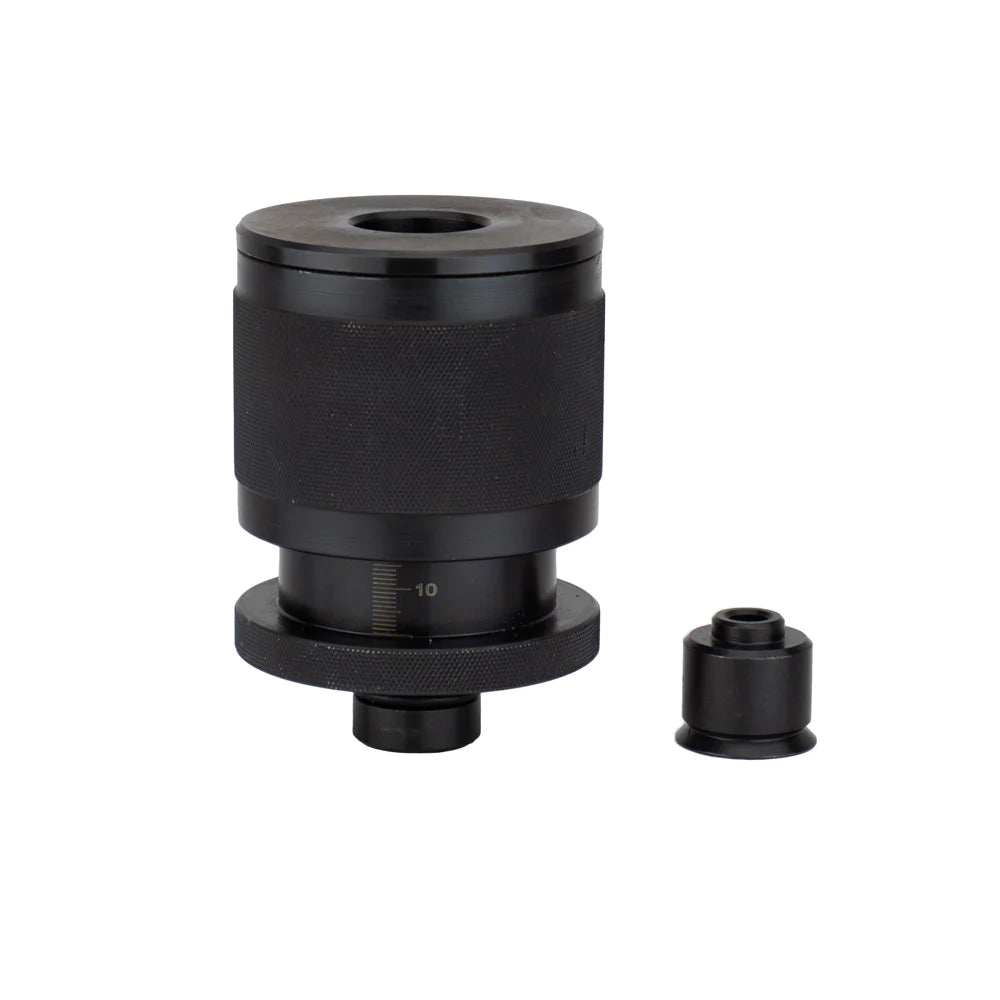

The Adjustable Rest is operated manually with a turn of the knurled band for minute height adjustment.
Insert into any fixturing hole on the Alpha 28 Welding Table for use as a support or rest for aligning stock at a uniform height and providing welding clearance. V-Blocks fit into the top cavity of the Adjustable Rests to support round pipes. Adjustable Rests are stackable for use with tall stock.
THREE MOUNTING OPTIONS:
- Insert into any hole on the Alpha 28 table with the Ø28 mm Locating Post.
- Securely fasten to the tabletop for repetitive applications using the Locking Pin with cap screw (included).
- Remove the Locating Post or the Locking Pin, and place the Rest anywhere on the Alpha 28 tabletop.
| Part No. | Description | Top Diameter (mm) | Top Height (mm) | Weight (kg) |
|---|---|---|---|---|
| T28-551108 | Adjustable Rest, 75 ~ 110 | 80 | 75 ~ 110 | 2.5 |
