Two sets of Shims and Extensions offer the option to create height-adjustable work surfaces.

  • 6-pc set of Shims
  • 14-pc set of Shim and Extension

All shims have 28 mm inner diameter and 50 mm outside diameter.

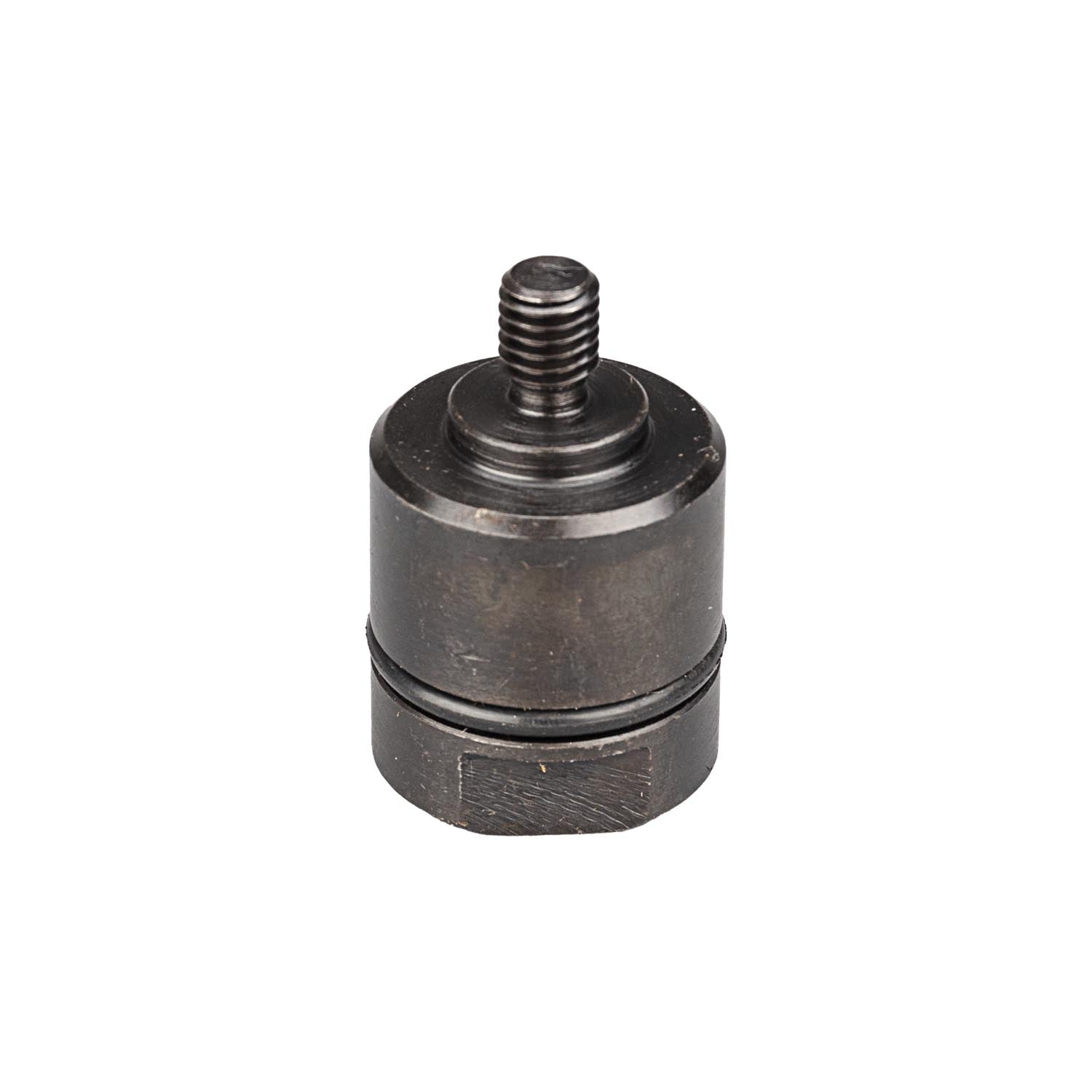

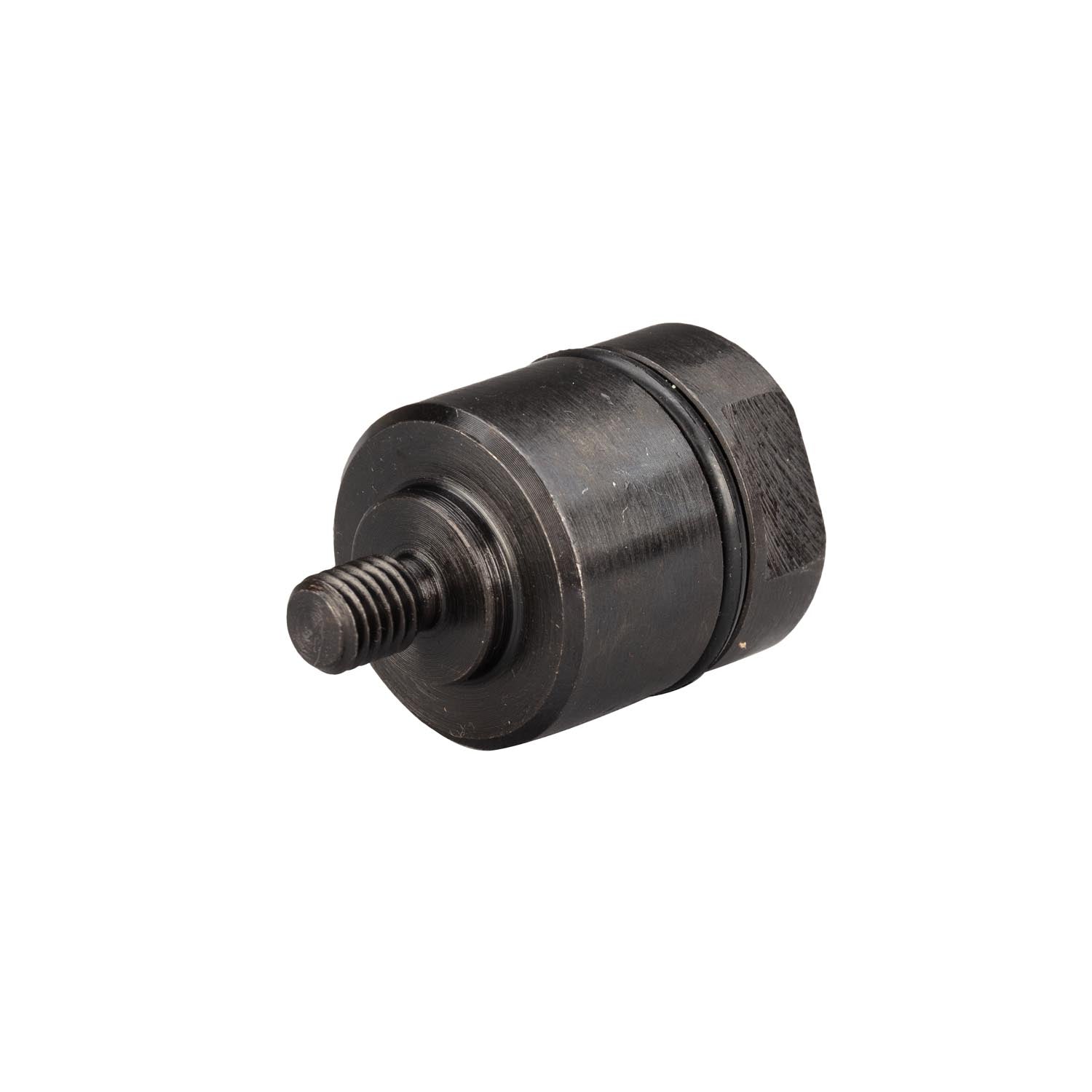

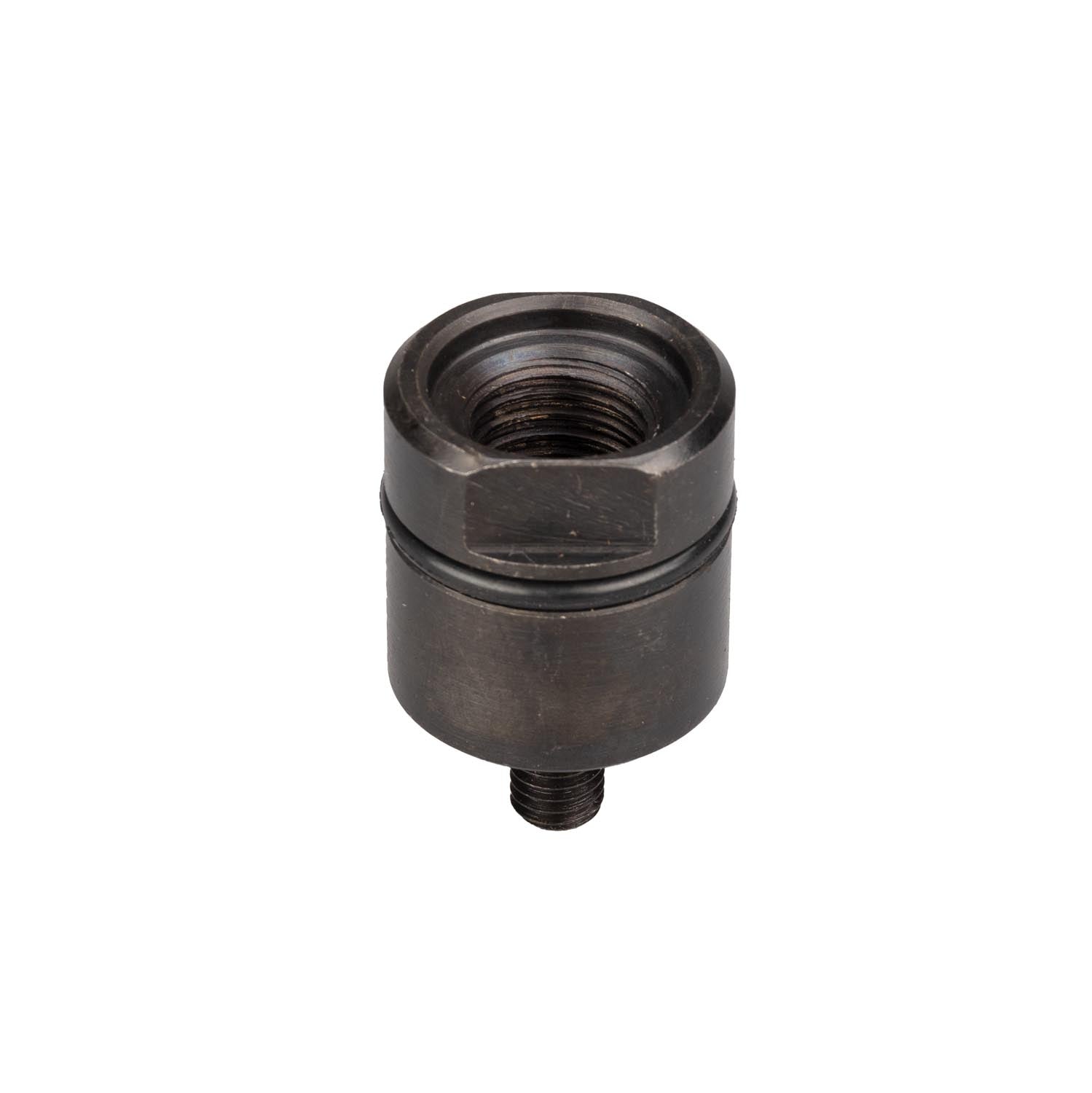

T28-570030 is a 30 mm Prism Extension for quickly and securely screwing in all prisms and enables positioning of the prism at different heights in combination with shims.

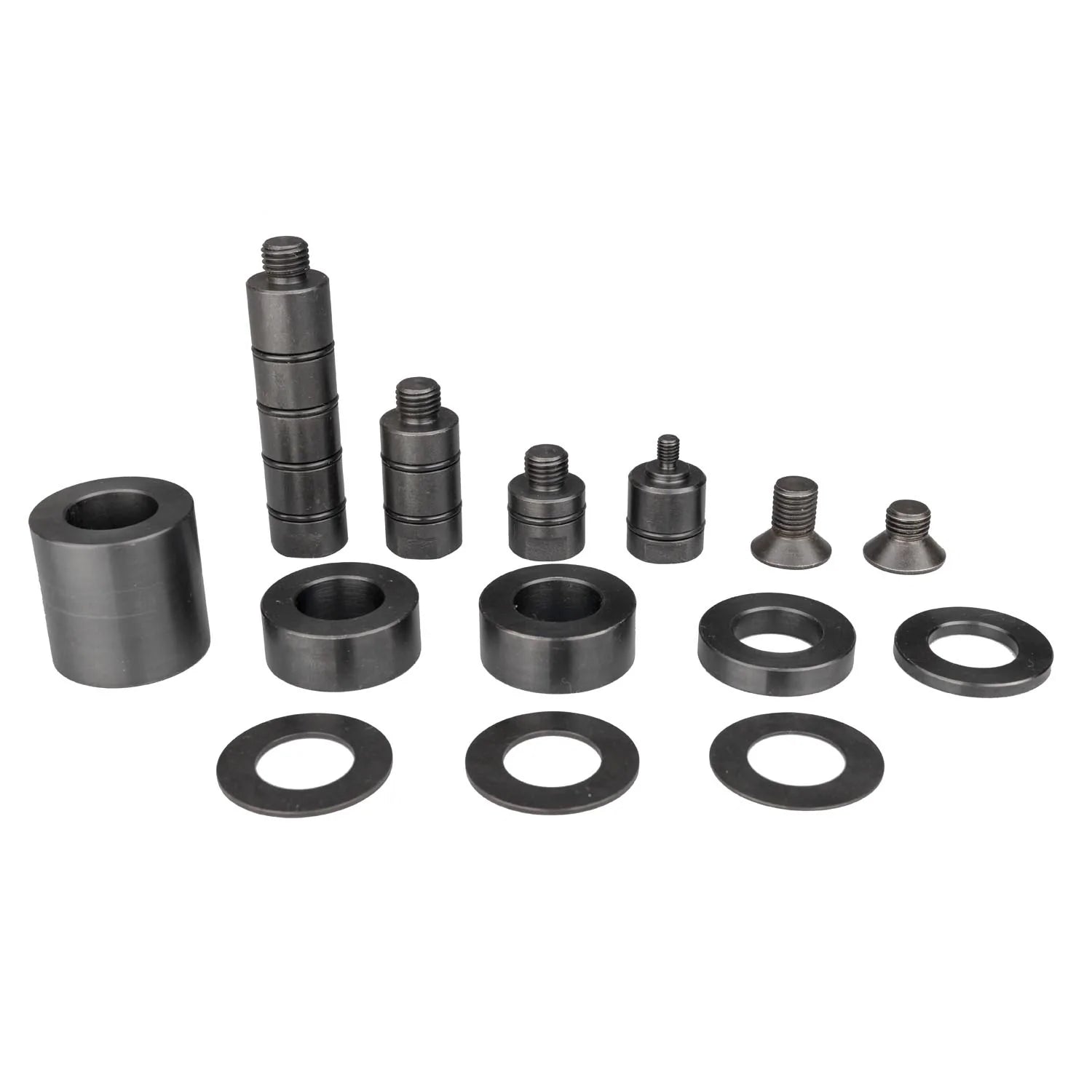

14-pc Set: T28-585000-14PK

Combine the Screw Support with Shim Sets and Extensions to achieve infinitely variable height adjustment.

The 14-pc Shim Set can be combined with extensions to create offsets in your fixtures.

Includes Qty

1 mm Shim

1

2 mm Shim

2

5 mm Shim

1

10 mm Shim

1

20 mm Shim

2

50 mm Shim

1

25 mm Prism Extension

1

30 mm Prism Extension

1

50 mm Prism Extension

1

100 mm Prism Extension

1

M16 x 27

1

M16 x 20

1

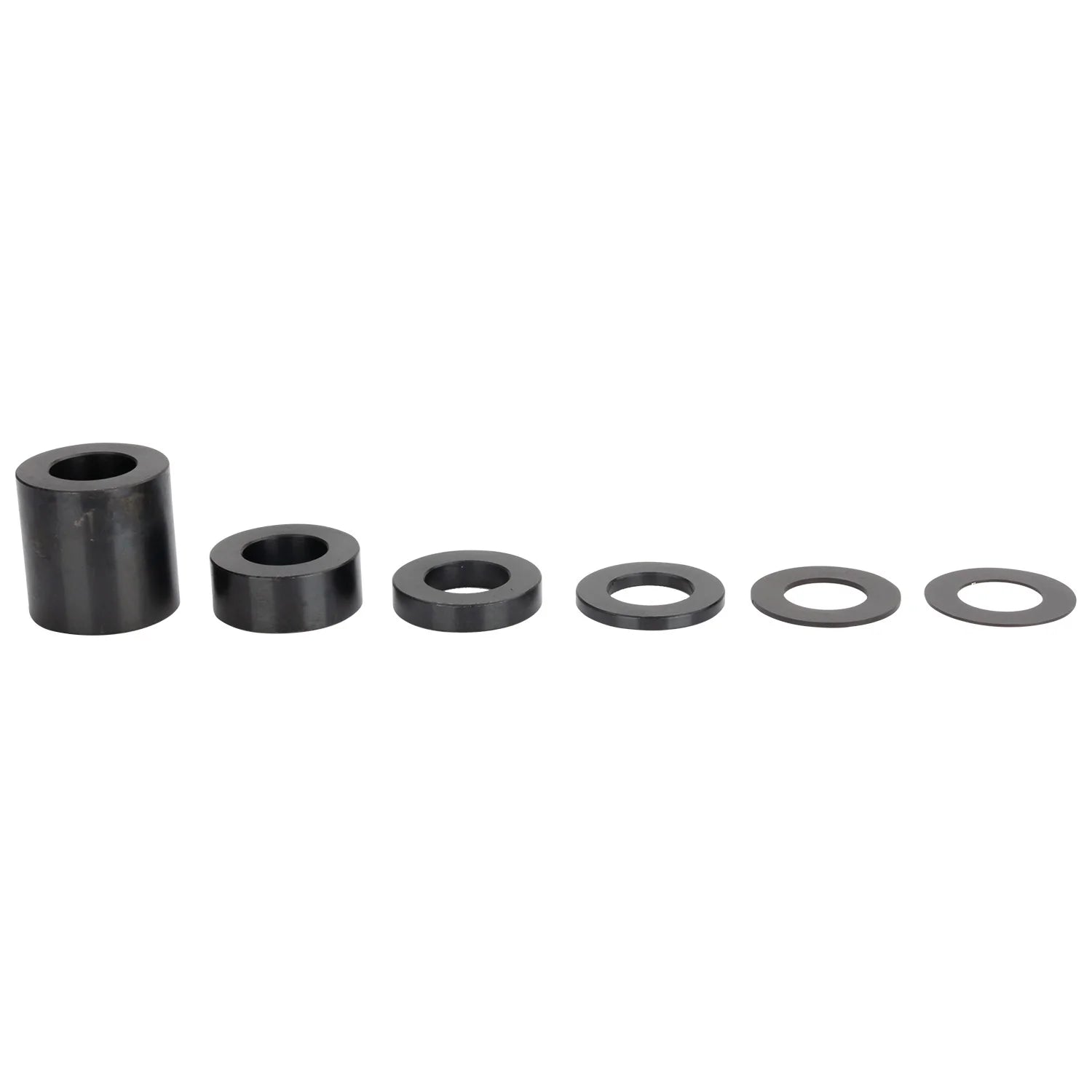

6-pc Set: T28-585000-6PK

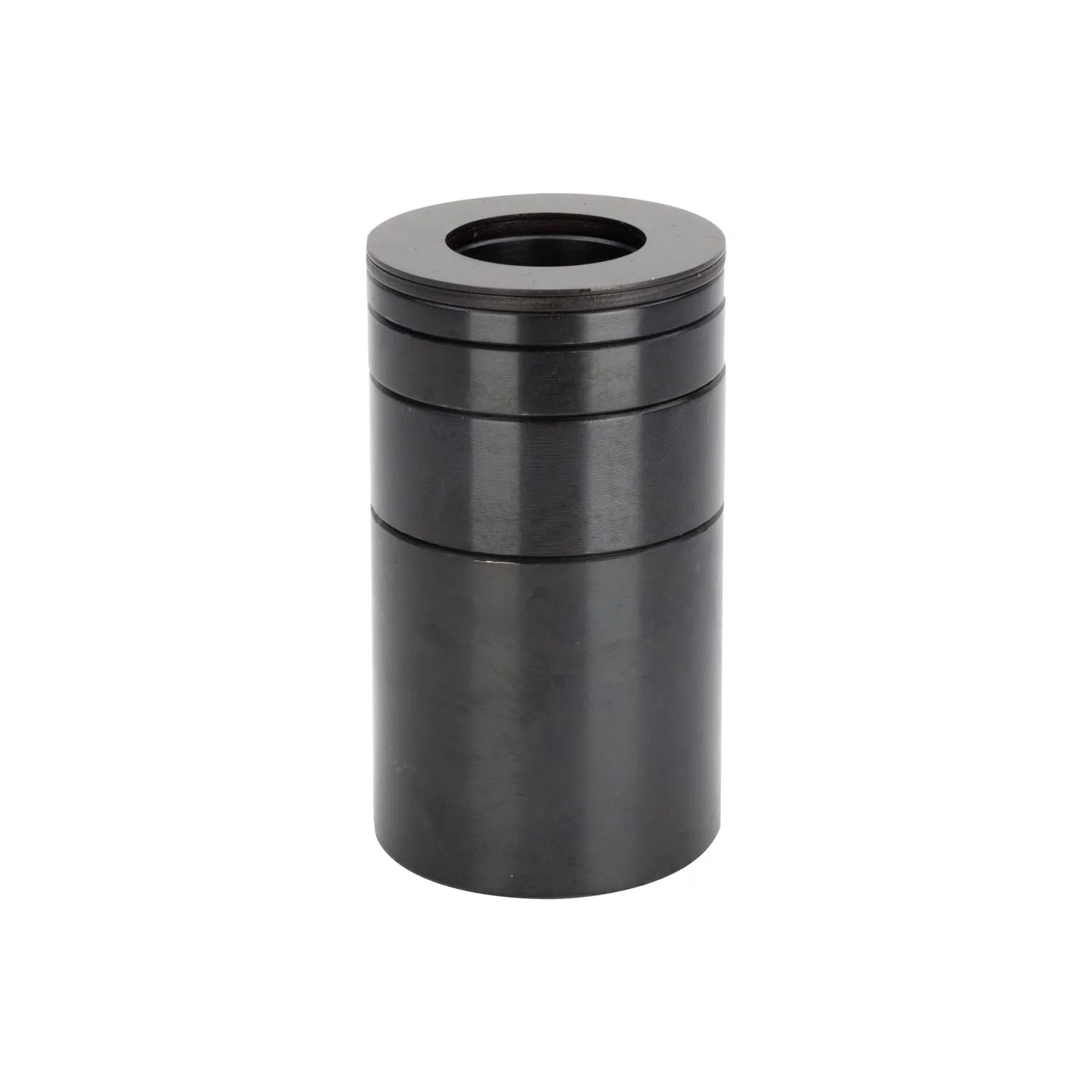

A 6-piece Set of Shims offers the option to create height-adjustable work surfaces.

The individual Shim can be utilized to compensate for height differences of 1 – 50 mm. In order to achieve the intended height precisely, the lowest grading of the Shim is 1 mm.

Includes Qty

1 mm Shim

1

2 mm Shim

2

5 mm Shim

1

10 mm Shim

1

20 mm Shim

2

50 mm Shim

1

Part No. Description Shim Inner Dia. (mm) Shim Outer Dia. (mm) Weight (kg)
T28-585000-14PK 14 pieces of shims, extensions & screws:
Shim: 1 / 2 / 5 / 10 / 20 / 50 mm
Extension: 25 / 30 / 50 / 100 mm
28 50 2.1
T28-585000-6PK 6 pieces of shims:
Thickness: 1 / 2 / 5 / 10 / 20 / 50 mm
28 50 0.9
T28-570030 30 mm Prism Extension, M6, M8 (inner) - - 0.1
