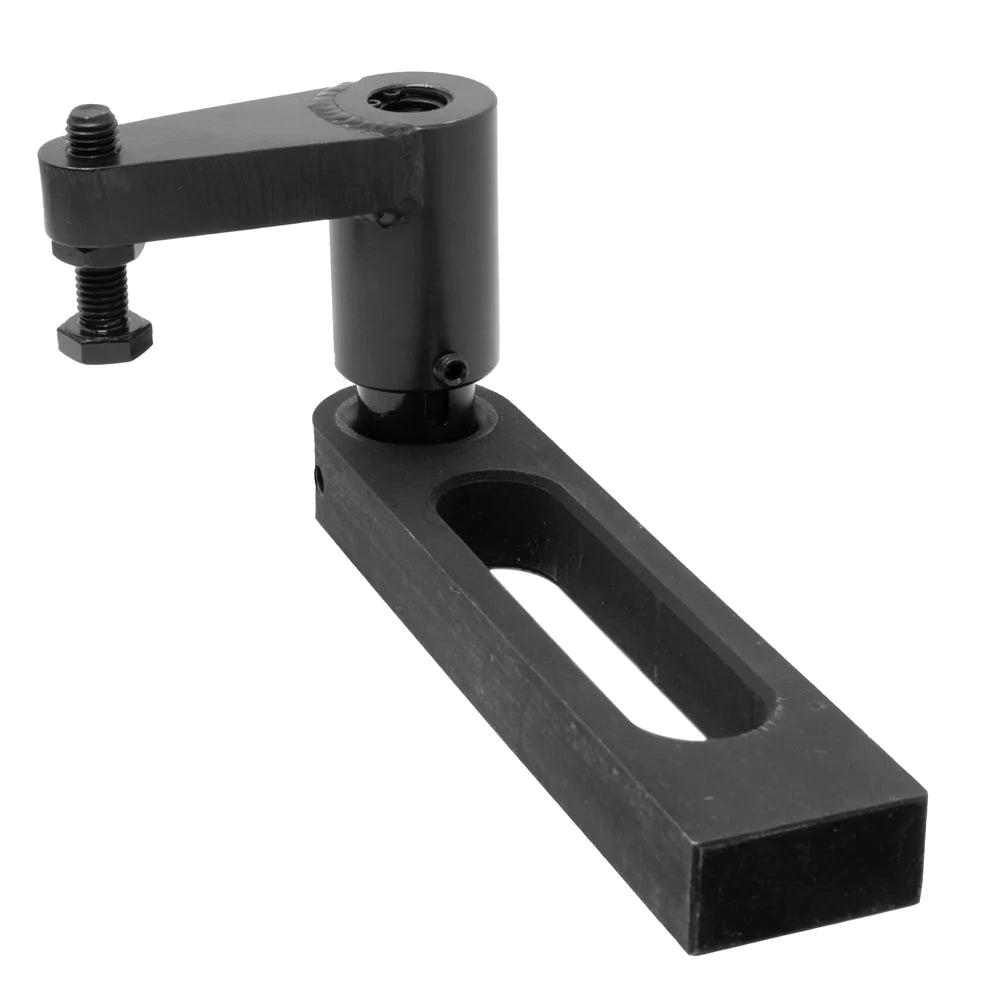

Revolving Hook Clamp, 28 mm

SKU: T28-60106

This clamp allows precise placement of the clamping head on the workpiece and swings out of the way when unclamped.

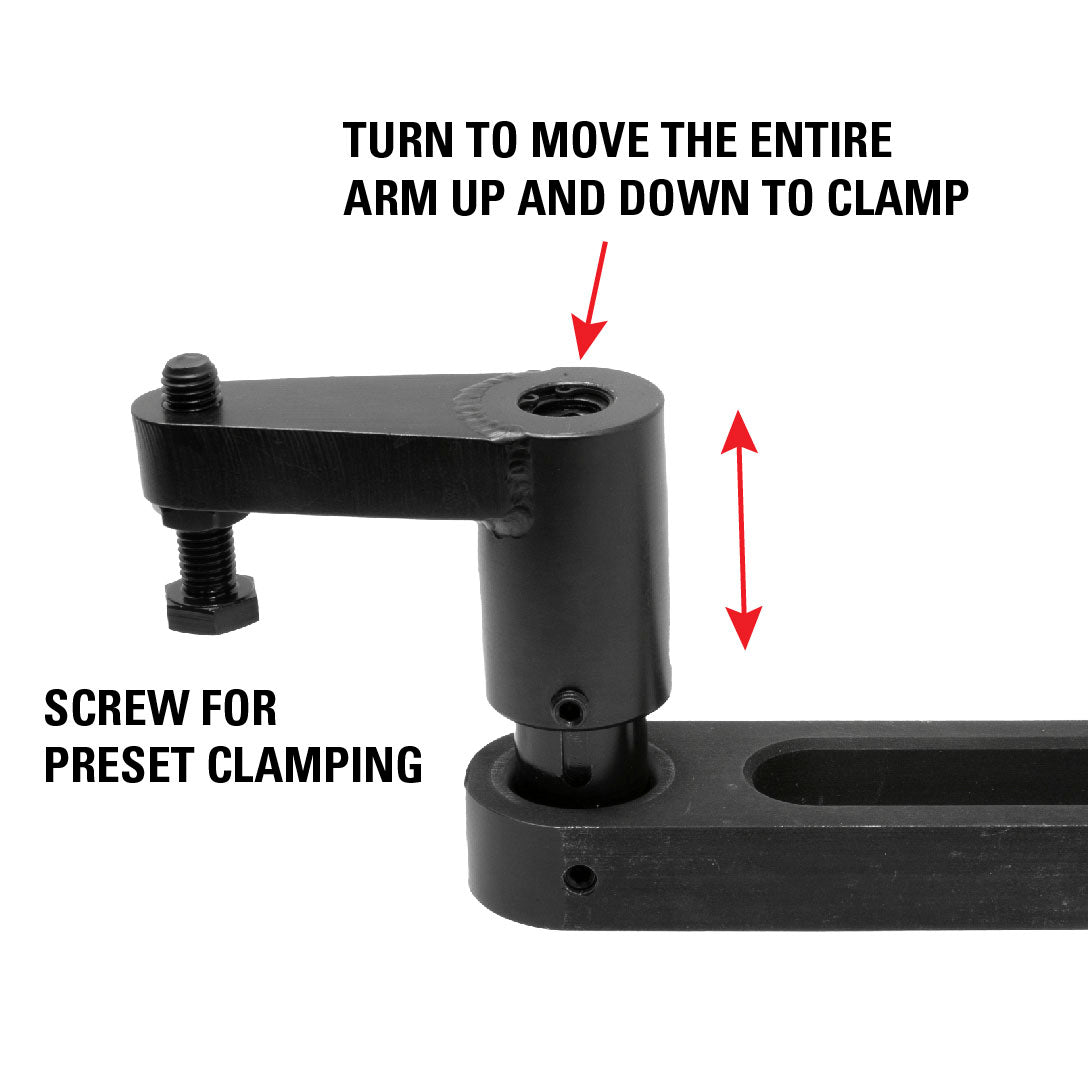

It is operated by a hex key on the top which moves the clamping arm up and down and allows the arm to swing freely when loose.

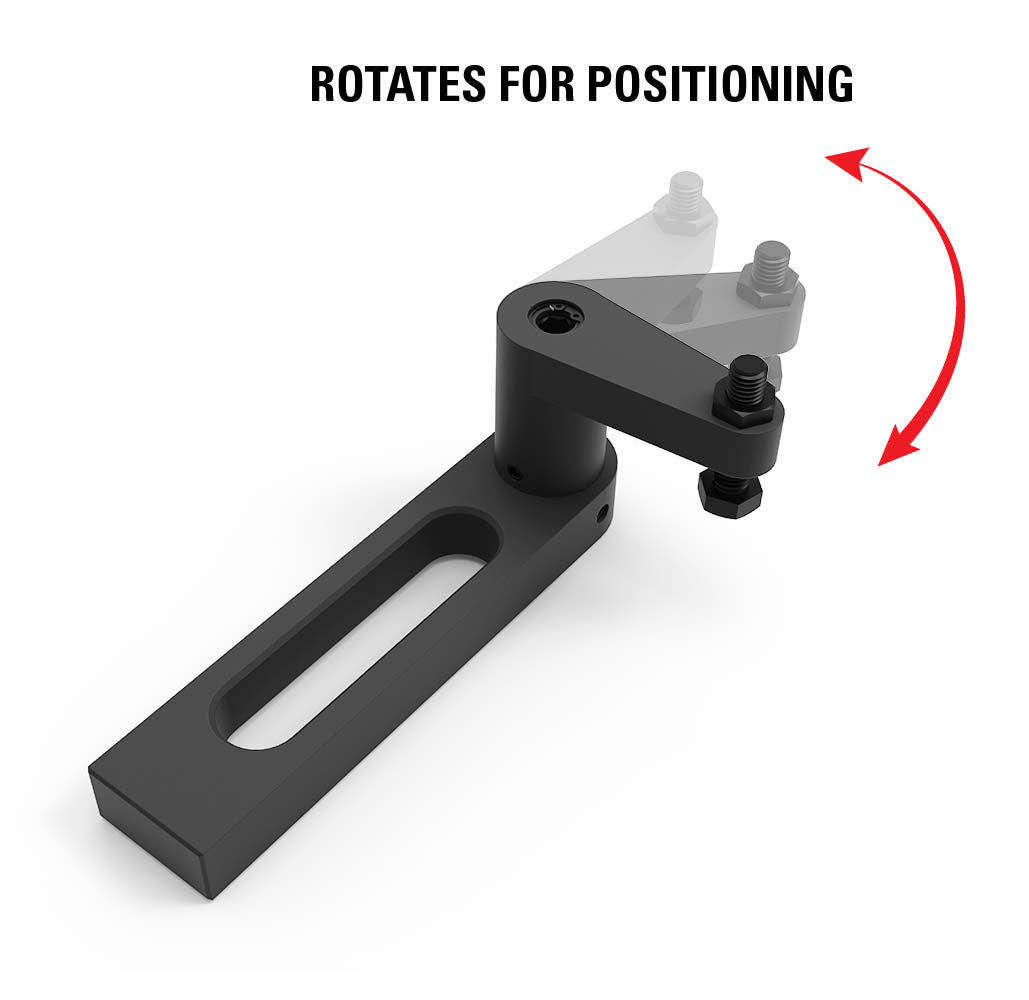

The clamp can be set down anywhere along its 90-degree swing. The clamp can also be used to push up instead of down.

Made in USA.

$126.00
$126.00
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Dimension (mm) Opening Capacity (mm) Weight (kg)
T28-60106 285.8 x 50.8 x 95.3 29 ~ 80 2.3
