Cam Lock Edge Clamp, Alpha 28
BuildPro

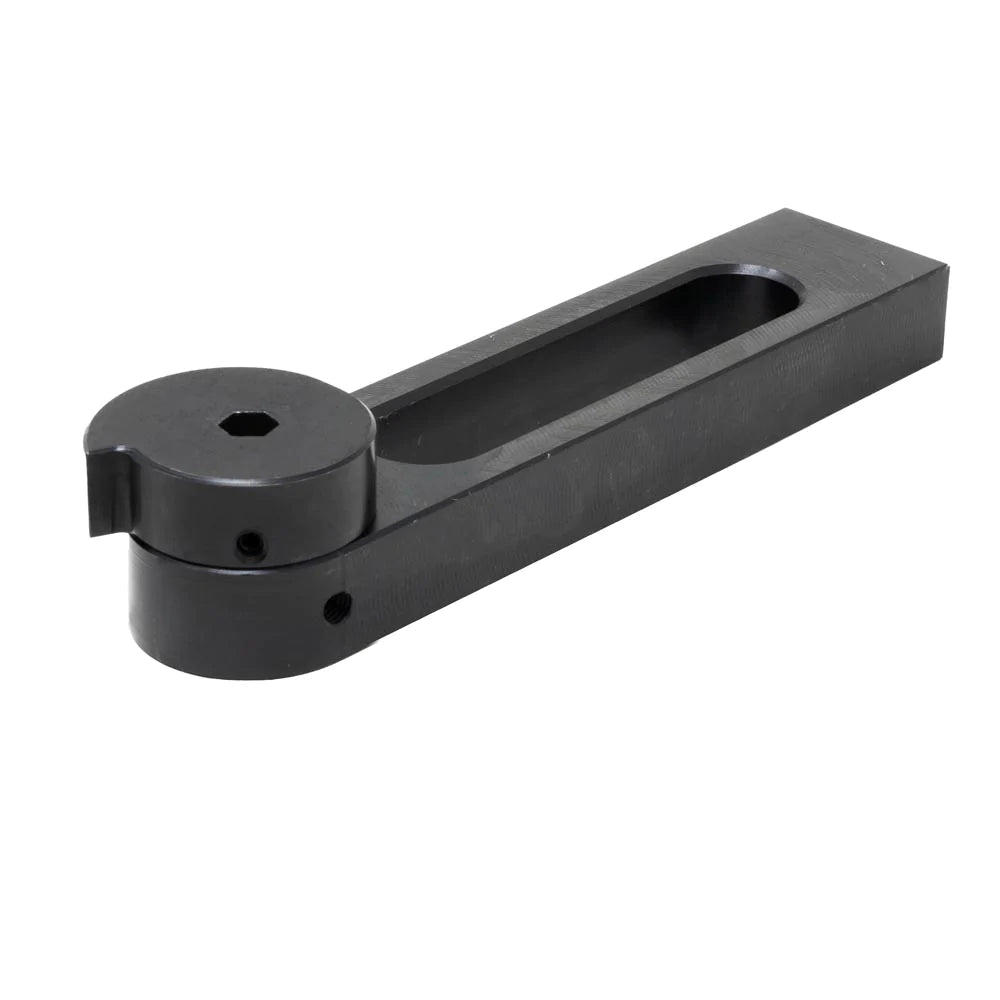

Cam Lock Edge Clamp, Alpha 28

SKU: T28-60510

An excellent low-profile option for locating or securing workpieces using lateral force to wedge or locate parts in place.

This clamp provides better clearance of the workpiece when access is needed for additional welding or machining. It features a 100 mm slot for adjustable anchoring and a rotating CAM for applying lateral clamping pressure.

$116.00
$116.00
Sale Sold out
/
Shipping calculated at checkout.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Dimension (mm) Cam Adjust Range (mm) Weight (kg)
T28-60510 222.3 x 50.8 x 44.5 0 ~ 8 1.8
