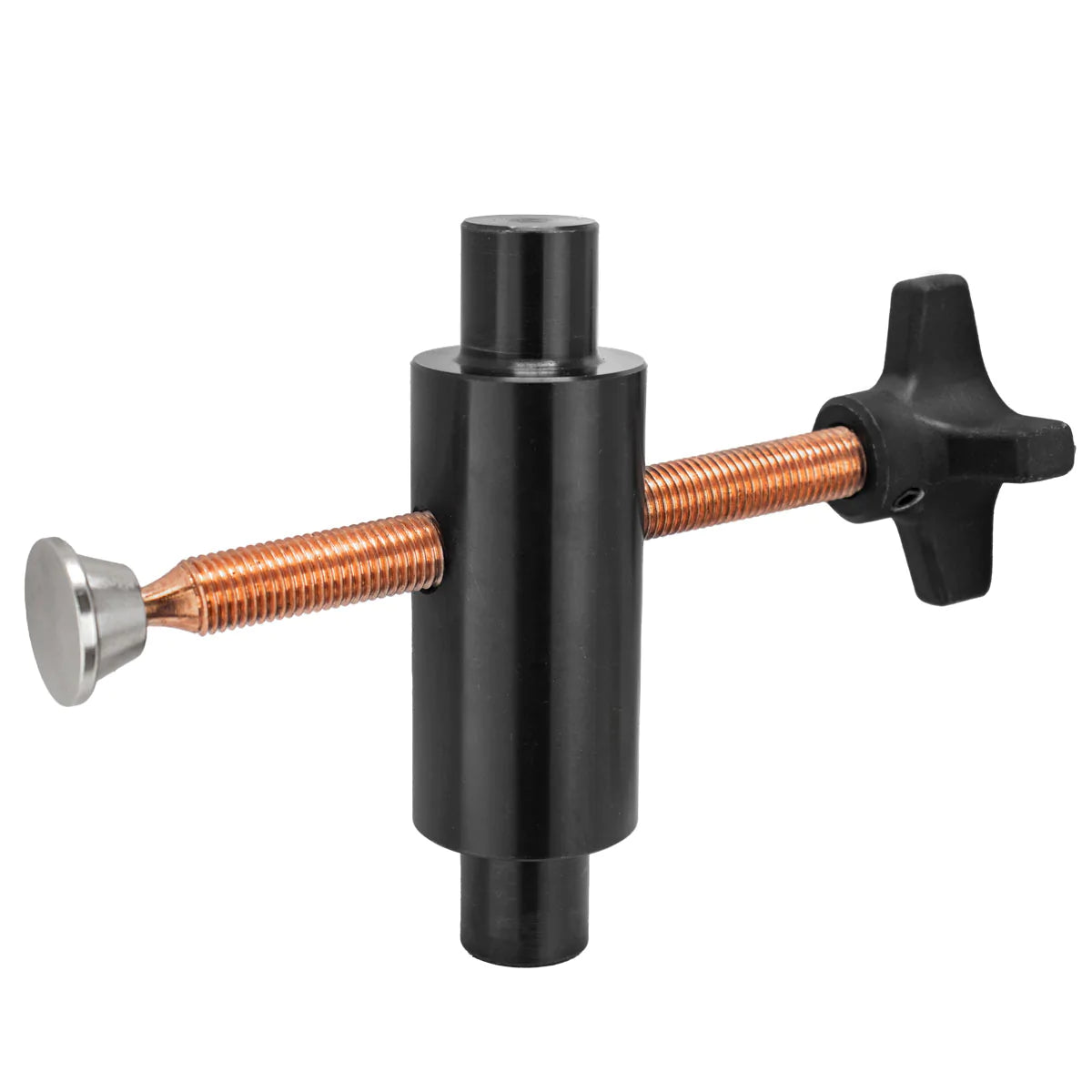

Side Push Clamp, 28 mm

SKU: T28-75006

The side push clamp is designed for applying lateral pressure with a slight down force to keep the workpiece from lifting or rolling upwards.

Extra long spindle insures you can reach anywhere on the table. Copper plated spindle resists weld spatter.

A special flipping feature ensures that you can always get the pad placed at the right height, which is useful for smaller material sizes.

Regular price $65.00
Sale price $65.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

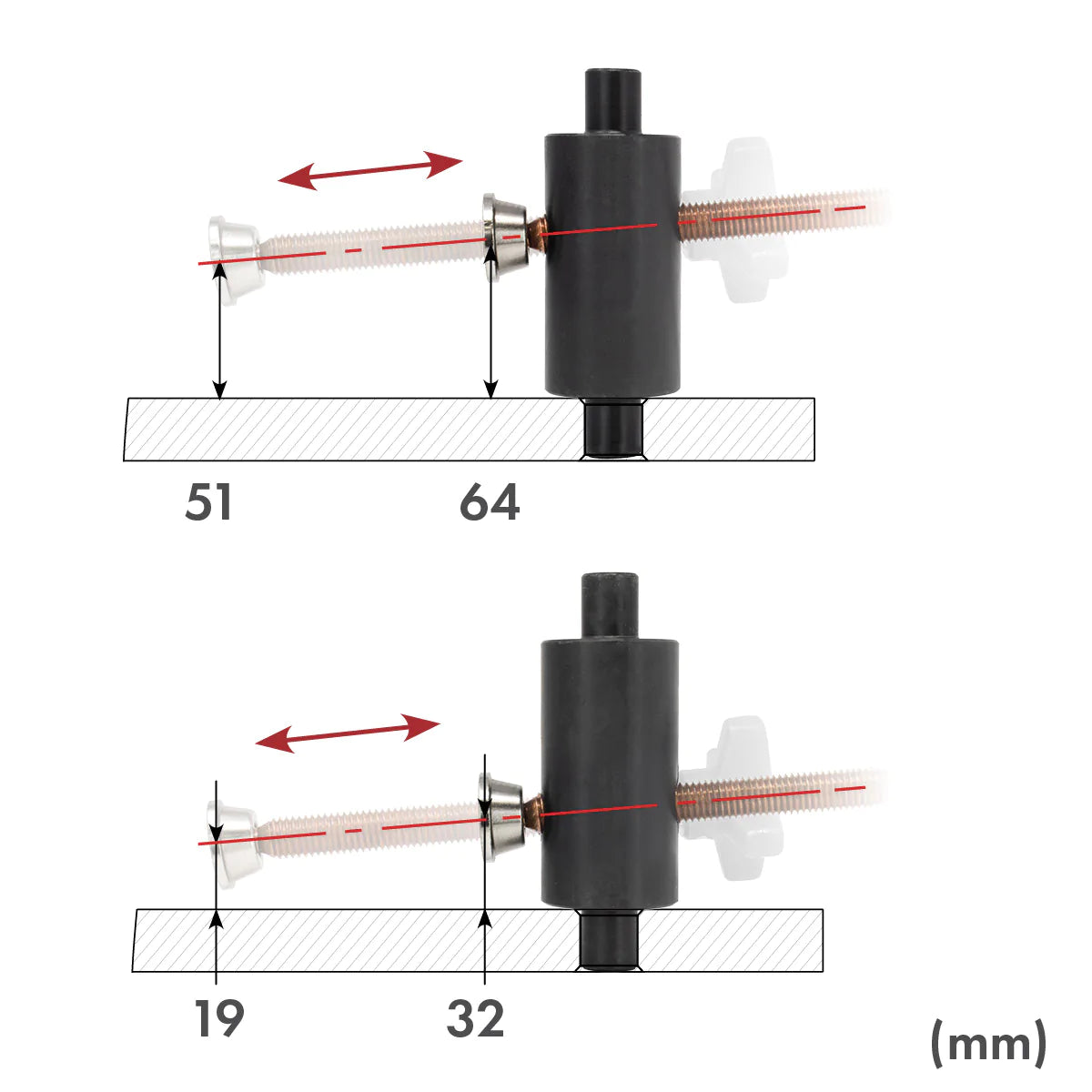

Two height settings of T28-75006:

To change the height of the clamp:​

Upper Height Setting

Pull pad off and reverse spindle direction

Reinstall spindle and pad in opposite direction pointing up.

Then use the "top" stud on the "bottom" instead.

Lower Height Setting

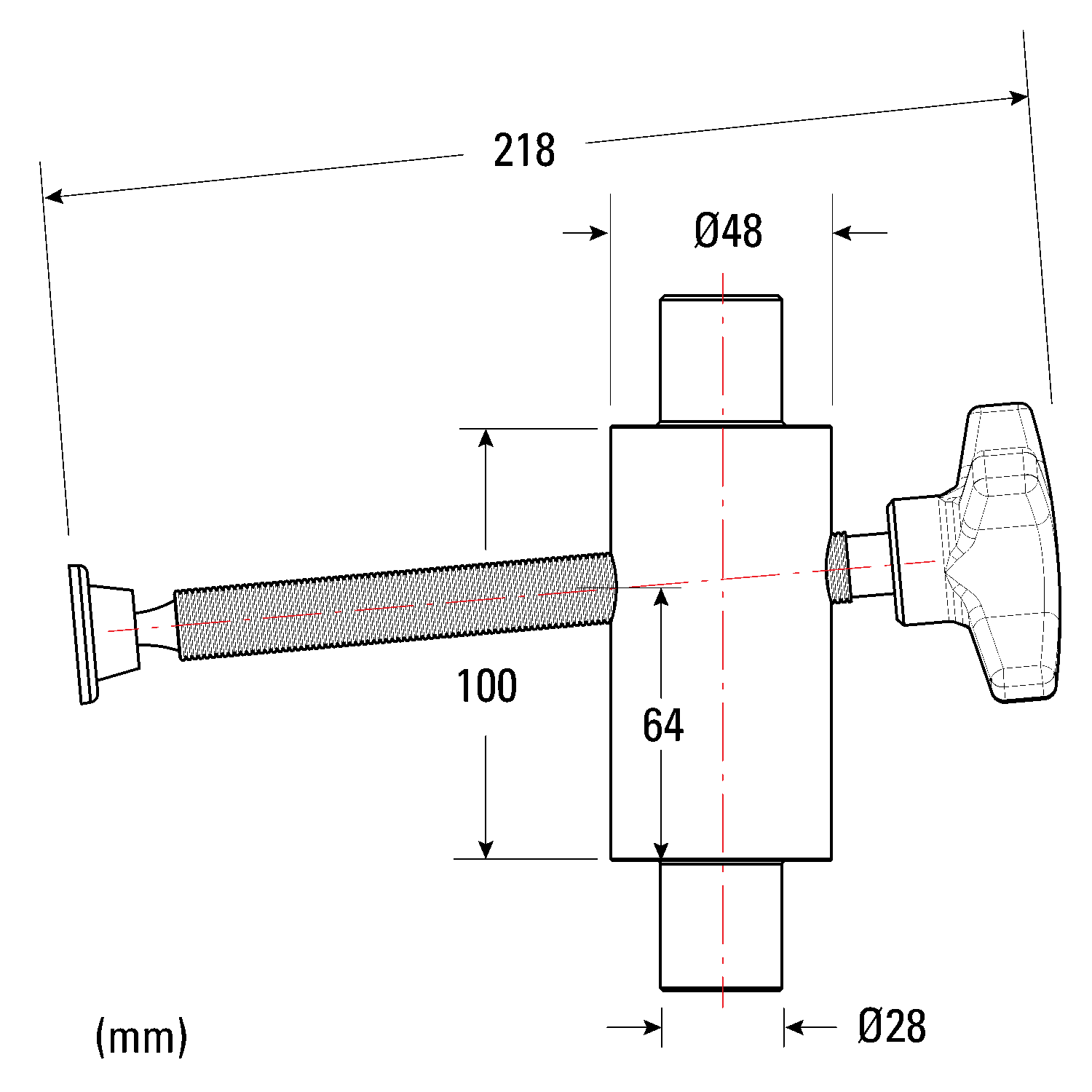

Part No. Overall Length (mm) Cylinder Height (mm) Cylinder Dia. (mm) Stamp Dia. (mm) Stroke (mm) Weight (kg)
T28-75006 218 100 48 28 114 2.3
