Angle Squares, 28 mm (metric spacing)

SKU: T28-24081

Angle Squares can be used in the same manner as a stop or combined with other elements to form more complex fixtures.

Slots enable a range of adjustable options.

$78.50 USD
$78.50 USD
Liquid error (snippets/product-price line 86): divided by 0% OFF Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files

T28-24081 - STEP

T28-23081 - STEP

T28-23181 - STEP

T28-23183 - STEP

T28-24183 - STEP

T28-25183 - STEP

T28-12018 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Name Length (mm) Width (mm) Height (mm) Thickness (mm) Weight (kg)

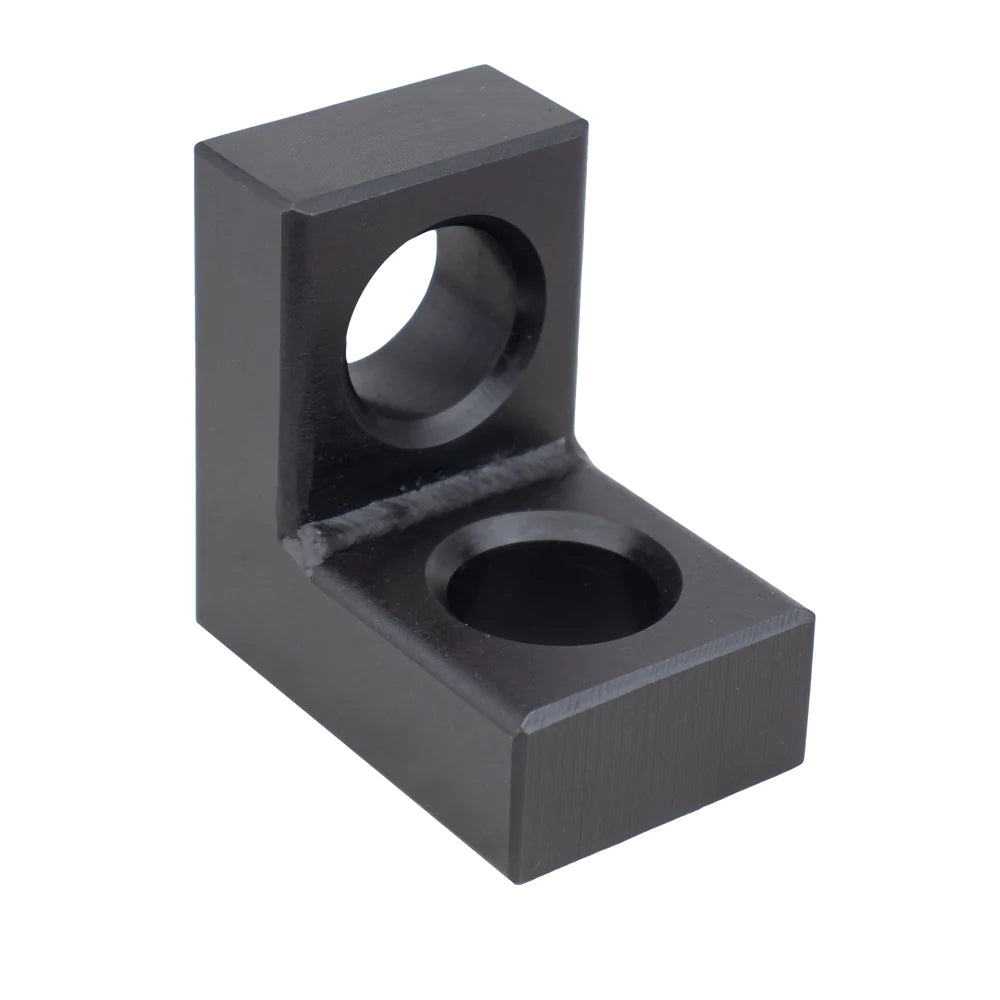

T28-24081 Angle Square, 75 H - 75 H 75 50 75 25 1.0

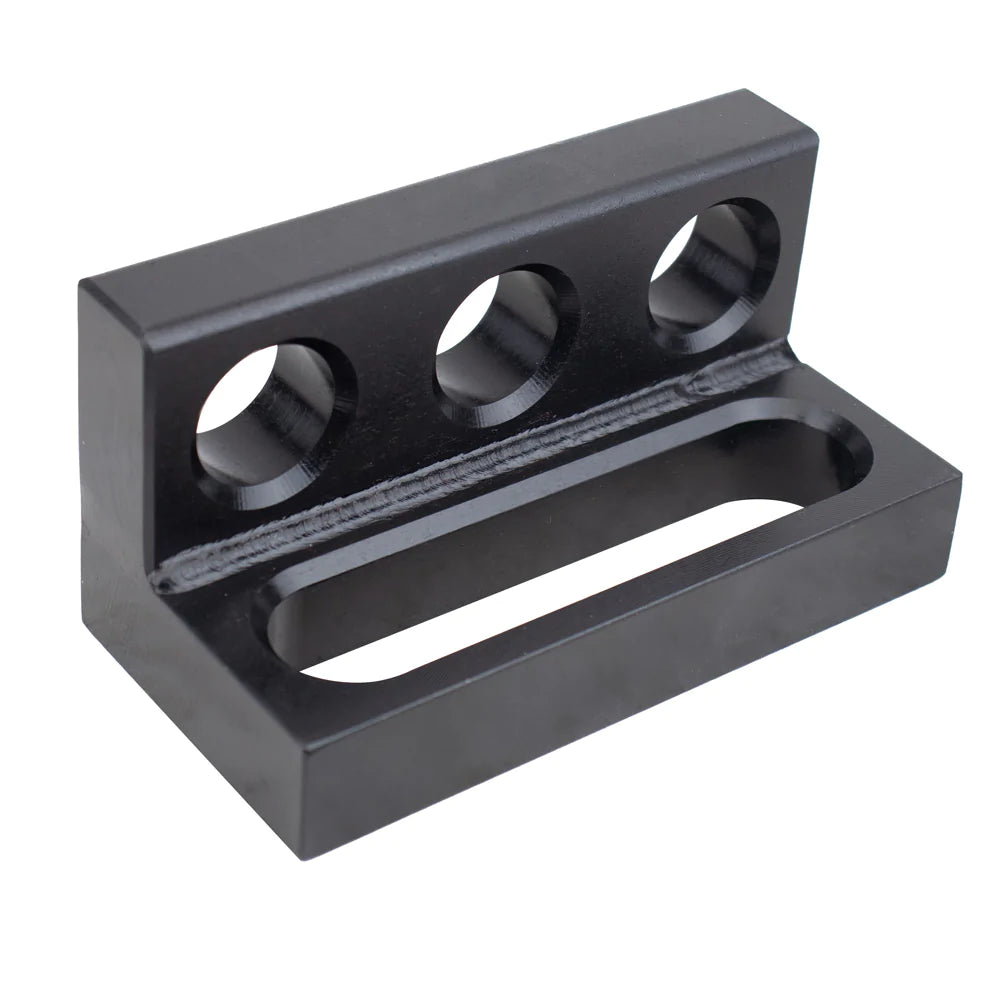

T28-23081 Mounting Square, 75 W - 75 W 75 150 75 25 2.9

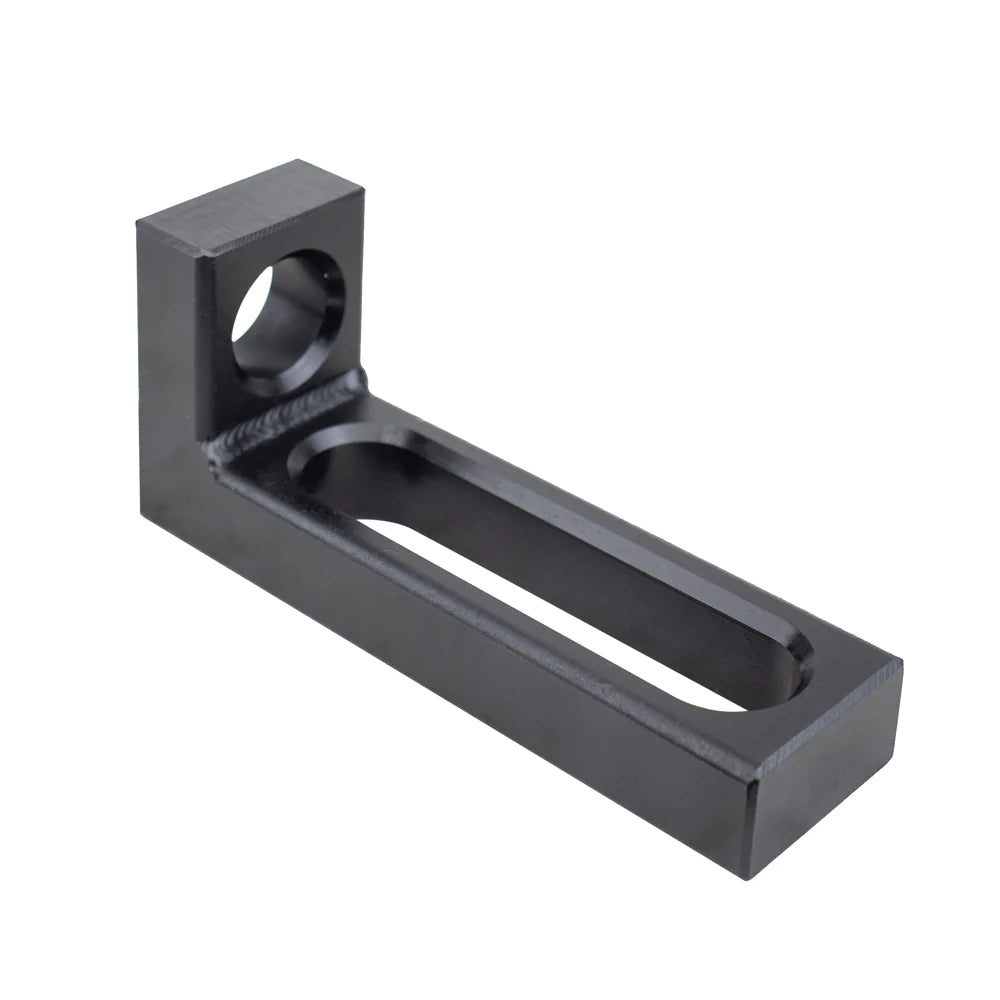

T28-23181 Angle Square, 75 H - 175 SL 175 50 75 25 1.4

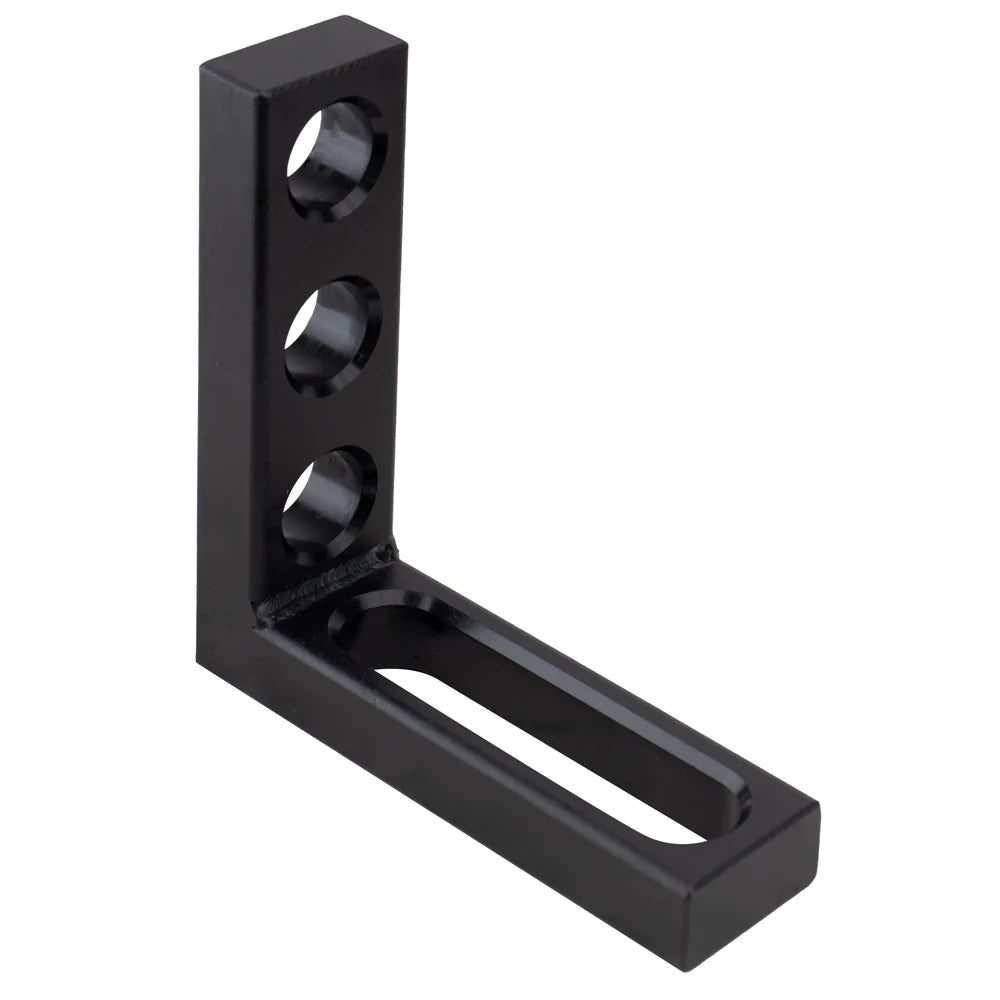

T28-23183 Angle Square, 175H - 175 SL 175 50 175 25 2.0

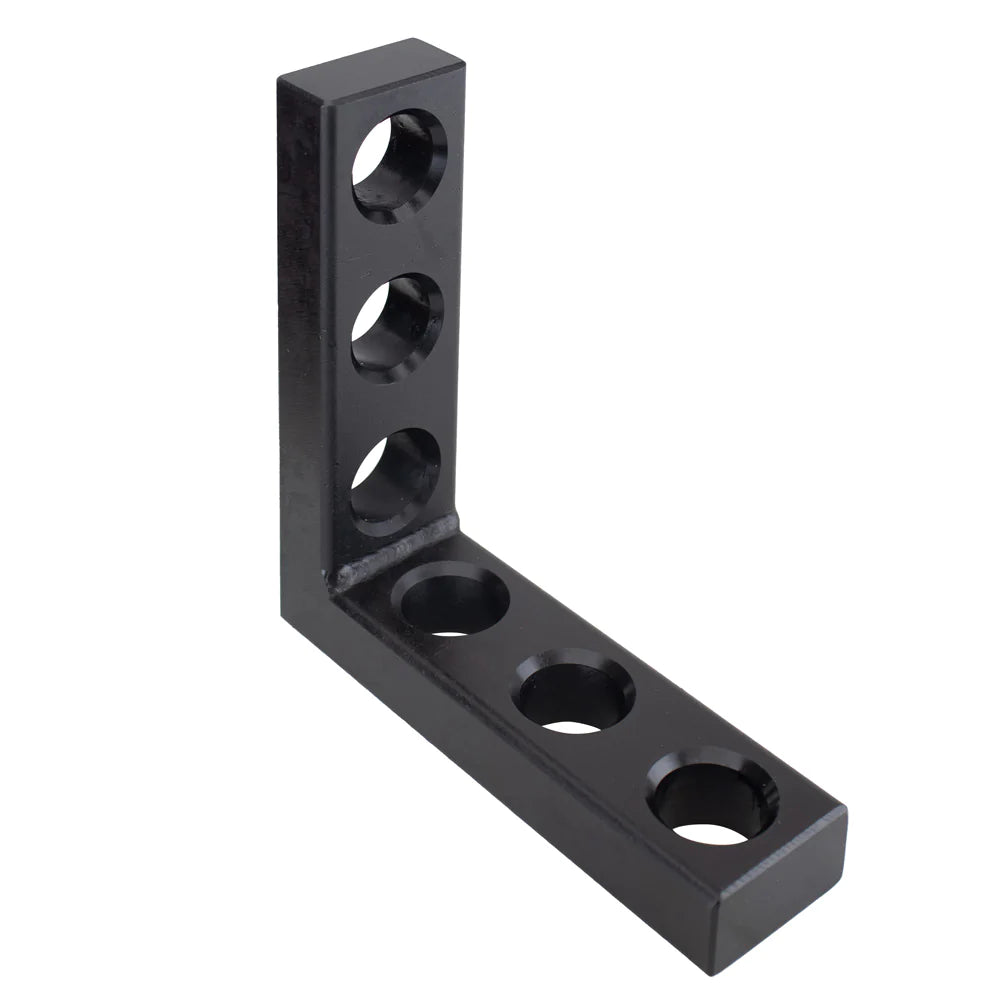

T28-24183 Angle Square, 175 H - 175 H 175 50 175 25 2.4

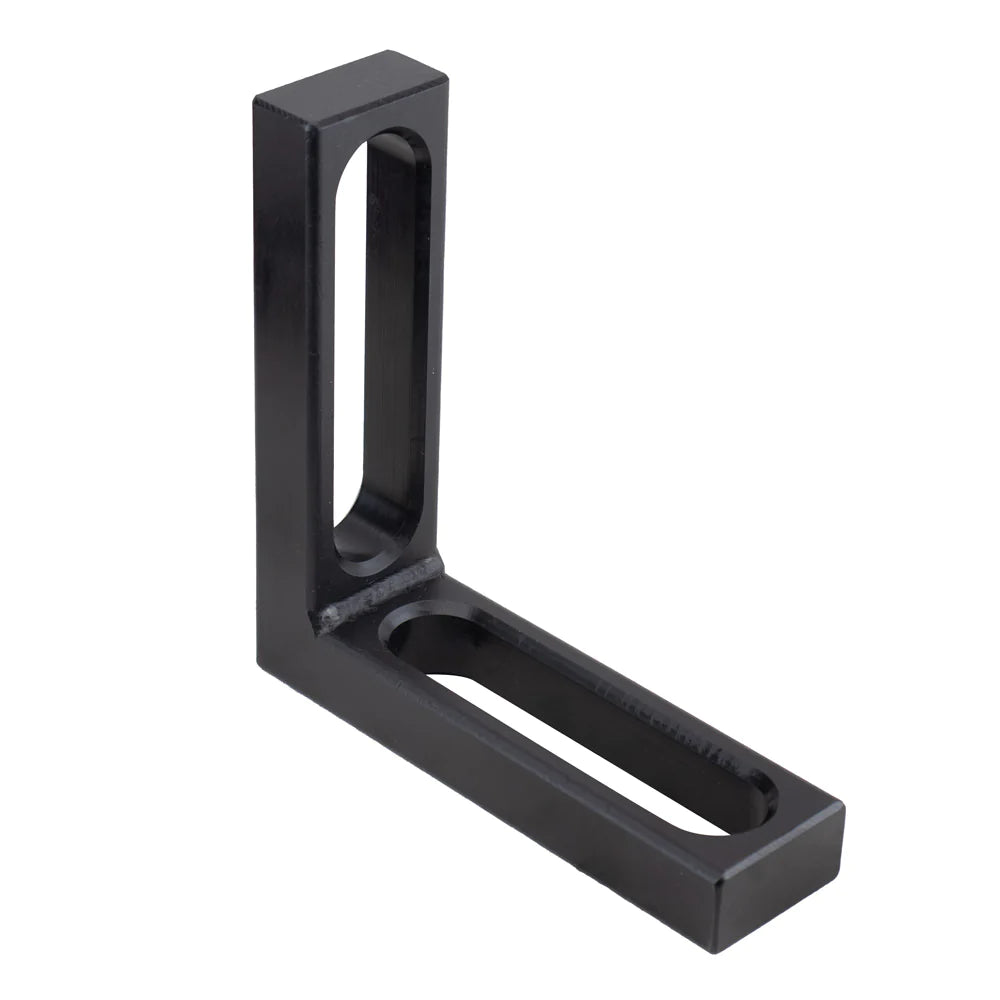

T28-25183 Angle Square, 175 SL - 175 SL 175 50 175 25 1.8

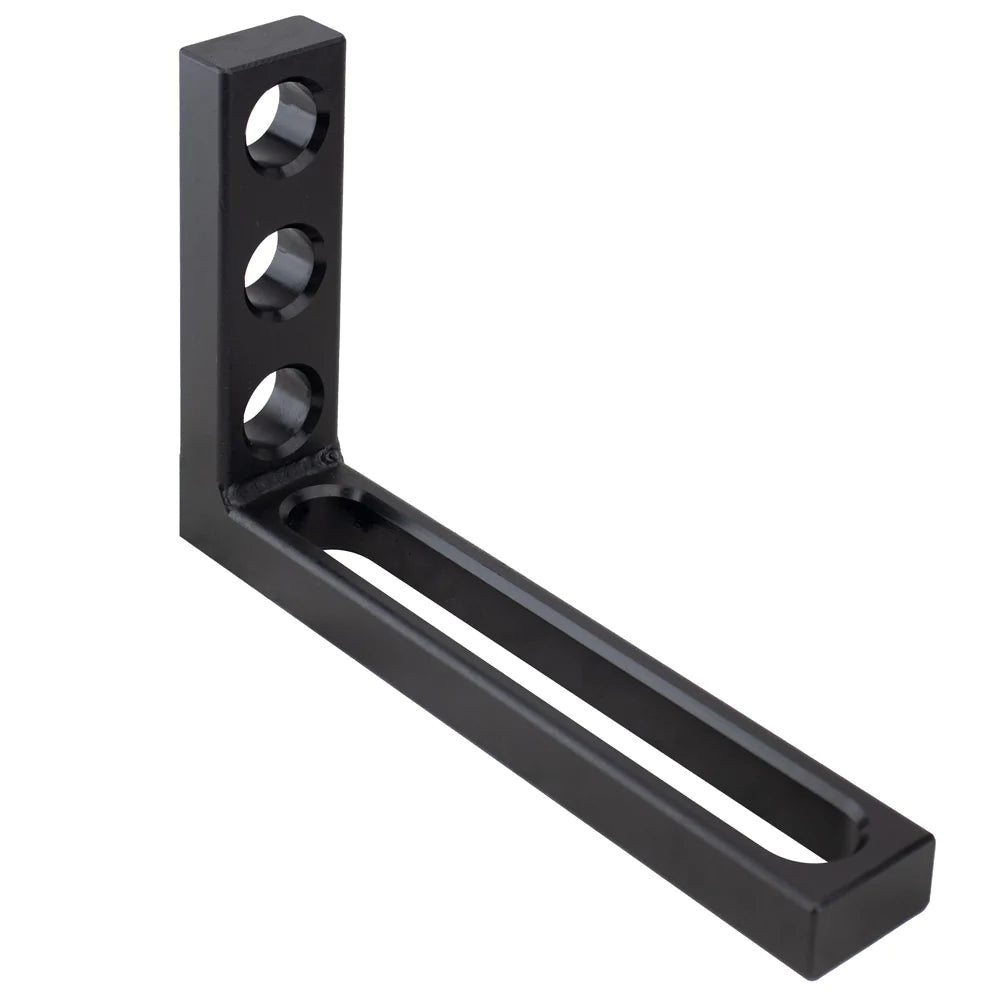

T28-23283.1 Angle Square, 175 H - 275 SL 275 50 175 25 2.5

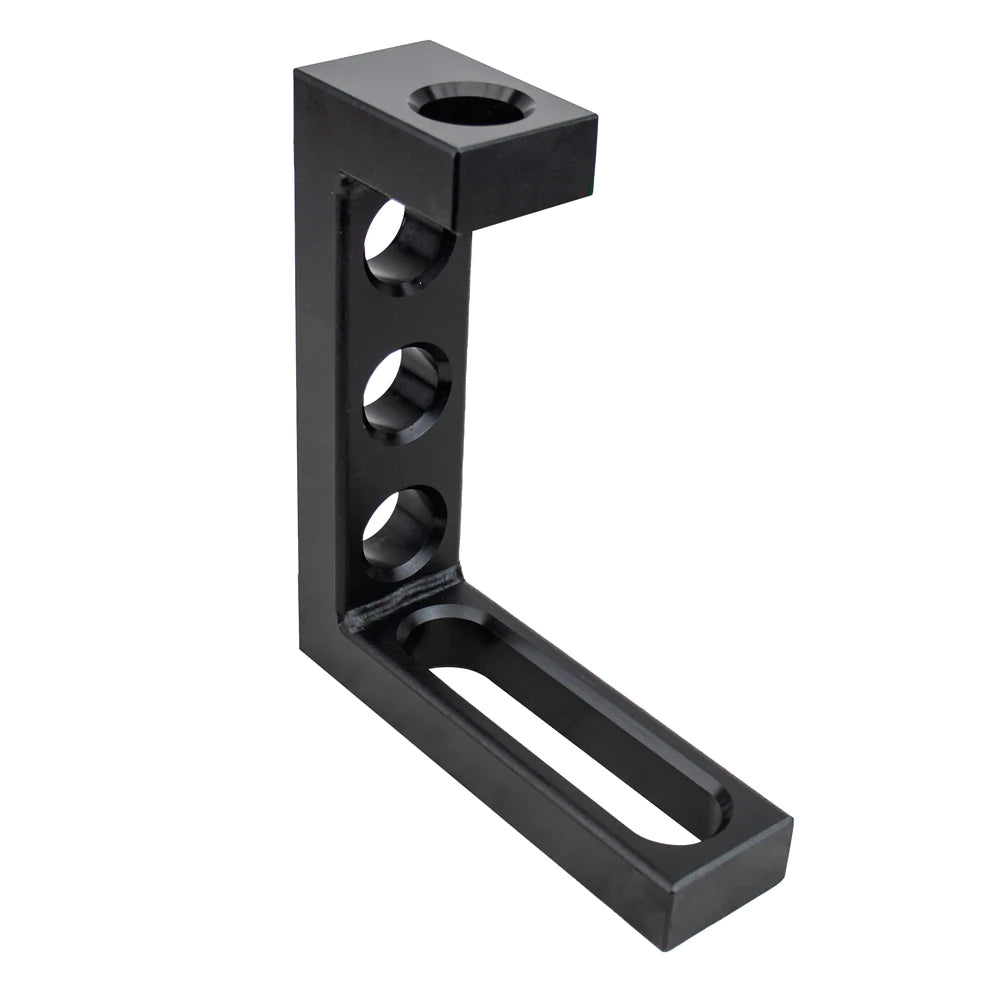

T28-12018 Angle Square, 200 H - 175 SL 175 50 200 25 2.7
