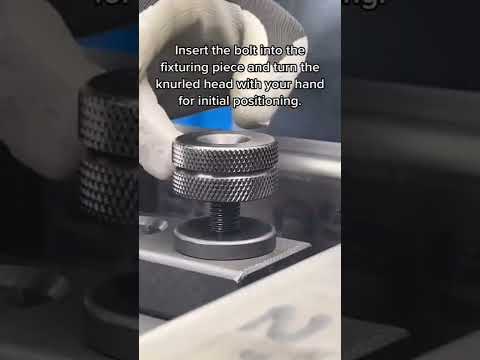

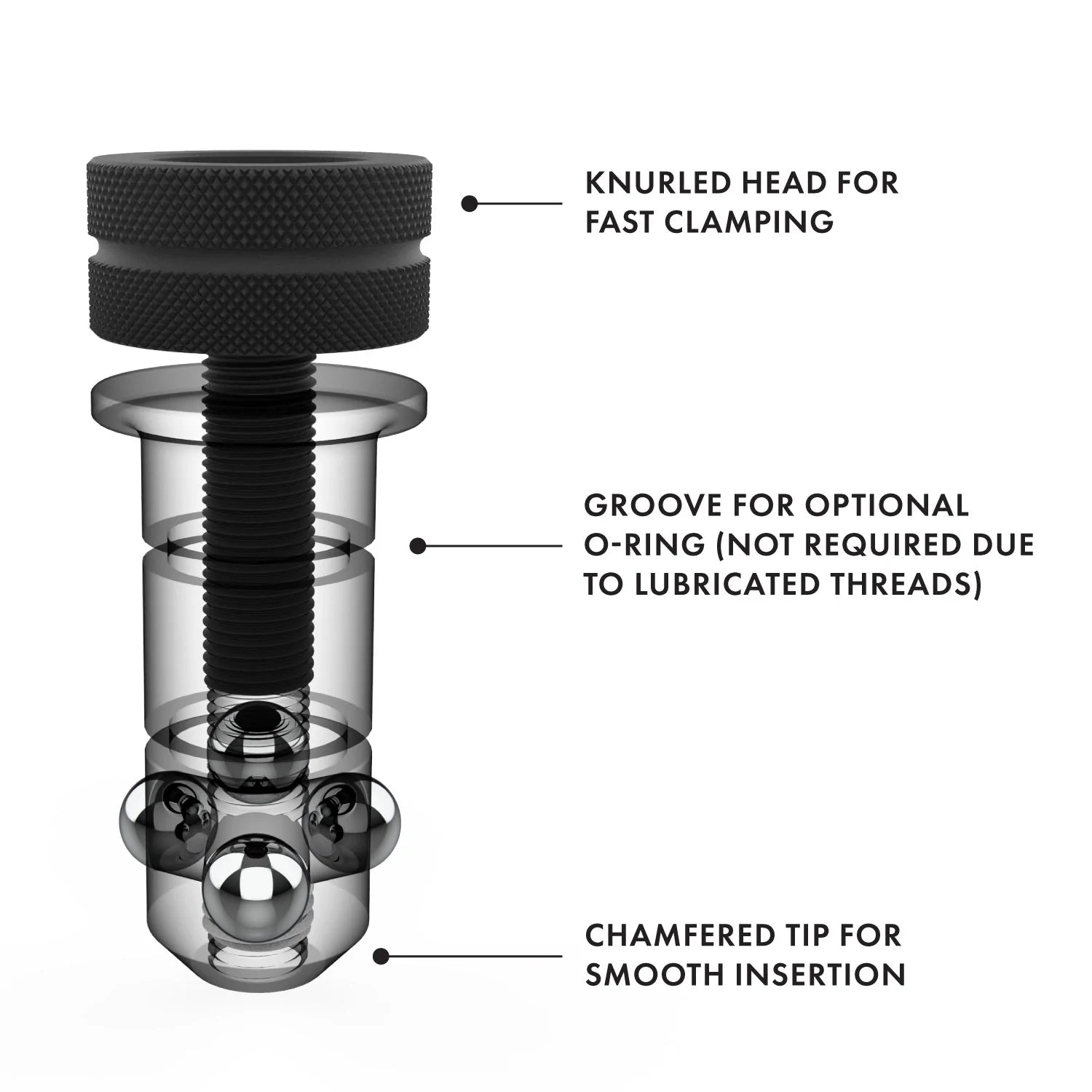

Ball Lock Bolts, 28 mm

All bolts come in short and long versions.

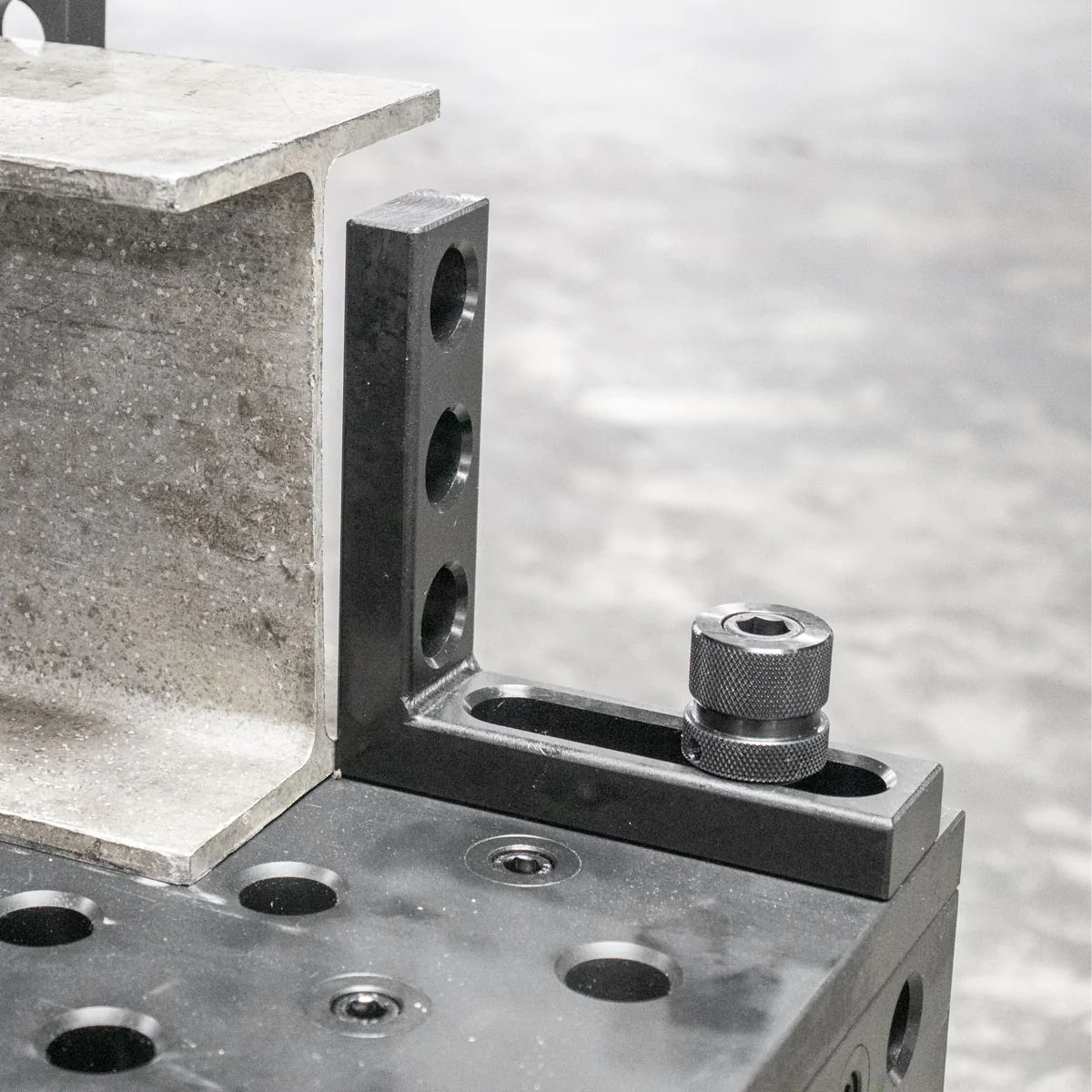

Short bolts are designed for connecting two Alpha 28 components together such as a table to a stop or a stop to a square.

Long bolts are designed for connecting three Alpha 28 components together.

Part No.	Type	Length (mm)	Diameter (mm)	Weight (kg)	Notes	HEX Key Size

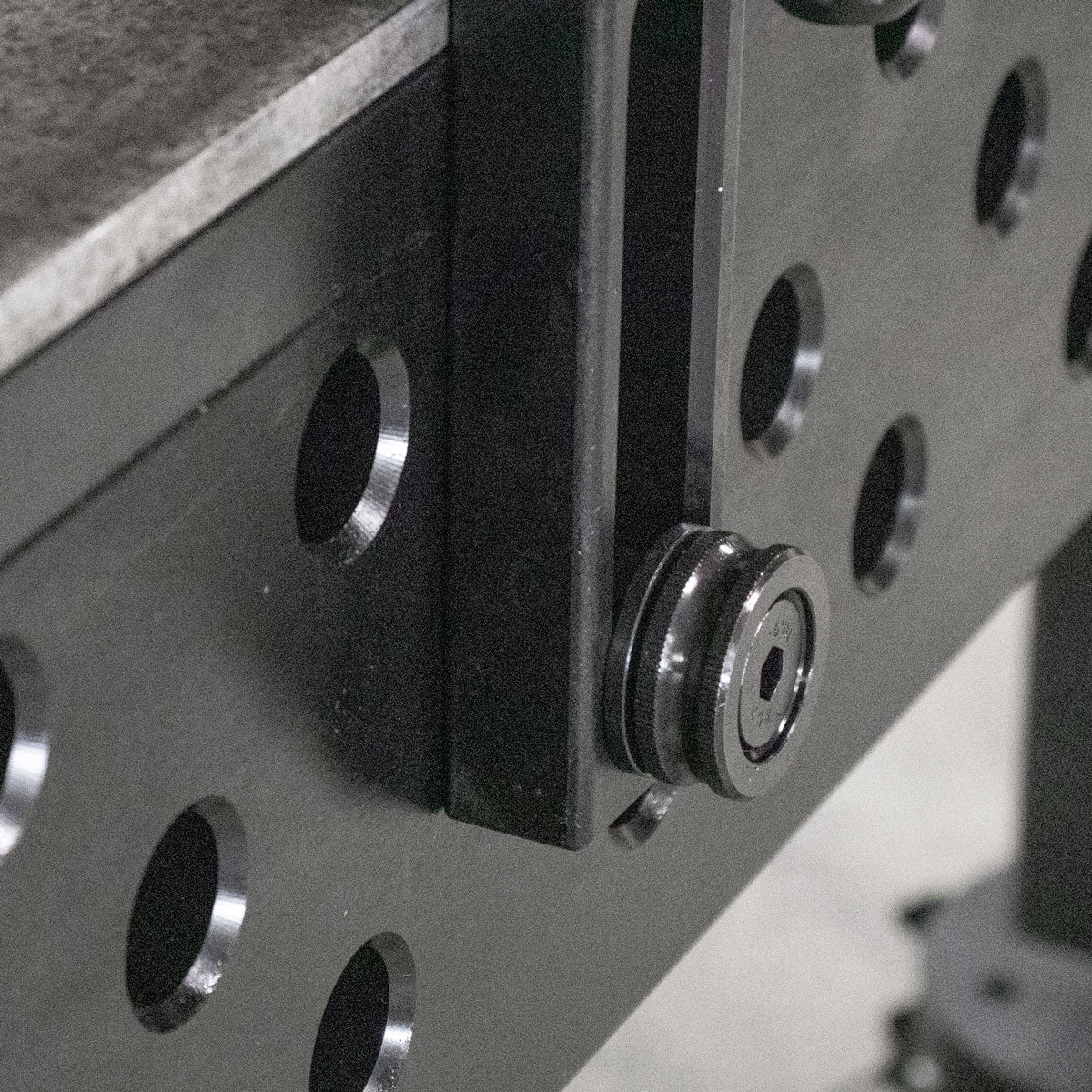

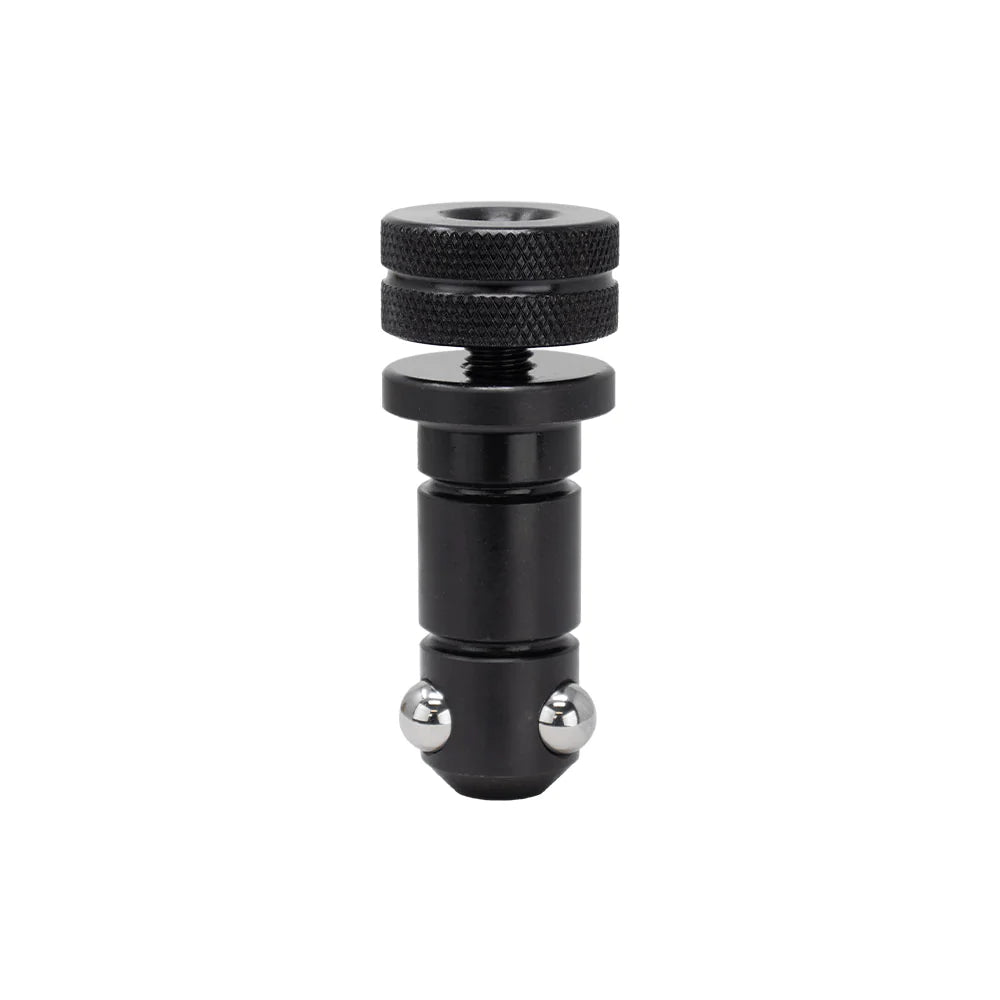

T28-46450	Fast Clamping Bolt, Short	95	28	0.5	Standard bolt for use when combining 2 components	M6

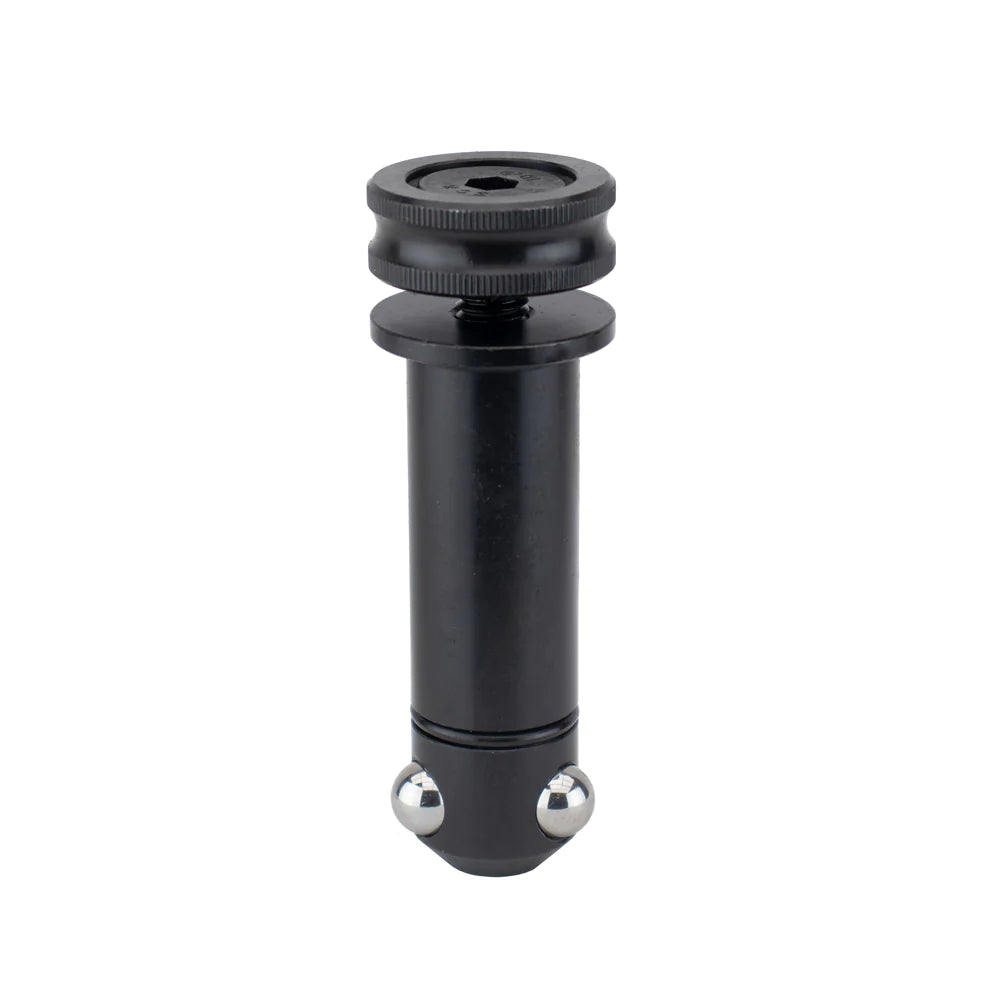

T28-46475	Fast Clamping Bolt, Long	120	28	0.7	Standard bolt for use when combining 3 components	M6

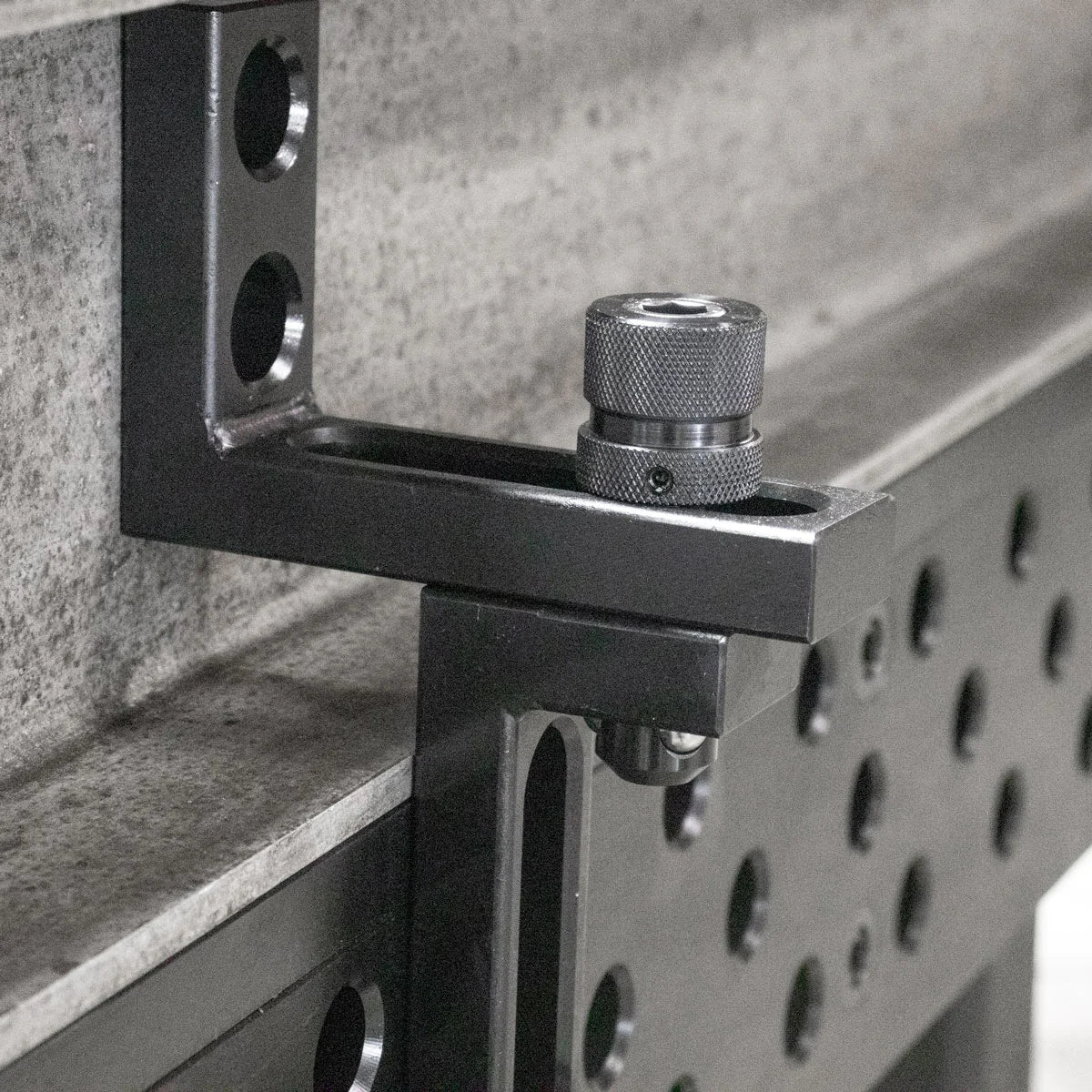

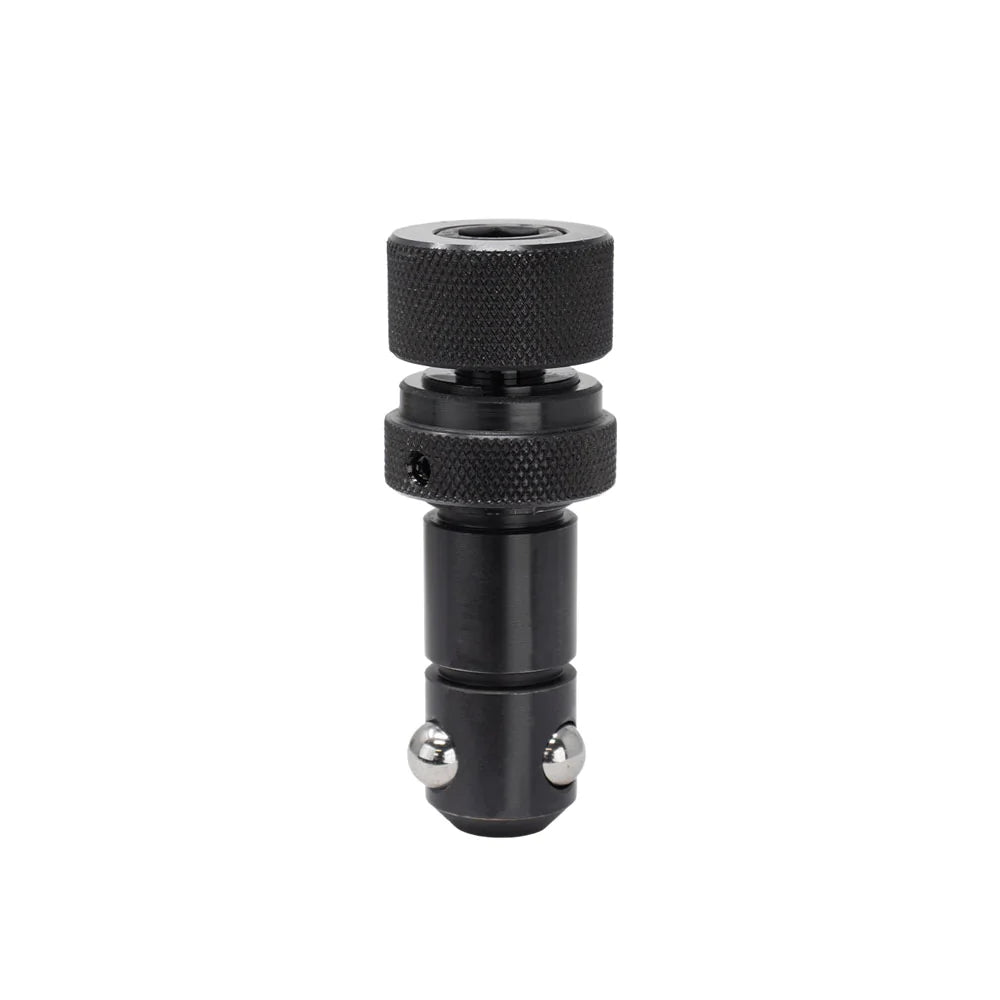

T28-47455	Universal bolt w/ collar, Short	106	28	0.6	45 ~ 53 mm clamping zone, 2 components	M8

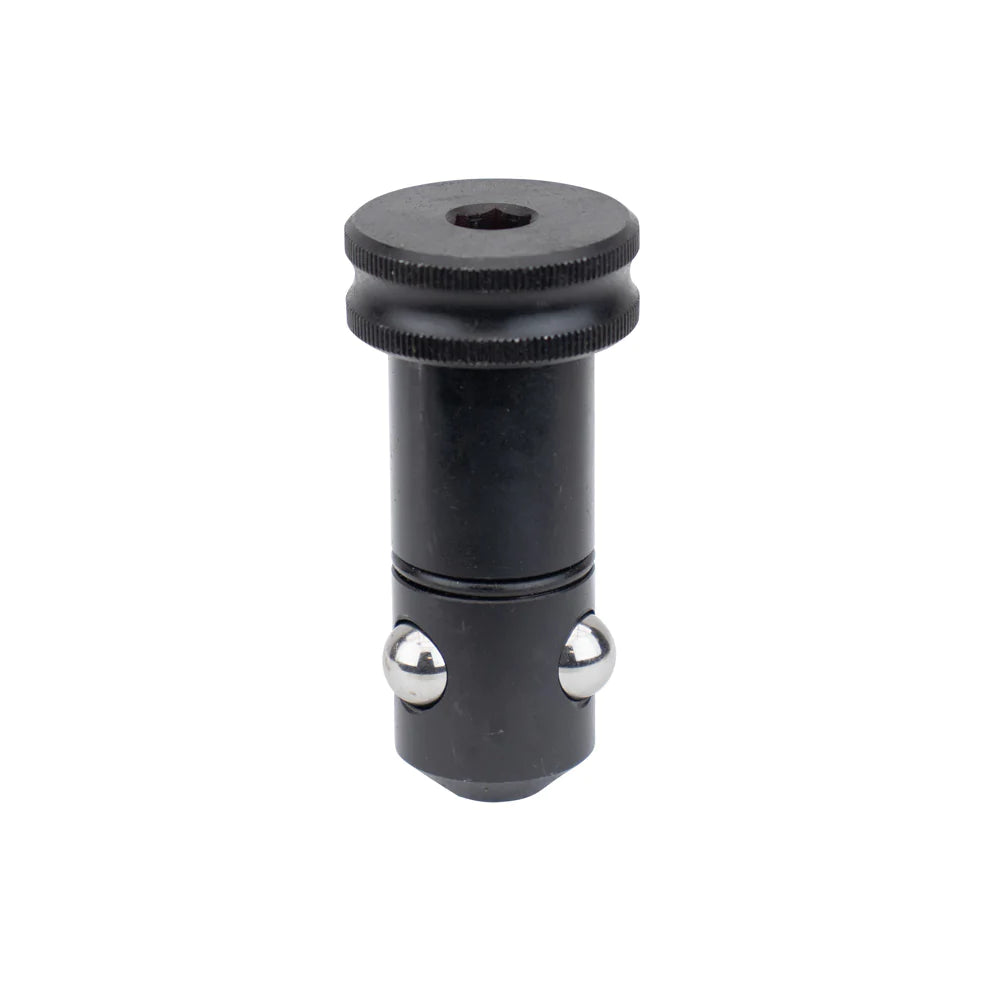

T28-47550	Universal bolt, Short	84	28	0.4	42 ~ 57 mm clamping range. For clamping 2 components	M14

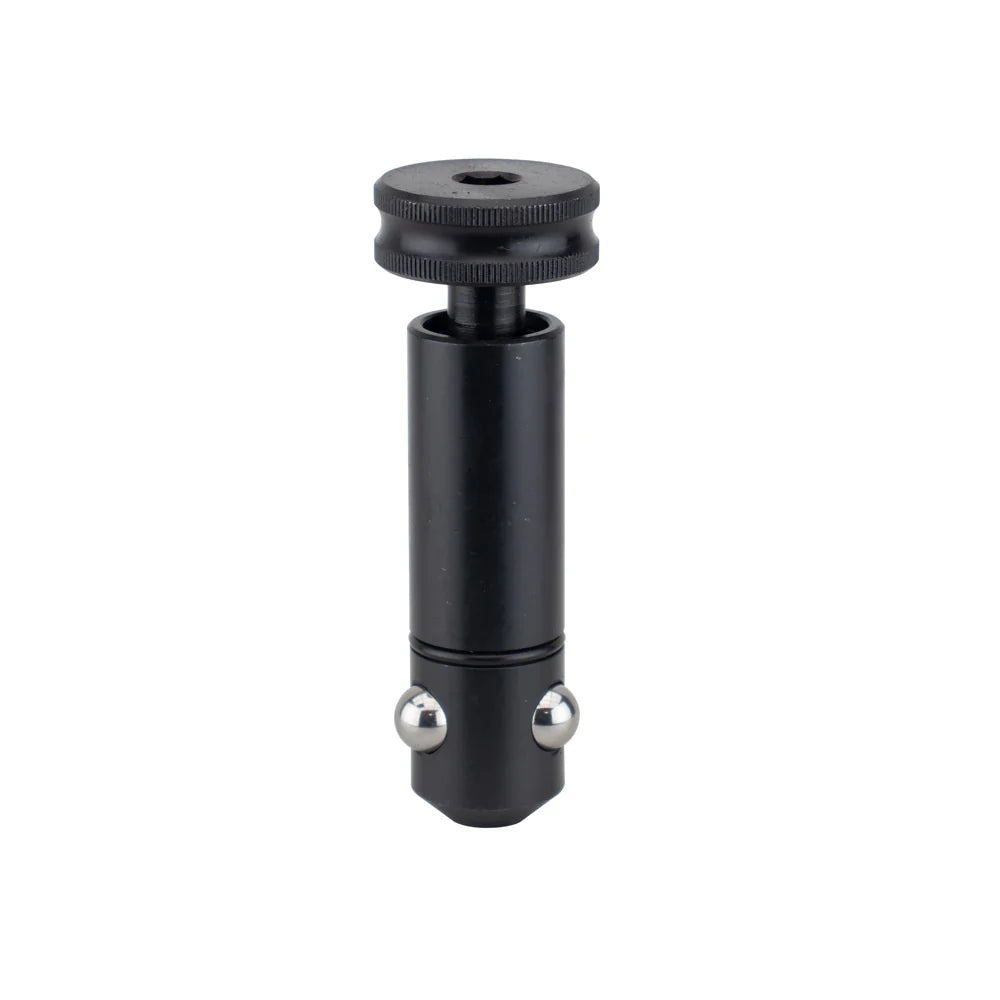

T28-47575	Universal bolt, Long	108	28	0.6	47 ~ 82 mm clamping range. For clamping 3 components	M14

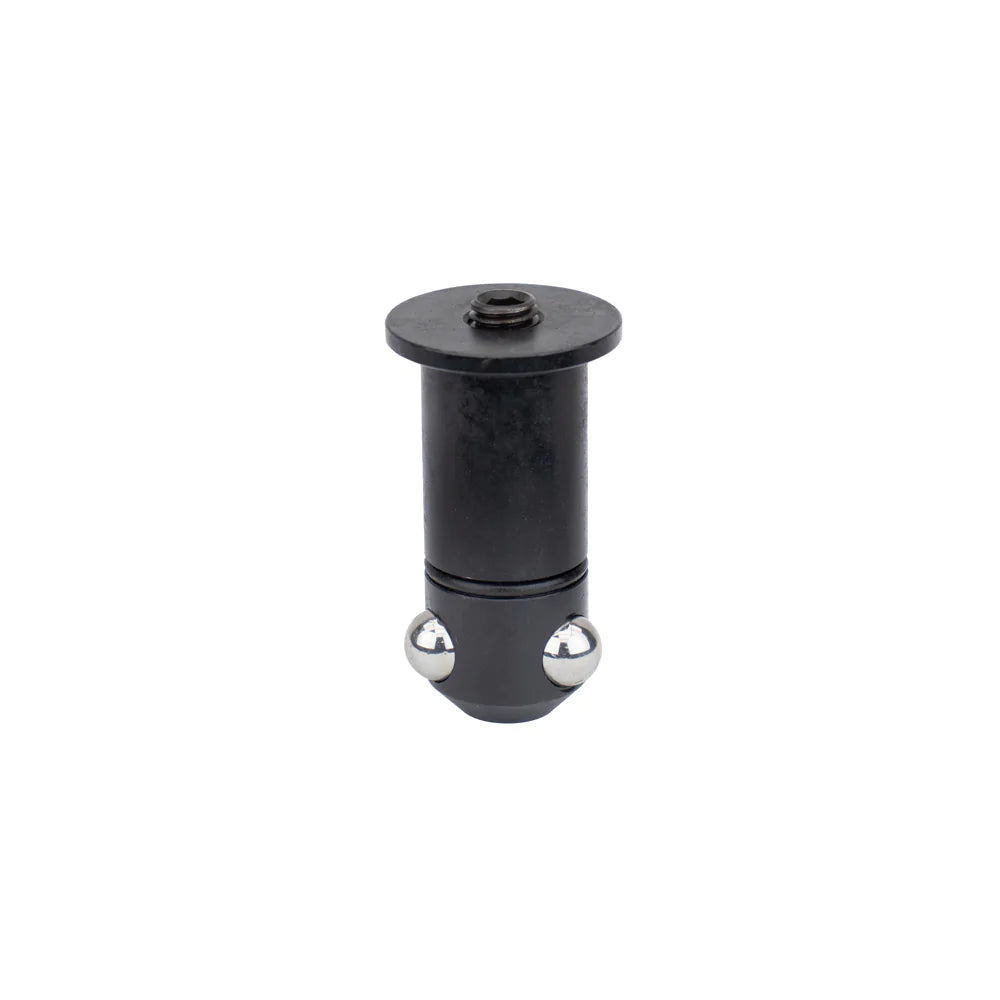

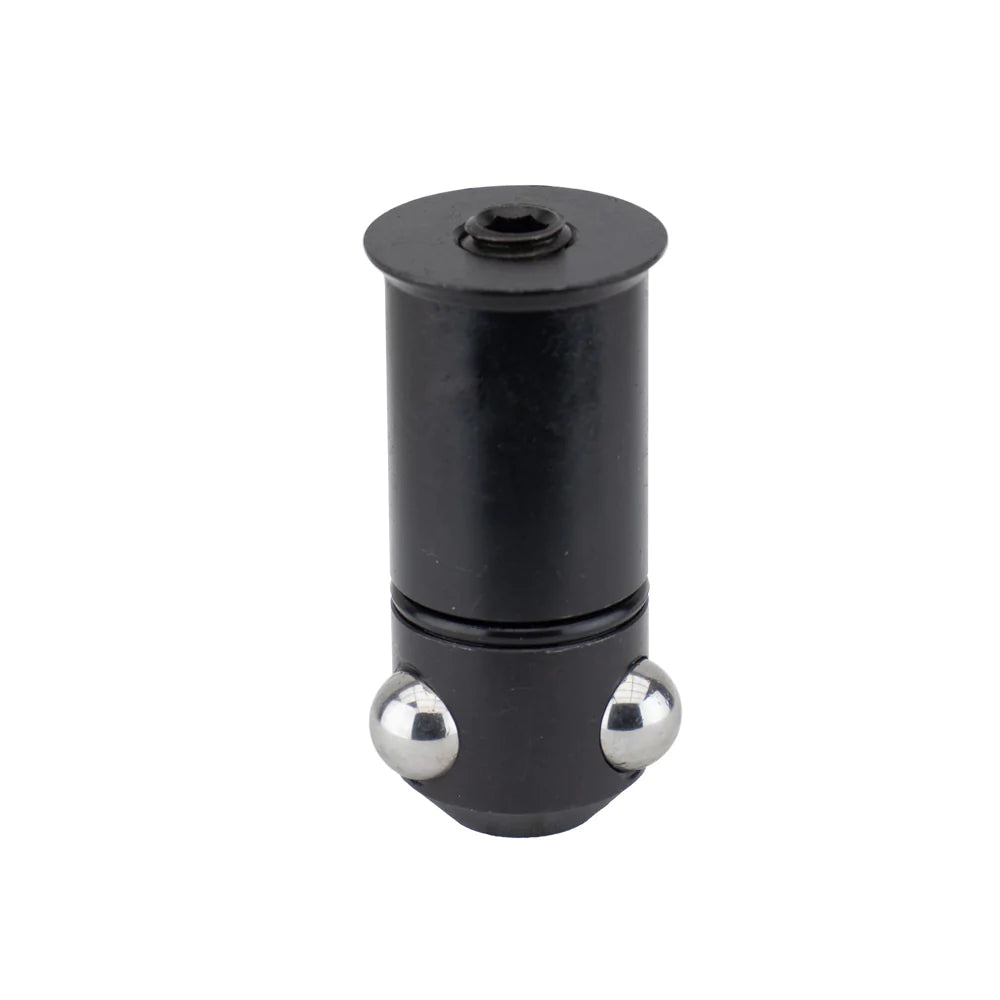

T28-46350	Flat Clamping Bolt, Short	74	28	0.4	Low profile bolt for use in oblong holes such as for sliding base plate	M6
T28-46375	Fast Clamping Bolt, Flat Long	99	28	0.5	For clamping 3 components	M6
T28-46650	Flush Mounted Bolt, Short	67	28	0.3	Flush Mount head not suitable for placement in oblong slots	M6

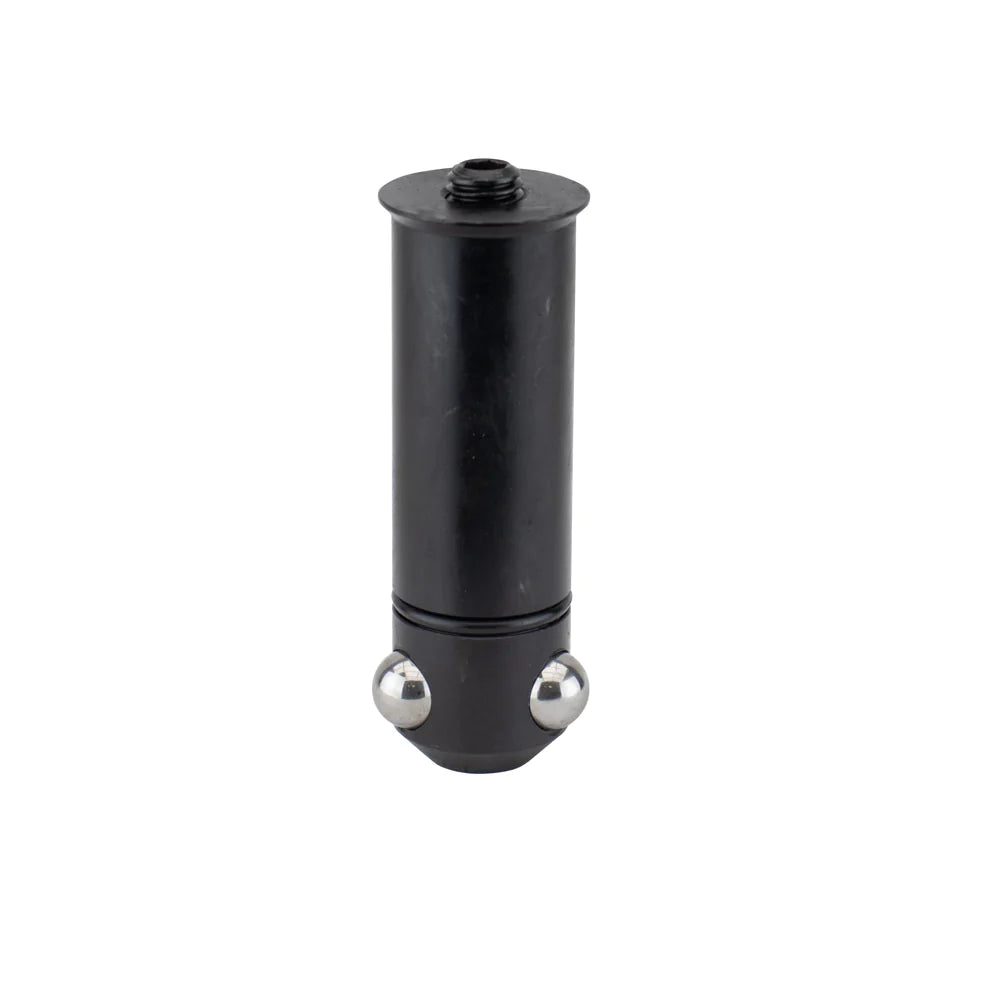

T28-46675	Flush Mount Bolt, Long	91	28	0.4	Flush Mount head not suitable for placement in oblong slots	M6
