BuildPro

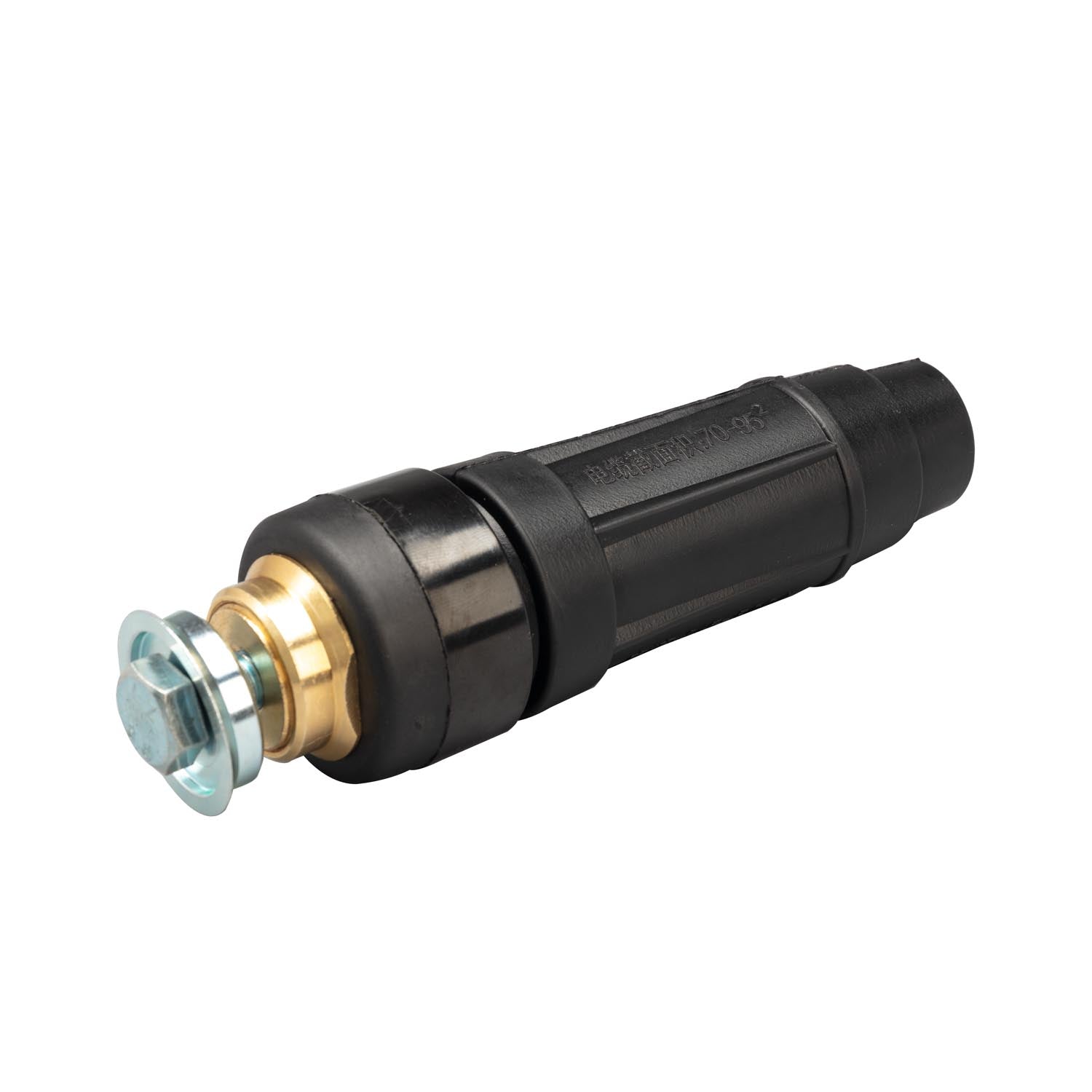

Table Grounding Adaptor, Fits 28 mm Holes

SKU: T28-97810

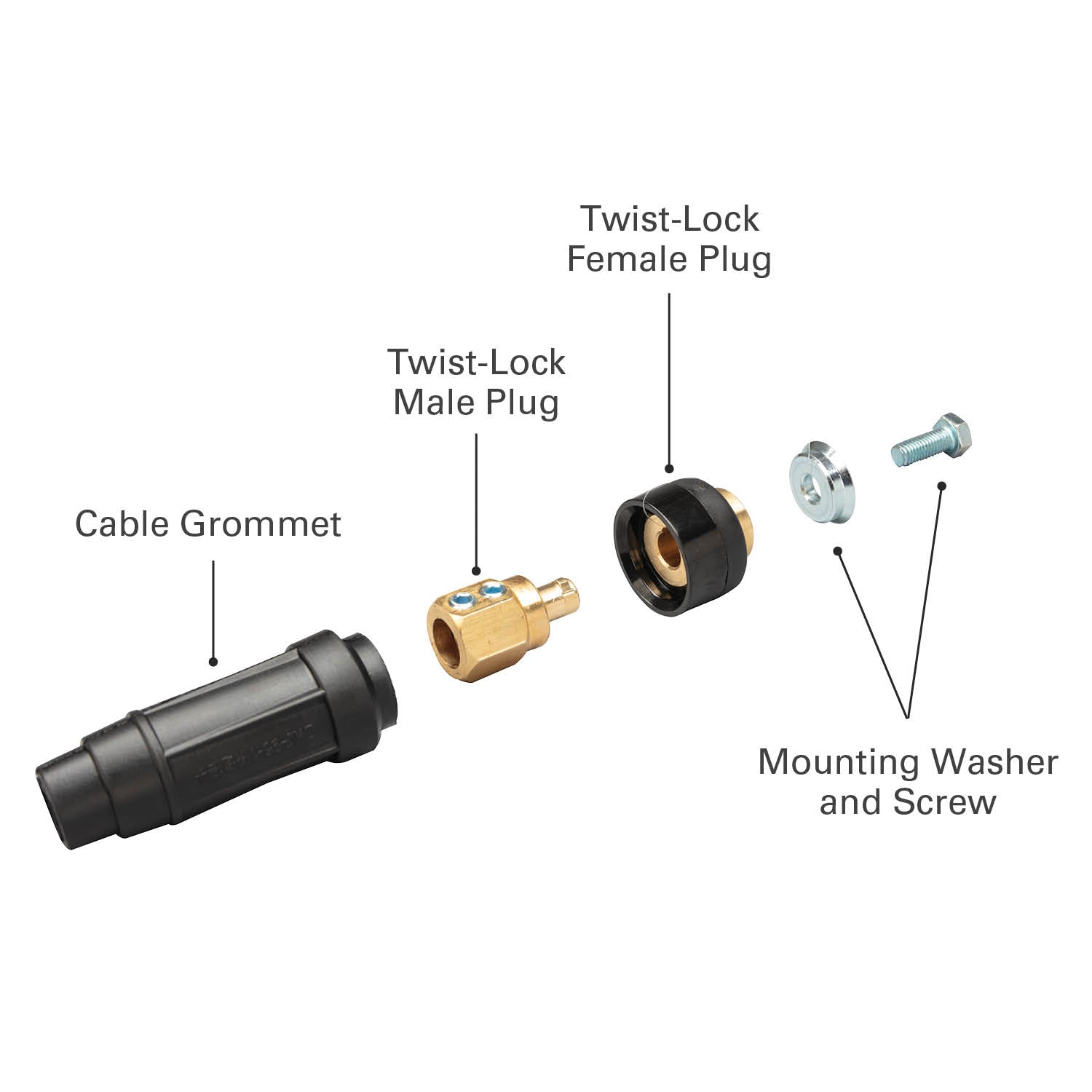

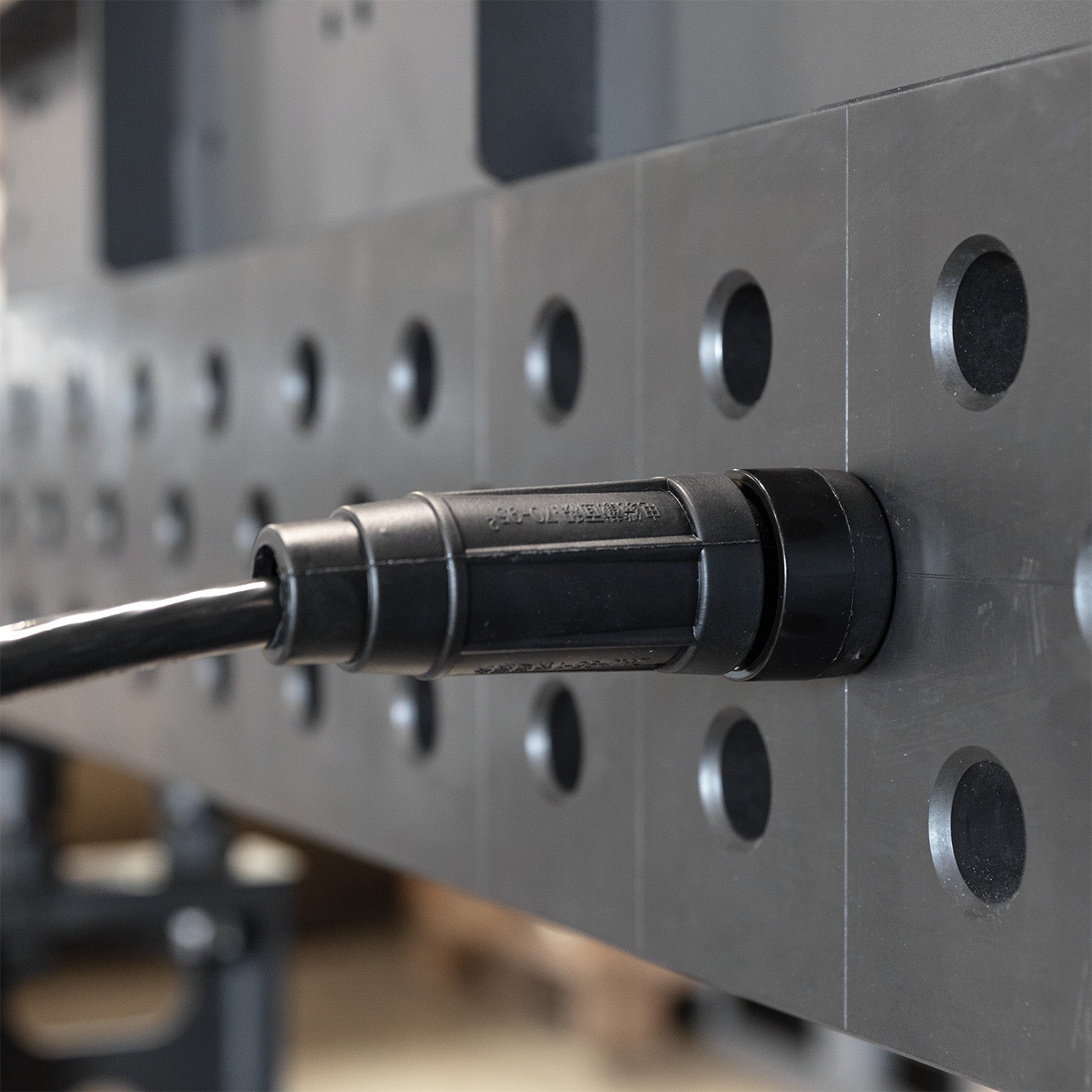

This grounding clamp offers an excellent solution for grounding to Alpha 28 fixturing tables for welding applications. The connectors are designed to easily twist-lock on and off while delivering consistent ground. The clamp is designed to fit into any 28 mm diameter hole of 13 to 25 mm depth.

500A. Grounding capacity will vary based on the cable used, but is designed to fit up to 2/0 size cables.


$48.00
$48.00
Sale Sold out
/
Shipping calculated at checkout.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Part No. Dimension (mm) Weight (kg)
T28-97810 150 x 45 0.4
