Vendor Strong Hand Tools

Half Clamp

SKU: VHC15

The Efficient, Safe Way to Align Materials. The DOG & WEDGE and CUT-OFF C-CLAMP methods of material alignment are messy, time-consuming, and unsafe!

  • Align materials in the fabrication of water tanks, bulkheads, deck sections, flat plates, etc.
  • For big jobs, tack weld additional 1-7/8” cut pipes along the joint.
  • Copper Plated Acme Screw / Ductile Iron Body
U.S. PAT. 6983525
Regular price $51.50
Sale price $51.50 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual
Specifications
CAD Files
Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

How to Use

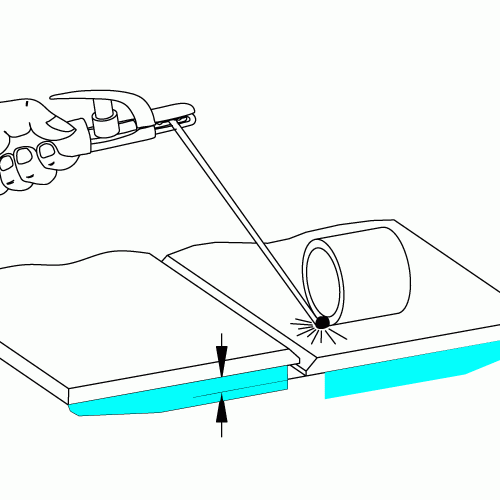

Tack weld the front side of 1-7/8” pipe coupon to the lower of the two surfaces.

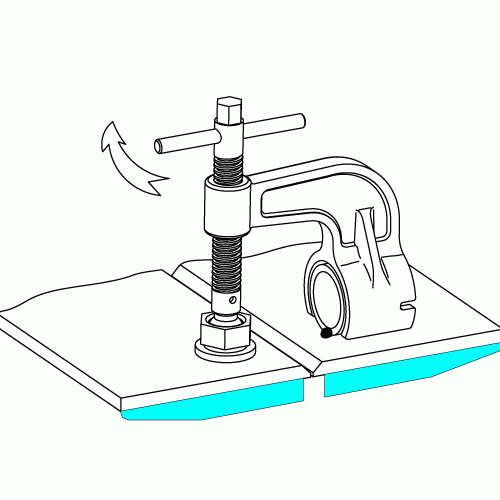

Slide Half Clamp onto the cut pipe, turn the handle until the misaligned materials align.

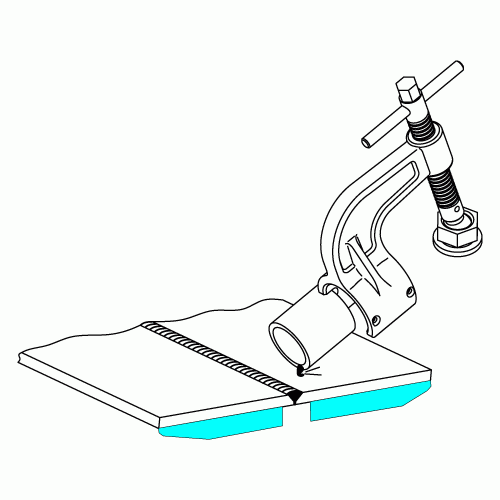

Use the rear slot on the Half Clamp to easily break off the coupon.

Part No. MAX. Torque Weight (lb)
VHC15 13.7 N-M 4.9
