Vendor BuildPro

Rotary Positioners

SKU: TMP59648

Positioner Capacity: 2,400 lb

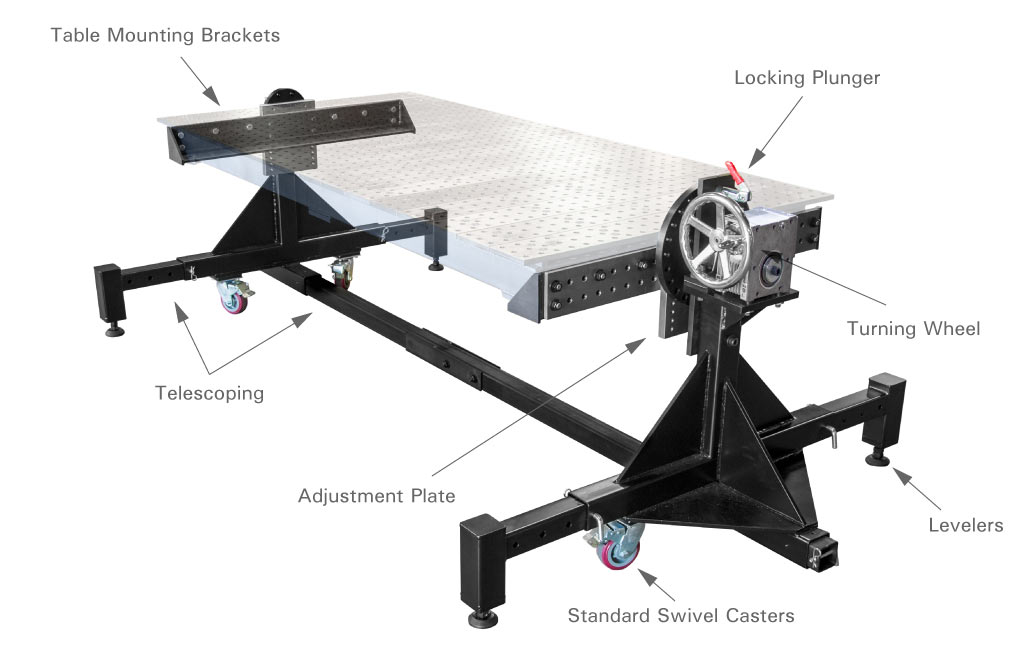

Mount your MAX Welding Tabletop to the BuildPro Rotary Positioner for plane rotation of your work surface. The low backlash gear drive allows for smooth operation, stability, and controlled turning and positioning.

The worm gears combined with center of gravity positioning minimizes the effort required for rotation while preventing free rotation of the table from gravity. A faceplate with 15° increments provides positive manual locking. The BuildPro Rotary Positioner allows you to rotate your weld fixture to the best ergonomic position for worker safety, comfort, and reduced operator fatigue.

The BuildPro Rotary Positioner is universal, with an adjustable base to accommodate most MAX Welding Tabletops. The Positioner features four swiveling, locking casters, and four leveling feet for setup at dedicated or alternating locations in the shop.

MADE IN USA

U.S. PAT.10328538

* Tabletop sold separately.

* Positioners are designed for MAX and Slotted tables, for Alpha 28 and 5/8 applications, please contact our sales team.

Regular price $6,905.00
Sale price $6,905.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Safety

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Specifications
CAD Files

TMP59648 - STEP

Request Documents

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly:

Adjustment plates help shift the center of gravity in 1” increments when working with tall or heavy parts. This allows smoother rotation of assemblies up to 90° from horizontal.

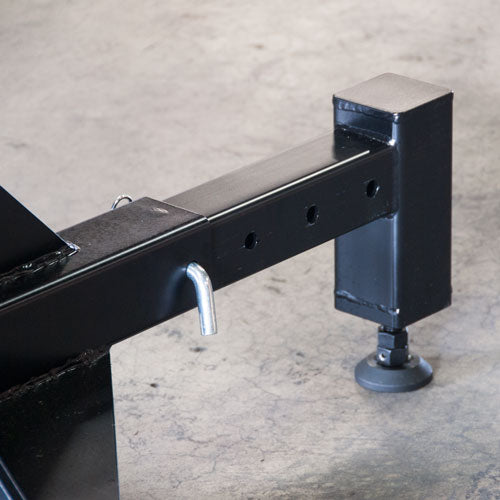

Our new adjustable outriggers allow greater stability when working with taller assemblies and can be retracted when not required.

For MAX Tabletops

Part No. Fits Tabletops Platform Size (ft) Approx. Weight (lb)
TMP59648 TM(Q)59648V 8 x 4 1,100
TMP57248 TM(Q)57248V 6 x 4 1,054
TMP56036 TM(Q)56036V 5 x 3 1,000
TMP54848 TM(Q)54848V 4 x 4 1,030

For MAX Slotted Tabletops

Part No. Fits Tabletops Platform Size (ft) Approx. Weight (lb)
TMP59446 TM(Q)59446SV 8 x 4 1,024
TMP57846 TM(Q)57846SV 6.5 x 4 1,010
TMP57838 TM(Q)57838SV 6.5 x 3 1,010
TMP54746 TM(Q)54746SV 4 x 4 988
TMP54738 TM(Q)54738SV 4 x 3 988
