The only modular ultra heavy duty welding table with positionable, self-locating, reversible Table Plates for unlimited possibilities in heavy duty fixturing for welding and fabrication. Accurately locate, position and clamp stock for higher quality welding.
BuildPro Engineers developed the Alpha 28 line by customer demand for an affordable, heavy duty, metric Welding Table. The five-face Alpha 28 Table is the optimal solution for precision vertical and horizontal fixturing to expand your capabilities in welding and fabrication.
Table Accuracy
| Hole Diameter: | 28 + .20 /-0 mm |
| Hole Spacing: | 100 ±0.05 mm |
| Table Flatness: | ±0.125 mm per 600 x 600 mm |
| Plate Thickness: | 25 ±0.06 mm |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Coefficient of Friction: | 0.37 |
Top Plate
| Material: | P20 |
| Hardness: | 58-62 HRC |
Side Plate
| Material: | Q345B |
| Hardness: | 50-55 HRC |
The only modular ultra heavy duty welding table with positionable, self-locating, reversible Table Plates for unlimited possibilities in heavy duty fixturing for welding and fabrication. Accurately locate, position and clamp stock for higher quality welding.
BuildPro Engineers developed the Alpha 28 line by customer demand for an affordable, heavy duty, metric Welding Table. The five-face Alpha 28 Table is the optimal solution for precision vertical and horizontal fixturing to expand your capabilities in welding and fabrication.
Table Accuracy
| Hole Diameter: | 28 + .20 /-0 mm |
| Hole Spacing: | 100 ±0.05 mm |
| Table Flatness: | ±0.125 mm per 600 x 600 mm |
| Plate Thickness: | 25 ±0.06 mm |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Coefficient of Friction: | 0.37 |
Top Plate
| Material: | P20 |
| Hardness: | 58-62 HRC |
Side Plate
| Material: | Q345B |
| Hardness: | 50-55 HRC |
Table Top Plates are made from tough P20 low alloy tool steel for a 60.5HRC hardness, then CNC machined for flatness.
QPQ Nitriding Treatment provides corrosion and weld spatter resistance for superior performance and wear.
Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.
Table Top Plates are made from tough P20 low alloy tool steel for a 60.5HRC hardness, then CNC machined for flatness.
QPQ Nitriding Treatment provides corrosion and weld spatter resistance for superior performance and wear.
Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.
System Borehole
Hole Diameter: 28 +0.20/-0 mm
Hole Spacing: 100 ±0.050 mm
Large chamfer on top for easy insertion. Chamfer on underside as well to maximize bolt clamping force.
Material Thickness
Plate Thickness: 25 ±0.06 mm
Tabletop Finish: Nitrided (Heat-Treated)
Coefficient of Friction: 0.37
Table surface
Table Flatness: ±0.125 mm per 600 x 600 mm (±0.005 per 24″ x 24″)
Material: P20
Surface Hardness: 58-62 HRC
Base Material Hardness: 25.1-29.6HRC
Borehole spacing 100 mm with additional 100 mm grid offset by 50 mm in the x and y axis, aka diagonal grid.
Self-locating Plate System for Top and Side Plates
Locating features in the table frame and plate combine with our locator bushings for self alignment.
Table Side Panel
Material: Q345B
Hardness: 50-55 HRC

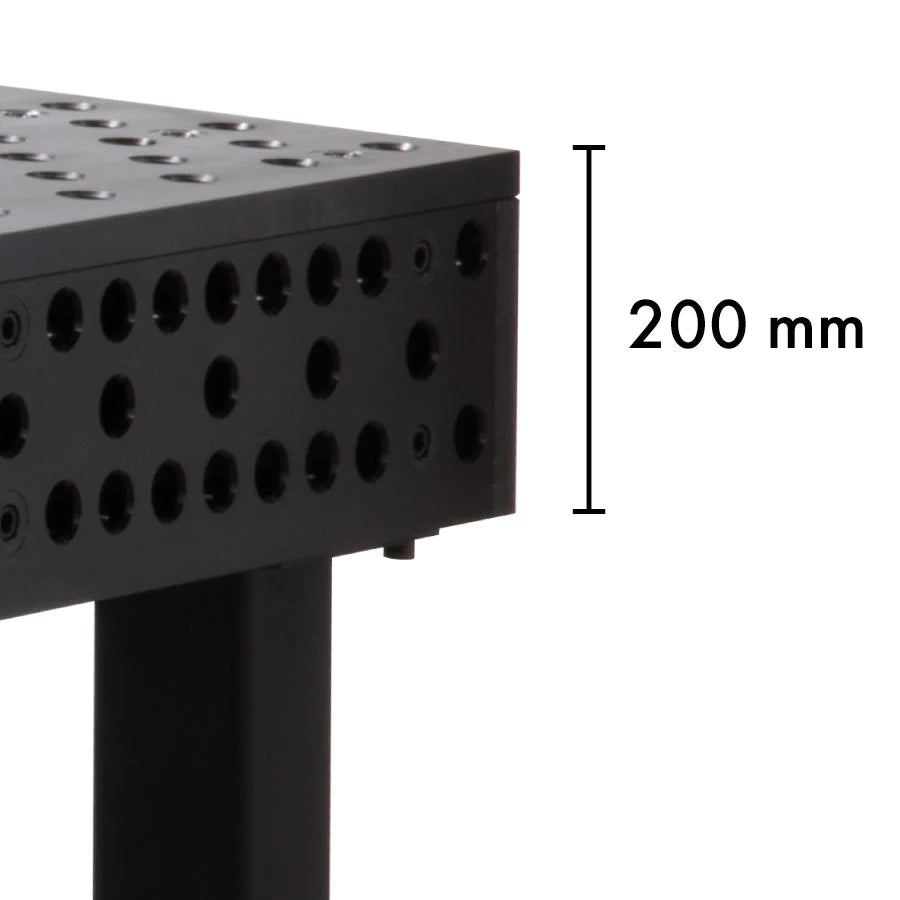

Tabletop: 200 mm high
Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
System Borehole
Hole Diameter: 28 +0.20/-0 mm
Hole Spacing: 100 ±0.050 mm
Large chamfer on top for easy insertion. Chamfer on underside as well to maximize bolt clamping force.
Material Thickness
Plate Thickness: 25 ±0.06 mm
Tabletop Finish: Nitrided (Heat-Treated)
Coefficient of Friction: 0.37
Table surface
Table Flatness: ±0.125 mm per 600 x 600 mm (±0.005 per 24″ x 24″)
Material: P20
Surface Hardness: 58-62 HRC
Base Material Hardness: 25.1-29.6HRC
Borehole spacing 100 mm with additional 100 mm grid offset by 50 mm in the x and y axis, aka diagonal grid.
Self-locating Plate System for Top and Side Plates
Locating features in the table frame and plate combine with our locator bushings for self alignment.
Table Side Panel
Material: Q345B
Hardness: 50-55 HRC
Tabletop: 200 mm high
Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
What people say about us:
I am still waiting on the fixture kit but so far am very impressed with the craftsmanship put into this table. It is super heavy but easy to assemble with the help of a forklift.
Kevin T
Morro Bay, CA
These tables are exceeding my expectations. They are built much heavier than what I envisioned.
Don W
Manitowoc, WI
Excellent size. Good access for mounting and tool insertion. Very stiff. Very straight.
David S
San Luis Obispo, CA
Tabletop + Fixed Length Legs
| Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| T28-2010XQ-A1 | T28-81007 | 860 | 6,000 | 925 |
| T28-2010XQ-A2 | T28-81005 | 710 | 6,000 | 922 |
| T28-2010XQ-A3 | T28-81004 | 560 | 6,000 | 917 |
Tabletop + Height-Adjustable Legs 620 ~ 970 mm
| Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight(kg) |
|---|---|---|---|---|
| T28-2010XQ-B1 | T28-82009 | 810 ~ 1,160 | 6,000 | 988 |

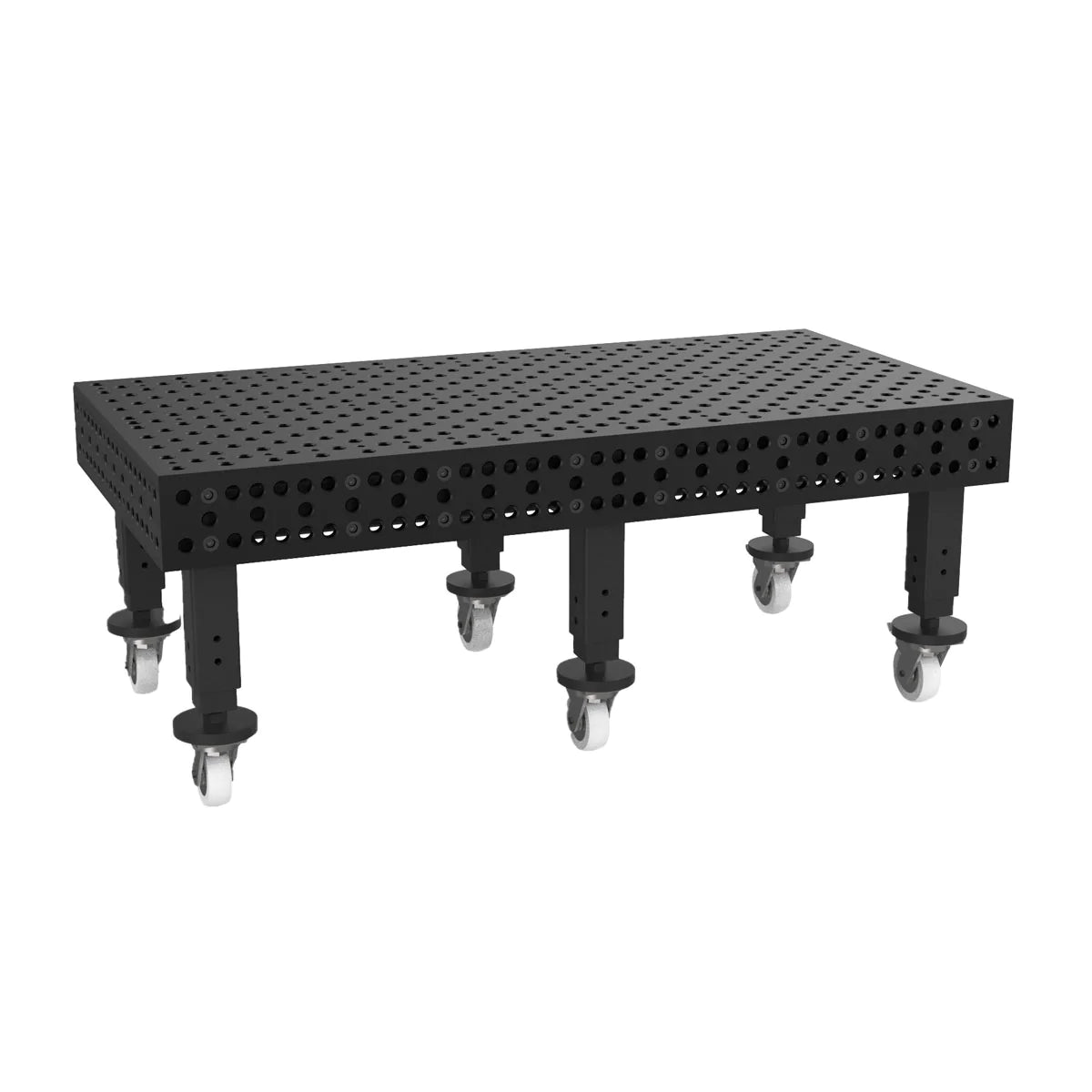

Tabletop + Height-Adjustable Legs + Caster and Locking Brake 575 ~ 780 mm
| Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| T28-2010XQ-C1 | T28-82407 | 765 ~ 970 | 4,800 | 1,057 |

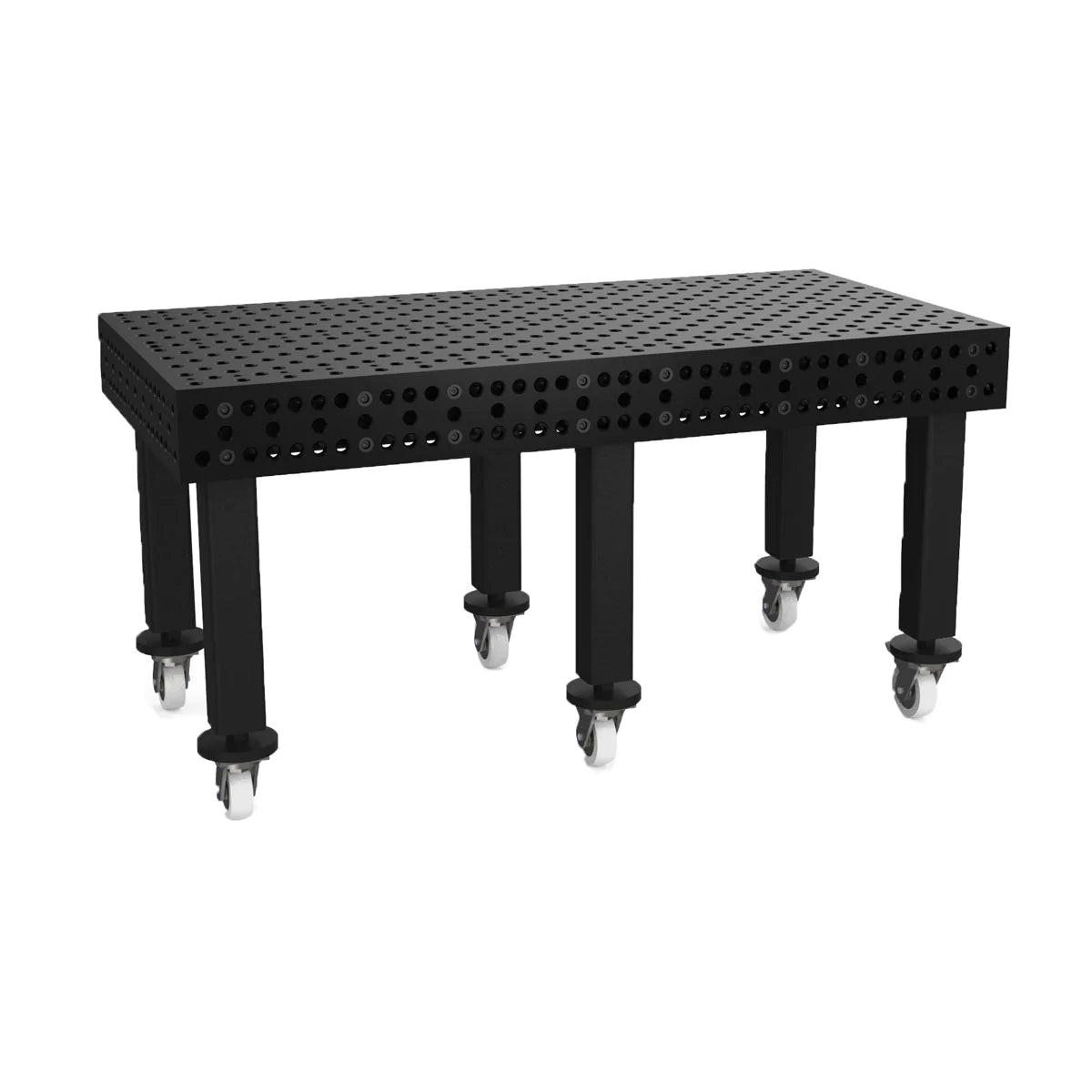

Tabletop + Fixed Length Legs + Caster and Locking Brake 845 mm
| Part No. | Includes Leg | Table Surface Height (mm) | Capacity (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| T28-2010XQ-C2 | T28-81406 | 1,035 | 4,800 | 994 |
